FIAT DUCATO 2010 Owner handbook (in English)

❒cover the vehicle with a piece of fabric or perforated
plastic sheet. Do not use compact plastic tarpaulins,
which prevent humidity from evaporating from the
surface of the vehicle;
❒inflate tyres to a pressure of +0.5 bar above the
normal specified pressure and check it at intervals;
❒if you don’t disconnect the battery from the electric
system, check its charge every month and recharge it
if the optical indicator shows a dark colour without
the central green area;
❒do not drain the engine cooling system.
IMPORTANT If the vehicle is equipped with an alarm
system, switch off the vehicle alarm with the remote
control.

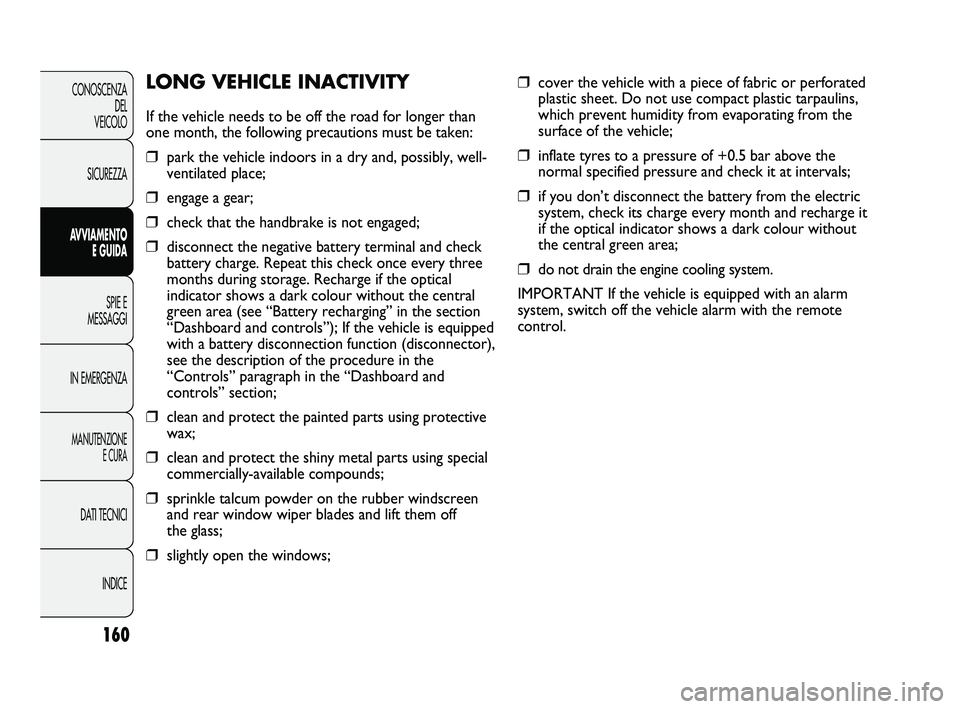

LONG VEHICLE INACTIVITY
If the vehicle needs to be off the road for longer than
one month, the following precautions must be taken:
❒park the vehicle indoors in a dry and, possibly, well-
ventilated place;
❒engage a gear;
❒check that the handbrake is not engaged;
❒disconnect the negative battery terminal and check
battery charge. Repeat this check once every three
months during storage. Recharge if the optical
indicator shows a dark colour without the central
green area (see “Battery recharging” in the section
“Dashboard and controls”); If the vehicle is equipped
with a battery disconnection function (disconnector),
see the description of the procedure in the
“Controls” paragraph in the “Dashboard and
controls” section;
❒clean and protect the painted parts using protective
wax;
❒clean and protect the shiny metal parts using special
commercially-available compounds;
❒sprinkle talcum powder on the rubber windscreen
and rear window wiper blades and lift them off
the glass;
❒slightly open the windows;
160
CONOSCENZA
DEL
VEICOLO
SICUREZZA
AVVIAMENTO
E GUIDA
SPIE E
MESSAGGI
IN EMERGENZA
MANUTENZIONE
E CURA
DATI TECNICI
INDICE
147-160 DUCATO LUM EN 7ed 6/21/10 2:13 PM Page 160

161
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
WARNING LIGHTS AND MESSAGES
GENERAL WARNINGS
The turning on of the warning light is accompanied by
a specific message and/or buzzer sound where provided
by instrument panel. These indications are brief and
precautionary and as such must not be considered as
exhaustive and/or an alternative to the information
contained in the Owner Handbook, which you are
recommended to read carefully in all cases. Always refer
to the information in this chapter in the event of
a failure indication.
IMPORTANT Failure indications displayed are divided
into two categories: very serious and less serious
failures.
Very serious failures prompt a prolonged cycle of
signals.
Less serious failures prompt a shorter cycle of signals.
Press MODE to stop the warning cycle in both cases.
The instrument panel warning light will stay on until the
cause of the failure is eliminated.
For messages relevant to the versions equipped with
Dualogic gearbox, see the attached Supplement.
WARNING LIGHTS AND MESSAGES
If the warning light xturns on when
travelling (on certain versions together
with the message on the display) stop the car
immediately and contact a Fiat Dealership.
WARNING
LOW BRAKE FLUID LEVEL (red)
HANDBRAKE ENGAGED (red)
When the key is turned to the MAR-ON
position the warning light comes on but should
go out after a few seconds.
Low brake fluid level
The warning light comes on when the level of the brake
fluid in the reservoir falls below the minimum level due
to a possible leak in the circuit.
On some versions the display shows the dedicated
message.
x
Handbrake engaged
The warning light turns on when the handbrake is
engaged.
On certain versions, if the vehicle is moving the buzzer
will also sound.
IMPORTANT If the warning light turns on when
travelling, check that the handbrake is not engaged.
161-172 DUCATO LUM EN 7ed 6/21/10 2:14 PM Page 161

162
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
AIRBAG FAILURE (red)
When the key is turned to the MAR-ON
position the warning light comes on but should
go out after a few seconds.
The warning light stays on constantly if there is a failure
in the air bag system.
On some versions the display shows the dedicated
message.
¬
If when turning the key to MAR-ON
the warning light ¬does not turn on
or if it stays on when travelling, there could be
a failure in the safety systems; in this event air
bags or pretensioners may not be deployed in
the event of impact or, in a lower number of
cases, they deploy accidentally. Contact a Fiat
Dealership immediately to have the system
checked.
WARNING
HOT ENGINE COOLANT (red)
When the key is turned to the MAR-ON
position the warning light comes on but should
go out after a few seconds.
The warning light turns on when the engine is
overheated.
ç
If the warning light comes on, proceed as follows:
❒when driving normally: stop the vehicle, switch off
the engine and check that the water level in the
reservoir is not below the MIN mark. If it is not, wait
for a few minutes for the engine to cool down then
slowly and carefully open the cap, top up with
coolant and check that the level is between the MIN
and MAX marks. Also check for any fluid leaks.
If, when restarting, the warning light should come on
again, contact a Fiat Dealership.
❒heavy duty use of vehicle (e.g.: towing trailer uphill
or fully laden car): decrease speed and if the warning
light stays on, stop the vehicle. Wait for 2 or
3 minutes with the engine running and slightly
accelerated to further accelerate the coolant
circulation. Then stop the engine. Check the correct
liquid level as described above.
IMPORTANT Over demanding routes, it is advisable to
keep the engine on and slightly accelerated for a few
minutes before switching it off.
On some versions the display shows the dedicated
message.
161-172 DUCATO LUM EN 7ed 6/21/10 2:14 PM Page 162

163
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
2. Exhausted engine oil
(only Multijet versions with DPF)
The warning light will turn on flashing together with the
message on the display (for versions/markets where
provided). Depending on the versions, the warning light
flashing modes are as follows:
– one minute every two hours;
– for three minute cycles with the warning light off for
intervals of five seconds until oil is changed.
After the first indication, at each engine start up the
warning light will continue flashing as above described
until the oil is changed. For versions/markets where
provided, the display shows a dedicated message
together with the warning light.
If the warning light flashes, this does not mean that the
vehicle is defective, but simply informs the driver that it
is now necessary to change the oil as a result of regular
vehicle use.
Remember that the deterioration of the engine oil is
accelerated by:
– mainly town use of the vehicle which makes the DPF
regeneration process more frequent;
– use of the vehicle for short trips, preventing the
engine from reaching operating temperature;
– repeated interruption of the regeneration process,
signalled by the DPF warning light coming on. LOW BATTERY CHARGE (red)
The warning light comes on when the ignition
key is turned to MAR-ON, but it should go
out as soon as the engine has started (with the
engine running at idle speed a brief delay before going
out is acceptable).
If the warning light stays on constantly or keeps flashing:
contact immediately Fiat Dealership.
w
LIGHT STAYS ON: LOW ENGINE OIL
PRESSURE (red)
FLASHING: EXHAUSTED ENGINE OIL
(red)
(only Multijet versions with DPF)
When the ignition key is moved to MAR-ON, the
warning light switches on, and should go out as soon as
the engine is started.
1. Low engine oil pressure
The warning light turns on and stays on constantly
along with a message on the display (for versions/
markets where provided) when the system detects that
engine oil pressure is low.
v
If the warning light vturns on when
the car is travelling (on certain versions
together with the message on the display) stop
the engine immediately and contact a Fiat
Dealership.
WARNING
161-172 DUCATO LUM EN 7ed 6/21/10 2:14 PM Page 163

164
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
INCOMPLETE DOOR/LOAD
COMPARTMENT CLOSURE (red)
On some versions the warning light turns on
when one or more doors or the tailgate are not
properly closed.
On some versions, the display shows a dedicated
message that indicates left/right front door or rear/load
compartment door opening.
A buzzer will sound when doors/tailgate are open and
the vehicle is moving.
´
Degraded engine oil should be replaced as
soon as possible after the warning light
comes on, and never more than 500 km after it
first comes on.
If the above instructions are not complied with,
the engine could be severely damaged and it may
invalidate the warranty. Please note also that the
switching on of this warning light does not depend
on the oil quantity in the engine; when the
warning light flashes, never add oil.
WARNING
EBD FAILURE (red)
(amber)
Warning lights
xand >lit at the
same time with the engine running,
indicate an EBD system failure or that the system is not
available. Early locking of the rear wheels may occur in
the event of violent braking causing the car to swerve.
Drive very carefully to a Fiat Dealership to have the
system inspected immediately.
On some versions the display shows the dedicated
message.
>
SEAT BELT NOT FASTENED (red)
The warning light on the display will light up
when the vehicle is moving and the driver’s
seat belt is not correctly fastened. The warning
light will flash and a buzzer will sound if the front seat
belts are not correctly fastened with the vehicle in
motion. The SBR (Seat Belt Reminder) system’s audible
warning can be disabled only by a Fiat Dealership. On
some versions the system may be reactivated from the
setup menu.
<
x
161-172 DUCATO LUM EN 7ed 6/21/10 2:14 PM Page 164

165
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
FRONT PASSENGER’S AIR BAG
DEACTIVATED (amber)
(for versions/markets, where provided)
The warning light
Fcomes on when the front
passenger’s air bag is deactivated.
With front passenger air bag on, when the ignition key
is turned to MAR-ON the
Fwarning light comes on
constantly for about 4 seconds, flashes for another
4 seconds and then should go out.
INJECTION SYSTEM FAILURE
(amber)
In normal conditions, when the ignition key is
moved to MAR-ON, the warning light turns on
and should go off after engine start-up.
The warning light staying on or turning on when
travelling, signals a fault in the supply/ignition system
which could cause possible lack of performance, poor
handling and high consumption levels.
On some versions the display shows the dedicated
message.
Under these conditions, you may continue travelling at
moderate speed without demanding excessive effort
from the engine. Contact a Fiat Dealership as soon as
possible.
UF
Warning light Findicates failure of
warning light ¬. This condition is
indicated by intermittent blinking of warning
light
Ffor longer than 4 seconds. In this case,
the warning light ¬may not indicate failures in
the retaining system. Before resuming driving,
contact a Fiat Dealership immediately to have
the system checked.
WARNING
161-172 DUCATO LUM EN 7ed 6/21/10 2:14 PM Page 165

FUEL RESERVE (amber)
Turning the key to the MAR-ON position
illuminates the warning light, but it should switch
off after a few seconds.
The warning light turns on when about 10 to 12 litres of
fuel are left in the tank (depending on the version).
IMPORTANT The warning light will flash to indicate
a system failure. If this is the case, contact a Fiat
Dealership to have the system checked.
166
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEXç
ABS SYSTEM FAILURE (amber)
When the key is turned to the MAR-ON
position the warning light comes on but should
go out after a few seconds.
The warning light will light up when the system is either
not working or not available. Under these
circumstances the braking system will work as normal
without the extra performance offered by the ABS
system. Drive carefully and contact a Fiat Dealership as
soon as possible.
On some versions the display shows the dedicated
message.
>
GLOW PLUG PRE-HEATING
(Multijet versions – amber)
GLOW PLUG HEATING FAILURE
(Multijet versions – amber)
Glow plugs
This warning light comes on when the key is turned to
MAR-ON. It will go out as soon as the heater plugs
have reached a preset temperature. Start the engine as
soon as the warning light goes out.
IMPORTANT At high ambient temperatures the
warning light may stay on for an extremely short time.
Glow plug warming failure
The warning light flashes if there is a fault in the
preheating system. Contact a Fiat Dealership as soon
as possible.
On some versions the display shows the dedicated
message.
m
161-172 DUCATO LUM EN 7ed 6/21/10 2:14 PM Page 166

167
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
The presence of water in the supply
circuit may cause severe damage to the
injection system and irregular engine
operation. If warning light
clights up (on some
versions with the message on the display),
contact a Fiat Dealership as soon as possible to
have the system bled. If the same message is
displayed immediately after refuelling, water may
have entered the tank: turn the engine off
immediately and contact a Fiat Dealership.
WATER IN DIESEL FILTER (Multijet
versions – amber)
When the key is turned to the MAR-ON
position the warning light comes on but should
go out after a few seconds.
The warning light turns on when there is water in the
diesel fuel filter.
On some versions the display shows the dedicated
message.
c
VEHICLE PROTECTION SYSTEM
FAILURE – FIAT CODE
(amber)
Turning the key to MAR-ON the warning light
will flash only once and then go off.
When the warning light comes on constantly, with key
in MAR-ON, this indicates:
❒a potential fault (refer to “The Fiat CODE system”
paragraph in the section “Dashboard and controls”);
❒a possible theft attempt with an alarm; in this case
the warning light goes off after approximately
10 seconds.
If with the engine running the warning light
Yflashes,
the vehicle is not protected by the engine inhibitor
device (see “Fiat Code system” in section “Dashboard
and controls”).
Contact a Fiat Dealership to have all the keys
reprogrammed.
Y
161-172 DUCATO LUM EN 7ed 6/21/10 2:14 PM Page 167

168
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
EXTERNAL LIGHT FAILURE
(amber)
The warning light will come on (some versions
only) when a failure to one of the following lights
is detected:
– side lights
– brake lights
– rear fog lights
– direction indicators.
The failure relating to these lights could be: one or
more blown bulbs, a blown protection fuse or a break
in the electrical connection.
On some versions the display shows the dedicated
message.
W
REAR FOG LIGHTS (amber)
The warning light comes on when the rear fog
lights are turned on.
4
GENERIC FAILURE INDICATION
(amber)
The warning light turns on in the following
circumstances.
Engine oil pressure sensor failure
The warning light turns on when failure is detected in
engine oil pressure sensor. Contact a Fiat Dealership to
have the failure fixed as soon as possible.
Fuel cut-off switch tripped
The warning light comes on when the inertial fuel
cut-off switch is triggered.
The display will show the dedicated message.
Parking sensor fault
(versions with multifunction display)
The warning light comes on when a rain sensor failure is
detected. Go to a Fiat Dealership.
The display shows the dedicated message.
Rain sensor fault
(versions with multifunction display)
See what is described for warning light
t.
è
161-172 DUCATO LUM EN 7ed 6/21/10 2:14 PM Page 168

169
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
ESP-ASR SYSTEM FAILURE
(amber)
(for versions/markets, where provided)
HILL HOLDER FAILURE (amber)
(for versions/markets, where provided)
When the key is turned to the MAR-ON position the
warning light comes on but should go out after a few
seconds.
ESP-ASR system failure
If the warning light does not go off or stays on together
with the LED on the ASR button when travelling,
contact a Fiat Dealership.
On certain versions the dedicated message is displayed.
N.B. The warning light flashing when driving indicates
that the ESP system has been activated.
á
DPF (PARTICULATE FILTER)
CLEANING IN PROGRESS
(amber)
(only Multijet versions with DPF)
When the key is turned to the MAR-ON position the
warning light comes on but should go out after a few
seconds.
The warning light turns on constantly when the DPF
system needs to eliminate the trapped pollutants
through the regeneration process.
The warning light does not come on every time the
DPF is being regenerated, rather only when the driving
conditions are such that the driver needs to know it.
The warning light will go off if the vehicle stays in
motion until regeneration has been completed. As an
average, the process lasts fifteen minutes.
Optimum conditions for completing the process are
achieved by travelling at 60 km/h with engine revs
above 2000 rpm.
If this warning light comes on, it does not mean the
vehicle is defective, so there is no need to take it to
a garage.
For versions/markets where provided, the display
shows the dedicated message and the warning light
comes on.
hAlways drive at a speed appropriate to the
traffic conditions, the weather and speed
limits. The engine can also be switched off if the
DPF warning light is on; nevertheless, repeated
interruptions of the regeneration process could
cause an early decay of engine oil. For this reason,
always wait until the warning light switches off
before stopping the engine as described above.
It is not advisable to complete DPF regeneration
with the vehicle stationary.
WARNING
161-172 DUCATO LUM EN 7ed 6/21/10 2:14 PM Page 169
