technical specifications FIAT DUCATO 2010 Owner handbook (in English)

264
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
120 Multijet
1950÷2060
1240÷1350
1750
1900
3300
2500
750
100
160 Multijet
2000÷2100
1190÷1300
1750
1900
3300
2500
750
100
100 Multijet
1935÷2045
1255÷1365
1750
1900
3300
2000
750
100
120 Multijet
2125
1375
2100
2440
3500
2500
750
100
160 Multijet
2175
1325
2100
2440
3500
2500
750
100

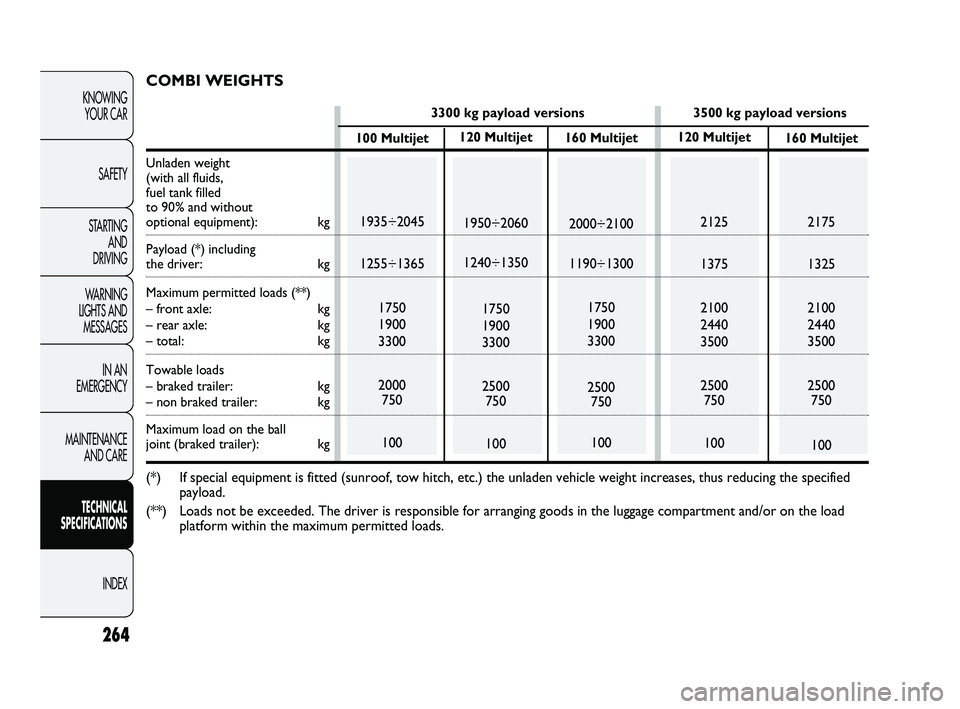

COMBI WEIGHTS
3300 kg payload versions 3500 kg payload versions
Unladen weight
(with all fluids,
fuel tank filled
to 90% and without
optional equipment): kg
Payload (*) including
the driver: kg
Maximum permitted loads (**)
– front axle: kg
– rear axle: kg
– total: kg
Towable loads
– braked trailer: kg
– non braked trailer: kg
Maximum load on the ball
joint (braked trailer): kg
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified
payload.
(**) Loads not be exceeded. The driver is responsible for arranging goods in the luggage compartment and/or on the load
platform within the maximum permitted loads.
231-276 DUCATO LUM EN 9ed 15-04-2011 8:21 Pagina 264

265
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

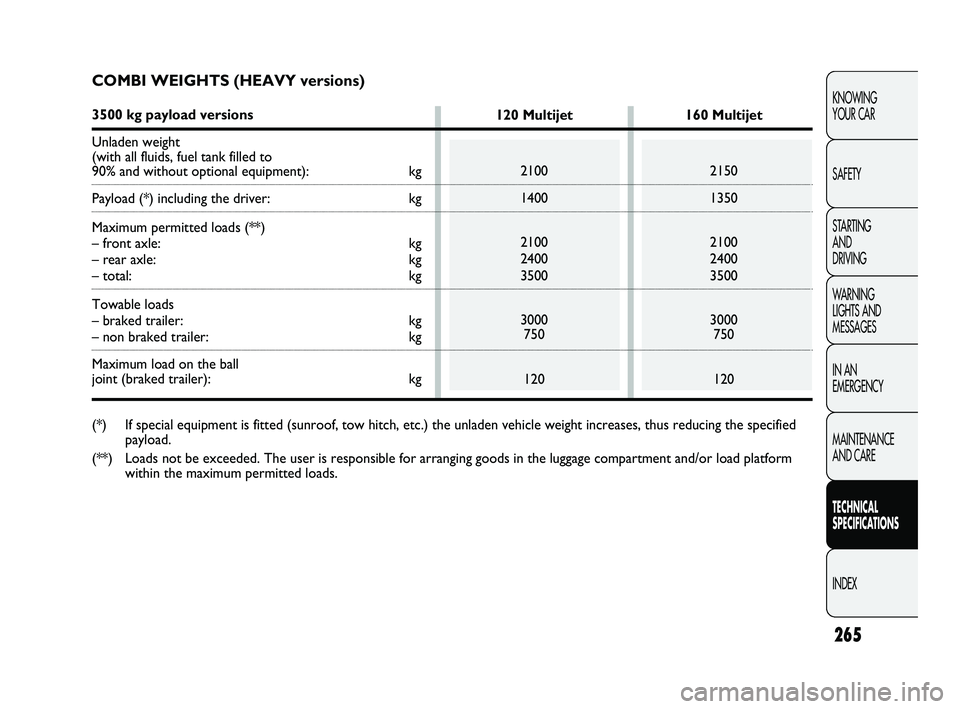

COMBI WEIGHTS (HEAVY versions)
3500 kg payload versions
Unladen weight
(with all fluids, fuel tank filled to
90% and without optional equipment): kg
Payload (*) including the driver: kg
Maximum permitted loads (**)
– front axle: kg
– rear axle: kg
– total: kg
Towable loads
– braked trailer: kg
– non braked trailer: kg
Maximum load on the ball
joint (braked trailer): kg
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified
payload.
(**) Loads not be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform
within the maximum permitted loads.120 Multijet
2100
1400
2100
2400
3500
3000
750
120160 Multijet
2150
1350
2100
2400
3500
3000
750
120
231-276 DUCATO LUM EN 9ed 15-04-2011 8:21 Pagina 265

266
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
120 Multijet
2215
785
1630
1650
3000
2500
750
100160 Multijet
2265
735
1630
1650
3000
2500
750
100 100 Multijet
2200
800
1630
1650
3000
2000
750
100100 Multijet
2200÷2285
1015÷1100
1750
1900
3300
2000
750
100120 Multijet
2215÷2300
1000÷1085
1750
1900
3300
2500
750
100160 Multijet
2265÷2350
950÷1035
1750
1900
3300
2500
750
100

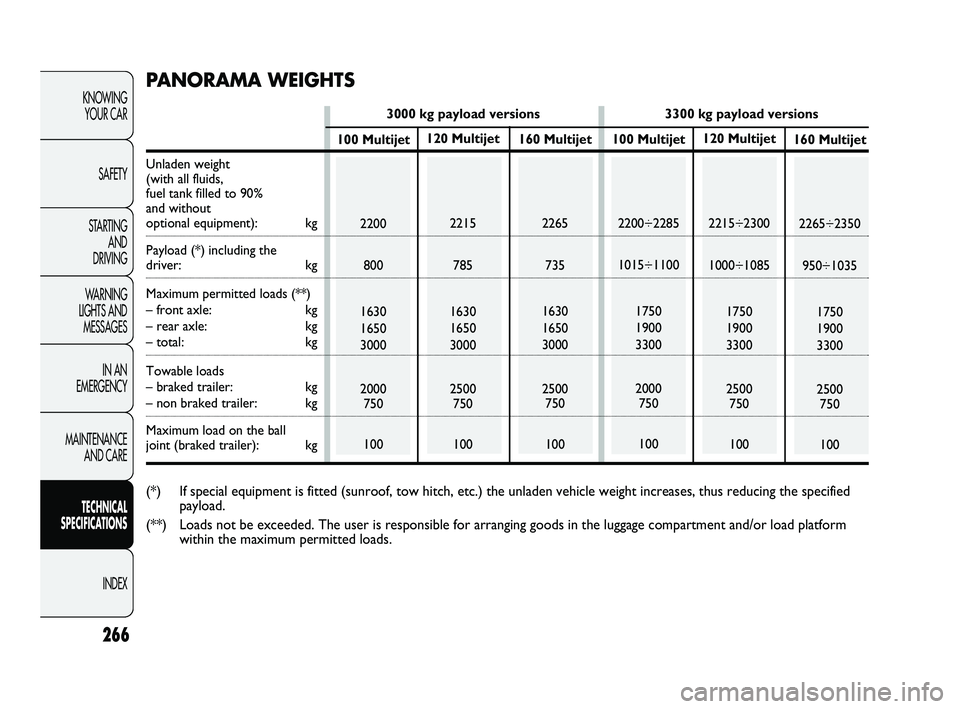

PANORAMA WEIGHTS
3000 kg payload versions 3300 kg payload versions
Unladen weight
(with all fluids,
fuel tank filled to 90%
and without
optional equipment): kg
Payload (*) including the
driver: kg
Maximum permitted loads (**)
– front axle: kg
– rear axle: kg
– total: kg
Towable loads
– braked trailer: kg
– non braked trailer: kg
Maximum load on the ball
joint (braked trailer): kg
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified
payload.
(**) Loads not be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform
within the maximum permitted loads.
231-276 DUCATO LUM EN 9ed 15-04-2011 8:21 Pagina 266

267
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
100
Multijet
90 (*)
10/12
11 (▼)
5,88
6,38
2,4 (❏)
0,6
0,62
1,5
5,5
5,5120
Multijet
90 (*)
10/12
11 (▼)
5,9
6,5
2,7 (❏) (❍)
2,9 (■) (●)
0,6
0,62
1,5
5,5
5,5130
Multijet
90 (*)
10/12
11 (▼)
5,9
6,5
2,7 (❏)
0,6
0,62
1,5
5,5
5,5160
Multijet
90 (*)
10/12
11 (▼)
8
9,1
2,9 (■)
0,6
0,62
1,5
5,5
5,5Prescribed fuels
Original products
Diesel fuel for motor vehicles
(EN 590 standard)
Mixture of 50% distilled water
and PARAFLU
UP(
▲)
SELENIA WR P.E.
TUTELA CAR EXPERYA (❏)
TUTELA CAR MATRYX (■)
TUTELA TOP 4
TUTELA CAR GI/E
Mixture of water and
TUTELA
PROFESSIONAL SC 35

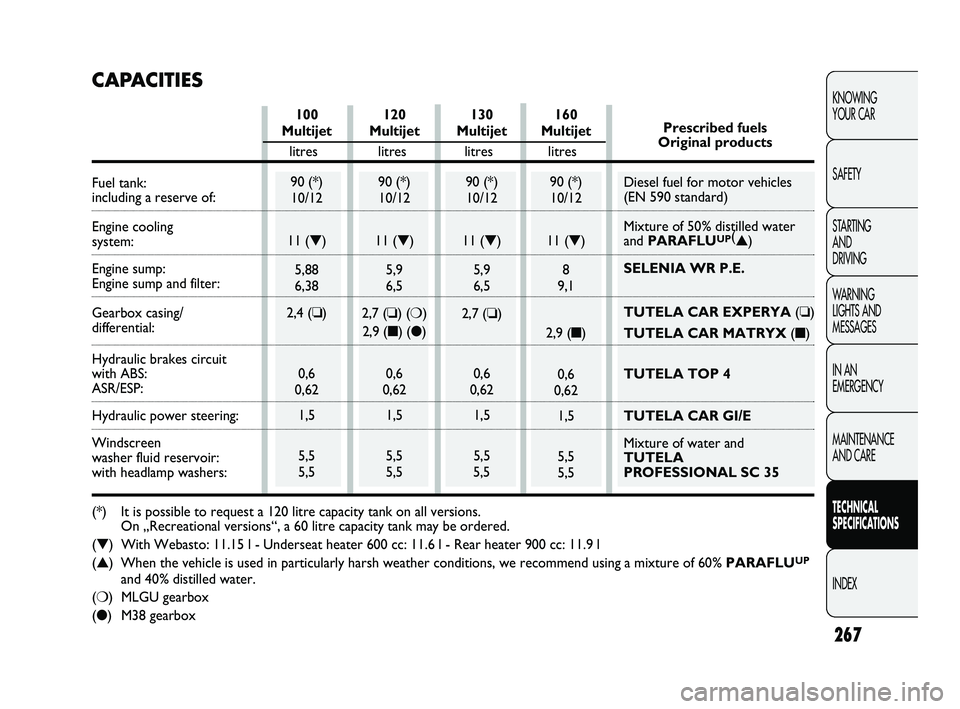

CAPACITIES
litres litres litres litres
Fuel tank:
including a reserve of:
Engine cooling
system:
Engine sump:
Engine sump and filter:
Gearbox casing/
differential:
Hydraulic brakes circuit
with ABS:
ASR/ESP:
Hydraulic power steering:
Windscreen
washer fluid reservoir:
with headlamp washers:
(*) It is possible to request a 120 litre capacity tank on all versions.
On „Recreational versions“, a 60 litre capacity tank may be ordered.
(▼) With Webasto: 11.15 l - Underseat heater 600 cc: 11.6 l - Rear heater 900 cc: 11.9 l
(▲) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLU
UP
and 40% distilled water.
(❍) MLGU gearbox
(●) M38 gearbox
231-276 DUCATO LUM EN 9ed 15-04-2011 8:21 Pagina 267

268
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
According to
Scheduled
Servicing Plan
Manual gearbox
and differential
Manual gearbox
and differential
Wheel side
constant velocity
joints
Differential side
constant velocity
joints
Differential side
constant velocity
joints
Hydraulic power
steering
Lubricants
(▲)
For diesel engines, in the event of an emergency in which the original products are not available, lubricants with at least ACEA C2
performance are acceptable; however, in this case optimum engine performance is not guaranteed and the lubricants should be replaced
with recommended products as soon as possible at a Fiat Dealership.
The use of products with lower specifications than ACEA C2 could cause damage to the engine not covered by the warranty.
For particularly harsh climate conditions, ask a Fiat Dealership for the appropriate product from PETRONAS LUBRICANTS.
SAE 5W-30 grade synthetic base lubricant.
FIAT 9.55535-S1 certification.
Synthetic base lubricant, SAE 75W-80 grade
that exceeds API GL-4 specifications
Synthetic base lubricant, SAE 75W-85 grade
that exceeds API GL-4 specifications
Lithium soap grease with molybdenum
disulphide. NI.GI. 2 consistency
Lithium-based grease
NI.GI. 0 consistency
Poly-urea synthetic-based grease suitable for
high temperatures. NI.GI. 2 consistency
Lubricant for power steering and automatic
transmissions. Exceeds
ATF DEXRON IIISELENIA WR P.E.(▲)
Contractual Technical
Reference No. 510.D07
TUTELA CAR EXPERYA
Contractual Technical
Reference No. F178.B06
TUTELA CAR MATRYX
Contractual Technical
Reference No. F108.F02
TUTELA STAR 500
TUTELA MRM ZERO
TUTELA STAR 325
Contractual Technical
Reference No. F301.D03
TUTELA GI/E
Contractual Technical
Reference No. F001.C94Diesel engine
lubricants
Lubricants
and greases
for motion
transmission

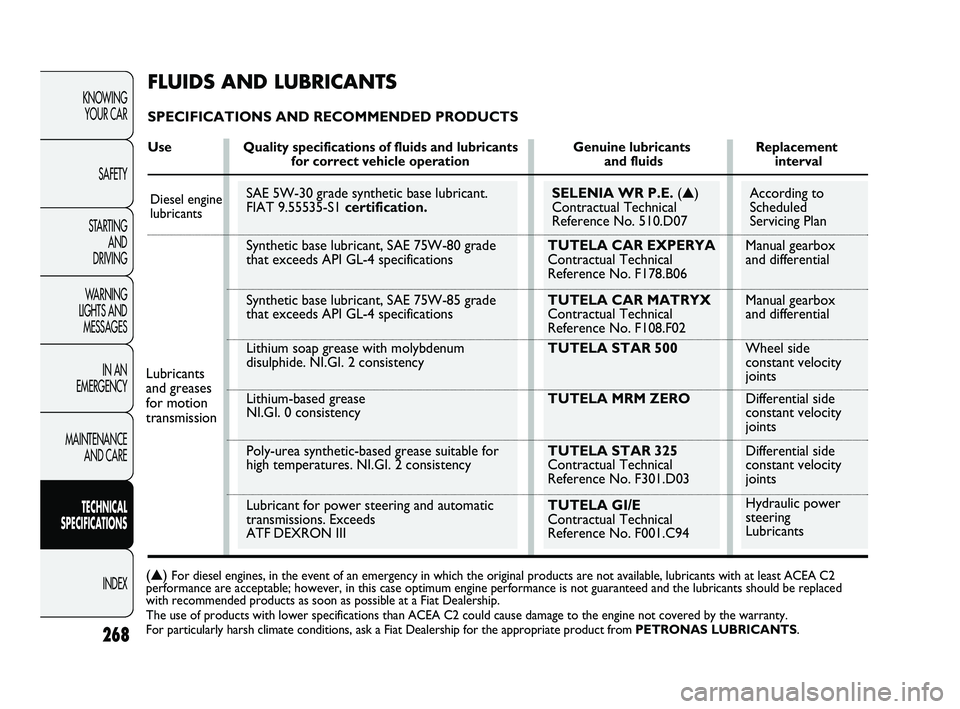

FLUIDS AND LUBRICANTS
SPECIFICATIONS AND RECOMMENDED PRODUCTS
Use Quality specifications of fluids and lubricants Genuine lubricants Replacement for correct vehicle operation and fluids interval
231-276 DUCATO LUM EN 9ed 15-04-2011 8:21 Pagina 268

269
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

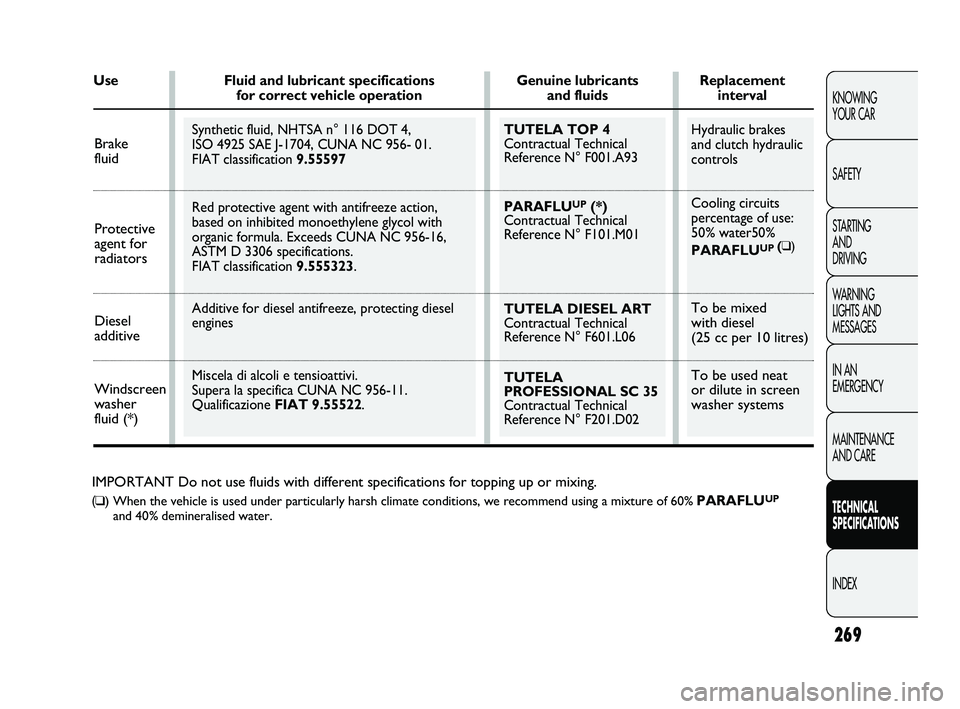

Hydraulic brakes
and clutch hydraulic
controls
Cooling circuits
percentage of use:
50% water50%
PARAFLU
UP (❑)
To be mixed
with diesel
(25 cc per 10 litres)
To be used neat
or dilute in screen
washer systems
Synthetic fluid, NHTSA n° 116 DOT 4,
ISO 4925 SAE J-1704, CUNA NC 956- 01.
FIAT classification 9.55597
Red protective agent with antifreeze action,
based on inhibited monoethylene glycol with
organic formula. Exceeds CUNA NC 956-16,
ASTM D 3306 specifications.
FIAT classification 9.555323.
Additive for diesel antifreeze, protecting diesel
engines
Miscela di alcoli e tensioattivi.
Supera la specifica CUNA NC 956-11.
Qualificazione FIAT 9.55522.Brake
fluid
Protective
agent for
radiators
Diesel
additive
Windscreen
washer
fluid (*)
IMPORTANT Do not use fluids with different specifications for topping up or mixing.
(❑) When the vehicle is used under particularly harsh climate conditions, we recommend using a mixture of 60% PARAFLUUP
and 40% demineralised water.
TUTELA TOP 4
Contractual Technical
Reference N° F001.A93
PARAFLU
UP(*)
Contractual Technical
Reference N° F101.M01
TUTELA DIESEL ART
Contractual Technical
Reference N° F601.L06
TUTELA
PROFESSIONAL SC 35
Contractual Technical
Reference N° F201.D02 Use Fluid and lubricant specifications Genuine lubricants Replacement
for correct vehicle operation and fluids interval
231-276 DUCATO LUM EN 9ed 15-04-2011 8:21 Pagina 269

7,3
6,9
7,5
6,8
7,0
6,5
6,8
6,7
6,9
7,2
7,67,3
7,6
7,2
7,5
7,5
7,8
8,2
8,6
7,9
7,8
8,68,9
9,3
10,2
8,2
8,5
8,3
8,8
8,9
9,4
9,9
10,2
270
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

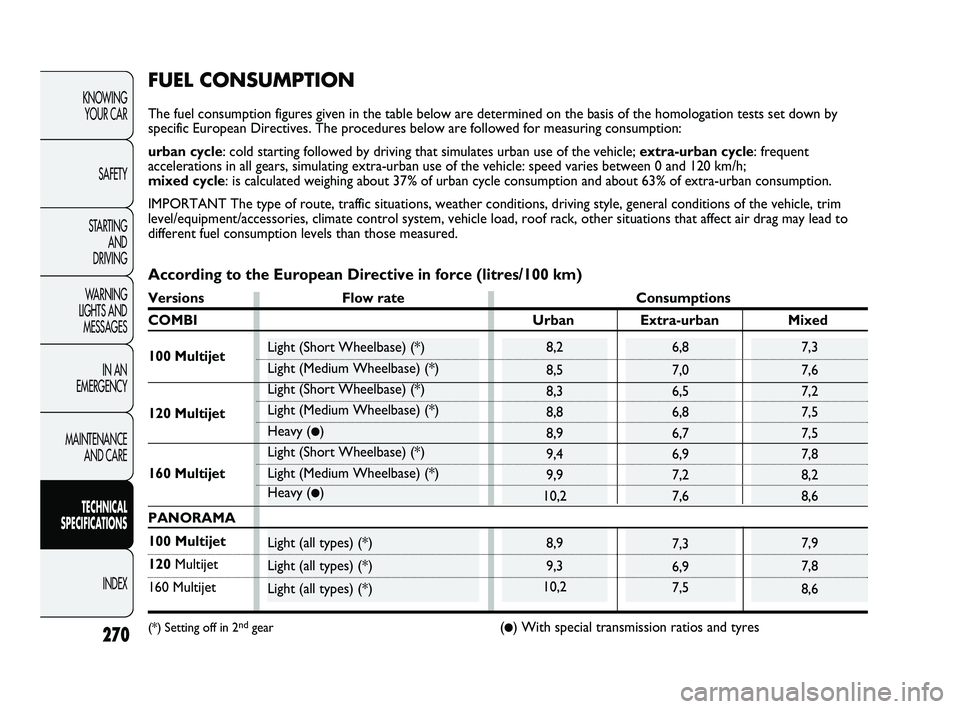

FUEL CONSUMPTION
The fuel consumption figures given in the table below are determined on the basis of the homologation tests set down by
specific European Directives. The procedures below are followed for measuring consumption:
urban cycle: cold starting followed by driving that simulates urban use of the vehicle; extra-urban cycle: frequent
accelerations in all gears, simulating extra-urban use of the vehicle: speed varies between 0 and 120 km/h;
mixed cycle: is calculated weighing about 37% of urban cycle consumption and about 63% of extra-urban consumption.
IMPORTANT The type of route, traffic situations, weather conditions, driving style, general conditions of the vehicle, trim
level/equipment/accessories, climate control system, vehicle load, roof rack, other situations that affect air drag may lead to
different fuel consumption levels than those measured.
100 Multijet
120 Multijet
160 Multijet
Light (all types) (*)
Light (all types) (*)
Light (all types) (*)
Light (Short Wheelbase) (*)
Light (Medium Wheelbase) (*)
Light (Short Wheelbase) (*)
Light (Medium Wheelbase) (*)
Heavy (
●)
Light (Short Wheelbase) (*)
Light (Medium Wheelbase) (*)
Heavy (
●)
According to the European Directive in force (litres/100 km)
Versions Flow rate Consumptions
COMBI Urban Extra-urban Mixed
PANORAMA
100 Multijet
120Multijet
160 Multijet
(*) Setting off in 2ndgear(●) With special transmission ratios and tyres
231-276 DUCATO LUM EN 9ed 15-04-2011 8:21 Pagina 270

271
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
208
206
226
193
200
190
199
199
207
216
226

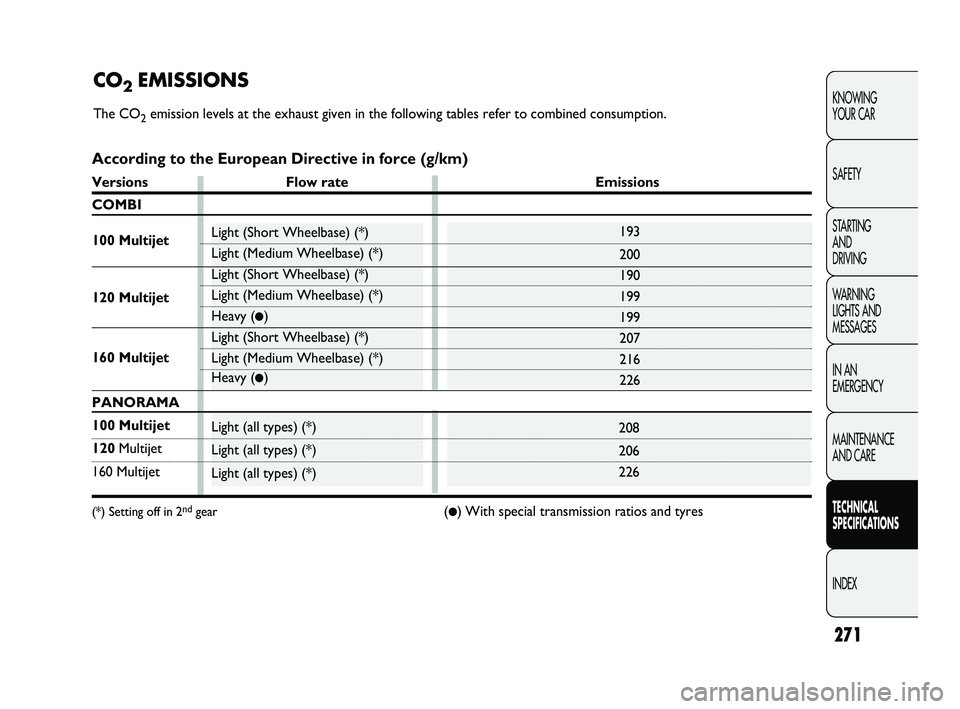

CO2 EMISSIONS
The CO2emission levels at the exhaust given in the following tables refer to combined consumption.
100 Multijet
120 Multijet
160 Multijet
Light (all types) (*)
Light (all types) (*)
Light (all types) (*)
Light (Short Wheelbase) (*)
Light (Medium Wheelbase) (*)
Light (Short Wheelbase) (*)
Light (Medium Wheelbase) (*)
Heavy (
●)
Light (Short Wheelbase) (*)
Light (Medium Wheelbase) (*)
Heavy (
●)
According to the European Directive in force (g/km)
Versions Flow rate Emissions
COMBI
PANORAMA
100 Multijet
120Multijet
160 Multijet
(*) Setting off in 2ndgear(●) With special transmission ratios and tyres
231-276 DUCATO LUM EN 9ed 15-04-2011 8:21 Pagina 271

272
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

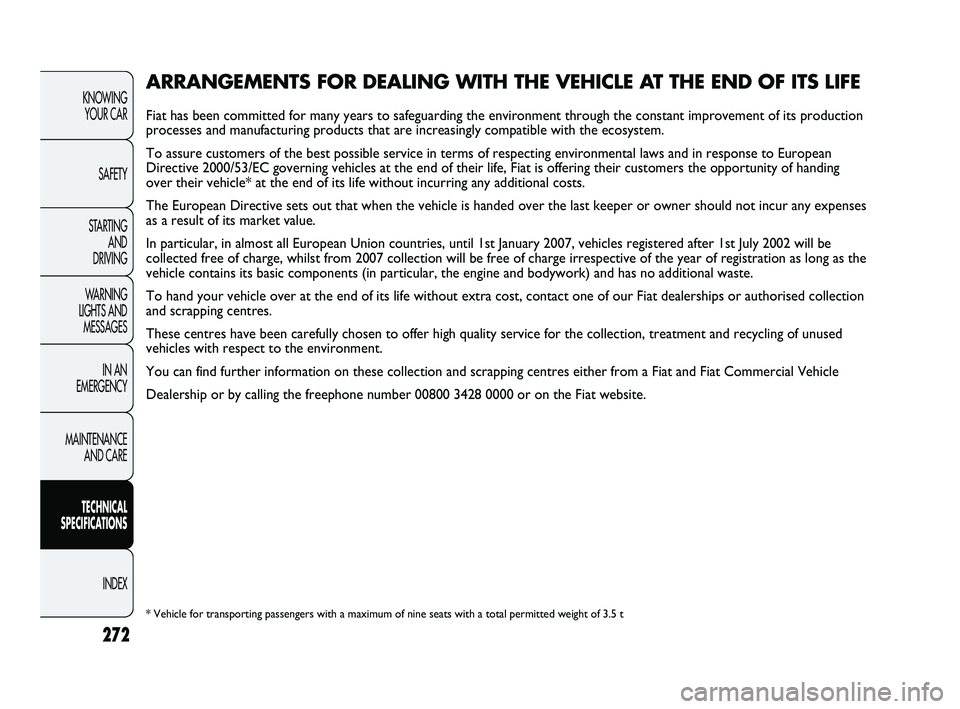

ARRANGEMENTS FOR DEALING WITH THE VEHICLE AT THE END OF ITS LIFE
Fiat has been committed for many years to safeguarding the environment through the constant improvement of its production
processes and manufacturing products that are increasingly compatible with the ecosystem.
To assure customers of the best possible service in terms of respecting environmental laws and in response to European
Directive 2000/53/EC governing vehicles at the end of their life, Fiat is offering their customers the opportunity of handing
over their vehicle* at the end of its life without incurring any additional costs.
The European Directive sets out that when the vehicle is handed over the last keeper or owner should not incur any expenses
as a result of its market value.
In particular, in almost all European Union countries, until 1st January 2007, vehicles registered after 1st July 2002 will be
collected free of charge, whilst from 2007 collection will be free of charge irrespective of the year of registration as long as the
vehicle contains its basic components (in particular, the engine and bodywork) and has no additional waste.
To hand your vehicle over at the end of its life without extra cost, contact one of our Fiat dealerships or authorised collection
and scrapping centres.
These centres have been carefully chosen to offer high quality service for the collection, treatment and recycling of unused
vehicles with respect to the environment.
You can find further information on these collection and scrapping centres either from a Fiat and Fiat Commercial Vehicle
Dealership or by calling the freephone number 00800 3428 0000 or on the Fiat website.
* Vehicle for transporting passengers with a maximum of nine seats with a total permitted weight of 3.5 t
231-276 DUCATO LUM EN 9ed 15-04-2011 8:21 Pagina 272

273
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

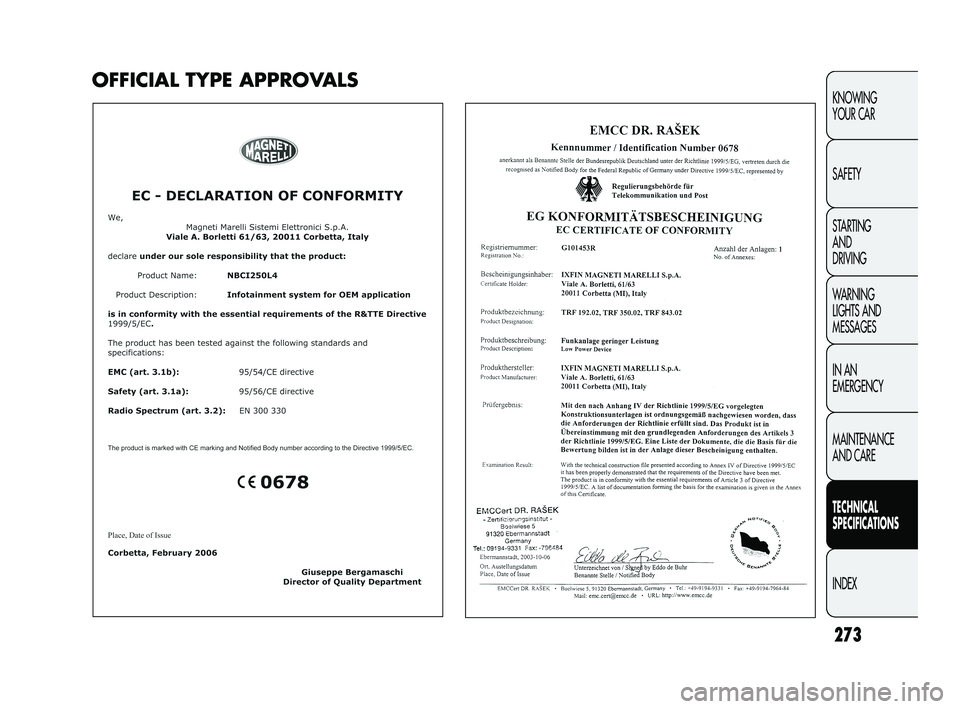

OFFICIAL TYPE APPROVALS
231-276 DUCATO LUM EN 9ed 15-04-2011 8:21 Pagina 273
