rear view mirror FIAT DUCATO 2010 Owner handbook (in English)

48
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0022mfig. 46F0N0024mfig. 47
Electrically adjustable mirrors fig. 47
The electrical adjustment can only be carried out with
the ignition key in the MAR-ON position.
REAR VIEW MIRRORS
REAR-VIEW MIRROR fig. 46
The mirror is fitted with a safety device that causes its
release in the event of a violent impact with the
passenger.
Lever A can be used to move the mirror to two
different positions: normal or antiglare.
DOOR MIRRORS
Mirrors with manual adjustment
To adjust the mirrors, manually adjust each of the two
glasses of each mirror.
As the driver’s exterior mirror is curved,
it may slightly alter the perception of
distance of the reflected image.
Further, the reflective surface of the lower part
of the exterior mirrors is parabolic to increase
the field of view. The reflected image size is thus
reduced and gives the impression that the
reflected item is further away than it actually is.
WARNING
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 48

79
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
Deactivation fig. 77
Move the lever from position B or turn the ignition key
to OFF. The next time the vehicle is started (ignition
key in ON position), the sensor is not reactivated even
if the lever is still in position B. To activate the sensor,
move the lever to position A or C and then back to
position B or turn the ring nut for adjusting the
sensitivity. Rain sensor activation will be indicated by at
least one wiper “stroke” even if the windscreen is dry.
The rain sensor is capable of recognising the difference
between day and night and making the necessary
adjustments automatically. RAIN SENSOR
(for versions/markets where provided)
The rain sensor is located behind the rear view mirror
in contact with the windscreen and has the purpose of
automatically adjusting the frequency of the windscreen
wiper strokes depending on the intensity of the rain
during intermittent operation.
IMPORTANT Keep the glass in the sensor area clean.
Activation fig. 77
Move the right lever down by one click (position B).
The activation of the sensor is signalled by a “stroke” to
show that the command has been acquired.
Turn the control F to increase the rain sensor
sensitivity.
The increasing of the rain sensor sensitivity is signalled
by a “stroke” to show that the command has been
acquired.
If the windscreen washer is used with the rain sensor
activated, the normal washing cycle is performed, after
which the rain sensor resumes its normal automatic
operation.HEADLIGHT WASHERS
(for versions/markets where provided)
The headlight washers are “retractable”, i.e.: they are
located inside the front bumper and they are activated
when (with dipped beams on) the windscreen washer is
operated.
IMPORTANT Check the correct operation and
cleanliness of the jets at regular intervals.
Streaks of water may cause unnecessary
blade movements.
WARNING
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 79

95
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0057mfig. 106F0N0056mfig. 105
SUN VISORS fig. 105
They are located at the sides of the internal rear view
mirror.
They can be adjusted forwards and sideways.POWER SOCKET fig. 106
(for versions/markets where provided)
The cigar lighter and the power socket are located in
the centre console.
To use it, open cap A.
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 95

98
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0217mfig. 111F0N0214mfig. 112
The rear view display is adjusted in mirror mode. When
not in use, it must be closed in the upper oddments
compartment console area.
ACTIVATION
The system is activated with the ignition on and reverse
engaged or by means of a dedicated button. If the
vehicle is in motion, e.g. during a reversing manoeuvre,
the system will operate up to a speed of 15 km/h and go
off when a speed of approximately 18 km/h is exceeded.
When reverse is deactivated, the image will appear on
the display for a further 5 seconds. TV CAMERA SYSTEM AND REAR VISIBILITY
DISPLAY
(for versions/markets where provided)
The parking TV camera system fig. 111 allows the driver
a view of the scene behind the vehicle by means of
a display A-fig. 112 in the passenger compartment.
The system consists of a TV camera installed in a plastic
casing on the rear roof crossmember, which also
includes a third brake light and a display in a plastic
casing housed in the upper glove compartment console
area.
The display has buttons (On/Off, brightness, backlight);
to use them, operate the release button and move to
the open position.
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 98

154
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
TOWING TRAILERS
IMPORTANT NOTES
The vehicle must be provided with a type-approved tow
hook and adequate electrical system to tow caravans or
trailers. Installation should be carried out by specialised
personnel who will issue the required papers for
travelling on roads.
Install any specific and/or additional rear view mirrors as
specified by the Highway Code.
Remember that when towing a trailer, steep hills are
harder to climb, the braking spaces increase and
overtaking takes longer depending on the overall weight.
Engage a low gear when driving downhill, rather than
constantly using the brake.
The weight of the trailer on the vehicle tow hook will
reduce the loading capacity of the vehicle by the same
amount. Consider the weight of the trailer fully laden,
including accessories and luggage, to make sure you do
not exceed the maximum towable weight (shown on
the vehicle registration document).
Do not exceed the speed limits specific for each country
you are driving in, in the case of vehicles towing trailers.
In any case, the top speed must not exceed 100 km/h.
Fit a suitable towing stabiliser to the trailer to be towed. CONDITIONS OF USE
Cold starting
Short journeys and frequent cold starts will prevent the
engine from reaching optimal running temperature.
Consequently, both consumption (from +15 to +30% on
urban cycle ) and emissions will increase.
Traffic and road conditions
Rather high consumption levels are linked to situations
with heavy traffic, for instance when travelling in queues
with frequent use of the lower gears or in cities with
many traffic lights. Winding mountain roads and rough
road surfaces also adversely affect consumption.
Traffic hold-ups
During prolonged hold-ups (e.g. level crossings) the
engine should be switched off.
147-160 DUCATO LUM EN 7ed 6/21/10 2:13 PM Page 154

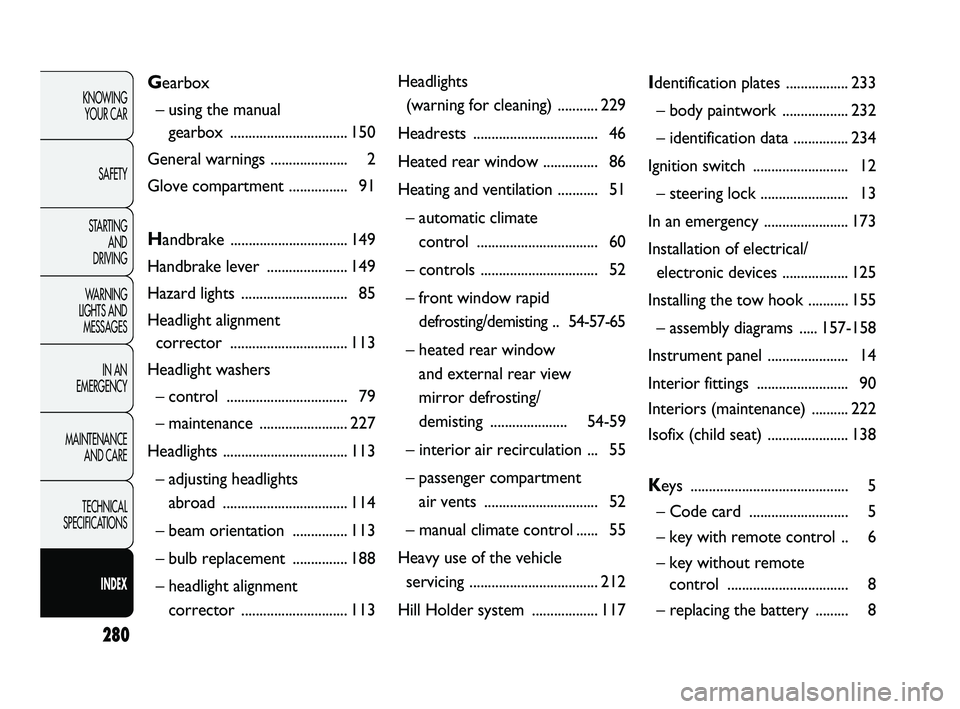

280
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
Gearbox
– using the manual
gearbox ................................ 150
General warnings ..................... 2
Glove compartment ................ 91
Handbrake ................................149
Handbrake lever ...................... 149
Hazard lights ............................. 85
Headlight alignment
corrector ................................ 113
Headlight washers
– control ................................. 79
– maintenance ........................ 227
Headlights ..................................113
– adjusting headlights
abroad .................................. 114
– beam orientation ............... 113
– bulb replacement ............... 188
– headlight alignment
corrector ............................. 113Headlights
(warning for cleaning) ........... 229
Headrests .................................. 46
Heated rear window ............... 86
Heating and ventilation ........... 51
– automatic climate
control ................................. 60
– controls ................................ 52
– front window rapid
defrosting/demisting .. 54-57-65
– heated rear window
and external rear view
mirror defrosting/
demisting .....................54-59
– interior air recirculation ... 55
– passenger compartment
air vents ............................... 52
– manual climate control ...... 55
Heavy use of the vehicle
servicing ................................... 212
Hill Holder system .................. 117
Identification plates ................. 233
– body paintwork .................. 232
– identification data ............... 234
Ignition switch .......................... 12
– steering lock ........................ 13
In an emergency ....................... 173
Installation of electrical/
electronic devices .................. 125
Installing the tow hook ...........155
– assembly diagrams ..... 157-158
Instrument panel ...................... 14
Interior fittings ......................... 90
Interiors (maintenance) .......... 222
Isofix (child seat) ...................... 138
Keys ........................................... 5
– Code card ........................... 5
– key with remote control .. 6
– key without remote
control ................................. 8
– replacing the battery ......... 8
277-284 DUCATO LUM EN 9ed 15-04-2011 8:32 Pagina 280

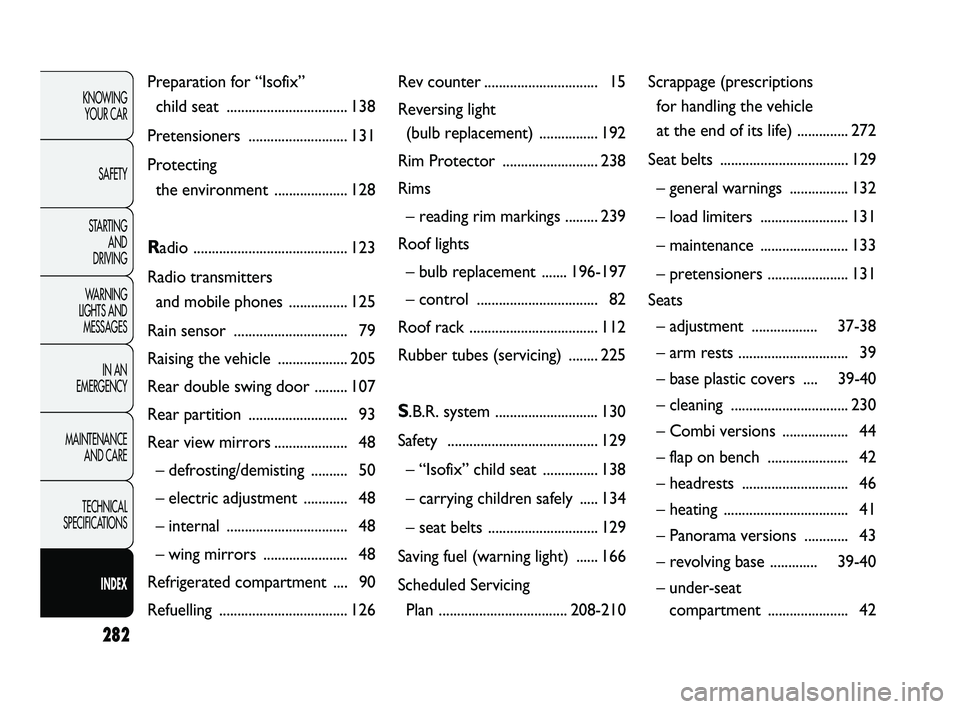

282
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
Preparation for “Isofix”
child seat ................................. 138
Pretensioners ........................... 131
Protecting
the environment .................... 128
Radio .......................................... 123
Radio transmitters
and mobile phones ................ 125
Rain sensor ............................... 79
Raising the vehicle ................... 205
Rear double swing door ......... 107
Rear partition ........................... 93
Rear view mirrors.................... 48
– defrosting/demisting .......... 50
– electric adjustment ............ 48
– internal ................................. 48
– wing mirrors ....................... 48
Refrigerated compartment .... 90
Refuelling ................................... 126Rev counter ............................... 15
Reversing light
(bulb replacement) ................ 192
Rim Protector .......................... 238
Rims
– reading rim markings ......... 239
Roof lights
– bulb replacement ....... 196-197
– control ................................. 82
Roof rack ................................... 112
Rubber tubes (servicing) ........ 225
S.B.R. system ............................ 130
Safety ......................................... 129
– “Isofix” child seat ............... 138
– carrying children safely ..... 134
– seat belts ..............................129
Saving fuel (warning light) ...... 166
Scheduled Servicing
Plan ...................................208-210Scrappage (prescriptions
for handling the vehicle
at the end of its life) .............. 272
Seat belts ...................................129
– general warnings ................ 132
– load limiters ........................ 131
– maintenance ........................ 133
– pretensioners ...................... 131
Seats
– adjustment .................. 37-38
– arm rests .............................. 39
– base plastic covers .... 39-40
– cleaning ................................ 230
– Combi versions .................. 44
– flap on bench ...................... 42
– headrests ............................. 46
– heating .................................. 41
– Panorama versions ............ 43
– revolving base ............. 39-40
– under-seat
compartment ...................... 42
277-284 DUCATO LUM EN 9ed 15-04-2011 8:32 Pagina 282
