KNOWING YOUR CAR
DASHBOARD
The presence and position of the controls, instruments and gauges may vary depending on the version.
1.Fixed side air vents –2.Adjustable side air vents – 3.Left steering column stalk: external lights
–
4.Instrument and warning light panel – 5.Right steering column stalk: windscreen wiper controls, rear window
wiper, trip computer –
6.Adjustable central air vents – 7.Car radio (for versions/markets, where provided)
–
8.Passenger side glove compartment/front air bag (for versions/markets, where provided) – 9.Oddment
compartment –
10.Cigar lighter/12 V socket – 11.HVAC controls – 12.Controls on dashboard – 13.Gear lever
–
14.Ignition device – 15. Steering wheel adjustment lever – 16.Driver side front airbag/Horn – 17.Control plate:
lamp/headlamp alignment adjustment/digital display/multifunction display.
F0N0510mFig. 1

7
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0801mfig. 5F0N0114mfig. 6
Request for additional remote controls
The system can recognise up to 8 keys with
incorporated remote control. Should a new remote
control be necessary, contact a Fiat Dealership and be
ready to present the CODE card, a personal identity
document and the vehicle ownership documents. Some versions are equipped with a key with a remote
control with 2 keys Áand Ëfig. 5.
Button Áis used for locking all the doors;
Button Ëis used for unlocking all the doors.
Dashboard LED indications
When locking the doors, led A-fig. 6 switches on for
about 3 seconds and than starts flashing (deterrence
function).
When the doors are locked, if one or more doors are
not closed correctly, the LED and direction indicators
start flashing quickly.

47
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
PASSENGER COMPARTMENT HEATING
Proceed as follows:
❒turn the ring nut A to the red section;
❒turn the ring nut C to the required position;
❒turn the knob B to the required speed.
FAST PASSENGER COMPARTMENT
HEATING
For the fast heating of the passenger compartment,
proceed as follows:
❒turn the ring nut A to the red section;
❒switch on the air recirculation by turning the knob D
to
Ò;
❒turn the ring nut C to ©;
❒turn the knob B to 4-(max. fan speed).
Then use the controls to maintain the required comfort
conditions and turn the knob D to
Úto turn the air
recirculation off and to prevent misting.
IMPORTANT With cold engine, you have to wait for
a few minutes to let the system fluid reach the operating
temperature. Air distribution ring nut C
¶to direct air to the centre and side vents;
ßto send air to the feet and direct cooler air to the
dashboard vents, in intermediate temperature
conditions;
©for heating when the outside temperature is very
low: to direct as much air as possible to the feet;
®to warm the feet and, at the same time, demist the
windscreen;
-for quick windscreen demisting.
Air recirculation on/off knob D
When the knob D is turned to
Òthe internal air
recirculation is activated.
When the knob D is turned to
Úthe internal air
recirculation is deactivated.
PASSENGER COMPARTMENT VENTILATION
To ventilate the passenger compartment well, proceed
as follows:
❒turn the ring nut A to the blue section;
❒switch off the air recirculation by turning the knob D
to
Ú;
❒turn the ring nut C to ¶;
❒turn the knob B to the required speed.

98
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0047mfig. 112F0N0132mfig. 113
IMPORTANT With the central locking engaged, pulling
the opening lever for one of the front doors switches
off the central locking function. Individual doors can be
unlocked by pulling the opening handle of one of the
rear doors.
If a power supply is not present (blown fuse, battery
disconnected, etc.) it is, however, possible to lock the
doors manually.
After exceeding 20 km/h, all the doors will be locked
automatically if the setup menu function has been
selected (see “Multifunction display” paragraph in this
section).
LOAD COMPARTMENT BUTTON fig. 113
Lock activation is indicated by the LED in the button. Door locking/unlocking from the inside
Press the button A-fig. 112 to lock the doors, press
button B to unlock the doors. The locking/unlocking
actions take place centrally (front and rear). When the
doors are locked, the LED in the button A is on and
pressing button B brings about central unlocking of all
the doors and turns off the warning light. When the
doors are unlocked, the LED is off and pressing the
button brings about central locking of all the doors.
The doors will be locked only if all the doors are
properly shut.
Following the locking of the doors using:
❒remote control;
❒door locking mechanism;
it will not be possible to unlock the doors using button
A-fig. 112 located in the controls in the dashboard.

139
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

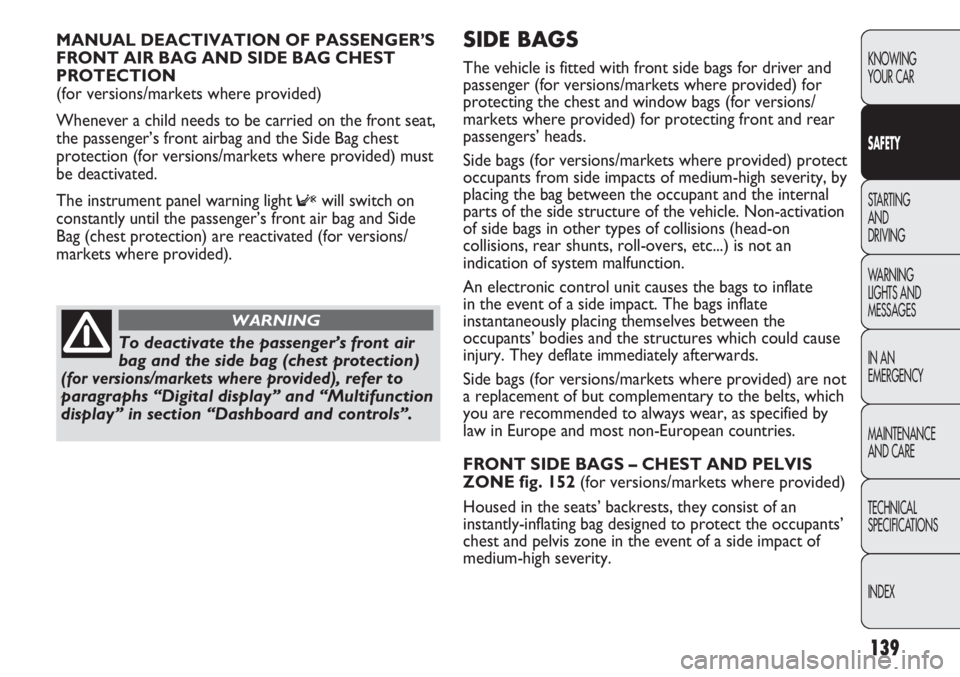

SIDE BAGS
The vehicle is fitted with front side bags for driver and
passenger (for versions/markets where provided) for
protecting the chest and window bags (for versions/
markets where provided) for protecting front and rear
passengers’ heads.
Side bags (for versions/markets where provided) protect
occupants from side impacts of medium-high severity, by
placing the bag between the occupant and the internal
parts of the side structure of the vehicle. Non-activation
of side bags in other types of collisions (head-on
collisions, rear shunts, roll-overs, etc...) is not an
indication of system malfunction.
An electronic control unit causes the bags to inflate
in the event of a side impact. The bags inflate
instantaneously placing themselves between the
occupants’ bodies and the structures which could cause
injury. They deflate immediately afterwards.
Side bags (for versions/markets where provided) are not
a replacement of but complementary to the belts, which
you are recommended to always wear, as specified by
law in Europe and most non-European countries.
FRONT SIDE BAGS – CHEST AND PELVIS
ZONE fig. 152 (for versions/markets where provided)
Housed in the seats’ backrests, they consist of an
instantly-inflating bag designed to protect the occupants’
chest and pelvis zone in the event of a side impact of
medium-high severity. MANUAL DEACTIVATION OF PASSENGER’S
FRONT AIR BAG AND SIDE BAG CHEST
PROTECTION
(for versions/markets where provided)
Whenever a child needs to be carried on the front seat,
the passenger’s front airbag and the Side Bag chest
protection (for versions/markets where provided) must
be deactivated.
The instrument panel warning light
Fwill switch on
constantly until the passenger’s front air bag and Side
Bag (chest protection) are reactivated (for versions/
markets where provided).
To deactivate the passenger’s front air
bag and the side bag (chest protection)
(for versions/markets where provided), refer to
paragraphs “Digital display” and “Multifunction
display” in section “Dashboard and controls”.
WARNING

143
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
PROCEDURE FOR
Proceed as follows:
❒engage the handbrake;
❒put the gear lever into neutral;
❒turn the ignition key to MAR-ON: the warning lights
mand Yon the instrument panel will turn on;
❒wait for the warning lights Yand mto turn off.
The hotter the engine is, the quicker this will happen;
❒press the clutch pedal all the way down without
touching the accelerator;
❒turn the ignition key to AVVas soon as the warning
light
mturns off. Waiting too long will waste the
work done by the glow plugs. Release the key as
soon as the engine starts.
If the engine does not start at the first attempt, return
the ignition key to STOP before repeating starting.
STARTING THE ENGINE
The vehicle is fitted with an electronic engine lock
device: if the engine fails to start, see the paragraph
“The Fiat CODE system” in section “Dashboard and
controls”.
STARTING AND DRIVING
It is dangerous to let the engine run in
enclosed spaces. The engine consumes
the oxygen and discharges carbon dioxide,
carbon monoxide and other toxic gases.
WARNING
In the first period of use, we recommend
avoiding excessive stress on the car (for
instance excessive acceleration, extended
travel at maximum speed, sudden braking etc.).
When the engine is switched off never
leave the key into the ignition switch to
prevent useless current absorption from
draining the battery.
Remember that the brake servo and
power steering are not operational until
the engine has been started, therefore much
effort than usual is required on the brake pedal
and steering wheel.
WARNING

❒cover the vehicle with a piece of fabric or perforated
plastic sheet. Do not use compact plastic tarpaulins,
which prevent humidity from evaporating from the
surface of the vehicle;
❒inflate tyres to a pressure of +0.5 bar above the
normal specified pressure and check it at intervals;
❒if you don’t disconnect the battery from the electric
system, check its charge every month and recharge it
if the optical indicator shows a dark colour without
the central green area;
❒do not drain the engine cooling system.
IMPORTANT If the vehicle is equipped with an alarm
system, switch off the vehicle alarm with the remote
control.
LONG VEHICLE INACTIVITY
If the vehicle needs to be off the road for longer than
one month, the following precautions must be taken:
❒park the vehicle indoors in a dry and, possibly, well-
ventilated place;
❒engage a gear;
❒check that the handbrake is not engaged;
❒disconnect the negative battery terminal and check
battery charge. Repeat this check once every three
months during storage. Recharge if the optical
indicator shows a dark colour without the central
green area (see “Battery recharging” in the section
“Dashboard and controls”); If the vehicle is equipped
with a battery disconnection function (disconnector),
see the description of the procedure in the
“Controls” paragraph in the “Dashboard and
controls” section;
❒clean and protect the painted parts using protective
wax;
❒clean and protect the shiny metal parts using special
commercially-available compounds;
❒sprinkle talcum powder on the rubber windscreen
and rear window wiper blades and lift them off
the glass;
❒slightly open the windows;
156
CONOSCENZA
DEL
VEICOLO
SICUREZZA
AVVIAMENTO
E GUIDA
SPIE E
MESSAGGI
IN EMERGENZA
MANUTENZIONE
E CURA
DATI TECNICI
INDICE

163
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
The presence of water in the supply
circuit may cause severe damage to the
injection system and irregular engine
operation. If warning light
clights up (on some
versions with the message on the display),
contact a Fiat Dealership as soon as possible to
have the system bled. If the same message is
displayed immediately after refuelling, water may
have entered the tank: turn the engine off
immediately and contact a Fiat Dealership.
WATER IN DIESEL FILTER (Multijet
versions – amber)
When the key is turned to the MAR-ON
position the warning light comes on but should
go out after a few seconds.
The warning light turns on when there is water in the
diesel fuel filter.
On some versions the display shows the dedicated
message.
c
VEHICLE PROTECTION SYSTEM
FAILURE – FIAT CODE
(amber)
Turning the key to MAR-ON the warning light
will flash only once and then go off.
When the warning light comes on constantly, with key
in MAR-ON, this indicates:
❒a potential fault (refer to “The Fiat CODE system”
paragraph in the section “Dashboard and controls”);
❒a possible theft attempt with an alarm; in this case
the warning light goes off after approximately
10 seconds.
If with the engine running the warning light
Yflashes,
the vehicle is not protected by the engine inhibitor
device (see “Fiat Code system” in section “Dashboard
and controls”).
Contact a Fiat Dealership to have all the keys
reprogrammed.
Y

166
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
WORN BRAKE PADS
(amber)
The warning light on the dial turns on if the
front brake pads are worn; in this case have
them changed as soon as possible.
On certain versions the dedicated message is displayed.
d
Hill Holder failure
The warning light will turn on when the Hill Holder
system is faulty. In this case, contact a Fiat Dealership as
soon as possible.
On certain versions the dedicated message is displayed.
PARKING SENSOR FAILURE (amber)
(for versions/markets, where provided)
The warning light turns on when failure is
detected in the parking sensors.
On some versions warning light
èturns on as an
alternative.
Contact a Fiat Dealership.
On certain versions the dedicated message is displayed.
t
FRONT FOG LIGHTS (green)
The warning light turns on when the front fog
lights are turned on.
5
LEFT-HAND DIRECTION
INDICATOR (green – blinking)
The warning light turns on when the direction
indicator control lever is moved downwards or,
together with the right indicator, when the hazard
warning light button is pressed.
F
DIPPED LOW HEADLAMPS (green)
FOLLOW ME HOME (green)
Dipped beam headlights
The warning light switches on when the dipped beams
are turned on.
Follow me home
The warning light will turn on when this device is active
(see “Follow me home” in section “Dashboard and
controls”).
The display will show a dedicated message.
3

POSSIBLE ICE ON ROAD
This indication starts flashing when the outside
temperature reaches or falls below 3 °C to warn the
driver of the possible presence of ice on the road.
The display will show the dedicated message (only for
versions with a multifunction display).
LIMITED RANGE
The display will show the dedicated message to warn
the driver that the vehicle’s range is less than 50 km.
SPEED LIMIT EXCEEDED
The display shows the dedicated message when the
vehicle exceeds the set speed limit (see “Multifunction
Display” in section “Dashboard and controls”).
SCHEDULED MAINTENANCE
(for versions/markets where provided)
The display shows the dedicated message next to the
scheduled servicing warning and stays on until the deadline
is reached. The warning light goes off after the service has
been carried out at a Fiat Dealership or after 1000 km
have been covered at the service deadline.
DAYLIGHT FAILURE (with reconfigurable
multifunction display)
The display shows the dedicated message along with the
external light fault icon when a daylight failure is found.
168
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
AUTOMATIC TRANSMISSION
FAILURE/MAXIMUM TRANSMISSION
OIL TEMPERATURE
(red)
(for versions/markets where provided)
Turning the ignition key to MAR-ON the warning light
on the dial turns on, but it should go off after a few
seconds.
The warning light on the dial comes on flashing (along
with the display of the message and a buzzer) when
a transmission failure is detected.
The warning light on the dial comes on constantly
(along with the display of the message and a buzzer) to
indicate that the automatic transmission oil
temperature is too high.SELF-LEVELLING SUSPENSION
FAILURE (red)
(for versions/markets where provided)
The warning light comes on when the ignition
key is turned to MAR-ON, but it should switch off after
a few seconds.
The warning light goes on when a fault is present in the
self-levelling suspension system.
Œ
t
