Page 204 of 367

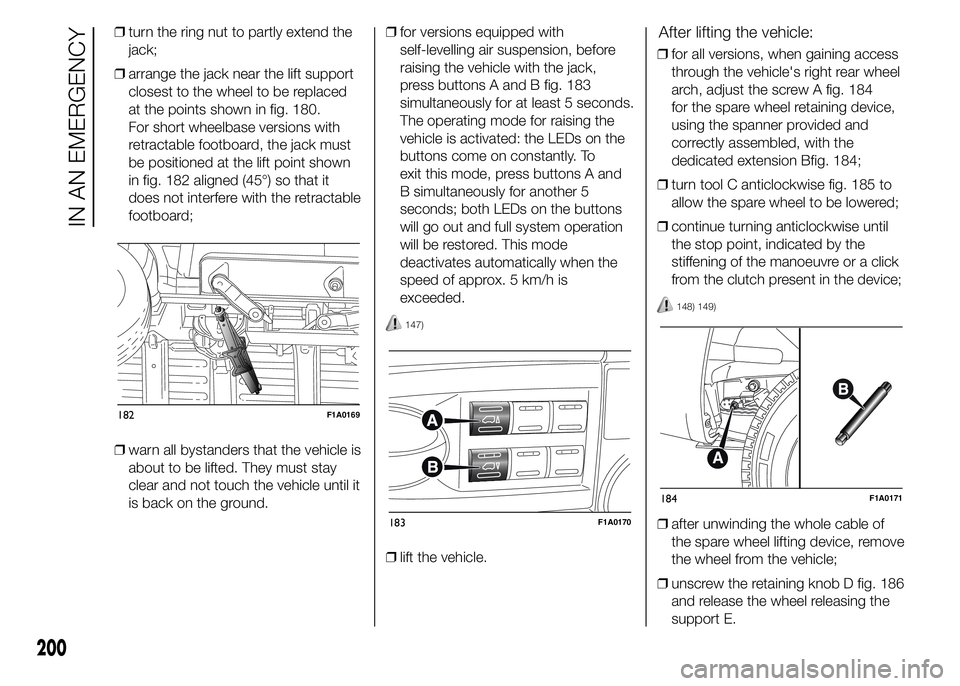

FIAT DUCATO 2015  Owner handbook (in English) ❒turn the ring nut to partly extend the
jack;
❒arrange the jack near the lift support
closest to the wheel to be replaced
at the points shown in fig. 180.
For short wheelbase versions with
retract
