Warning lights on
panelWhat it means What to do

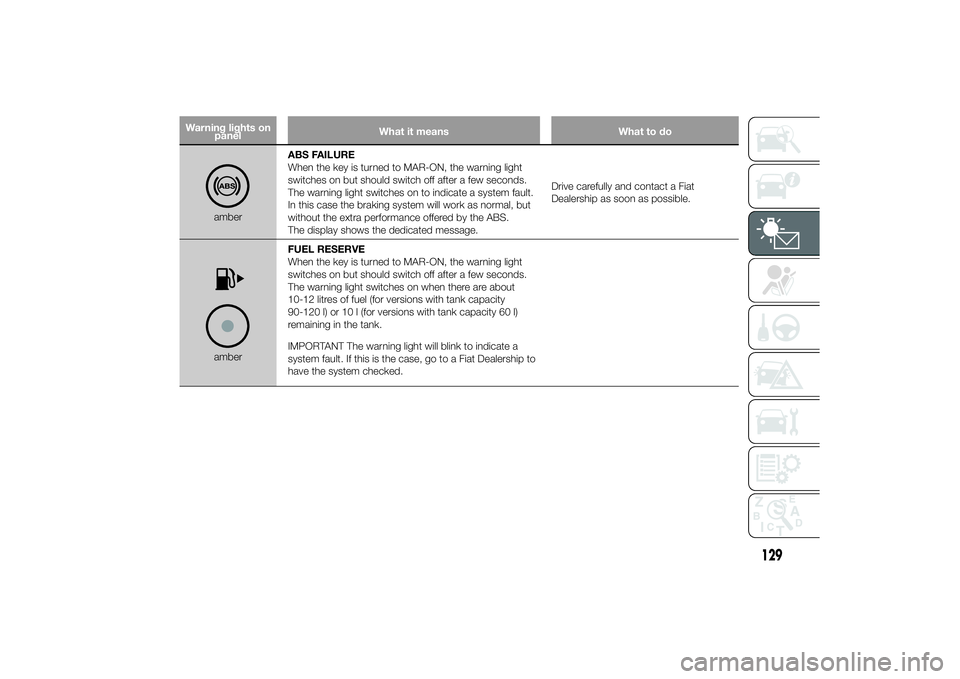

amberABS FAILURE
When the key is turned to MAR-ON, the warning light
switches on but should switch off after a few seconds.
The warning light switches on to indicate a system fault.
In this case the braking system will work as normal, but
without the extra performance offered by the ABS.
The display shows the dedicated message.Drive carefully and contact a Fiat
Dealership as soon as possible.amberFUEL RESERVE
When the key is turned to MAR-ON, the warning light
switches on but should switch off after a few seconds.
The warning light switches on when there are about
10-12 litres of fuel (for versions with tank capacity
90-120 l) or 10 l (for versions with tank capacity 60 l)
remaining in the tank.
IMPORTANT The warning light will blink to indicate a
system fault. If this is the case, go to a Fiat Dealership to
have the system checked.
129

Warning lights on
panelWhat it means What to do
amberGLOW PLUG HEATING/GLOW PLUG HEATING
FAILURE
Glow plug preheating
This warning light switches on when the key is
turned to MAR-ON. It will switch off as soon as the
glow plugs have reached a preset temperature.
IMPORTANT At high ambient temperatures the
warning light may stay on for an extremely short
time.Start the engine as soon as the warning light
switches off.
Glow plug preheating failure
The warning light flashes if there is a fault in the
preheating system.
On some versions, the display shows the
dedicated message.Contact a Fiat Dealership as soon as possible.
Warning lights on
panelWhat it means What to do
amberWATER IN DIESEL FILTER
When the key is turned to MAR-ON, the warning
light switches on but should switch off after a few
seconds.
The warning light
switches on when there is
water in the diesel filter.
On some versions, the display shows the
dedicated message.
23)
130
KNOWING THE INSTRUMENT PANEL

Warning lights on
panelWhat it means What to do
amberVEHICLE PROTECTION SYSTEM FAILURE -
FIAT CODE
When the key is turned to MAR-ON the warning
light will flash only once and then switch off.
When the warning light comes on constantly, with
key at MAR-ON, this indicates:
❒a potential failure (refer to "The Fiat CODE
system" in the chapter "Knowing your vehicle").
❒a possible break-in attempt with an alarm; in this
case the warning light switches off after
approximately 10 seconds.
If, with the engine running, the
warning light
flashes, it means that the vehicle is not protected
by the engine immobiliser device.Contact a Fiat Dealership to have all the keys
stored in the memory.
amberREAR FOG LIGHTS
The warning light comes on when the rear fog
lights are turned on.
Warning lights on
panelWhat it means What to do
amberGENERIC FAILURE INDICATION
(Versions with multifunction display)
The warning light turns on in the following
circumstances:
❒If the fuel inertia cut-off switch is activated
131

Warning lights on
panelWhat it means What to do

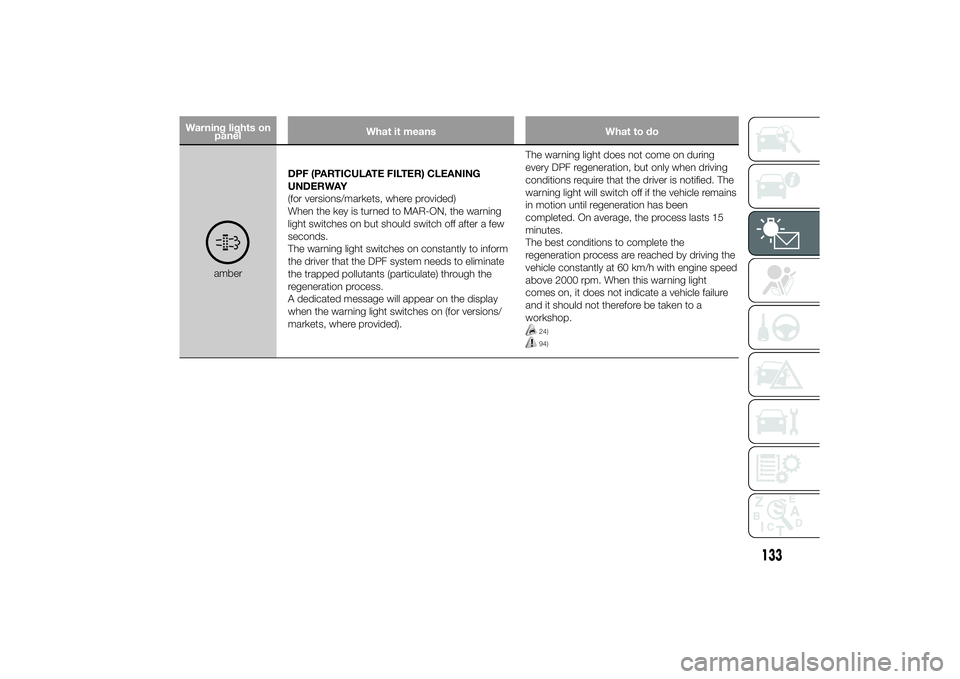

amberDPF (PARTICULATE FILTER) CLEANING
UNDERWAY
(for versions/markets, where provided)
When the key is turned to MAR-ON, the warning
light switches on but should switch off after a few
seconds.
The warning light switches on constantly to inform
the driver that the DPF system needs to eliminate
the trapped pollutants (particulate) through the
regeneration process.
A dedicated message will appear on the display
when the warning light switches on (for versions/
markets, where provided).The warning light does not come on during
every DPF regeneration, but only when driving
conditions require that the driver is notified. The
warning light will switch off if the vehicle remains
in motion until regeneration has been
completed. On average, the process lasts 15
minutes.
The best conditions to complete the
regeneration process are reached by driving the
vehicle constantly at 60 km/h with engine speed
above 2000 rpm. When this warning light
comes on, it does not indicate a vehicle failure
and it should not therefore be taken to a
workshop.
24)94)
133

Warning lights on
panelWhat it means What to do
amberESC-ASR system/TRACTION PLUS failure
On certain versions a dedicated message is
displayed.
Flashing of the warning light while driving indicates
the intervention of the ESC system.If the warning light does not switch off, or stays
on when travelling, contact a Fiat Dealership.
Hill Holder system failure
The warning light will turn on when the Hill Holder
system is faulty.
On certain versions a dedicated message is
displayed.In this case, contact a Fiat Dealership as soon
as possible.amberWORN BRAKE PADS
The warning light switches on if the front brake
pads are worn.
On certain versions a dedicated message is
displayed.Have them replaced as soon as possible.
134
KNOWING THE INSTRUMENT PANEL

Warning lights on
panelWhat it means What to do

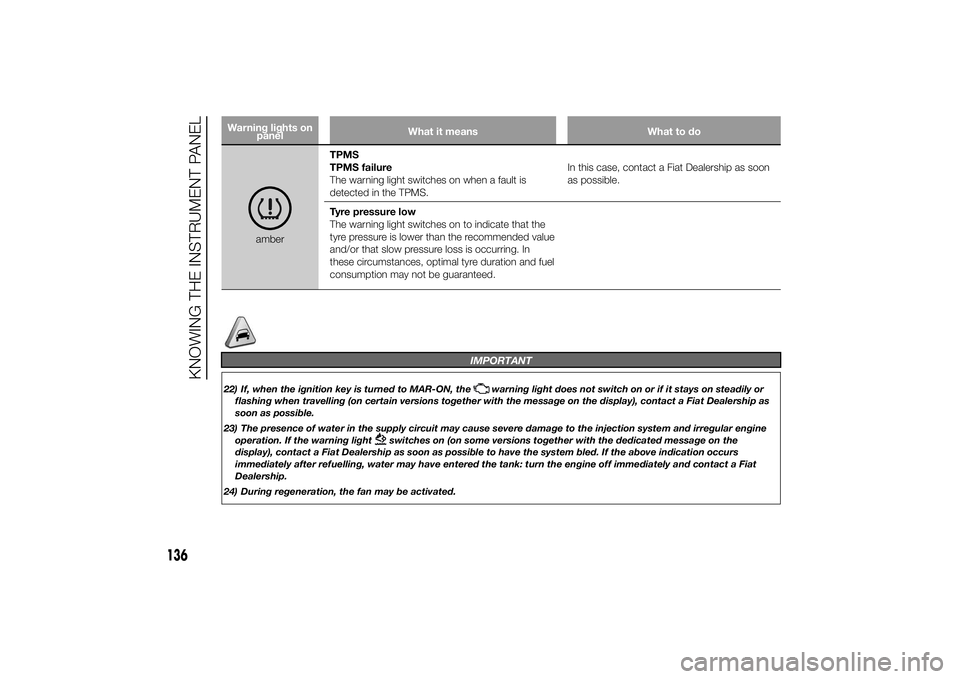

amberTPMS
TPMS failure
The warning light switches on when a fault is
detected in the TPMS.In this case, contact a Fiat Dealership as soon
as possible.
Tyre pressure low
The warning light switches on to indicate that the
tyre pressure is lower than the recommended value
and/or that slow pressure loss is occurring. In
these circumstances, optimal tyre duration and fuel
consumption may not be guaranteed.
IMPORTANT
22) If, when the ignition key is turned to MAR-ON, the
warning light does not switch on or if it stays on steadily or
flashing when travelling (on certain versions together with the message on the display), contact a Fiat Dealership as
soon as possible.
23) The presence of water in the supply circuit may cause severe damage to the injection system and irregular engine
operation. If the warning light
switches on (on some versions together with the dedicated message on the
display), contact a Fiat Dealership as soon as possible to have the system bled. If the above indication occurs
immediately after refuelling, water may have entered the tank: turn the engine off immediately and contact a Fiat
Dealership.
24) During regeneration, the fan may be activated.
136
KNOWING THE INSTRUMENT PANEL

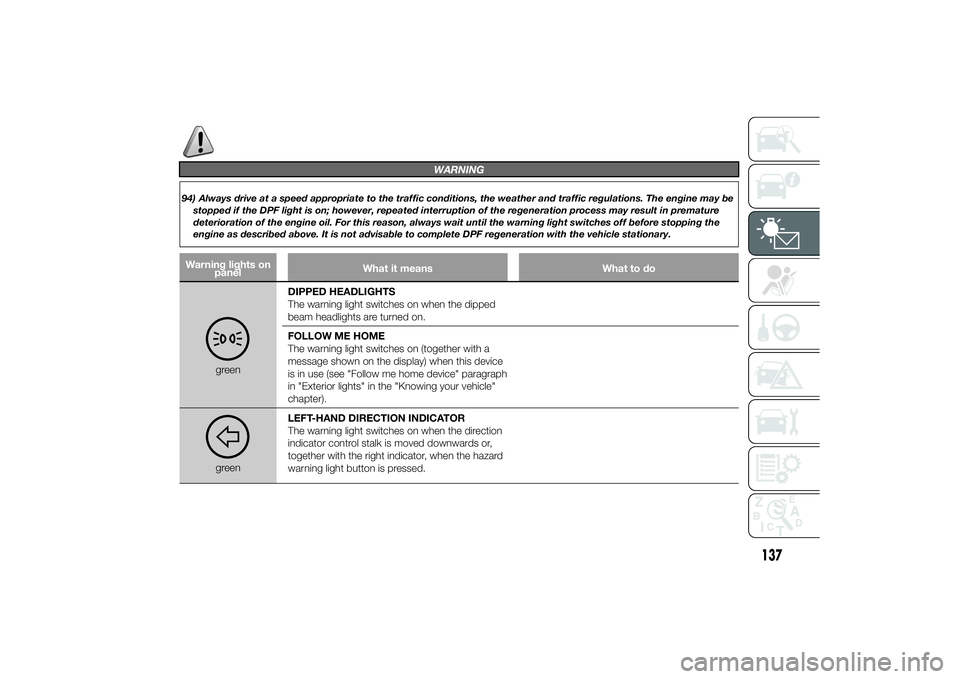

WARNING
94) Always drive at a speed appropriate to the traffic conditions, the weather and traffic regulations. The engine may be
stopped if the DPF light is on; however, repeated interruption of the regeneration process may result in premature
deterioration of the engine oil. For this reason, always wait until the warning light switches off before stopping the
engine as described above. It is not advisable to complete DPF regeneration with the vehicle stationary.Warning lights on
panelWhat it means What to do
greenDIPPED HEADLIGHTS
The warning light switches on when the dipped
beam headlights are turned on.
FOLLOW ME HOME
The warning light switches on (together with a
message shown on the display) when this device
is in use (see "Follow me home device" paragraph
in "Exterior lights" in the "Knowing your vehicle"
chapter).greenLEFT-HAND DIRECTION INDICATOR
The warning light switches on when the direction
indicator control stalk is moved downwards or,
together with the right indicator, when the hazard
warning light button is pressed.
137

Warning lights on
panelWhat it means What to do
greenRIGHT-HAND DIRECTION INDICATOR
The warning light turns on when the direction
indicator control stalk is moved upwards or,
together with the left indicator, when the hazard
warning light button is pressed.greenFOG LIGHTS
The warning light comes on when the front fog
lights are turned on.greenCRUISE CONTROL
(for versions/markets, where provided)
The digital warning light switches on in the display
when the ignition key is turned to MAR-ON, but it
should switch off after a few seconds, if the
Cruise Control is deactivated.
The warning light is lit up on the display by
rotating the Cruise Control ring nut to ON or
,
depending on the version. On certain versions a
dedicated message is displayed.
greenSPEED LIMITER
(for versions/markets, where provided)
The warning light on the dial switches on when
the function is activated.
On certain versions a dedicated message is
displayed.
138
KNOWING THE INSTRUMENT PANEL

Messages on display
What it means What to do
EXTERIOR LIGHTS FAULT
(Versions with reconfigurable multifunction
display)
The symbol switches on when a fault is detected
on one of the following lights:
❒direction indicators
❒rear fog lights
❒brake lights
❒side lights
❒daytime running lights
❒number plate lights
❒reversing lights
❒main beam automatism
❒trailer side lights
❒trailer direction indicators.The fault relating to these lights could be: one or
more blown bulbs, a blown protection fuse or a
break in the electrical connection.BRAKE LIGHT FAILURE
(Versions with reconfigurable multifunction
display)
The symbol switches on when a fault is detected
in the brake lights.The fault could be: one or more blown bulbs, a
blown protection fuse or a break in the electrical
connection.
140
KNOWING THE INSTRUMENT PANEL

What it means What to do
MAIN BEAM AUTOMATISM FAULT
(Versions with reconfigurable multifunction
display)
The symbol switches on when a fault is detected
in the automatic switching-on system for the main
beam headlights.POSSIBLE ICE ON ROAD
When the outside temperature reaches or falls
below 3°C the outside temperature indication
flashes to warn the driver about the possible
presence of ice on the road.
The display will show the dedicated message
(only for versions with a multifunction display).SPEED LIMIT EXCEEDED
The symbol switches on together with a
dedicated message when the vehicle exceeds the
set speed limit (see “Multifunction Display” in
section “Knowing your vehicle”).SCHEDULED SERVICING
(for versions/markets, where provided)
The symbol switches on together with a
dedicated message next to the scheduled
servicing warning and stays on until the service
deadline is reached. It switches off after the
service has been carried out at a Fiat Dealership
or once 1000 km have been covered from the
service deadline.
