WEIGHTS OF CAB CHASSIS WITH PLATFORM
3000 kg GVW versions
115 MultiJet (*)110 (*)/130/150
MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%
and without optional equipment)1580 ÷ 1630 1595 ÷ 1645 1675 ÷ 1725
Maximum permitted loads (***)
– front axle: 1630 1630 1630
– rear axle: 1650 1650 1650
– total: 3000 3000 3000
Towable loads
– braked trailer: 2000 2000 ÷ 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
317

WEIGHTS OF CAB CHASSIS WITH PLATFORM
3300 kg GVW versions
115 MultiJet (*)110 (*)/130/150
MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%
and without optional equipment)1580 ÷ 1630 1595 ÷ 1645 1675 ÷ 1725
Maximum permitted loads (***)
– front axle: 1750 1750 1750
– rear axle: 1900 1900 1900
– total: 3300 3300 3300
Towable loads
– braked trailer: 2000 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
318
TECHNICAL SPECIFICATIONS

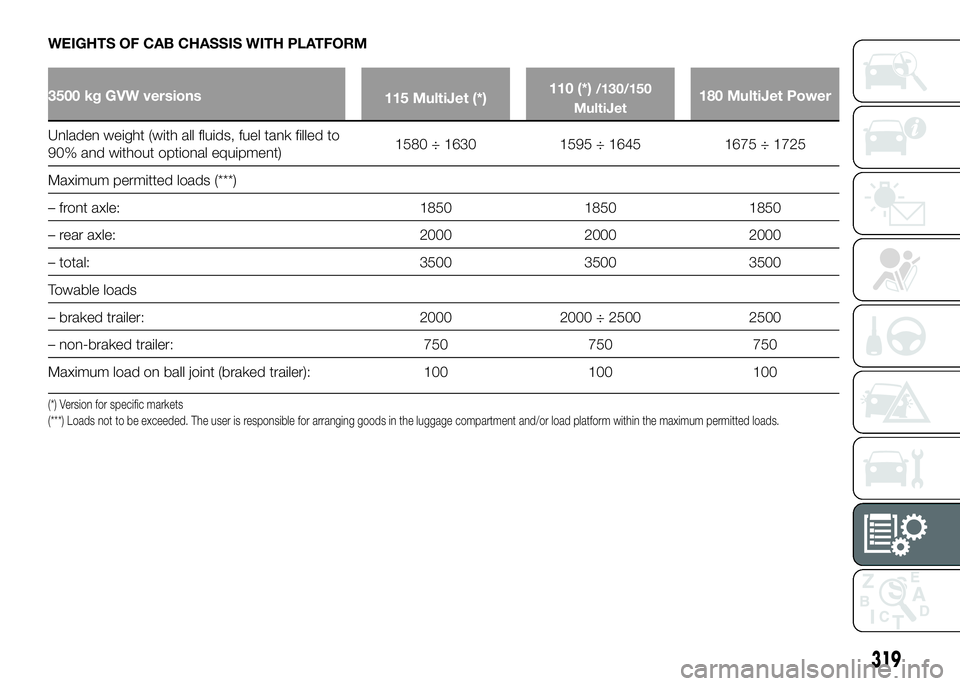

WEIGHTS OF CAB CHASSIS WITH PLATFORM
3500 kg GVW versions
115 MultiJet (*)110 (*)/130/150
MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%
and without optional equipment)1580 ÷ 1630 1595 ÷ 1645 1675 ÷ 1725
Maximum permitted loads (***)
– front axle: 1850 1850 1850
– rear axle: 2000 2000 2000
– total: 3500 3500 3500
Towable loads
– braked trailer: 2000 2000 ÷ 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
319

WEIGHTS OF CAB CHASSIS WITH PLATFORM (MAXI versions)
3500 kg GVW versions3995 kg - 4005 kg - 4250 kg GVW
versions
110 (*)
/130/150
MultiJet180 MultiJet
Power110 (*)/130/150
MultiJet180 MultiJet
Power
Unladen weight (with all fluids, fuel tank
filled
to 90% and without optional
equipment)1635 ÷ 1685 1715 ÷ 1765 1635 ÷ 1685 1715 ÷ 1765
Maximum permitted loads (***)
– front axle: 2100 2100 2100 2100
– rear axle: 2400 ÷ 2500 2400 ÷ 2500 2400 ÷ 2500 2400 ÷ 2500
– total: 3500 3500 4005 ÷ 4250 4005 ÷ 4250
Towable loads
– braked trailer: 3000 3000 2000 ÷ 2500 2000 ÷ 2500
– non-braked trailer: 750 750 750 750
Maximum load on ball joint (braked trailer): 120 120 100 100
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
320
TECHNICAL SPECIFICATIONS

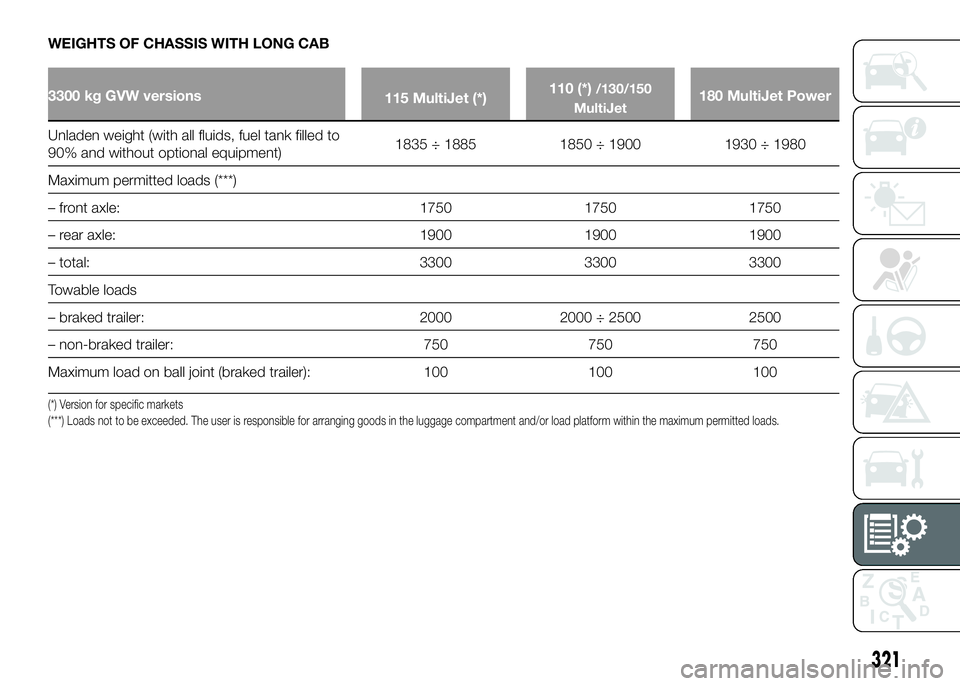

WEIGHTS OF CHASSIS WITH LONG CAB
3300 kg GVW versions
115 MultiJet (*)110 (*)/130/150
MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%
and without optional equipment)1835 ÷ 1885 1850 ÷ 1900 1930 ÷ 1980
Maximum permitted loads (***)
– front axle: 1750 1750 1750
– rear axle: 1900 1900 1900
– total: 3300 3300 3300
Towable loads
– braked trailer: 2000 2000 ÷ 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
321

WEIGHTS OF CHASSIS WITH LONG CAB
3500 kg GVW versions
115 MultiJet (*)110 (*)/130/150
MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%
and without optional equipment)1835 ÷ 1885 1850 ÷ 1900 1930 ÷ 1980
Maximum permitted loads (***)
– front axle: 1850 1850 1850
– rear axle: 2000 2000 2000
– total: 3500 3500 3500
Towable loads
– braked trailer: 2000 2000 ÷ 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
322
TECHNICAL SPECIFICATIONS

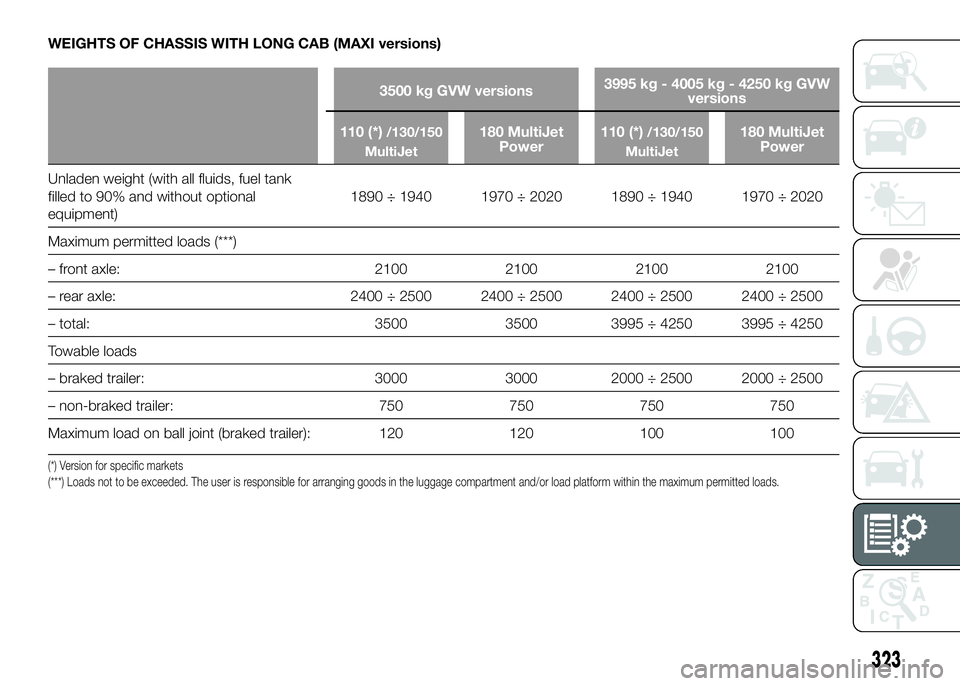

WEIGHTS OF CHASSIS WITH LONG CAB (MAXI versions)
3500 kg GVW versions3995 kg - 4005 kg - 4250 kg GVW
versions
110 (*)
/130/150
MultiJet180 MultiJet
Power110 (*)/130/150
MultiJet180 MultiJet
Power
Unladen weight (with all fluids, fuel tank
filled
to 90% and without optional
equipment)1890 ÷ 1940 1970 ÷ 2020 1890 ÷ 1940 1970 ÷ 2020
Maximum permitted loads (***)
– front axle: 2100 2100 2100 2100
– rear axle: 2400 ÷ 2500 2400 ÷ 2500 2400 ÷ 2500 2400 ÷ 2500
– total: 3500 3500 3995 ÷ 4250 3995 ÷ 4250
Towable loads
– braked trailer: 3000 3000 2000 ÷ 2500 2000 ÷ 2500
– non-braked trailer: 750 750 750 750
Maximum load on ball joint (braked trailer): 120 120 100 100
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
323

CREW CAB VAN WEIGHTS
3300 kg GVW versions
115 MultiJet (*)130 MultiJet 180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%and without optional equipment)2011 ÷ 2076 2026 ÷ 2091 2106
Maximum permitted loads (***)
– front axle: 1750 1750 1750
– rear axle: 1900 1900 1900
– total: 3300 3300 3300
Towable loads
– braked trailer: 2000 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
324
TECHNICAL SPECIFICATIONS

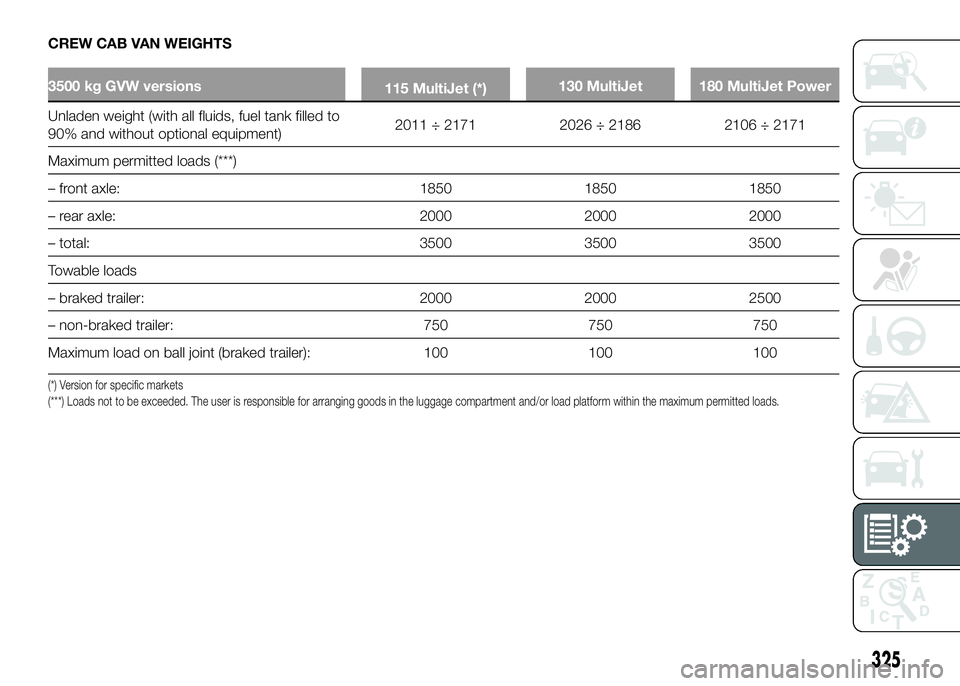

CREW CAB VAN WEIGHTS
3500 kg GVW versions
115 MultiJet (*)130 MultiJet 180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%and without optional equipment)2011 ÷ 2171 2026 ÷ 2186 2106 ÷ 2171
Maximum permitted loads (***)
– front axle: 1850 1850 1850
– rear axle: 2000 2000 2000
– total: 3500 3500 3500
Towable loads
– braked trailer: 2000 2000 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
325

CREW CAB VAN WEIGHTS (MAXI versions)
3500 kg GVW versions 130 MultiJet 180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%and without optional equipment)2066 - 2226 2146 - 2306
Maximum permitted loads (°)
– front axle: 2100 2100
– rear axle: 2400 2400
– total: 3500 3500
Towable loads
– braked trailer: 3000 3000
– non-braked trailer: 750 750
Maximum load on ball joint (braked trailer): 100 100
(°) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
