FIAT DUCATO BASE CAMPER 2016 Owner handbook (in English)

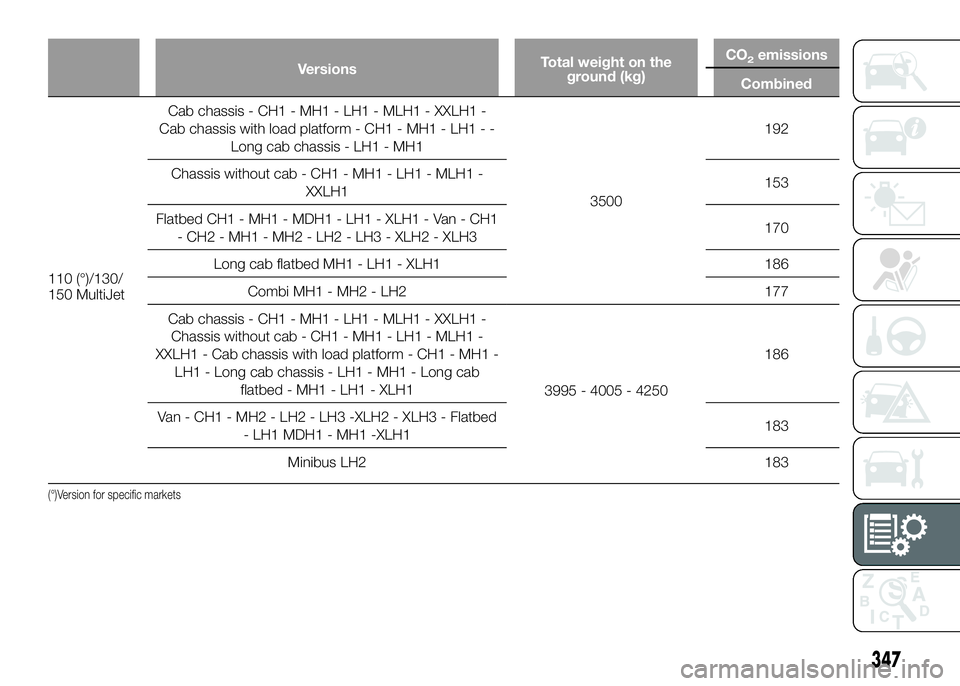

VersionsTotal weight on the
ground (kg)CO2emissions
Combined
110 (°)/130/
150
MultiJetCab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1 -
Cab chassis with load platform - CH1 - MH1 - LH1 - -
Long cab chassis - LH1 - MH1
3500192
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1153
Flatbed CH1 - MH1 - MDH1 - LH1 - XLH1 - Van - CH1
- CH2 - MH1 - MH2 - LH2 - LH3 - XLH2 - XLH3170
Long cab flatbed MH1 - LH1 - XLH1 186
Combi MH1 - MH2 - LH2 177
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1 -
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1 - Cab chassis with load platform - CH1 - MH1 -
LH1 - Long cab chassis - LH1 - MH1 - Long cab
flatbed - MH1 - LH1 - XLH1
3995 - 4005 - 4250186
Van - CH1 - MH2 - LH2 - LH3 -XLH2 - XLH3 - Flatbed
- LH1 MDH1 - MH1 -XLH1183
Minibus LH2 183
(°)Version for specific markets
347

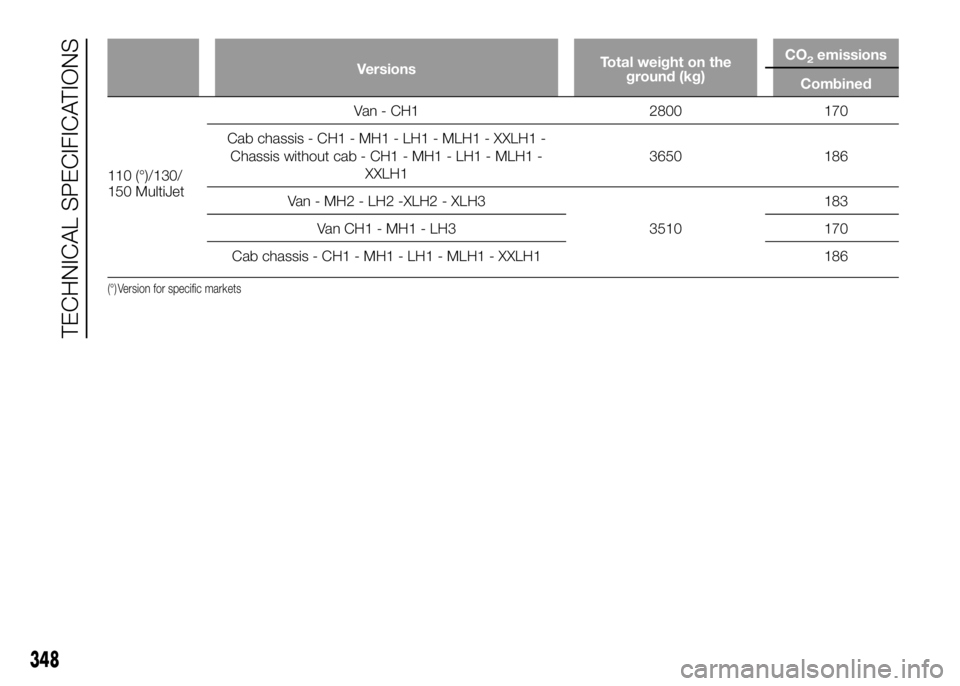

VersionsTotal weight on the
ground (kg)CO2emissions
Combined
110 (°)/130/
150
MultiJetVan - CH1 2800 170
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1 -
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH13650 186
Van - MH2 - LH2 -XLH2 - XLH3
3510183
Van CH1 - MH1 - LH3 170
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1 186
(°) Version for specific markets
348
TECHNICAL SPECIFICATIONS

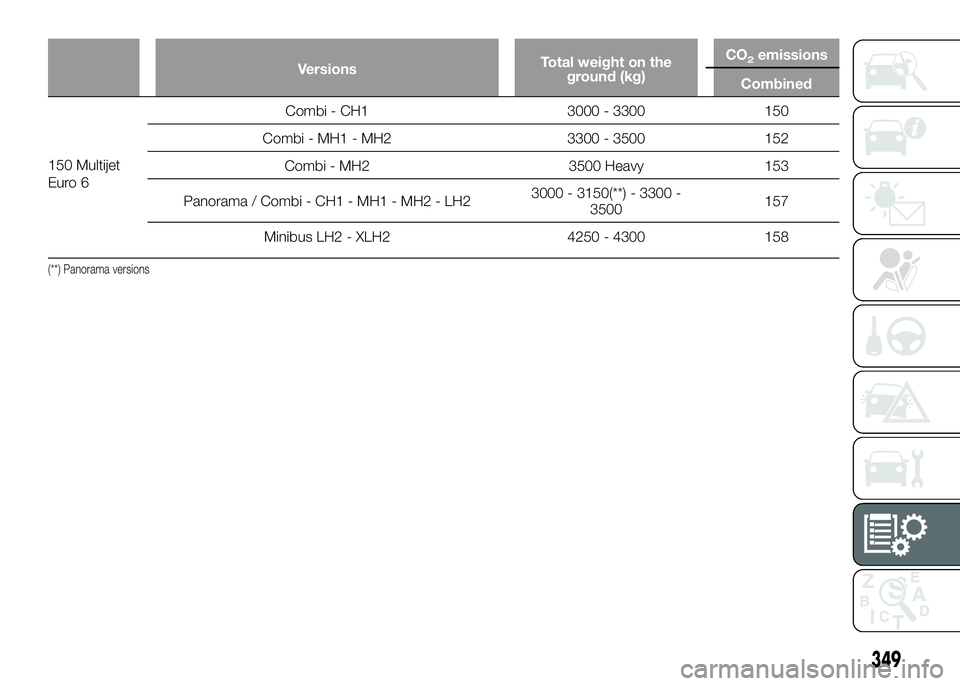

VersionsTotal weight on the
ground (kg)CO2emissions
Combined
150 Multijet
Euro 6Combi - CH1 3000 - 3300 150
Combi - MH1 - MH2 3300 - 3500 152
Combi - MH2 3500 Heavy 153
Panorama / Combi - CH1 - MH1 - MH2 - LH23000 - 3150(**) - 3300 -
3500157
Minibus LH2 - XLH2 4250 - 4300 158
(**) Panorama versions
349

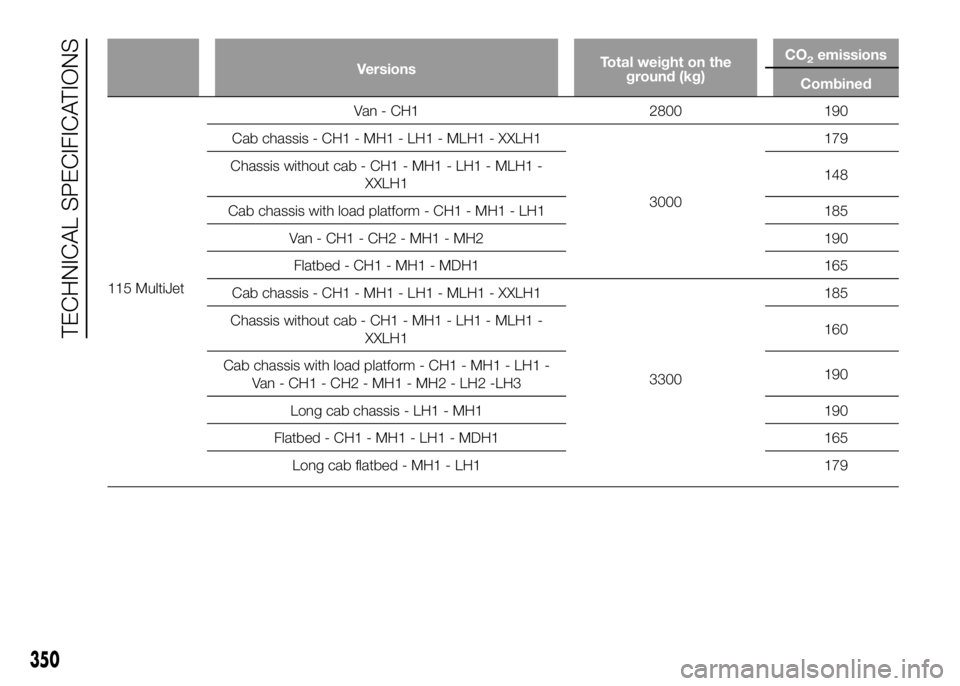

VersionsTotal weight on the
ground (kg)CO2emissions
Combined
115 MultiJetV
an - CH1 2800 190
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1
3000179
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1148
Cab chassis with load platform - CH1 - MH1 - LH1 185
Van - CH1 - CH2 - MH1 - MH2 190
Flatbed - CH1 - MH1 - MDH1 165
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1
3300185
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1160
Cab chassis with load platform - CH1 - MH1 - LH1 -
Van - CH1 - CH2 - MH1 - MH2 - LH2 -LH3190
Long cab chassis - LH1 - MH1 190
Flatbed - CH1 - MH1 - LH1 - MDH1 165
Long cab flatbed - MH1 - LH1 179
350
TECHNICAL SPECIFICATIONS

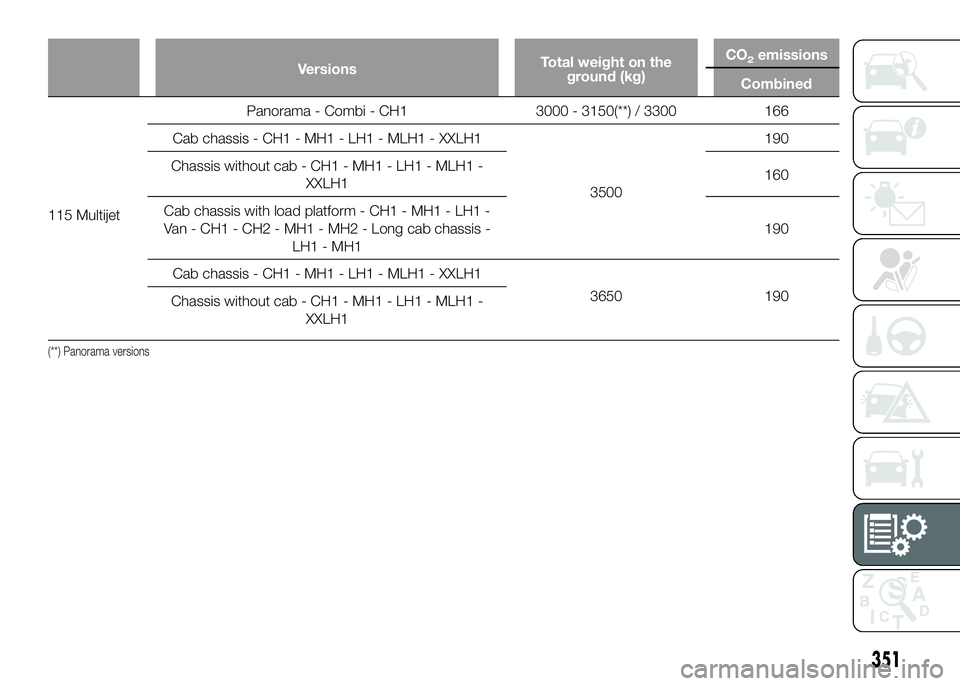

VersionsTotal weight on the
ground (kg)CO2emissions
Combined
115 MultijetPanorama- Combi - CH1 3000 - 3150(**) / 3300 166
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1
3500190
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1160
Cab chassis with load platform - CH1 - MH1 - LH1 -
Van - CH1 - CH2 - MH1 - MH2 - Long cab chassis -
LH1 - MH1190
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1
3650 190
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1
(**) Panorama versions
351

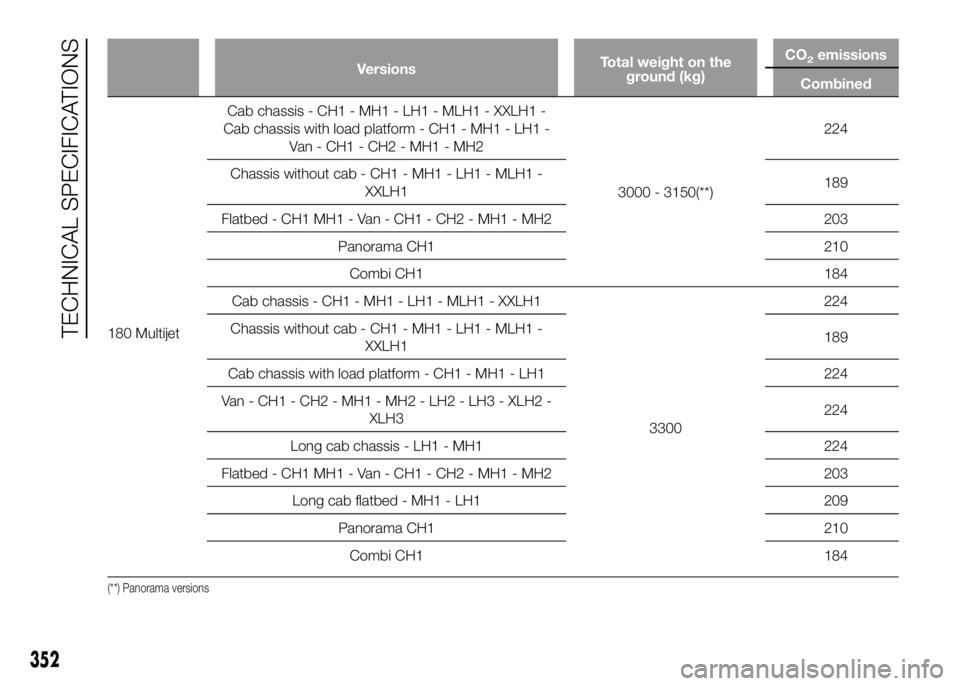

VersionsTotal weight on the
ground (kg)CO2emissions
Combined
180 MultijetCab
chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1 -
Cab chassis with load platform - CH1 - MH1 - LH1 -
Van - CH1 - CH2 - MH1 - MH2
3000 - 3150(**)224
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1189
Flatbed - CH1 MH1 - Van - CH1 - CH2 - MH1 - MH2 203
Panorama CH1 210
Combi CH1 184
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1
3300224
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1189
Cab chassis with load platform - CH1 - MH1 - LH1 224
Van - CH1 - CH2 - MH1 - MH2 - LH2 - LH3 - XLH2 -
XLH3224
Long cab chassis - LH1 - MH1 224
Flatbed - CH1 MH1 - Van - CH1 - CH2 - MH1 - MH2 203
Long cab flatbed - MH1 - LH1 209
Panorama CH1 210
Combi CH1 184
(**) Panorama versions
352
TECHNICAL SPECIFICATIONS

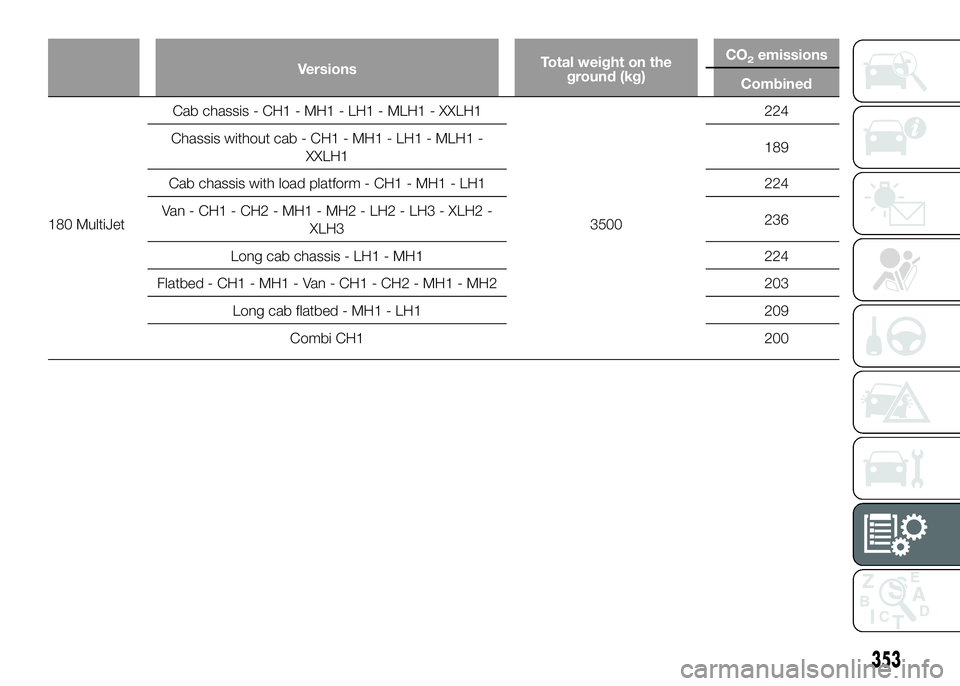

VersionsTotal weight on the
ground (kg)CO2emissions
Combined
180 MultiJetCab
chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1
3500224
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1189
Cab chassis with load platform - CH1 - MH1 - LH1 224
Van - CH1 - CH2 - MH1 - MH2 - LH2 - LH3 - XLH2 -
XLH3236
Long cab chassis - LH1 - MH1 224
Flatbed - CH1 - MH1 - Van - CH1 - CH2 - MH1 - MH2 203
Long cab flatbed - MH1 - LH1 209
Combi CH1 200
353

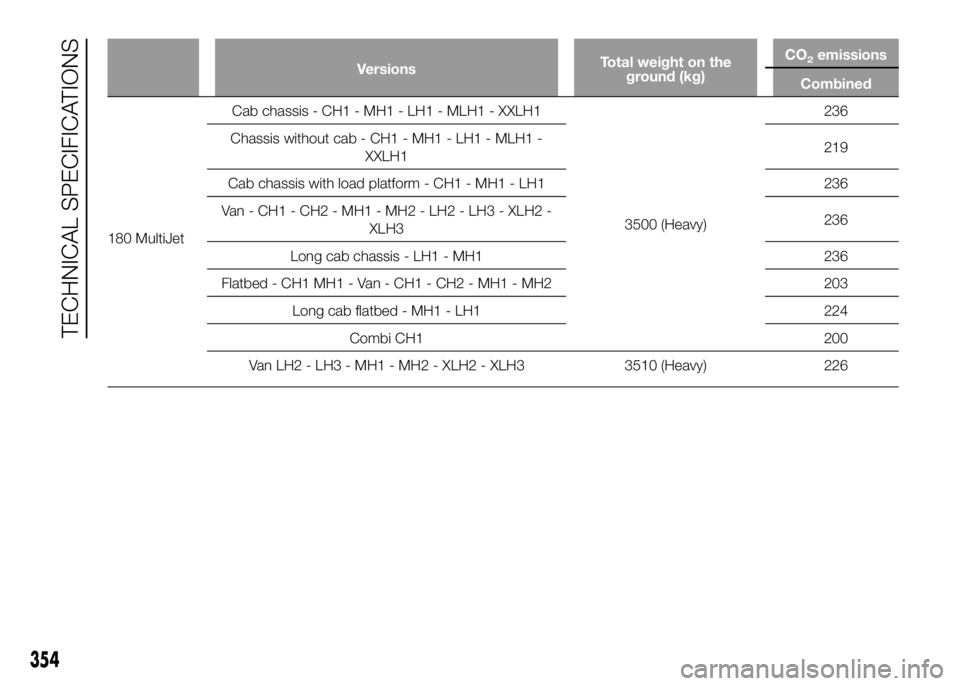

VersionsTotal weight on the
ground (kg)CO2emissions
Combined
180 MultiJetCabchassis - CH1 - MH1 - LH1 - MLH1 - XXLH1
3500 (Heavy)236
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1219
Cab chassis with load platform - CH1 - MH1 - LH1 236
Van - CH1 - CH2 - MH1 - MH2 - LH2 - LH3 - XLH2 -
XLH3236
Long cab chassis - LH1 - MH1 236
Flatbed - CH1 MH1 - Van - CH1 - CH2 - MH1 - MH2 203
Long cab flatbed - MH1 - LH1 224
Combi CH1 200
Van LH2 - LH3 - MH1 - MH2 - XLH2 - XLH3 3510 (Heavy) 226
354
TECHNICAL SPECIFICATIONS

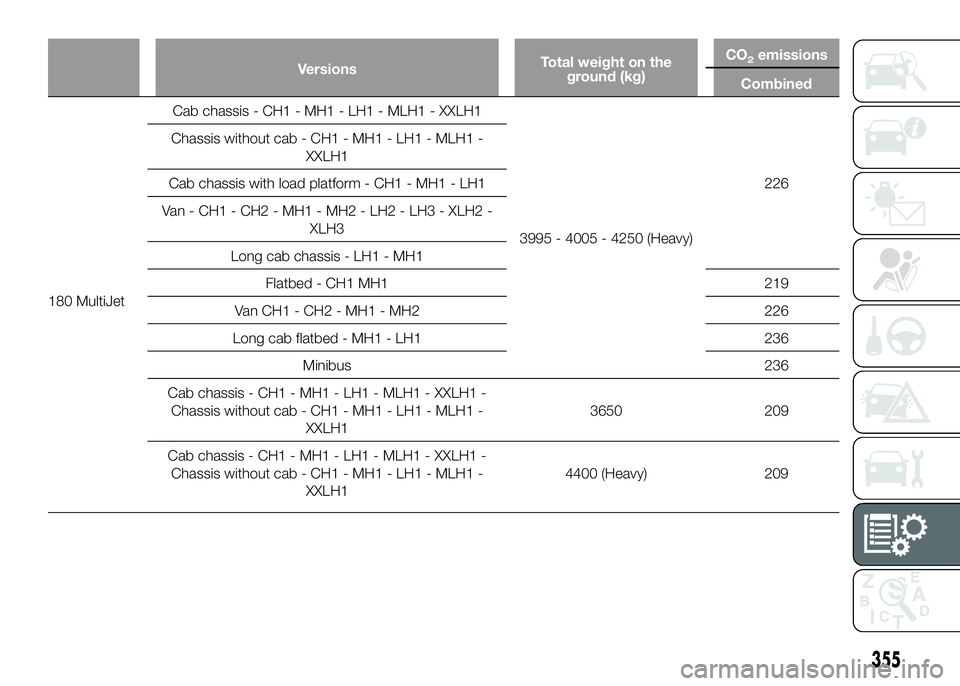

VersionsTotal weight on the
ground (kg)CO2emissions
Combined
180 MultiJetCab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1
3995 - 4005 - 4250 (Heavy)226 Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1
Cab chassis with load platform - CH1 - MH1 - LH1
Van - CH1 - CH2 - MH1 - MH2 - LH2 - LH3 - XLH2 -
XLH3
Long cab chassis - LH1 - MH1
Flatbed - CH1 MH1 219
Van CH1 - CH2 - MH1 - MH2 226
Long cab flatbed - MH1 - LH1 236
Minibus 236
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1 -
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH13650 209
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1 -
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH14400 (Heavy) 209
355

OFFICIAL TYPE APPROVALS
356
TECHNICAL SPECIFICATIONS
