FIAT DUCATO BASE CAMPER 2016 Owner handbook (in English)

357

358
TECHNICAL SPECIFICATIONS

359

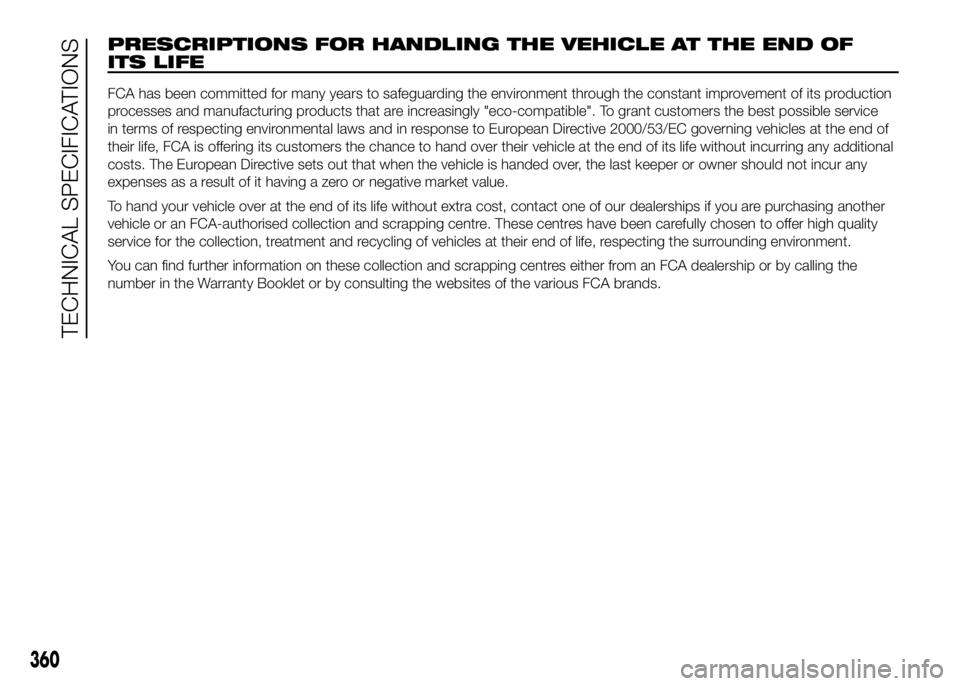

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF
ITS LIFE
FCA has been committed for many years to safeguarding the environment through the constant improvement of its production
processes and manufacturing products that are increasingly "eco-compatible". To grant customers the best possible service
in terms of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the end of
their life, FCA is offering its customers the chance to hand over their vehicle at the end of its life without incurring any additional
costs. The European Directive sets out that when the vehicle is handed over, the last keeper or owner should not incur any
expenses as a result of it having a zero or negative market value.
To hand your vehicle over at the end of its life without extra cost, contact one of our dealerships if you are purchasing another
vehicle or an FCA-authorised collection and scrapping centre. These centres have been carefully chosen to offer high quality
service for the collection, treatment and recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from an FCA dealership or by calling the
number in the Warranty Booklet or by consulting the websites of the various FCA brands.
360
TECHNICAL SPECIFICATIONS

WHATTODOIF
Fault Possible solution
... A TYRE IS PUNCTURED.Use
the Fix&Go tyre repair kit. See page 208.
Replace the tyre. See page 203
... A TYRE DEFLATES. Restore the correct pressure. See page 273.
... THE INTERNAL ROOF LIGHT DOES NOT
SWITCH ON.Replace the bulb.See page 221 or contact a
Fiat Dealership.
... AN EXTERNAL BULB (main beam, dipped
beam headlights...) DOES NOT COME ON.Replace the bulb.See page 216 or contact a
Fiat Dealership.
... THE REMOTE CONTROL DOES NOT
WORK.Replace the batteries inside the remote
control.See page 13 or contact a
Fiat Dealership.
... AN ELECTRIC WINDOW DOES NOT
WORK.Check the relevant protection fuse.See page 222 or contact a
Fiat Dealership.
Have the relevant window raising / lowering
motor checked.Contact a Fiat Dealership.
... THE ENGINE DOES NOT START OR
STOPS WHEN DRIVING.Check that there is sufficient fuel in the tank;
refuel if necessary.See page 109.
...DIESEL FUEL IS FROZEN.Use winter diesel fuel or a suitable additive. See page 331
In the case of VOR, warm up the diesel filter
area and the upstream/downstream circuits, if
possible.-
...INCORRECT FITTING OF THE AFTER
MARKET SYSTEMS.Carefully follow the instructions in the Owner
Handbook in order to prevent affecting the
correct operation of the vehicle.See page 107 or contact a
Fiat Dealership.

Fault Possible solution
...STEERING STUCK WITH VOR AND
STEERING
LOCK ENGAGED.If the vehicle is parked with the wheels
completely steered, the steering wheel must
be turned in the direction opposite to the end
of travel position, while taking the key to
MAR-ON.-
... THE ENGINE DOES NOT START, THE
STARTER DOES NOT TURN.The battery might be empty, check its charge
status. If necessary carry out an emergency
starting.See page 202.
The battery quick-release terminal might have
disconnected, check the correct connection
on the battery negative pole.-
The battery protection fuse might be broken.
Do not force starting by keeping on taking the
key to AVV. Do not connect any external
device to the battery.See page 222 or contact a
Fiat Dealership.
... THE ENGINE DOES NOT START
FOLLOWING AN IMPACT.Fuel supply might be interrupted following
activation of the fuel cut off inertia switch.
Check the system re-activation procedure.See page 62.
