FIAT DUCATO BASE CAMPER 2016 Owner handbook (in English)

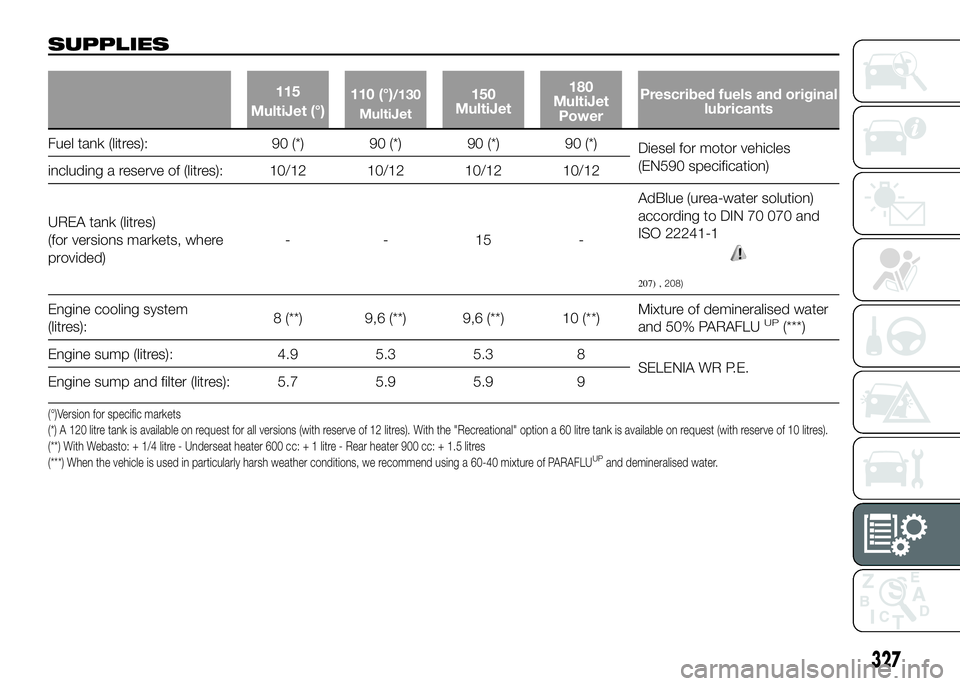

SUPPLIES
115
MultiJet (°)110 (°)/130
MultiJet150
MultiJet180
MultiJet
PowerPrescribed fuels and original
lubricants
Fuel tank (litres): 90 (*) 90 (*) 90 (*) 90 (*)
Dieselfor motor vehicles
(EN590 specification)
including a reserve of (litres): 10/12 10/12 10/12 10/12
UREA tank (litres)
(for versions markets, where
provided)- - 15 -AdBlue (urea-water solution)
according to DIN 70 070 and
ISO 22241-1
207) ,208)
Engine cooling system
(litres):8 (**) 9,6 (**) 9,6 (**) 10 (**)Mixture of demineralised water
and 50% PARAFLUUP(***)
Engine sump (litres): 4.9 5.3 5.3 8
SELENIA WR P.E.
Engine sump and filter (litres): 5.7 5.9 5.9 9
(°)Version for specific markets
(*) A 120 litre tank is available on request for all versions (with reserve of 12 litres). With the "Recreational" option a 60 litre tank is available on request (with reserve of 10 litres).
(**) With Webasto: + 1/4 litre - Underseat heater 600 cc: + 1 litre - Rear heater 900 cc: + 1.5 litres
(***) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLU
UPand demineralised water.
327

115
MultiJet (°)110 (°)/130
MultiJet150
MultiJet180
MultiJet
PowerPrescribed fuels and original
lubricants
Gearbox/differential casing
(litres):-2.7 (MLGU
gearbox)2.7 -TUTELA TRANSMISSION
EXPERYA
Gearbox/differential casing
(litres):2,92.9 (M38
gearbox)2.9TUTELA TRANSMISSION
GEARTECH
Hydraulic braking circuit with
ABS (kg):0.6 0.6 0.6 0.6
TUTELA TOP 4
Hydraulic braking circuit with
ASR/ESP (kg):0.62 0.62 0.62 0.62
Hydraulic power steering: 1.5 1.5 1.5 1.5 TUTELA TRANSMISSION GI/E
Windscreen/headlight
washer reservoir:5.5 5.5 5.5 5.5Mixture of water and TUTELA
PROFESSIONAL SC35
(°)Version for specific markets
WARNING
207) Use AdBlue only according to DIN 70 070 and ISO 22241-1. Other fluids may cause damage to the system: also
exhaust emissions would no longer comply with the law.
208) The distribution companies are responsible for the compliance of their product. Observe the precautions of storage
and maintenance, in order to preserve the initial qualities. The manufacturer of the vehicle does not recognize any
guarantee in case of malfunctions and damage caused to the vehicle due to the use of urea (AdBlue) not in
accordance with regulations.
328
TECHNICAL SPECIFICATIONS

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration.
57)
RECOMMENDED PRODUCTS AND THEIR SPECIFICATIONS
Use Characteristics SpecificationOriginal fluids and
lubricantsReplacement interval
Diesel engine
lubricantsSAE
0W-30ACEA C29.55535-S1SELENIA WR
FORWARD
Contractual Technical
Reference No.
F842.F13According to
Scheduled Servicing
Plan
In the case of emergency, if the above specified lubricants are not available, products with the minimum indicated ACEA
performance can be used for topping up; in this case optimal performance of the engine is not guaranteed.
IMPORTANT
57) The use of products with specifications other than those indicated above could cause damage to the engine not
covered by the warranty.
329

Use Characteristics SpecificationOriginal fluids and
lubricantsApplications
Lubricants and
greases for drive
transmissionSynthetic base
lubricant SAE 75W-80
grade9.55550-MZ2TUTELA
TRANSMISSION
EXPERYA
Contractual Technical
Reference No.
F178.B06Manual gearbox and
differential
Synthetic base
lubricant SAE 75W-85
grade9.55550-MZ3 or
MS.90030-M2TUTELA
TRANSMISSION
GEARTECH
Contractual Technical
Reference No.
F704.C08Manual gearbox and
differential
Molybdenum
disulphide grease, for
use at high
temperatures.
Consistency NLGI 1-29.55580 - GRAS IITUTELA ALL STAR
Contractual Technical
Reference No.
F702.G07Wheel side constant
velocity joints
Grease for constant
velocity joints with low
friction coefficient.
Consistency NLGI 0-19.55580 - GRAS IITUTELA STAR 700
Contractual Technical
Reference No.
F701.C07Differential-side
constant velocity joints
Lubricant for power
steering. Exceeds "ATF
DEXRON III"
specifications9.55550-AG2TUTELA
TRANSMISSION GI/E
Contractual Technical
Reference No.
F001.C94Hydraulic power
steering
330
TECHNICAL SPECIFICATIONS

Use Characteristics SpecificationOriginal fluids and
lubricantsApplications
Brake fluidSynthetic
fluid for brake
and clutch systems.
Exceeds specifications:
FMVSS n° 116 DOT 4,
ISO 4925, SAE J 1704.9.55597 or MS.90039TUTELA TOP 4
Contractual Technical
Reference No.
F001.A93Hydraulic brakes and
clutch controls
Protective agent for
radiatorsRed protective agent
with antifreeze action,
based on inhibited
monoethylene glycol
with organic formula.
Exceeds CUNA NC
956-16, ASTM D 3306
specifications.9.55523 or MS.90032PARAFLU
UP
Contractual Technical
Reference No.
F101.M01Cooling circuits Use
rate 50% up to -35°C.
Mixture with different
formulation products
not allowed. (*)
Diesel fuel additiveAdditive for diesel
antifreeze, protecting
diesel engines.-TUTELA DIESEL ART
Contractual Technical
Reference No.
F601.L06To be mixed with diesel
(25 cc per 10 litres)
ADDITIVE FOR
DIESEL EMISSIONS
(UREA)Water-urea solutionDIN 70 070 and ISO
22241-1AdBlueTo be used for filling the
tank UREA on vehicles
equipped with system
of Selective Catalytic
Reduction (SCR).
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLUUPand 40% demineralised water.
331

Use Characteristics SpecificationOriginal fluids and
lubricantsApplications
Windscreen washer
fluidMixtur
e of spirits and
surfactants. Exceeds
CUNA NC 956-II
specifications.9.55522 or MS.90043TUTELA
PROFESSIONAL SC
35
Contractual Technical
Reference No.
F201.D02To be used diluted or
undiluted in screen
washer/wiper systems
332
TECHNICAL SPECIFICATIONS

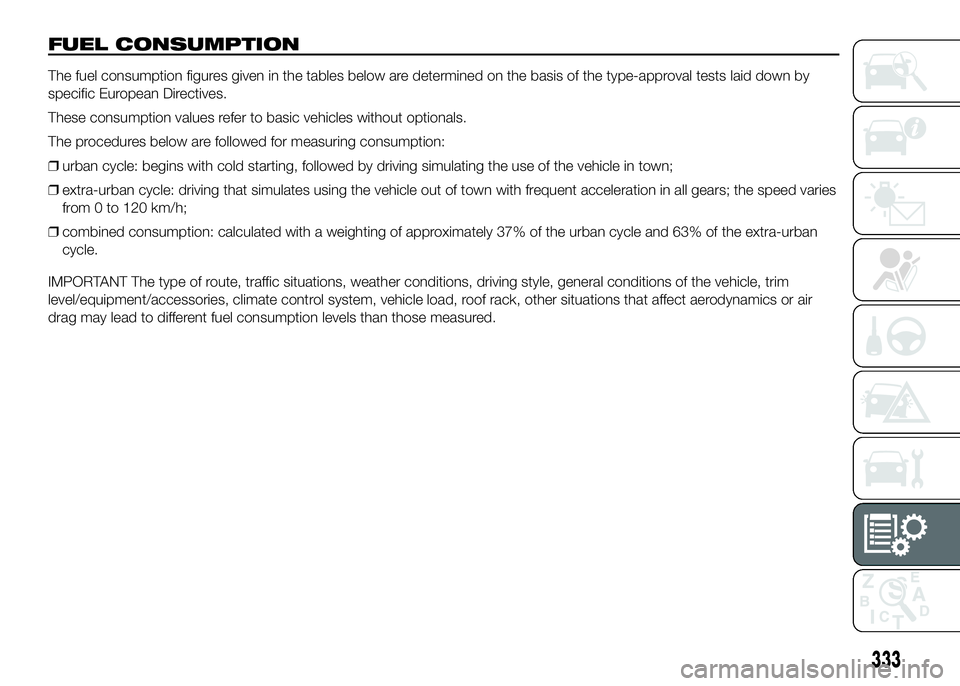

FUEL CONSUMPTION
The fuel consumption figures given in the tables below are determined on the basis of the type-approval tests laid down by
specific European Directives.
These consumption values refer to basic vehicles without optionals.
The procedures below are followed for measuring consumption:
❒urban cycle: begins with cold starting, followed by driving simulating the use of the vehicle in town;
❒extra-urban cycle: driving that simulates using the vehicle out of town with frequent acceleration in all gears; the speed varies
from 0 to 120 km/h;
❒combined consumption: calculated with a weighting of approximately 37% of the urban cycle and 63% of the extra-urban
cycle.
IMPORTANT The type of route, traffic situations, weather conditions, driving style, general conditions of the vehicle, trim
level/equipment/accessories, climate control system, vehicle load, roof rack, other situations that affect aerodynamics or air
drag may lead to different fuel consumption levels than those measured.
333

Fuel consumption (according to the current European Directive - litres/100 km)
VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi
110 (°)/130/
150 MultiJet
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1 - Cab chassis with load platform
- CH1 - MH1 - LH1
3000 - 3150(**)8.4 6.3 7.1
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH17,0 5,1 5,8
Van - CH1 - CH2 - MH1 - MH2 - Combi -
MH1 - MH28,6 6,5 7,3
Flatbed CH1 - MH1 - MDH1 7,7 5,7 6,4
Panorama - CH1 8,6 6,0 7,0
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1 - Long cab flatbed - MH1 - LH1
33008,4 6,3 7,1
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH17,0 5,1 5,8
Cab chassis with load platform - CH1 -
MH1 - LH1 - - Long cab chassis - LH1 -
MH1 - Panorama - MH1 - MH28,6 6,5 7,3
Flatbed CH1 - MH1 - MDH1 - LH1 - Van
- CH1 - CH2 - MH1 - MH2 - LH2 - LH37,7 5,7 6,4
Combi CH1 - MH1 - MH2 8,2 5,5 6,5
(°)Version for specific markets
(**) Panorama versions
334
TECHNICAL SPECIFICATIONS

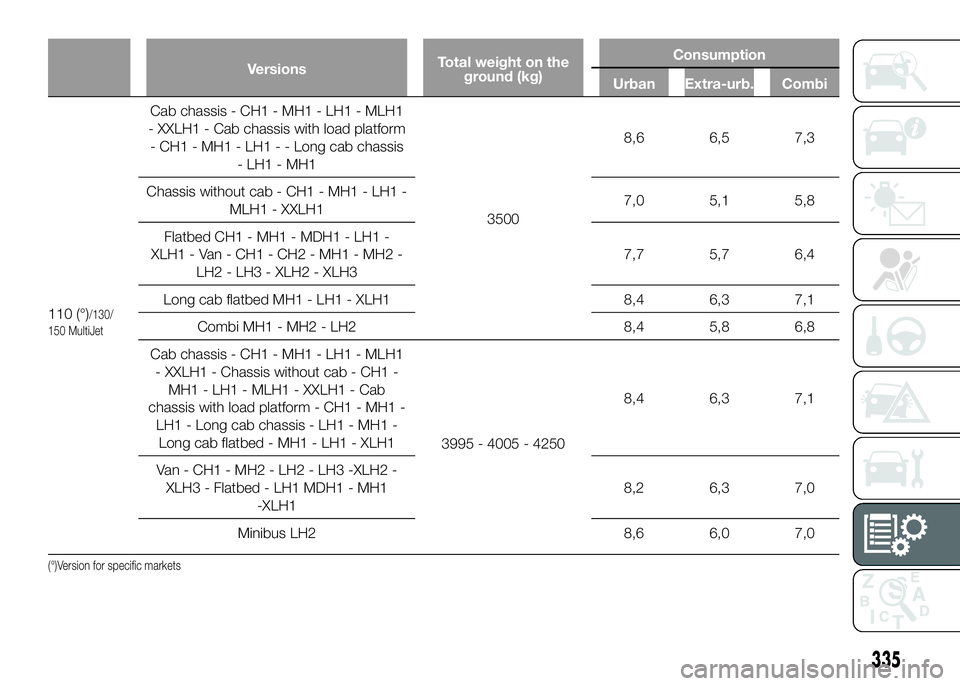

VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi
110 (°)/130/
150 MultiJet
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1 - Cab chassis with load platform
- CH1 - MH1 - LH1 - - Long cab chassis
- LH1 - MH1
35008,6 6,5 7,3
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH17,0 5,1 5,8
Flatbed CH1 - MH1 - MDH1 - LH1 -
XLH1 - Van - CH1 - CH2 - MH1 - MH2 -
LH2 - LH3 - XLH2 - XLH37,7 5,7 6,4
Long cab flatbed MH1 - LH1 - XLH1 8,4 6,3 7,1
Combi MH1 - MH2 - LH2 8,4 5,8 6,8
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1 - Chassis without cab - CH1 -
MH1 - LH1 - MLH1 - XXLH1 - Cab
chassis with load platform - CH1 - MH1 -
LH1 - Long cab chassis - LH1 - MH1 -
Long cab flatbed - MH1 - LH1 - XLH1
3995 - 4005 - 42508,4 6,3 7,1
Van - CH1 - MH2 - LH2 - LH3 -XLH2 -
XLH3 - Flatbed - LH1 MDH1 - MH1
-XLH18,2 6,3 7,0
Minibus LH2 8,6 6,0 7,0
(°)Version for specific markets
335

VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi
110 (°)/130/
150 MultiJet
Van - CH1 2800 7,7 5,7 6,4
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1 - Chassis without cab - CH1 -
MH1 - LH1 - MLH1 - XXLH13650 8,4 6,3 7,1
Van - MH2 - LH2 -XLH2 - XLH3
35108,2 6,3 7,0
Van CH1 - MH1 - LH3 7,7 5,7 6,4
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH18,4 6,3 7,1
(°)Version for specific markets
336
