FIAT DUCATO BASE CAMPER 2017 Owner handbook (in English)

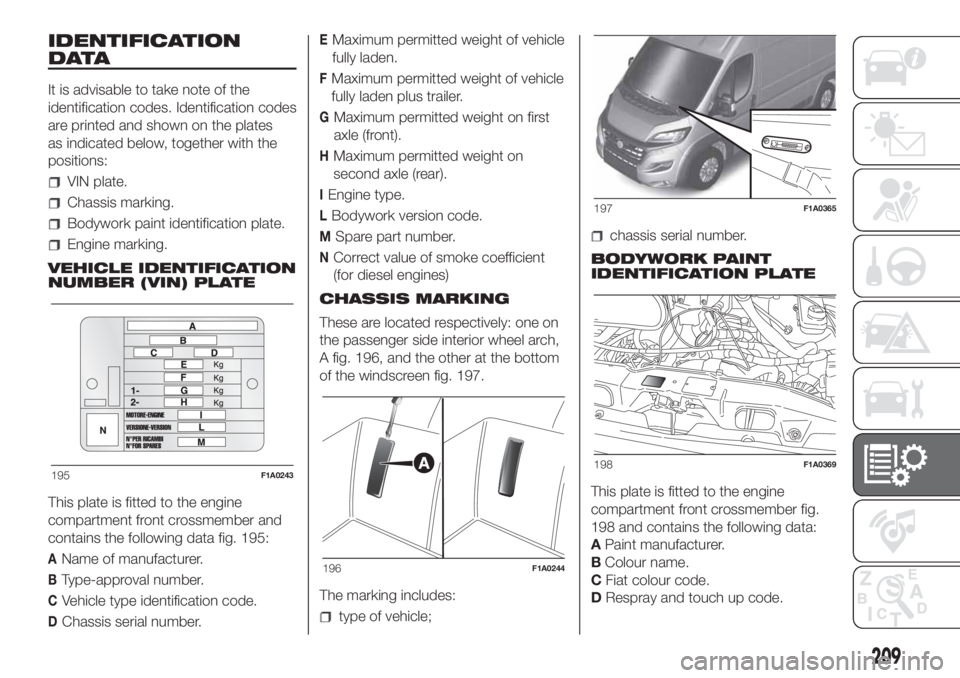

IDENTIFICATION
DATA
It is advisable to take note of the
identification codes. Identification codes
are printed and shown on the plates
as indicated below, together with the
positions:
VIN plate.
Chassis marking.
Bodywork paint identification plate.
Engine marking.
VEHICLE IDENTIFICATION
NUMBER (VIN) PLATE
This plate is fitted to the engine
compartment front crossmember and
contains the following data fig. 195:
AName of manufacturer.
BType-approval number.
CVehicle type identification code.
DChassis serial number.
EMaximum permitted weight of vehicle
fully laden.
FMaximum permitted weight of vehicle
fully laden plus trailer.
GMaximum permitted weight on first
axle (front).
HMaximum permitted weight on
second axle (rear).
IEngine type.
LBodywork version code.
MSpare part number.
NCorrect value of smoke coefficient
(for diesel engines)
CHASSIS MARKING
These are located respectively: one on
the passenger side interior wheel arch,
A fig. 196, and the other at the bottom
of the windscreen fig. 197.
The marking includes:
type of vehicle;
chassis serial number.
BODYWORK PAINT
IDENTIFICATION PLATE
This plate is fitted to the engine
compartment front crossmember fig.
198 and contains the following data:
APaint manufacturer.
BColour name.
CFiat colour code.
DRespray and touch up code.
195F1A0243
196F1A0244
197F1A0365
198F1A0369
209

ENGINE MARKING
It is stamped on the cylinder block and
includes the type and the engine serial
number.
CYLINDER MARKING
Each methane cylinder is identified in
the factory with a stamp on the nose of
the cylinder.
The other plates provided by the
Dealership with the vehicle documents
show the date when the first cylinder
inspection/test is due.
59)
SYSTEM INSPECTION
The cylinders must be inspected, in
accordance with ECE Regulation
Procedure no. 110, every 4 years from
the vehicle registration date or in
accordance with specific regulations in
individual countries.
WARNING
59)If the vehicle has been registered in a
country other than Italy, the certification
data, identification and inspection
procedures for the methane cylinders
should conform to the legislation in that
country. In any case, it should be
remembered that the life of the cylinders is
20 years from the production date as set
out in ECE Regulation no. 110.
199F0N0405M
210
TECHNICAL DATA

ENGINE CODES - BODYWORK VERSION.
VersionEngine code
2.0 115 Multijet 2250A2000
2.3 150 ECOJET with dBlueF1AGL411A
2.3 130 Multijet 2F1AGL411D
2.3 130 Multijet 2 with AdBlueF1AGL411M
2.3 150 Multijet 2F1AGL411C
2.3 180 Multijet 2 PowerF1AGL411B
3.0 140 Natural PowerF1CFA401A
There is an example of a bodywork
version code below by way of
explanation with a key which is valid for
all bodywork version codes.
Example:
250AMMFADX
250MODEL
AGVW
MENGINE
MENGINE TRANSMISSION/AXLES
FBODY
AWHEELBASE
RHVERSIONGVW
A3000 kg
B3300kg
C3500 kg
D3500 kg MAXI
E3995/4005/4250/4300 kg MAXI
F2800 kg
G3650 kg
H3510 kg MAXI
L3510 kg
M4400 kg MAXIENGINE
42.3 150 ECOJET with AdBlue
52.0 115 Multijet 2
62.3 130 Multijet 2 with AdBlue
72.3 130 Multijet 2
82.3 150 Multijet 2
92.3 180 Multijet 2 Power
W140 Natural Power
TRANSMISSION
MMechanical gearbox
AAutomatic transmission
211

WHEELBASE
AShort wheelbase
BMedium wheelbase
CLong wheelbase
DMedium-long wheelbase
UAll wheelbases (incomplete vehicles)
BODY
ACab chassis
BChassis without cab
CPlatform chassis cab
DBox truck
EPrimary school bus
FVa n
GLong cab tipper
HLong cab chassis
MMinibus
PPanorama
RCombinato 6/9-seater
212
TECHNICAL DATA

ENGINE
General information2.0 115 Multijet 2
Type code250A2000
CycleDiesel
Number and position of cylinders 4 in line
Piston bore and stroke (mm)83 × 90.4
Total displacement (cm³)1956
Compression ratio16.5 : 1
Maximum power (EC) (kW)85
Maximum power (EEC) (HP)115
Corresponding engine speed (rpm) 4000
Maximum torque (EC) (Nm)290
Corresponding engine speed (rpm) 1750
FuelDiesel for motor vehicles (EN 590 Specification)
213

General
information2.3 150 ECOJET 2.3 130 Multijet 22.3 130 Multijet 2
with AdBlue2.3 150 Multijet 22.3 180 Multijet 2
Power
Type code F1AGL411 F1AGL411D F1AGL411M F1AGL411C F1AGL411B
Cycle Diesel Diesel Diesel Diesel Diesel
Number and position
of cylinders4 in line 4 in line 4 in line 4 in line 4 in line
Piston bore and
stroke (mm)88×94 88×94 88×94 88×94 88×94
Total displacement
(cm³)2287 2287 2287 2287 2287
Compression ratio 16.2 : 1 16.2 : 1 16.2 : 1 16.2 : 1 16.2 : 1
Maximum power
(EC) (kW)110 96 96 110 130
Maximum power
(EEC) (HP)150 130 130 150 177
Corresponding
engine speed (rpm)3600 3600 3600 3600 3500
Maximum torque
(EC) (Nm)380 320 320 380 400
Corresponding
engine speed (rpm)1500 1800 1800 1500 1500
Fuel Diesel for motor vehicles (EN 590 Specification)
214
TECHNICAL DATA

General information 3.0 140 Natural Power
Type codeF1CFA401A
CycleOtto
Number and position of cylinders 4 in line
Piston bore and stroke (mm) 95.8 × 104
Total displacement (cm³)2999
Compression ratio12.5 ± 0.5:1
Maximum power (EC) (kW)100
Maximum power (EEC) (HP)136
Corresponding engine speed (rpm) 3500
Maximum torque (EC) (Nm)350
Corresponding engine speed (rpm) 1500
PlugsChampion RC7BYC – NGK IFRF-D
FuelMethane
215

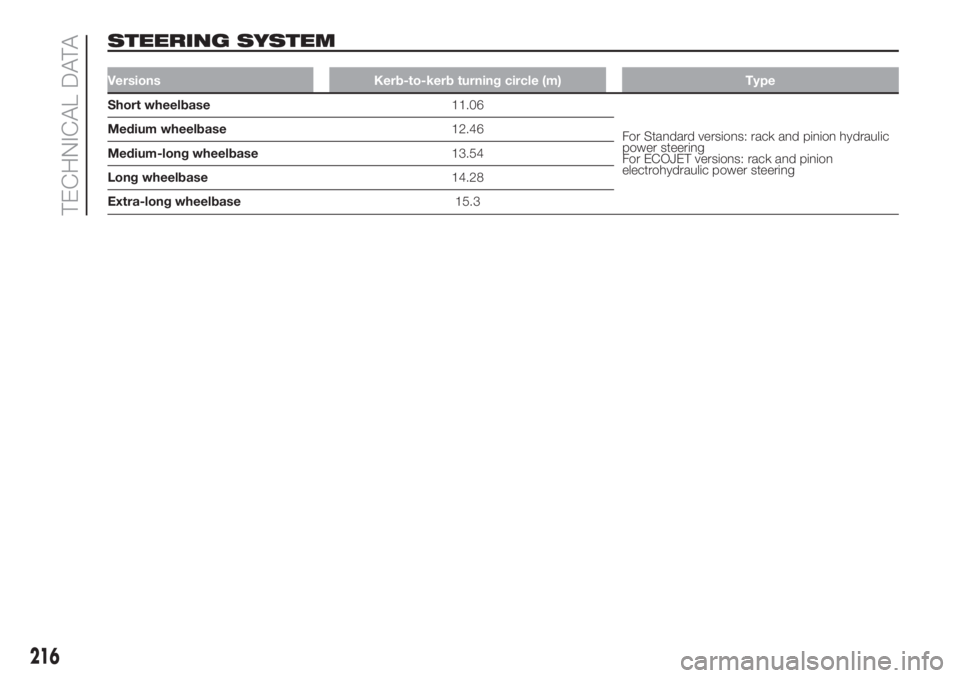

STEERING SYSTEM
Versions Kerb-to-kerb turning circle (m) Type
Short wheelbase11.06
For Standard versions: rack and pinion hydraulic
power steering
For ECOJET versions: rack and pinion
electrohydraulic power steering Medium wheelbase12.46
Medium-long wheelbase13.54
Long wheelbase14.28
Extra-long wheelbase15.3
216
TECHNICAL DATA

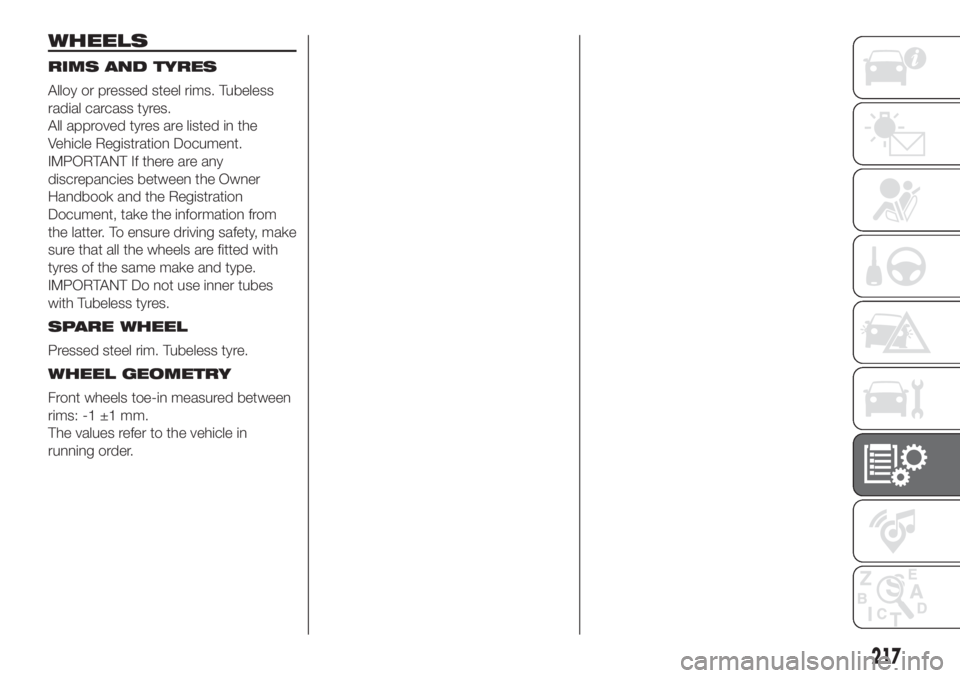

WHEELS
RIMS AND TYRES
Alloy or pressed steel rims. Tubeless
radial carcass tyres.
All approved tyres are listed in the
Vehicle Registration Document.
IMPORTANT If there are any
discrepancies between the Owner
Handbook and the Registration
Document, take the information from
the latter. To ensure driving safety, make
sure that all the wheels are fitted with
tyres of the same make and type.
IMPORTANT Do not use inner tubes
with Tubeless tyres.
SPARE WHEEL
Pressed steel rim. Tubeless tyre.
WHEEL GEOMETRY
Front wheels toe-in measured between
rims: -1 ±1 mm.
The values refer to the vehicle in
running order.
217

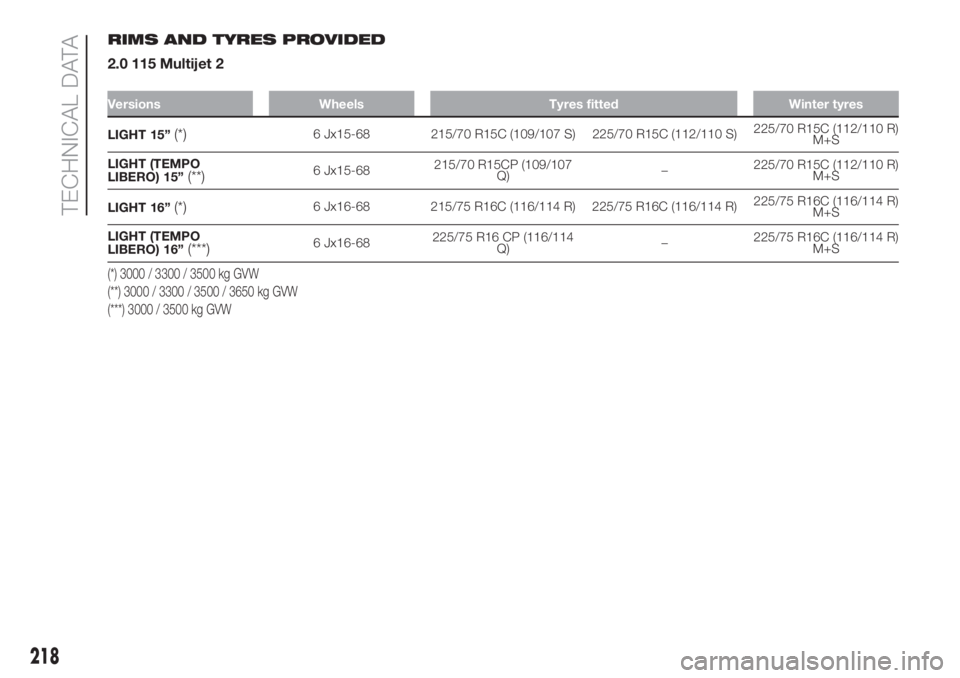

RIMS AND TYRES PROVIDED
2.0 115 Multijet 2
Versions Wheels Tyres fitted Winter tyres
LIGHT 15”(*)6 Jx15-68 215/70 R15C (109/107 S) 225/70 R15C (112/110 S)225/70 R15C (112/110 R)
M+S
LIGHT (TEMPO
LIBERO) 15”
(**)6 Jx15-68215/70 R15CP (109/107
Q)–225/70 R15C (112/110 R)
M+S
LIGHT 16”
(*)6 Jx16-68 215/75 R16C (116/114 R) 225/75 R16C (116/114 R)225/75 R16C (116/114 R)
M+S
LIGHT (TEMPO
LIBERO) 16”
(***)6 Jx16-68225/75 R16 CP (116/114
Q)–225/75 R16C (116/114 R)
M+S
(*) 3000 / 3300 / 3500 kg GVW
(**) 3000 / 3300 / 3500 / 3650 kg GVW
(***) 3000 / 3500 kg GVW
218
