SPECIAL CHASSIS COWL
CH1 MH1 - MH2 LH1 XLH1 XXLH1
A925 925 925 925 925
B3000 3450 - 3800 4035 4035 4300
C880 880 880 1245 1510
D4805 5255 - 5605 5840 6205 6470
G1810 1810 1810 1810 1810
H1790 - 1980 1790 - 1980 1790 - 1980 1790 - 1980 1790 - 1980
L2050 2050 2050 2050 2050
The sizes vary according to the various versions within the limits indicated above
229

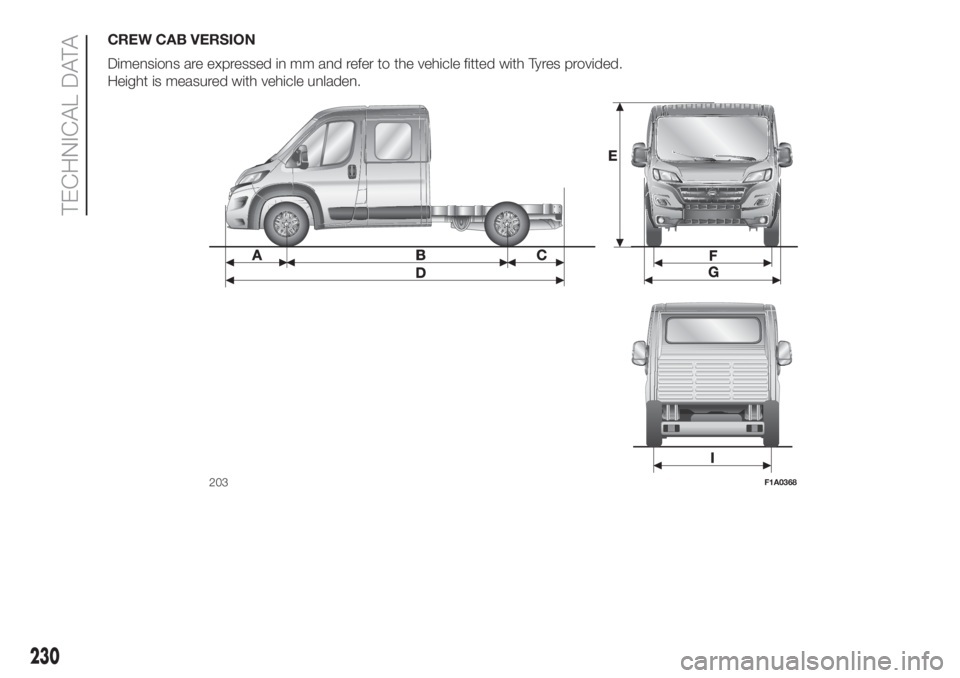

CREW CAB VERSION
Dimensions are expressed in mm and refer to the vehicle fitted with Tyres provided.
Height is measured with vehicle unladen.
203F1A0368
230
TECHNICAL DATA

CREW CAB
MH1 LH1 XLH1
A948 948 948
B3450 4035 4035
C1340 1245 1695
D5798 6228 6678
E2424 2424 2424
F1810 1810 1810
G2100 2100 2100
I1790 1790 1790
The sizes vary according to the various versions within the limits indicated above
231

PERFORMANCE
Top permitted speed after initial vehicle use in km/h.
Versions2.0 115 Multijet
22.3 130 Multijet
22.3 150
ECOJET/
Multijet 22.3 180 Multijet 2
Light / Maxi Light / Maxi Light / Maxi Light Maxi
VAN (excluding
Tempo Libero
version)LOW roof (H1) 148 155 161171
(15" tyres only)
161
(for 15" / 16”
tyres)161
MEDIUM roof
(H2)143 150 157166
(15" tyres only)
161
(for 15" / 16”
tyres)160
HIGH roof (H3) 148 145 162 152 155
TRAILER
TRUCK / CAB
CHASSIS /
CHASSIS
COWLS /
PLATFORMS
(excluding
Tempo Libero
version)LOW roof (H1) 148 155 157171
(15" tyres only)
161
(for 15" / 16”
tyres)161
CAB CHASSIS /
CHASSIS
COWLS (Tempo
Libero version)LOW roof (H1) 148 152 152 152 152
VAN (Tempo
Libero version)LOW roof (H1) 148 152 152 152 152
MEDIUM roof
(H2)143 150 152 152 152
HIGH roof (H3) 148 145 152 152 152
232
TECHNICAL DATA

Versions2.3 130 Multijet 2 with AdBlue
Light / Maxi
PANORAMA/COMBILOW roof (H1) 155
MEDIUM roof (H2) 150
Versions3.0 140 Natural Power
Light / Maxi
Running on petrol(*)–90
Running on methaneLOW roof H1 159
MEDIUM roof H2 155
HIGH roof H3 153
(*) N2-category vehicles are limited to 90 km/h by type-approval requirements. M2-category vehicles are limited to 100 km/h by type-approval requirements.
233

WEIGHTS AND
LOADS
To identify the weights and loads for
your vehicle, refer to the plate shown in
fig. 204 and described in the
“Identification data plate” chapter or
refer to the vehicle registration
certificate showing the type-approved
weights (for markets, where provided)
EMaximum permitted weight of fully
laden vehicle (GVW).
FMaximum permitted weight of the
vehicle (GVW) fully laden plus trailer. If
there is no value in the field or if
there is a dash, it means that the
vehicle cannot tow
GMaximum permitted weight on first
axle (front).
HMaximum permitted weight on
second axle (rear).To calculate the towable weight with a
braked trailer, take the difference
between values F and E shown on the
plate.
E.g.: F=6000 kg - E=3500 kg
Braked trailer=2500 kg
IMPORTANTDo not exceed the given
trailer and towable weights.
IMPORTANTComply with the vehicle
towing capacities.
The tables show the towable weight for
engine version.
204F1A0245
234
TECHNICAL DATA

TOWABLE WEIGHTS (kg)
Key:
A= TOWABLE WEIGHT
B= UNBRAKED TRAILER
C= LOAD ON TOW HOOK
VERSION (GVW) ENGINE A B C
LIGHT2800 2.0 115 Multijet 2 2000 750 100
3000 (3150 / 3300 /
3500 / 3650)2.0 115 Multijet 2 2000 750 100
2.3 130 - 150 Multijet 2 / 180 Multijet 2
Power
2.3 130 Multijet 2 with AdBlue
2.3 150 ECOJET
3.0 140 Natural Power (excluding
Panorama)2500 750 100
MAXI (HEAVY)35002.3 130 - 150 Multijet 2 / 180 Multijet 2
Power
2.3 130 Multijet 2 with AdBlue
2.3 150 ECOJET
3.0 140 Natural Power3000
(*)750
120(*)
40052.3 130 - 150 Multijet 2 / 180 Multijet 2
Power
3.0 140 Natural Power2500 750 100
42502.3 130 - 150 Multijet 2 / 180 Multijet 2
Power
3.0 140 Natural Power2250 750 100
44002.3 150 Multijet 2 / 180 Multijet 2
Power2100 750 100
(*) For Special T.L. 2500 Kg (towable weight = 100 Kg)
235

NOTE The following vehicles are excluded from the table:
Key:
A= TOWABLE WEIGHT
C= LOAD ON TOW HOOK
ENGINE BODY VERSION GVW A C
ALLMINIBUS / BASE
MINIBUSALL 4005 / 4250 / 4300 - -
NOTE For vehicles with tow hook: the vertical static load on the tow hook must be within the maximum permitted weight
declared for the vehicle.
MAX (Maximum permitted weight + TOWABLE WEIGHT) = 6500 kg
236
TECHNICAL DATA

REFUELLING
2.0 115 Multijet 22.3 130 - 150
Multijet2-150
ECOJET2.3 130 Multijet
with AdBlue2.3 180 Multijet 2
PowerPrescribed fuels
and original
lubricants
Fuel tank (litres):
90(*)90(*)90(*)90(*)Diesel for motor
vehicles (EN 590
Specification) Including a reserve of
(litres):10/12 10/12 10/12 10/12
UREA tank (litres)
(for versions
markets, where
provided)-
15
(**)15 -AdBlue (urea-water
solution) according
to DIN 70 070 and
ISO 22241-1
203) 204)
(*) A 120 litre tank is available on request for all versions (with reserve of 12 litres). With the "Tempo Libero" option a 60 litre tank is available on request (with reserve
of 10 litres).
(**) Only for 150 ECOJET versions
237

2.0 115 Multijet 22.3 130 - 150
Multijet2-150
ECOJET2.3 130 Multijet
with AdBlue2.3 180 Multijet 2
PowerPrescribed fuels
and original
lubricants
Engine cooling
system (litres):8(***)9.6(***)9.6(***)9.6(***)
Mixture of distilled
water and PARAFLU
UPliquid at 50%(****)
Engine sump (litres): 4.5 5.7 5.7 5.7
SELENIA WR
FORWARD
Engine sump and
filter (litres):5.3 6.3 6.3 6.3
Transmission/
differential casing
(litres):- 2.7 (MLGU gearbox) - -TUTELA
TRANSMISSION
EXPERYA
Transmission/
differential casing
(litres):2.9 2.9 (M38 gearbox) 2.9 2.9TUTELA
TRANSMISSION
GEARTECH
(***) With Webasto: + 1/4 litre - Underseat heating 600cc: + 1 litre - Underseat heating 900cc: + 1.5 litres - Underseat heating + Webasto: + 1.25 litres - Underseat
heating + Webasto: +1.75 litres
(****) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLU
UPand demineralised water.
