FIAT DUCATO BASE CAMPER 2017 Owner handbook (in English)

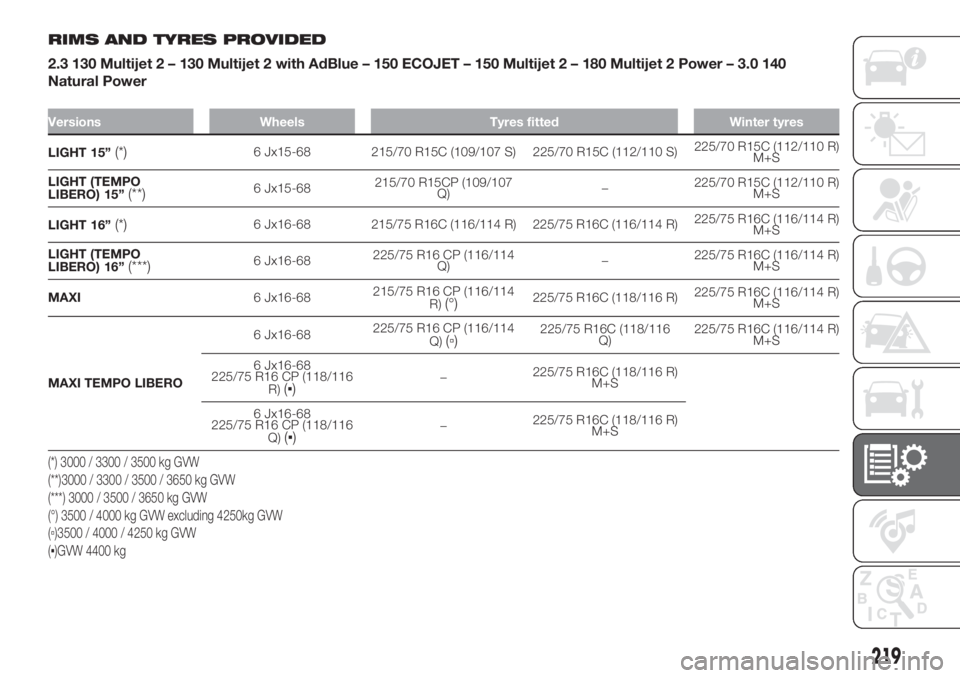

RIMS AND TYRES PROVIDED
2.3 130 Multijet 2 – 130 Multijet 2 with AdBlue – 150 ECOJET – 150 Multijet 2 – 180 Multijet 2 Power – 3.0 140
Natural Power
Versions Wheels Tyres fitted Winter tyres
LIGHT 15”(*)6 Jx15-68 215/70 R15C (109/107 S) 225/70 R15C (112/110 S)225/70 R15C (112/110 R)
M+S
LIGHT (TEMPO
LIBERO) 15”
(**)6 Jx15-68215/70 R15CP (109/107
Q)–225/70 R15C (112/110 R)
M+S
LIGHT 16”
(*)6 Jx16-68 215/75 R16C (116/114 R) 225/75 R16C (116/114 R)225/75 R16C (116/114 R)
M+S
LIGHT (TEMPO
LIBERO) 16”
(***)6 Jx16-68225/75 R16 CP (116/114
Q)–225/75 R16C (116/114 R)
M+S
MAXI6 Jx16-68215/75 R16 CP (116/114
R)
(°)225/75 R16C (118/116 R)225/75 R16C (116/114 R)
M+S
MAXI TEMPO LIBERO6 Jx16-68225/75 R16 CP (116/114
Q)
(▫)225/75 R16C (118/116
Q)225/75 R16C (116/114 R)
M+S
6 Jx16-68
225/75 R16 CP (118/116
R)
(▪)–225/75 R16C (118/116 R)
M+S
6 Jx16-68
225/75 R16 CP (118/116
Q)
(▪)–225/75 R16C (118/116 R)
M+S
(*) 3000 / 3300 / 3500 kg GVW
(**)3000 / 3300 / 3500 / 3650 kg GVW
(***) 3000 / 3500 / 3650 kg GVW
(°) 3500 / 4000 kg GVW excluding 4250kg GVW
(▫)3500 / 4000 / 4250 kg GVW
(▪)GVW 4400 kg
.
219

If using M+S winter tyres with speed index lower than “S” for 15" wheels and “R” for 16" wheels, respect the max. vehicle
speed indicated in the table: Maximum speed index.
IMPORTANT Only use the tyres indicated on the vehicle Registration document.
If using class C tyres on a Camping vehicle, always use wheels with a metal inflation valve. When replacing, it is always
advisable to use Camping tyres.
220
TECHNICAL DATA

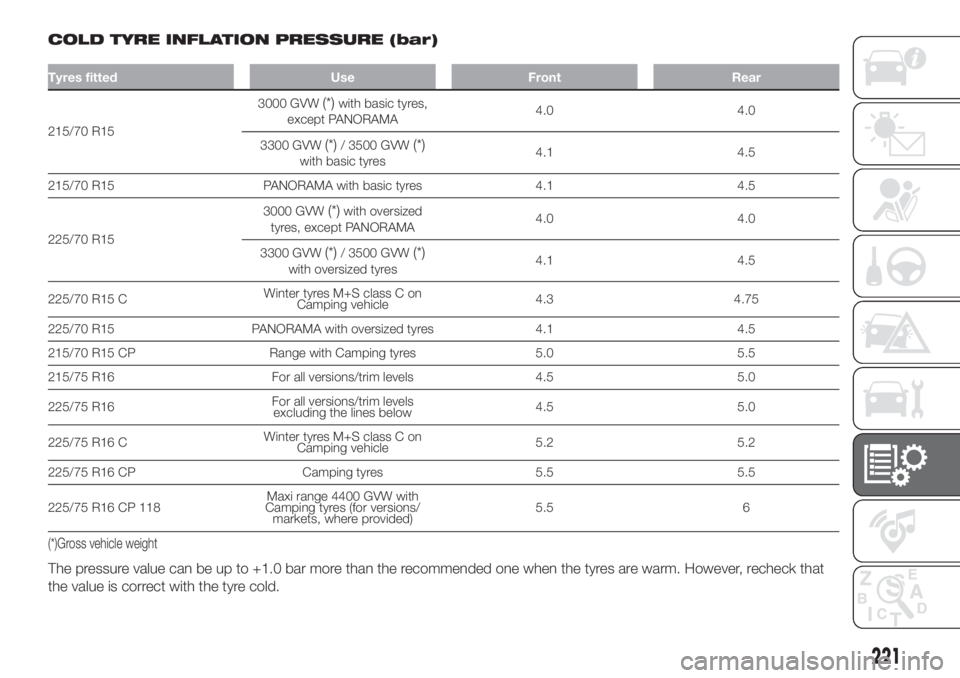

COLD TYRE INFLATION PRESSURE (bar)
Tyres fitted Use Front Rear
215/70 R153000 GVW
(*)with basic tyres,
except PANORAMA4.0 4.0
3300 GVW
(*)/ 3500 GVW(*)with basic tyres4.1 4.5
215/70 R15 PANORAMA with basic tyres 4.1 4.5
225/70 R153000 GVW
(*)with oversized
tyres, except PANORAMA4.0 4.0
3300 GVW
(*)/ 3500 GVW(*)with oversized tyres4.1 4.5
225/70 R15 CWinter tyres M+S class C on
Camping vehicle4.3 4.75
225/70 R15 PANORAMA with oversized tyres 4.1 4.5
215/70 R15 CP Range with Camping tyres 5.0 5.5
215/75 R16 For all versions/trim levels 4.5 5.0
225/75 R16For all versions/trim levels
excluding the lines below4.5 5.0
225/75 R16 CWinter tyres M+S class C on
Camping vehicle5.2 5.2
225/75 R16 CP Camping tyres 5.5 5.5
225/75 R16 CP 118Maxi range 4400 GVW with
Camping tyres (for versions/
markets, where provided)5.5 6
(*)Gross vehicle weight
The pressure value can be up to +1.0 bar more than the recommended one when the tyres are warm. However, recheck that
the value is correct with the tyre cold.
221

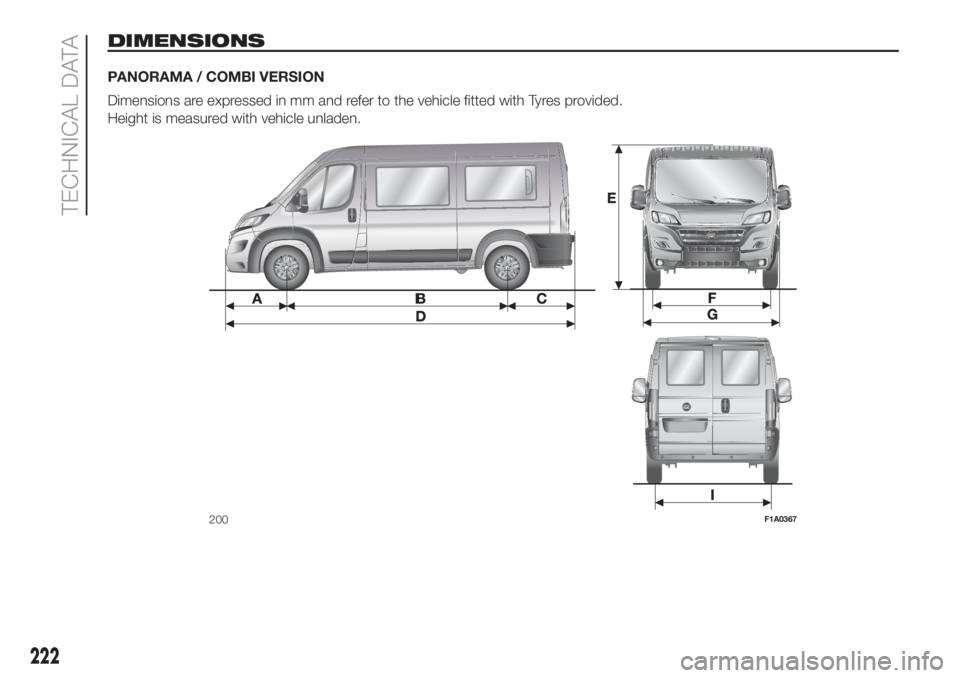

DIMENSIONS
PANORAMA / COMBI VERSION
Dimensions are expressed in mm and refer to the vehicle fitted with Tyres provided.
Height is measured with vehicle unladen.
200F1A0367
222
TECHNICAL DATA

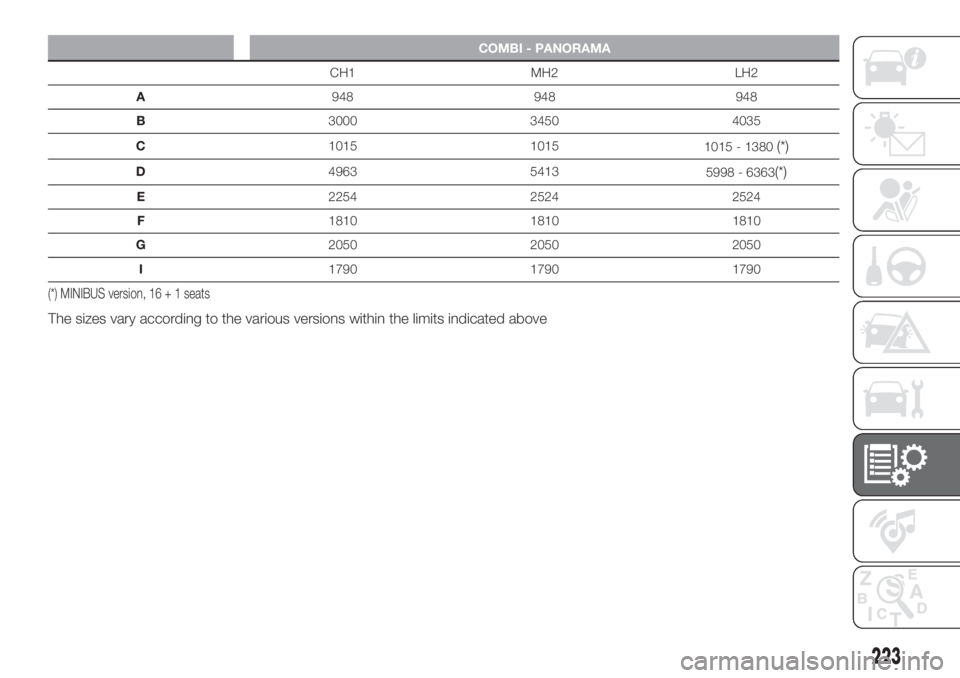

COMBI - PANORAMA
CH1 MH2 LH2
A948 948 948
B3000 3450 4035
C1015 1015
1015 - 1380
(*)
D4963 5413
5998 - 6363(*)
E2254 2524 2524
F1810 1810 1810
G2050 2050 2050
I1790 1790 1790
(*) MINIBUS version, 16 + 1 seats
The sizes vary according to the various versions within the limits indicated above
223

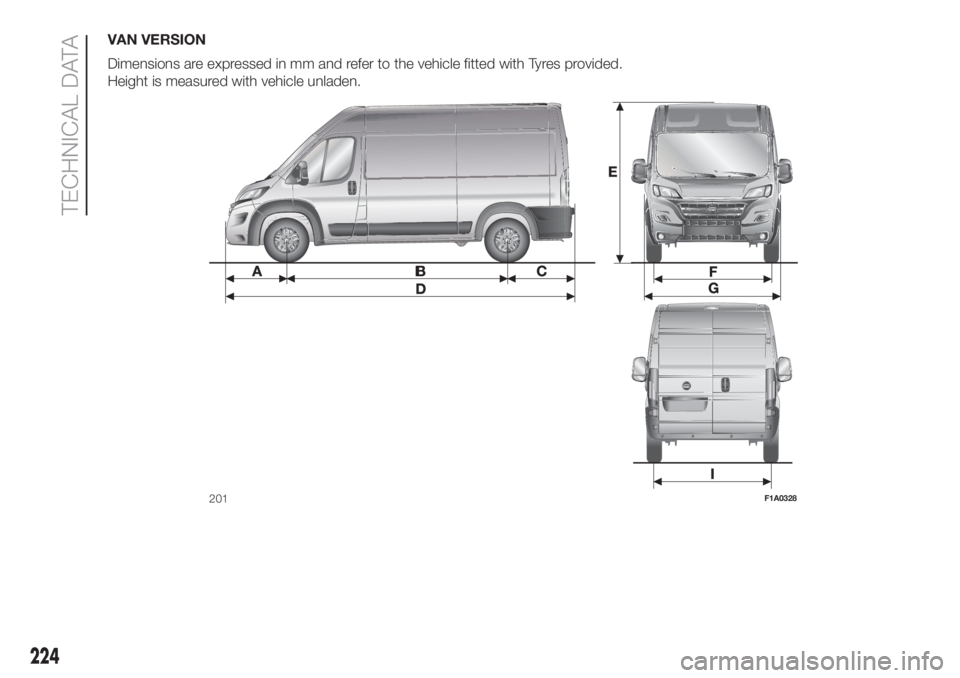

VAN VERSION
Dimensions are expressed in mm and refer to the vehicle fitted with Tyres provided.
Height is measured with vehicle unladen.
201F1A0328
224
TECHNICAL DATA

VAN
CH1 - CH2 MH1 - MH2 LH2 - LH3 XLH2 - XLH3
A948 948 948 948
B3000 3450 4035 4035
C1015 1015 1015 1380
D4963 5413 5998 6363
E2254 - 2524
2254 - 2524
(*)2524 - 2764(**)2524 - 2764
F1810 1810 1810 1810
G2050 2050 2050 2050
I1790 1790 1790 1790
(*) MAXI 2269 - 2539 version
(**) MAXI 2539 - 2774 version
The sizes vary according to the various versions within the limits indicated above
225

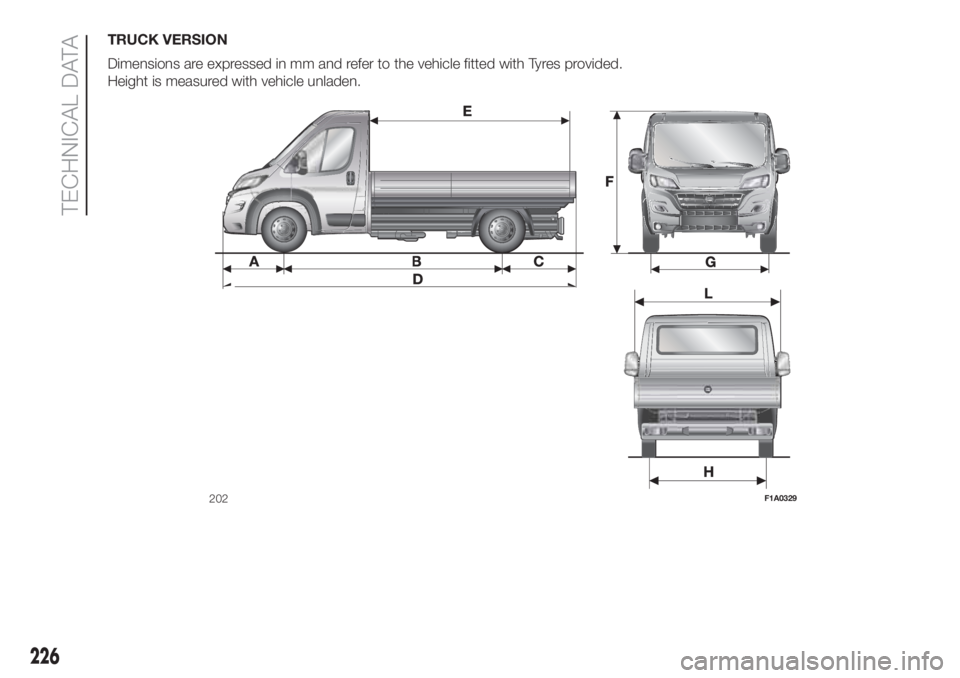

TRUCK VERSION
Dimensions are expressed in mm and refer to the vehicle fitted with Tyres provided.
Height is measured with vehicle unladen.
202F1A0329
226
TECHNICAL DATA

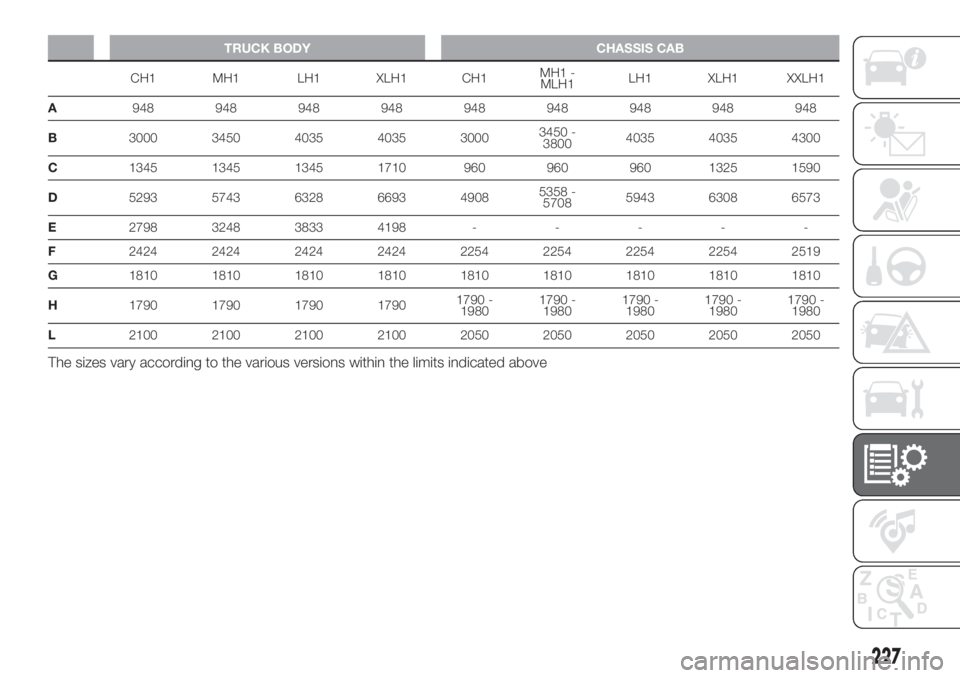

TRUCK BODY CHASSIS CAB
CH1 MH1 LH1 XLH1 CH1MH1 -
MLH1LH1 XLH1 XXLH1
A948 948 948 948 948 948 948 948 948
B3000 3450 4035 4035 30003450 -
38004035 4035 4300
C1345 1345 1345 1710 960 960 960 1325 1590
D5293 5743 6328 6693 49085358 -
57085943 6308 6573
E2798 3248 3833 4198-----
F2424 2424 2424 2424 2254 2254 2254 2254 2519
G1810 1810 1810 1810 1810 1810 1810 1810 1810
H1790 1790 1790 17901790 -
19801790 -
19801790 -
19801790 -
19801790 -
1980
L2100 2100 2100 2100 2050 2050 2050 2050 2050
The sizes vary according to the various versions within the limits indicated above
227

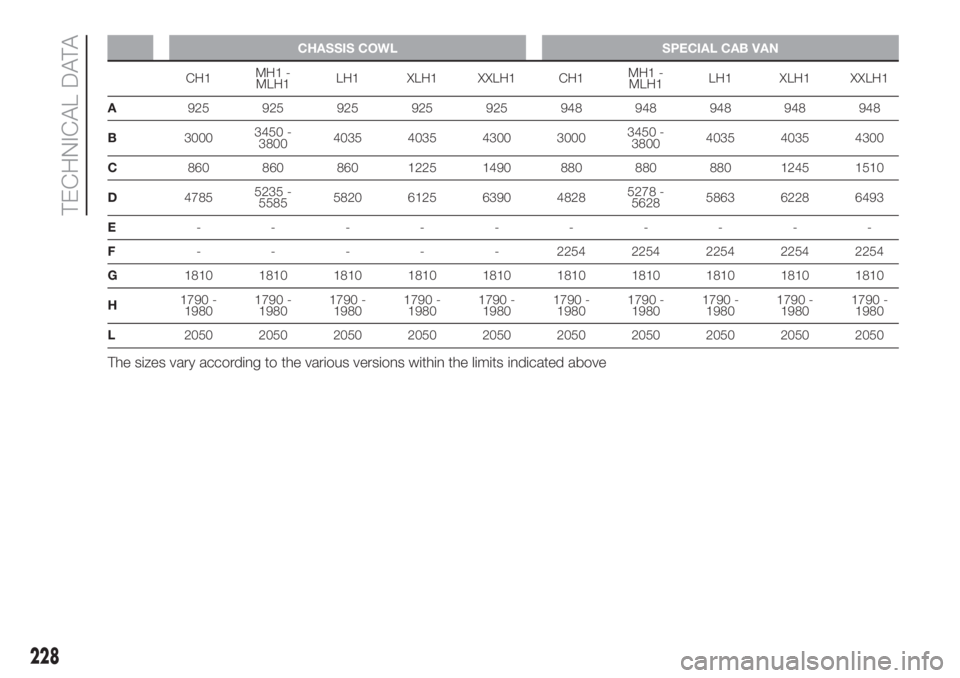

CHASSIS COWL SPECIAL CAB VAN
CH1MH1 -
MLH1LH1 XLH1 XXLH1 CH1MH1 -
MLH1LH1 XLH1 XXLH1
A925 925 925 925 925 948 948 948 948 948
B30003450 -
38004035 4035 4300 30003450 -
38004035 4035 4300
C860 860 860 1225 1490 880 880 880 1245 1510
D47855235 -
55855820 6125 6390 48285278 -
56285863 6228 6493
E----------
F-----2254 2254 2254 2254 2254
G1810 1810 1810 1810 1810 1810 1810 1810 1810 1810
H1790 -
19801790 -
19801790 -
19801790 -
19801790 -
19801790 -
19801790 -
19801790 -
19801790 -
19801790 -
1980
L2050 2050 2050 2050 2050 2050 2050 2050 2050 2050
The sizes vary according to the various versions within the limits indicated above
228
