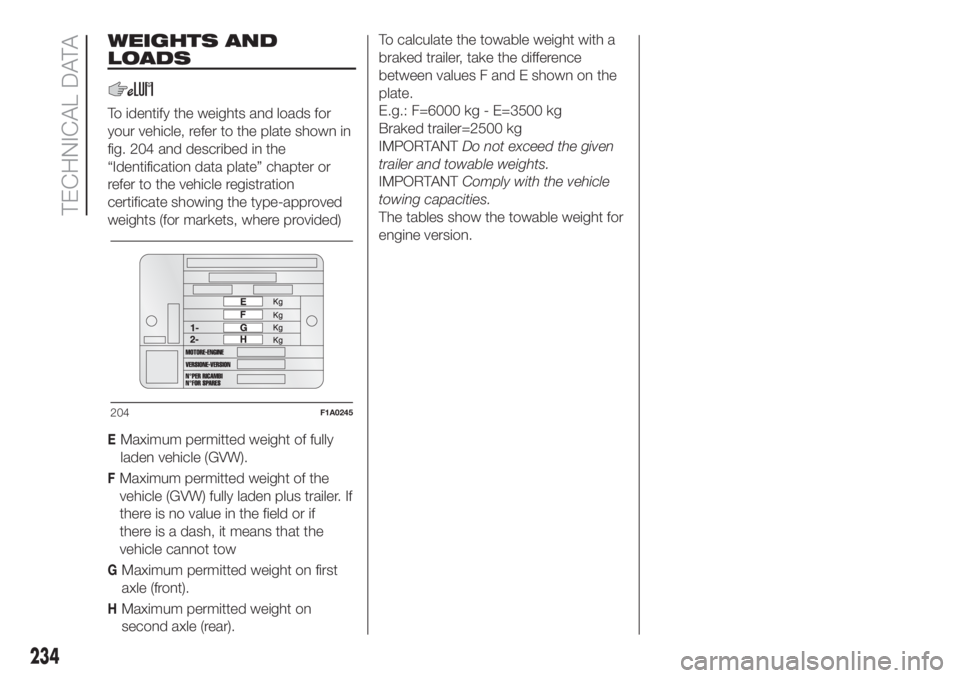

WEIGHTS AND
LOADS
To identify the weights and loads for
your vehicle, refer to the plate shown in
fig. 204 and described in the
“Identification data plate” chapter or
refer to the vehicle registration
certificate showing the type-approved
weights (for markets, where provided)
EMaximum permitted weight of fully
laden vehicle (GVW).
FMaximum permitted weight of the
vehicle (GVW) fully laden plus trailer. If
there is no value in the field or if
there is a dash, it means that the
vehicle cannot tow
GMaximum permitted weight on first
axle (front).
HMaximum permitted weight on
second axle (rear).To calculate the towable weight with a
braked trailer, take the difference
between values F and E shown on the
plate.
E.g.: F=6000 kg - E=3500 kg
Braked trailer=2500 kg
IMPORTANTDo not exceed the given
trailer and towable weights.
IMPORTANTComply with the vehicle
towing capacities.
The tables show the towable weight for
engine version.
204F1A0245
234
TECHNICAL DATA

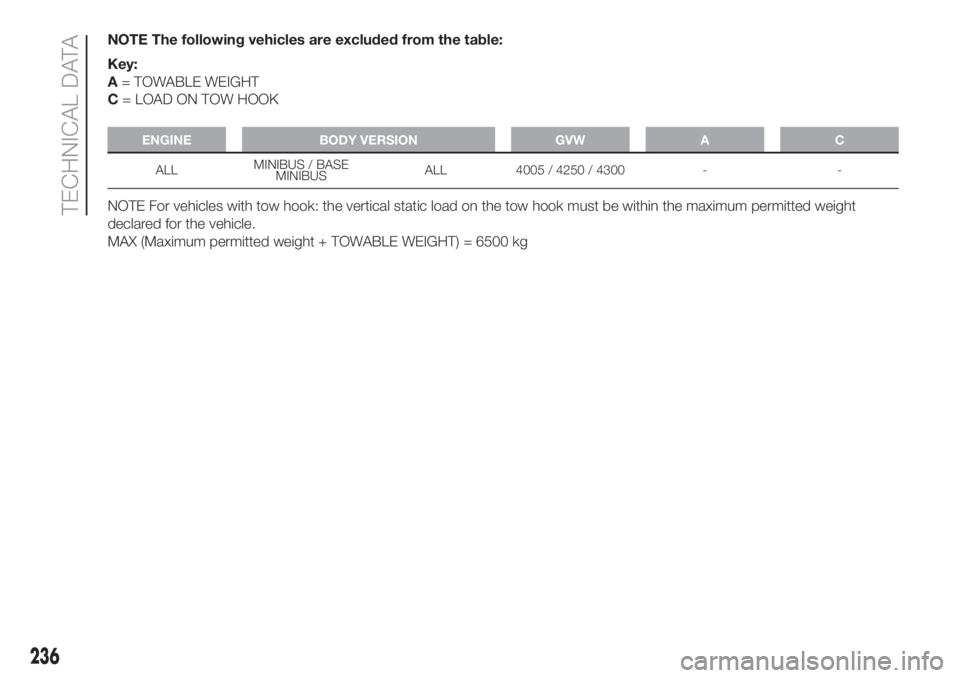

NOTE The following vehicles are excluded from the table:
Key:
A= TOWABLE WEIGHT
C= LOAD ON TOW HOOK
ENGINE BODY VERSION GVW A C
ALLMINIBUS / BASE
MINIBUSALL 4005 / 4250 / 4300 - -
NOTE For vehicles with tow hook: the vertical static load on the tow hook must be within the maximum permitted weight
declared for the vehicle.
MAX (Maximum permitted weight + TOWABLE WEIGHT) = 6500 kg
236
TECHNICAL DATA

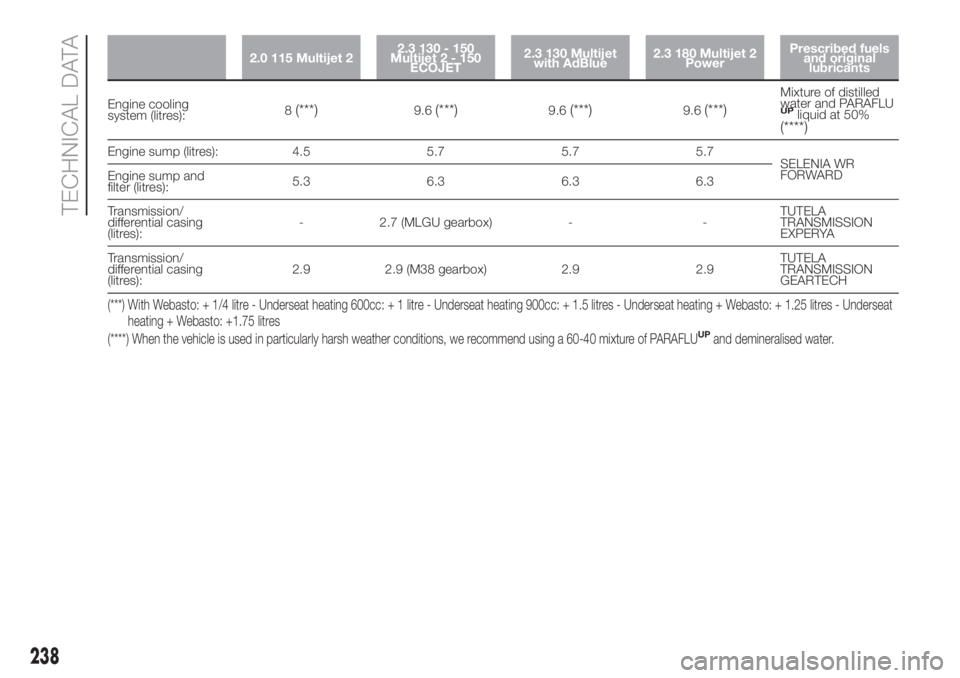

2.0 115 Multijet 22.3 130 - 150
Multijet2-150
ECOJET2.3 130 Multijet
with AdBlue2.3 180 Multijet 2
PowerPrescribed fuels
and original
lubricants
Engine cooling
system (litres):8(***)9.6(***)9.6(***)9.6(***)
Mixture of distilled
water and PARAFLU
UPliquid at 50%(****)
Engine sump (litres): 4.5 5.7 5.7 5.7
SELENIA WR
FORWARD
Engine sump and
filter (litres):5.3 6.3 6.3 6.3
Transmission/
differential casing
(litres):- 2.7 (MLGU gearbox) - -TUTELA
TRANSMISSION
EXPERYA
Transmission/
differential casing
(litres):2.9 2.9 (M38 gearbox) 2.9 2.9TUTELA
TRANSMISSION
GEARTECH
(***) With Webasto: + 1/4 litre - Underseat heating 600cc: + 1 litre - Underseat heating 900cc: + 1.5 litres - Underseat heating + Webasto: + 1.25 litres - Underseat
heating + Webasto: +1.75 litres
(****) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLU
UPand demineralised water.
238
TECHNICAL DATA

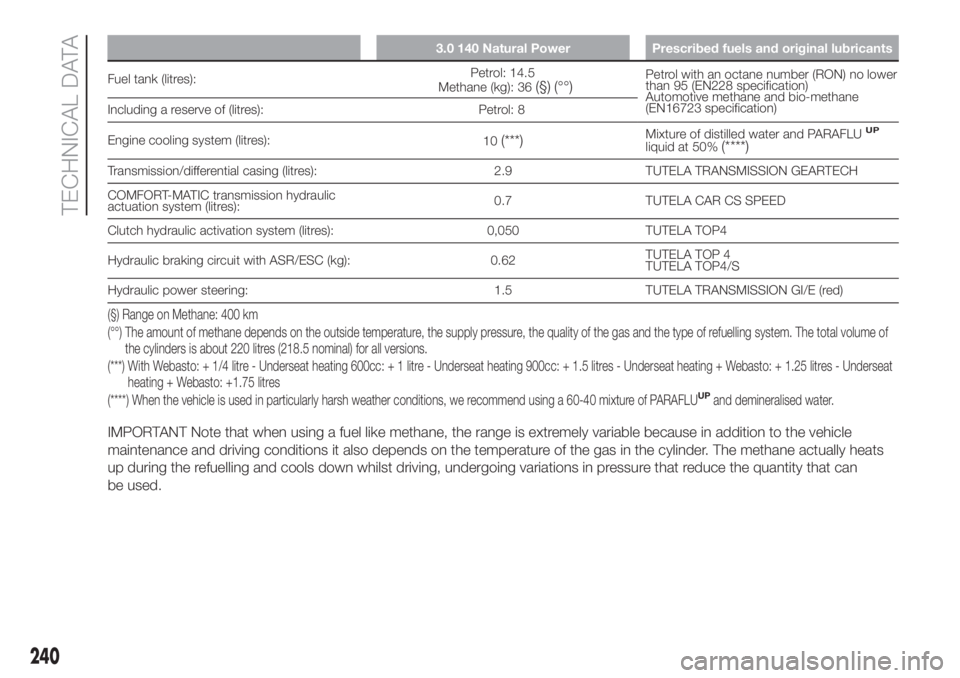

3.0 140 Natural Power Prescribed fuels and original lubricants
Fuel tank (litres):Petrol: 14.5
Methane (kg): 36(§) (°°)Petrol with an octane number (RON) no lower
than 95 (EN228 specification)
Automotive methane and bio-methane
(EN16723 specification)
Including a reserve of (litres): Petrol: 8
Engine cooling system (litres):
10
(***)Mixture of distilled water and PARAFLUUP
liquid at 50%(****)
Transmission/differential casing (litres): 2.9 TUTELA TRANSMISSION GEARTECH
COMFORT-MATIC transmission hydraulic
actuation system (litres):0.7 TUTELA CAR CS SPEED
Clutch hydraulic activation system (litres): 0,050 TUTELA TOP4
Hydraulic braking circuit with ASR/ESC (kg): 0.62TUTELA TOP 4
TUTELA TOP4/S
Hydraulic power steering: 1.5 TUTELA TRANSMISSION GI/E (red)
(§) Range on Methane: 400 km
(°°) The amount of methane depends on the outside temperature, the supply pressure, the quality of the gas and the type of refuelling system. The total volume of
the cylinders is about 220 litres (218.5 nominal) for all versions.
(***) With Webasto: + 1/4 litre - Underseat heating 600cc: + 1 litre - Underseat heating 900cc: + 1.5 litres - Underseat heating + Webasto: + 1.25 litres - Underseat
heating + Webasto: +1.75 litres
(****) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLU
UPand demineralised water.
IMPORTANT Note that when using a fuel like methane, the range is extremely variable because in addition to the vehicle
maintenance and driving conditions it also depends on the temperature of the gas in the cylinder. The methane actually heats
up during the refuelling and cools down whilst driving, undergoing variations in pressure that reduce the quantity that can
be used.
240
TECHNICAL DATA

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the
requirements of the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel
consumption and emission specifications. Lubricant quality is crucial for engine operation and duration.
60)
PRODUCT SPECIFICATIONS
Use Features SpecificationOriginal fluids and
lubricantsReplacement interval
Diesel engine lubricantsSAE 0W-30ACEA C29.55535-DS1SELENIA WR
FORWARD
Contractual Technical
Reference N° F842.F13According to Service
Schedule
Lubricants for Natural
Power enginesSAE 5W-40ACEA C39.55535-T2SELENIA MULTIPOWER
GAS 5W-40
Contractual Technical
Reference N° F922.E09According to Service
Schedule
If lubricants conforming to the required specification are not available, products that meet the indicated specifications can be
used to top up; in this case optimal performance of the engine is not guaranteed.
WARNING
60)The use of products with specifications other than those indicated above could cause damage to the engine not covered by the warranty.
242
TECHNICAL DATA

Use Features SpecificationOriginal fluids and
lubricantsApplications
Protective agent for
radiatorsRed protective with
antifreeze action, based
on inhibited monoethyl
glycol with organic
formula. Exceeds CUNA
NC 956-16, ASTM D
3306 specifications.9.55523 or MS.90032PARAFLUUP
Contractual Technical
Reference No. F101.M01Cooling circuits. Use rate
50% up to -35°C. Mixture
with different formulation
products not allowed.
(*)
Diesel fuel additiveAdditive for diesel
antifreeze, protecting
diesel engines.-PETRONAS DURANCE
DIESEL ART
Contractual Technical
Reference No. F601.L06To be mixed with diesel
(25 cc per 10 litres)
Additive for Diesel
emissions (UREA)Water-urea solutionDIN 70 070 and ISO
22241-1AdBlueTo be used for filling the
tank UREA on vehicles
equipped with system of
Selective Catalytic
Reduction (SCR).
Windscreen washer fluidMixture of spirits and
surfactants. Exceeds the
CUNA NC 956-II
specification9.55522 or MS.90043PETRONAS DURANCE
SC 35
Contractual Technical
Reference No. F001.D16To be used diluted or
undiluted in windscreen
washer/wiper systems
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLUUPand 40% demineralised water.
244
TECHNICAL DATA

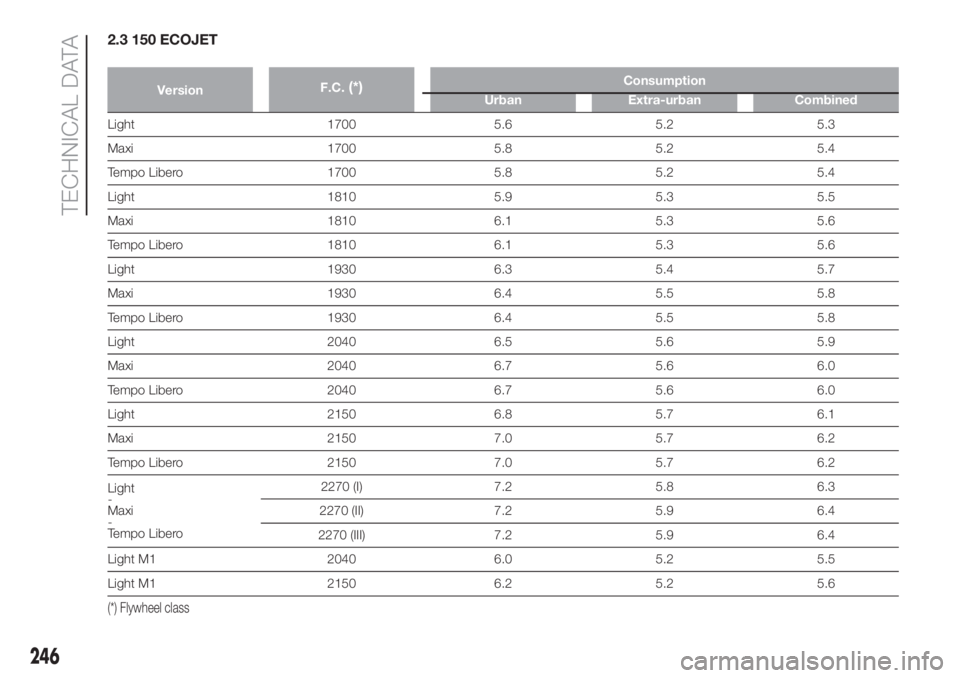

2.3 150 ECOJET
VersionF.C.(*)Consumption
Urban Extra-urban Combined
Light 1700 5.6 5.2 5.3
Maxi 1700 5.8 5.2 5.4
Tempo Libero 1700 5.8 5.2 5.4
Light 1810 5.9 5.3 5.5
Maxi 1810 6.1 5.3 5.6
Tempo Libero 1810 6.1 5.3 5.6
Light 1930 6.3 5.4 5.7
Maxi 1930 6.4 5.5 5.8
Tempo Libero 1930 6.4 5.5 5.8
Light 2040 6.5 5.6 5.9
Maxi 2040 6.7 5.6 6.0
Tempo Libero 2040 6.7 5.6 6.0
Light 2150 6.8 5.7 6.1
Maxi 2150 7.0 5.7 6.2
Tempo Libero 2150 7.0 5.7 6.2
Light
-
Maxi
-
Tempo Libero2270 (I) 7.2 5.8 6.3
2270 (II) 7.2 5.9 6.4
2270 (III) 7.2 5.9 6.4
Light M1 2040 6.0 5.2 5.5
Light M1 2150 6.2 5.2 5.6
(*) Flywheel class
246
TECHNICAL DATA

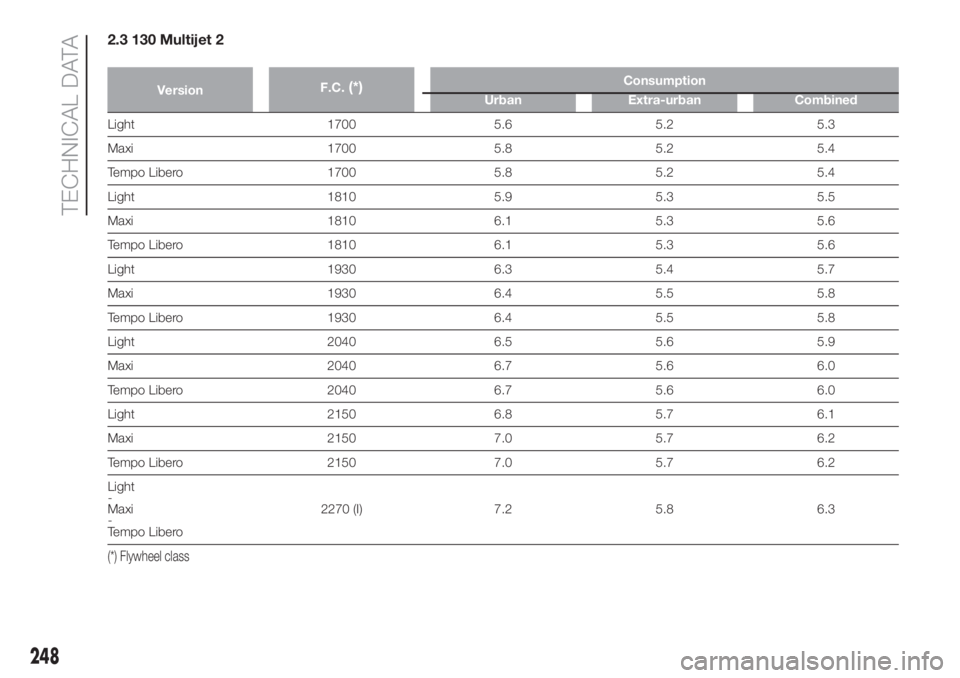

2.3 130 Multijet 2
VersionF.C.(*)Consumption
Urban Extra-urban Combined
Light 1700 5.6 5.2 5.3
Maxi 1700 5.8 5.2 5.4
Tempo Libero 1700 5.8 5.2 5.4
Light 1810 5.9 5.3 5.5
Maxi 1810 6.1 5.3 5.6
Tempo Libero 1810 6.1 5.3 5.6
Light 1930 6.3 5.4 5.7
Maxi 1930 6.4 5.5 5.8
Tempo Libero 1930 6.4 5.5 5.8
Light 2040 6.5 5.6 5.9
Maxi 2040 6.7 5.6 6.0
Tempo Libero 2040 6.7 5.6 6.0
Light 2150 6.8 5.7 6.1
Maxi 2150 7.0 5.7 6.2
Tempo Libero 2150 7.0 5.7 6.2
Light
-
Maxi
-
Tempo Libero2270 (I) 7.2 5.8 6.3
(*) Flywheel class
248
TECHNICAL DATA

2.3 150 Multijet 2 / 180 Multijet 2 Power
VersionF.C.(*)Consumption
Urban Extra-urban Combined
Light 1700 6.3 5.4 5.7
Maxi 1700 6.4 5.4 5.8
Tempo Libero 1700 6.4 5.4 5.8
Light 1810 6.5 5.5 5.9
Maxi 1810 6.7 5.5 5.9
Tempo Libero 1810 6.7 5.5 5.9
Light 1930 6.9 5.6 6.1
Maxi 1930 7.0 5.7 6.2
Tempo Libero 1930 7.0 5.7 6.2
Light 2040 7.1 5.8 6.3
Maxi 2040 7.3 5.8 6.4
Tempo Libero 2040 7.3 5.8 6.4
Light 2150 7.4 5.9 6.5
Maxi 2150 7.7 5.9 6.6
Tempo Libero 2150 7.7 5.9 6.6
Light
-
Maxi
-
Tempo Libero2270 (I) 7.8 6.0 6.7
2270 (II) 7.9 6.0 6.7
2270 (III) 7.9 6.0 6.7
(*) Flywheel class
250
TECHNICAL DATA

CO2EMISSIONS
The CO2emission figures in the table below refer to combined fuel consumption.
These emission values refer to basic vehicles without optionals.
CO
2emissions (according to the European Directive in force g/100 km)
2.0 115 Multijet 2
Version
F.C.(*)CO2emissions
Combined
Light / Tempo libero 1700 147
Light / Tempo libero 1810 152
Light / Tempo libero 1930 152
Light / Tempo libero 2040 162
Light / Tempo libero 2150 167
(*) Flywheel class
252
