166
SAFETY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE

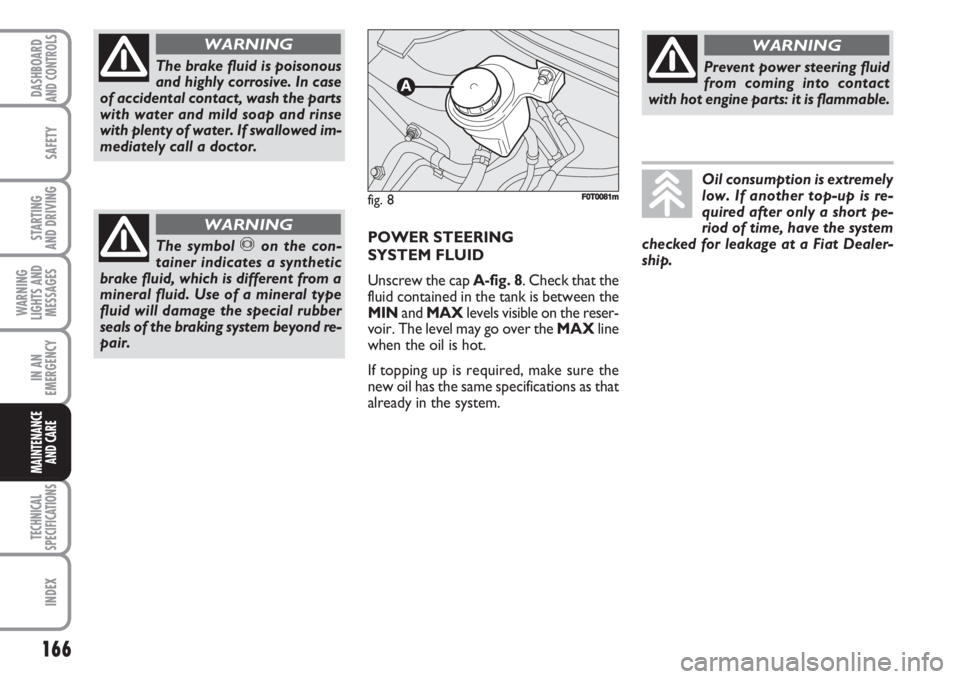

The brake fluid is poisonous
and highly corrosive. In case
of accidental contact, wash the parts
with water and mild soap and rinse
with plenty of water. If swallowed im-
mediately call a doctor.
WARNING
The symbol πon the con-
tainer indicates a synthetic
brake fluid, which is different from a
mineral fluid. Use of a mineral type
fluid will damage the special rubber
seals of the braking system beyond re-
pair.
WARNINGPOWER STEERING
SYSTEM FLUID
Unscrew the cap A-fig. 8. Check that the
fluid contained in the tank is between the
MINand MAXlevels visible on the reser-
voir. The level may go over the MAXline
when the oil is hot.
If topping up is required, make sure the
new oil has the same specifications as that
already in the system.
fig. 8F0T0081m
Prevent power steering fluid
from coming into contact
with hot engine parts: it is flammable.
WARNING
Oil consumption is extremely
low. If another top-up is re-
quired after only a short pe-
riod of time, have the system
checked for leakage at a Fiat Dealer-
ship.

168
SAFETY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE

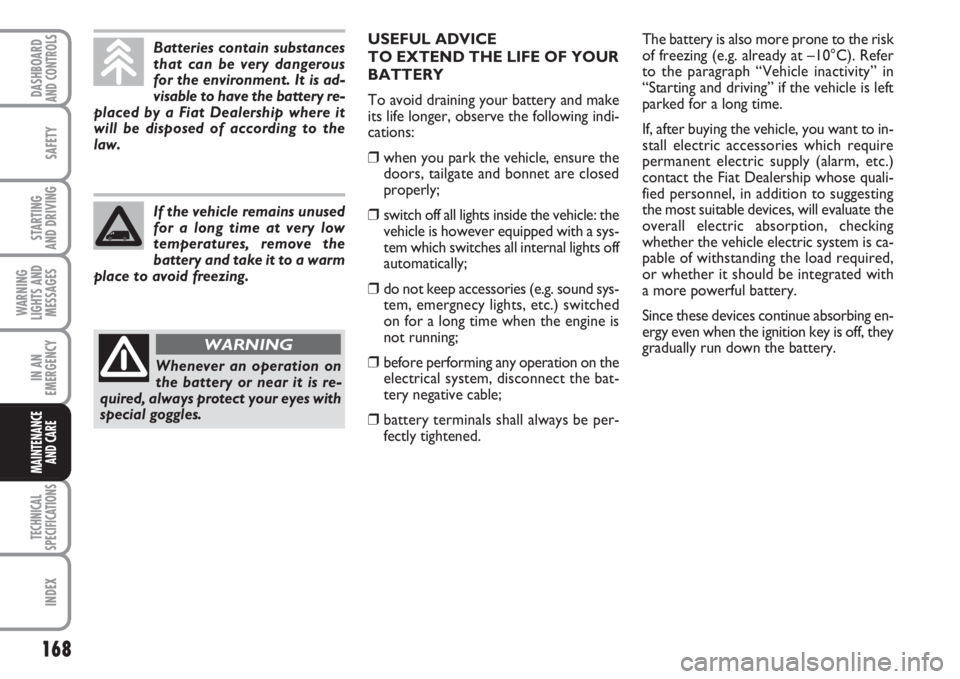

Batteries contain substances
that can be very dangerous
for the environment. It is ad-
visable to have the battery re-
placed by a Fiat Dealership where it
will be disposed of according to the
law.
Whenever an operation on
the battery or near it is re-
quired, always protect your eyes with
special goggles.
WARNING
If the vehicle remains unused
for a long time at very low
temperatures, remove the
battery and take it to a warm
place to avoid freezing.
USEFUL ADVICE
TO EXTEND THE LIFE OF YOUR
BATTERY
To avoid draining your battery and make
its life longer, observe the following indi-
cations:
❒when you park the vehicle, ensure the
doors, tailgate and bonnet are closed
properly;
❒switch off all lights inside the vehicle: the
vehicle is however equipped with a sys-
tem which switches all internal lights off
automatically;
❒do not keep accessories (e.g. sound sys-
tem, emergnecy lights, etc.) switched
on for a long time when the engine is
not running;
❒before performing any operation on the
electrical system, disconnect the bat-
tery negative cable;
❒battery terminals shall always be per-
fectly tightened.The battery is also more prone to the risk
of freezing (e.g. already at –10°C). Refer
to the paragraph “Vehicle inactivity” in
“Starting and driving” if the vehicle is left
parked for a long time.
If, after buying the vehicle, you want to in-
stall electric accessories which require
permanent electric supply (alarm, etc.)
contact the Fiat Dealership whose quali-
fied personnel, in addition to suggesting
the most suitable devices, will evaluate the
overall electric absorption, checking
whether the vehicle electric system is ca-
pable of withstanding the load required,
or whether it should be integrated with
a more powerful battery.
Since these devices continue absorbing en-
ergy even when the ignition key is off, they
gradually run down the battery.

175
SAFETY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE

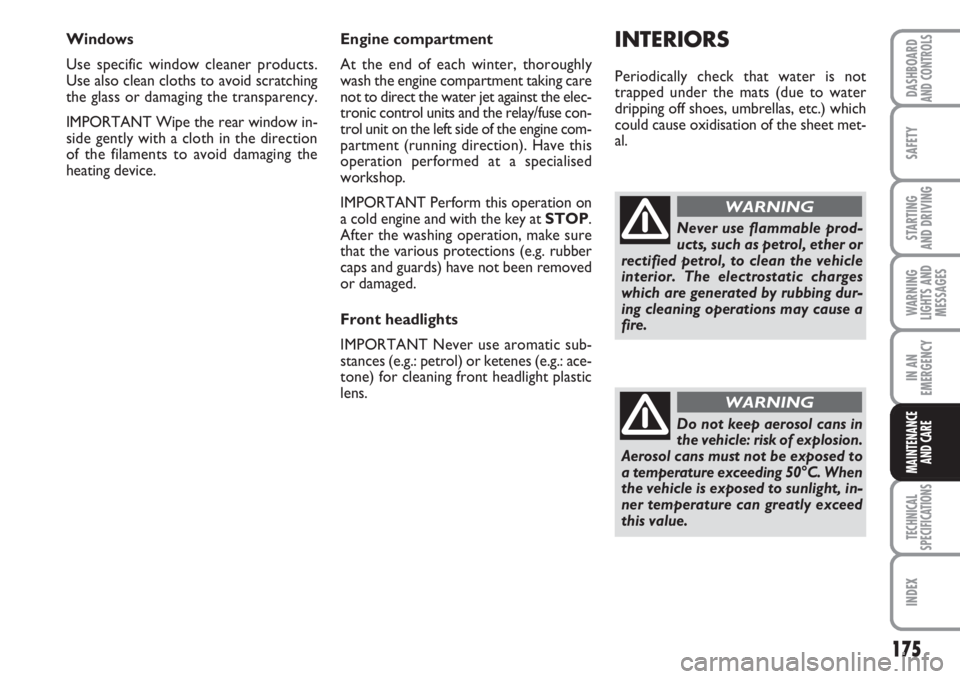

Windows
Use specific window cleaner products.
Use also clean cloths to avoid scratching
the glass or damaging the transparency.
IMPORTANT Wipe the rear window in-
side gently with a cloth in the direction
of the filaments to avoid damaging the
heating device.Engine compartment
At the end of each winter, thoroughly
wash the engine compartment taking care
not to direct the water jet against the elec-
tronic control units and the relay/fuse con-
trol unit on the left side of the engine com-
partment (running direction). Have this
operation performed at a specialised
workshop.
IMPORTANT Perform this operation on
a cold engine and with the key at STOP.
After the washing operation, make sure
that the various protections (e.g. rubber
caps and guards) have not been removed
or damaged.
Front headlights
IMPORTANT Never use aromatic sub-
stances (e.g.: petrol) or ketenes (e.g.: ace-
tone) for cleaning front headlight plastic
lens.INTERIORS
Periodically check that water is not
trapped under the mats (due to water
dripping off shoes, umbrellas, etc.) which
could cause oxidisation of the sheet met-
al.
Never use flammable prod-
ucts, such as petrol, ether or
rectified petrol, to clean the vehicle
interior. The electrostatic charges
which are generated by rubbing dur-
ing cleaning operations may cause a
fire.
WARNING
Do not keep aerosol cans in
the vehicle: risk of explosion.
Aerosol cans must not be exposed to
a temperature exceeding 50°C. When
the vehicle is exposed to sunlight, in-
ner temperature can greatly exceed
this value.
WARNING

198
WARNING
LIGHTS AND
MESSAGES
DASHBOARDAND CONTROLS
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
Body
– maintenance .................................. 173
– version coding ............................... 180
Brake lights
– bulb replacement .......................... 140
Brakes..................................................... 185
Bulb replacement ................................ 134
Bulkheads ............................................. 36
Capacities ............................................ 191
Car radio (provision for) .................. 79
Care and maintenance ....................... 155
– heavy duty use of vehicle ............ 161
– routine checks .............................. 161
– routine maintenance .................... 156
– service plan .................................... 157
Child carriers ....................................... 89
Childproof device ............................... 63
Choke ................................................... 14
Cigar lighter ......................................... 59
Clutch ................................................... 182
CO
2emissions .................................... 195
Controls ............................................... 56
Dashboard and controls............ 4
Dead lock device ................................ 11
Digital display ....................................... 17
Dimensions .......................................... 187
Doors
– centralized lock/unlock ............... 61
– childproof safety ........................... 63
– double panel rear doors ............. 64
– sliding side doors .......................... 62
Driver protector ................................ 37
EBD system ........................................ 74
Engine codes- Engine compartment
(servicing) .......................................... 175
Engine hood ......................................... 70
Engine oil
– consumption .................................. 163
– level check ..................................... 165
Engine starting ...........................102-124
Engine
– fuel system ..................................... 182
– identification codes ...................... 180
– powertrain ..................................... 182
– specification ................................... 181
ABS (system) ...................................... 74
ABS system .......................................... 74
Added-on electrical/
electronic devices ............................ 80
Air cleaner/anti/pollen ....................... 167
Air outlets ............................................ 42
Airbag
– front ................................................ 96
– side .................................................. 98
Alarm .................................................... 12
Ash tray ................................................ 59
Backlight washer
– control ............................................ 52
– liquid level ...................................... 164
Backlight wiper
– blade ................................................ 172
– control ............................................ 52
– nozzle .............................................. 172
Backup light
– bulb replacement .......................... 140
Battery
– recharging ...................................... 153
– replacement ................................... 167
Body versions ...................................... 180
