FIAT FIORINO 2007 Owner handbook (in English)

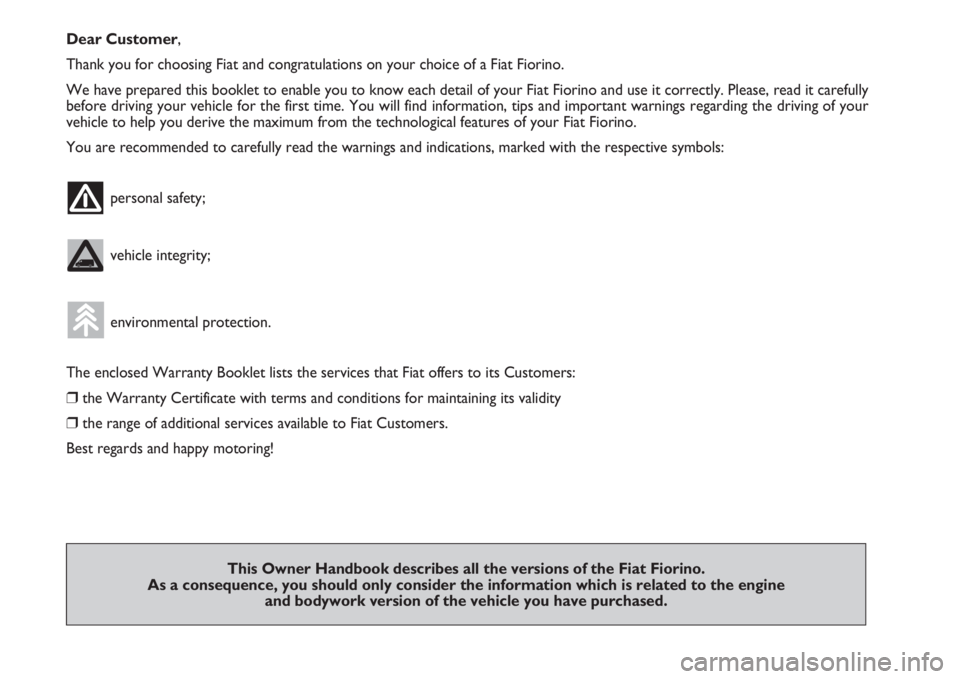

Dear Customer,
Thank you for choosing Fiat and congratulations on your choice of a Fiat Fiorino.
We have prepared this booklet to enable you to know each detail of your Fiat Fiorino and use it correctly. Please, read it carefully
before driving your vehicle for the first time. You will find information, tips and important warnings regarding the driving of your
vehicle to help you derive the maximum from the technological features of your Fiat Fiorino.
You are recommended to carefully read the warnings and indications, marked with the respective symbols:
personal safety;
vehicle integrity;
environmental protection.
The enclosed Warranty Booklet lists the services that Fiat offers to its Customers:
❒the Warranty Certificate with terms and conditions for maintaining its validity
❒the range of additional services available to Fiat Customers.
Best regards and happy motoring!
This Owner Handbook describes all the versions of the Fiat Fiorino.
As a consequence, you should only consider the information which is related to the engine
and bodywork version of the vehicle you have purchased.

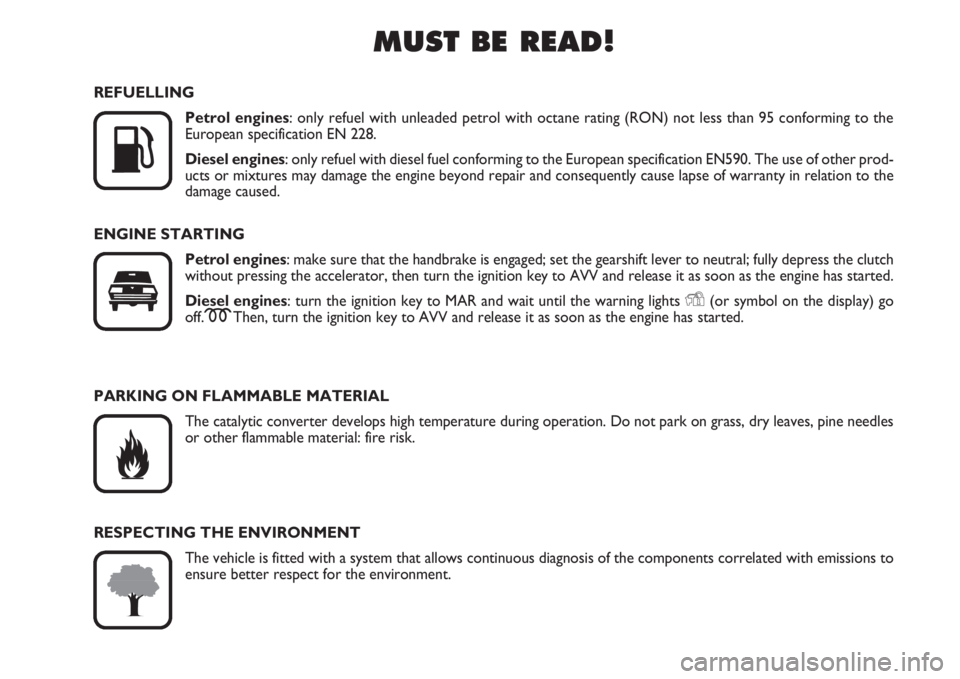

MUST BE READ!

K
REFUELLING
Petrol engines: only refuel with unleaded petrol with octane rating (RON) not less than 95 conforming to the
European specification EN 228.
Diesel engines: only refuel with diesel fuel conforming to the European specification EN590. The use of other prod-
ucts or mixtures may damage the engine beyond repair and consequently cause lapse of warranty in relation to the
damage caused.
ENGINE STARTING
Petrol engines: make sure that the handbrake is engaged; set the gearshift lever to neutral; fully depress the clutch
without pressing the accelerator, then turn the ignition key to AVV and release it as soon as the engine has started.
Diesel engines: turn the ignition key to MAR and wait until the warning lights
Y(or symbol on the display) go
off.mThen, turn the ignition key to AVV and release it as soon as the engine has started.
PARKING ON FLAMMABLE MATERIAL
The catalytic converter develops high temperature during operation. Do not park on grass, dry leaves, pine needles
or other flammable material: fire risk.
RESPECTING THE ENVIRONMENT
The vehicle is fitted with a system that allows continuous diagnosis of the components correlated with emissions to
ensure better respect for the environment.

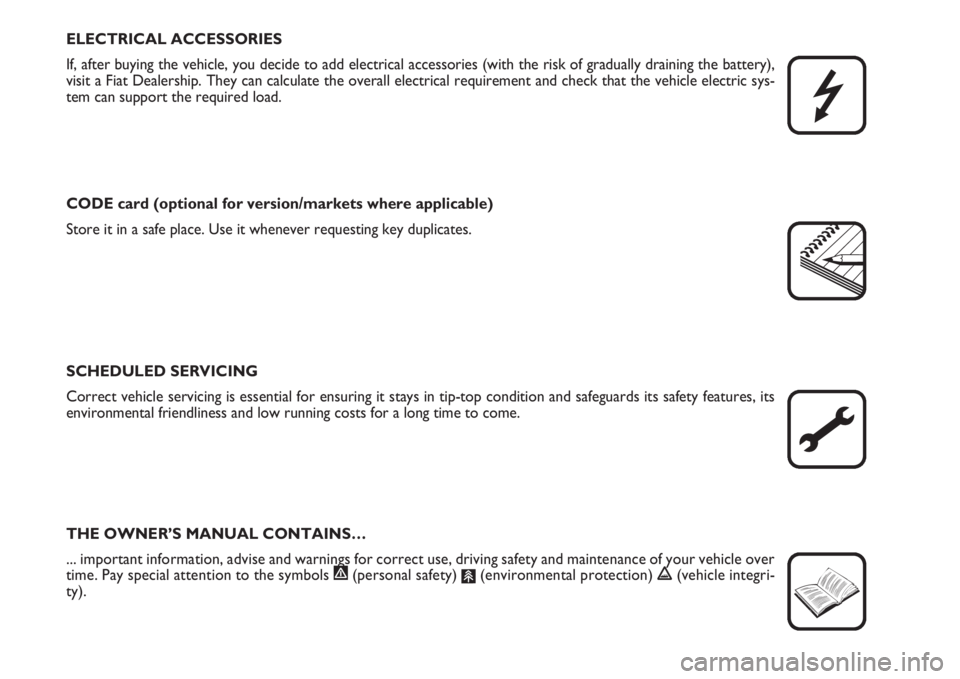

ELECTRICAL ACCESSORIES
If, after buying the vehicle, you decide to add electrical accessories (with the risk of gradually draining the battery),
visit a Fiat Dealership. They can calculate the overall electrical requirement and check that the vehicle electric sys-
tem can support the required load.
CODE card (optional for version/markets where applicable)
Store it in a safe place. Use it whenever requesting key duplicates.
SCHEDULED SERVICING
Correct vehicle servicing is essential for ensuring it stays in tip-top condition and safeguards its safety features, its
environmental friendliness and low running costs for a long time to come.
THE OWNER’S MANUAL CONTAINS…
... important information, advise and warnings for correct use, driving safety and maintenance of your vehicle over
time. Pay special attention to the symbols
"(personal safety) #(environmental protection) !(vehicle integri-
ty).


4
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

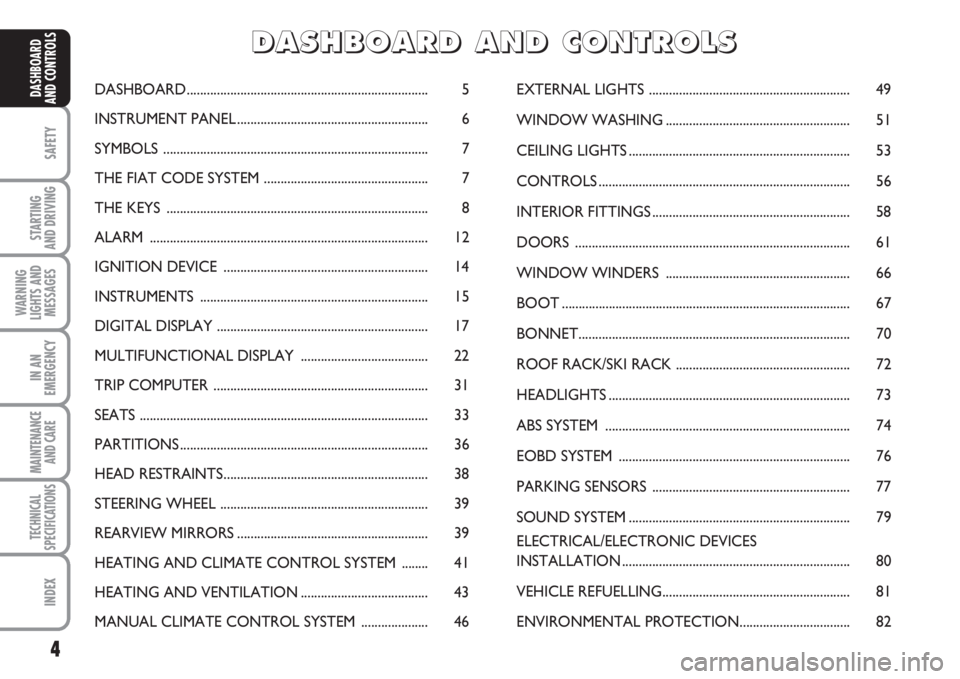

DASHBOARD
AND CONTROLSDASHBOARD........................................................................ 5
INSTRUMENT PANEL......................................................... 6
SYMBOLS ............................................................................... 7
THE FIAT CODE SYSTEM ................................................. 7
THE KEYS .............................................................................. 8
ALARM ................................................................................... 12
IGNITION DEVICE ............................................................. 14
INSTRUMENTS .................................................................... 15
DIGITAL DISPLAY ............................................................... 17
MULTIFUNCTIONAL DISPLAY ...................................... 22
TRIP COMPUTER ................................................................ 31
SEATS ...................................................................................... 33
PARTITIONS.......................................................................... 36
HEAD RESTRAINTS............................................................. 38
STEERING WHEEL .............................................................. 39
REARVIEW MIRRORS......................................................... 39
HEATING AND CLIMATE CONTROL SYSTEM ........ 41
HEATING AND VENTILATION...................................... 43
MANUAL CLIMATE CONTROL SYSTEM .................... 46EXTERNAL LIGHTS ............................................................ 49
WINDOW WASHING....................................................... 51
CEILING LIGHTS.................................................................. 53
CONTROLS........................................................................... 56
INTERIOR FITTINGS........................................................... 58
DOORS .................................................................................. 61
WINDOW WINDERS ....................................................... 66
BOOT ...................................................................................... 67
BONNET................................................................................. 70
ROOF RACK/SKI RACK .................................................... 72
HEADLIGHTS........................................................................ 73
ABS SYSTEM ......................................................................... 74
EOBD SYSTEM ..................................................................... 76
PARKING SENSORS ........................................................... 77
SOUND SYSTEM.................................................................. 79
ELECTRICAL/ELECTRONIC DEVICES
INSTALLATION.................................................................... 80
VEHICLE REFUELLING........................................................ 81
ENVIRONMENTAL PROTECTION................................. 82
DD D
A A
S S
H H
B B
O O
A A
R R
D D
A A
N N
D D
C C
O O
N N
T T
R R
O O
L L
S S

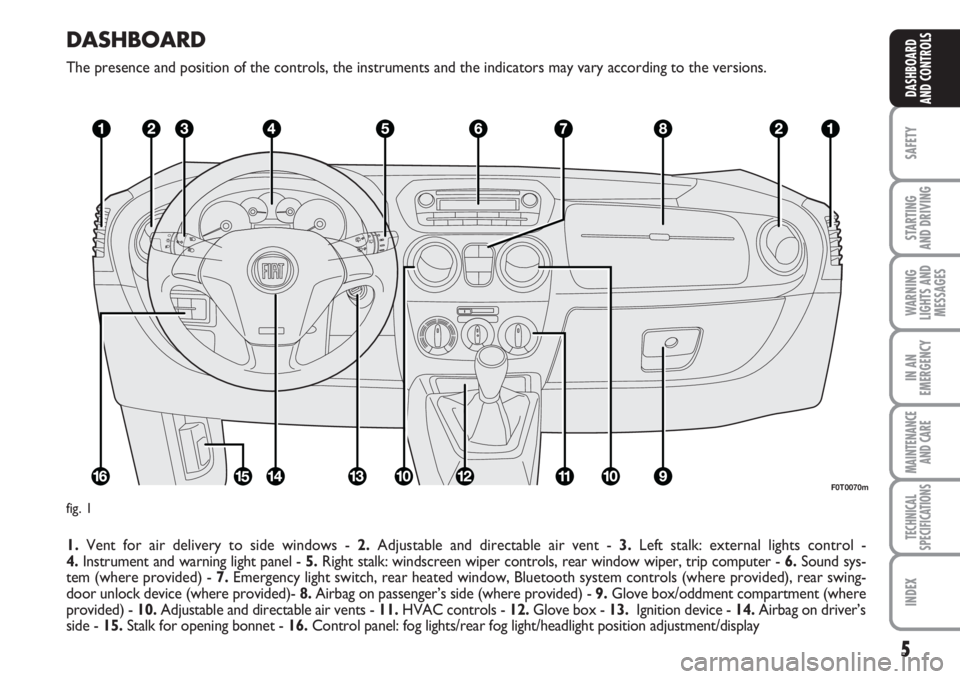

DASHBOARD
The presence and position of the controls, the instruments and the indicators may vary according to the versions.
1.Vent for air delivery to side windows - 2.Adjustable and directable air vent - 3.Left stalk: external lights control -
4.Instrument and warning light panel - 5.Right stalk: windscreen wiper controls, rear window wiper, trip computer - 6.Sound sys-
tem (where provided) - 7.Emergency light switch, rear heated window, Bluetooth system controls (where provided), rear swing-
door unlock device (where provided)- 8.Airbag on passenger’s side (where provided) - 9.Glove box/oddment compartment (where
provided) - 10.Adjustable and directable air vents - 11.HVAC controls - 12.Glove box - 13.Ignition device - 14.Airbag on driver’s
side - 15.Stalk for opening bonnet - 16.Control panel: fog lights/rear fog light/headlight position adjustment/display
5
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0T0070m
fig. 1

6
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

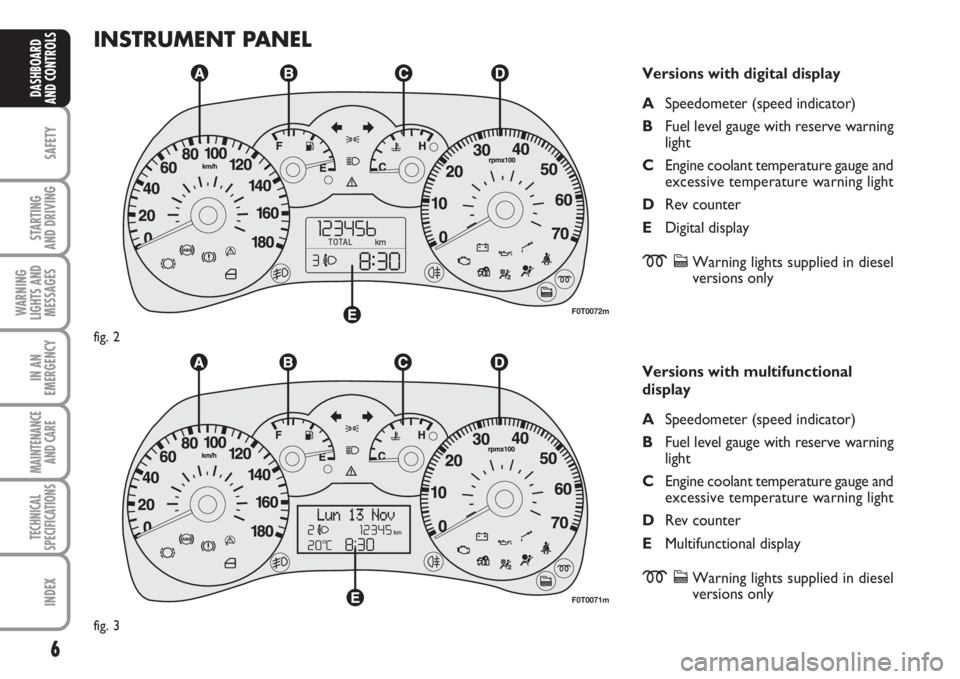

INSTRUMENT PANEL
Versions with digital display
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EDigital display
mcWarning lights supplied in diesel
versions only
Versions with multifunctional
display
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EMultifunctional display
mcWarning lights supplied in diesel
versions only
F0T0072m
fig. 2
F0T0071m
fig. 3

7
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

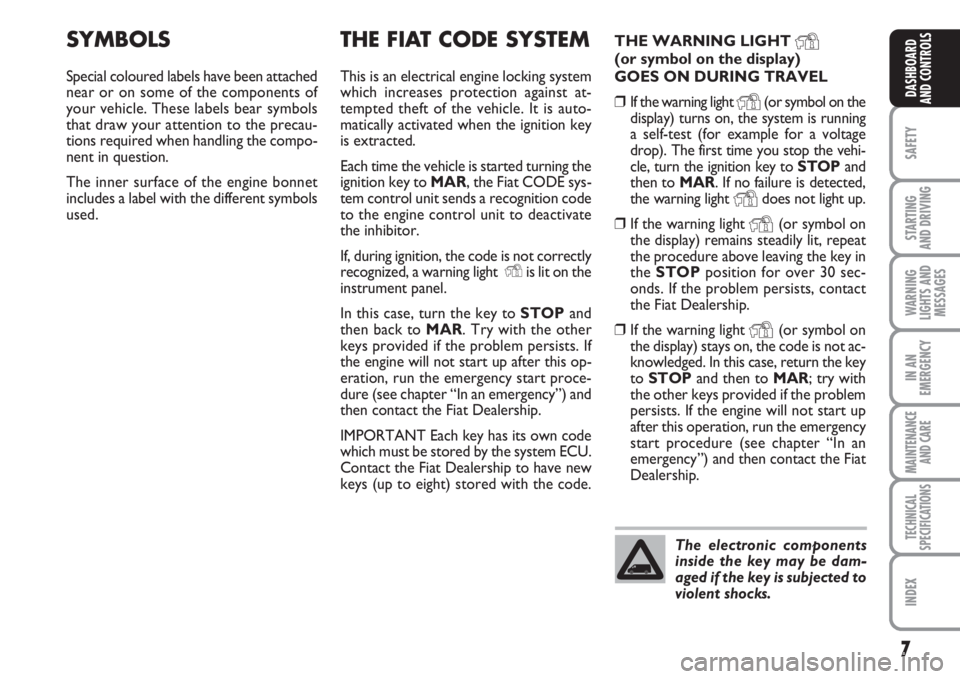

THE FIAT CODE SYSTEM
This is an electrical engine locking system
which increases protection against at-
tempted theft of the vehicle. It is auto-
matically activated when the ignition key
is extracted.
Each time the vehicle is started turning the
ignition key to MAR, the Fiat CODE sys-
tem control unit sends a recognition code
to the engine control unit to deactivate
the inhibitor.
If, during ignition, the code is not correctly
recognized, a warning light Yis lit on the
instrument panel.
In this case, turn the key to STOPand
then back to MAR. Try with the other
keys provided if the problem persists. If
the engine will not start up after this op-
eration, run the emergency start proce-
dure (see chapter “In an emergency”) and
then contact the Fiat Dealership.
IMPORTANT Each key has its own code
which must be stored by the system ECU.
Contact the Fiat Dealership to have new
keys (up to eight) stored with the code.THE WARNING LIGHT
Y(or symbol on the display)
GOES ON DURING TRAVEL
❒If the warning light
Y(or symbol on the
display) turns on, the system is running
a self-test (for example for a voltage
drop). The first time you stop the vehi-
cle, turn the ignition key to STOPand
then to MAR. If no failure is detected,
the warning light
Ydoes not light up.
❒If the warning light
Y(or symbol on
the display) remains steadily lit, repeat
the procedure above leaving the key in
the STOPposition for over 30 sec-
onds. If the problem persists, contact
the Fiat Dealership.
❒If the warning light
Y(or symbol on
the display) stays on, the code is not ac-
knowledged. In this case, return the key
to STOPand then to MAR; try with
the other keys provided if the problem
persists. If the engine will not start up
after this operation, run the emergency
start procedure (see chapter “In an
emergency”) and then contact the Fiat
Dealership.
SYMBOLS
Special coloured labels have been attached
near or on some of the components of
your vehicle. These labels bear symbols
that draw your attention to the precau-
tions required when handling the compo-
nent in question.
The inner surface of the engine bonnet
includes a label with the different symbols
used.
The electronic components
inside the key may be dam-
aged if the key is subjected to
violent shocks.

8
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

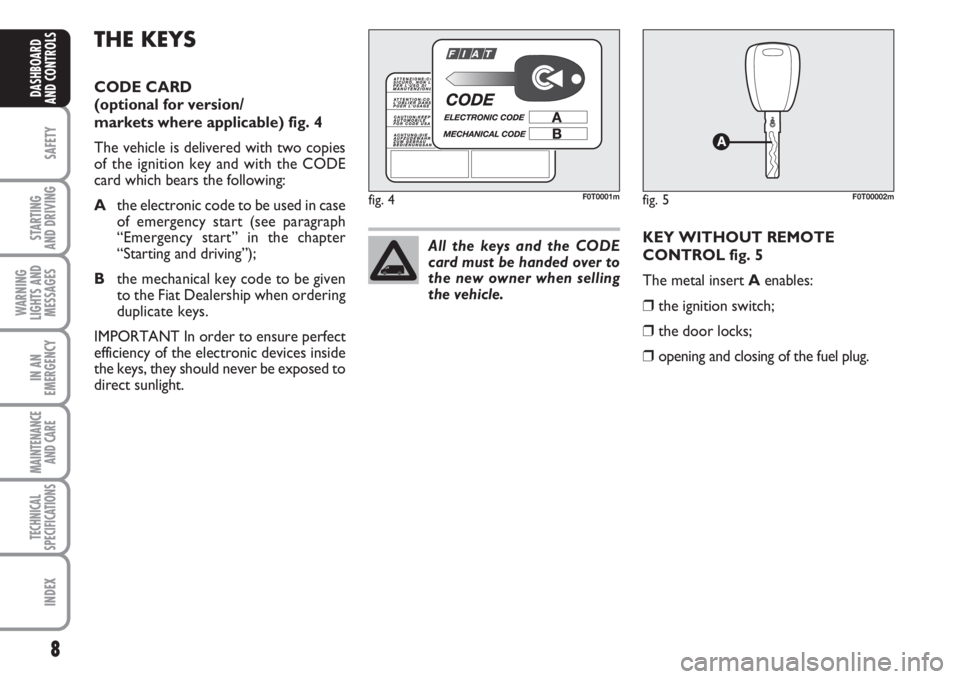

THE KEYS
CODE CARD
(optional for version/
markets where applicable) fig. 4
The vehicle is delivered with two copies
of the ignition key and with the CODE
card which bears the following:
Athe electronic code to be used in case
of emergency start (see paragraph
“Emergency start” in the chapter
“Starting and driving”);
Bthe mechanical key code to be given
to the Fiat Dealership when ordering
duplicate keys.
IMPORTANT In order to ensure perfect
efficiency of the electronic devices inside
the keys, they should never be exposed to
direct sunlight.
fig. 5F0T00002m
KEY WITHOUT REMOTE
CONTROL fig. 5
The metal insert Aenables:
❒the ignition switch;
❒the door locks;
❒opening and closing of the fuel plug.
fig. 4F0T0001m
All the keys and the CODE
card must be handed over to
the new owner when selling
the vehicle.

9
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

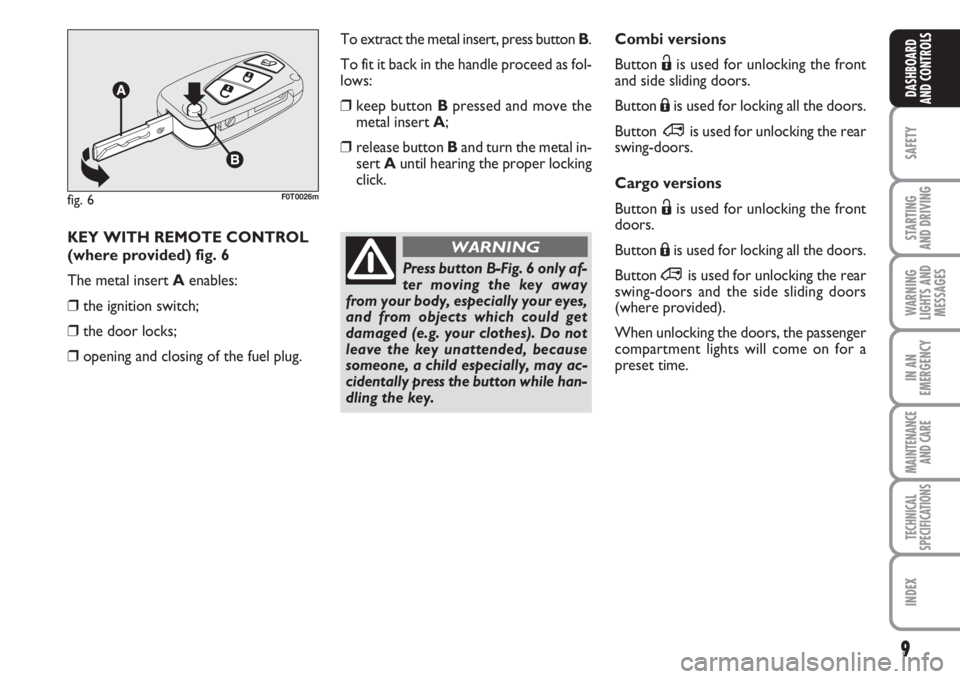

Combi versions
Button Ëis used for unlocking the front
and side sliding doors.
Button Áis used for locking all the doors.
Button
∞is used for unlocking the rear
swing-doors.
Cargo versions
Button Ëis used for unlocking the front
doors.
Button Áis used for locking all the doors.
Button
∞is used for unlocking the rear
swing-doors and the side sliding doors
(where provided).
When unlocking the doors, the passenger
compartment lights will come on for a
preset time. KEY WITH REMOTE CONTROL
(where provided) fig. 6
The metal insert Aenables:
❒the ignition switch;
❒the door locks;
❒opening and closing of the fuel plug.
fig. 6F0T0026m
Press button B-Fig. 6 only af-
ter moving the key away
from your body, especially your eyes,
and from objects which could get
damaged (e.g. your clothes). Do not
leave the key unattended, because
someone, a child especially, may ac-
cidentally press the button while han-
dling the key.
WARNING
To extract the metal insert, press button B.
To fit it back in the handle proceed as fol-
lows:
❒keep button Bpressed and move the
metal insert A;
❒release button Band turn the metal in-
sert Auntil hearing the proper locking
click.
