Page 65 of 210

64
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

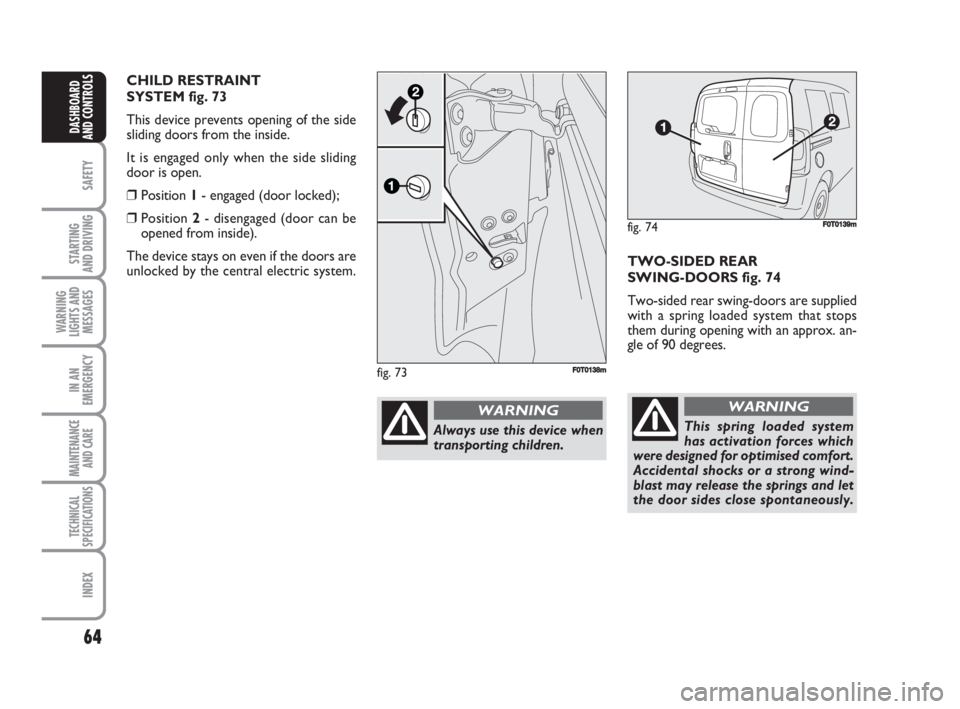

TWO-SIDED REAR
SWING-DOORS fig. 74
Two-sided rear swing-doors are supplied
with a spring loaded system that stops
them during opening with an approx. an-
gle of 90 degrees.
fig. 74F0T0139m
This spring loaded system
has activation forces which
were designed for optimised comfort.
Accidental shocks or a strong wind-
blast may release the springs and let
the door sides close spontaneously.
WARNING
fig. 73F0T0138m
Always use this device when
transporting children.
WARNING
CHILD RESTRAINT
SYSTEM fig. 73
This device prevents opening of the side
sliding doors from the inside.
It is engaged only when the side sliding
door is open.
❒Position 1- engaged (door locked);
❒Position 2- disengaged (door can be
opened from inside).
The device stays on even if the doors are
unlocked by the central electric system.
036-082 Fiorino GB 2ed 13-02-2008 9:39 Pagina 64
Page 66 of 210

65
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

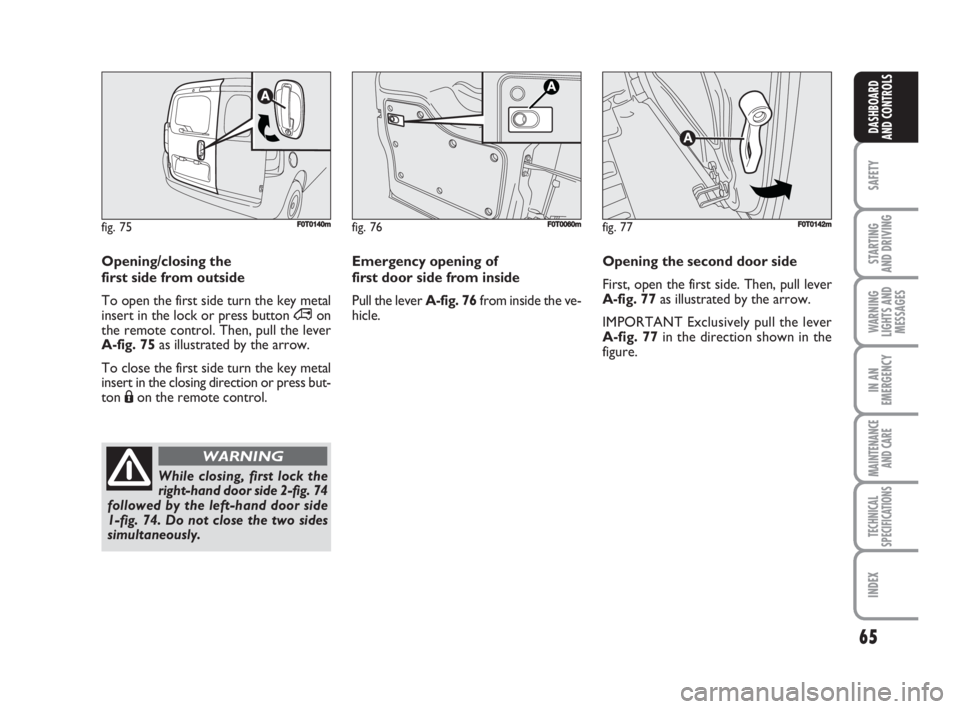

Emergency opening of
first door side from inside
Pull the lever A-fig. 76from inside the ve-
hicle.Opening the second door side
First, open the first side. Then, pull lever
A-fig. 77 as illustrated by the arrow.
IMPORTANT Exclusively pull the lever
A-fig. 77in the direction shown in the
figure.
fig. 76F0T0060mfig. 77F0T0142m
Opening/closing the
first side from outside
To open the first side turn the key metal
insert in the lock or press button ∞on
the remote control. Then, pull the lever
A-fig. 75as illustrated by the arrow.
To close the first side turn the key metal
insert in the closing direction or press but-
ton Áon the remote control.
fig. 75F0T0140m
While closing, first lock the
right-hand door side 2-fig. 74
followed by the left-hand door side
1-fig. 74. Do not close the two sides
simultaneously.
WARNING
036-082 Fiorino GB 2ed 13-02-2008 9:39 Pagina 65
Page 67 of 210

66
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

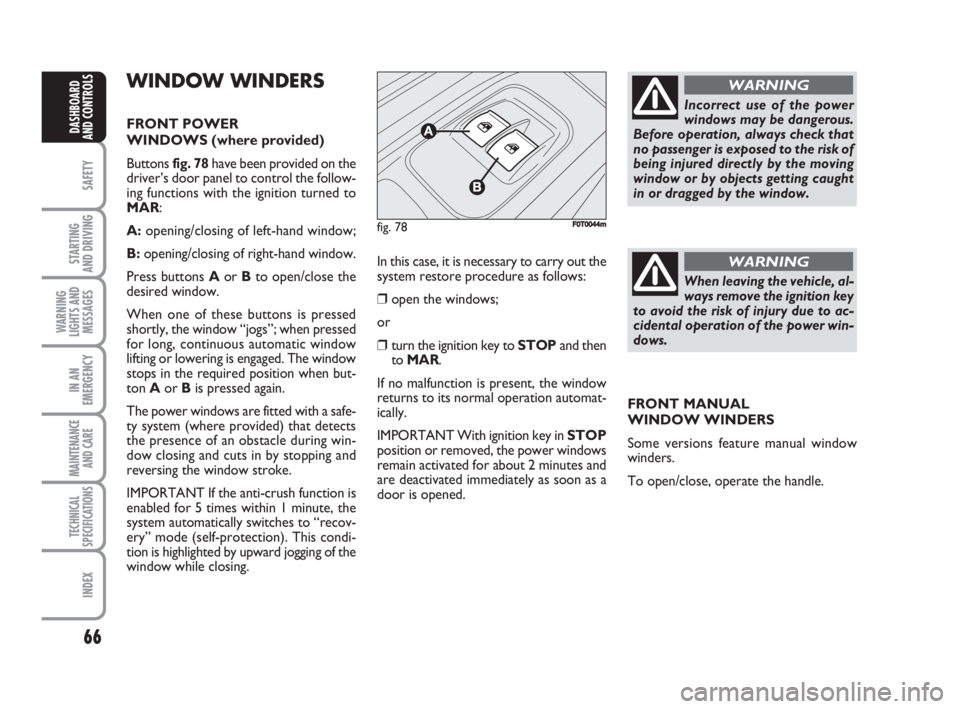

WINDOW WINDERS
FRONT POWER
WINDOWS (where provided)
Buttons fig. 78have been provided on the
driver’s door panel to control the follow-
ing functions with the ignition turned to
MAR:
A:opening/closing of left-hand window;
B:opening/closing of right-hand window.
Press buttons Aor Bto open/close the
desired window.
When one of these buttons is pressed
shortly, the window “jogs”; when pressed
for long, continuous automatic window
lifting or lowering is engaged. The window
stops in the required position when but-
ton Aor Bis pressed again.
The power windows are fitted with a safe-
ty system (where provided) that detects
the presence of an obstacle during win-
dow closing and cuts in by stopping and
reversing the window stroke.
IMPORTANT If the anti-crush function is
enabled for 5 times within 1 minute, the
system automatically switches to “recov-
ery” mode (self-protection). This condi-
tion is highlighted by upward jogging of the
window while closing.In this case, it is necessary to carry out the
system restore procedure as follows:
❒open the windows;
or
❒turn the ignition key to STOPand then
to MAR.
If no malfunction is present, the window
returns to its normal operation automat-
ically.
IMPORTANT With ignition key in STOP
position or removed, the power windows
remain activated for about 2 minutes and
are deactivated immediately as soon as a
door is opened.
fig. 78F0T0044m
Incorrect use of the power
windows may be dangerous.
Before operation, always check that
no passenger is exposed to the risk of
being injured directly by the moving
window or by objects getting caught
in or dragged by the window.
WARNING
When leaving the vehicle, al-
ways remove the ignition key
to avoid the risk of injury due to ac-
cidental operation of the power win-
dows.
WARNING
FRONT MANUAL
WINDOW WINDERS
Some versions feature manual window
winders.
To open/close, operate the handle.
036-082 Fiorino GB 2ed 13-02-2008 9:39 Pagina 66
Page 68 of 210

67
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

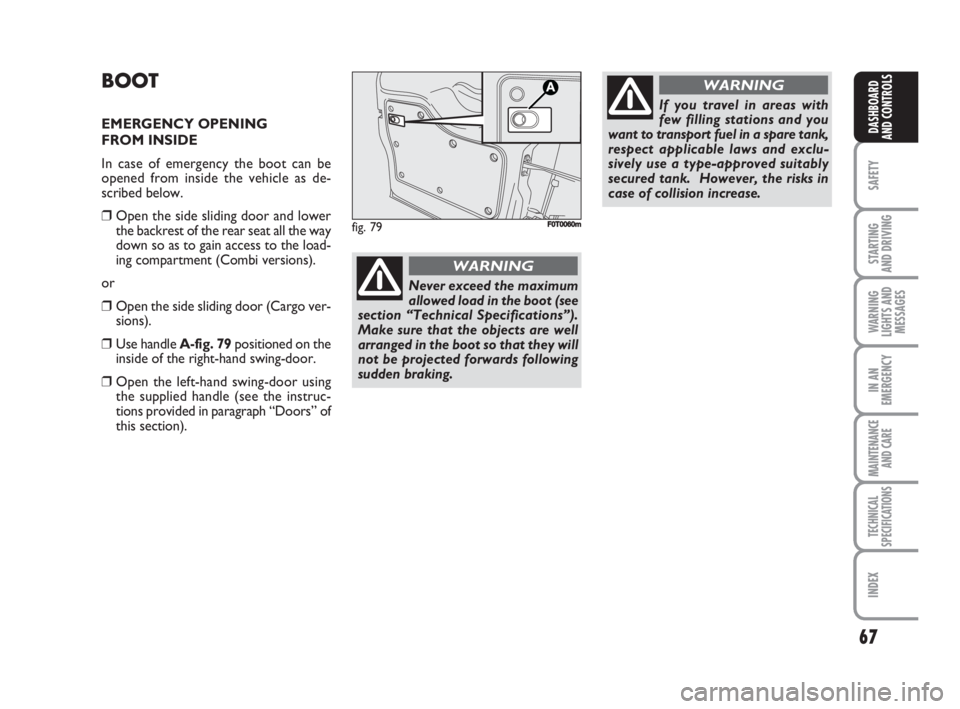

BOOT
EMERGENCY OPENING
FROM INSIDE
In case of emergency the boot can be
opened from inside the vehicle as de-
scribed below.
❒Open the side sliding door and lower
the backrest of the rear seat all the way
down so as to gain access to the load-
ing compartment (Combi versions).
or
❒Open the side sliding door (Cargo ver-
sions).
❒Use handle A-fig. 79positioned on the
inside of the right-hand swing-door.
❒Open the left-hand swing-door using
the supplied handle (see the instruc-
tions provided in paragraph “Doors” of
this section).
fig. 79F0T0060m
Never exceed the maximum
allowed load in the boot (see
section “Technical Specifications”).
Make sure that the objects are well
arranged in the boot so that they will
not be projected forwards following
sudden braking.
WARNING
If you travel in areas with
few filling stations and you
want to transport fuel in a spare tank,
respect applicable laws and exclu-
sively use a type-approved suitably
secured tank. However, the risks in
case of collision increase.
WARNING
036-082 Fiorino GB 2ed 13-02-2008 9:39 Pagina 67
Page 69 of 210

68
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

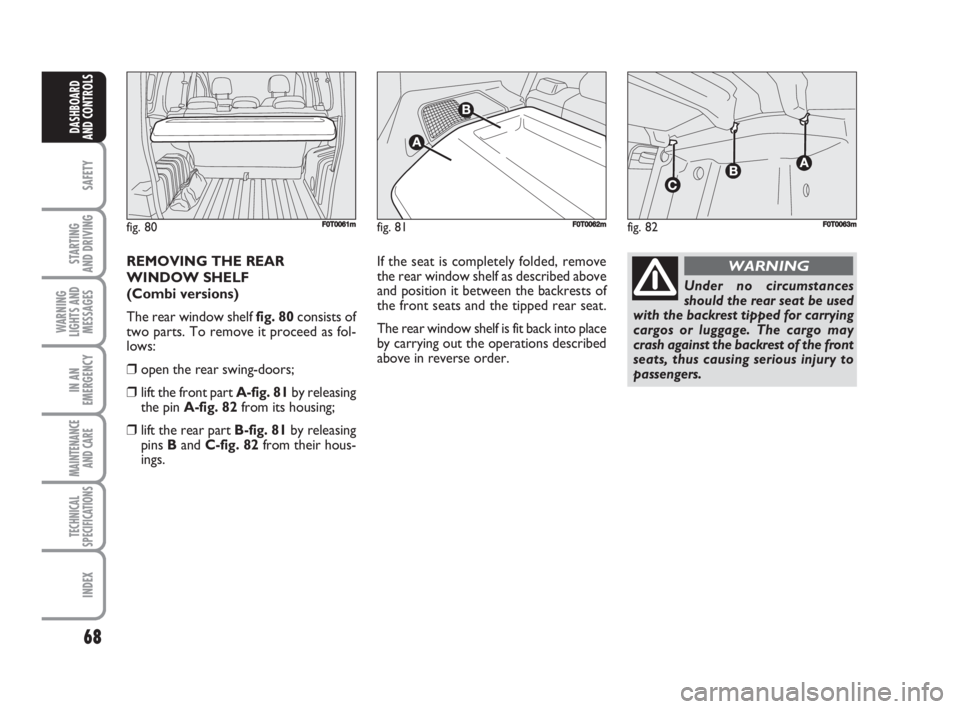

REMOVING THE REAR
WINDOW SHELF
(Combi versions)
The rear window shelf fig. 80consists of
two parts. To remove it proceed as fol-
lows:
❒open the rear swing-doors;
❒lift the front part A-fig. 81by releasing
the pin A-fig. 82from its housing;
❒lift the rear part B-fig. 81by releasing
pins Band C-fig. 82from their hous-
ings.If the seat is completely folded, remove
the rear window shelf as described above
and position it between the backrests of
the front seats and the tipped rear seat.
The rear window shelf is fit back into place
by carrying out the operations described
above in reverse order.
fig. 80F0T0061mfig. 81
A
A
F0T0062mfig. 82
AAA
F0T0063m
Under no circumstances
should the rear seat be used
with the backrest tipped for carrying
cargos or luggage. The cargo may
crash against the backrest of the front
seats, thus causing serious injury to
passengers.
WARNING
036-082 Fiorino GB 2ed 13-02-2008 9:39 Pagina 68
Page 70 of 210

69
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

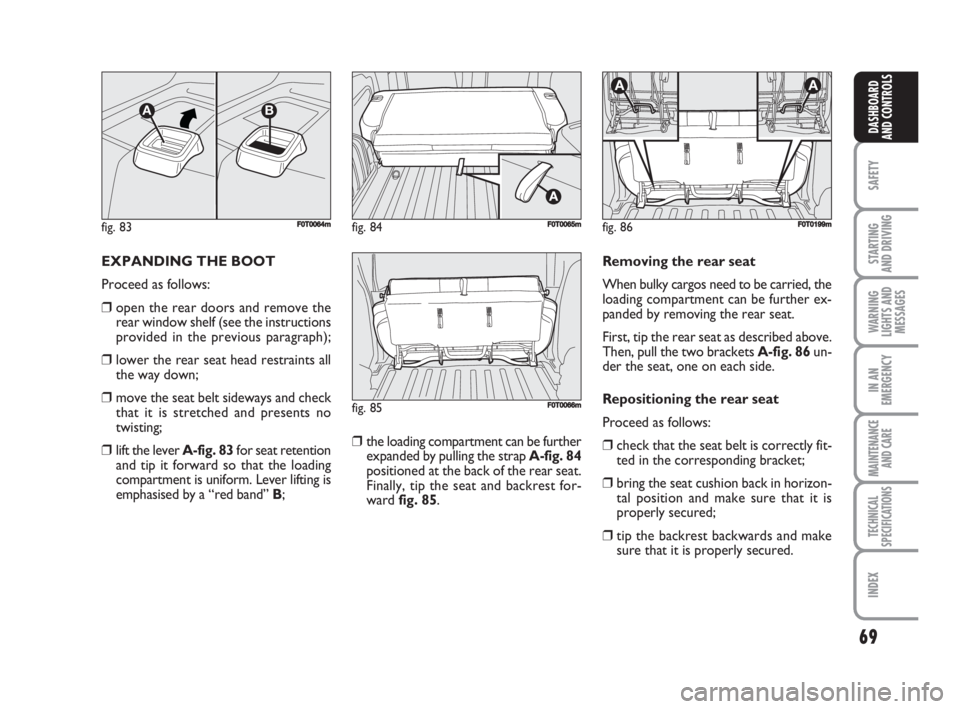

EXPANDING THE BOOT
Proceed as follows:
❒open the rear doors and remove the
rear window shelf (see the instructions
provided in the previous paragraph);
❒lower the rear seat head restraints all
the way down;
❒move the seat belt sideways and check
that it is stretched and presents no
twisting;
❒lift the lever A-fig. 83for seat retention
and tip it forward so that the loading
compartment is uniform. Lever lifting is
emphasised by a “red band” B;❒the loading compartment can be further
expanded by pulling the strap A-fig. 84
positioned at the back of the rear seat.
Finally, tip the seat and backrest for-
ward fig. 85.Removing the rear seat
When bulky cargos need to be carried, the
loading compartment can be further ex-
panded by removing the rear seat.
First, tip the rear seat as described above.
Then, pull the two brackets A-fig. 86un-
der the seat, one on each side.
Repositioning the rear seat
Proceed as follows:
❒check that the seat belt is correctly fit-
ted in the corresponding bracket;
❒bring the seat cushion back in horizon-
tal position and make sure that it is
properly secured;
❒tip the backrest backwards and make
sure that it is properly secured.
fig. 83
AB
F0T0064mfig. 84F0T0065m
fig. 85F0T0066m
fig. 86
AA
F0T0199m
036-082 Fiorino GB 2ed 13-02-2008 9:39 Pagina 69
Page 71 of 210

70
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

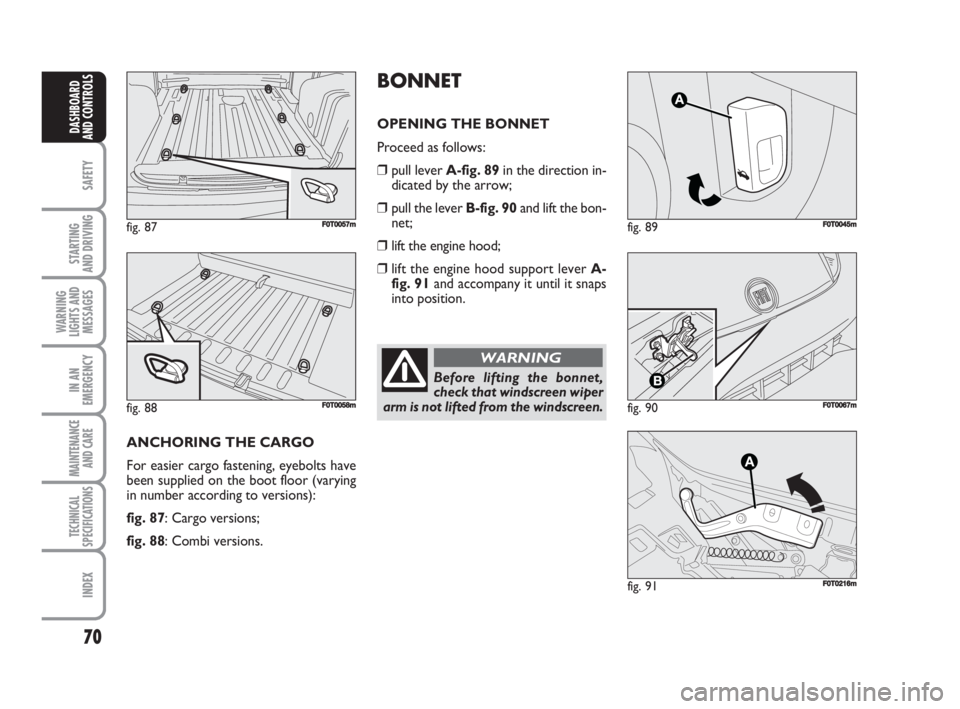

fig. 89FF0T0045m
fig. 90F0T0067m
Before lifting the bonnet,
check that windscreen wiper
arm is not lifted from the windscreen.
WARNING
ANCHORING THE CARGO
For easier cargo fastening, eyebolts have
been supplied on the boot floor (varying
in number according to versions):
fig. 87: Cargo versions;
fig. 88: Combi versions.
BONNET
OPENING THE BONNET
Proceed as follows:
❒pull lever A-fig. 89in the direction in-
dicated by the arrow;
❒pull the lever B-fig. 90and lift the bon-
net;
❒lift the engine hood;
❒lift the engine hood support lever A-
fig. 91and accompany it until it snaps
into position.
fig. 87F0T0057m
fig. 88F0T0058m
fig. 91
A
F0T0216m
036-082 Fiorino GB 2ed 13-02-2008 9:39 Pagina 70
Page 72 of 210

71
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

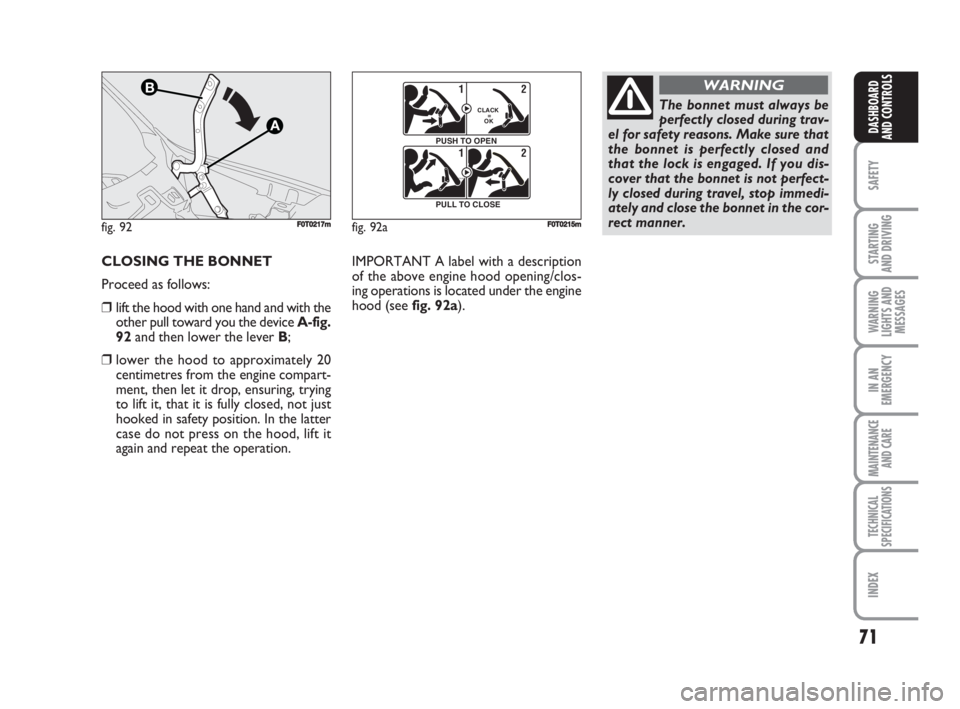

CLOSING THE BONNET
Proceed as follows:
❒lift the hood with one hand and with the
other pull toward you the device A-fig.
92and then lower the lever B;
❒lower the hood to approximately 20
centimetres from the engine compart-
ment, then let it drop, ensuring, trying
to lift it, that it is fully closed, not just
hooked in safety position. In the latter
case do not press on the hood, lift it
again and repeat the operation.IMPORTANT A label with a description
of the above engine hood opening/clos-
ing operations is located under the engine
hood (see fig. 92a).
The bonnet must always be
perfectly closed during trav-
el for safety reasons. Make sure that
the bonnet is perfectly closed and
that the lock is engaged. If you dis-
cover that the bonnet is not perfect-
ly closed during travel, stop immedi-
ately and close the bonnet in the cor-
rect manner.
WARNING
fig. 92
A
B
F0T0217mfig. 92a
F0Q0603m
12
CLACK
=
OK
PUSH TO OPEN12
PULL TO CLOSE
F0T0215m
036-082 Fiorino GB 2ed 13-02-2008 9:39 Pagina 71
Page 73 of 210

72
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

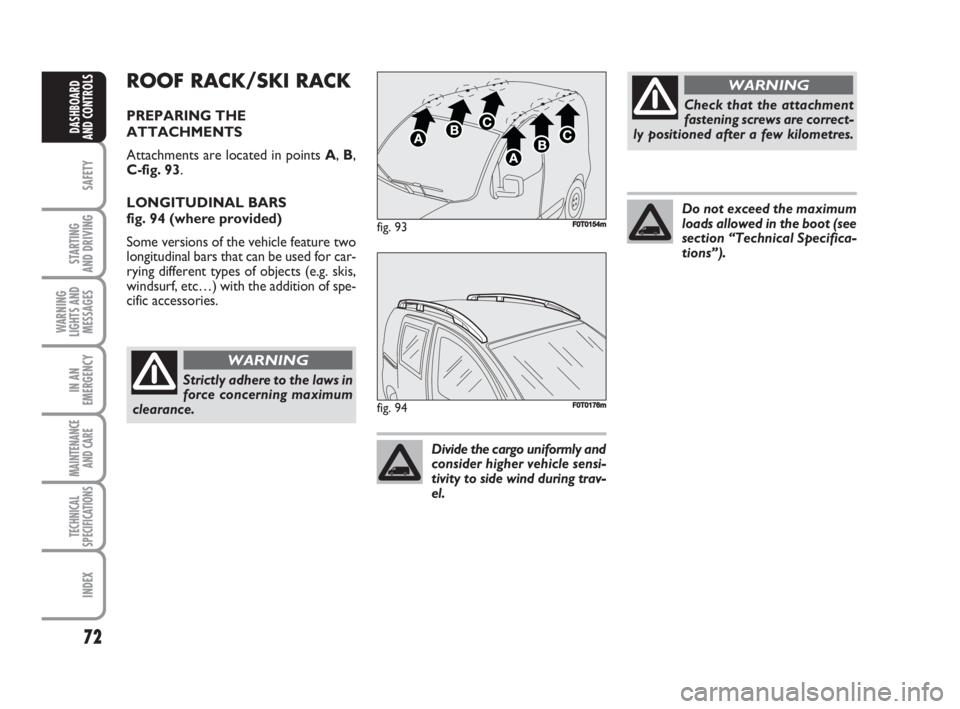

ROOF RACK/SKI RACK
PREPARING THE
ATTACHMENTS
Attachments are located in points A,B,
C-fig. 93.
LONGITUDINAL BARS
fig. 94 (where provided)
Some versions of the vehicle feature two
longitudinal bars that can be used for car-
rying different types of objects (e.g. skis,
windsurf, etc…) with the addition of spe-
cific accessories.
fig. 93F0T0154m
fig. 94F0T0176m
Strictly adhere to the laws in
force concerning maximum
clearance.
WARNING
Check that the attachment
fastening screws are correct-
ly positioned after a few kilometres.
WARNING
Divide the cargo uniformly and
consider higher vehicle sensi-
tivity to side wind during trav-
el.
Do not exceed the maximum
loads allowed in the boot (see
section “Technical Specifica-
tions”).
036-082 Fiorino GB 2ed 13-02-2008 9:39 Pagina 72
Page 74 of 210

73
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

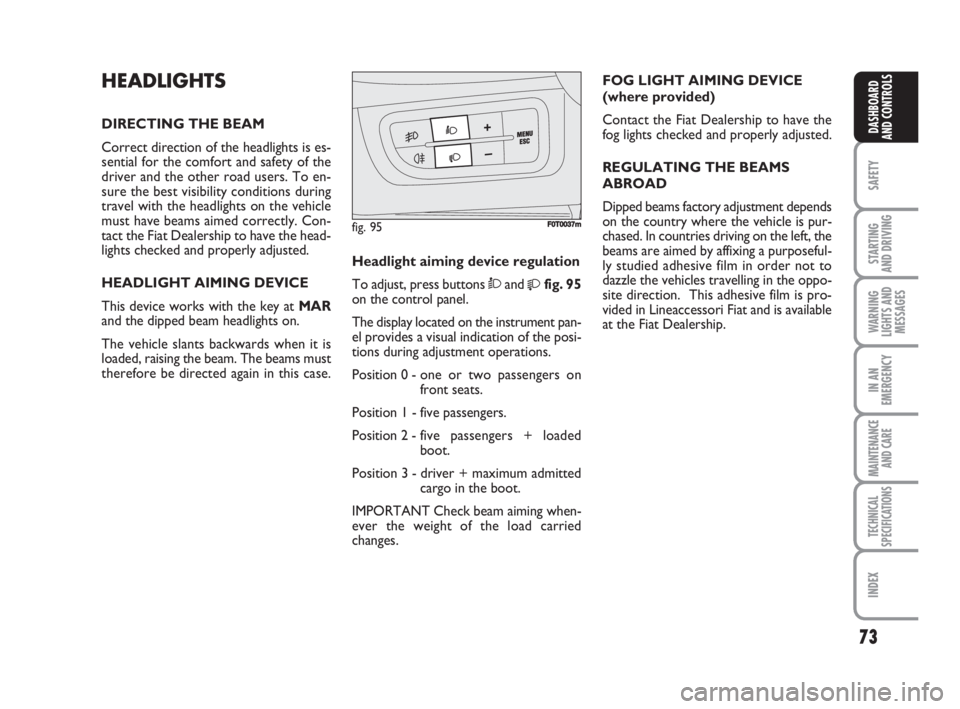

HEADLIGHTS
DIRECTING THE BEAM
Correct direction of the headlights is es-
sential for the comfort and safety of the
driver and the other road users. To en-
sure the best visibility conditions during
travel with the headlights on the vehicle
must have beams aimed correctly. Con-
tact the Fiat Dealership to have the head-
lights checked and properly adjusted.
HEADLIGHT AIMING DEVICE
This device works with the key at MAR
and the dipped beam headlights on.
The vehicle slants backwards when it is
loaded, raising the beam. The beams must
therefore be directed again in this case.Headlight aiming device regulation
To adjust, press buttons Òand
fig. 95
on the control panel.
The display located on the instrument pan-
el provides a visual indication of the posi-
tions during adjustment operations.
Position 0 - one or two passengers on
front seats.
Position 1 - five passengers.
Position 2 - five passengers + loaded
boot.
Position 3 - driver + maximum admitted
cargo in the boot.
IMPORTANT Check beam aiming when-
ever the weight of the load carried
changes.FOG LIGHT AIMING DEVICE
(where provided)
Contact the Fiat Dealership to have the
fog lights checked and properly adjusted.
REGULATING THE BEAMS
ABROAD
Dipped beams factory adjustment depends
on the country where the vehicle is pur-
chased. In countries driving on the left, the
beams are aimed by affixing a purposeful-
ly studied adhesive film in order not to
dazzle the vehicles travelling in the oppo-
site direction. This adhesive film is pro-
vided in Lineaccessori Fiat and is available
at the Fiat Dealership.
fig. 95F0T0037m
036-082 Fiorino GB 2ed 13-02-2008 9:39 Pagina 73
