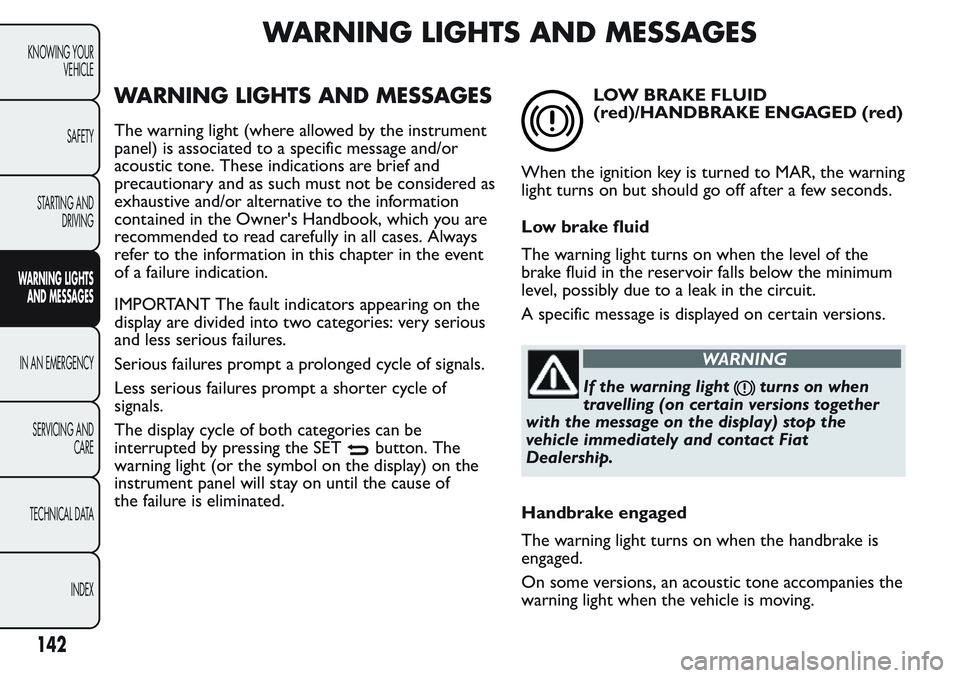

WARNING LIGHTS AND MESSAGES
WARNING LIGHTS AND MESSAGES
The warning light (where allowed by the instrument
panel) is associated to a specific message and/or
acoustic tone. These indications are brief and
precautionary and as such must not be considered as
exhaustive and/or alternative to the information
contained in the Owner's Handbook, which you are
recommended to read carefully in all cases. Always
refer to the information in this chapter in the event
of a failure indication.
IMPORTANT The fault indicators appearing on the
display are divided into two categories: very serious
and less serious failures.
Serious failures prompt a prolonged cycle of signals.
Less serious failures prompt a shorter cycle of
signals.
The display cycle of both categories can be
interrupted by pressing the SET
button. The
warning light (or the symbol on the display) on the
instrument panel will stay on until the cause of
the failure is eliminated.
LOW BRAKE FLUID
(red)/HANDBRAKE ENGAGED (red)
When the ignition key is turned to MAR, the warning
light turns on but should go off after a few seconds.
Low brake fluid
The warning light turns on when the level of the
brake fluid in the reservoir falls below the minimum
level, possibly due to a leak in the circuit.
A specific message is displayed on certain versions.
WARNING
If the warning lightturns on when
travelling (on cer tain versions together
with the message on the display) stop the
vehicle immediately and contact Fiat
Dealership.
Handbrake engaged
The warning light turns on when the handbrake is
engaged.
On some versions, an acoustic tone accompanies the
warning light when the vehicle is moving.
142
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

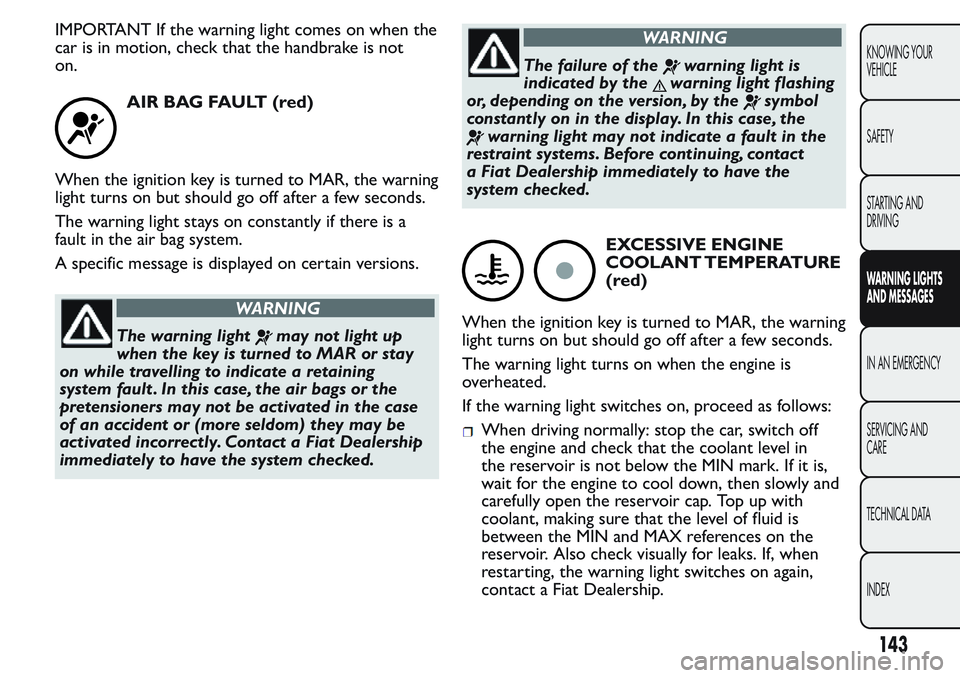

IMPORTANT If the warning light comes on when the
car is in motion, check that the handbrake is not
on.
AIR BAG FAULT (red)
When the ignition key is turned to MAR, the warning
light turns on but should go off after a few seconds.
The warning light stays on constantly if there is a
fault in the air bag system.
A specific message is displayed on certain versions.
WARNING
The warning lightmay not light up
when the key is turned to MAR or stay
on while travelling to indicate a retaining
system fault . In this case, the air bags or the
pretensioners may not be activated in the case
of an accident or (more seldom) they may be
activated incorrectly. Contact a Fiat Dealership
immediately to have the system checked.
WARNING
The failure of thewarning light is
indicated by the
warning light flashing
or, depending on the version, by the
symbol
constantly on in the display. In this case, the
warning light may not indicate a fault in the
restraint systems. Before continuing, contact
a Fiat Dealership immediately to have the
system checked.
EXCESSIVE ENGINE
COOLANT TEMPERATURE
(red)
When the ignition key is turned to MAR, the warning
light turns on but should go off after a few seconds.
The warning light turns on when the engine is
overheated.
If the warning light switches on, proceed as follows:
When driving normally: stop the car, switch off
the engine and check that the coolant level in
the reservoir is not below the MIN mark. If it is,
wait for the engine to cool down, then slowly and
carefully open the reservoir cap. Top up with
coolant, making sure that the level of fluid is
between the MIN and MAX references on the
reservoir. Also check visually for leaks. If, when
restarting, the warning light switches on again,
contact a Fiat Dealership.
143
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

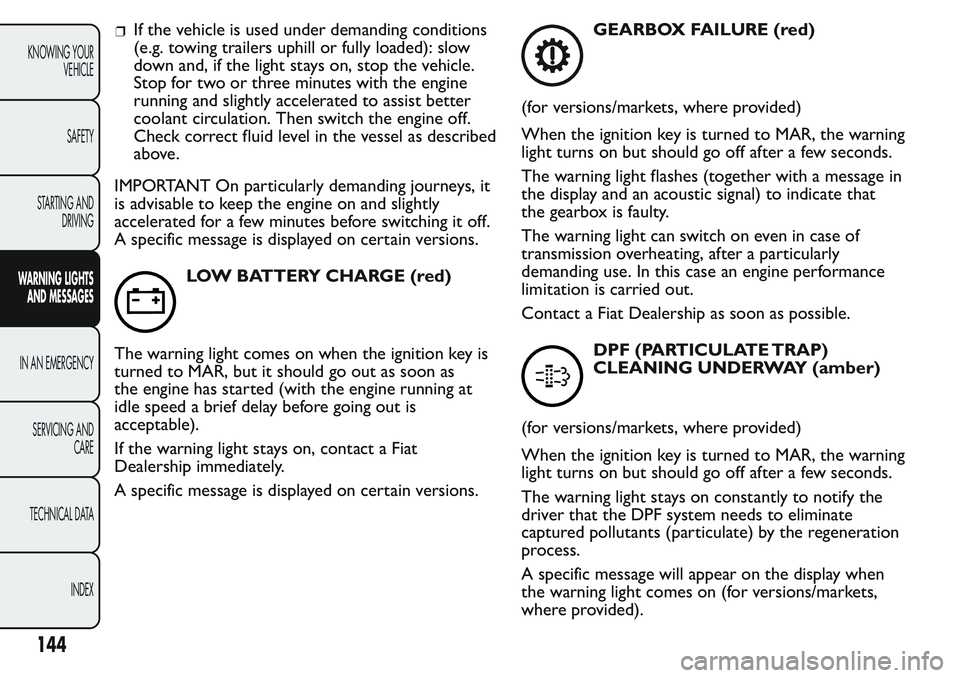

If the vehicle is used under demanding conditions
(e.g. towing trailers uphill or fully loaded): slow
down and, if the light stays on, stop the vehicle.
Stop for two or three minutes with the engine
running and slightly accelerated to assist better
coolant circulation. Then switch the engine off.
Check correct fluid level in the vessel as described
above.
IMPORTANT On particularly demanding journeys, it
is advisable to keep the engine on and slightly
accelerated for a few minutes before switching it off.
A specific message is displayed on certain versions.
LOW BATTERY CHARGE (red)
The warning light comes on when the ignition key is
turned to MAR, but it should go out as soon as
the engine has started (with the engine running at
idle speed a brief delay before going out is
acceptable).
If the warning light stays on, contact a Fiat
Dealership immediately.
A specific message is displayed on certain versions.
GEARBOX FAILURE (red)
(for versions/markets, where provided)
When the ignition key is turned to MAR, the warning
light turns on but should go off after a few seconds.
The warning light flashes (together with a message in
the display and an acoustic signal) to indicate that
the gearbox is faulty.
The warning light can switch on even in case of
transmission overheating, after a particularly
demanding use. In this case an engine performance
limitation is carried out.
Contact a Fiat Dealership as soon as possible.
DPF (PARTICULATE TRAP)
CLEANING UNDERWAY (amber)
(for versions/markets, where provided)
When the ignition key is turned to MAR, the warning
light turns on but should go off after a few seconds.
The warning light stays on constantly to notify the
driver that the DPF system needs to eliminate
captured pollutants (particulate) by the regeneration
process.
A specific message will appear on the display when
the warning light comes on (for versions/markets,
where provided).
144
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

The warning light does not come on during every
DPF regeneration, but only when driving conditions
require notification to the driver. The warning light
will go off if the vehicle stays in motion until
regeneration has been completed. The process
normally takes about 15 minutes.
The optimum conditions to end the process are
achieved by keeping the car in motion at up to 60
km/h with an engine speed higher than 2000 rpm.
This light coming on is not a fault and therefore the
vehicle does not need to go to the workshop.
WARNING
During regeneration, the fan could be
operated.
WARNING
Always drive at a speed appropriate to
the traffic conditions, the weather
and the laws in force.The engine may be turned
off while the DPF light is on; however, repeated
interruption of the regeneration process may
result in premature degradation of engine
oil. For this reason, it is always advisable to wait
for the light to go off before turning off the
engine, following the instructions appearing
above. It is recommended to complete DPF
regeneration with the vehicle stationar y.
ABS SYSTEM FAULT (amber)
When the ignition key is turned to MAR, the warning
light turns on but should go off after a few seconds.
The warning light comes on when the system is
either not working properly or not available. In this
case the braking system maintains its own unaltered
efficiency but without the advantage of the ABS
system. Drive carefully and go to a Fiat Dealership as
soon as possible.
A specific message is displayed on certain versions.
EBD FAULT
(red/amber)
If the warning lights switch on simultaneously with
the engine running, this indicates that there is a fault
in the EBD system or that the system in unavailable.
In this case, the rear wheels may suddenly lock
and the vehicle may swerve when braking sharply.
Drive very carefully to a Fiat Dealership to have the
system inspected.
A specific message is displayed on certain versions.
145
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

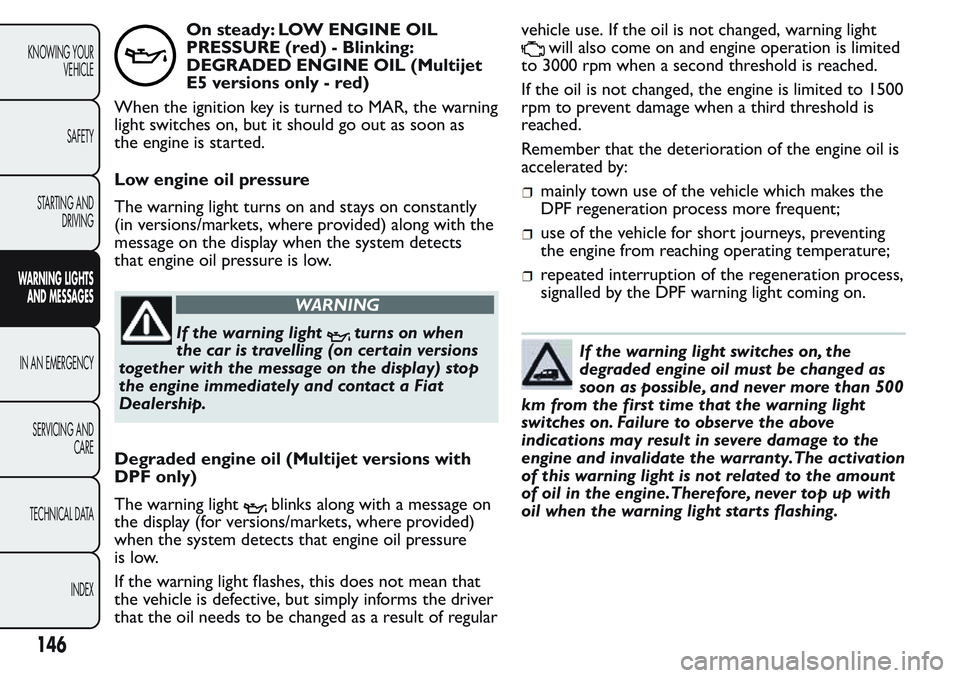

On steady: LOW ENGINE OIL
PRESSURE (red) - Blinking:
DEGRADED ENGINE OIL (Multijet
E5 versions only - red)
When the ignition key is turned to MAR, the warning
light switches on, but it should go out as soon as
the engine is started.
Low engine oil pressure
The warning light turns on and stays on constantly
(in versions/markets, where provided) along with the
message on the display when the system detects
that engine oil pressure is low.
WARNING
If the warning lightturns on when
the car is travelling (on certain versions
together with the message on the display) stop
the engine immediately and contact a Fiat
Dealership.
Degraded engine oil (Multijet versions with
DPF only)
The warning light
blinks along with a message on
the display (for versions/markets, where provided)
when the system detects that engine oil pressure
is low.
If the warning light flashes, this does not mean that
the vehicle is defective, but simply informs the driver
that the oil needs to be changed as a result of regularvehicle use. If the oil is not changed, warning light
will also come on and engine operation is limited
to 3000 rpm when a second threshold is reached.
If the oil is not changed, the engine is limited to 1500
rpm to prevent damage when a third threshold is
reached.
Remember that the deterioration of the engine oil is
accelerated by:
mainly town use of the vehicle which makes the
DPF regeneration process more frequent;
use of the vehicle for short journeys, preventing
the engine from reaching operating temperature;
repeated interruption of the regeneration process,
signalled by the DPF warning light coming on.
If the warning light switches on, the
degraded engine oil must be changed as
soon as possible, and never more than 500
km from the first time that the warning light
switches on. Failure to observe the above
indications may result in severe damage to the
engine and invalidate the warranty.The activation
of this warning light is not related to the amount
of oil in the engine.Therefore, never top up with
oil when the warning light starts flashing.
146
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

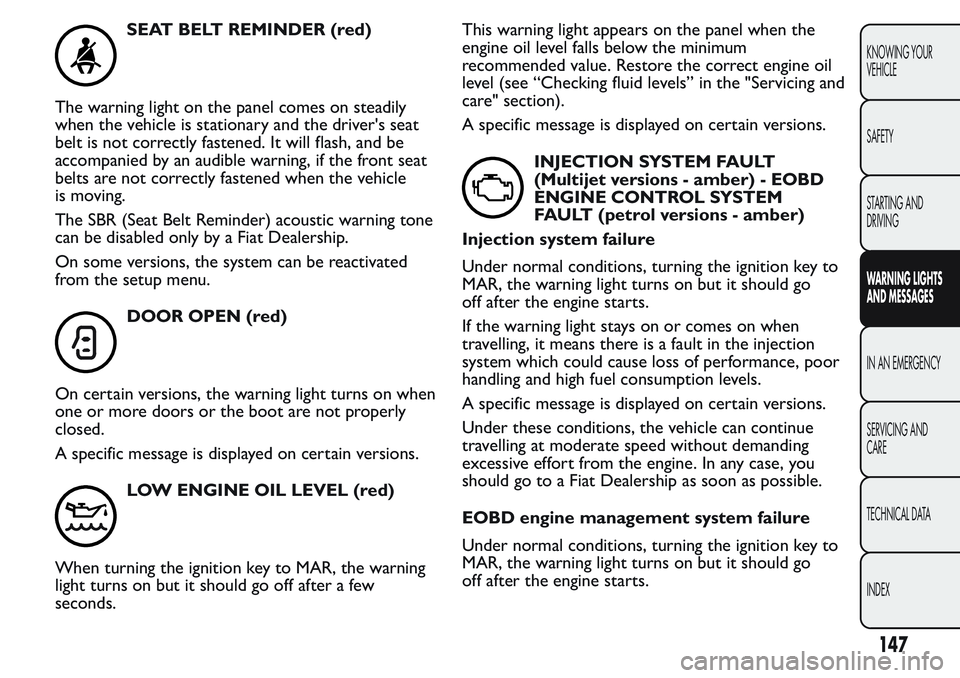

SEAT BELT REMINDER (red)
The warning light on the panel comes on steadily
when the vehicle is stationary and the driver's seat
belt is not correctly fastened. It will flash, and be
accompanied by an audible warning, if the front seat
belts are not correctly fastened when the vehicle
is moving.
The SBR (Seat Belt Reminder) acoustic warning tone
can be disabled only by a Fiat Dealership.
On some versions, the system can be reactivated
from the setup menu.
DOOR OPEN (red)
On certain versions, the warning light turns on when
one or more doors or the boot are not properly
closed.
A specific message is displayed on certain versions.
LOW ENGINE OIL LEVEL (red)
When turning the ignition key to MAR, the warning
light turns on but it should go off after a few
seconds.This warning light appears on the panel when the
engine oil level falls below the minimum
recommended value. Restore the correct engine oil
level (see “Checking fluid levels” in the "Servicing and
care" section).
A specific message is displayed on certain versions.
INJECTION SYSTEM FAULT
(Multijet versions - amber) - EOBD
ENGINE CONTROL SYSTEM
FAULT (petrol versions - amber)
Injection system failure
Under normal conditions, turning the ignition key to
MAR, the warning light turns on but it should go
off after the engine starts.
If the warning light stays on or comes on when
travelling, it means there is a fault in the injection
system which could cause loss of performance, poor
handling and high fuel consumption levels.
A specific message is displayed on certain versions.
Under these conditions, the vehicle can continue
travelling at moderate speed without demanding
excessive effort from the engine. In any case, you
should go to a Fiat Dealership as soon as possible.
EOBD engine management system failure
Under normal conditions, turning the ignition key to
MAR, the warning light turns on but it should go
off after the engine starts.
147
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

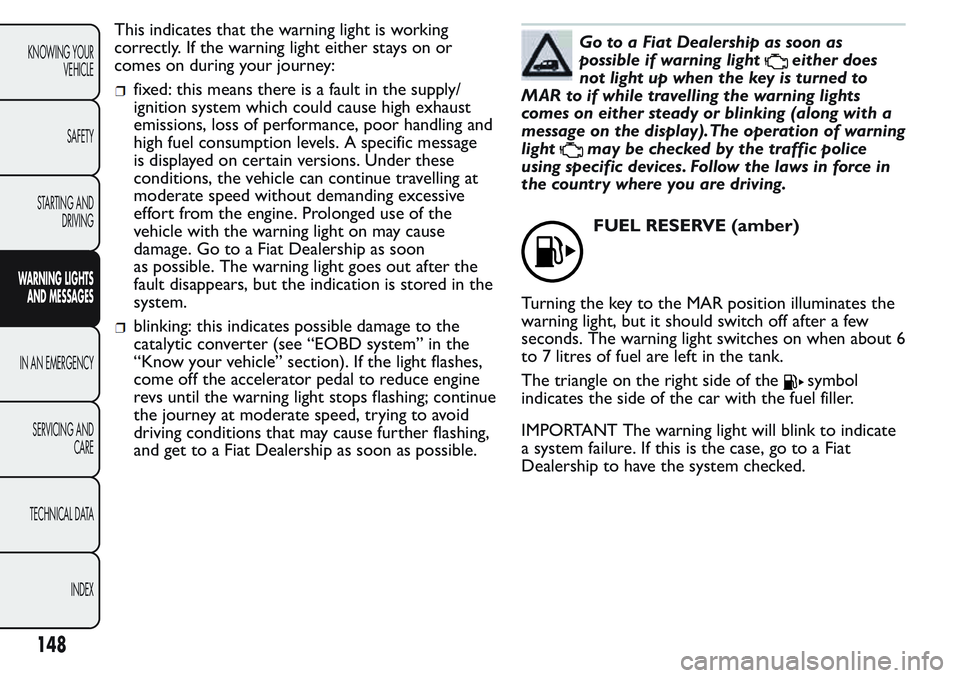

This indicates that the warning light is working
correctly. If the warning light either stays on or
comes on during your journey:
fixed: this means there is a fault in the supply/
ignition system which could cause high exhaust
emissions, loss of performance, poor handling and
high fuel consumption levels. A specific message
is displayed on certain versions. Under these
conditions, the vehicle can continue travelling at
moderate speed without demanding excessive
effort from the engine. Prolonged use of the
vehicle with the warning light on may cause
damage. Go to a Fiat Dealership as soon
as possible. The warning light goes out after the
fault disappears, but the indication is stored in the
system.
blinking: this indicates possible damage to the
catalytic converter (see “EOBD system” in the
“Know your vehicle” section). If the light flashes,
come off the accelerator pedal to reduce engine
revs until the warning light stops flashing; continue
the journey at moderate speed, trying to avoid
driving conditions that may cause further flashing,
and get to a Fiat Dealership as soon as possible.
Go to a Fiat Dealership as soon as
possible if warning light
either does
not light up when the key is turned to
MAR to if while travelling the warning lights
comes on either steady or blinking (along with a
message on the display).The operation of warning
light
may be checked by the traffic police
using specific devices. Follow the laws in force in
the country where you are driving.
FUEL RESERVE (amber)
Turning the key to the MAR position illuminates the
warning light, but it should switch off after a few
seconds. The warning light switches on when about 6
to 7 litres of fuel are left in the tank.
The triangle on the right side of the
symbol
indicates the side of the car with the fuel filler.
IMPORTANT The warning light will blink to indicate
a system failure. If this is the case, go to a Fiat
Dealership to have the system checked.
148
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

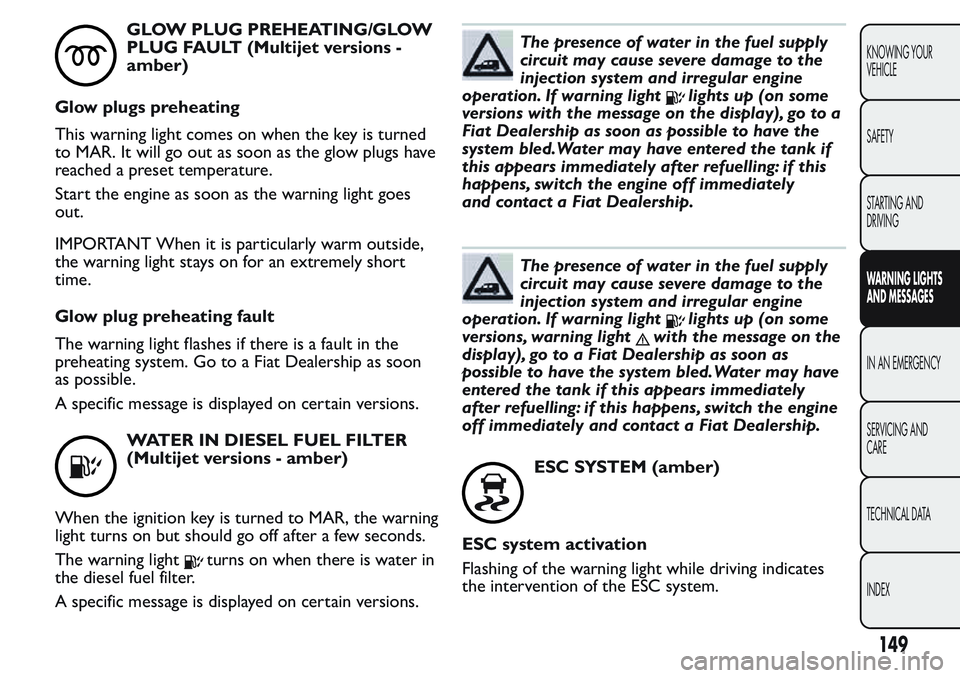

GLOW PLUG PREHEATING/GLOW
PLUG FAULT (Multijet versions -
amber)
Glow plugs preheating
This warning light comes on when the key is turned
to MAR. It will go out as soon as the glow plugs have
reached a preset temperature.
Start the engine as soon as the warning light goes
out.
IMPORTANT When it is particularly warm outside,
the warning light stays on for an extremely short
time.
Glow plug preheating fault
The warning light flashes if there is a fault in the
preheating system. Go to a Fiat Dealership as soon
as possible.
A specific message is displayed on certain versions.
WATER IN DIESEL FUEL FILTER
(Multijet versions - amber)
When the ignition key is turned to MAR, the warning
light turns on but should go off after a few seconds.
The warning light
turns on when there is water in
the diesel fuel filter.
A specific message is displayed on certain versions.
The presence of water in the fuel supply
circuit may cause severe damage to the
injection system and irregular engine
operation. If warning light
lights up (on some
versions with the message on the display), go to a
Fiat Dealership as soon as possible to have the
system bled.Water may have entered the tank if
this appears immediately after refuelling: if this
happens, switch the engine off immediately
and contact a Fiat Dealership.
The presence of water in the fuel supply
circuit may cause severe damage to the
injection system and irregular engine
operation. If warning light
lights up (on some
versions, warning light
with the message on the
display), go to a Fiat Dealership as soon as
possible to have the system bled.Water may have
entered the tank if this appears immediately
after refuelling: if this happens, switch the engine
off immediately and contact a Fiat Dealership.
ESC SYSTEM (amber)
ESC system activation
Flashing of the warning light while driving indicates
the intervention of the ESC system.
149
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

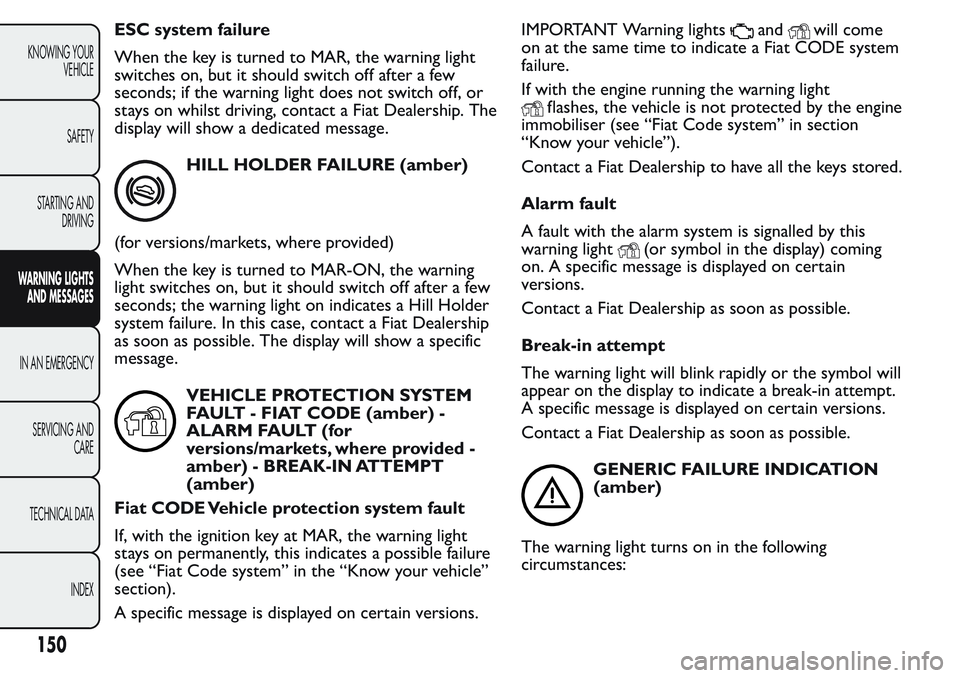

ESC system failure
When the key is turned to MAR, the warning light
switches on, but it should switch off after a few
seconds; if the warning light does not switch off, or
stays on whilst driving, contact a Fiat Dealership. The
display will show a dedicated message.
HILL HOLDER FAILURE (amber)
(for versions/markets, where provided)
When the key is turned to MAR-ON, the warning
light switches on, but it should switch off after a few
seconds; the warning light on indicates a Hill Holder
system failure. In this case, contact a Fiat Dealership
as soon as possible. The display will show a specific
message.
VEHICLE PROTECTION SYSTEM
FAULT - FIAT CODE (amber) -
ALARM FAULT (for
versions/markets, where provided -
amber) - BREAK-IN ATTEMPT
(amber)
Fiat CODE Vehicle protection system fault
If, with the ignition key at MAR, the warning light
stays on permanently, this indicates a possible failure
(see “Fiat Code system” in the “Know your vehicle”
section).
A specific message is displayed on certain versions.IMPORTANT Warning lights
andwill come
on at the same time to indicate a Fiat CODE system
failure.
If with the engine running the warning light
flashes, the vehicle is not protected by the engine
immobiliser (see “Fiat Code system” in section
“Know your vehicle”).
Contact a Fiat Dealership to have all the keys stored.
Alarm fault
A fault with the alarm system is signalled by this
warning light
(or symbol in the display) coming
on. A specific message is displayed on certain
versions.
Contact a Fiat Dealership as soon as possible.
Break-in attempt
The warning light will blink rapidly or the symbol will
appear on the display to indicate a break-in attempt.
A specific message is displayed on certain versions.
Contact a Fiat Dealership as soon as possible.
GENERIC FAILURE INDICATION
(amber)
The warning light turns on in the following
circumstances:
150
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

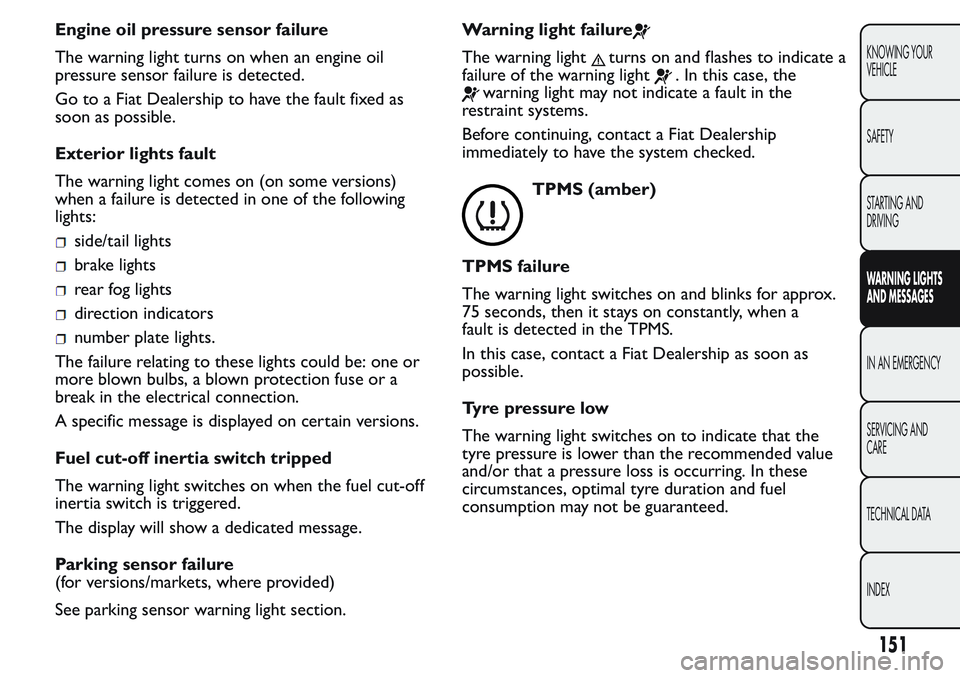

Engine oil pressure sensor failure
The warning light turns on when an engine oil
pressure sensor failure is detected.
Go to a Fiat Dealership to have the fault fixed as
soon as possible.
Exterior lights fault
The warning light comes on (on some versions)
when a failure is detected in one of the following
lights:
side/tail lights
brake lights
rear fog lights
direction indicators
number plate lights.
The failure relating to these lights could be: one or
more blown bulbs, a blown protection fuse or a
break in the electrical connection.
A specific message is displayed on certain versions.
Fuel cut-off inertia switch tripped
The warning light switches on when the fuel cut-off
inertia switch is triggered.
The display will show a dedicated message.
Parking sensor failure
(for versions/markets, where provided)
See parking sensor warning light section.Warning light failure
The warning lightturns on and flashes to indicate a
failure of the warning light
. In this case, the
warning light may not indicate a fault in the
restraint systems.
Before continuing, contact a Fiat Dealership
immediately to have the system checked.
TPMS (amber)
TPMS failure
The warning light switches on and blinks for approx.
75 seconds, then it stays on constantly, when a
fault is detected in the TPMS.
In this case, contact a Fiat Dealership as soon as
possible.
Tyre pressure low
The warning light switches on to indicate that the
tyre pressure is lower than the recommended value
and/or that a pressure loss is occurring. In these
circumstances, optimal tyre duration and fuel
consumption may not be guaranteed.
151
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX
