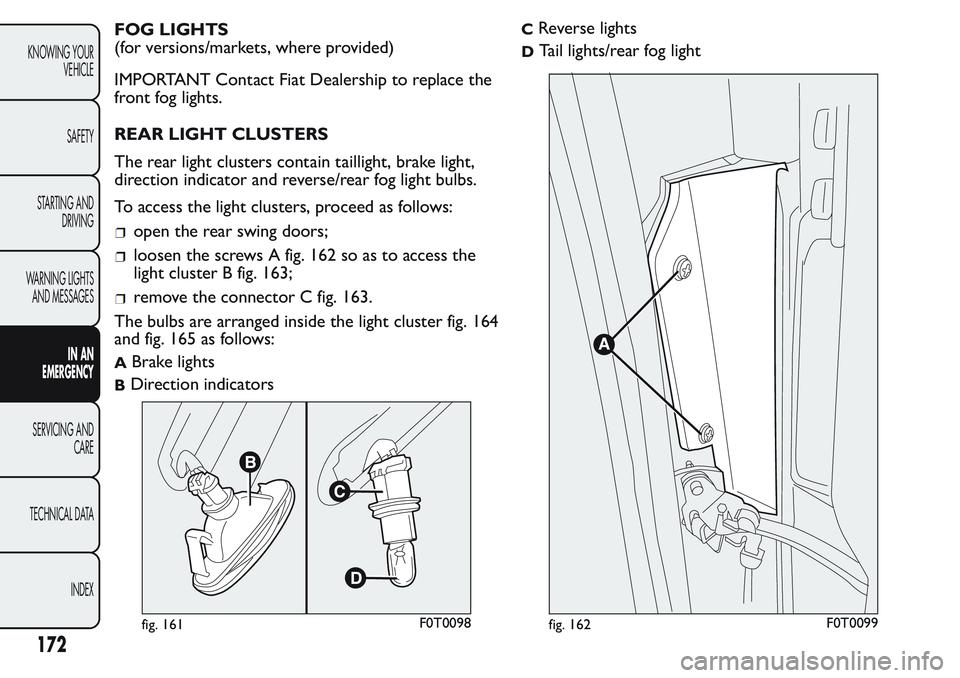

FOG LIGHTS
(for versions/markets, where provided)
IMPORTANT Contact Fiat Dealership to replace the
front fog lights.
REAR LIGHT CLUSTERS
The rear light clusters contain taillight, brake light,
direction indicator and reverse/rear fog light bulbs.
To access the light clusters, proceed as follows:
open the rear swing doors;
loosen the screws A fig. 162 so as to access the
light cluster B fig. 163;
remove the connector C fig. 163.
The bulbs are arranged inside the light cluster fig. 164
and fig. 165 as follows:
ABrake lights
BDirection indicators
CReverse lights
DTail lights/rear fog light
fig. 161F0T0098fig. 162F0T0099
172
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX
Page 177 of 272

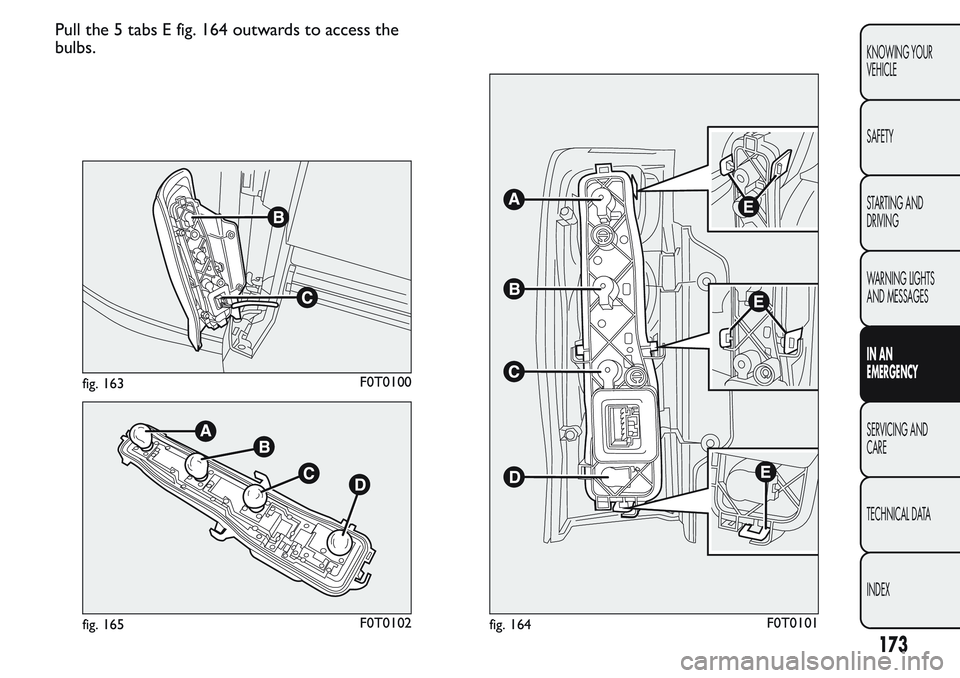

Pull the 5 tabs E fig. 164 outwards to access the
bulbs.
fig. 163F0T0100
fig. 165F0T0102fig. 164F0T0101
173
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX
Page 178 of 272

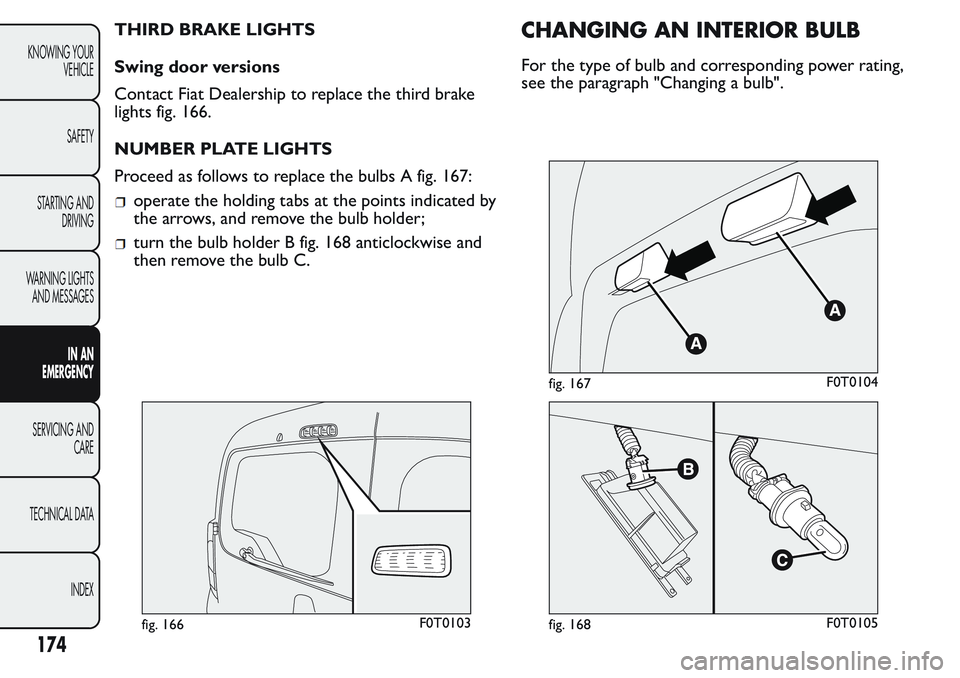

THIRD BRAKE LIGHTS
Swing door versions
Contact Fiat Dealership to replace the third brake
lights fig. 166.
NUMBER PLATE LIGHTS
Proceed as follows to replace the bulbs A fig. 167:
operate the holding tabs at the points indicated by
the arrows, and remove the bulb holder;
turn the bulb holder B fig. 168 anticlockwise and
then remove the bulb C.
CHANGING AN INTERIOR BULB
For the type of bulb and corresponding power rating,
see the paragraph "Changing a bulb".
fig. 166F0T0103
fig. 167F0T0104
fig. 168F0T0105
174
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX
Page 179 of 272

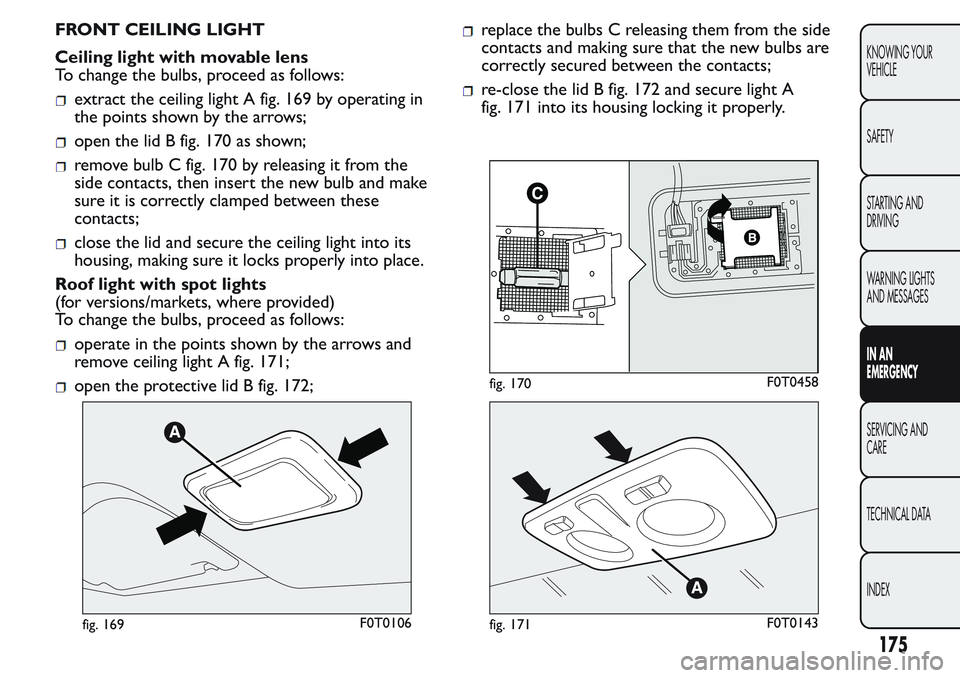

FRONT CEILING LIGHT
Ceiling light with movable lens
To change the bulbs, proceed as follows:
extract the ceiling light A fig. 169 by operating in
the points shown by the arrows;
open the lid B fig. 170 as shown;
remove bulb C fig. 170 by releasing it from the
side contacts, then insert the new bulb and make
sure it is correctly clamped between these
contacts;
close the lid and secure the ceiling light into its
housing, making sure it locks properly into place.
Roof light with spot lights
(for versions/markets, where provided)
To change the bulbs, proceed as follows:
operate in the points shown by the arrows and
remove ceiling light A fig. 171;
open the protective lid B fig. 172;
replace the bulbs C releasing them from the side
contacts and making sure that the new bulbs are
correctly secured between the contacts;
re-close the lid B fig. 172 and secure light A
fig. 171 into its housing locking it properly.
fig. 169F0T0106
fig. 170F0T0458
fig. 171F0T0143
175
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX
Page 180 of 272

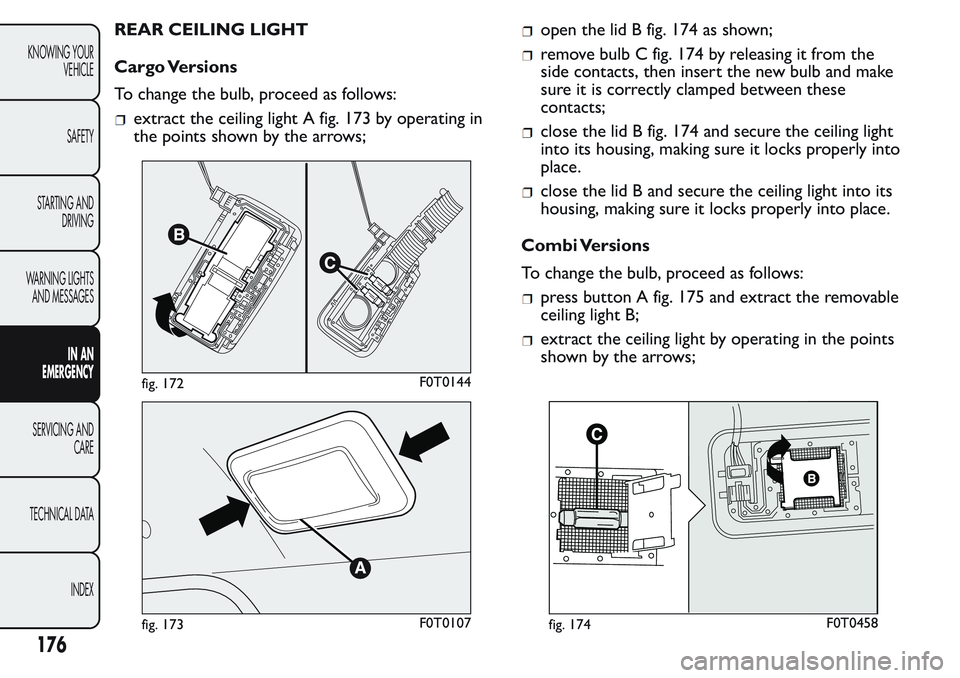

REAR CEILING LIGHT
Cargo Versions
To change the bulb, proceed as follows:
extract the ceiling light A fig. 173 by operating in
the points shown by the arrows;
open the lid B fig. 174 as shown;
remove bulb C fig. 174 by releasing it from the
side contacts, then insert the new bulb and make
sure it is correctly clamped between these
contacts;
close the lid B fig. 174 and secure the ceiling light
into its housing, making sure it locks properly into
place.
close the lid B and secure the ceiling light into its
housing, making sure it locks properly into place.
Combi Versions
To change the bulb, proceed as follows:
press button A fig. 175 and extract the removable
ceiling light B;
extract the ceiling light by operating in the points
shown by the arrows;
fig. 172F0T0144
fig. 173F0T0107fig. 174F0T0458
176
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX
Page 181 of 272

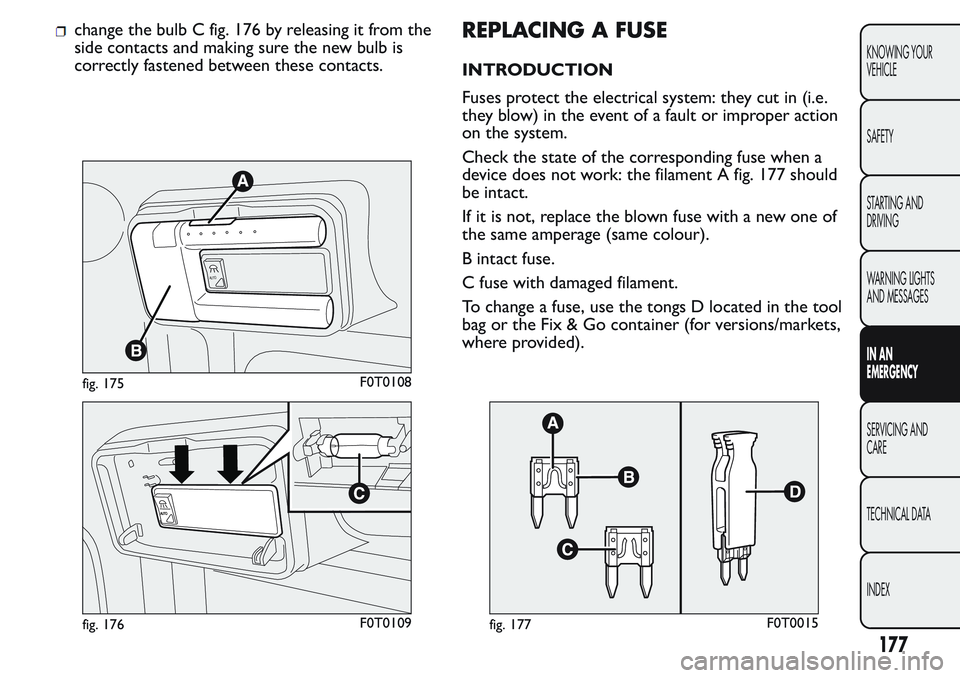

change the bulb C fig. 176 by releasing it from the
side contacts and making sure the new bulb is
correctly fastened between these contacts.REPLACING A FUSE
INTRODUCTION
Fuses protect the electrical system: they cut in (i.e.
they blow) in the event of a fault or improper action
on the system.
Check the state of the corresponding fuse when a
device does not work: the filament A fig. 177 should
be intact.
If it is not, replace the blown fuse with a new one of
the same amperage (same colour).
B intact fuse.
C fuse with damaged filament.
To change a fuse, use the tongs D located in the tool
bag or the Fix & Go container (for versions/markets,
where provided).
A
U
T
O
fig. 175F0T0108
A
U
T
O
fig. 176F0T0109fig. 177F0T0015
177
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX
Page 182 of 272

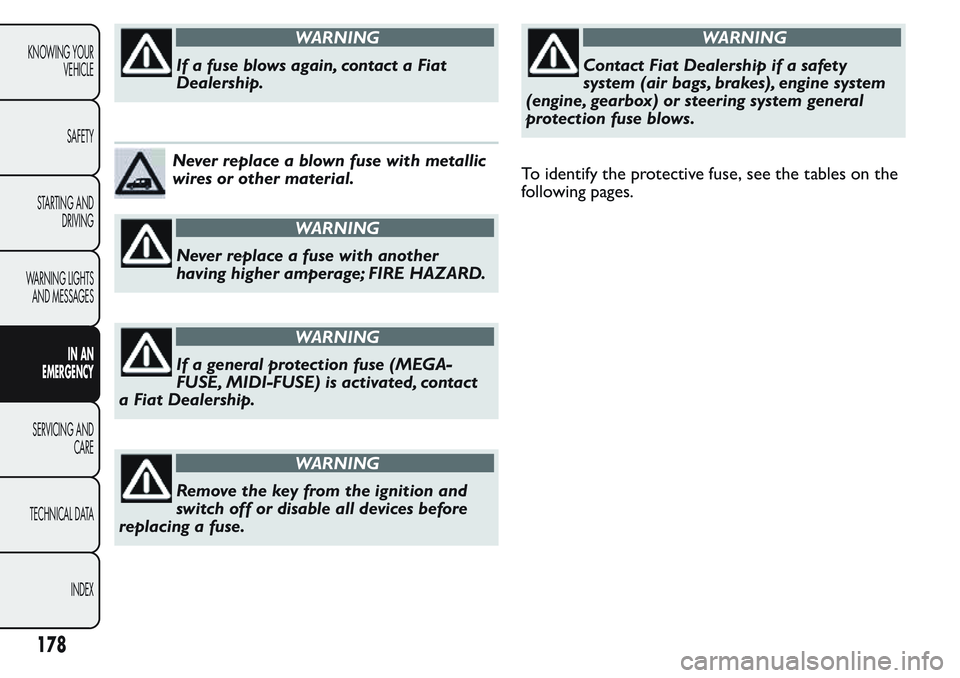

WARNING
If a fuse blows again, contact a Fiat
Dealership.
Never replace a blown fuse with metallic
wires or other material.
WARNING
Never replace a fuse with another
having higher amperage; FIRE HAZARD.
WARNING
If a general protection fuse (MEGA-
FUSE, MIDI-FUSE) is activated, contact
a Fiat Dealership.
WARNING
Remove the key from the ignition and
switch off or disable all devices before
replacing a fuse.
WARNING
Contact Fiat Dealership if a safety
system (air bags, brakes), engine system
(engine, gearbox) or steering system general
protection fuse blows.
To identify the protective fuse, see the tables on the
following pages.
178
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX
Page 183 of 272

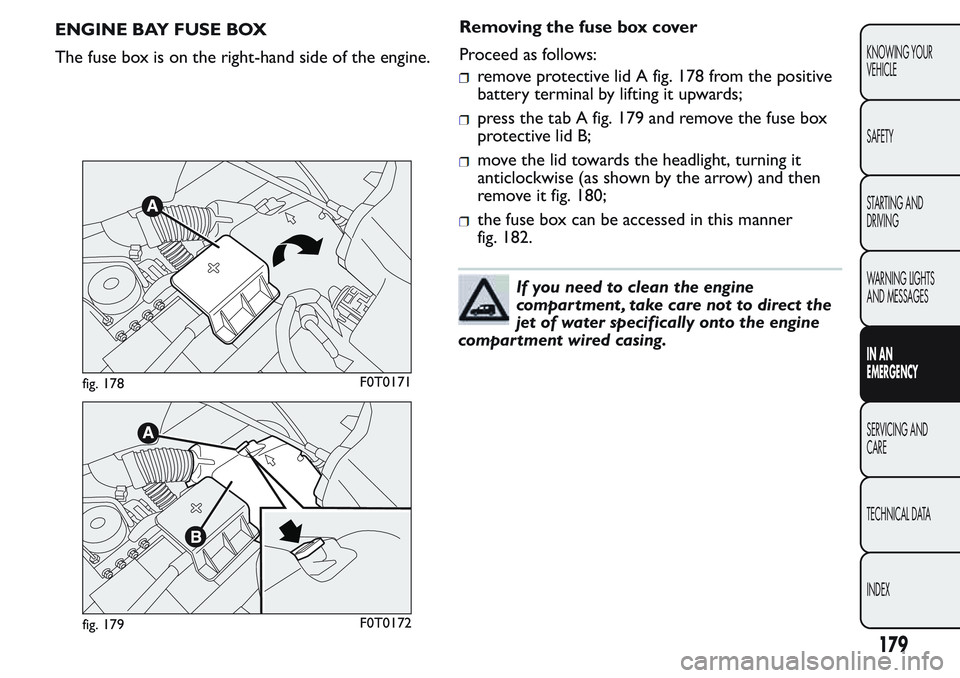

ENGINE BAY FUSE BOX
The fuse box is on the right-hand side of the engine.Removing the fuse box cover
Proceed as follows:
remove protective lid A fig. 178 from the positive
battery terminal by lifting it upwards;
press the tab A fig. 179 and remove the fuse box
protective lid B;
move the lid towards the headlight, turning it
anticlockwise (as shown by the arrow) and then
remove it fig. 180;
the fuse box can be accessed in this manner
fig. 182.
If you need to clean the engine
compartment , take care not to direct the
jet of water specifically onto the engine
compartment wired casing.
fig. 178F0T0171
fig. 179F0T0172
179
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX
Page 184 of 272

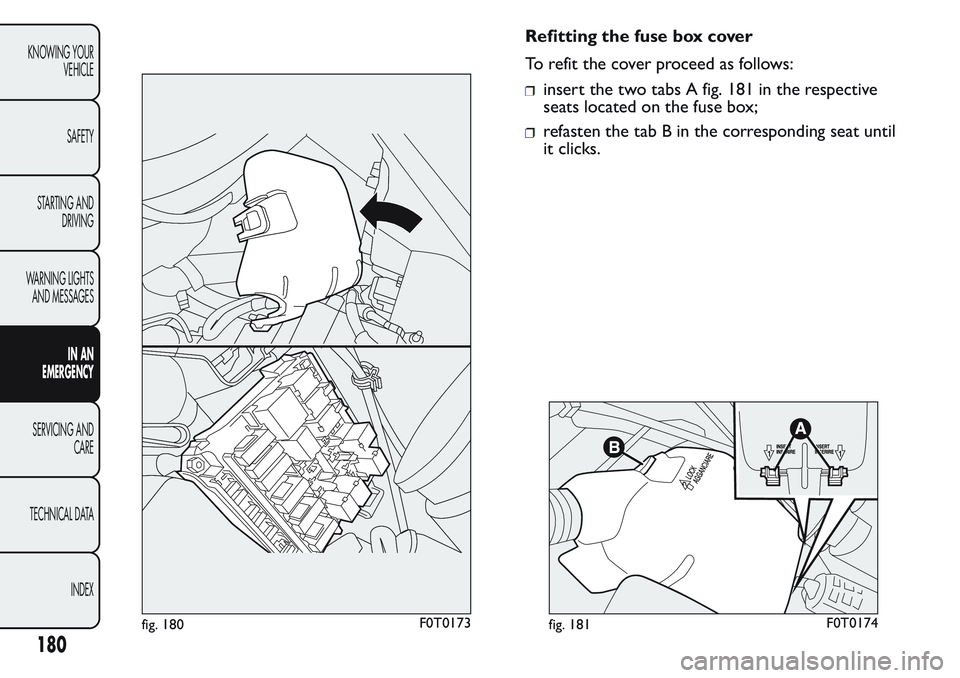

Refitting the fuse box cover
To refit the cover proceed as follows:
insert the two tabs A fig. 181 in the respective
seats located on the fuse box;
refasten the tab B in the corresponding seat until
it clicks.
fig. 180F0T0173fig. 181F0T0174
180
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX
Page 185 of 272

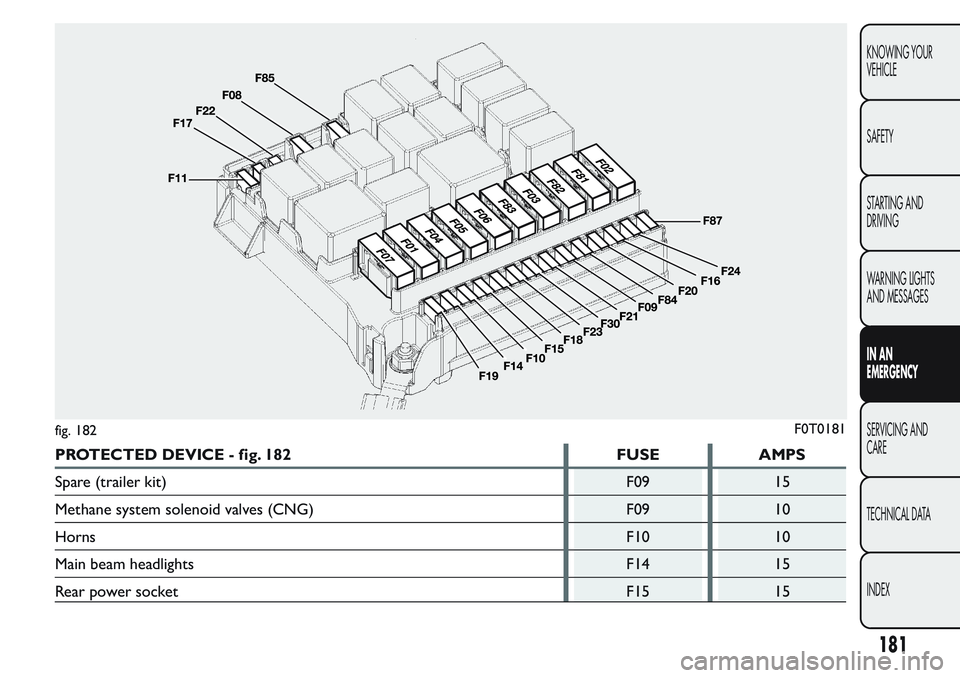

PROTECTED DEVICE - fig. 182 FUSE AMPS
Spare (trailer kit) F09 15
Methane system solenoid valves (CNG) F09 10
HornsF10 10
Main beam headlights F14 15
Rear power socket F15 15
fig. 182F0T0181
