TRACTION PLUS SYSTEM
(for versions/markets, where provided)
Traction Plus is a driving aid, useful for setting off in
poor grip conditions (snow, ice, mud, etc.) which
allows the drive force to be distributed in the best
way over the front axle when one wheel is slipping.
In effect, Traction Plus acts by braking the wheels
with poor grip (or those slipping more than the
others), thereby transferring the drive force to those
which have more grip on the ground.
This function can be activated manually by pressing
button T+ on the side control panel fig. 102 and
operates under 50 km/h. When this speed is
exceeded, it is automatically deactivated (the LED on
the button is still on) and it is reactivated again
when the speed falls below 50 km/h.Traction Plus operation
The system is deactivated when starting up. To
activate the "Traction Plus" system, press the button
(T+ fig. 102): the LED on the button switches on.
The activation of the Traction Plus system involves
the following functions being switched on:
inhibition of the ASR function, in order to fully
exploit the engine torque;
the differential locking effect on the front axle,
through the braking system, to improve traction
on irregular grounds.
If the "Traction Plus" system is faulty, the "general
failure" instrument panel warning light
comes on
steady.
fig. 102F0T0506
91
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

REFUELLING
1.4 Euro 6
Recommended fuels
and original lubricants
litres kg
Fuel tank: 45 -Unleaded petrol with
R.O.N. no lower than 95
(EN228 specifications) including a reserve of: 6/7 -
Engine cooling system: 6.64 -Mixture of distilled water
and PARAFLU UP liquid at
50%
(*)
Engine sump: - 2.1
SELENIA K P.E.
Engine sump and filter: - 2.25
Gearbox casing/differential: - 1.5TUTELA TRANSMISSION
TECHNYX
(***)
Hydraulic power steering 0.38 0.35TUTELA TRANSMISSION
GI/E
Hydraulic brake circuit: - 0.50 TUTELA TOP 4
Windscreen and rear window
washer fluid reservoir:3.0 -Water and fluid mixture
TUTELA
PROFESSIONAL SC 35
(*)When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand
demineralised water.
(***) 1.4 Euro 6 versions
240
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

1.3 16V Multijet 80 HP Euro 6 - 1.3 16V Multijet
95 HP Euro 6Recommended fuels
and original lubricants
litres kg
Fuel tank: 45 -
Diesel for motor vehicles
(EN590 Specification)
including a reserve of: 6/7 -
Engine cooling system: 7.6 -Mixture of distilled water
and PARAFLU UP liquid
at 50%
(*)
Engine sump: 3.7 3.13
SELENIA WR
FORWARD.
Engine sump and filter: 3.9 3.30
Gearbox casing/differential: 1.84 1.6TUTELA
TRANSMISSION
TECHNYX
Hydraulic power steering 0.38 0.35TUTELA
TRANSMISSION GI/E
Hydraulic brake circuit: - 0.5 TUTELA TOP 4
Windscreen and rear window
washer fluid reservoir:3.0 -Water and fluid mixture
TUTELA
PROFESSIONAL SC
35
(*)When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand
demineralised water.
241
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

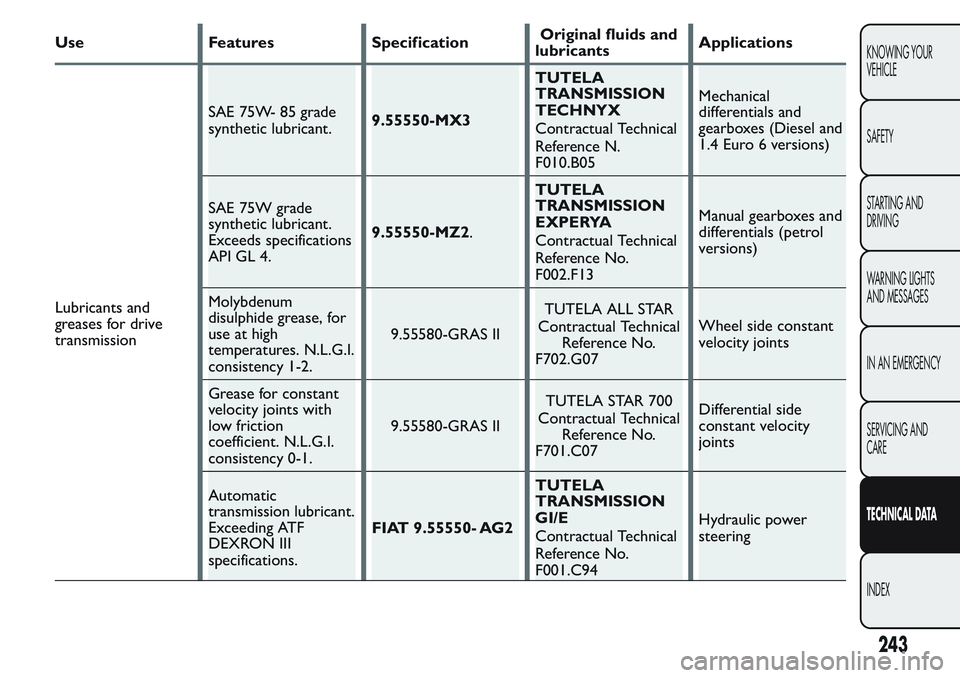

Use Features SpecificationOriginal fluids and
