TECHNICAL DATA
Everything you may find useful for
understanding how your vehicle
is made and works is contained in this
chapter and illustrated with data, tables
and graphics. For the enthusiasts and
the technician, but also just for those
who want to know every detail of their
vehicle.ENGINE ..........................................152
WHEELS .........................................154
DIMENSIONS ..................................156
PERFORMANCE .............................159
WEIGHTS AND LOADS...................160
REFUELLING ..................................162
FLUIDS AND LUBRICANTS ............164
FUEL CONSUMPTION ....................167
CO2 EMISSIONS ............................168
PRESCRIPTIONS FOR HANDLING
THE VEHICLE AT THE END OF ITS
LIFE ................................................169
149
IDENTIFICATION DATA....................150

150
TECHNICAL DATA

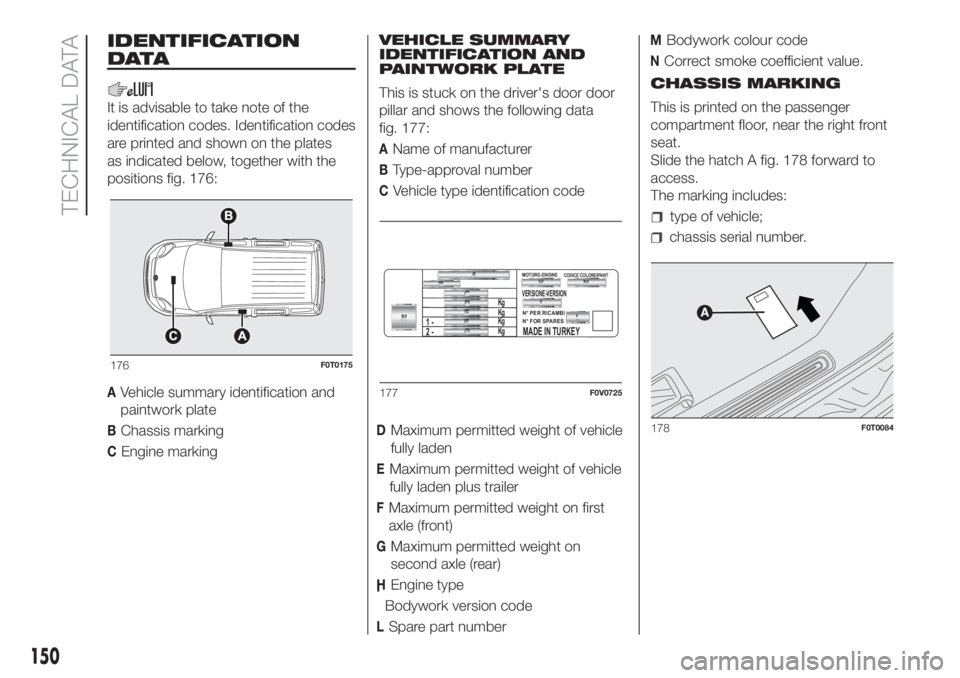

IDENTIFICATION
DATA
It is advisable to take note of the
identification codes. Identification codes
are printed and shown on the plates
as indicated below, together with the
positions fig. 176:
AVehicle summary identification and
paintwork plate
BChassis marking
CEngine marking
176F0T0175
VEHICLE SUMMARY
IDENTIFICATION AND
PAINTWORK PLATE
This is stuck on the driver's door door
pillar and shows the following data
fig. 177:
AName of manufacturer
BType-approval number
CVehicle type identification code
DMaximum permitted weight of vehicle
fully laden
EMaximum permitted weight of vehicle
fully laden plus trailer
FMaximum permitted weight on first
axle (front)
GMaximum permitted weight on
second axle (rear)
HEngine typeI
Bodywork version code
LSpare part number
VERSIONE-VERSION
N° PER RICAMBI
N° FOR SPARES
MADE IN TURKEY
MOTORE-ENGINECODICE COLORE/PAINT
2 - 1 -
Kg
Kg
Kg
Kg
177F0V0725
MBodywork colour code
NCorrect smoke coefficient value.
CHASSIS MARKING
This is printed on the passenger
compartment floor, near the right front
seat.
Slide the hatch A fig. 178 forward to
access.
The marking includes:
type of vehicle;
chassis serial number.
178F0T0084

151

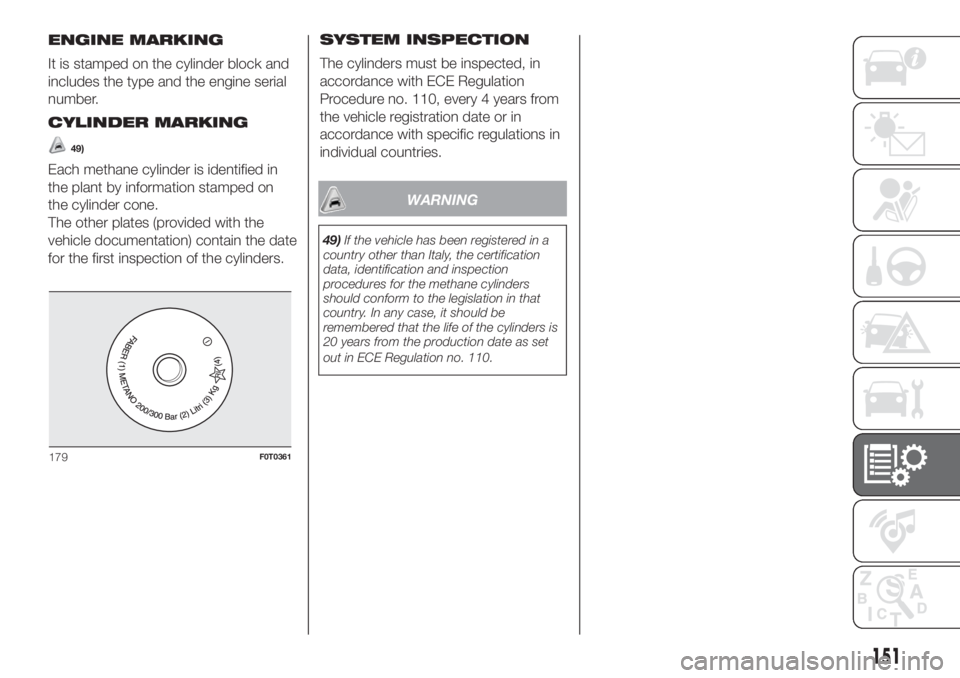

ENGINE MARKING
It is stamped on the cylinder block and
includes the type and the engine serial
number.
CYLINDER MARKING
49)
Each methane cylinder is identified in
the plant by information stamped on
the cylinder cone.
The other plates (provided with the
vehicle documentation) contain the date
for the first inspection of the cylinders.
179F0T0361
WARNING
49)If the vehicle has been registered in a
country other than Italy, the certification
data, identification and inspection
procedures for the methane cylinders
should conform to the legislation in that
country. In any case, it should be
remembered that the life of the cylinders is
20 years from the production date as set
out in ECE Regulation no. 110.
SYSTEM INSPECTION
The cylinders must be inspected, in
accordance with ECE Regulation
Procedure no. 110, every 4 years from
the vehicle registration date or in
accordance with specific regulations in
individual countries.

ENGINE
General information 1.4 Euro 6 1.3 MultiJet 80 HP Euro 6 1.3 Multijet 95 HP Euro 6
Engine code 350A1000 225A2000 330A1000
Cycle Otto Diesel Diesel
Number and position of cylinders 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 72 × 84 69.6 × 82 69.6 × 82
Total displacement (cm³) 1368 1248 1248
Compression ratio 11.1 16.8 16.8
Maximum power (EEC) (kW) 57 59 70
Maximum power (EEC) (HP) 77 80 95
Corresponding engine speed (rpm) 6000 3750 3750
Maximum torque (EEC) (Nm) 115 200 200
Maximum torque (EEC) (kgm) 11.7 20.4 20.4
Corresponding engine speed (rpm) 3000 1500 1500
Spark plugs NGK ZKR7A-10 – –
FuelUnleaded petrol 95 R.O.N.
(EN228 specifications)Diesel for motor vehicles
(EN590 Specification)Diesel for motor vehicles
(EN590 Specification)
152
TECHNICAL DATA

General information 1.4 Natural Power
Engine code350A1000
CycleOtto
Number and position of cylinders 4 in line
Piston bore and stroke (mm) 72 × 84
Total displacement (cm³) 1368
Compression ratio 11.1±0.2:1
PETROL METHANE
Maximum power (EEC) (kW) 57 51
Maximum power (EEC) (HP) 77 70
Corresponding engine speed (rpm) 6000
Maximum torque (EEC) (Nm) 115 104
Maximum torque (EEC) (kgm) 11.7 10.6
Corresponding engine speed (rpm) 3000
Spark plugsNGKZKR7A-10
Fuel Unleaded petrol 95 RON (EN228 standard) Methane
153

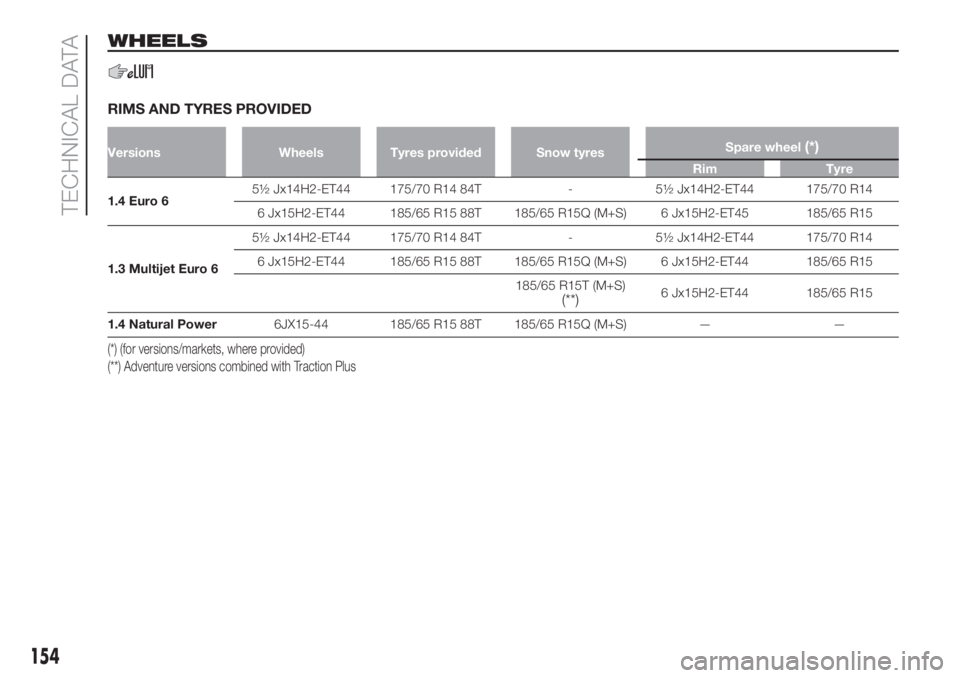

WHEELS
RIMS AND TYRES PROVIDED
Versions Wheels Tyres provided Snow tyresSpare wheel(*)
Rim Tyre
1.4 Euro 65½ Jx14H2-ET44 175/70 R14 84T - 5½ Jx14H2-ET44 175/70 R14
6 Jx15H2-ET44 185/65 R15 88T 185/65 R15Q (M+S) 6 Jx15H2-ET45 185/65 R15
1.3 Multijet Euro 65½ Jx14H2-ET44 175/70 R14 84T - 5½ Jx14H2-ET44 175/70 R14
6 Jx15H2-ET44 185/65 R15 88T 185/65 R15Q (M+S) 6 Jx15H2-ET44 185/65 R15
185/65 R15T (M+S)
(**)6 Jx15H2-ET44 185/65 R15
1.4 Natural Power6JX15-44 185/65 R15 88T 185/65 R15Q (M+S) — —
(*) (for versions/markets, where provided)
(**) Adventure versions combined with Traction Plus
154
TECHNICAL DATA

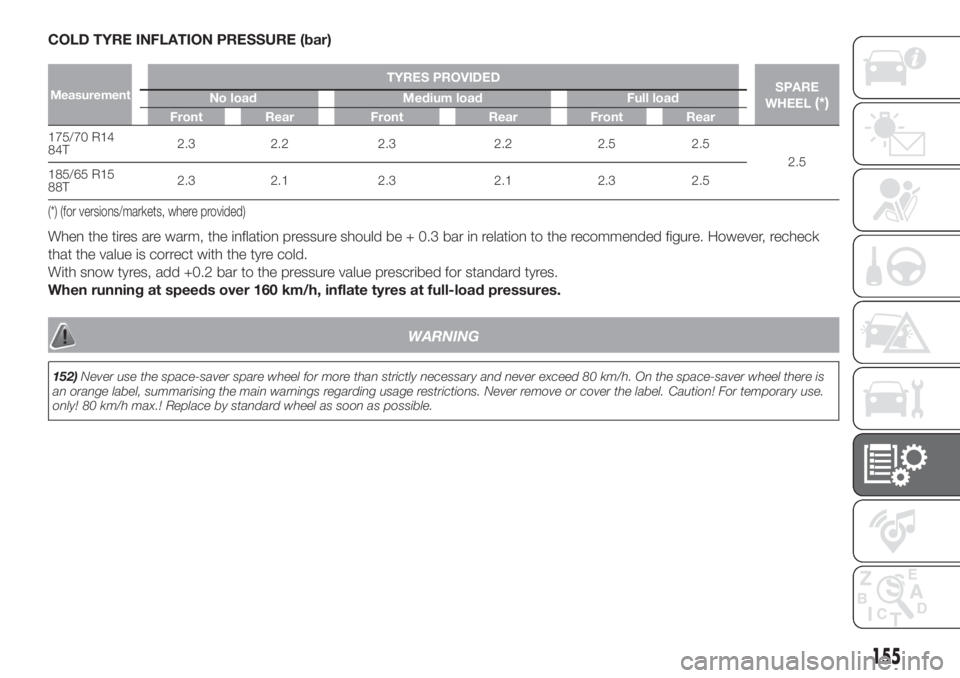

COLD TYRE INFLATION PRESSURE (bar)
Measurement
TYRES PROVIDED
SPARE
WHEEL
(*)No load Medium load Full load
Front Rear Front Rear Front Rear
175/70 R14
84T2.3 2.2 2.3 2.2 2.5 2.5
2.5
185/65 R15
88T2.3 2.1 2.3 2.1 2.3 2.5
(*) (for versions/markets, where provided)
When the tires are warm, the inflation pressure should be + 0.3 bar in relation to the recommended figure. However, recheck
that the value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.
When running at speeds over 160 km/h, inflate tyres at full-load pressures.
WARNING
152)Never use the space-saver spare wheel for more than strictly necessary and never exceed 80 km/h. On the space-saver wheel there is
an orange label, summarising the main warnings regarding usage restrictions. Never remove or cover the label.
only! 80 km/h max.! Replace by standard wheel as soon as possible.
155
Caution! For temporary use.

ABCDEFGH
Cargo versions
3957/3864(**)854/760(**)2513
590/591(**)1721/1782(*)1469 1716 1465
Cargo Adventure
versions3957 854 2513 590
1742/1803
(*)1464 1716 1465
(**) Natural Power versions
(*) With roof bars (for versions/markets where provided)
Natural Power versions
Load compartment volume: 2100 litres
Small variations in size are possible depending on the dimensions of the rims.
156
TECHNICAL DATA
180F0T0160
DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
Height is measured with vehicle unladen.

Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
Height is measured with vehicle unladen.
ABCDE FGH
Combi versions3957/3959(**)854/855(**)2513
590/591(**)1721/1782(*)1467 1716 1464
Combi Adventure
versions3957 854 2513 5901742/1803
(*)1467 1716 1464
(**) Natural Power versions
(*) With roof bars (for versions/markets where provided)
181F0T0161
157

Natural Power versions
Luggage compartment capacity:
With rear backrests not folded over:275 litres
With rear backrests folded over:553 litres
Small variations in size are possible depending on the dimensions of the rims.
158
