FIAT FIORINO 2018 Owner handbook (in English)

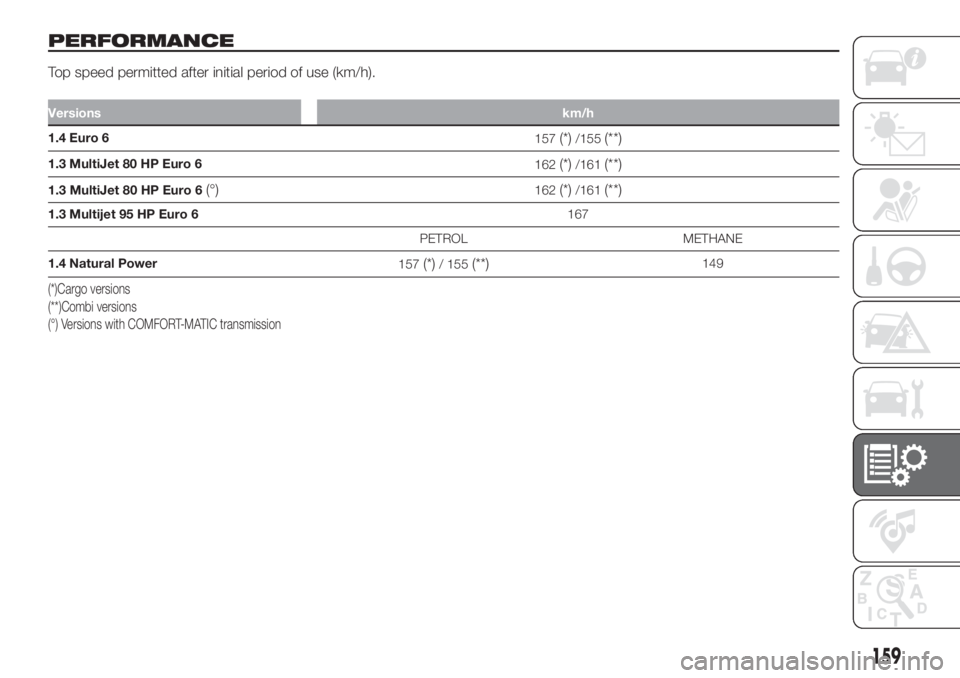

PERFORMANCE
Top speed permitted after initial period of use (km/h).
Versionskm/h
1.4 Euro 6
157(*)/155(**)
1.3 MultiJet 80 HP Euro 6
162(*)/161(**)
1.3 MultiJet 80 HP Euro 6(°)162(*)/161(**)
1.3 Multijet 95 HP Euro 6167
PETROL METHANE
1.4 Natural Power
157
(*)/ 155(**)149
(*)Cargo versions
(**)Combi versions
(°) Versions with COMFORT-MATIC transmission
159

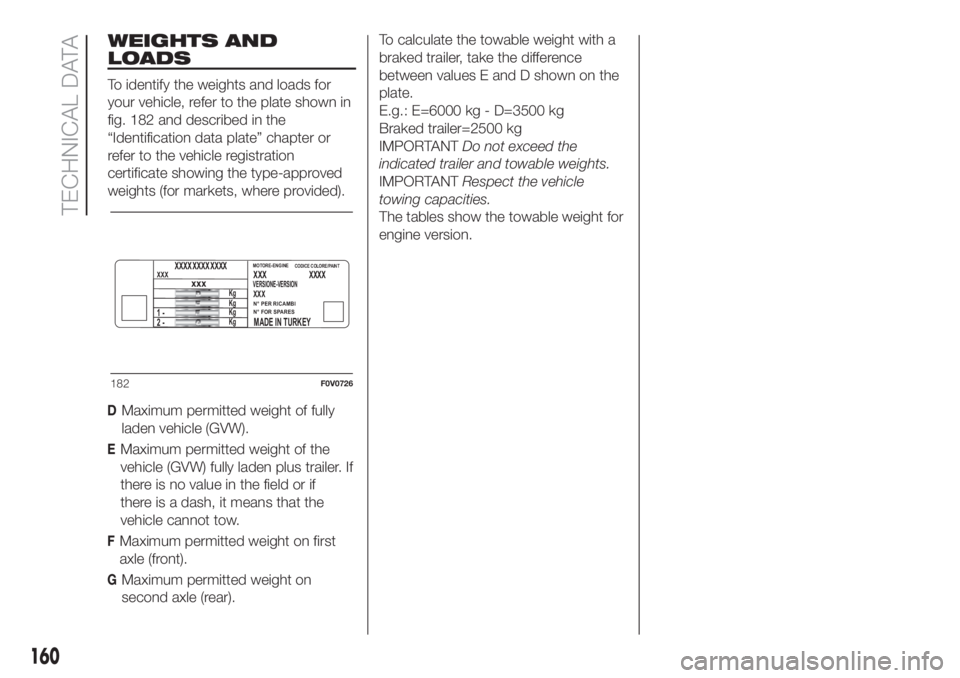

WEIGHTS AND
LOADS
To identify the weights and loads for
your vehicle, refer to the plate shown in
fig. 182 and described in the
“Identification data plate” chapter or
refer to the vehicle registration
certificate showing the type-approved
weights (for markets, where provided).
160
TECHNICAL DATA
DMaximum permitted weight of fully
laden vehicle (GVW).
EMaximum permitted weight of the
vehicle (GVW) fully laden plus trailer. If
there is no value in the field or if
there is a dash, it means that the
vehicle cannot tow.
FMaximum permitted weight on first
axle (front).
GMaximum permitted weight on
second axle (rear).
XXXXXX
XXXVERSIONE-VERSION
N° PER RICAMBI
N° FOR SPARES
MADE IN TURKEY
XXXXxxx
MOTORE-ENGINECODICE COLORE/PAINT
2 - 1 -
Kg
Kg
Kg
Kg
XXXX XXXX XXXX
182F0V0726
To calculate the towable weight with a
braked trailer, take the difference
between values E and D shown on the
plate.
E.g.: E=6000 kg - D=3500 kg
Braked trailer=2500 kg
IMPORTANTDo not exceed the
indicated trailer and towable weights.
IMPORTANTRespect the vehicle
towing capacities.
The tables show the towable weight for
engine version.

161

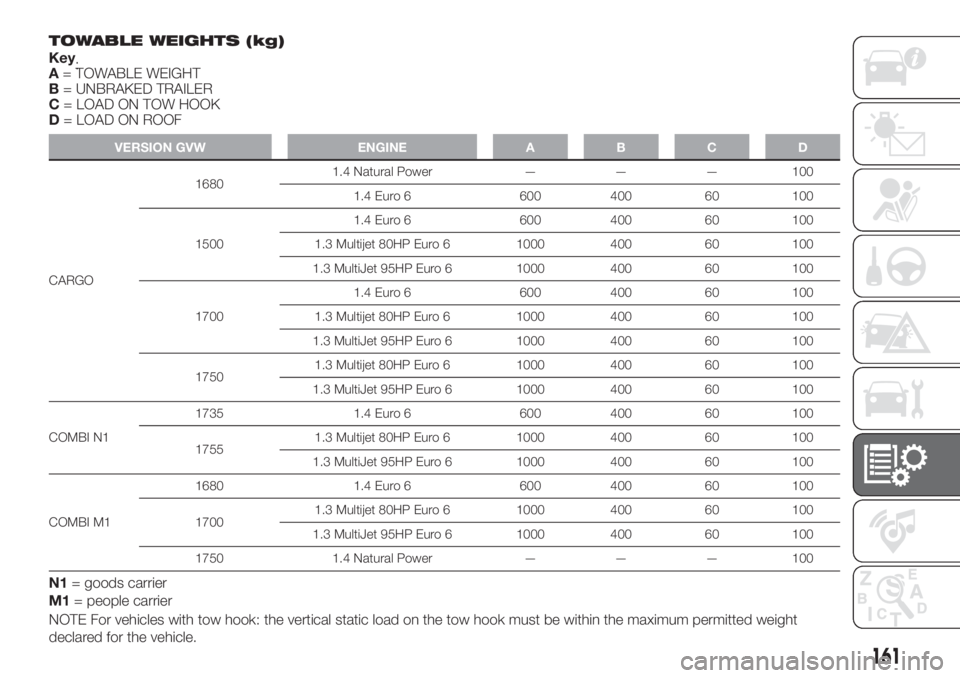

TOWABLE WEIGHTS (kg)
Key
:
A= TOWABLE WEIGHT
B= UNBRAKED TRAILER
C= LOAD ON TOW HOOK
D= LOAD ON ROOF
VERSION GVW ENGINE A B C D
CARGO16801.4 Natural Power — — — 100
1.4 Euro 6 600 400 60 100
15001.4 Euro 6 600 400 60 100
1.3 Multijet 80HP Euro 6 1000 400 60 100
1.3 MultiJet 95HP Euro 6 1000 400 60 100
17001.4 Euro 6 600 400 60 100
1.3 Multijet 80HP Euro 6 1000 400 60 100
1.3 MultiJet 95HP Euro 6 1000 400 60 100
17501.3 Multijet 80HP Euro 6 1000 400 60 100
1.3 MultiJet 95HP Euro 6 1000 400 60 100
COMBI N11735 1.4 Euro 6 600 400 60 100
17551.3 Multijet 80HP Euro 6 1000 400 60 100
1.3 MultiJet 95HP Euro 6 1000 400 60 100
COMBI M11680 1.4 Euro 6 600 400 60 100
17001.3 Multijet 80HP Euro 6 1000 400 60 100
1.3 MultiJet 95HP Euro 6 1000 400 60 100
1750 1.4 Natural Power — — — 100
N1= goods carrier
M1= people carrier
NOTE For vehicles with tow hook: the vertical static load on the tow hook must be within the maximum permitted weight
declared for the vehicle.

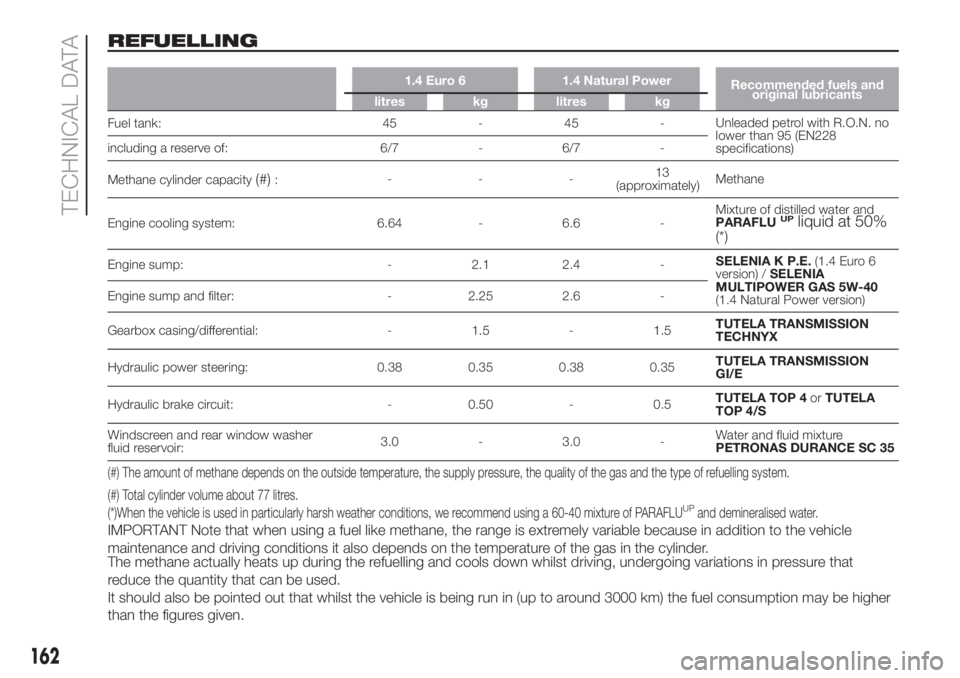

REFUELLING
1.4 Euro 6 1.4 Natural Power
Recommended fuels and
original lubricants
litres kg litres kg
Fuel tank: 45 - 45 -Unleaded petrol with R.O.N. no
lower than 95 (EN228
specifications) including a reserve of: 6/7 - 6/7 -
Methane cylinder capacity
(#):---13
(approximately)Methane
Engine cooling system: 6.64 - 6.6 -Mixture of distilled water and
PARAFLU
UPliquid at 50%(*)
Engine sump: - 2.1 2.4 -SELENIA K P.E.(1.4 Euro 6
version) /SELENIA
MULTIPOWER GAS 5W-40
(1.4 Natural Power version) Engine sump and filter: - 2.25 2.6 -
Gearbox casing/differential: - 1.5 - 1.5TUTELA TRANSMISSION
TECHNYX
Hydraulic power steering: 0.38 0.35 0.38 0.35TUTELA TRANSMISSION
GI/E
Hydraulic brake circuit: - 0.50 - 0.5TUTELA TOP 4orTUTELA
TOP 4/S
Windscreen and rear window washer
fluid reservoir:3.0 - 3.0 -Water and fluid mixture
PETRONAS DURANCE SC 35
(#) The amount of methane depends on the outside temperature, the supply pressure, the quality of the gas and the type of refuelling system.
(#) Total cylinder volume about 77 litres.
(*)When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLU
UPand demineralised water.
IMPORTANT Note that when using a fuel like methane, the range is extremely variable because in addition to the vehicle
maintenance and driving conditions it also depends on the temperature of the gas in the cylinder.
The methane actually heats up during the refuelling and cools down whilst driving, undergoing variations in pressure that
reduce the quantity that can be used.
It should also be pointed out that whilst the vehicle is being run in (up to around 3000 km) the fuel consumption may be higher
than the figures given.
162
TECHNICAL DATA

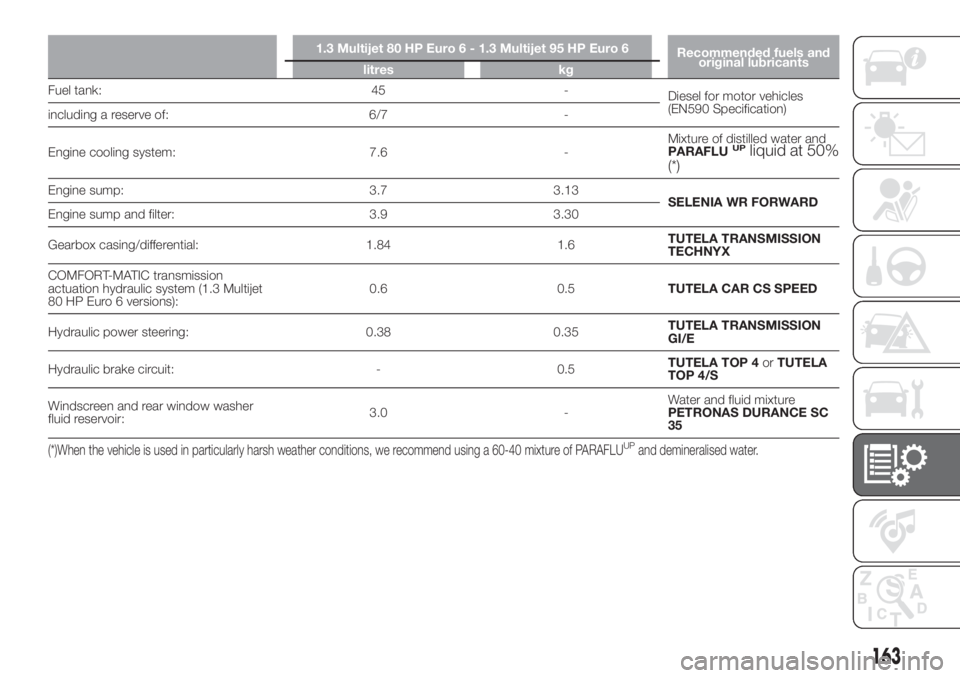

1.3 Multijet 80 HP Euro 6 - 1.3 Multijet 95 HP Euro 6
Recommended fuels and
original lubricants
litres kg
Fuel tank: 45 -
Diesel for motor vehicles
(EN590 Specification)
including a reserve of: 6/7 -
Engine cooling system: 7.6 -Mixture of distilled water and
PARAFLU
UPliquid at 50%(*)
Engine sump: 3.7 3.13
SELENIA WR FORWARD
Engine sump and filter: 3.9 3.30
Gearbox casing/differential: 1.84 1.6TUTELA TRANSMISSION
TECHNYX
COMFORT-MATIC transmission
actuation hydraulic system (1.3 Multijet
80 HP Euro 6 versions):0.6 0.5TUTELA CAR CS SPEED
Hydraulic power steering: 0.38 0.35TUTELA TRANSMISSION
GI/E
Hydraulic brake circuit: - 0.5TUTELA TOP 4orTUTELA
TOP 4/S
Windscreen and rear window washer
fluid reservoir:3.0 -Water and fluid mixture
PETRONAS DURANCE SC
35
(*)When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised water.
163

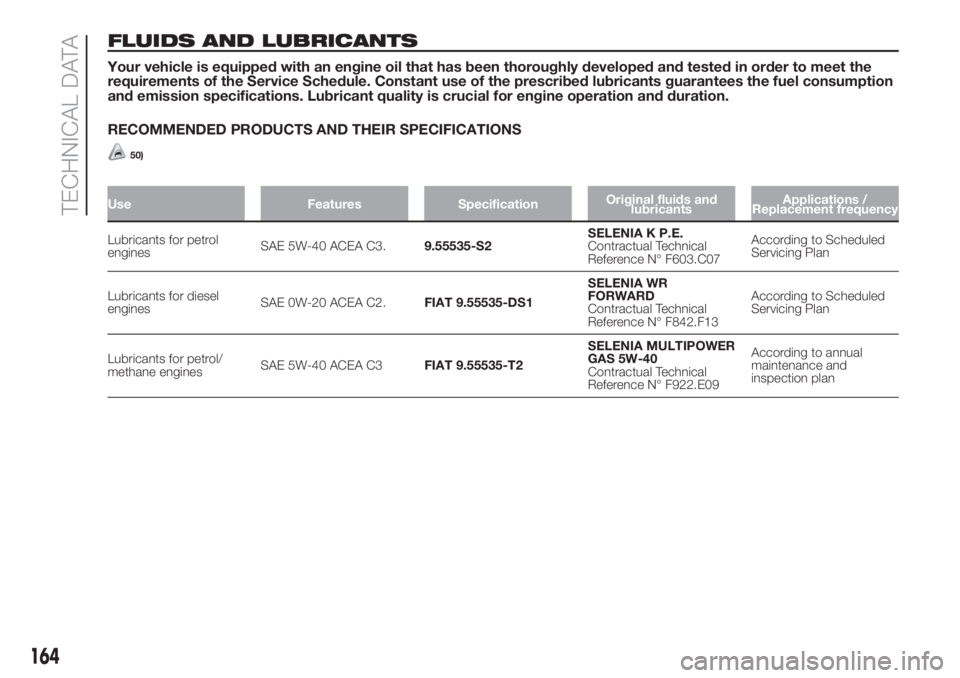

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the
requirements of the Service Schedule. Constant use of the prescribed lubricants guarantees the fuel consumption
and emission specifications. Lubricant quality is crucial for engine operation and duration.
RECOMMENDED PRODUCTS AND THEIR SPECIFICATIONS
50)
Use Features SpecificationOriginal fluids and
lubricantsApplications /
Replacement frequency
Lubricants for petrol
enginesSAE 5W-40 ACEA C3.9.55535-S2SELENIA K P.E.
Contractual Technical
Reference N° F603.C07According to Scheduled
Servicing Plan
Lubricants for diesel
enginesSAE 0W-20 ACEA C2.FIAT 9.55535-DS1SELENIA WR
FORWARD
Contractual Technical
Reference N° F842.F13According to Scheduled
Servicing Plan
Lubricants for petrol/
methane enginesSAE 5W-40 ACEA C3FIAT 9.55535-T2SELENIA MULTIPOWER
GAS 5W-40
Contractual Technical
Reference N° F922.E09According to annual
maintenance and
inspection plan
164
TECHNICAL DATA

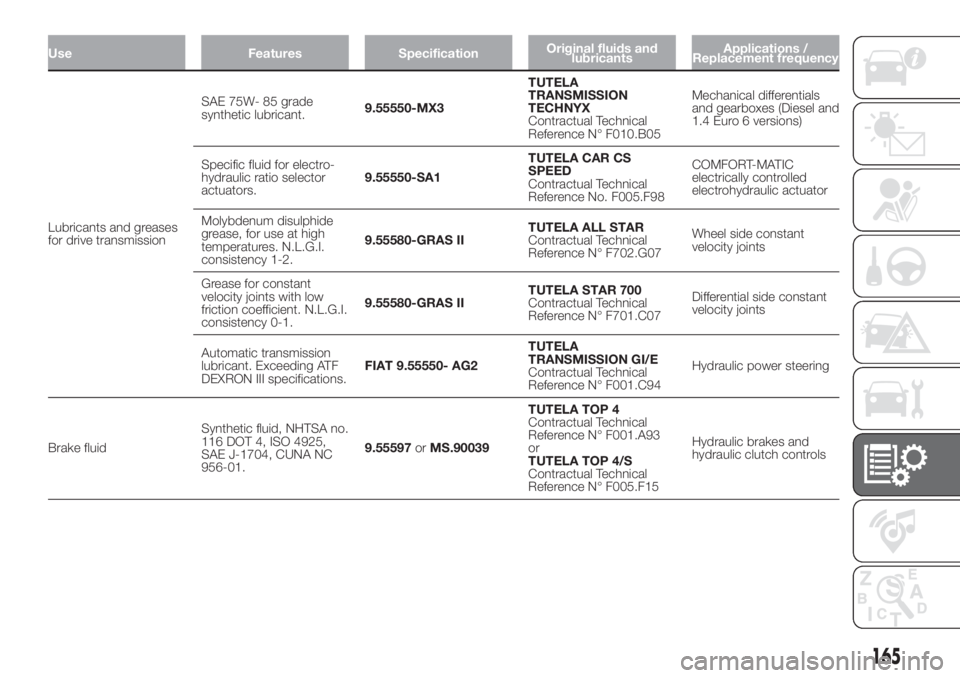

Use Features SpecificationOriginal fluids and
lubricantsApplications /
Replacement frequency
Lubricants and greases
for drive transmissionSAE 75W- 85 grade
synthetic lubricant.9.55550-MX3TUTELA
TRANSMISSION
TECHNYX
Contractual Technical
Reference N° F010.B05Mechanical differentials
and gearboxes (Diesel and
1.4 Euro 6 versions)
Specific fluid for electro-
hydraulic ratio selector
actuators.9.55550-SA1TUTELA CAR CS
SPEED
Contractual Technical
Reference No. F005.F98COMFORT-MATIC
electrically controlled
electrohydraulic actuator
Molybdenum disulphide
grease, for use at high
temperatures. N.L.G.I.
consistency 1-2.9.55580-GRAS IITUTELA ALL STAR
Contractual Technical
Reference N° F702.G07Wheel side constant
velocity joints
Grease for constant
velocity joints with low
friction coefficient. N.L.G.I.
consistency 0-1.9.55580-GRAS IITUTELA STAR 700
Contractual Technical
Reference N° F701.C07Differential side constant
velocity joints
Automatic transmission
lubricant. Exceeding ATF
DEXRON III specifications.FIAT 9.55550- AG2TUTELA
TRANSMISSION GI/E
Contractual Technical
Reference N° F001.C94Hydraulic power steering
Brake fluidSynthetic fluid, NHTSA no.
116 DOT 4, ISO 4925,
SAE J-1704, CUNA NC
956-01.9.55597orMS.90039TUTELA TOP 4
Contractual Technical
Reference N° F001.A93
or
TUTELA TOP 4/S
Contractual Technical
Reference N° F005.F15Hydraulic brakes and
hydraulic clutch controls
165

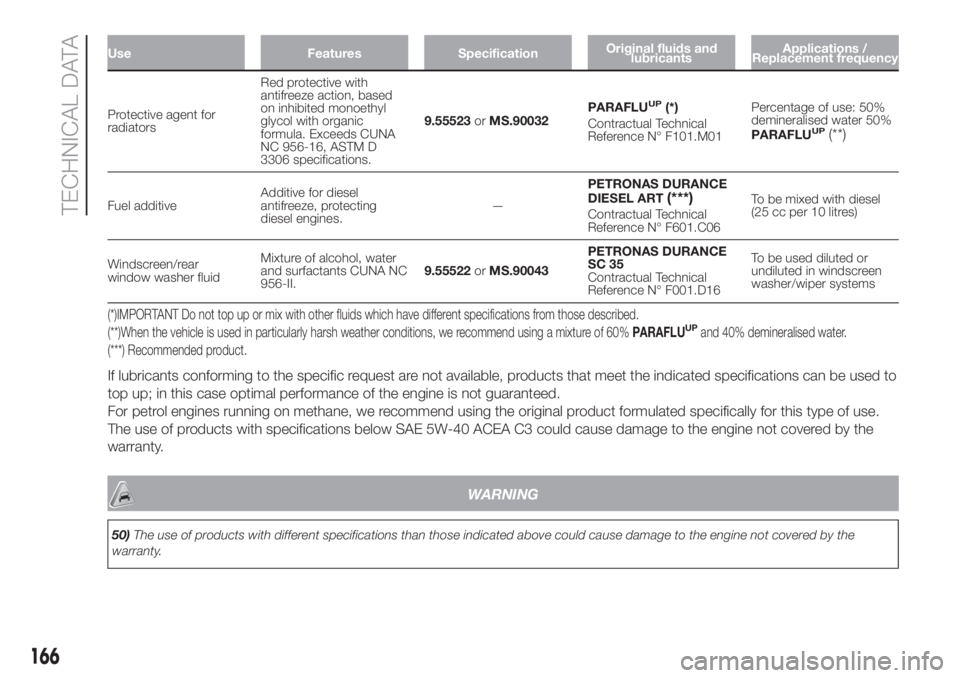

Use Features SpecificationOriginal fluids and
lubricantsApplications /
Replacement frequency
Protective agent for
radiatorsRed protective with
antifreeze action, based
on inhibited monoethyl
glycol with organic
formula. Exceeds CUNA
NC 956-16, ASTM D
3306 specifications.9.55523orMS.90032PARAFLUUP(*)
Contractual Technical
Reference N° F101.M01Percentage of use: 50%
demineralised water 50%
PARAFLU
UP(**)
Fuel additiveAdditive for diesel
antifreeze, protecting
diesel engines.—PETRONAS DURANCE
DIESEL ART(***)Contractual Technical
Reference N° F601.C06To be mixed with diesel
(25 cc per 10 litres)
Windscreen/rear
window washer fluidMixture of alcohol, water
and surfactants CUNA NC
956-II.9.55522orMS.90043PETRONAS DURANCE
SC 35
Contractual Technical
Reference N° F001.D16To be used diluted or
undiluted in windscreen
washer/wiper systems
(*)IMPORTANT Do not top up or mix with other fluids which have different specifications from those described.
(**)When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLUUPand 40% demineralised water.
(***) Recommended product.
If lubricants conforming to the specific request are not available, products that meet the indicated specifications can be used to
top up; in this case optimal performance of the engine is not guaranteed.
For petrol engines running on methane, we recommend using the original product formulated specifically for this type of use.
The use of products with specifications below SAE 5W-40 ACEA C3 could cause damage to the engine not covered by the
warranty.
WARNING
50)The use of products with different specifications than those indicated above could cause damage to the engine not covered by the
warranty.
166
TECHNICAL DATA

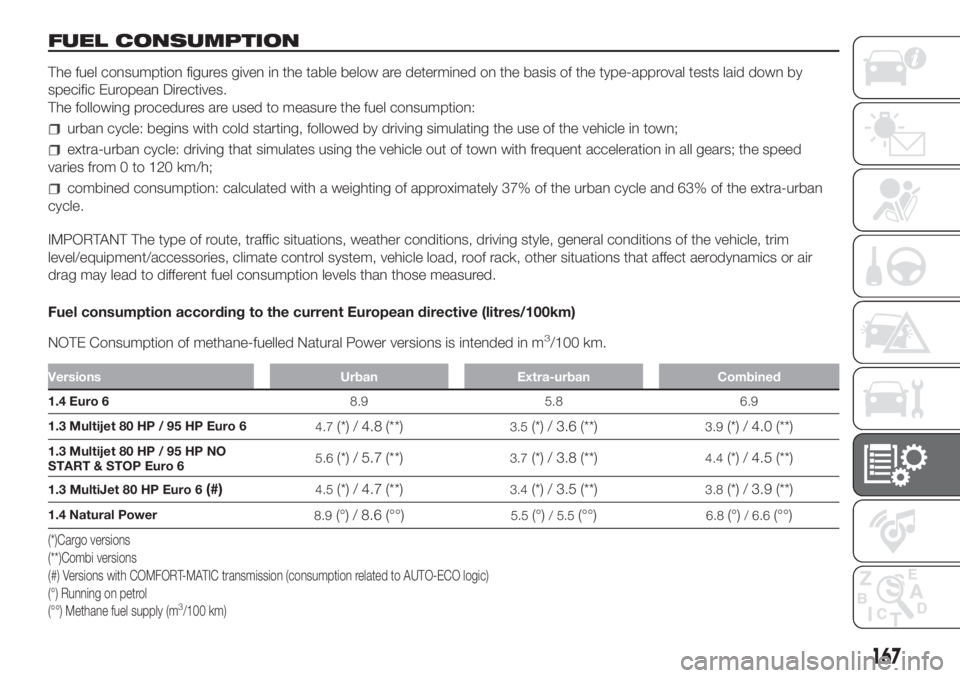

FUEL CONSUMPTION
The fuel consumption figures given in the table below are determined on the basis of the type-approval tests laid down by
specific European Directives.
The following procedures are used to measure the fuel consumption:
urban cycle: begins with cold starting, followed by driving simulating the use of the vehicle in town;
extra-urban cycle: driving that simulates using the vehicle out of town with frequent acceleration in all gears; the speed
varies from 0 to 120 km/h;
combined consumption: calculated with a weighting of approximately 37% of the urban cycle and 63% of the extra-urban
cycle.
IMPORTANT The type of route, traffic situations, weather conditions, driving style, general conditions of the vehicle, trim
level/equipment/accessories, climate control system, vehicle load, roof rack, other situations that affect aerodynamics or air
drag may lead to different fuel consumption levels than those measured.
Fuel consumption according to the current European directive (litres/100km)
NOTE Consumption of methane-fuelled Natural Power versions is intended in m
3/100 km.
Versions Urban Extra-urban Combined
1.4 Euro 68.9 5.8 6.9
1.3 Multijet 80 HP / 95 HP Euro 6
4.7
(*) / 4.8 (**)3.5(*) / 3.6 (**)3.9(*) / 4.0 (**)
1.3 Multijet 80 HP / 95 HP NO
START & STOP Euro 65.6(*) / 5.7 (**)3.7(*) / 3.8 (**)4.4(*) / 4.5 (**)
1.3 MultiJet 80 HP Euro 6(#)4.5(*) / 4.7 (**)3.4(*) / 3.5 (**)3.8(*) / 3.9 (**)
1.4 Natural Power
8.9(°) / 8.6 (°°)5.5(°)/ 5.5(°°)6.8(°)/ 6.6(°°)
(*)Cargo versions
(**)Combi versions
(#) Versions with COMFORT-MATIC transmission (consumption related to AUTO-ECO logic)
(°) Running on petrol
(°°) Methane fuel supply (m
3/100 km)
167

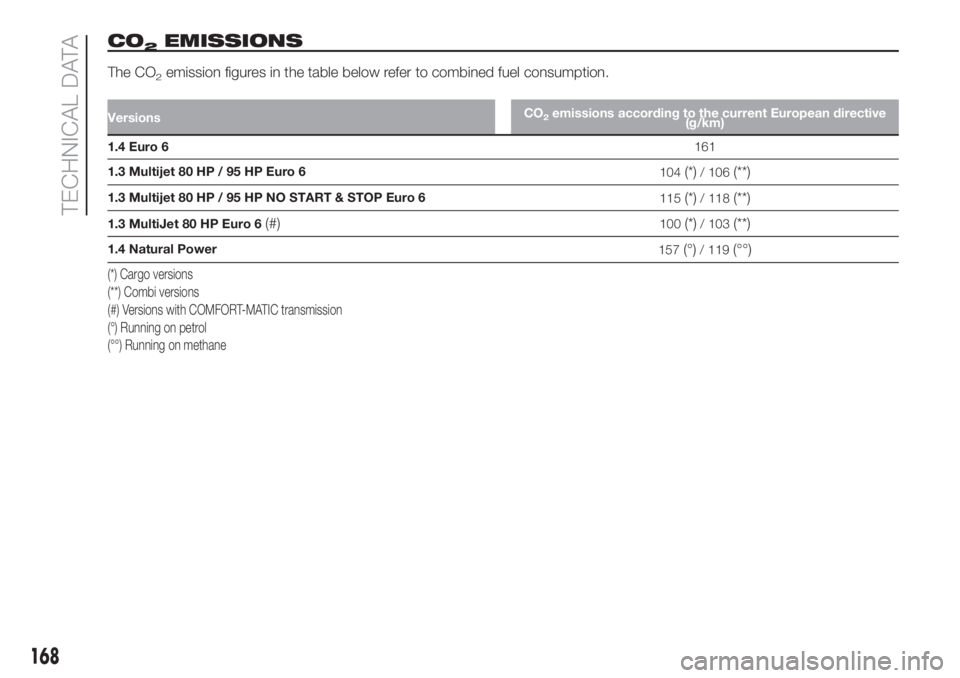

CO2EMISSIONS
The CO2emission figures in the table below refer to combined fuel consumption.
VersionsCO2emissions according to the current European directive
(g/km)
1.4 Euro 6161
1.3 Multijet 80 HP / 95 HP Euro 6
104
(*)/ 106(**)
1.3 Multijet 80 HP / 95 HP NO START & STOP Euro 6
115(*)/ 118(**)
1.3 MultiJet 80 HP Euro 6(#)100(*)/ 103(**)
1.4 Natural Power
157(°)/ 119(°°)
(*) Cargo versions
(**) Combi versions
(#) Versions with COMFORT-MATIC transmission
(°) Running on petrol
(°°) Running on methane
168
