FIAT FULLBACK 2016 1.G Owners Manual

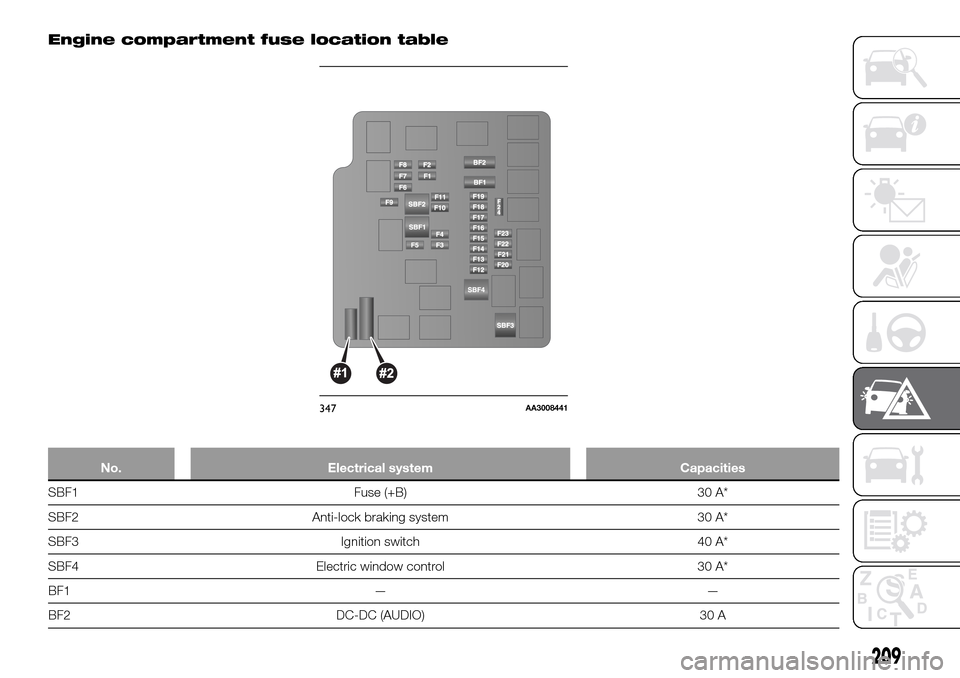

Engine compartment fuse location table
No. Electrical system Capacities
SBF1 Fuse (+B) 30 A*
SBF2 Anti-lock braking system 30 A*
SBF3 Ignition switch 40 A*
SBF4 Electric window control 30 A*
BF1 — —
BF2 DC-DC (AUDIO) 30 A
347AA3008441
209

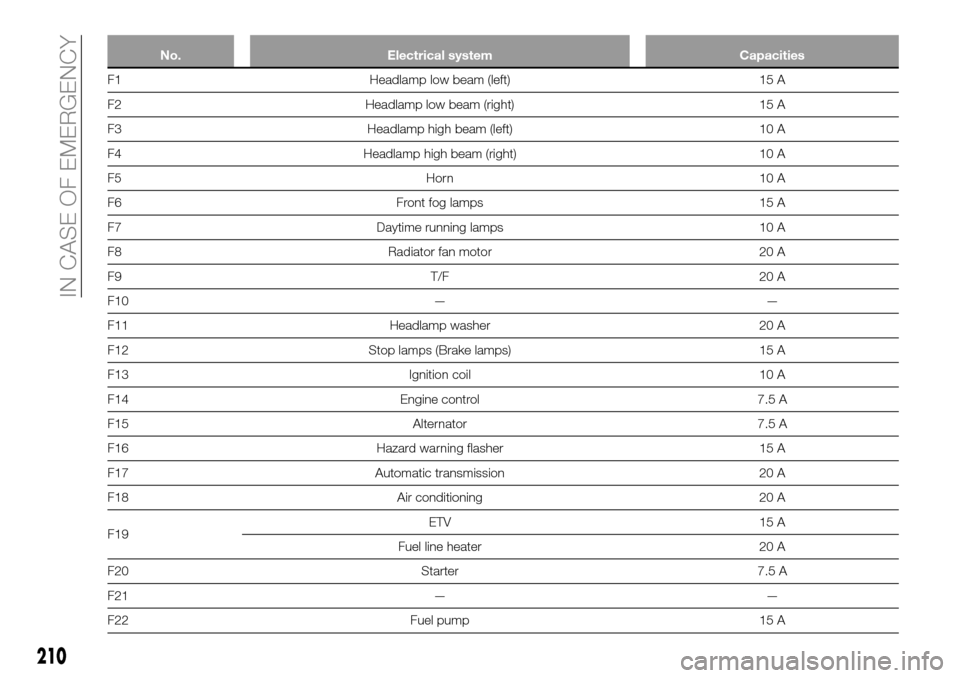

No. Electrical system Capacities
F1 Headlamp low beam (left) 15 A
F2 Headlamp low beam (right) 15 A
F3 Headlamp high beam (left) 10 A
F4 Headlamp high beam (right) 10 A
F5 Horn 10 A
F6 Front fog lamps 15 A
F7 Daytime running lamps 10 A
F8 Radiator fan motor 20 A
F9 T/F 20 A
F10 — —
F11 Headlamp washer 20 A
F12 Stop lamps (Brake lamps) 15 A
F13 Ignition coil 10 A
F14 Engine control 7.5 A
F15 Alternator 7.5 A
F16 Hazard warning flasher 15 A
F17 Automatic transmission 20 A
F18 Air conditioning 20 A
F19ETV 15 A
Fuel line heater 20 A
F20 Starter 7.5 A
F21 — —
F22 Fuel pump 15 A
210
IN CASE OF EMERGENCY

No. Electrical system Capacities
F23 Engine 20 A
F24 — —
#1 Spare fuse 20 A
#2 Spare fuse 30 A
*: Fusible linkSome fuses may not be installed on your vehicle, depending on the vehicle model or specifications.
The table above shows the main equipment corresponding to each fuse.
The fuse block does not contain spare 7.5 A, 10 A or 15 A fuses. If one of these fuses burns out, substitute with the following
fuse.
7.5 A: Outside rear-view mirrors
10 A: Option
15 A: Cigarette lighter
When using a substitute fuse, replace with a fuse of the correct capacity as soon as possible.
Identification of fuse
Capacity Colour
7.5 ABrown
10 ARed
15 ABlue
20 AYellow
30 A Green (fuse type) / Pink (fusible link type)
40 AGreen (fusible link type)
211

Fuse replacement
294) 295) 296) 297) 298)
147)
1. Before replacing a fuse, always turn
off the electrical circuit concerned and
place the ignition switch in the “LOCK”
position or put the operation mode in
OFF.
2. Remove the fuse puller (A) from the
inside of the fuse block in the engine
compartment.
3. Referring to the fuse load capacity
table, check the fuse pertaining to the
problem.B. Fuse is OK
C. Blown fuse
NOTE If any system does not function
but the fuse corresponding to that
system is normal, there may be a fault
in the system elsewhere. We
recommend you to have your vehicle
checked.
4. Insert a new fuse of the same
capacity by using the fuse puller into
the same place at the fuse block.
WARNING
294)If the newly inserted fuse blows again
after a short time, we recommend you to
have the electrical system checked to find
the cause and rectify it.
295)Never use a fuse with a larger
capacity than specified or a substitute
(such as a cable or foil). Doing so could
cause the circuit wires to overheat and
create a fire.
296)Never replace a blown fuse with metal
wires or other material.
297)Before replacing a fuse, make sure
that the ignition key has been removed and
that all the other services are switched off
and/or disengaged.
298)If a general protection fuse for safety
systems (airbag system, braking system),
power unit systems (engine system,
transmission system) or steering system
blows, contact a Fiat Dealership.
A
348AA0109871
BC
349AA0110129350AA0087304
212
IN CASE OF EMERGENCY

IMPORTANT
147)If it is necessary to wash the engine
compartment, take care not to directly hit
the fuse box and the window wiper motor
with the water jet
REPLACEMENT OF
LAMP BULBS
299) 300) 301) 302) 303) 304)
Before replacing a bulb, ensure the
lamp is off. Do not touch the glass part
of the new bulb with your bare fingers;
the skin oil left on the glass will
evaporate when the bulb gets hot and
the vapor will condense on the reflector
and dim the surface.
NOTE If you are unsure of how to carry
out the work as required, we
recommend you to consult a specialist.
Be careful not to scratch the vehicle
body when removing a lamp and lens.
When it rains, or when the vehicle has
been washed, the inside of the lens
sometimes becomes foggy. This is the
same phenomenon as when window
glass mists up on a humid day, and
does not indicate a functional problem.When the lamp is switched on, the heat
will remove the fog. However, if water
gathers inside the lamp, we
recommend you to have the lamp
checked.
Bulb location and capacity
When replacing a bulb, use a new bulb
with the same wattage and colour.
Outside
Front
Except for vehicles with high
intensity discharge headlamps
1. Position lamps: 5 W (W5W)
2. Front turn-signal lamps: 21 W
(PY21W/P21W)
3. Headlamps, high/low beam:
60/55 W (H4)
4. Type 1: Front fog lamps: 35 W (H8)
Daytime running lamps: 13 W (P13W).
351AA0030717352AHA104603
213

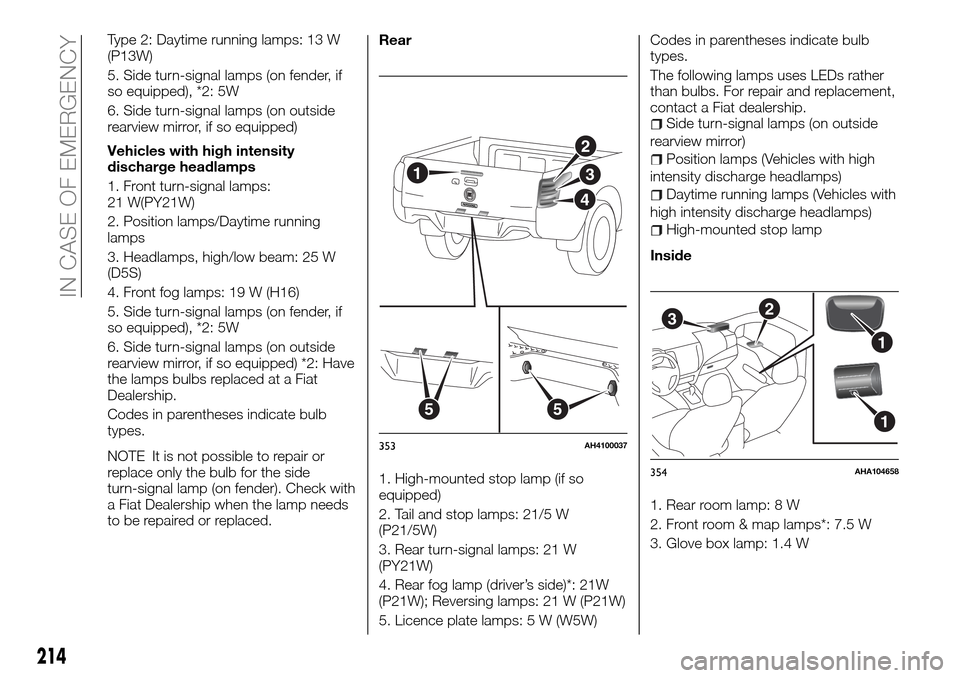

Type 2: Daytime running lamps: 13 W
(P13W)
5. Side turn-signal lamps (on fender, if
so equipped), *2: 5W
6. Side turn-signal lamps (on outside
rearview mirror, if so equipped)
Vehicles with high intensity
discharge headlamps
1. Front turn-signal lamps:
21 W(PY21W)
2. Position lamps/Daytime running
lamps
3. Headlamps, high/low beam: 25 W
(D5S)
4. Front fog lamps: 19 W (H16)
5. Side turn-signal lamps (on fender, if
so equipped), *2: 5W
6. Side turn-signal lamps (on outside
rearview mirror, if so equipped) *2: Have
the lamps bulbs replaced at a Fiat
Dealership.
Codes in parentheses indicate bulb
types.
NOTE It is not possible to repair or
replace only the bulb for the side
turn-signal lamp (on fender). Check with
a Fiat Dealership when the lamp needs
to be repaired or replaced.Rear
1. High-mounted stop lamp (if so
equipped)
2. Tail and stop lamps: 21/5 W
(P21/5W)
3. Rear turn-signal lamps: 21 W
(PY21W)
4. Rear fog lamp (driver’s side)*: 21W
(P21W); Reversing lamps: 21 W (P21W)
5. Licence plate lamps: 5 W (W5W)Codes in parentheses indicate bulb
types.
The following lamps uses LEDs rather
than bulbs. For repair and replacement,
contact a Fiat dealership.
Side turn-signal lamps (on outside
rearview mirror)
Position lamps (Vehicles with high
intensity discharge headlamps)
Daytime running lamps (Vehicles with
high intensity discharge headlamps)
High-mounted stop lamp
Inside
1. Rear room lamp: 8 W
2. Front room & map lamps*: 7.5 W
3. Glove box lamp: 1.4 W
1
2
3
4
55
353AH4100037
1
23
1
354AHA104658
214
IN CASE OF EMERGENCY

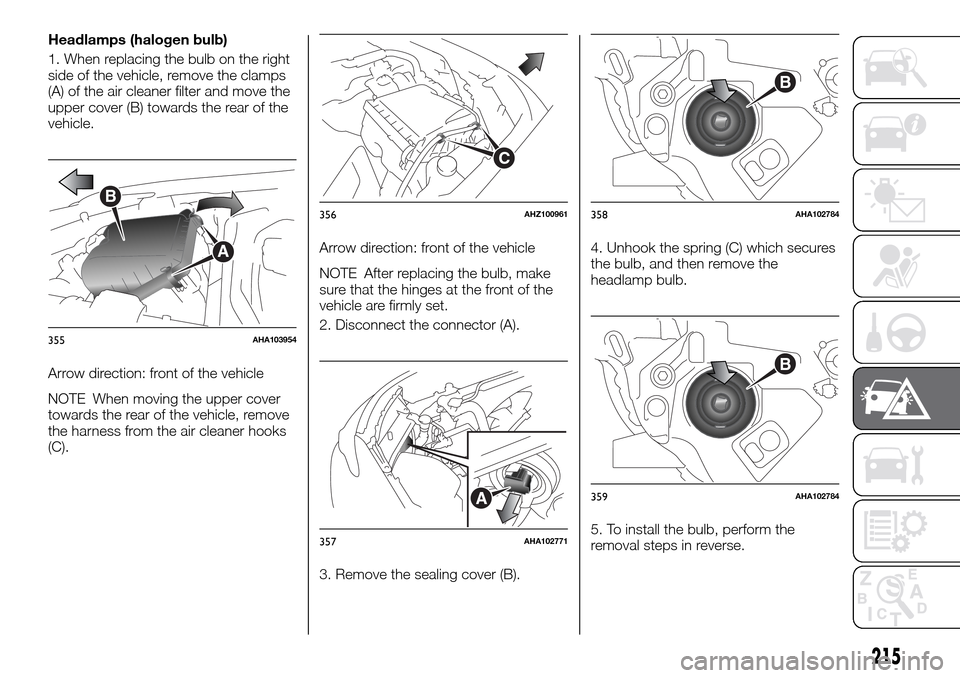

Headlamps (halogen bulb)
1. When replacing the bulb on the right
side of the vehicle, remove the clamps
(A) of the air cleaner filter and move the
upper cover (B) towards the rear of the
vehicle.
Arrow direction: front of the vehicle
NOTE When moving the upper cover
towards the rear of the vehicle, remove
the harness from the air cleaner hooks
(C).Arrow direction: front of the vehicle
NOTE After replacing the bulb, make
sure that the hinges at the front of the
vehicle are firmly set.
2. Disconnect the connector (A).
3. Remove the sealing cover (B).4. Unhook the spring (C) which secures
the bulb, and then remove the
headlamp bulb.
5. To install the bulb, perform the
removal steps in reverse.
B
A
355AHA103954
C
356AHZ100961
A
357AHA102771
B
358AHA102784
B
359AHA102784
215

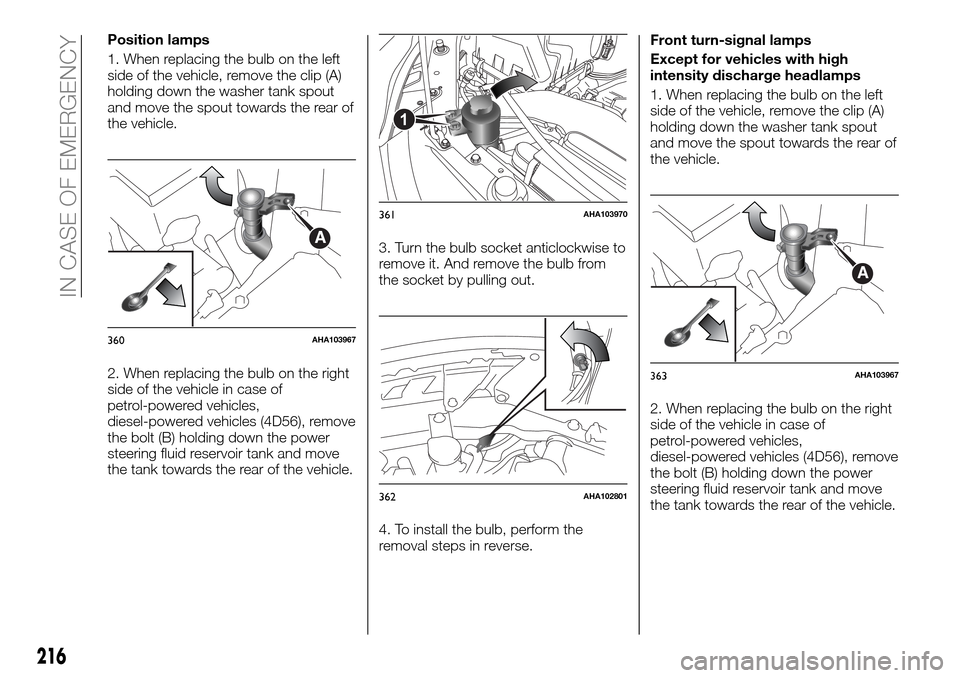

Position lamps
1. When replacing the bulb on the left
side of the vehicle, remove the clip (A)
holding down the washer tank spout
and move the spout towards the rear of
the vehicle.
2. When replacing the bulb on the right
side of the vehicle in case of
petrol-powered vehicles,
diesel-powered vehicles (4D56), remove
the bolt (B) holding down the power
steering fluid reservoir tank and move
the tank towards the rear of the vehicle.3. Turn the bulb socket anticlockwise to
remove it. And remove the bulb from
the socket by pulling out.
4. To install the bulb, perform the
removal steps in reverse.Front turn-signal lamps
Except for vehicles with high
intensity discharge headlamps
1. When replacing the bulb on the left
side of the vehicle, remove the clip (A)
holding down the washer tank spout
and move the spout towards the rear of
the vehicle.
2. When replacing the bulb on the right
side of the vehicle in case of
petrol-powered vehicles,
diesel-powered vehicles (4D56), remove
the bolt (B) holding down the power
steering fluid reservoir tank and move
the tank towards the rear of the vehicle.
A
360AHA103967
11
361AHA103970
362AHA102801
A
363AHA103967
216
IN CASE OF EMERGENCY

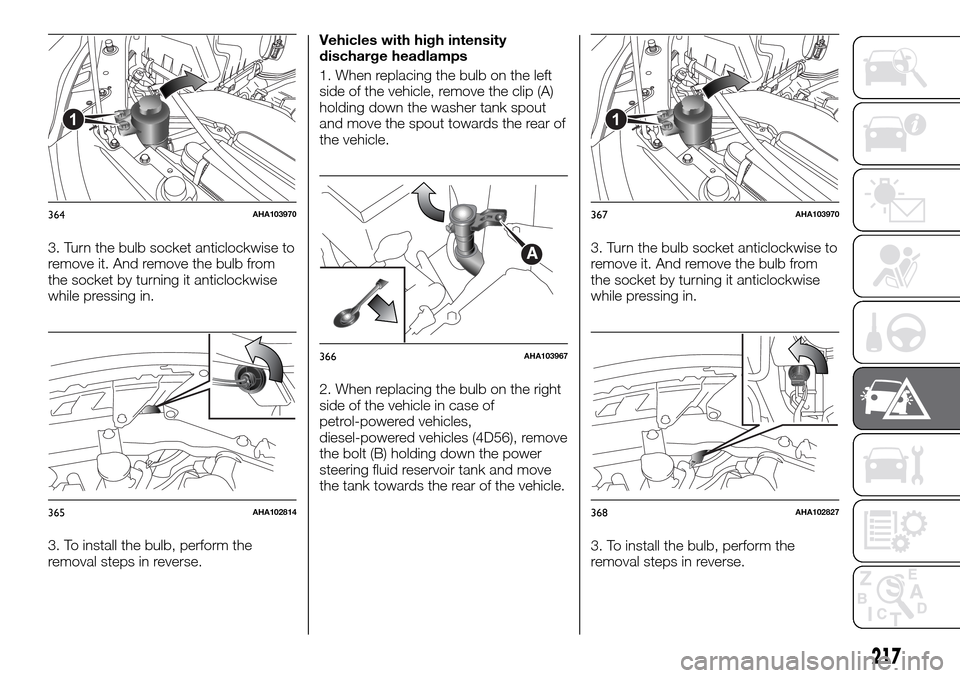

3. Turn the bulb socket anticlockwise to
remove it. And remove the bulb from
the socket by turning it anticlockwise
while pressing in.
3. To install the bulb, perform the
removal steps in reverse.Vehicles with high intensity
discharge headlamps
1. When replacing the bulb on the left
side of the vehicle, remove the clip (A)
holding down the washer tank spout
and move the spout towards the rear of
the vehicle.
2. When replacing the bulb on the right
side of the vehicle in case of
petrol-powered vehicles,
diesel-powered vehicles (4D56), remove
the bolt (B) holding down the power
steering fluid reservoir tank and move
the tank towards the rear of the vehicle.3. Turn the bulb socket anticlockwise to
remove it. And remove the bulb from
the socket by turning it anticlockwise
while pressing in.
3. To install the bulb, perform the
removal steps in reverse.
11
364AHA103970
365AHA102814
A
366AHA103967
11
367AHA103970
368AHA102827
217

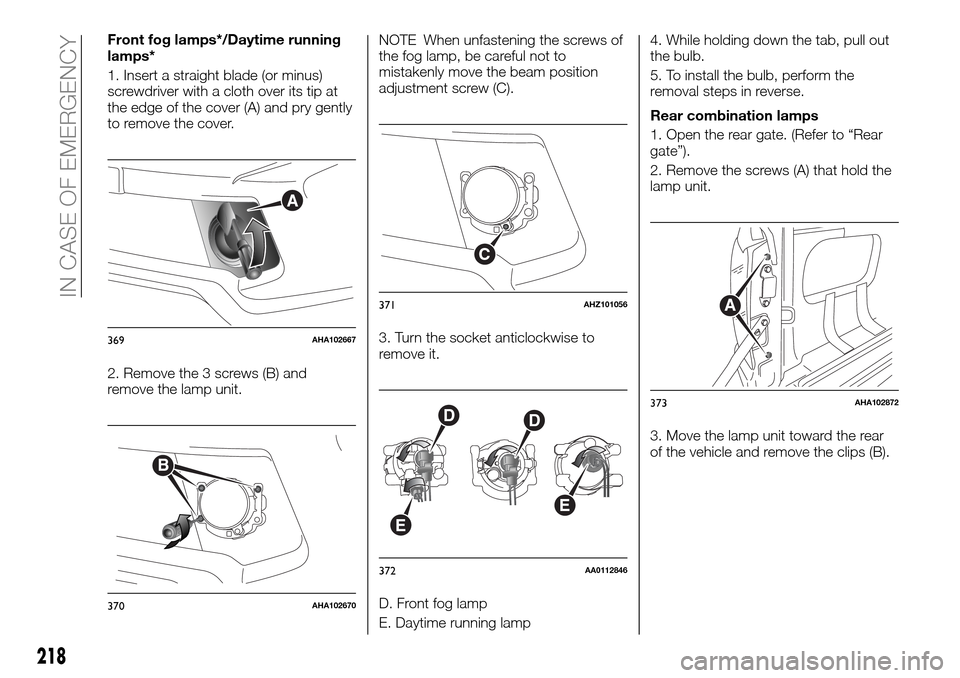

Front fog lamps*/Daytime running
lamps*
1. Insert a straight blade (or minus)
screwdriver with a cloth over its tip at
the edge of the cover (A) and pry gently
to remove the cover.
2. Remove the 3 screws (B) and
remove the lamp unit.NOTE When unfastening the screws of
the fog lamp, be careful not to
mistakenly move the beam position
adjustment screw (C).
3. Turn the socket anticlockwise to
remove it.
D. Front fog lamp
E. Daytime running lamp4. While holding down the tab, pull out
the bulb.
5. To install the bulb, perform the
removal steps in reverse.
Rear combination lamps
1. Open the rear gate. (Refer to “Rear
gate”).
2. Remove the screws (A) that hold the
lamp unit.
3. Move the lamp unit toward the rear
of the vehicle and remove the clips (B).
A
369AHA102667
B
370AHA102670
C
371AHZ101056
DD
E
E
372AA0112846
A
373AHA102872
