Page 4 of 312
READ THIS CAREFULLY
REFUELLING
Only refuel with automotive diesel conforming to the European specification EN590. The use of other products or mixtures may damage the
engine beyond repair and consequently invalidate the warranty, due to the damage caused.
STARTING THE ENGINE
Make sure that the handbrake is engaged; set the gear lever to neutral; fully depress the clutch pedal without pressing the accelerator, then
turn the ignition key to MAR-ON and wait for the warning lightsandto switch off; turn the ignition key to AVV and release it as soon as
the engine has started.
PARKING ON FLAMMABLE MATERIAL
The catalytic converter develops high temperatures during operation. Do not park on grass, dry leaves, pine needles or other flammable
material: fire hazard.
RESPECTING THE ENVIRONMENT
The vehicle is fitted with a system that allows continuous diagnosis of the emission-related components in order to help protect the
environment.
ELECTRICAL ACCESSORIES
If, after buying the vehicle, you decide to add electrical accessories (with the risk of gradually draining the battery), visit a Fiat Dealership. They
can calculate the overall electrical requirement and check that the vehicle's electrical system can support the required load.
SCHEDULED SERVICING
Correct maintenance enables the vehicle to perfectly maintain performance and safety characteristics, its environmental friendliness and low
running costs over time.
Page 11 of 312
GRAPHICAL INDEX
HEADLIGHTSBulb types..................... 213Daytime running lights........... 40Dipper beam headlights......... 40Headlamps..................... 40Bulb replacement.............. 213
WHEELSTyres and wheels.............. 291Tyre pressure.................. 291Replacing a wheel............. 194
OUTSIDE REARVIEW MIRRORSAdjustment..................... 37
DOORSCentral opening/closing......... 28
WINDSCREEN WIPERSOperation....................... 48Blade replacement............. 254
ENGINEChecking levels................ 241Engine specifications.......... 268
3
2
1
1
5
6
4
1FRONTE
9
Page 19 of 312
KEYLESS OPERATION
SYSTEM
The keyless operation system allows
you to lock and unlock the doors, start
the engine and change the operation
mode simply by carrying the keyless
operation key with you.
The switches on the keyless operation
key can also be used as the key switch
of keyless entry system. Refer to
“Starting and stopping the engine”.
Refer to “Keyless entry system”. The
driver should always carry the keyless
operation key. This key is necessary for
locking and unlocking the doors,
starting the engine and otherwise
operating the vehicle, so before locking
and leaving the vehicle, be sure to
check that you have the keyless
operation key.
4) 5)
You can limit the possible operations of
the keyless operation system. Please
consult a Fiat Dealership.
The keyless operation key uses an
ultra-weak electromagnetic wave. In the
following cases, the keyless operation
system may not operate properly or
may be unstable.
When there is equipment nearby that
emits strong radio waves, such as: a
power station, a radio/TV broadcasting
station or an airport.
The keyless operation system is
carried together with a communicationsdevice such as a cellular phone or radio
set, or with an electronic device such as
a personal computer.
The keyless operation key is touching
or covered by a metal object.
A keyless entry system is being used
nearby.
When the keyless operation key
battery is worn out.
When the keyless operation key is
set down in an area with strong radio
waves or noise. In such cases, use the
emergency key. Refer to “To
lock/unlock without using the keyless
operation function”.
NOTE Because the keyless operation
key receives signals in order to
communicate with the transmitters in
the vehicle, the battery continually
wears down regardless of keyless
operation key use. The battery life is
1 to 2 years, depending on usage
conditions. When the battery wears out,
replace the battery according to the
description in this manual or have it
replaced a Fiat Dealership. Refer to
“Procedure for replacing the key
battery”.
NOTE Because the keyless operation
key continually receives signals, strong
radio wave reception could affect
battery wear. Do not leave the key near
a TV, personal computer, or other
electronic device.Operating range of the keyless
operation system
If you are carrying the keyless operation
key, enter the operating range of the
keyless operation system, and press
the driver’s or front passenger’s door
lock/unlock switch, the ID code for your
key is verified.
You can lock and unlock the doors,
start the engine and change the
operation mode only if the ID codes of
your keyless operation key and the
vehicle match.
NOTE If the keyless operation key
battery is wearing out or there are
strong electromagnetic waves or noise
present, the operating range may
become smaller and operation may
become unstable.
Operating range for locking and
unlocking the doors
The operating range is approximately
70 cm from the driver’s or front
passenger’s door lock/unlock switch.
NOTE Locking and unlocking operate
only when you press a door switch that
detects the keyless operation key.
NOTE Operation may not be possible if
you are too close to the front door, door
window.
NOTE Even if the keyless operation key
is within 70 cm of the driver’s or front
passenger’s door lock/unlock switch, if
the key is near to the ground or high
up, the system may not operate.
17
Page 27 of 312
ACC power auto-cutout function
After about 30 minutes has elapsed
with the operation mode in ACC, the
function automatically cuts out the
power for the audio system and other
electric devices that can be operated
with that position. (only that driver’s
door has closed and the selector lever
in the “P” (PARK) position).
When you open driver’s door or the
engine switch operate again, the power
is supplied again.
NOTE When ACC power supply
automatic stop, the steering wheel
can’t lock and you can’t lock and
unlock the doors by the keyless entry
key and keyless operation key.
NOTE It is possible to modify functions
as follows:
The time until the power cuts out can
be changed to about 60 minutes.
The ACC power auto-cutout function
can be deactivated. For details, we
recommend you to consult a Fiat
Dealership.
Operation mode OFF reminder
system
When the operation mode is in any
mode other than OFF, if you close all
the doors then try to lock the doors by
pressing the driver’s or front
passenger’s door lock/unlock switch, a
warning lamp will blink and the outer
buzzer will sounds and you cannot lock
the doors.
Operation mode ON reminder
system
If the driver’s door is opened with the
engine stopped and the operation
mode in any mode other than OFF, the
operation mode ON reminder inner
buzzer sounds intermittently to remind
you to put the operation mode in OFF.
WARNING
6)Do not remove the ignition key from the
ignition switch while driving. The steering
wheel will be locked, causing loss of
control.
7)If the ignition device has been tampered
with (e.g. an attempted theft), have it
checked over by a Fiat Dealership before
driving again.
8)Always remove the key when you leave
your vehicle to prevent someone from
accidentally operating the controls.
Remember to engage the handbrake.
Engage first gear if the vehicle is parked
uphill or reverse gear if the vehicle is
parked downhill. Never leave children
unattended in the vehicle.
9)Never extract the key while the vehicle is
moving. The steering wheel will lock as
soon as it is turned. This also applies to
cases in which the vehicle is towed.
10)Under no circumstances should
aftermarket operations be carried out
involving steering system or steering
column modifications (e.g. installation of
anti-theft device). This could negatively
affect performance and safety, invalidate
the warranty, cause serious safety
problems and also result in vehicle
non-compliance with type-approval
requirements.
23AHA103505
25
Page 33 of 312
27)Once the dead lock system is engaged
it is impossible to open the doors from
inside the vehicle. Therefore, before
engaging the system check that there is no
one left inside. If the remote control battery
is flat, the system can be disengaged only
by inserting the key metal insert in either of
the door locks as described previously: in
this case the device remains active only for
the rear doors.
28)This spring loaded system has
activation forces that were designed for
optimum comfort. Accidental knocks or a
strong gust of wind may release the
springs and close the doors
spontaneously.
29)On vehicles with the rear bumper,
never swing down the rear gate because
the rear gate could be damaged.
30)Never close the rear gate with the link
or wire left unhooked.SEATS
SEAT ADJUSTMENT
Adjust the driver’s seat so that you are
comfortable and that you can reach the
pedals, steering wheel, switches etc.
while retaining a clear field of vision.
31) 32) 33) 34) 35) 36) 37) 38) 39) 40) 41) 42)
10)
FRONT SEATS
Manual type
1—
To adjust forward or backward: Lift
the handle and adjust the seat to the
desired position, and release the handle.
2 — To recline the seatback: Pull the
lever up and then lean backward to the
desired position, and release the lever.
3 — To adjust seat cushion height
(driver’s side only): Turn the dial and
adjust the seat cushion height to the
desired position.Power type
1 — To adjust forward or backward:
Operate the switch as indicated by the
arrows and adjust the seat to the
desired position.
2 — To recline the seatback: Operate
the switch as indicated by the arrows
and adjust the seatback angle to the
desired position.
3 — To adjust seat height: Operate the
switch as indicated by the arrows and
adjust the seat height to the desired
position. If the entire switch is operated,
then the entire seat moves.
4 — To adjust seat cushion angle:
Operate the switch as indicated by the
arrows and adjust the seat cushion
angle to the desired position.
NOTE To prevent the battery from
running down, operate the switch with
the engine running.
312
37AHA105626
3
4
1
2
38AHA105639
31
Page 42 of 312
ignition switch to the “ON” or “ACC”
position. [Vehicles equipped with the
keyless operation system] Put the
operation mode in ON or ACC.
NOTE Automatically retract when the
ignition switch is turned to the “LOCK”
position or the operation mode is put in
OFF, and the driver’s door is then
opened.
NOTE Automatically extend when the
vehicle speed reaches 30 km/h.
(vehicles equipped with the keyless
entry key or the keyless operation key)
NOTE Deactivate the automatic
extension function.
WARNING
51)As the driver's exterior mirror is curved,
it may slightly alter the perception of
distance of the reflected image. Further, the
reflective surface of the lower part of the
exterior mirrors is parabolic to increase the
field of view. The reflected image size is
thus reduced and gives the impression that
the reflected item is further away than it
actually is.
52)Do not attempt to adjust the rear-view
mirror while driving. This can be
dangerous. Always adjust the mirror before
driving.53)Your vehicle is equipped with convex
type mirrors. Remind that objects that you
see in the mirror will look smaller and
farther away compared to a normal flat
mirror. Do not use this mirror to estimate
distance of following vehicles when
changing lanes.
54)Do not drive the vehicle with the mirror
folded in. The lack of rearward visibility
normally provided by the mirror could lead
to an accident.
IMPORTANT
16)It is possible to retract and extend the
mirrors by hand. After retracting a mirror
using the mirror retractor switch, however,
you should extend it by using the switch
again, not by hand. If you extended the
mirror by hand after retracting it using the
switch, it would not properly lock in
position. As a result, it could move because
of the wind or vibration while you are
driving, taking away your rearward visibility.
EXTERNAL LIGHTS
COMBINATION
HEADLAMPS AND
DIPPER SWITCH
Headlamps
NOTE Do not leave the lamps on for a
long time while the engine is stationary
(not running). A run-down battery could
result.
NOTE When it rains, or when the
vehicle has been washed, the inside of
the lens sometimes becomes foggy, but
this does not indicate a functional
problem. When the lamp is switched
on, the heat will remove the fog.
However, if water gathers inside the
lamp, we recommend you to have
checked.
Type 1
Rotate the switch to turn on the lamps.
60AA0061221
40
GETTING TO KNOW YOUR VEHICLE
Page 65 of 312
periodically to increase ventilation so
that the windows do not become
fogged up.
NOTE When the engine coolant
temperature rises to a certain level, the
air selection is automatically switched to
the recirculation position and the
indicator lamp (A) comes on. At this
time, the system will not switch to the
outside position even if the air selection
switch is pushed.
Customising the air selection
Functions can be changed as desired,
as stated below.
Enable automatic air control When
the AUTO switch is pressed, the air
selection switch is also controlled
automatically.
Disable automatic air control Even
when the AUTO switch is pressed, the
air selection switch is not controlled
automatically.
Setting change method Hold down
the air selection switch for about
10 seconds or more.
1. When the setting is changed from
enable to disable 3 sounds are emitted
and the indicator lamp flashes 3 times.
2. When the setting is changed from
disable to enable 2 sounds are emitted
and the indicator lamp flashes 3 times.
NOTE The factory setting is “Enable
automatic air control”.NOTE When the demister switch is
pressed, in order to prevent misting of
the windows the ventilator automatically
switches to outside air even if “Disable
automatic air control” is set.
AUTO switch
When the AUTO switch is pressed, the
indicator lamp (A) comes on and the
mode selection, blower speed
adjustment, recirculated/outside air
selection, temperature adjustment, and
air conditioner ON/OFF status are all
controlled automatically.
Air conditioning switch
Push the switch to turn the air
conditioner on, the
indicator will be
shown in the display (A).Push the switch again to switch it off.
IMPORTANT When using the air
conditioner, the idling speed may
slightly increase as the air conditioning
compressor is switched on/off
automatically. While the vehicle with an
A/T is stationary, fully depress the brake
pedal to prevent the vehicle from
creeping.
IMPORTANT If a problem is detected in
the air conditioning system, the
indicator blinks. Press the air
conditioning switch once to turn it off,
then once more to turn it back on. If the
indicator does not blink for a while,
there is nothing wrong. If it starts to
blink again, we recommend you to have
it checked.
A
113AHA101556
A
114AHA101569
63
Page 69 of 312
AIR PURIFIER
An air filter has been incorporated into
this air conditioner so that dirt and dust
are cleaned from the air.
Replace the air filter periodically as its
ability to clean the air will be reduced as
it collects pollen and dirt.
NOTE Operation in certain conditions
such as driving on a dusty road and
frequent use of the air conditioner can
lead to reduction of service life of the
filter. When you feel that the airflow is
lower than normal or when the
windscreen or windows start to fog up
easily, replace the air filter. We
recommend you to have it checked.
REAR WINDOW
DEMISTER SWITCH
(where provided)
The rear window demister switch can
be operated when the engine is
running. Push the switch to turn on the
rear window demister. It will be turned
off automatically in about 20 minutes.
To turn off the demister within about
20 minutes, push the switch again. The
indicator lamp (A) will illuminate while
the demister is on.Type 1
Type 2
NOTE On vehicles equipped with
heated mirrors, when the rear window
demister switch is pressed, the outside
rear-view mirrors are defogged or
defrosted. Refer to “Heated mirror”.NOTE The demister switch is not to
melt snow but to clear mist. Remove
snow before use of the demister switch.
NOTE To avoid unnecessary discharge
of the battery, do not use the rear
window demister during starting of the
engine or when the engine is not
running. Turn the demister off
immediately after the window is clear.
NOTE When cleaning the inside of the
rear window, use a soft cloth and wipe
gently along the heater wires, being
careful not to damage the wires.
NOTE Do not allow objects to touch
the inside of the rear window glass,
damaged or broken wires may result.
Customizing the automatic rear
window demister (for vehicles
equipped with the rear window
demister switch - Type 2)
Function can be changed as desired,
as stated below.
Enable automatic rear window
demister If the outside air temperature
drops below approx. 3 °C (37 °F), the
rear window demister operates once
automatically after the engine starts.
The heated mirrors will also operate
once automatically at the same time.
Disable automatic rear window
demister The rear window demister
does not operate automatically. The
heated mirrors will not operate
automatically as well.
OFF12
3OFF12
3
4
A
121AHA101396
A
122AA0110220
67
Page 83 of 312

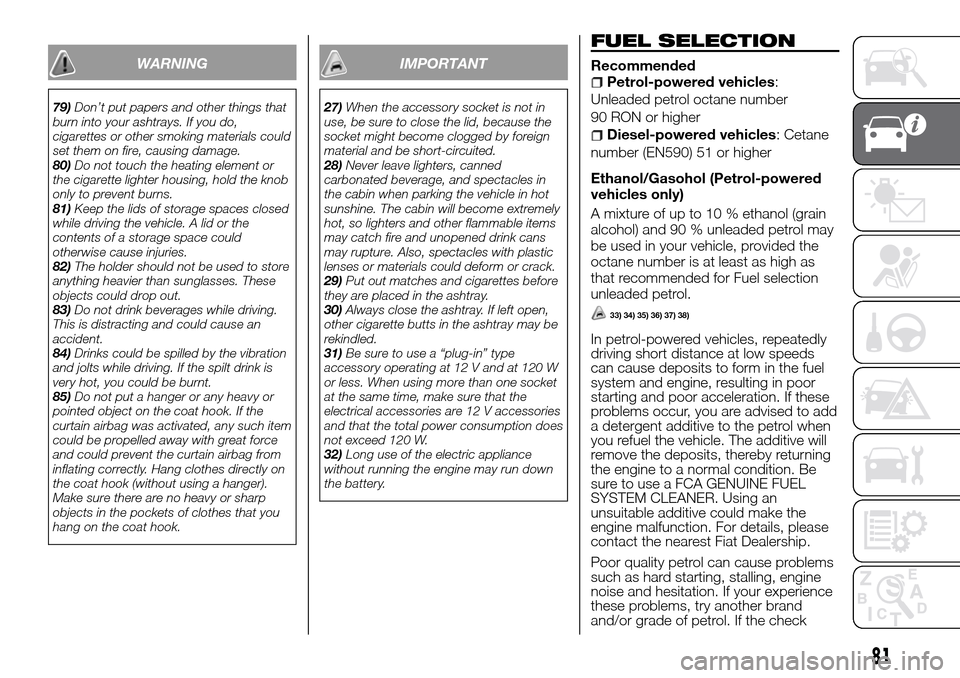

WARNING
79)Don’t put papers and other things that
burn into your ashtrays. If you do,
cigarettes or other smoking materials could
set them on fire, causing damage.
80)Do not touch the heating element or
the cigarette lighter housing, hold the knob
only to prevent burns.
81)Keep the lids of storage spaces closed
while driving the vehicle. A lid or the
contents of a storage space could
otherwise cause injuries.
82)The holder should not be used to store
anything heavier than sunglasses. These
objects could drop out.
83)Do not drink beverages while driving.
This is distracting and could cause an
accident.
84)Drinks could be spilled by the vibration
and jolts while driving. If the spilt drink is
very hot, you could be burnt.
85)Do not put a hanger or any heavy or
pointed object on the coat hook. If the
curtain airbag was activated, any such item
could be propelled away with great force
and could prevent the curtain airbag from
inflating correctly. Hang clothes directly on
the coat hook (without using a hanger).
Make sure there are no heavy or sharp
objects in the pockets of clothes that you
hang on the coat hook.
IMPORTANT
27)When the accessory socket is not in
use, be sure to close the lid, because the
socket might become clogged by foreign
material and be short-circuited.
28)Never leave lighters, canned
carbonated beverage, and spectacles in
the cabin when parking the vehicle in hot
sunshine. The cabin will become extremely
hot, so lighters and other flammable items
may catch fire and unopened drink cans
may rupture. Also, spectacles with plastic
lenses or materials could deform or crack.
29)Put out matches and cigarettes before
they are placed in the ashtray.
30)Always close the ashtray. If left open,
other cigarette butts in the ashtray may be
rekindled.
31)Be sure to use a “plug-in” type
accessory operating at 12 V and at 120 W
or less. When using more than one socket
at the same time, make sure that the
electrical accessories are 12 V accessories
and that the total power consumption does
not exceed 120 W.
32)Long use of the electric appliance
without running the engine may run down
the battery.
FUEL SELECTION
RecommendedPetrol-powered vehicles:
Unleaded petrol octane number
90 RON or higher
Diesel-powered vehicles: Cetane
number (EN590) 51 or higher
Ethanol/Gasohol (Petrol-powered
vehicles only)
A mixture of up to 10 % ethanol (grain
alcohol) and 90 % unleaded petrol may
be used in your vehicle, provided the
octane number is at least as high as
that recommended for Fuel selection
unleaded petrol.
33) 34) 35) 36) 37) 38)
In petrol-powered vehicles, repeatedly
driving short distance at low speeds
can cause deposits to form in the fuel
system and engine, resulting in poor
starting and poor acceleration. If these
problems occur, you are advised to add
a detergent additive to the petrol when
you refuel the vehicle. The additive will
remove the deposits, thereby returning
the engine to a normal condition. Be
sure to use a FCA GENUINE FUEL
SYSTEM CLEANER. Using an
unsuitable additive could make the
engine malfunction. For details, please
contact the nearest Fiat Dealership.
Poor quality petrol can cause problems
such as hard starting, stalling, engine
noise and hesitation. If your experience
these problems, try another brand
and/or grade of petrol. If the check
81
Page 84 of 312
engine warning lamp flashes, have the
system checked as soon as possible at
an authorised Fiat Dealership.
In diesel-powered vehicles, in case
cetane number (EN590) 51 or higher is
not available, use cetane number 45 or
higher.
In diesel-powered vehicles, poor-quality
diesel fuel can cause deposits form in
the injector, resulting in black smoke
and rough idling. If these problems
occur, you are advised to add a
cleaning additive to the diesel fuel when
you refuel the vehicle. The additive will
break up and remove the deposits,
thereby returning the engine to a normal
condition. Be sure to use a FCA
GENUINE DIESEL FUEL SYSTEM
CLEANER. Using an unsuitable additive
could make the engine malfunction. For
detailed, please contact the nearest
authorised Fiat Dealership.
IMPORTANT
33)For unleaded petrol-powered vehicles,
the use of leaded fuel can result in serious
damage to the engine and catalytic
converter. Do not use the leaded fuel.
34)Do not use more than 10 %
concentration of ethanol (grain alcohol) by
volume. Use of more than 10 %
concentration may lead to damage to your
vehicle fuel system, engine, engine sensors
and exhaust system.35)Do not operate your vehicle on petrol
containing methanol. Using this type of
alcohol could adversely affect the vehicle’s
performance and damage critical parts of
the vehicle’s fuel system.
36)Diesel-powered vehicles to comply with
the Euro 4 and Euro 5 regulation are
designed to use only diesel fuel that meets
the EN 590 standard. Use of any other type
of diesel fuel would adversely affect the
engine’s performance and durability.
37)Your vehicle is designed to use only
diesel fuel that meets the EN 590 standard.
Use of any other type of diesel fuel (bio
diesel, methylester, etc.) would adversely
affect the engine’s performance and
durability.
38)For diesel engines, only use diesel fuel
for motor vehicles in accordance with EN
590 European specifications. The use of
other products or mixtures may damage
the engine beyond repair and consequently
invalidate the warranty, due to the damage
caused. If you accidentally introduce other
types of fuel into the tank, do not start the
engine. Empty the tank. If the engine has
been run for even an extremely limited
amount of time, you must not only drain the
fuel tank, but the rest of the supply circuit
as well.
FILLING THE FUEL
TANK
86) 87) 88) 89) 90) 91) 92) 93) 94) 95) 96)
Fuel tank capacity: 75 litres.
1. Before filling with fuel, stop the
engine.
2. The fuel tank filler is located on the
rear left side of your vehicle.
Type 1,2
1. Open the fuel tank filler door with the
release lever located below the
instrument panel.
159AHA105802
82
GETTING TO KNOW YOUR VEHICLE
