Start and stop off FIAT FULLBACK 2017 Owner handbook (in English)

Buzzer Item Cause Note / Solution
Illuminates No soundKeyless
operation
systemA power supply is not switched
over from OFF because the
keyless operation key in the
vehicle cannot be detected. When
a warning is issued to being in the
vehicle, it is because the battery of
the keyless operation key has
worn out or the state of the
surrounding radio wave is bad.Please confirm that the keyless operation key is in
the vehicle. If the key is in the vehicle, insert the slot.
Starting the engine and changing the operation
mode should be now possible.
Illuminates No soundKeyless
operation
systemThere is a fault in the keyless
operation system.If the warning lamp illuminates, please contact a Fiat
Dealership.
IlluminatesInner buzzer
sounds
(intermittent
sounds)Keyless
operation
systemThere is a fault in the electrical
system.If the warning lamp illuminates, please contact a Fiat
Dealership.
IlluminatesInner buzzer
sounds
(continuous
sounds)Keyless
operation
systemThere is a fault in the electrical
system.Immediately stop the vehicle in a safe place and
contact a Fiat Dealership.
BlinksOuter buzzer
sounds
approximately
3 seconds.
Inner buzzer
sounds
approximately
1 minute.Keyless
operation key
reminderWhen the operation mode is in
OFF with the keyless operation
key left in the key slot, if you try to
open the driver’s door.Remove the keyless operation key from the key slot.
Refer to “Starting and stopping the engine”.
IlluminatesInner buzzer
3 soundsSteering wheel
lockThere is a fault in the steering
wheel lock system.Refer to “Steering wheel lock”.
22
GETTING TO KNOW YOUR VEHICLE

When you open driver’s door or the
engine switch operate again, the power
is supplied again.
NOTE When ACC power supply
automatic stop, the steering wheel
can’t lock and you can’t lock and
unlock the doors by the keyless entry
key and keyless operation key.
NOTE It is possible to modify functions
as follows:
The time until the power cuts out can
be changed to about 60 minutes.
The ACC power auto-cutout function
can be deactivated. For details, we
recommend you to consult a Fiat
Dealership.
Operation mode OFF reminder
systemWhen the operation mode is in any
mode other than OFF, if you close all
the doors then try to lock the doors by
pressing the driver’s or front
passenger’s door lock/unlock switch, a
warning lamp will blink and the outer
buzzer will sounds and you cannot lock
the doors.
Operation mode ON reminder
system
If the driver’s door is opened with the
engine stopped and the operation
mode in any mode other than OFF, the
operation mode ON reminder inner
buzzer sounds intermittently to remind
you to put the operation mode in OFF.WARNING
6)Do not remove the ignition key from the
ignition switch while driving. The steering
wheel will be locked, causing loss of
control.
7)If the ignition device has been tampered
with (e.g. an attempted theft), have it
checked over by a Fiat Dealership before
driving again.
8)Always remove the key when you leave
your vehicle to prevent someone from
accidentally operating the controls.
Remember to engage the handbrake.
Engage first gear if the vehicle is parked
uphill or reverse gear if the vehicle is
parked downhill. Never leave children
unattended in the vehicle.9)Never extract the key while the vehicle is
moving. The steering wheel will lock as
soon as it is turned. This also applies to
cases in which the vehicle is towed.
10)Under no circumstances should
aftermarket operations be carried out
involving steering system or steering
column modifications (e.g. installation of
anti-theft device). This could negatively
affect performance and safety, invalidate
the warranty, cause serious safety
problems and also result in vehicle
non-compliance with type-approval
requirements.
IMPORTANT
1)If the engine is stopped while driving, the
brake servomechanism will cease to
function and braking efficiency will
deteriorate. Also, the power steering
system will not function and it will require
greater manual effort to operate the
steering.
2)Do not leave the key in the “ON” position
for a long time when the engine is not
running, doing so will cause the battery to
be discharged.
3)Do not turn the key to the “START”
position while the engine is running. Doing
so could damage the starter motor.
4)The indicator lamp (A) fig. 24 will flash
orange when there is a problem or
malfunction in the keyless operation
system. Never drive if the indicator lamp on
the engine switch is flashing orange.
Immediately contact your Fiat Dealership.
27AHA103505
26
GETTING TO KNOW YOUR VEHICLE

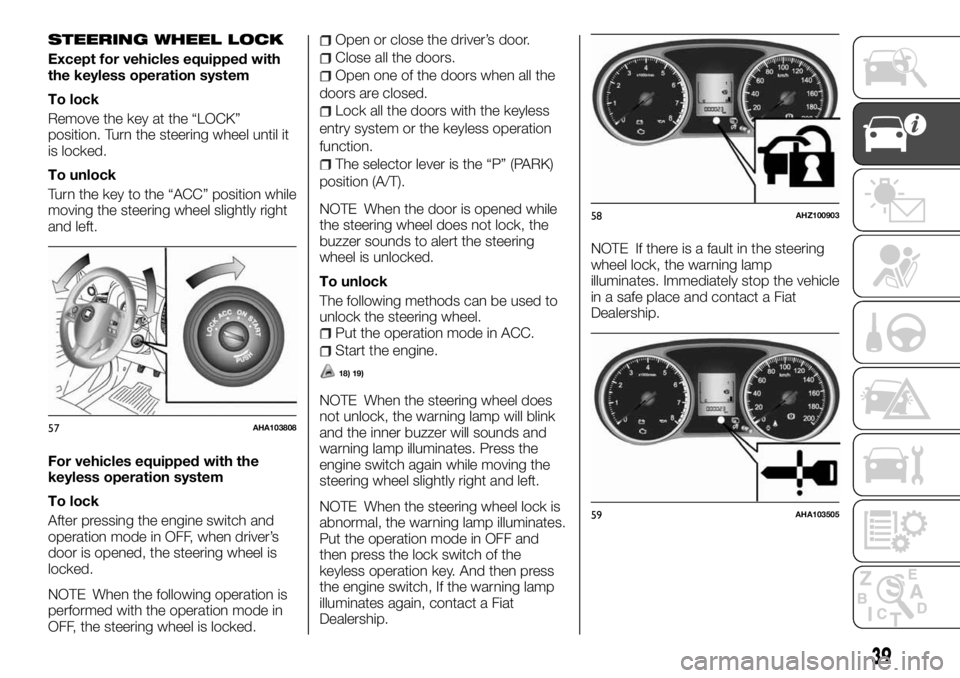

STEERING WHEEL LOCK
Except for vehicles equipped with
the keyless operation system
To lock
Remove the key at the “LOCK”
position. Turn the steering wheel until it
is locked.
To unlock
Turn the key to the “ACC” position while
moving the steering wheel slightly right
and left.
For vehicles equipped with the
keyless operation system
To lock
After pressing the engine switch and
operation mode in OFF, when driver’s
door is opened, the steering wheel is
locked.
NOTE When the following operation is
performed with the operation mode in
OFF, the steering wheel is locked.
Open or close the driver’s door.
Close all the doors.
Open one of the doors when all the
doors are closed.
Lock all the doors with the keyless
entry system or the keyless operation
function.
The selector lever is the “P” (PARK)
position (A/T).
NOTE When the door is opened while
the steering wheel does not lock, the
buzzer sounds to alert the steering
wheel is unlocked.
To unlock
The following methods can be used to
unlock the steering wheel.
Put the operation mode in ACC.
Start the engine.
18) 19)
NOTE When the steering wheel does
not unlock, the warning lamp will blink
and the inner buzzer will sounds and
warning lamp illuminates. Press the
engine switch again while moving the
steering wheel slightly right and left.
NOTE When the steering wheel lock is
abnormal, the warning lamp illuminates.
Put the operation mode in OFF and
then press the lock switch of the
keyless operation key. And then press
the engine switch, If the warning lamp
illuminates again, contact a Fiat
Dealership.NOTE If there is a fault in the steering
wheel lock, the warning lamp
illuminates. Immediately stop the vehicle
in a safe place and contact a Fiat
Dealership.
57AHA103808
58AHZ100903
59AHA103505
39

Precautions to observe when using
wipers and washers
If the moving wipers become
blocked partway through a sweep by
ice or other deposits on the glass, the
wipers may temporarily stop operating
to prevent the motor from overheating.
In this case, park the vehicle in a safe
place, turn the ignition switch to the
“OFF” position or put the operation
mode in OFF, and then remove the ice
or other deposits. Because the wipers
will start operating again after the wiper
motor cools down, check that the
wipers operate before using them.
Do not use the wipers when the
glass is dry. They may scratch the glass
surface and the blades wear out
prematurely.
Before using the wipers in cold
weather, check that the wiper blades
are not frozen onto the glass. The
motor may burn out if the wipers are
used with the blades frozen onto the
glass.
Avoid using the washer continuously
for more than 20 seconds. Do not
operate the washer when the fluid
reservoir is empty. Otherwise, the motor
may burn out.
Periodically check the level of washer
fluid in the reservoir and refill if required.During cold weather, add a
recommended washer solution that will
not freeze in the washer reservoir.
Failure to do so could result in loss of
washer function and frost damage to
the system components.
WARNING
63)Do not use the screen wiper to remove
layers of snow or ice from the windscreen.
In such conditions, the windscreen wiper
may be subjected to excessive stress and
the motor cut-out switch, which prevents
operation for a few seconds, may
intervene. If operation is not restored,
contact a Fiat Dealership.
64)Streaks of water may cause
unnecessary blade movements.
65)If the washer is used in cold weather,
the washer fluid sprayed against the glass
may freeze, which may hinder visibility.
Warm the glass with the defroster or rear
window demister before using the washer.66)With the ignition switch or the
operation mode in ON and the lever in the
“AUTO” position, the wipers may
automatically operate in the situations
described below. If your hands get
trapped, you could suffer injuries or the
wipers could malfunction. Be sure to turn
the ignition switch to the “LOCK” position
or put the operation mode in OFF, or move
lever to the “OFF” position to deactivate
the rain sensor: when cleaning the outside
surface of the windscreen, if you touch or
wipe with a cloth on top of the rain sensor;
when using an automatic car wash; when a
physical shock is applied to the windscreen
or to the rain sensor.
IMPORTANT
21)Do not activate the rain sensor when
washing the car in an automatic car wash.
55

INFORMATION DISPLAY
Each time you lightly press the multi information display switch (A), the display switches in the following order.
1. Odometer 2. Tripmeter A 3. Tripmeter B 4. Meter illumination control 5. Driving range display 6. Average fuel
consumption display 7. Start&Stop monitor* 8. Outside temperature display* 9. Service reminder (distance) 10. Service
reminder (month)
* — if so equipped
NOTE When the ignition switch or the operation mode is OFF, the driving range display, average fuel consumption display and
outside temperature display are not displayed.
NOTE While driving, the service reminder is not displayed even if you operate the multi information display switch.
184AH1100371
91

INDICATOR AND WARNING LAMPS
1. Front fog lamp indicator lamp* 2. Turn-signal indicator lamps/Hazard warning indicator lamps 3. High-beam indicator lamp
4. Start&Stop indicator lamp* 5. Lane departure warning (LDW) standby indicator lamp (green)* — Lane departure warning
(LDW) lamp (amber)* 6. Position lamp indicator lamp* 7. Lane departure warning (LDW) system ON indicator lamp* 8. Rear
fog lamp indicator lamp 9. Cruise control indicator lamp* 10. Diesel particulate filter (DPF) warning lamp* 11. Diesel preheat
indicator lamp 12. Charge warning lamp 13. Check engine warning lamp 14. Fuel filter indicator lamp 15. A/T (automatic
transmission) fluid temperature warning lamp (vehicles with A/T) 16. Oil pressure warning lamp 17. Start&Stop OFF indicator
lamp* 18. Washer fluid level warning lamp* 19. Multi information display 20. For details, refer to “Warning activation” (if so
equipped) 21. For details, refer to “Warning activation” (if so equipped) 22. Door-ajar warning lamp 23. Seat belt
reminder/warning lamp 24. Anti-lock brake system (ABS) warning lamp 25. Electronic Stability Control (ESC) indicator lamp
26. Electronic Stability Control (ESC) OFF indicator lamp 27. Supplemental restraint system (SRS) warning lamp 28. Brake
warning lamp 29. Rear Differential Lock indicator lamp* 30. 2WD/4WD operation indicator lamp* 31. Low-range indicator
lamp* 32. 2WD/4WD operation indicator lamp* 33. Low-range indicator lamp*
* — if so equipped
194AH1100948
98
KNOWING THE INSTRUMENT PANEL

Warning lamps What it means
SRS warning lamp
There is a supplemental restraint system (“SRS”) warning lamp on the instrument panel. The system
checks itself every time the ignition switch is turned to the “ON” position or the operation mode is put in
ON. The SRS warning lamp will come on for several seconds and then go out. This is normal and
means the system is working properly.
If there is a problem involving one or more of the SRS components, the warning lamp will come on and
stay on.
The SRS warning lamp is shared by the SRS airbag and the seat belt pre-tensioner system.
On vehicles equipped with the ERA-GLONASS, if the ERA-GLONASS system operates, the SRS
warning lamp illuminates.
58) 59)
ABS warning lamp (where provided)
If there is a malfunction in the system, the ABS warning lamp will come on. Under normal conditions, the
ABS warning lamp comes on when the ignition switch is turned to the “ON” position or the operation
mode is put in ON and goes off a few seconds later.
NOTE: On vehicles with the rear differential lock and the Electronic Stability Control (ESC), the ESC and
ABS functions are suspended while the rear differential lock is activated. ESC indicator lamp, ESC OFF
indicator lamp and ABS warning lamp are illuminated while these functions are suspended. It does not
indicate a problem. When the rear differential lock is disengaged, these lamps go out and function again.
Refer to “ESC indicator lamp, ESC OFF indicator lamp”.
If only the ABS warning lamp illuminates:
Avoid hard braking and high-speed driving. Stop the vehicle in a safe place.
Restart the engine and check to see whether the lamp goes out after a few minutes driving; if it then
remains off during driving, there is no problem.
However, if the warning lamp do not disappear, or if they come on again when the vehicle is driven, we
recommend you to have the vehicle checked as soon as possible.
If the ABS warning lamp and brake warning lamp illuminate at the same time:
The ABS and brake force distribution function may not work, so hard braking could make the vehicle
unstable.
Avoid hard braking and high-speed driving.
Stop the vehicle in a safe place and we recommend you to have the vehicle checked.
60) 61)
104
KNOWING THE INSTRUMENT PANEL

WARNING
115)In the following situations, brake
performance may be compromised or the
vehicle may become unstable if brakes are
applied suddenly; consequently, avoid
driving at high speeds or applying the
brakes suddenly. Furthermore, immediately
the vehicle should be brought to a stop in a
safe location and we recommend you to
have it checked. 1 – The brake warning
lamp does not illuminate when the parking
brake is applied or does not turn off when
the parking brake is released.2–The
brake warning lamp and the ABS warning
lamp illuminate at the same time. For
details, refer to “ABS warning lamp”. 3 –
The brake warning lamp remains
illuminated while driving.
116)The vehicle should be brought to a
halt in the following manner when brake
performance has deteriorated. 1 – Depress
the brake pedal harder than usual. Even if
the brake pedal moves down to the very
end of its possible stroke, keep it pressed
down hard. 2 – Should the brakes fail, use
engine braking to reduce your speed and
carefully pull the parking brake lever.
Depress the brake pedal to operate the
stop lamp to alert the vehicles behind you.
IMPORTANT
46)This warning lightwill flash after
starting or during prolonged cranking to
indicate a fault with the glow plug heating
system. If the engine starts, the vehicle can
be used as normal, but a Fiat Dealership
must be contacted as soon as possible.
47)If the diesel preheat indicator lamp
comes on after the engine is started, the
engine speed may not rise above the idling
speed because of fuel freezing. In this case,
keep the engine idling for about
10 minutes, then turn off the ignition switch
or put in OFF the operation mode, and
immediately turn it on or put in ON again to
confirm that the diesel preheat indicator
lamp is off.
48)When this indicator lamp blinks,
electronic stability control function or active
traction control function is operating, which
means that the road is slippery or that your
vehicle’s wheels are beginning to slip. If this
happens, drive slower with less accelerator
input.49)If an abnormal condition occurs in the
system while driving, the
indicator lamp
will illuminate. In these cases, follow these
procedures:1–Ifthetemperature in the
braking system continues to increase due
to continuous brake control on a slippery
road surface, the
indicator lamp will
blink, and operation of the active traction
control function will be suspended to
protect the brake system (the engine
control of the traction control function and
normal brake operation will not be
affected.) Park your vehicle in a safe place.
When the temperature in the braking
system has come down, the indicator lamp
will go off and the electronic stability control
function and active traction control function
will start operating again.2–Ifthe
indicator lamp does not go out even
through the above procedure is followed,
there could be a problem in the system.
Stop the engine and start the engine again
and check whether the
indicator lamp
goes out. If the indicator lamp goes out,
there is no abnormal condition.3–Ifthe
indicator lamp illuminates even after
your vehicle is driven a short distance after
re-starting the engine, we recommend you
to have your vehicle checked as soon as
possible.
50)Prolonged driving with this lamp on
may cause further damage to the emission
control system. It could also affect fuel
economy and drivability.
51)If the lamp does not illuminate when the
ignition switch is turned to the “ON”
position or the operation mode is put in
ON, we recommend you to have the
system checked.
105

NOTE If you continue to press the
“ESC OFF” switch after the electronic
stability control function is turned off,
the “mistaken operation protection
function” will activate and the electronic
stability control function will turn back
on.
NOTE Even if the electronic stability
control function is turned off, it may
activate depending on the vehicle’s
movement.
Active Traction Control function
On slippery surfaces, the active traction
control function prevents the drive
wheels from spinning excessive, thus
helping the vehicle to start moving from
a stopped condition. It also provides
sufficient driving force and steering
performance as the vehicle turns while
pressing the acceleration pedal.
217)
WARNING
201)The brake assist system is not a
device designed to exercise braking force
greater than its capacity. Make sure to
always keep a sufficient distance between
vehicles in front of you without relying too
much on the brake assist system.
202)The ABS cannot prevent accidents. It
is your responsibility to take safety
precautions and to drive carefully.203)To prevent failure of the ABS, be sure
all 4 wheels and tyres are the same size
and the same type.
204)Do not install any aftermarket limited
slip differential (LSD) on your vehicle. The
ABS may stop functioning properly.
205)The ABS exploits the grip available to
the full, but it cannot improve it. Therefore,
you should take great care when driving on
slippery surfaces, without taking
unnecessary risks.
206)When the ABS intervenes and you
notice the brake pedal pulsating, keep the
pedal pushed down and don’t be alarmed.
This will help you to stop in the shortest
distance possible, depending on the road
conditions.
207)If the ABS intervenes, it means you
have almost reached the grip limit between
the tyres and the road surface: slow down
to make sure that you drive in accordance
with the available grip.
208)The ABS cannot overrule the natural
laws of physics, and can’t increase the grip
available according to the condition of the
road.
209)The ABS cannot prevent accidents,
including those due to excessive speed on
corners, driving on low-grip surfaces or
aquaplaning.
210)The capability of the ABS must never
be tested irresponsibly and dangerously, in
such a way as to compromise personal
safety and the safety of others.211)Do not over-rely on the ESC. Even the
ESC cannot prevent the natural laws of
physics from acting on the vehicle. This
system, like any other system, has limits
and cannot help you to maintain traction
and control of the vehicle in all
circumstances. Reckless driving can lead
to accidents. It is the driver’s responsibility
to drive carefully. This means into account
the traffic, road and environmental
conditions.
212)The ESC system cannot prevent
accidents, including those due to excessive
speed on corners, driving on low-grip
surfaces or aquaplaning.
213)Be sure to use the same specified
type and size of tyre on all 4 wheels.
Otherwise, the ESC may not work
correctly.
214)Do not install any aftermarket limited
slip differential (LSD) on your vehicle. The
electronic stability control function may
stop functioning properly.
215)For safety reasons, the “ESC OFF”
switch should only be operated when the
vehicle is stopped.
216)Be sure to keep the electronic stability
control function on while driving in normal
circumstances.
217)When driving a vehicle on a snowy or
icy road, be sure to install snow tyres and
drive the vehicle at moderate speeds.
140
SAFETY

AUXILIARY DRIVING
SYSTEMS
Hill Start Assist (where provided)
The hill start assist makes it easy to
start off on a steep uphill slope by
preventing the vehicle from moving
backwards. It keeps the braking force
for approximately seconds when you
move your foot from the brake pedal to
the accelerator pedal.
77) 78)
218) 219)
To operate
1. Stop the vehicle completely using the
brake pedal.
2. On vehicles equipped with M/T,
place the gearshift lever into the 1st
position. On vehicles equipped with
A/T, place the selector lever into the “D”
position.
NOTE When reversing on an uphill
slope, place the selector lever or
gearshift lever into the “R” position.
3. Release the brake pedal and the hill
start assist will maintain the braking
force applied while stopping for
approximately 2 seconds.
4. Depress the accelerator pedal and
the hill start assist gradually will
decrease the braking force as the
vehicle starts moving.NOTE The hill start assist is activated
when all of the following conditions are
met.
The engine is running (the hill start
assist will not be activated while the
engine is starting or immediately after
the engine is started).
On vehicles equipped with M/T, the
gearshift lever is in the following
position: When starting an uphill slope
forwards > The gearshift lever is in any
position other than “R” (the hill start
assist will operate, even if the gearshift
lever is in the “N” position). When
starting an uphill slope backwards >
The gearshift lever is in the “R” position
(the hill start assist will not operate
when the gearshift lever is in the “N”
position).
On vehicles equipped with A/T, the
selector lever is in any position other
than “P” or “N”.
The vehicle is completely stationary,
with the brake pedal depressed.
The parking brake is released.
NOTE The hill start assist will not
operate if the accelerator pedal is
depressed before the brake pedal is
released.
NOTE The hill start assist also operates
when reversing on an uphill slope.NOTE When the hill start assist is
activated, you may feel the operating
sound. This is a normal result of the hill
start assist operation, and does not
indicate a problem.
Warning indicator
If an abnormal condition occurs in the
system, the indicator lamp
will turn
on.
79) 80)
Power Steering System
The power steering system operates
while the engine is running. It helps
reduce the effort needed to turn the
steering wheel.
The power steering system has
mechanical steering capability in case
the power assist is lost. If the power
assist is lost for some reason, you will
still be able to steer your vehicle, but
you will notice it takes much more effort
to steer. If this happens, have your
vehicle inspected at a Fiat Dealership.
81) 82)
Trailer Stability Assist — TSA
(where provided)
The trailer stability assist system helps
safely running while towing a trailer by
controlling the braking force of each
wheel and engine power in order to
stabilize the motion when detecting the
continuous sway of the vehicle caused
by a trailer.
141
