FIAT FULLBACK 2017 Owner handbook (in English)

The data contained in this publication is intended merely as a guide. Fiat Chrysler Automobiles reserves the right to modify
the models and versions described in this booklet at any time for technical and commercial reasons.
If you have any further questions please consult your FIAT dealer.
Printed in recycled paper without chlorine.
OWNER HANDBOOK
FIATFULLBACK
ENGLISH
COP FULL BACK LUM GB.qxp_500 UM ITA 23/02/16 09:50 Pagina 1

Noi che abbiamo ideato, progettato e costruito il tuo veicolo,
lo conosciamo davvero in ogni singolo dettaglio e componente. Nelle officine autorizzate Fiat Professional Service
trovi tecnici formati direttamente da noi che ti offrono qualità e pr\
ofessionalità in tutti gli interventi di manutenzione. Le officine Fiat Professional sono sempre al tuo fianco pe\
r la manutenzione periodica, i controlli di stagione e per i consigli pratici dei nostri esperti.
Con i Ricambi Originali Fiat Professional, mantieni nel tempo le caratte\
ristiche di affidabilità, comfort e performance per cui hai scelto il tuo nuovo veicolo.
Chiedi sempre i Ricambi Originali dei componenti che utilizziamo per cos\
truire le nostre auto e che ti raccomandiamo perché sono il risultato del nostro costante impegno ne\
lla ricerca e nello sviluppo di tecnologie sempre più innovative.
Per tutti questi motivi affidati ai Ricambi Originali:
i soli appositamente progettati da Fiat Professional per il tuo veicolo.
SICUREZZA:
SISTEMA FRENANTEECOLOGIA: FILTRI ANTIPARTICOLATO, MANUTENZIONE CLIMATIZZATORECOMFORT:
SOSPENSIONI E TERGICRISTALLIPERFORMANCE:
CANDELE, INIETTORI E BATTERIELINEA ACCESSORI:
BARRE PORTA TUTTO, CERCHI
PERCHÈ SCEGLIERE
RICAMBI ORIGINALI
COP FULL BACK LUM IT.qxp_500 UM ITA 23/02/16 09:51 Pagina 2

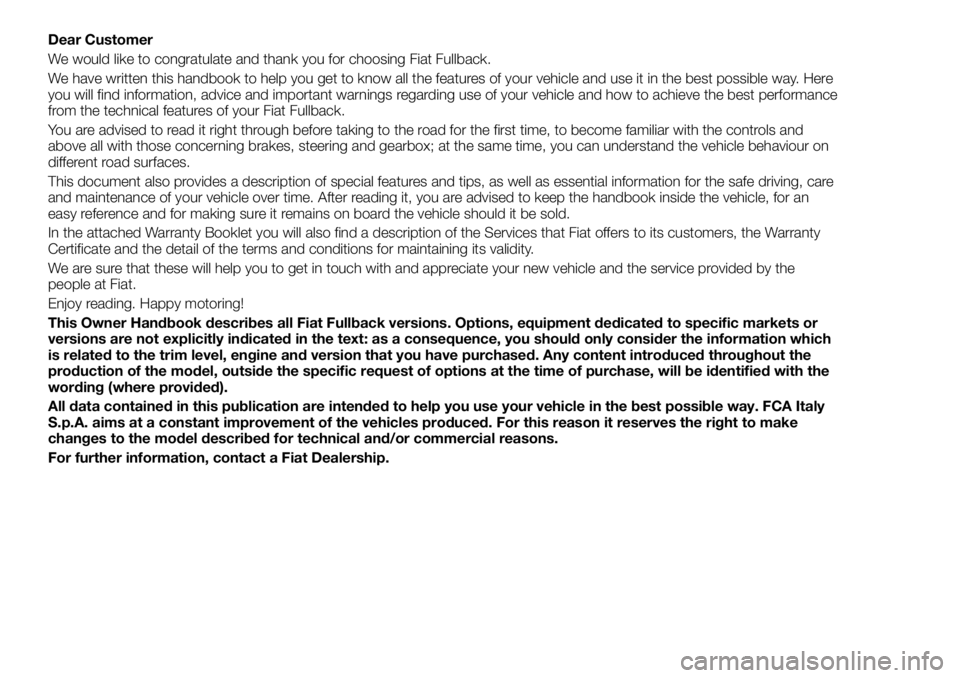

Dear Customer
We would like to congratulate and thank you for choosing Fiat Fullback.
We have written this handbook to help you get to know all the features of your vehicle and use it in the best possible way. Here
you will find information, advice and important warnings regarding use of your vehicle and how to achieve the best performance
from the technical features of your Fiat Fullback.
You are advised to read it right through before taking to the road for the first time, to become familiar with the controls and
above all with those concerning brakes, steering and gearbox; at the same time, you can understand the vehicle behaviour on
different road surfaces.
This document also provides a description of special features and tips, as well as essential information for the safe driving, care
and maintenance of your vehicle over time. After reading it, you are advised to keep the handbook inside the vehicle, for an
easy reference and for making sure it remains on board the vehicle should it be sold.
In the attached Warranty Booklet you will also find a description of the Services that Fiat offers to its customers, the Warranty
Certificate and the detail of the terms and conditions for maintaining its validity.
We are sure that these will help you to get in touch with and appreciate your new vehicle and the service provided by the
people at Fiat.
Enjoy reading. Happy motoring!
This Owner Handbook describes all Fiat Fullback versions. Options, equipment dedicated to specific markets or
versions are not explicitly indicated in the text: as a consequence, you should only consider the information which
is related to the trim level, engine and version that you have purchased. Any content introduced throughout the
production of the model, outside the specific request of options at the time of purchase, will be identified with the
wording (where provided).
All data contained in this publication are intended to help you use your vehicle in the best possible way. FCA Italy
S.p.A. aims at a constant improvement of the vehicles produced. For this reason it reserves the right to make
changes to the model described for technical and/or commercial reasons.
For further information, contact a Fiat Dealership.

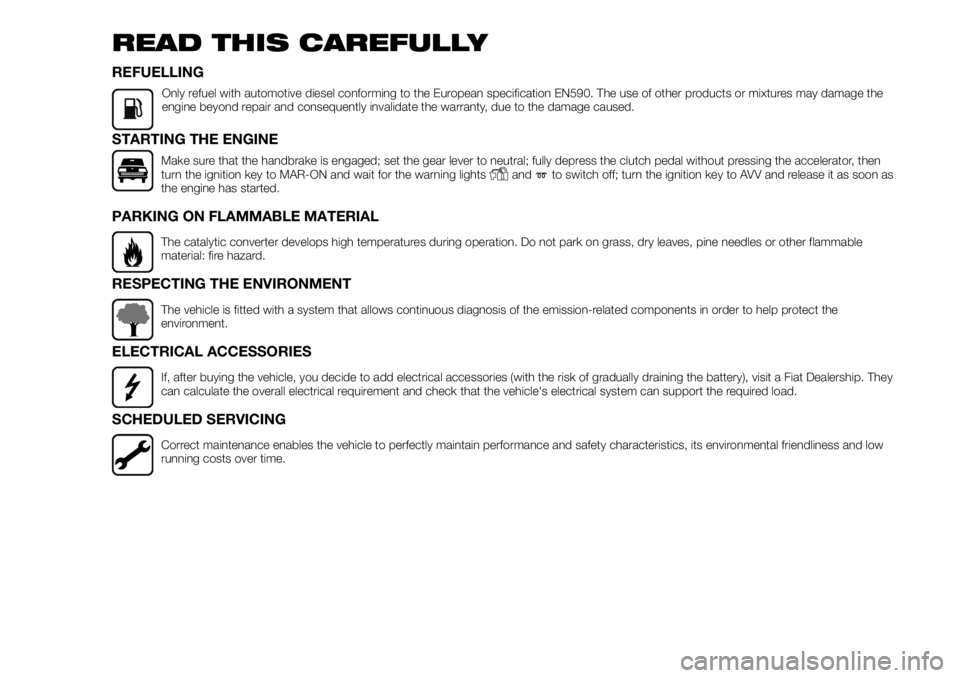

READ THIS CAREFULLY
REFUELLING
Only refuel with automotive diesel conforming to the European specification EN590. The use of other products or mixtures may damage the
engine beyond repair and consequently invalidate the warranty, due to the damage caused.
STARTING THE ENGINE
Make sure that the handbrake is engaged; set the gear lever to neutral; fully depress the clutch pedal without pressing the accelerator, then
turn the ignition key to MAR-ON and wait for the warning lightsandto switch off; turn the ignition key to AVV and release it as soon as
the engine has started.
PARKING ON FLAMMABLE MATERIAL
The catalytic converter develops high temperatures during operation. Do not park on grass, dry leaves, pine needles or other flammable
material: fire hazard.
RESPECTING THE ENVIRONMENT
The vehicle is fitted with a system that allows continuous diagnosis of the emission-related components in order to help protect the
environment.
ELECTRICAL ACCESSORIES
If, after buying the vehicle, you decide to add electrical accessories (with the risk of gradually draining the battery), visit a Fiat Dealership. They
can calculate the overall electrical requirement and check that the vehicle's electrical system can support the required load.
SCHEDULED SERVICING
Correct maintenance enables the vehicle to perfectly maintain performance and safety characteristics, its environmental friendliness and low
running costs over time.

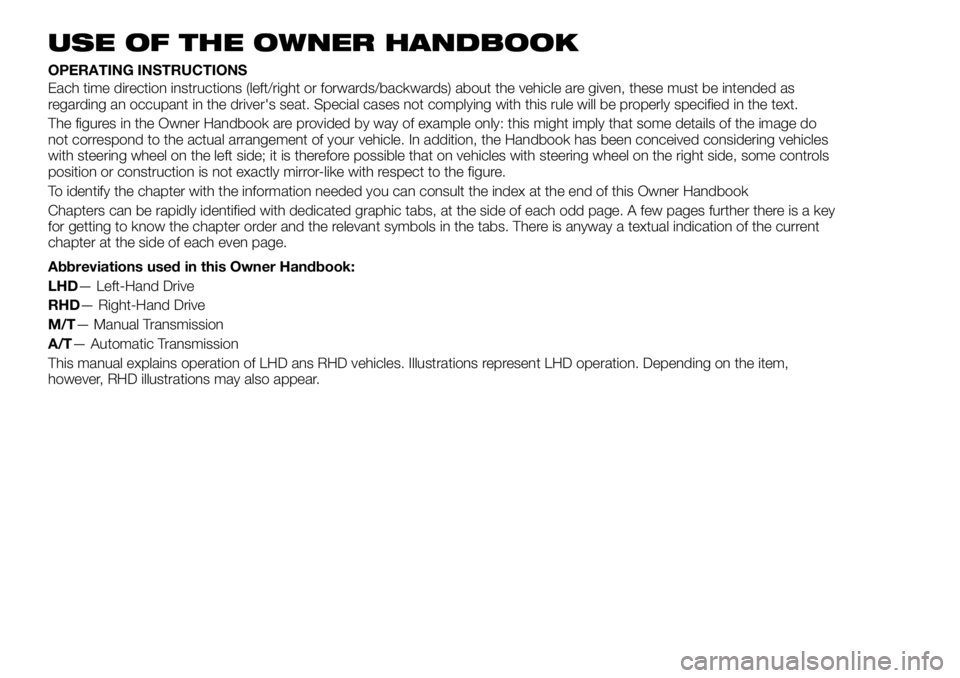

USE OF THE OWNER HANDBOOK
OPERATING INSTRUCTIONS
Each time direction instructions (left/right or forwards/backwards) about the vehicle are given, these must be intended as
regarding an occupant in the driver's seat. Special cases not complying with this rule will be properly specified in the text.
The figures in the Owner Handbook are provided by way of example only: this might imply that some details of the image do
not correspond to the actual arrangement of your vehicle. In addition, the Handbook has been conceived considering vehicles
with steering wheel on the left side; it is therefore possible that on vehicles with steering wheel on the right side, some controls
position or construction is not exactly mirror-like with respect to the figure.
To identify the chapter with the information needed you can consult the index at the end of this Owner Handbook
Chapters can be rapidly identified with dedicated graphic tabs, at the side of each odd page. A few pages further there is a key
for getting to know the chapter order and the relevant symbols in the tabs. There is anyway a textual indication of the current
chapter at the side of each even page.
Abbreviations used in this Owner Handbook:
LHD— Left-Hand Drive
RHD— Right-Hand Drive
M/T— Manual Transmission
A/T— Automatic Transmission
This manual explains operation of LHD ans RHD vehicles. Illustrations represent LHD operation. Depending on the item,
however, RHD illustrations may also appear.

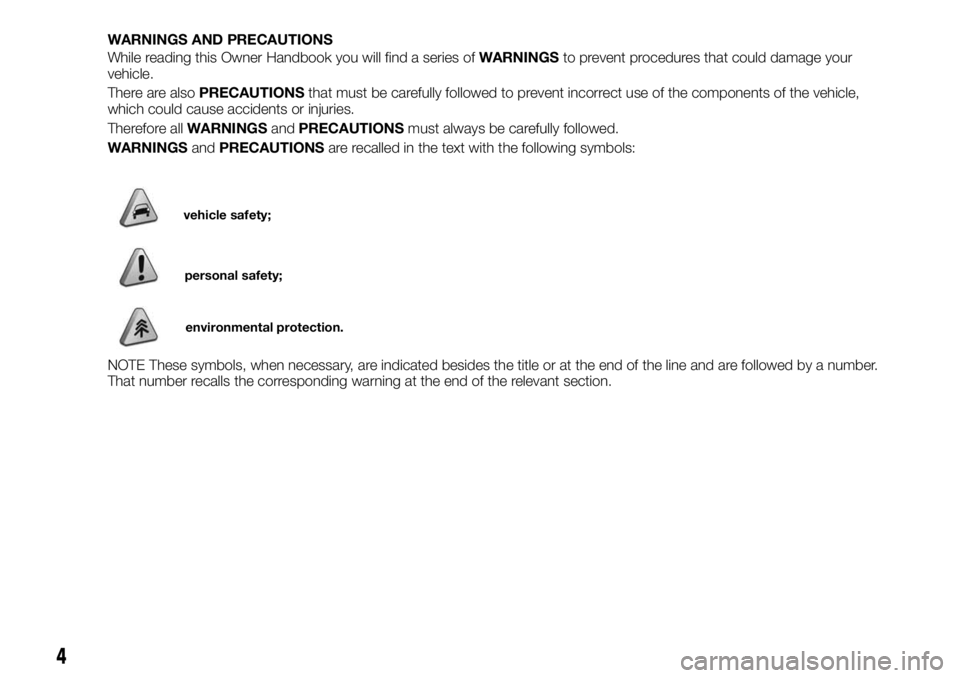

WARNINGS AND PRECAUTIONS
While reading this Owner Handbook you will find a series ofWARNINGSto prevent procedures that could damage your
vehicle.
There are alsoPRECAUTIONSthat must be carefully followed to prevent incorrect use of the components of the vehicle,
which could cause accidents or injuries.
Therefore allWARNINGSandPRECAUTIONSmust always be carefully followed.
WARNINGSandPRECAUTIONSare recalled in the text with the following symbols:
personal safety;
vehicle safety;
environmental protection.
NOTE These symbols, when necessary, are indicated besides the title or at the end of the line and are followed by a number.
That number recalls the corresponding warning at the end of the relevant section.
4

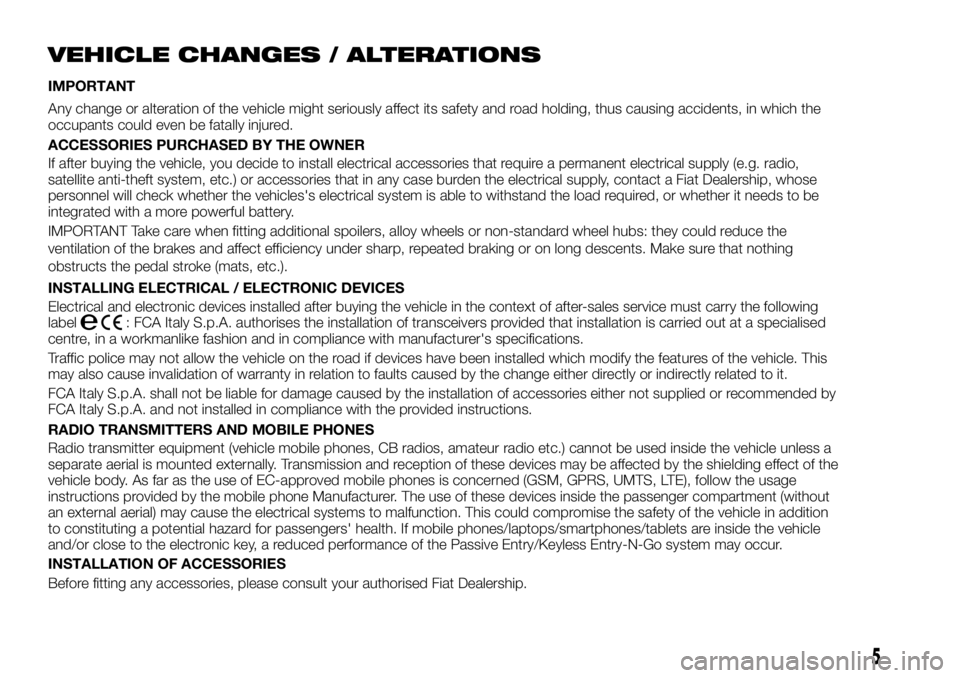

VEHICLE CHANGES / ALTERATIONS
IMPORTANT
Any change or alteration of the vehicle might seriously affect its safety and road holding, thus causing accidents, in which the
occupants could even be fatally injured.
ACCESSORIES PURCHASED BY THE OWNER
If after buying the vehicle, you decide to install electrical accessories that require a permanent electrical supply (e.g. radio,
satellite anti-theft system, etc.) or accessories that in any case burden the electrical supply, contact a Fiat Dealership, whose
personnel will check whether the vehicles's electrical system is able to withstand the load required, or whether it needs to be
integrated with a more powerful battery.
IMPORTANT Take care when fitting additional spoilers, alloy wheels or non-standard wheel hubs: they could reduce the
ventilation of the brakes and affect efficiency under sharp, repeated braking or on long descents. Make sure that nothing
obstructs the pedal stroke (mats, etc.).
INSTALLING ELECTRICAL / ELECTRONIC DEVICES
Electrical and electronic devices installed after buying the vehicle in the context of after-sales service must carry the following
label: FCA Italy S.p.A. authorises the installation of transceivers provided that installation is carried out at a specialised
centre, in a workmanlike fashion and in compliance with manufacturer's specifications.
Traffic police may not allow the vehicle on the road if devices have been installed which modify the features of the vehicle. This
may also cause invalidation of warranty in relation to faults caused by the change either directly or indirectly related to it.
FCA Italy S.p.A. shall not be liable for damage caused by the installation of accessories either not supplied or recommended by
FCA Italy S.p.A. and not installed in compliance with the provided instructions.
RADIO TRANSMITTERS AND MOBILE PHONES
Radio transmitter equipment (vehicle mobile phones, CB radios, amateur radio etc.) cannot be used inside the vehicle unless a
separate aerial is mounted externally. Transmission and reception of these devices may be affected by the shielding effect of the
vehicle body. As far as the use of EC-approved mobile phones is concerned (GSM, GPRS, UMTS, LTE), follow the usage
instructions provided by the mobile phone Manufacturer. The use of these devices inside the passenger compartment (without
an external aerial) may cause the electrical systems to malfunction. This could compromise the safety of the vehicle in addition
to constituting a potential hazard for passengers' health. If mobile phones/laptops/smartphones/tablets are inside the vehicle
and/or close to the electronic key, a reduced performance of the Passive Entry/Keyless Entry-N-Go system may occur.
INSTALLATION OF ACCESSORIES
Before fitting any accessories, please consult your authorised Fiat Dealership.
5

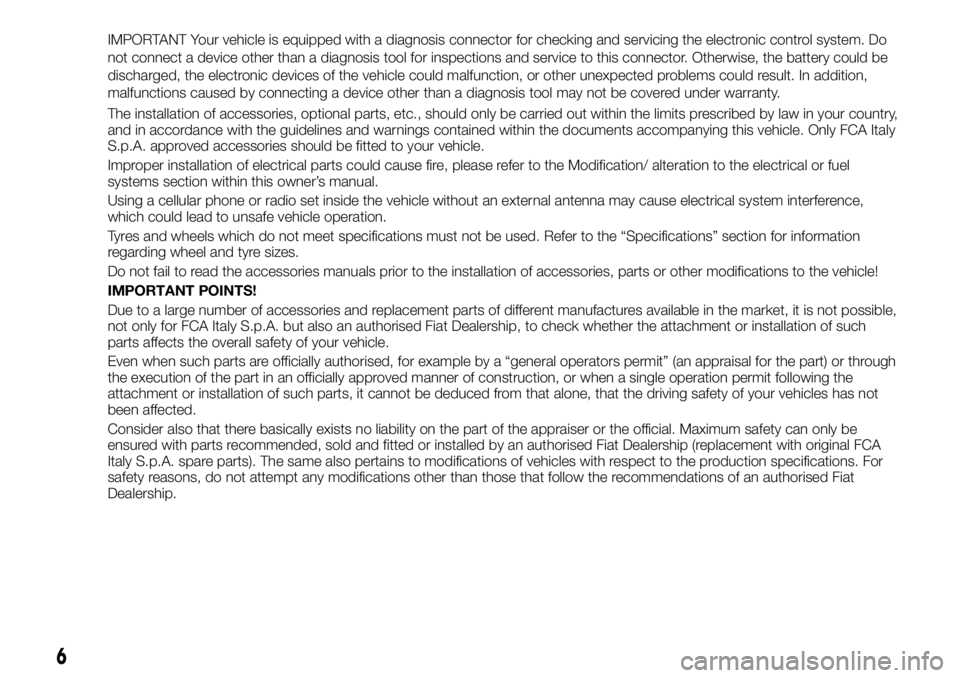

IMPORTANT Your vehicle is equipped with a diagnosis connector for checking and servicing the electronic control system. Do
not connect a device other than a diagnosis tool for inspections and service to this connector. Otherwise, the battery could be
discharged, the electronic devices of the vehicle could malfunction, or other unexpected problems could result. In addition,
malfunctions caused by connecting a device other than a diagnosis tool may not be covered under warranty.
The installation of accessories, optional parts, etc., should only be carried out within the limits prescribed by law in your country,
and in accordance with the guidelines and warnings contained within the documents accompanying this vehicle. Only FCA Italy
S.p.A. approved accessories should be fitted to your vehicle.
Improper installation of electrical parts could cause fire, please refer to the Modification/ alteration to the electrical or fuel
systems section within this owner’s manual.
Using a cellular phone or radio set inside the vehicle without an external antenna may cause electrical system interference,
which could lead to unsafe vehicle operation.
Tyres and wheels which do not meet specifications must not be used. Refer to the “Specifications” section for information
regarding wheel and tyre sizes.
Do not fail to read the accessories manuals prior to the installation of accessories, parts or other modifications to the vehicle!
IMPORTANT POINTS!
Due to a large number of accessories and replacement parts of different manufactures available in the market, it is not possible,
not only for FCA Italy S.p.A. but also an authorised Fiat Dealership, to check whether the attachment or installation of such
parts affects the overall safety of your vehicle.
Even when such parts are officially authorised, for example by a “general operators permit” (an appraisal for the part) or through
the execution of the part in an officially approved manner of construction, or when a single operation permit following the
attachment or installation of such parts, it cannot be deduced from that alone, that the driving safety of your vehicles has not
been affected.
Consider also that there basically exists no liability on the part of the appraiser or the official. Maximum safety can only be
ensured with parts recommended, sold and fitted or installed by an authorised Fiat Dealership (replacement with original FCA
Italy S.p.A. spare parts). The same also pertains to modifications of vehicles with respect to the production specifications. For
safety reasons, do not attempt any modifications other than those that follow the recommendations of an authorised Fiat
Dealership.
6

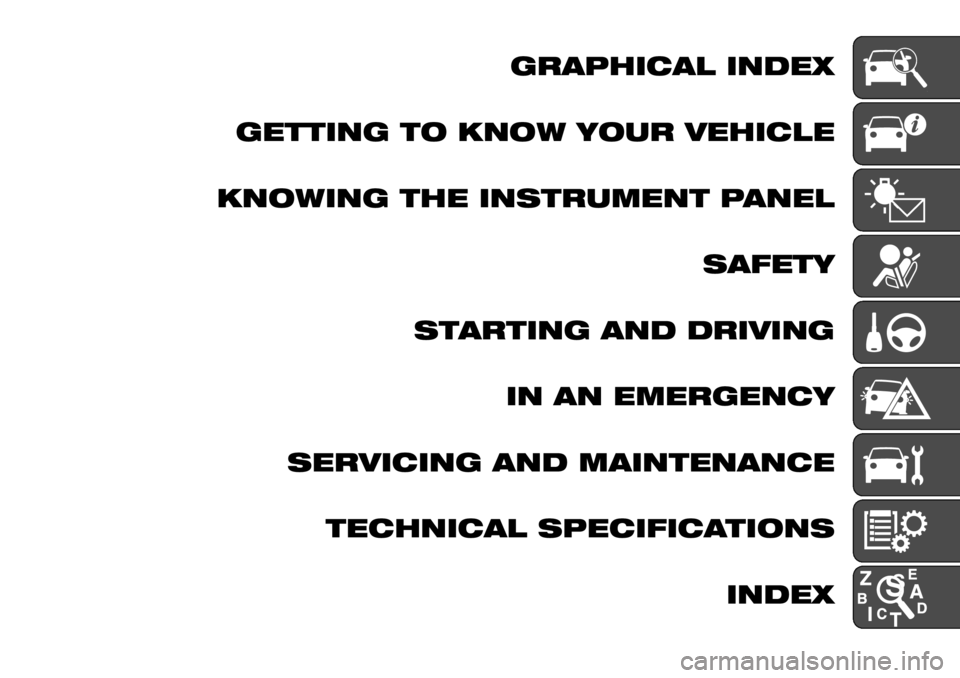

GRAPHICAL INDEX
GETTING TO KNOW YOUR VEHICLE
KNOWING THE INSTRUMENT PANEL
SAFETY
STARTING AND DRIVING
IN AN EMERGENCY
SERVICING AND MAINTENANCE
TECHNICAL SPECIFICATIONS
INDEX
