TRAILER TOWING
In order to tow a trailer with your
vehicle, when having a trailer towing
device mounted that meets all relevant
regulations in your area, consult a Fiat
Dealership.
Check that your towbar coupling ball
does not obscure your vehicle’s licence
plate when the trailer or caravan is
disconnected. If it obscures the licence
plate, please remove the towbar
coupling ball. And if the towbar
coupling ball is lockable by using a key
or any kind of tools, please remove the
coupling ball and use a towbar coupling
ball which can be removed or
repositioned without the use of a key or
any kind of tools instead.
The regulations concerning the towing
of a trailer may differ from country to
country. You are advised to obey the
regulations in each area.
NOTE If you are going to tow a trailer,
pay careful attention to the following
points.
89)
Maximum towable weight with brake
and maximum trailernose weight
Never exceed the maximum towable
weight with brake and the maximum
trailer-nose weight as listed in the
specifications. (Refer to “Vehicle
weight”.If you tow a trailer at an altitude
of more than 1,000 m above sea-level,reduce your weight by 10 % of the
gross combination weight for every
increase of 1,000 m above sea-level, as
the engine output is lowered owing to
decrease in atmospheric pressure.
Towing bar mounting specifications
See the following table for fixing points
(A) for the towing bar.
Single
CabClub
CabDouble
Cab
1 30mm 30mm 30mm
2 55mm 55mm 55mm
3 60mm 60mm 60mm
4 810 mm 925 mm 925 mm
5 19.5 mm 19.5 mm 19.5 mm
6 47,5 mm 47,5 mm 47,5 mm
7 88mm 88mm 88mm
8 184 mm148 mm
(1)184 mm(2)
148 mm(1)184 mm(2)
9 494 mm494 —
544 mm
546 mm
(3)
494 —
534 mm
505 —
536 mm
(4)
10 895 mm 1,010 mm 1,010 mm
11 1,367 mm 1,482 mm 1,482 mm
12 502,5 mm 502,5 mm 502,5 mm
13 541 mm 541 mm 541 mm
(1) Vehicles without heavy duty suspension
(2) Vehicles with heavy duty suspension
(3) Vehicles equipped with 17 inch tyres
(4) 2WD vehicles equipped with 245/70R16 tyres,
4WD vehicles equipped with 17 inch tyres
Item 9: at kerb weight.
148AHA114459
149AHA114462
79

NOTE The values under item 9 are
applicable to unladen vehicles. The
value can also be varied depending on
the tyre size, optional equipment and
suspension conditions.
Operating hints
Have your vehicle serviced prior to
towing a heavy trailer, taking particular
care of the state of engine tune, the
condition of brakes, steering and tyres.
Adjust tyre pressures to those
specifications at trailer towing (refer to
“tyre inflation pressure”). Check the
tyres, wiring and brakes (if fitted) on the
trailer.
Leave plenty of room between the
front of your vehicle and the preceding
vehicle. If the trailer begins to sway or
becomes difficult to handle, gently slow
down or apply the independent trailer
brakes (if fitted) NOT the vehicle brakes.
Stop the vehicle and trailer in a safe
location. One cause of swaying is poor
trailer balance and until this has been
overcome the swaying will recur.
Relocated the load in your trailer and
re-assess the problem.
Be sure that the driving speed does
not exceed 100 km/h for trailer
operation.
It is also recommended that you
obey the local regulations in case
driving speed with a trailer is limited to
less than 100 km/h.
To prevent the clutch from slipping
(vehicle with a M/T only), do not rev the
engine more than is required when
starting off.
To prevent shocks from the overrun
brake, depress the brake pedal lightly at
first and then more strongly.
To make full use of engine braking,
change to a lower gear before
descending a slope.
The body, brakes, clutch, and
chassis will be under additional strain
when towing a trailer.
The heavier weight and higher rolling
and air resistance will increase fuel
consumption.
Additional precautions for vehicles
equipped with an automatic
transmission
It is recommended a lower gear in
sports mode on slopes or at low speed,
taking care to keep the engine speed
below the red zone.
WARNING
89)Danger of Accident! A towing bar
should be fitted according to Fiat
Dealership guidelines.
INTERIOR FEATURES
SUN VISORS
A — To eliminate front glare
B — To eliminate side glare
Card holder
(Where provided)
Cards can be slipped into the holder (A)
on the back of the sun visor.
150AHA105958
151AHA106548
80
GETTING TO KNOW YOUR VEHICLE

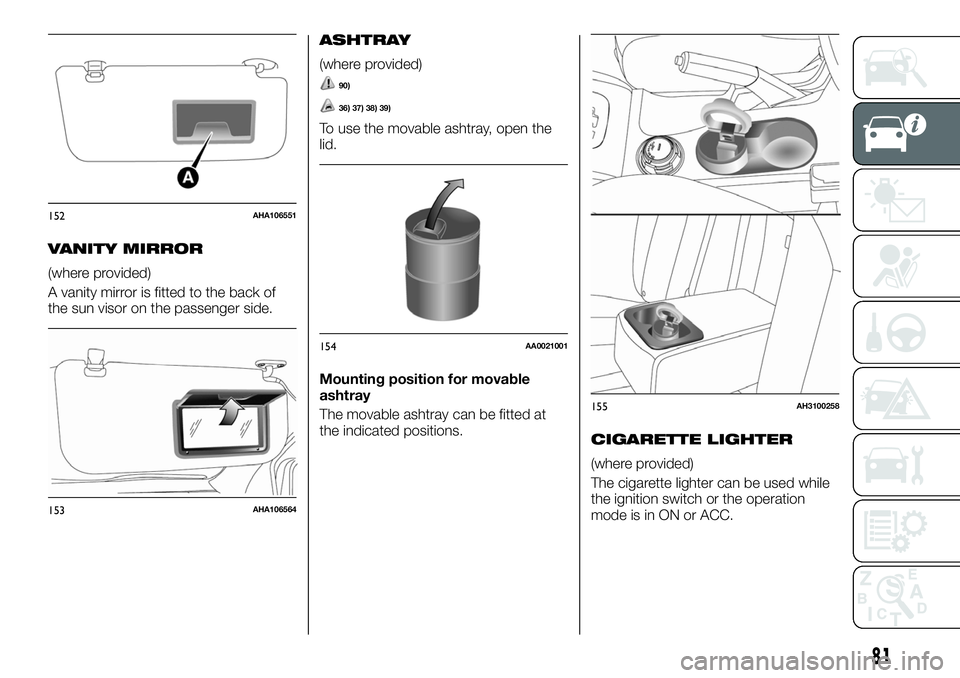

VANITY MIRROR
(where provided)
A vanity mirror is fitted to the back of
the sun visor on the passenger side.
ASHTRAY
(where provided)
90)
36) 37) 38) 39)
To use the movable ashtray, open the
lid.
Mounting position for movable
ashtray
The movable ashtray can be fitted at
the indicated positions.
CIGARETTE LIGHTER
(where provided)
The cigarette lighter can be used while
the ignition switch or the operation
mode is in ON or ACC.
152AHA106551
153AHA106564
154AA0021001
155AH3100258
81

A — Push all the way in.
The cigarette lighter will automatically
return to its original position with a
“click” when ready. Pull it out for use.
After use, insert the cigarette lighter to
its original position in the socket.
NOTE Do not leave the cigarette lighter
removed from its socket, because the
socket might become clogged by
foreign material and be short-circuited.
91) 92) 93) 94) 95)
ACCESSORY SOCKET
(where provided)
The accessory socket can be used
while the ignition switch or the
operation mode is in ON or ACC. To
use a plug-in type accessory, open the
lid, and insert the plug in the accessory
socket.
40) 41)
DIGITAL CLOCK
(where provided)
The digital clock indicates the time with
the ignition switch or the operation
mode is in ON or ACC.
To set the time
Set the time by pressing the various
buttons as described below.1. To adjust the hour
2. To adjust the minutes
3. To reset the minutes to zero
If the battery cables are disconnected
during repairs or for any other reason,
reset the clock to the correct time after
they are reconnected.
STORAGE SPACES
37)
96)
1. Glove box 2. Sunglasses holder
3. Floor console box 4. Centre
console under tray
156AHA104805157AHA101644
158AHA105961
159AHA105974
82
GETTING TO KNOW YOUR VEHICLE

A — To lock
B — To unlock
C — To open, push the button
NOTE When the lamps are illuminated
with the lamp switch in the
,,
or “AUTO” position (vehicles with
automatic lamp control), the glove box
lamp illuminates, refer to “Combination
headlamps and dipper switch”.Centre console under tray
The centre console under tray is on the
floor console part.
Type 1
Type 2
NOTE The centre console under tray is
removable, so it is also possible to use
as storage space.NOTE When using a commercially
available USB connector cable
connected to the USB input terminal or
commercially available HDMI connector
cable connected to the HDMI input
terminal, if you hold up extra length of
the cable in the storage space and
install the tray, you can use only the
necessary length cable pulled out from
the storage space.
Do not use the centre console under
tray as an ashtray. This could cause a
fire or the tray will be damaged
Floor console box
Upper and lower boxes are located
inside the floor console box. The floor
console box can also be used as an
armrest.
160AHA106160161AHA105365
162AHA101686
163AHZ100567
83
Glove box
The glove box can be locked and
unlocked using the key.

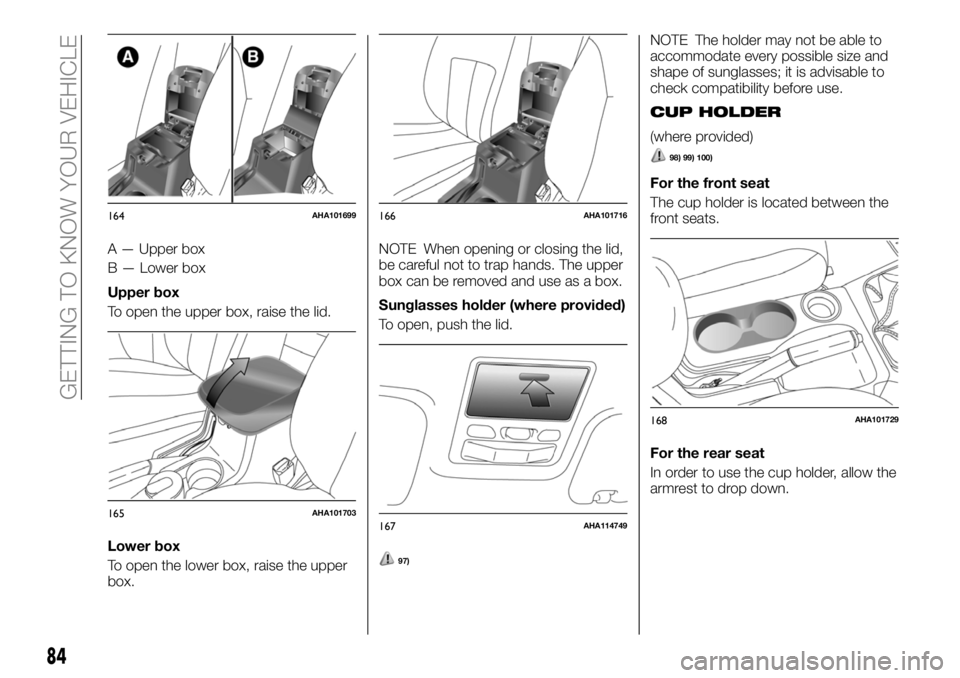

A — Upper box
B — Lower box
Upper box
To open the upper box, raise the lid.
Lower box
To open the lower box, raise the upper
box.NOTE When opening or closing the lid,
be careful not to trap hands. The upper
box can be removed and use as a box.
Sunglasses holder (where provided)
To open, push the lid.
97)
NOTE The holder may not be able to
accommodate every possible size and
shape of sunglasses; it is advisable to
check compatibility before use.
CUP HOLDER
(where provided)
98) 99) 100)
For the front seat
The cup holder is located between the
front seats.
For the rear seat
In order to use the cup holder, allow the
armrest to drop down.
164AHA101699
165AHA101703
166AHA101716
167AHA114749
168AHA101729
84
GETTING TO KNOW YOUR VEHICLE

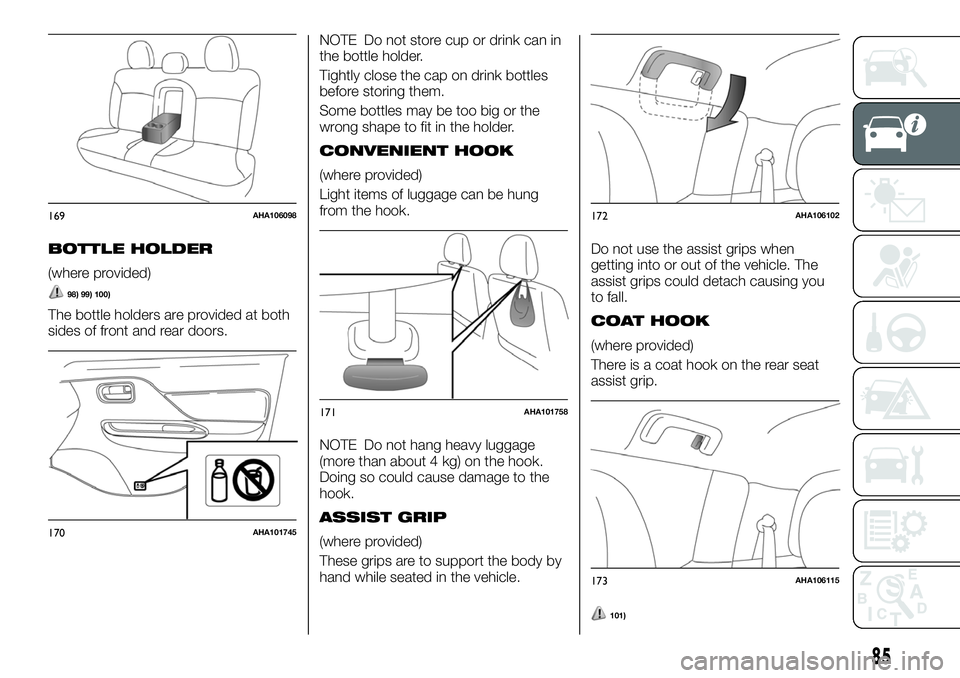

BOTTLE HOLDER
(where provided)
98) 99) 100)
The bottle holders are provided at both
sides of front and rear doors.NOTE Do not store cup or drink can in
the bottle holder.
Tightly close the cap on drink bottles
before storing them.
Some bottles may be too big or the
wrong shape to fit in the holder.
CONVENIENT HOOK
(where provided)
Light items of luggage can be hung
from the hook.
NOTE Do not hang heavy luggage
(more than about 4 kg) on the hook.
Doing so could cause damage to the
hook.
ASSIST GRIP
(where provided)
These grips are to support the body by
hand while seated in the vehicle.Do not use the assist grips when
getting into or out of the vehicle. The
assist grips could detach causing you
to fall.
COAT HOOK
(where provided)
There is a coat hook on the rear seat
assist grip.
101)
169AHA106098
170AHA101745
171AHA101758
172AHA106102
173AHA106115
85

WARNING
90)Don’t put papers and other things that
burn into your ashtrays. If you do,
cigarettes or other smoking materials could
set them on fire, causing damage.
91)Do not touch the heating element or
the cigarette lighter housing, hold the knob
only to prevent burns.
92)Do not allow children to operate or play
with the cigarette lighter as burns may
occur.
93)Do not use any electric appliance that
is not approved by FCA. Doing so could
damage the socket. If you used the
cigarette lighter after damaging the socket,
the cigarette lighter might pop out or fail to
come out after being pushed in.
94)Something is wrong with the cigarette
lighter if it does not pop back out within
approximately 30 seconds of being pushed
in. Pull it out and have the problem
corrected at Fiat Dealership.
95)When the cigarette lighter socket is
used as a power source for an electric
appliance, be sure that the electric
appliance operates at 12 V and has an
electric capacity of 120 W or less. In
addition, long use of the electric appliance
without running the engine may run down
the battery.
96)Keep the lids of storage spaces closed
while driving the vehicle. A lid or the
contents of a storage space could
otherwise cause injuries.
97)The holder should not be used to store
anything heavier than sunglasses. These
objects could drop out.98)Do not drink beverages while driving.
This is distracting and could cause an
accident.
99)Drinks could be spilled by the vibration
and jolts while driving. If the spilt drink is
very hot, you could be burnt.
100)Do not spray water or spill beverages
inside the vehicle. If the switches, wires, or
electrical components become wet, they
could malfunction or cause a vehicle fire. If
you accidentally spill a beverage, wipe up
as much liquid as possible and immediately
consult a Fiat Dealership.
101)Do not put a hanger or any heavy or
pointed object on the coat hook. If the
curtain airbag was activated, any such item
could be propelled away with great force
and could prevent the curtain airbag from
inflating correctly. Hang clothes directly on
the coat hook (without using a hanger).
Make sure there are no heavy or sharp
objects in the pockets of clothes that you
hang on the coat hook.
IMPORTANT
36)When the accessory socket is not in
use, be sure to close the lid, because the
socket might become clogged by foreign
material and be short-circuited.
37)Never leave lighters, canned
carbonated beverage, and spectacles in
the cabin when parking the vehicle in hot
sunshine. The cabin will become extremely
hot, so lighters and other flammable items
may catch fire and unopened drink cans
may rupture. Also, spectacles with plastic
lenses or materials could deform or crack.38)Put out matches and cigarettes before
they are placed in the ashtray.
39)Always close the ashtray. If left open,
other cigarette butts in the ashtray may be
rekindled.
40)Be sure to use a “plug-in” type
accessory operating at 12 V and at 120 W
or less. When using more than one socket
at the same time, make sure that the
electrical accessories are 12 V accessories
and that the total power consumption does
not exceed 120 W.
41)Long use of the electric appliance
without running the engine may run down
the battery.
86
GETTING TO KNOW YOUR VEHICLE

FUEL SELECTION
Recommended fuel:Cetane number
(EN590) 51 or higher
42) 43) 45) 46)
NOTE For diesel fuel, due to the
separation of paraffin, the fluidity
decreases considerably as the
temperature falls. Because of this fact
there are two kinds of fuel: “summer”
and “winter”. This must be considered
in winter use. Select either of the two
kinds of fuel in accordance with
ambient temperature.
Above -5 °C: “Summer” diesel
Below -5 °C: “Winter” diesel
When travelling abroad, find out in
advance about the fuels served in local
service stations.
Poor-quality diesel fuel can cause
deposits to form in the injector, resulting
in black smoke and rough idling.
If these problems occur, you are
advised to add a cleaning additive to
the diesel fuel when you refuel the
vehicle. The additive will break up and
remove the deposits, thereby returning
the engine to a normal condition.
Be sure to use a FCA GENUINE
DIESEL FUEL SYSTEM CLEANER.
Using an unsuitable additive could
make the engine malfunction. For
details, please contact your Fiat
Dealsership.Graphical expression for consumer
information
B7: Diesel fuel containing up to 7%
(V/V) Fatty Acid Methyl Esters – Eg. EN
590 compliant diesel.
The diesel engine are compatible with
B7 type diesel (containing 7% fatty acid
methyl esters) conforming to European
standards EN590.
47)
IMPORTANT
42)Diesel-powered vehicles to comply with
the Euro 4 and Euro 5 regulation are
designed to use only diesel fuel that meets
the EN 590 standard. Use of any other type
of diesel fuel would adversely affect the
engine’s performance and durability.
43)Your vehicle is designed to use only
diesel fuel that meets the EN 590 standard.
Use of any other type of diesel fuel (bio
diesel, methylester, etc.) would adversely
affect the engine’s performance and
durability.
44)For diesel-powered vehicles, if you
continuously use fuel that contains more
than 7 % bio-diesel, the impurities in the
bio-diesel could precipitate. If this occurs,
the properties of the fuel in the fuel tank will
change, which could adversely affect the
engine, fuel filter, and other components,
leading to engine problems. If the engine is
not operating properly, switch to fuel that
contains7%orless biodiesel as soon as
possible and have the vehicle checked at
an authorised Fiat dealership.
45)For diesel engines, only use diesel fuel
for motor vehicles in accordance with EN
590 European specifications. The use of
other products or mixtures may damage
the engine beyond repair and consequently
invalidate the warranty, due to the damage
caused. If you accidentally introduce other
types of fuel into the tank, do not start the
engine. Empty the tank. If the engine has
been run for even an extremely limited
amount of time, you must not only drain the
fuel tank, but the rest of the supply circuit
as well.
174B7
87

46)If proper “winter” fuel is not used in
winter, the diesel preheat indicator lamp
may blink and the engine speed may not
rise above the idling speed because of fuel
freezing. In this case, keep the engine idling
for approximately 10 minutes, then turn off
the ignition switch or put the operation
mode in OFF and immediately turn it on or
put in ON again to confirm that the diesel
preheat indicator lamp is off. Refer to
“Diesel preheat indicator lamp”.
47)Do not use more than 7%
concentration of fatty acid methyl esters
(bio diesel) by volume. Use of more than
7% concentration would adversely affect
the engine’s performance and durability.FILLING THE FUEL
TANK
102) 103) 104) 105) 106) 107) 108) 109) 110) 111) 112)
Fuel tank capacity: 75 litres.
1. Before filling with fuel, stop the
engine.
2. The fuel tank filler is located on the
rear left side of your vehicle.
Type 1,2
1. Open the fuel tank filler door with the
release lever located below the
instrument panel.
Type 1
.Type 2
2. Open the fuel tank filler tube by
slowly turning the cap anticlockwise.
Type 1
175AHA105802
176AHA105815
177AHA105189
88
GETTING TO KNOW YOUR VEHICLE
