FIAT FULLBACK 2018 Owner handbook (in English)

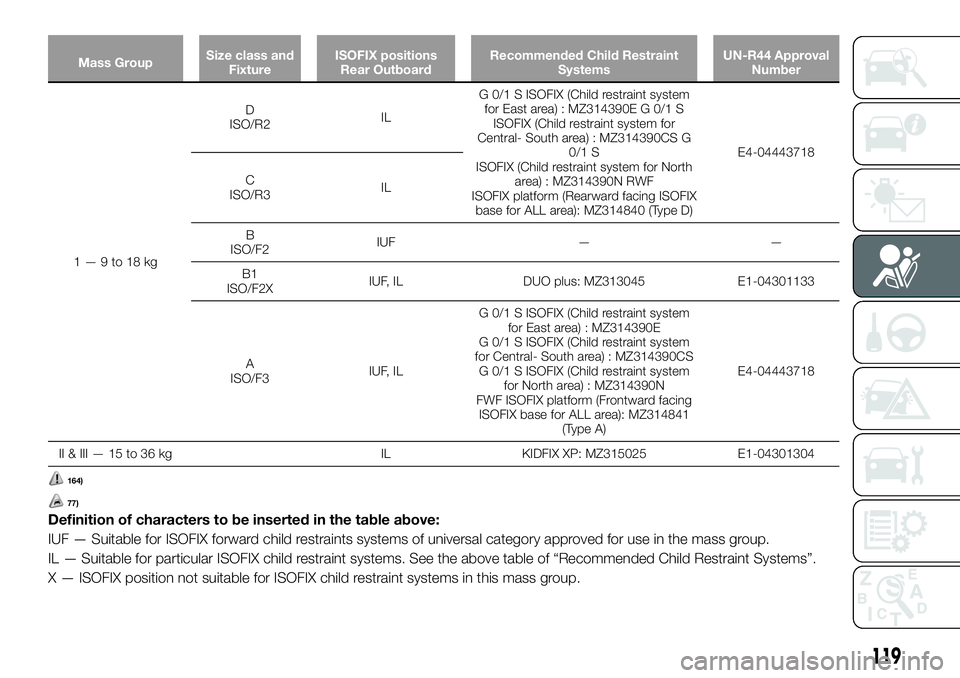

Mass GroupSize class and
FixtureISOFIX positions
Rear OutboardRecommended Child Restraint
SystemsUN-R44 Approval
Number
1—9to18kgD
ISO/R2ILG 0/1 S ISOFIX (Child restraint system
for East area) : MZ314390E G 0/1 S
ISOFIX (Child restraint system for
Central- South area) : MZ314390CS G
0/1 S
ISOFIX (Child restraint system for North
area) : MZ314390N RWF
ISOFIX platform (Rearward facing ISOFIX
base for ALL area): MZ314840 (Type D)E4-04443718
C
ISO/R3IL
B
ISO/F2IUF — —
B1
ISO/F2XIUF, IL DUO plus: MZ313045 E1-04301133
A
ISO/F3IUF, ILG 0/1 S ISOFIX (Child restraint system
for East area) : MZ314390E
G 0/1 S ISOFIX (Child restraint system
for Central- South area) : MZ314390CS
G 0/1 S ISOFIX (Child restraint system
for North area) : MZ314390N
FWF ISOFIX platform (Frontward facing
ISOFIX base for ALL area): MZ314841
(Type A)E4-04443718
II & III — 15 to 36 kg IL KIDFIX XP: MZ315025 E1-04301304
164)
77)
Definition of characters to be inserted in the table above:
IUF — Suitable for ISOFIX forward child restraints systems of universal category approved for use in the mass group.
IL — Suitable for particular ISOFIX child restraint systems. See the above table of “Recommended Child Restraint Systems”.
X — ISOFIX position not suitable for ISOFIX child restraint systems in this mass group.
119

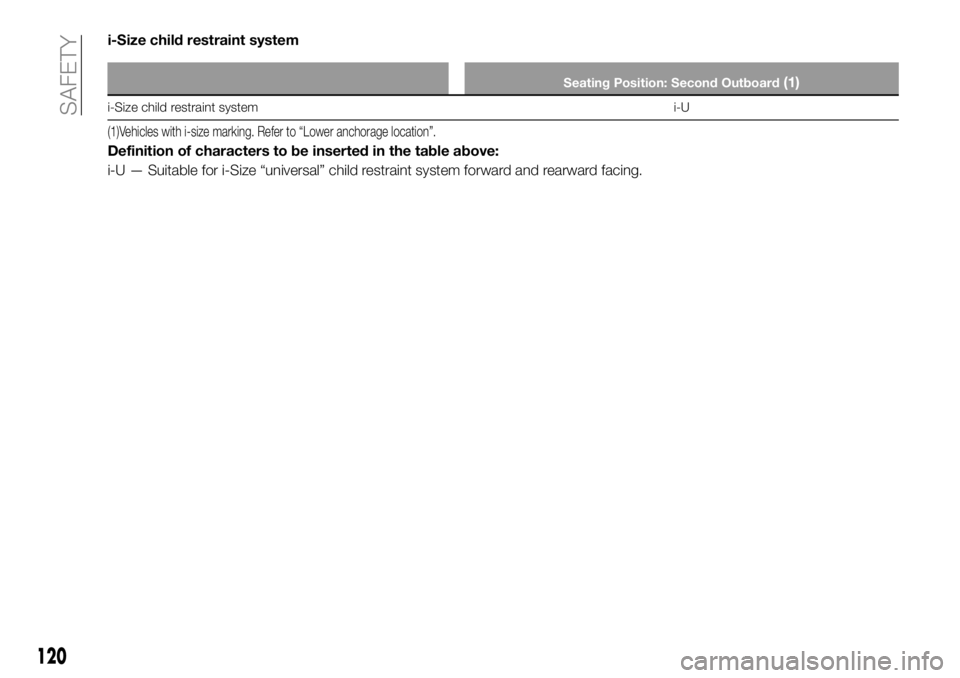

i-Size child restraint system
Seating Position: Second Outboard(1)
i-Size child restraint systemi-U
(1)Vehicles with i-size marking. Refer to “Lower anchorage location”.
Definition of characters to be inserted in the table above:
i-U — Suitable for i-Size “universal” child restraint system forward and rearward facing.
120
SAFETY

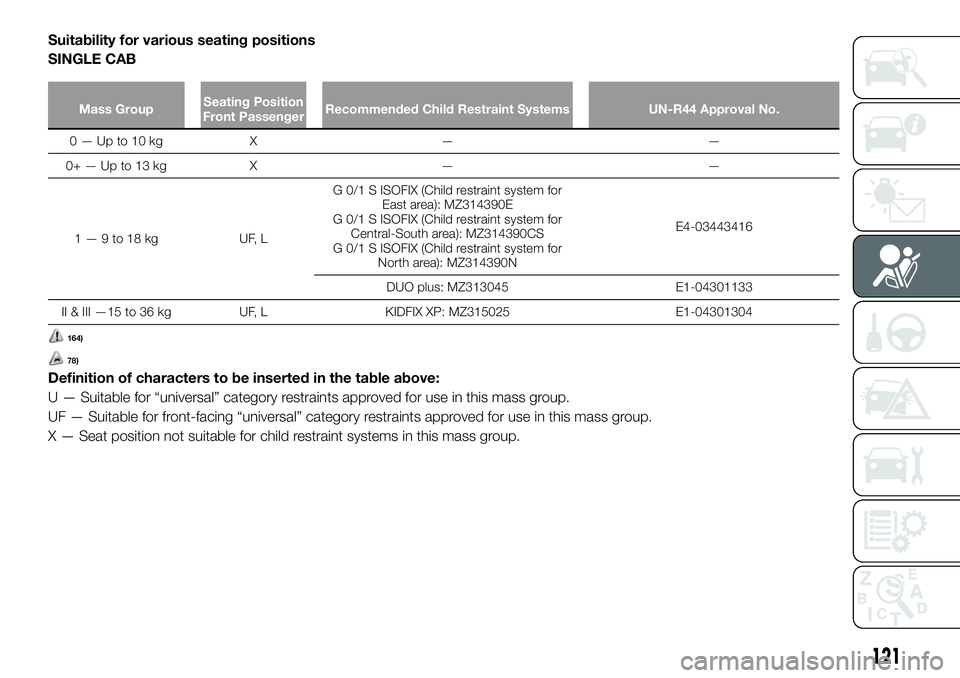

Suitability for various seating positions
SINGLE CAB
Mass GroupSeating Position
Front PassengerRecommended Child Restraint Systems UN-R44 Approval No.
0—Upto10kg X — —
0+—Upto13kg X — —
1—9to18kg UF,LG 0/1 S ISOFIX (Child restraint system for
East area): MZ314390E
G 0/1 S ISOFIX (Child restraint system for
Central-South area): MZ314390CS
G 0/1 S ISOFIX (Child restraint system for
North area): MZ314390NE4-03443416
DUO plus: MZ313045 E1-04301133
II & III —15 to 36 kg UF, L KIDFIX XP: MZ315025 E1-04301304
164)
78)
Definition of characters to be inserted in the table above:
U — Suitable for “universal” category restraints approved for use in this mass group.
UF — Suitable for front-facing “universal” category restraints approved for use in this mass group.
X — Seat position not suitable for child restraint systems in this mass group.
121

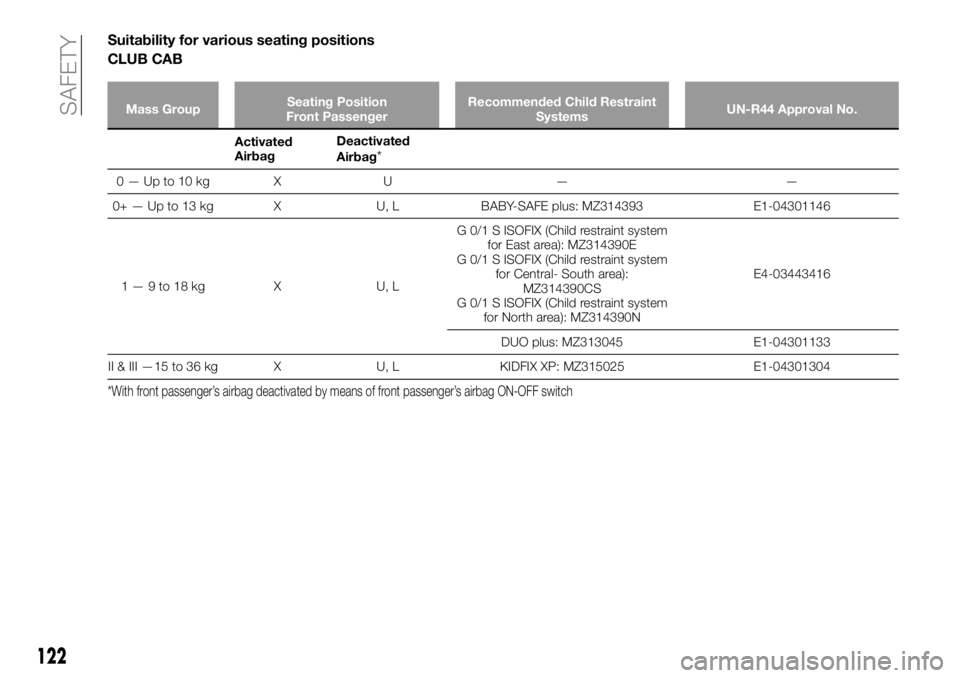

Suitability for various seating positions
CLUB CAB
Mass GroupSeating Position
Front PassengerRecommended Child Restraint
SystemsUN-R44 Approval No.
Activated
AirbagDeactivated
Airbag*
0—Upto10kg X U — —
0+ — Up to 13 kg X U, L BABY-SAFE plus: MZ314393 E1-04301146
1—9to18kg X U,LG 0/1 S ISOFIX (Child restraint system
for East area): MZ314390E
G 0/1 S ISOFIX (Child restraint system
for Central- South area):
MZ314390CS
G 0/1 S ISOFIX (Child restraint system
for North area): MZ314390NE4-03443416
DUO plus: MZ313045 E1-04301133
II & III —15 to 36 kg X U, L KIDFIX XP: MZ315025 E1-04301304
*With front passenger’s airbag deactivated by means of front passenger’s airbag ON-OFF switch
122
SAFETY

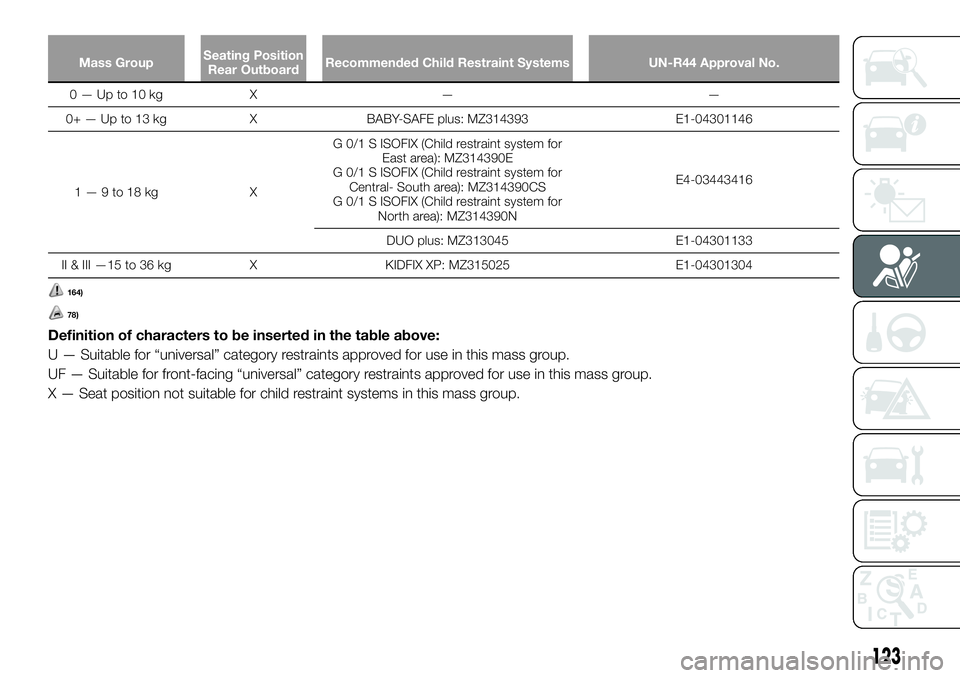

Mass GroupSeating Position
Rear OutboardRecommended Child Restraint Systems UN-R44 Approval No.
0—Upto10kg X — —
0+ — Up to 13 kg X BABY-SAFE plus: MZ314393 E1-04301146
1—9to18kg XG 0/1 S ISOFIX (Child restraint system for
East area): MZ314390E
G 0/1 S ISOFIX (Child restraint system for
Central- South area): MZ314390CS
G 0/1 S ISOFIX (Child restraint system for
North area): MZ314390NE4-03443416
DUO plus: MZ313045 E1-04301133
II & III —15 to 36 kg X KIDFIX XP: MZ315025 E1-04301304
164)
78)
Definition of characters to be inserted in the table above:
U — Suitable for “universal” category restraints approved for use in this mass group.
UF — Suitable for front-facing “universal” category restraints approved for use in this mass group.
X — Seat position not suitable for child restraint systems in this mass group.
123

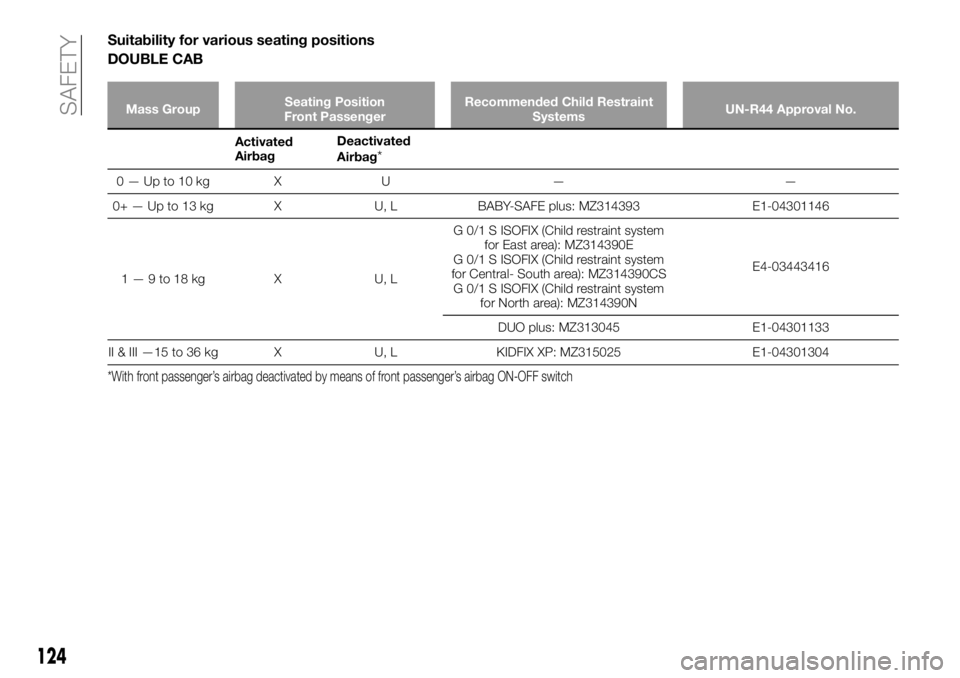

Suitability for various seating positions
DOUBLE CAB
Mass GroupSeating Position
Front PassengerRecommended Child Restraint
SystemsUN-R44 Approval No.
Activated
AirbagDeactivated
Airbag*
0—Upto10kg X U — —
0+ — Up to 13 kg X U, L BABY-SAFE plus: MZ314393 E1-04301146
1—9to18kg X U,LG 0/1 S ISOFIX (Child restraint system
for East area): MZ314390E
G 0/1 S ISOFIX (Child restraint system
for Central- South area): MZ314390CS
G 0/1 S ISOFIX (Child restraint system
for North area): MZ314390NE4-03443416
DUO plus: MZ313045 E1-04301133
II & III —15 to 36 kg X U, L KIDFIX XP: MZ315025 E1-04301304
*With front passenger’s airbag deactivated by means of front passenger’s airbag ON-OFF switch
124
SAFETY

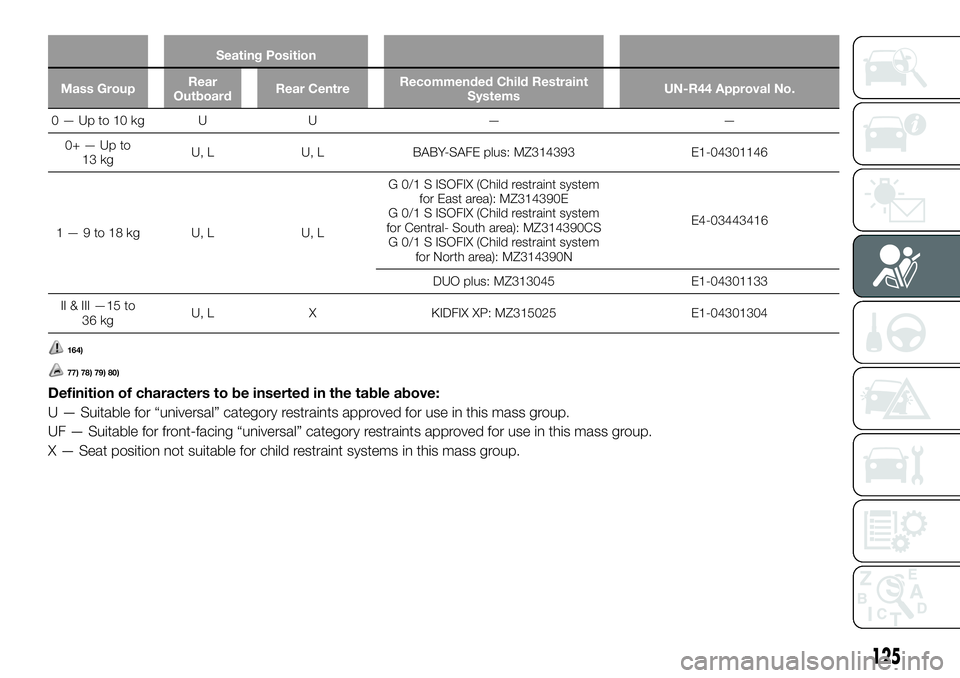

Seating Position
Mass GroupRear
OutboardRear CentreRecommended Child Restraint
SystemsUN-R44 Approval No.
0—Upto10kg U U — —
0+—Upto
13 kgU, L U, L BABY-SAFE plus: MZ314393 E1-04301146
1—9to18kg U,L U,LG 0/1 S ISOFIX (Child restraint system
for East area): MZ314390E
G 0/1 S ISOFIX (Child restraint system
for Central- South area): MZ314390CS
G 0/1 S ISOFIX (Child restraint system
for North area): MZ314390NE4-03443416
DUO plus: MZ313045 E1-04301133
II & III —15 to
36 kgU, L X KIDFIX XP: MZ315025 E1-04301304
164)
77) 78) 79) 80)
Definition of characters to be inserted in the table above:
U — Suitable for “universal” category restraints approved for use in this mass group.
UF — Suitable for front-facing “universal” category restraints approved for use in this mass group.
X — Seat position not suitable for child restraint systems in this mass group.
125

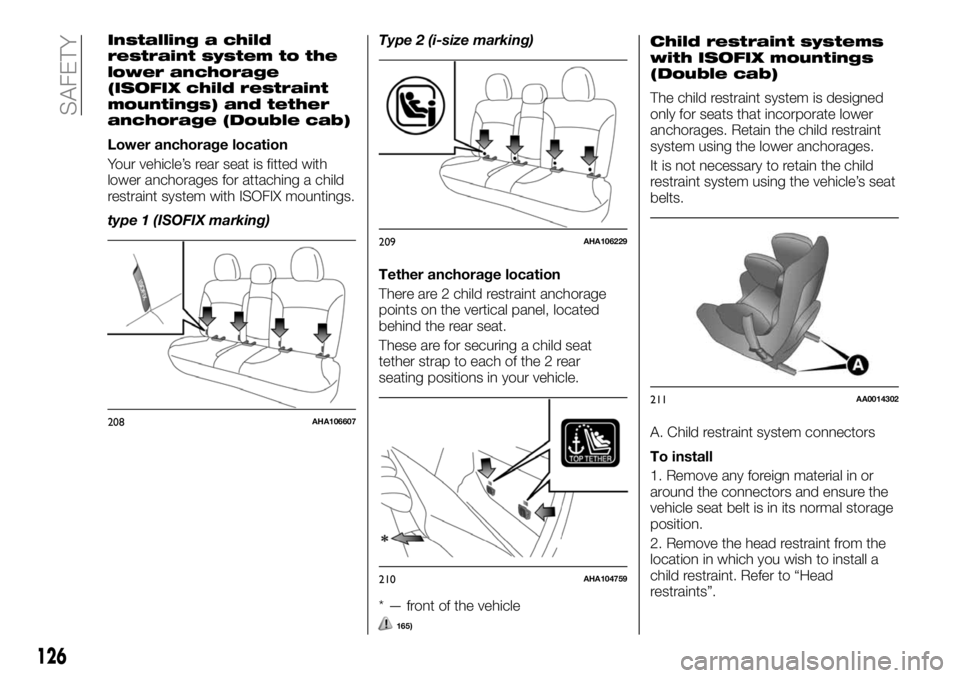

Installing a child
restraint system to the
lower anchorage
(ISOFIX child restraint
mountings) and tether
anchorage (Double cab)
Lower anchorage location
Your vehicle’s rear seat is fitted with
lower anchorages for attaching a child
restraint system with ISOFIX mountings.
type 1 (ISOFIX marking)Type 2 (i-size marking)
Tether anchorage location
There are 2 child restraint anchorage
points on the vertical panel, located
behind the rear seat.
These are for securing a child seat
tether strap to each of the 2 rear
seating positions in your vehicle.
* — front of the vehicle
165)
Child restraint systems
with ISOFIX mountings
(Double cab)
The child restraint system is designed
only for seats that incorporate lower
anchorages. Retain the child restraint
system using the lower anchorages.
It is not necessary to retain the child
restraint system using the vehicle’s seat
belts.
A. Child restraint system connectors
To install
1. Remove any foreign material in or
around the connectors and ensure the
vehicle seat belt is in its normal storage
position.
2. Remove the head restraint from the
location in which you wish to install a
child restraint. Refer to “Head
restraints”.
208AHA106607
209AHA106229
210AHA104759
211AA0014302
126
SAFETY

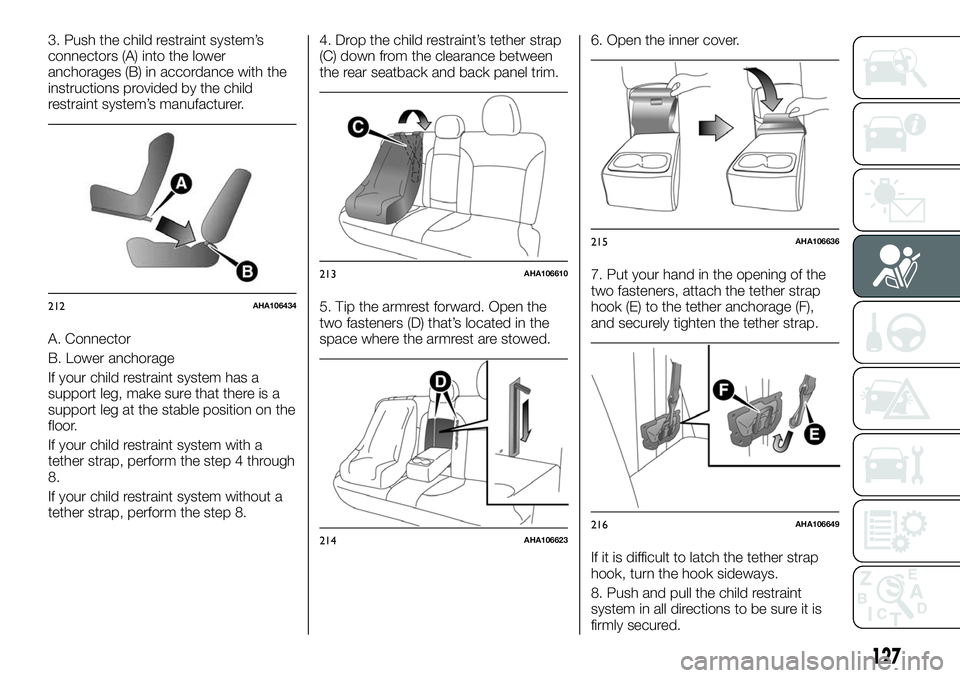

3. Push the child restraint system’s
connectors (A) into the lower
anchorages (B) in accordance with the
instructions provided by the child
restraint system’s manufacturer.
A. Connector
B. Lower anchorage
If your child restraint system has a
support leg, make sure that there is a
support leg at the stable position on the
floor.
If your child restraint system with a
tether strap, perform the step 4 through
8.
If your child restraint system without a
tether strap, perform the step 8.4. Drop the child restraint’s tether strap
(C) down from the clearance between
the rear seatback and back panel trim.
5. Tip the armrest forward. Open the
two fasteners (D) that’s located in the
space where the armrest are stowed.6. Open the inner cover.
7. Put your hand in the opening of the
two fasteners, attach the tether strap
hook (E) to the tether anchorage (F),
and securely tighten the tether strap.
If it is difficult to latch the tether strap
hook, turn the hook sideways.
8. Push and pull the child restraint
system in all directions to be sure it is
firmly secured.
212AHA106434
213AHA106610
214AHA106623
215AHA106636
216AHA106649
127

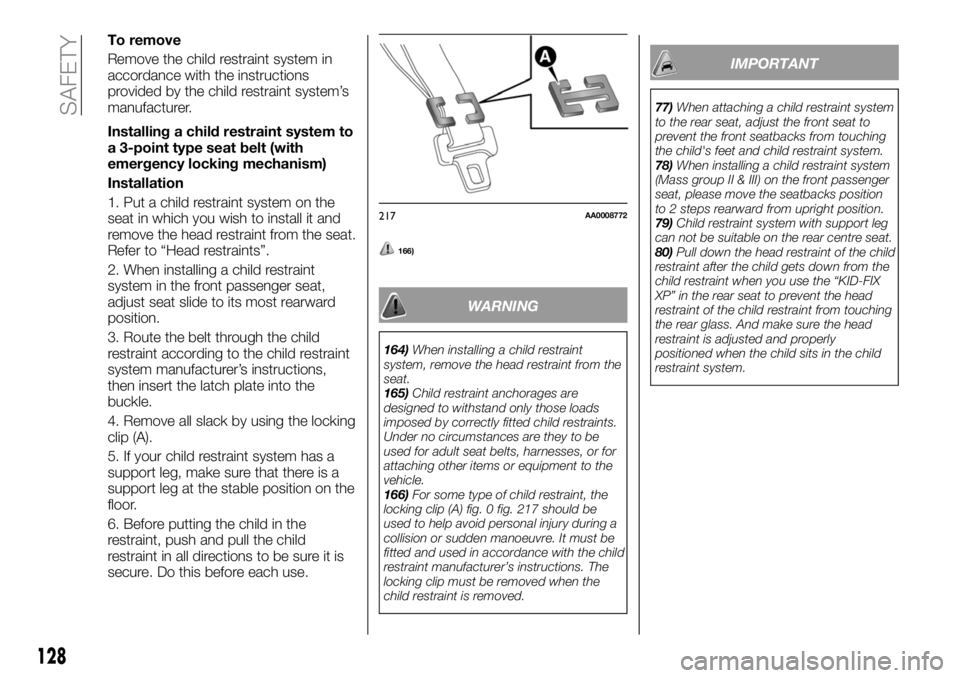

To remove
Remove the child restraint system in
accordance with the instructions
provided by the child restraint system’s
manufacturer.
Installing a child restraint system to
a 3-point type seat belt (with
emergency locking mechanism)
Installation
1. Put a child restraint system on the
seat in which you wish to install it and
remove the head restraint from the seat.
Refer to “Head restraints”.
2. When installing a child restraint
system in the front passenger seat,
adjust seat slide to its most rearward
position.
3. Route the belt through the child
restraint according to the child restraint
system manufacturer’s instructions,
then insert the latch plate into the
buckle.
4. Remove all slack by using the locking
clip (A).
5. If your child restraint system has a
support leg, make sure that there is a
support leg at the stable position on the
floor.
6. Before putting the child in the
restraint, push and pull the child
restraint in all directions to be sure it is
secure. Do this before each use.
166)
WARNING
164)When installing a child restraint
system, remove the head restraint from the
seat.
165)Child restraint anchorages are
designed to withstand only those loads
imposed by correctly fitted child restraints.
Under no circumstances are they to be
used for adult seat belts, harnesses, or for
attaching other items or equipment to the
vehicle.
166)For some type of child restraint, the
locking clip (A) fig. 0 fig. 217 should be
used to help avoid personal injury during a
collision or sudden manoeuvre. It must be
fitted and used in accordance with the child
restraint manufacturer’s instructions. The
locking clip must be removed when the
child restraint is removed.
IMPORTANT
77)When attaching a child restraint system
to the rear seat, adjust the front seat to
prevent the front seatbacks from touching
the child's feet and child restraint system.
78)When installing a child restraint system
(Mass group II & III) on the front passenger
seat, please move the seatbacks position
to 2 steps rearward from upright position.
79)Child restraint system with support leg
can not be suitable on the rear centre seat.
80)Pull down the head restraint of the child
restraint after the child gets down from the
child restraint when you use the “KID-FIX
XP” in the rear seat to prevent the head
restraint of the child restraint from touching
the rear glass. And make sure the head
restraint is adjusted and properly
positioned when the child sits in the child
restraint system.
217AA0008772
