FIAT GRANDE PUNTO 2006 199 / 1.G Blue And Me Owner's Manual

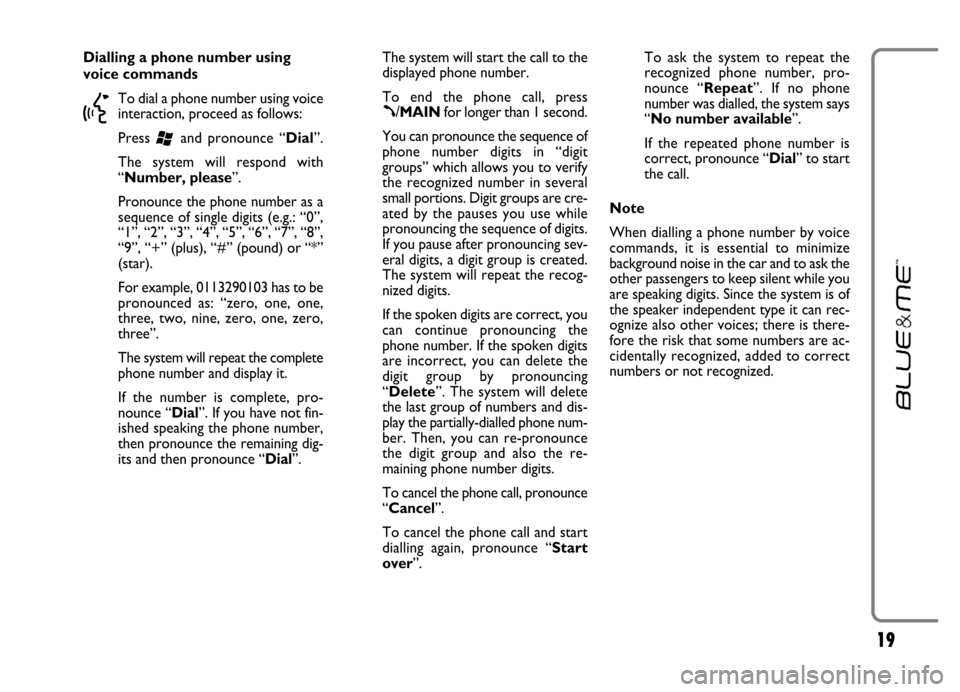

19
Dialling a phone number using
voice commands
}
To dial a phone number using voice
interaction, proceed as follows:
Press
‘and pronounce “Dial”.
The system will respond with
“Number, please”.
Pronounce the phone number as a
sequence of single digits (e.g.: “0”,
“1”, “2”, “3”, “4”, “5”, “6”, “7”, “8”,
“9”, “+” (plus), “#” (pound) or “*”
(star).
For example, 0113290103 has to be
pronounced as: “zero, one, one,
three, two, nine, zero, one, zero,
three”.
The system will repeat the complete
phone number and display it.
If the number is complete, pro-
nounce “Dial”. If you have not fin-
ished speaking the phone number,
then pronounce the remaining dig-
its and then pronounce “Dial”.The system will start the call to the
displayed phone number.
To end the phone call, press
ß/MAINfor longer than 1 second.
You can pronounce the sequence of
phone number digits in “digit
groups” which allows you to verify
the recognized number in several
small portions. Digit groups are cre-
ated by the pauses you use while
pronouncing the sequence of digits.
If you pause after pronouncing sev-
eral digits, a digit group is created.
The system will repeat the recog-
nized digits.
If the spoken digits are correct, you
can continue pronouncing the
phone number. If the spoken digits
are incorrect, you can delete the
digit group by pronouncing
“Delete”. The system will delete
the last group of numbers and dis-
play the partially-dialled phone num-
ber. Then, you can re-pronounce
the digit group and also the re-
maining phone number digits.
To cancel the phone call, pronounce
“Cancel”.
To cancel the phone call and start
dialling again, pronounce “Start
over”.To ask the system to repeat the
recognized phone number, pro-
nounce “Repeat”. If no phone
number was dialled, the system says
“No number available”.
If the repeated phone number is
correct, pronounce “Dial” to start
the call.
Note
When dialling a phone number by voice
commands, it is essential to minimize
background noise in the car and to ask the
other passengers to keep silent while you
are speaking digits. Since the system is of
the speaker independent type it can rec-
ognize also other voices; there is there-
fore the risk that some numbers are ac-
cidentally recognized, added to correct
numbers or not recognized.

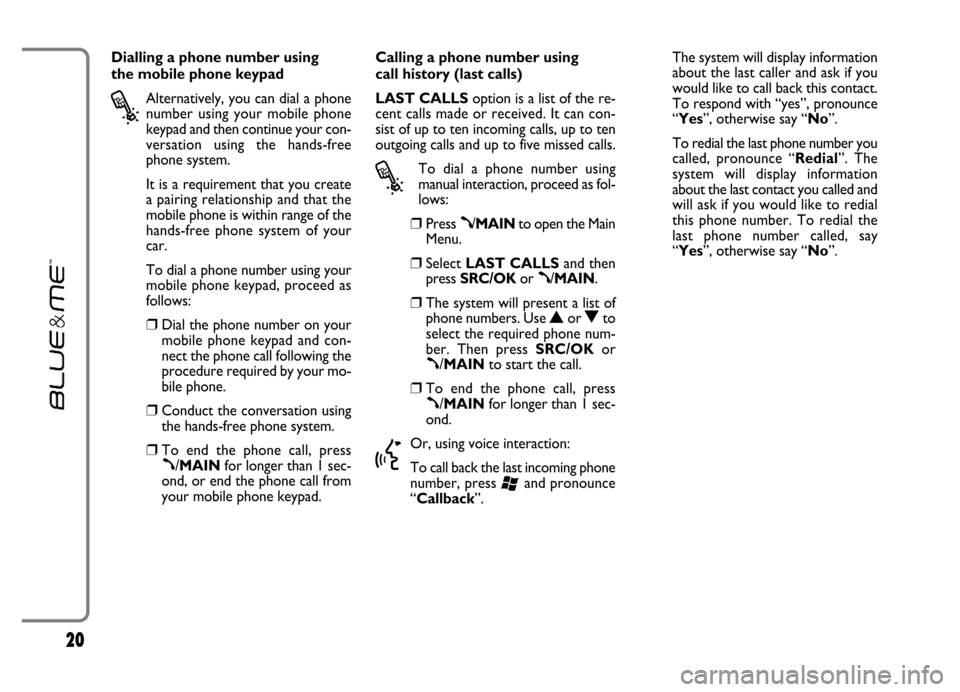

20
Dialling a phone number using
the mobile phone keypad
?
Alternatively, you can dial a phone
number using your mobile phone
keypad and then continue your con-
versation using the hands-free
phone system.
It is a requirement that you create
a pairing relationship and that the
mobile phone is within range of the
hands-free phone system of your
car.
To dial a phone number using your
mobile phone keypad, proceed as
follows:
❒Dial the phone number on your
mobile phone keypad and con-
nect the phone call following the
procedure required by your mo-
bile phone.
❒Conduct the conversation using
the hands-free phone system.
❒To end the phone call, press
ß/MAINfor longer than 1 sec-
ond, or end the phone call from
your mobile phone keypad. Calling a phone number using
call history (last calls)
LAST CALLSoption is a list of the re-
cent calls made or received. It can con-
sist of up to ten incoming calls, up to ten
outgoing calls and up to five missed calls.
?
To dial a phone number using
manual interaction, proceed as fol-
lows:
❒Press ß/MAINto open the Main
Menu.
❒Select LAST CALLSand then
press SRC/OKor
ß/MAIN.
❒The system will present a list of
phone numbers. Use NorOto
select the required phone num-
ber. Then press SRC/OKor
ß/MAINto start the call.
❒To end the phone call, press
ß/MAINfor longer than 1 sec-
ond.
}
Or, using voice interaction:
To call back the last incoming phone
number, press
‘and pronounce
“Callback”.The system will display information
about the last caller and ask if you
would like to call back this contact.
To respond with “yes”, pronounce
“Yes”, otherwise say “No”.
To redial the last phone number you
called, pronounce “Redial”. The
system will display information
about the last contact you called and
will ask if you would like to redial
this phone number. To redial the
last phone number called, say
“Yes”, otherwise say “No”.

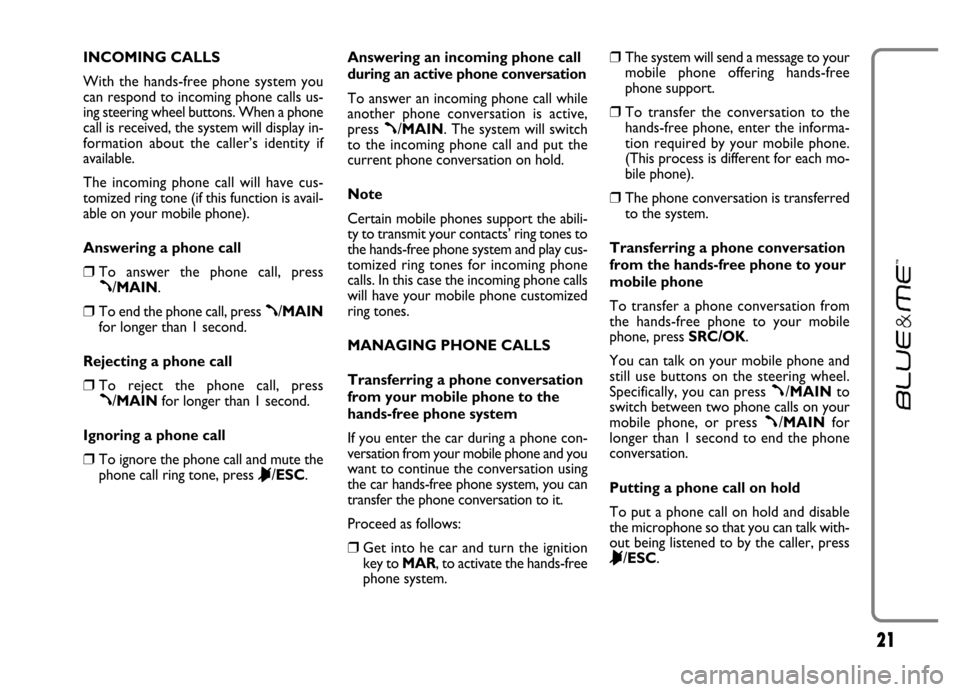

21
INCOMING CALLS
With the hands-free phone system you
can respond to incoming phone calls us-
ing steering wheel buttons. When a phone
call is received, the system will display in-
formation about the caller’s identity if
available.
The incoming phone call will have cus-
tomized ring tone (if this function is avail-
able on your mobile phone).
Answering a phone call
❒To answer the phone call, press
ß/MAIN.
❒To end the phone call, press ß/MAIN
for longer than 1 second.
Rejecting a phone call
❒To reject the phone call, press
ß/MAINfor longer than 1 second.
Ignoring a phone call
❒To ignore the phone call and mute the
phone call ring tone, press
&/ESC.Answering an incoming phone call
during an active phone conversation
To answer an incoming phone call while
another phone conversation is active,
press
ß/MAIN. The system will switch
to the incoming phone call and put the
current phone conversation on hold.
Note
Certain mobile phones support the abili-
ty to transmit your contacts’ ring tones to
the hands-free phone system and play cus-
tomized ring tones for incoming phone
calls. In this case the incoming phone calls
will have your mobile phone customized
ring tones.
MANAGING PHONE CALLS
Transferring a phone conversation
from your mobile phone to the
hands-free phone system
If you enter the car during a phone con-
versation from your mobile phone and you
want to continue the conversation using
the car hands-free phone system, you can
transfer the phone conversation to it.
Proceed as follows:
❒Get into he car and turn the ignition
key to MAR, to activate the hands-free
phone system.
❒The system will send a message to your
mobile phone offering hands-free
phone support.
❒To transfer the conversation to the
hands-free phone, enter the informa-
tion required by your mobile phone.
(This process is different for each mo-
bile phone).
❒The phone conversation is transferred
to the system.
Transferring a phone conversation
from the hands-free phone to your
mobile phone
To transfer a phone conversation from
the hands-free phone to your mobile
phone, press SRC/OK.
You can talk on your mobile phone and
still use buttons on the steering wheel.
Specifically, you can press
ß/MAINto
switch between two phone calls on your
mobile phone, or press
ß/MAINfor
longer than 1 second to end the phone
conversation.
Putting a phone call on hold
To put a phone call on hold and disable
the microphone so that you can talk with-
out being listened to by the caller, press
&/ESC.

22
MEDIA PLAYER
FUNCTIONS
The MEDIA PLAYERmenu enables the
following:
❒to display tracks stored on your USB
device
❒to play audio files stored on your USB
device.
Note
Before starting to use your media player,
read section SUPPORTED USB MEMO-
RY DEVICES to make sure your USB
memory device is supported by
Blue&Me™.
HOW TO CONNECT THE USB
DEVICE TO Blue&Me™
To connect your USB device to
Blue&Me™, proceed as follows:
❒Copy tracks on your USB device
(Blue&Me™recognizes .wma, .mp3
and .wavformats for audio files and .wpl
and .m3ufor playlists).
❒USB devices without USB wire: just
connect the USB device (directly or by
an extension lead) to the USB port on
the car (see fig. 1). CONFERENCE CALL FUNCTION
(only with Bluetooth
®phones
supporting this function)
With the Conference Call function you
can call another contact while you are en-
gaged in a phone conversation yet. In this
way you can speak with both contacts at
the same time.
To start a Conference call while you are
still engaged in a phone conversation, call
the second required contact as described
in section MAKING A PHONE CALL.
When Conference Call option is active the
display will show “CONFERENCE”.
To end both calls, press button
ß/MAIN
for long.
❒USB devices with USB wire: use the
wire to connect the USB device to the
USB port on the car (see fig. 1).
❒Turn the ignition key to MAR.
Blue&Me™will start automatically to
play your digital tracks selecting them
from the library built at the moment the
USB device is connected.
❒If AUTOPLAYis set to“ON”,
BLUE&ME™WILL START PLAY-
BACK AUTOMATICALLY.
Settings function - MEDIA PLAYER.
When building the media library is over, it
will be possible to use Blue&Me™to to
select and play tracks.

23
HOW TO MANAGE
THE MEDIA LIBRARY
With the media player you can select the
audio files stored on your USB device, us-
ing voice commands or steering wheel
buttons.
You can scroll audio files by folder, artist,
genre, album or playlist and then select the
required category using voice commands.
After selecting the required category, se-
lect the required file using manual con-
trols.
Enter track data (e.g.: title, artist, album,
genre) for surfing your media library
friendly.Note
Not all formats require to enter media in-
fo. Formats .mp3and .wmarecognized by
Blue&Me™require media info where-
as .wavnot. If no media info is entered, au-
dio files can only be selected by folder.
For further details, refer to section PRAC-
TICAL HINTS FOR USING THE MEDIA
PLAYER.Selection by folder
Track folders on your USB device are dis-
played in the FOLDERSmenu.
?
To select tracks through manual in-
teraction, proceed as follows:
Launch the Main Menu and select
MEDIA PLAYER, then press
SRC/OKor
ß/MAIN.
Select FOLDERS, then press
SRC/OKor
ß/MAIN.
Scroll folders. To play all folders, se-
lect PLAY ALLand then press
SRC/OKor
ß/MAIN. To display
folder tracks, press SRC/OKor
ß/MAIN.
Scroll the selected folder tracks. To
play the required track, select the ti-
tle and then press SRC/OKor
ß/MAIN.

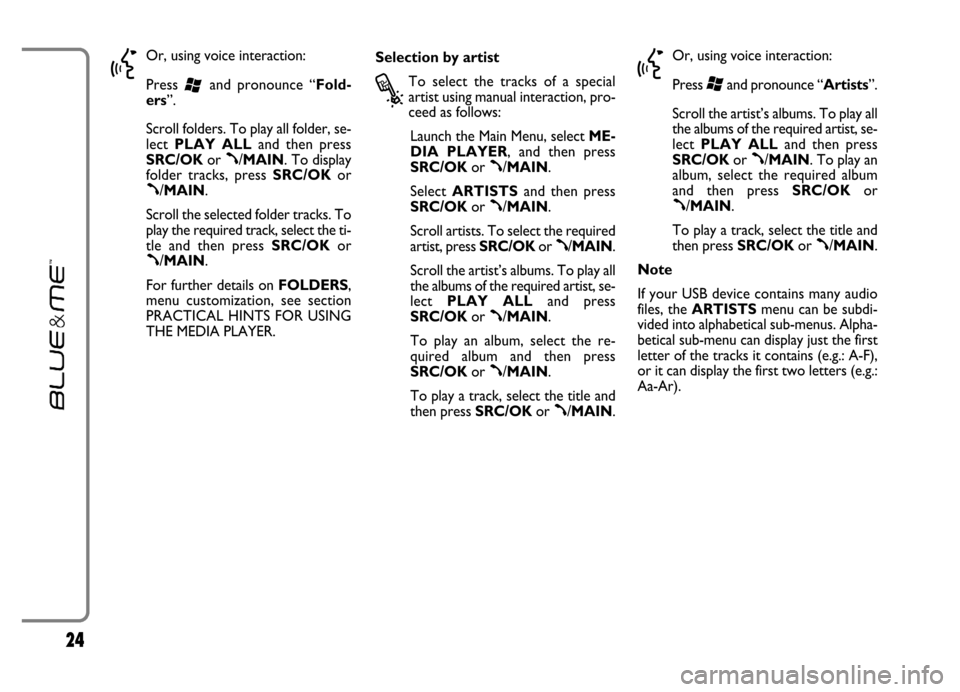

24
}
Or, using voice interaction:
Press
‘and pronounce “Fold-
ers”.
Scroll folders. To play all folder, se-
lect PLAY ALLand then press
SRC/OKor
ß/MAIN. To display
folder tracks, press SRC/OKor
ß/MAIN.
Scroll the selected folder tracks. To
play the required track, select the ti-
tle and then press SRC/OKor
ß/MAIN.
For further details on FOLDERS,
menu customization, see section
PRACTICAL HINTS FOR USING
THE MEDIA PLAYER.Selection by artist
?
To select the tracks of a special
artist using manual interaction, pro-
ceed as follows:
Launch the Main Menu, select ME-
DIA PLAYER, and then press
SRC/OKor
ß/MAIN.
Select ARTISTSand then press
SRC/OKor
ß/MAIN.
Scroll artists. To select the required
artist, press SRC/OKor
ß/MAIN.
Scroll the artist’s albums. To play all
the albums of the required artist, se-
lect PLAY ALLand press
SRC/OKor
ß/MAIN.
To play an album, select the re-
quired album and then press
SRC/OKor
ß/MAIN.
To play a track, select the title and
then press SRC/OKor
ß/MAIN.
}
Or, using voice interaction:
Press
‘and pronounce “Artists”.
Scroll the artist’s albums. To play all
the albums of the required artist, se-
lect PLAY ALLand then press
SRC/OKor
ß/MAIN. To play an
album, select the required album
and then press SRC/OKor
ß/MAIN.
To play a track, select the title and
then press SRC/OKor
ß/MAIN.
Note
If your USB device contains many audio
files, the ARTISTSmenu can be subdi-
vided into alphabetical sub-menus. Alpha-
betical sub-menu can display just the first
letter of the tracks it contains (e.g.: A-F),
or it can display the first two letters (e.g.:
Aa-Ar).

25

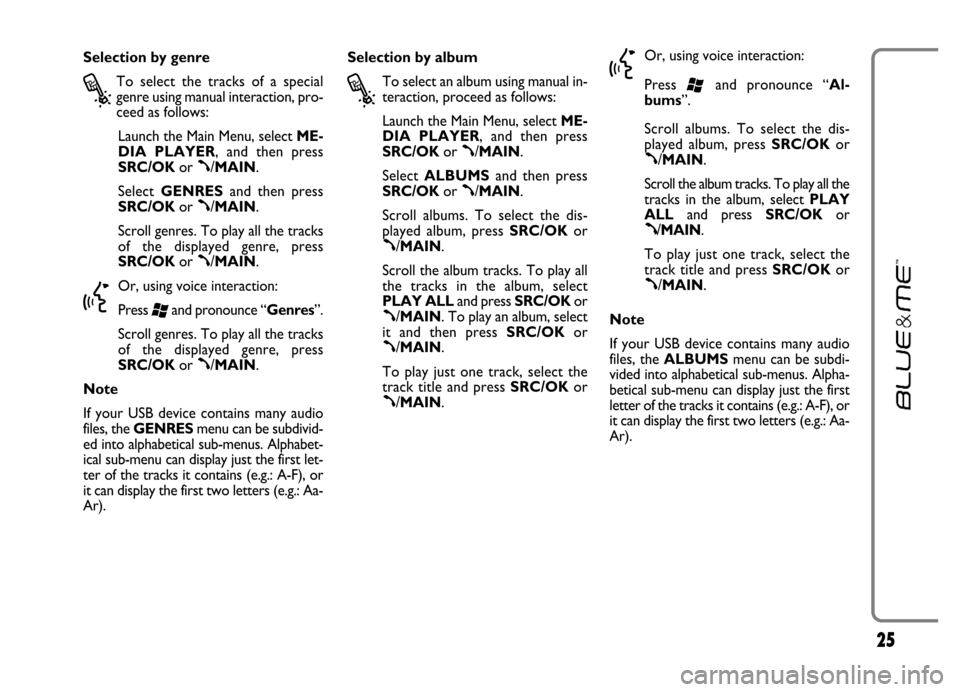

Selection by genre
?
To select the tracks of a special
genre using manual interaction, pro-
ceed as follows:
Launch the Main Menu, select ME-
DIA PLAYER, and then press
SRC/OKor
ß/MAIN.
Select GENRESand then press
SRC/OKor
ß/MAIN.
Scroll genres. To play all the tracks
of the displayed genre, press
SRC/OKor
ß/MAIN.
}
Or, using voice interaction:
Press
‘and pronounce “Genres”.
Scroll genres. To play all the tracks
of the displayed genre, press
SRC/OKor
ß/MAIN.
Note
If your USB device contains many audio
files, the GENRESmenu can be subdivid-
ed into alphabetical sub-menus. Alphabet-
ical sub-menu can display just the first let-
ter of the tracks it contains (e.g.: A-F), or
it can display the first two letters (e.g.: Aa-
Ar).Selection by album
?
To select an album using manual in-
teraction, proceed as follows:
Launch the Main Menu, select ME-
DIA PLAYER, and then press
SRC/OKor
ß/MAIN.
Select ALBUMSand then press
SRC/OKor
ß/MAIN.
Scroll albums. To select the dis-
played album, press SRC/OKor
ß/MAIN.
Scroll the album tracks. To play all
the tracks in the album, select
PLAY ALLand press SRC/OKor
ß/MAIN. To play an album, select
it and then press SRC/OKor
ß/MAIN.
To play just one track, select the
track title and press SRC/OKor
ß/MAIN.
}
Or, using voice interaction:
Press
‘and pronounce “Al-
bums”.
Scroll albums. To select the dis-
played album, press SRC/OKor
ß/MAIN.
Scroll the album tracks. To play all the
tracks in the album, select PLAY
ALLand press SRC/OKor
ß/MAIN.
To play just one track, select the
track title and press SRC/OKor
ß/MAIN.
Note
If your USB device contains many audio
files, the ALBUMSmenu can be subdi-
vided into alphabetical sub-menus. Alpha-
betical sub-menu can display just the first
letter of the tracks it contains (e.g.: A-F), or
it can display the first two letters (e.g.: Aa-
Ar).

26

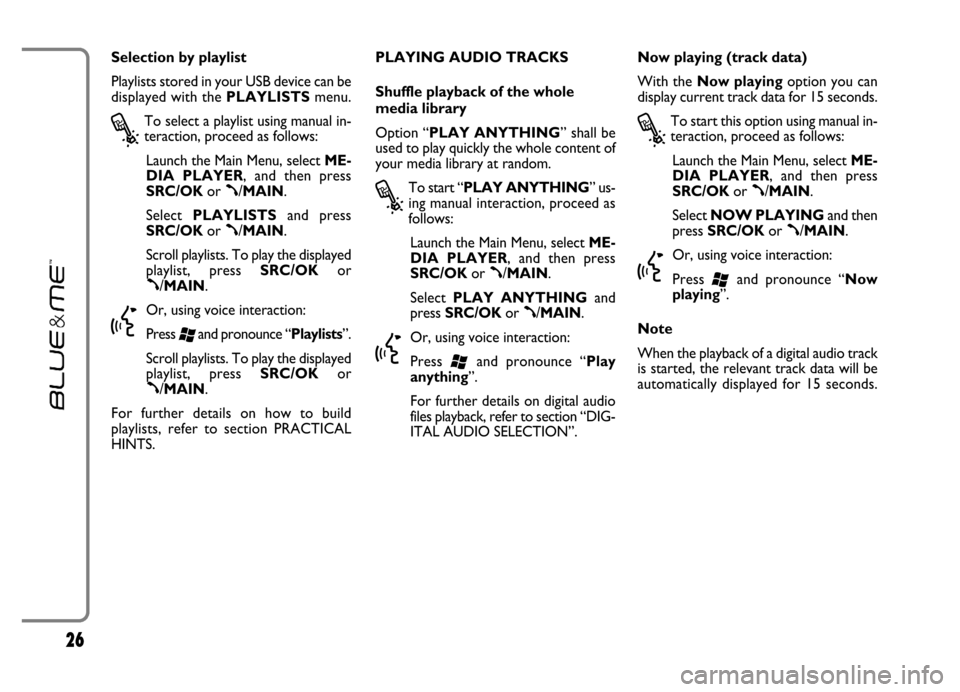

Selection by playlist
Playlists stored in your USB device can be
displayed with the PLAYLISTSmenu.
?
To select a playlist using manual in-
teraction, proceed as follows:
Launch the Main Menu, select ME-
DIA PLAYER, and then press
SRC/OKor
ß/MAIN.
Select PLAYLISTSand press
SRC/OKor
ß/MAIN.
Scroll playlists. To play the displayed
playlist, press SRC/OKor
ß/MAIN.
}
Or, using voice interaction:
Press
‘and pronounce “Playlists”.
Scroll playlists. To play the displayed
playlist, press SRC/OKor
ß/MAIN.
For further details on how to build
playlists, refer to section PRACTICAL
HINTS.PLAYING AUDIO TRACKS
Shuffle playback of the whole
media library
Option “PLAY ANYTHING” shall be
used to play quickly the whole content of
your media library at random.
?
To start “PLAY ANYTHING” us-
ing manual interaction, proceed as
follows:
Launch the Main Menu, select ME-
DIA PLAYER, and then press
SRC/OKor
ß/MAIN.
Select PLAY ANYTHINGand
press SRC/OKor
ß/MAIN.
}
Or, using voice interaction:
Press
‘and pronounce “Play
anything”.
For further details on digital audio
files playback, refer to section “DIG-
ITAL AUDIO SELECTION”.Now playing (track data)
With the Now playingoption you can
display current track data for 15 seconds.
?
To start this option using manual in-
teraction, proceed as follows:
Launch the Main Menu, select ME-
DIA PLAYER, and then press
SRC/OKor
ß/MAIN.
Select NOW PLAYINGand then
press SRC/OKor
ß/MAIN.
}
Or, using voice interaction:
Press
‘and pronounce “Now
playing”.
Note
When the playback of a digital audio track
is started, the relevant track data will be
automatically displayed for 15 seconds.

27
Audio play
?
To start playing an audio file using
manual interaction, proceed as fol-
lows:
If “AUTOPLAY” option is on,
connect your USB device to
Blue&Me
™: track playback will
start automatically.
SETTINGS FUNCTION -MEDIA
PLAYER.
You can also select the required au-
dio file and then press SRC/OKor
ß/MAINto start playing it.
}
Or, using voice interaction:
Press
‘and pronounce “Play
anything”.
Pause
To pause the track being played: Press
&or button MUTEon sound system front
panel.
Play
To resume playback of the paused track:
Press
&or button MUTEon sound sys-
tem front panel.Stop
To stop playing a track: Pronounce
“Stop”.
Next track
?
To play next track using manual in-
teraction, proceed as follows:
While playing a digital track press
N.
}
Or, using voice interaction:
While playing a digital track press
‘and pronounce “Next”.
Previous track
?
To play the previous track using
manual interaction, proceed as fol-
lows:
While playing a track press
O.
}
Or, using voice interaction:
While playing a digital track press
‘and pronounce “Previous”.
Note
If “Previous track” (manual or voice) com-
mand is given after playing the first 3 sec-
onds of the track, the track will be played
again. If it is given within the first 3 sec-
onds, the previous track will be played.Changing audio source
To change the current sound source (Ra-
dio, CD, CD Changer, Media player),
press SRC/OKor buttons FM, AM, CD
on sound system front panel.
Note
For further details on voice commands
(keywords) to be used with the media
player, refer to section VOICE COM-
MANDS (KEYWORDS) - SUMMARY.

28
PRACTICAL HINTS FOR USING
THE MEDIA PLAYER
Scrolling
❒To optimize scrolling of the FOLD-
ERSmenu, organize folders on your
USB device before connecting it to
Blue&Me™. To facilitate and to op-
timize FOLDERSmenu selection, or-
ganize your tracks in folders with
prompt names for you.Organizing media files
❒To build significant categories on
Blue&Me™, media file data shall be
properly updated. To update file data,
follow the instructions given on your
software instruction manual.
❒If certain items in your library have no
Artist, Album, Title and Genre,
Blue&Me™will show UNKNOWN
in ALBUMSand GENRESmenus.
To enter the required data, follow the
instructions given on your software in-
struction manual.Building the media library on
Blue&Me™
❒Building the media library may require
a few minutes. If the time required is
excessive, you can intervene by reduc-
ing the number of audio files stored on
your USB device.
❒While building the library, it is howev-
er possible to play a selection of tracks.
Blue&Me™will build the library while
playing music.
