FIAT GRANDE PUNTO 2006 199 / 1.G Blue And Me Repair Manual

59

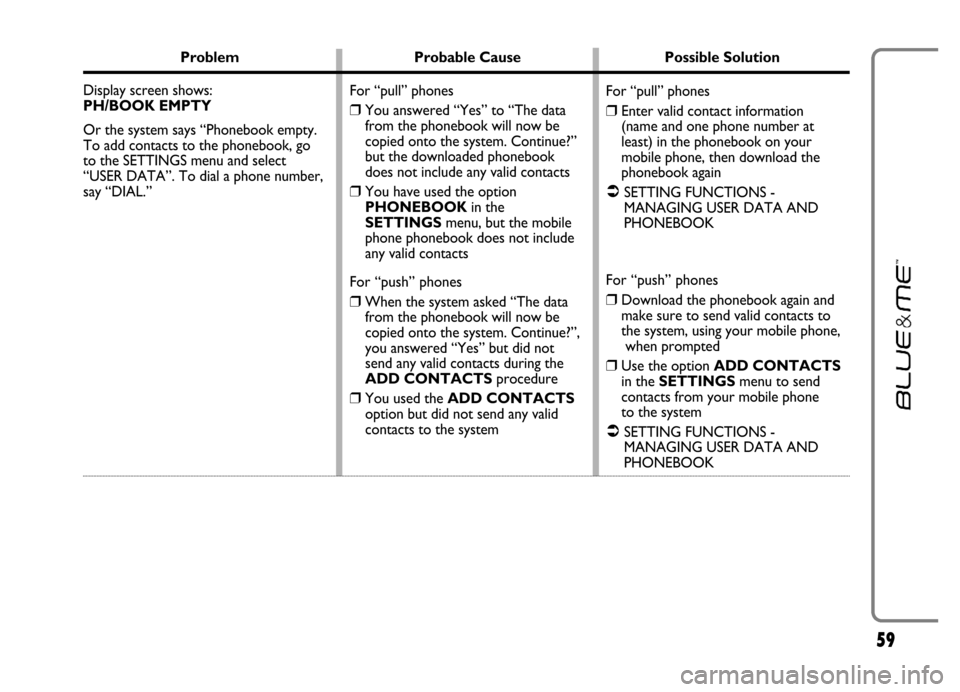

Problem Probable Cause Possible Solution
Display screen shows:
PH/BOOK EMPTY
Or the system says “Phonebook empty.
To add contacts to the phonebook, go
to the SETTINGS menu and select
“USER DATA”. To dial a phone number,
say “DIAL.”
For “pull” phones
❒Enter valid contact information
(name and one phone number at
least) in the phonebook on your
mobile phone, then download the
phonebook again
SETTING FUNCTIONS -
MANAGING USER DATA AND
PHONEBOOK
For “push” phones
❒Download the phonebook again and
make sure to send valid contacts to
the system, using your mobile phone,
when prompted
❒Use the option ADD CONTACTS
in the SETTINGSmenu to send
contacts from your mobile phone
to the system
SETTING FUNCTIONS -
MANAGING USER DATA AND
PHONEBOOK For “pull” phones
❒You answered “Yes” to “The data
from the phonebook will now be
copied onto the system. Continue?”
but the downloaded phonebook
does not include any valid contacts
❒You have used the option
PHONEBOOKin the
SETTINGSmenu, but the mobile
phone phonebook does not include
any valid contacts
For “push” phones
❒When the system asked “The data
from the phonebook will now be
copied onto the system. Continue?”,
you answered “Yes” but did not
send any valid contacts during the
ADD CONTACTSprocedure
❒You used the ADD CONTACTS
option but did not send any valid
contacts to the system

60
Problem Probable Cause Possible Solution
Display screen shows: NO PHONE
Or the system says
“There’s no bluetooth phone connected”
Display screen shows: TEL DISCONN.
Display screen shows:PAIR. FAILED
Or the system says “Pairing failed.
Please try again”
❒Turn the paired mobile phone on
❒Make sure that your phone is paired
❒Make sure that the Bluetooth®
wireless technology connection on
your mobile phone is enabled
(“Blue&Me” or “My Car” ID)
❒
Make sure that the mobile phone
you paired with the system is within
range
❒Reset Blue&Me™by turning
the mobile phone off and on
❒Reset Blue&Me™by turning the
ignition key to STOPand then to
MARagain
❒Verify the correct PIN number, and
try entering it again
❒Reset the mobile phone by turning it
off and on, and then retry the pairing
procedure
SETTING FUNCTIONS -
PAIRING YOUR MOBILE PHONE
❒The paired mobile phone is turned
off
❒The paired mobile phone is not
within range of the system
(the mobile phone should be located
within approximately 10 m of the
system)
❒Bluetooth®wireless technology
connection has been disabled on
your mobile phone
(“Blue&Me” or “My Car” ID)
❒
A technical error occurred
with the mobile phone
Bluetooth
®wireless technology
capabilities
❒
During an ongoing phone conversation,the mobile phone was taken out of
the system range
❒A technical error occurred during
the pairing procedure

61

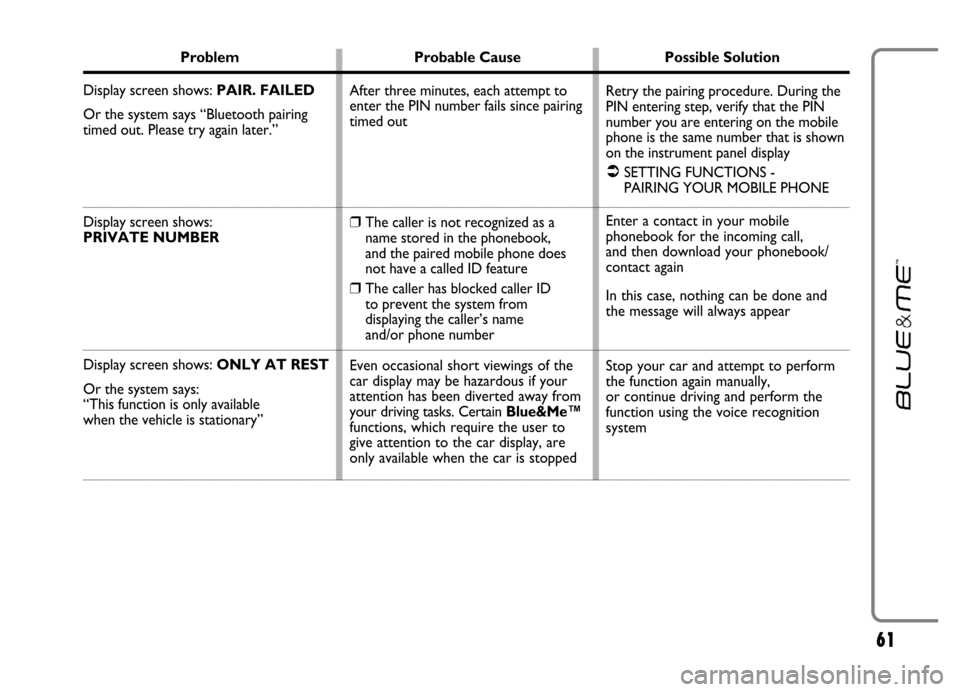

Problem Probable Cause Possible Solution
Display screen shows: PAIR. FAILED
Or the system says “Bluetooth pairing
timed out. Please try again later.”
Display screen shows:
PRIVATE NUMBER
Display screen shows: ONLY AT REST
Or the system says:
“This function is only available
when the vehicle is stationary”
Retry the pairing procedure. During the
PIN entering step, verify that the PIN
number you are entering on the mobile
phone is the same number that is shown
on the instrument panel display
SETTING FUNCTIONS -
PAIRING YOUR MOBILE PHONE
Enter a contact in your mobile
phonebook for the incoming call,
and then download your phonebook/
contact again
In this case, nothing can be done and
the message will always appear
Stop your car and attempt to perform
the function again manually,
or continue driving and perform the
function using the voice recognition
system After three minutes, each attempt to
enter the PIN number fails since pairing
timed out
❒The caller is not recognized as a
name stored in the phonebook,
and the paired mobile phone does
not have a called ID feature
❒The caller has blocked caller ID
to prevent the system from
displaying the caller’s name
and/or phone number
Even occasional short viewings of the
car display may be hazardous if your
attention has been diverted away from
your driving tasks. Certain Blue&Me™
functions, which require the user to
give attention to the car display, are
only available when the car is stopped

62

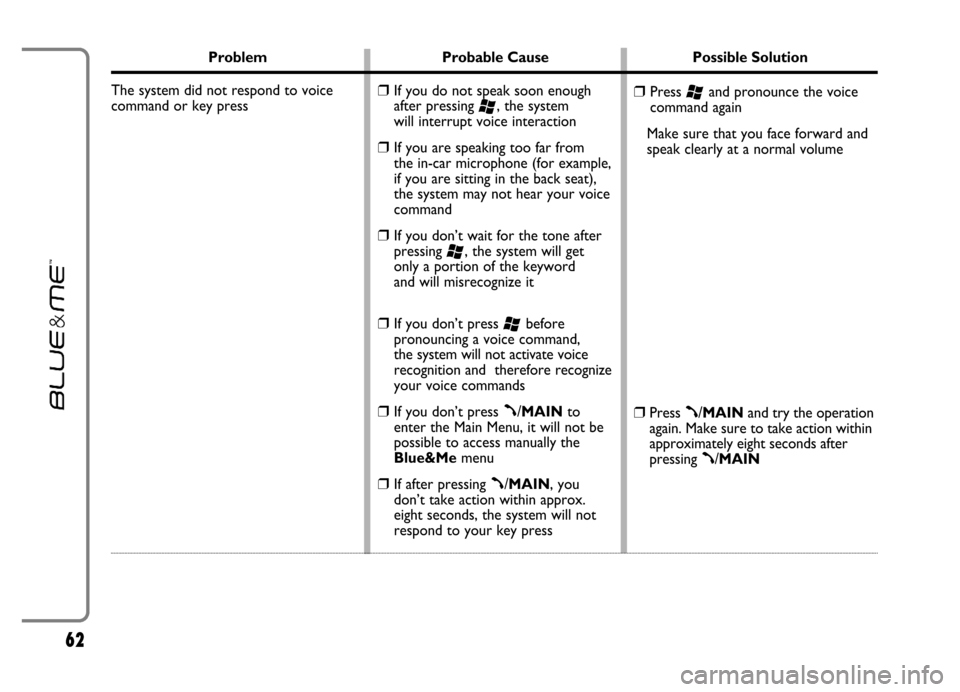

Problem Probable Cause Possible Solution
The system did not respond to voice
command or key press
❒Press ‘and pronounce the voice
command again
Make sure that you face forward and
speak clearly at a normal volume
❒Press ß/MAINand try the operation
again. Make sure to take action within
approximately eight seconds after
pressing
ß/MAIN
❒If you do not speak soon enough
after pressing
‘, the system
will interrupt voice interaction
❒If you are speaking too far from
the in-car microphone (for example,
if you are sitting in the back seat),
the system may not hear your voice
command
❒If you don’t wait for the tone after
pressing
‘, the system will get
only a portion of the keyword
and will misrecognize it
❒If you don’t press ‘before
pronouncing a voice command,
the system will not activate voice
recognition and therefore recognize
your voice commands
❒If you don’t press ß/MAINto
enter the Main Menu, it will not be
possible to access manually the
Blue&Memenu
❒If after pressing ß/MAIN, you
don’t take action within approx.
eight seconds, the system will not
respond to your key press

63
Problem Probable Cause Possible Solution
The system prompted to enter a PIN
number, but no phone pairing
procedure was running
When in close proximity of the car,
answering a phone call directly using the
mobile phone “answer” button, will
automatically activate the free-hands
phone function (the caller’s voice is
played through the car speakers)
Select option DELETE USERSon
the system and delete all pairings; then,
pair the phone again
SETTING FUNCTIONS -
MANAGING USER DATA AND
PHONEBOOK
SETTING FUNCTIONS -
PAIRING YOUR MOBILE PHONE
Refer to your mobile phone owner’s
manual to find out how to set up the
default location for phone audio when a
phone call is received After you delete the pairing-related
user information on your mobile
phone, the Bluetooth
®pairing
relationship between your mobile
phone and Blue&Me™will no
longer work
Some types of mobile phones require
you to set the phone to choose
between automatic incoming call
transfer to the system or
non-automatic incoming call transfer
(you will transfer the call using the
mobile phone keypad, as required)

64

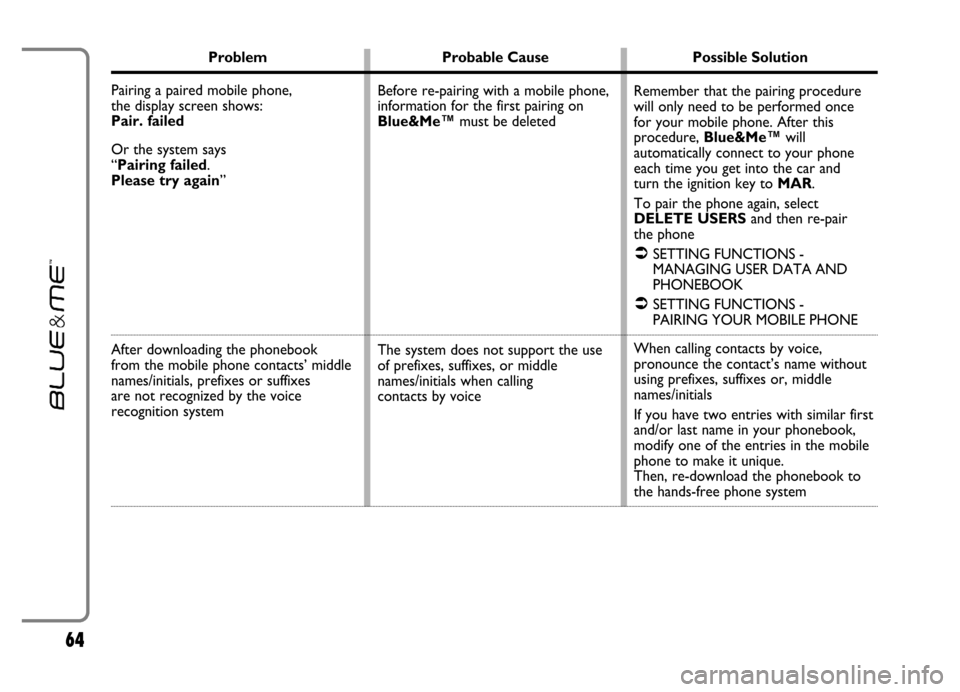

Problem Probable Cause Possible Solution
Pairing a paired mobile phone,
the display screen shows:
Pair. failed
Or the system says
“Pairing failed.
Please try again”
After downloading the phonebook
from the mobile phone contacts’ middle
names/initials, prefixes or suffixes
are not recognized by the voice
recognition system
Remember that the pairing procedure
will only need to be performed once
for your mobile phone. After this
procedure, Blue&Me™will
automatically connect to your phone
each time you get into the car and
turn the ignition key to MAR.
To pair the phone again, select
DELETE USERSand then re-pair
the phone
SETTING FUNCTIONS -
MANAGING USER DATA AND
PHONEBOOK
SETTING FUNCTIONS -
PAIRING YOUR MOBILE PHONE
When calling contacts by voice,
pronounce the contact’s name without
using prefixes, suffixes or, middle
names/initials
If you have two entries with similar first
and/or last name in your phonebook,
modify one of the entries in the mobile
phone to make it unique.
Then, re-download the phonebook to
the hands-free phone system Before re-pairing with a mobile phone,
information for the first pairing on
Blue&Me™must be deleted
The system does not support the use
of prefixes, suffixes, or middle
names/initials when calling
contacts by voice

65
Problem Probable Cause Possible Solution
Phone numbers containing international
dialling codes (e.g.: +39 Italy, +44 UK,
+33 France, etc.) are difficult to call Replace “+” with “00”
(e.g.: +39 becomes 0039). On certain mobile phones, when
downloading names and/phone
numbers to the hands-free system,
the sign “+” is omitted
Problem Probable Cause Possible Solution
The paired phone, sometimes disconnects
and re-connects to the car hands-free
phone system for no apparent reason
Models: Audiovox
®SMT 5600/Orange™
(HTC) C500
In certain cases, it is not possible to
call the numbers in the
LAST CALLSlistAfter completing the pairing procedure
, select “Blue&Me” or “My Car”
from the list of Bluetooth
®wireless
technology enabled devices.
Press the MENU button on the keypad
and select option 4 (“Set device as
Hands-free”), then press
ß/MAINto
establish the Bluetooth®connection
– In the list of Bluetooth
®wireless
technology enabled devices select
“Blue&Me” or “My Car” (name
identifying the Blue&Me™system
installed on your car)
In order for the Bluetooth
®
connection to work properly,
the phone must recognize the car
system as hands-free device
On certain mobile phones the sign
“+” of the international dialling code
is omitted
Phone-specific: Audiovox® / Orange™

66

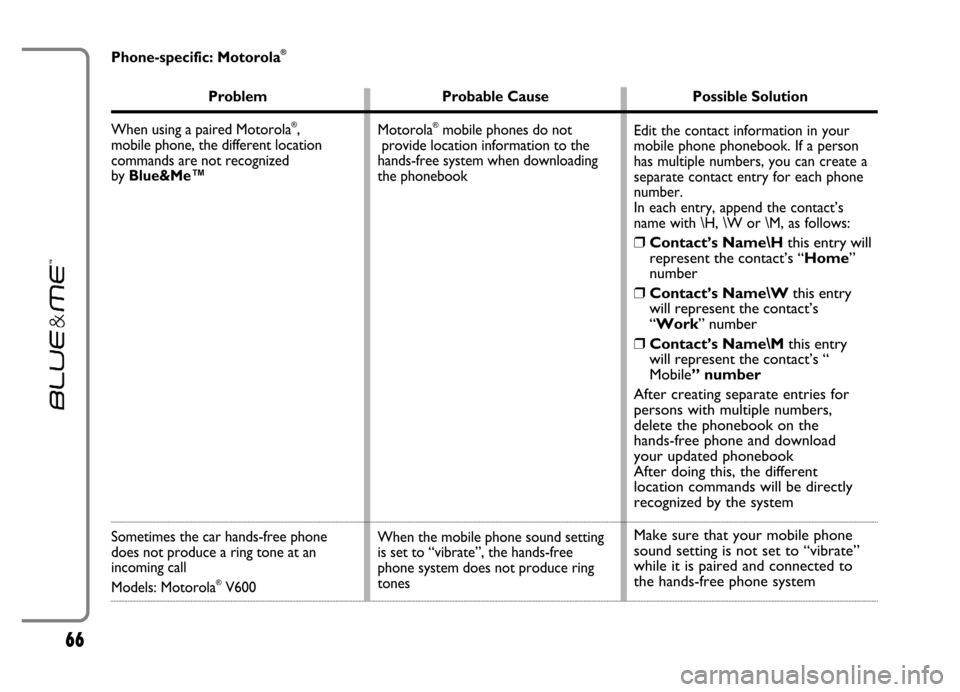

Phone-specific: Motorola®
Problem Probable Cause Possible Solution
When using a paired Motorola
®,
mobile phone, the different location
commands are not recognized
by Blue&Me™
Sometimes the car hands-free phone
does not produce a ring tone at an
incoming call
Models: Motorola®V600Edit the contact information in your
mobile phone phonebook. If a person
has multiple numbers, you can create a
separate contact entry for each phone
number.
In each entry, append the contact’s
name with \H, \W or \M, as follows:
❒Contact’s Name\Hthis entry will
represent the contact’s “Home”
number
❒Contact’s Name\Wthis entry
will represent the contact’s
“Work” number
❒Contact’s Name\Mthis entry
will represent the contact’s “
Mobile” number
After creating separate entries for
persons with multiple numbers,
delete the phonebook on the
hands-free phone and download
your updated phonebook
After doing this, the different
location commands will be directly
recognized by the system
Make sure that your mobile phone
sound setting is not set to “vibrate”
while it is paired and connected to
the hands-free phone system
Motorola®mobile phones do not
provide location information to the
hands-free system when downloading
the phonebook
When the mobile phone sound setting
is set to “vibrate”, the hands-free
phone system does not produce ring
tones

67

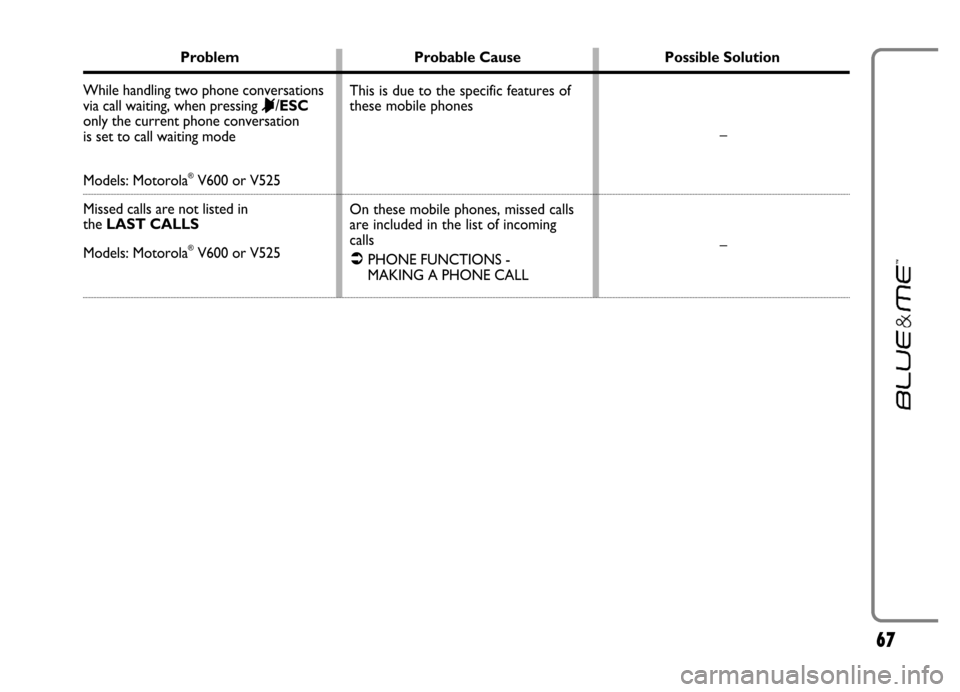

Problem Probable Cause Possible Solution
While handling two phone conversations
via call waiting, when pressing
&/ESC
only the current phone conversation
is set to call waiting mode
Models: Motorola®V600 or V525
Missed calls are not listed in
the LAST CALLS
Models: Motorola
®V600 or V525
–
– This is due to the specific features of
these mobile phones
On these mobile phones, missed calls
are included in the list of incoming
calls
PHONE FUNCTIONS -
MAKING A PHONE CALL

68
Phone-specific: Nokia®
Problem Probable Cause Possible Solution
Before establishing a connection with
Blue&Me™paired Nokia
®mobile phone,
the phone display screen prompts with
a confirmation message
(e.g.:“Accept connection request)
During an active phone call on the
hands-free phone system of the car,
the Bluetooth
®wireless technology
connection is disconnected when pressing
button SRC/OKto switch the audio
output from the device to the mobile phone
Models: Nokia®6820, 6230, 7610 or 6600
While handling two phone conversations
via call waiting on a Nokia
®mobile phone,
when pressing SRC/OKto transfer audio
output to the mobile phone, only one
of the phone conversations is transferred
When pressing SRC/OKto switch the
audio output of the phone conversation
from the Nokia
®mobile phone to the hands-free kit, nothing happensOn your mobile phone navigate to
“Connectivity” →“Bluetooth
®”.
Select the next menu using the key
on the right side. Select “Blue&Me”
or “My Car” and then “Authorized”
The phone call is still active on the
mobile phone. If you wish to
reconnect and use the hands-free kit
again, press
ß/MAIN
–
Press
ß/MAINor ‘to reconnect
the phone conversation to the
hands-free feature Nokia
®mobile phones do not allow
Blue&Me™to automatically establish
the Bluetooth
®wireless technology
connection
To establish connection you must set
your mobile phone
Pressing SRC/OKduring an active
phone call on this type of phone
disconnects the Bluetooth
®wireless
technology connection
The ability to transfer audio output
for two active phone conversations
to the mobile phone is not support-
ed by the system when paired with a
Nokia
®mobile phone
–
