10
Short press function
(less than 1 second)
– Adjust the volume of Blue&Me™ Navfunctions: hands-free kit,
message reader and media player, voice announcements
– Scroll Blue&Me™ Navmenu items
– Select media player tracks
– Scroll inbox messages
– Special navigation functions (see NEW DESTINATION section –
Operation of keys when entering a town/city name)
– Confirm manually selected menu option
– Switch phone conversation from the hands-free phone to your
mobile phone and vice versa vivavoce al telefono cellulare e vicev-
ersa
– Select audio sources (Radio, CD, CD Changer, Media Player)
– Select displayed message
– Start Navigation Menu
– Display incoming information with active navigation
– Access to Roadside Assistance Services (*)
– Access to Infomobility Services (*)Long press function
(more than 1 second)
–
–
–
–
–
–
STEERING
WHEEL
Blue&Me™ Nav
DIRECT
FUNCTION KEYS Controls Button
+/–
N/O
SRC/OK
NAV
SOS
Note
❒For many tasks, the steering wheel buttons SRC/OKand ß/MAINcan be used interchangeably, and you can use the key that is more conve-
nient for you to press.
❒For both operating modes of steering wheel buttons (short or long press), the function chosen will be activated when you release the button.
(*) These services may not be available when the car is purchased; to obtain information on availability and activation, call Universal Freephone Number
CIAOFIAT 0080034280000 or consult the dedicated area on www.fiat.com
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 10
Page 12 of 106
11
HANDS-FREE KIT
QUICK REFERENCE
GUIDE
To quickly get started with using the
Blue&Me™ Navhands-free kit with
voice recognition and Bluetooth
®wire-
less technology:
❒Prepare your mobile phone phonebook
❒Turn the ignition key to MAR
❒Try out the voice commands
❒Pair your mobile phone
❒Make a phone call.
Instructions for each of the above func-
tions are given in the following paragraphs.PREPARE YOUR MOBILE
PHONE PHONEBOOK
Before creating a pairing relationship
between your mobile phone and
Blue&Me™ Nav,
you should make sure
that you have contact entries in your mo-
bile phone phonebook so that you can use
them with the hands-free phone.
If your phonebook is empty, quickly
create several new entries for frequently
dialled phone numbers. For further details,
consult your mobile phone owner’s man-
ual.
To enter properly contacts in your mo-
bile phone phonebook, refer to section
SETTING FUNCTIONS - PAIRING
YOUR MOBILE PHONE.IMPORTANT NOTES
❒The phonebook copied to Blue&Me™
Navcan only be used when the cor-
responding mobile phone is paired.
❒Entries stored in SIM card or mobile
phone memory can be transferred to
Blue&Me™ Navwith different pro-
cedures, according to your mobile
phone model.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 11
Page 13 of 106
1212
TRY OUT THE VOICE
COMMANDS
At each stage of your dialogue with the
system, you can always use the voice com-
mand “Help”, to get detailed indications
about the voice commands available at the
current dialogue stage.
To try out the “Help” function, proceed
as follows:
❒Press the steering wheel button ‘.
❒After Blue&Me™ Navplays a tone
indicating that voice recognition is ac-
tive, pronounce “Help”. Blue&Me™
Navwill speak the list of voice com-
mands available.
❒After the general help message is fin-
ished, pronounce “Settings” and then
“Help”. Blue&Me™ Navwill speak
again the list of voice commands avail-
able for the SETTINGSmenu.
❒You can then pronounce one of the
available commands and proceed with
the dialogue as you like.
❒If you need further help, press ‘and
pronounce again “Help”.PAIR YOUR MOBILE PHONE
IMPORTANT Carry out this operation
only with the car stopped.
To pair your mobile phone, proceed as
follows:
❒Press ‘and pronounce “Settings”
then, at the end of the Blue&Me™
Navmessage say “Pairing”.
❒The system will show the phone pair-
ing PIN number on the multifunction
display. For the next two steps, consult
your mobile phone owner’s manual
about Bluetooth
®pairing.
❒On your mobile phone, query for de-
vices equipped with Bluetooth®wire-
less technology (the setting on your
mobile phone might be called Discover
or New Device). In this list you will find
“Blue&Me” (name identifying the
Blue&Me™ Navsystem on your car):
select it.
❒When prompted by the mobile phone,
enter the PIN number shown on the in-
strument panel display using your mo-
bile phone keypad. If pairing is success-
ful, the system will say “Connecting”
and at the end the display will show as
confirmation message, the ID of the
paired mobile phone.
It is essential to wait until you see this con-
firmation message on the display. Pressing
ß/MAINor &/ESCbefore the message
is displayed may cancel the pairing process.
If the pairing process fails, an error mes-
sage will be displayed: in this event repeat
the pairing procedure.
❒At first pairing, Blue&Me™ Navwill say
“Welcome” immediately after connect-
ing. This message will no longer be heard
at next pairing procedures.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 12
Page 14 of 106
1313
❒Blue&Me™ Navwill ask if you would
like to copy your paired phone phone-
book to Blue&Me™ Nav. It is rec-
ommended to copy it. To start copying
the phonebook say “Yes”, otherwise say
“No”.
❒For certain mobile phones the phone-
book is not copied automatically, in this
case you must transfer the phonebook
contacts using your mobile phone key-
pad. If Blue&Me™ Navasks you to
do this, then perform this procedure
following the instructions specific to
your mobile phone and press
ß/MAIN
when you have finished. MAKING A PHONE CALL
Assume that “John” is one of the contacts
stored in your phonebook.
To call John, proceed as follows:
❒Press the steering wheel button ‘and
pronounce “Call John”.
❒If the name is recognized, the system
will display the recognized contact’s in-
formation on the display screen.
If there is just one phone number for John
in your phonebook, the system will ask if
you would like to call John. To start the
call say “Yes”, otherwise say “No”.
If John has several phone numbers, the
system will ask which phone number you
would like to call (e.g.: “Call John (at)
Work or (at) Home?”). Answer with
the type of required phone number (e.g.:
“(at) Home”). If John has several phone numbers but the
“location” (i.e.: the type of phone number
like work, home, etc.) is missing, the sys-
tem will display the selected contact and
a list of related phone numbers. The
hands-free phone system will ask if you
would like to call the phone number dis-
played. To respond with “yes”, pronounce
“Yes”, otherwise pronounce “No”. If this
is the correct contact but the wrong num-
ber, say “Forward” or “Backward” to
navigate to the phone number you’d like
to call. To call the displayed phone num-
ber, pronounce “Call”. You can also surf
the phone number list manually by press-
ing the buttons on the steering wheel
Nor Ountil you find the required number.
Now, press
ß/MAINor SRC/OKto
start the call.
❒To end the phone call, press ß/MAIN
for longer than 1 second.
If you encounter difficulties with any of
the voice recognition operations, consult
section HANDS-FREE KIT - TROU-
BLESHOOTING.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 13
Page 15 of 106
1414

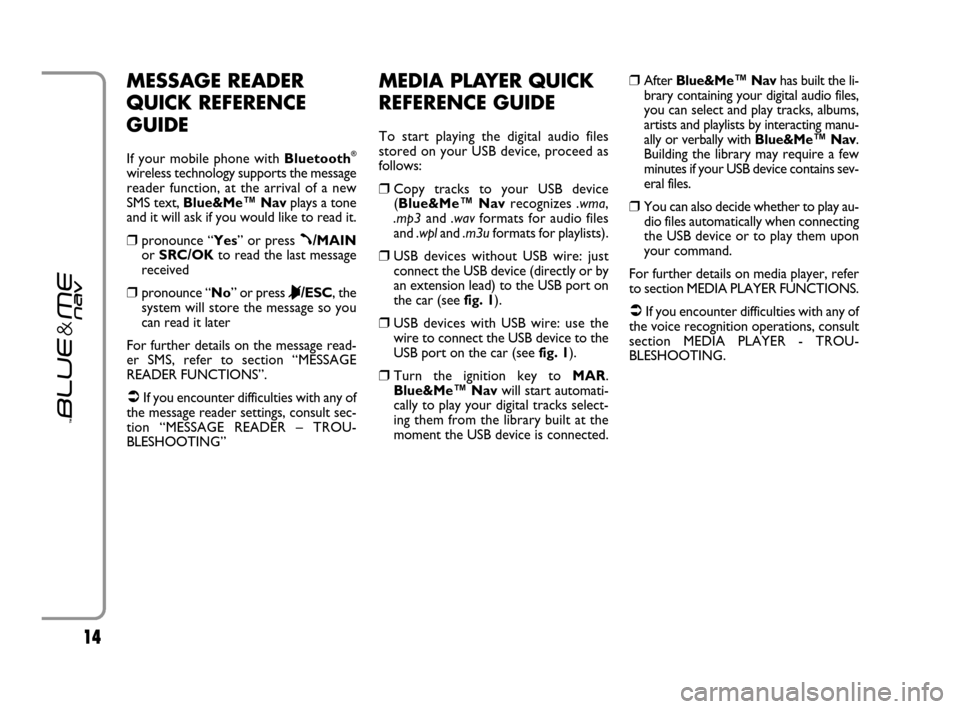

MESSAGE READER
QUICK REFERENCE
GUIDE
If your mobile phone with Bluetooth®
wireless technology supports the message
reader function, at the arrival of a new
SMS text, Blue&Me™ Navplays a tone
and it will ask if you would like to read it.
❒pronounce “Yes” or press ß/MAIN
or SRC/OKto read the last message
received
❒pronounce “No” or press &/ESC, the
system will store the message so you
can read it later
For further details on the message read-
er SMS, refer to section “MESSAGE
READER FUNCTIONS”.
If you encounter difficulties with any of
the message reader settings, consult sec-
tion “MESSAGE READER – TROU-
BLESHOOTING”
MEDIA PLAYER QUICK
REFERENCE GUIDE
To start playing the digital audio files
stored on your USB device, proceed as
follows:
❒Copy tracks to your USB device
(Blue&Me™ Navrecognizes .wma,
.mp3and .wavformats for audio files
and .wpland .m3uformats for playlists).
❒USB devices without USB wire: just
connect the USB device (directly or by
an extension lead) to the USB port on
the car (see fig. 1).
❒USB devices with USB wire: use the
wire to connect the USB device to the
USB port on the car (see fig. 1).
❒Turn the ignition key to MAR.
Blue&Me™ Navwill start automati-
cally to play your digital tracks select-
ing them from the library built at the
moment the USB device is connected.
❒After Blue&Me™ Navhas built the li-
brary containing your digital audio files,
you can select and play tracks, albums,
artists and playlists by interacting manu-
ally or verbally with Blue&Me™ Nav.
Building the library may require a few
minutes if your USB device contains sev-
eral files.
❒You can also decide whether to play au-
dio files automatically when connecting
the USB device or to play them upon
your command.
For further details on media player, refer
to section MEDIA PLAYER FUNCTIONS.
If you encounter difficulties with any of
the voice recognition operations, consult
section MEDIA PLAYER - TROU-
BLESHOOTING.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 14
Page 16 of 106
1515
NAVIGATION SYSTEM
QUICK REFERENCE
GUIDE
Proceed as follows to begin using the
Blue&Me™ Navnavigation function:
❒Connect the USB device provided with
the Blue&Me™ Navnavigation kit
with the map software to the USB pre-
sent on the car (see fig. 1).
❒Ensure the ignition key is in MARpo-
sition.
❒Press the control on the steering wheel
‘and say “Navigation”;
Blue&Me™ Navwill show the fol-
lowing warning message on the display
THE DRIVER MUST RESPECT
THE ROAD RULES. Now say
“New destination” and then “Ad-
dress”. Blue&Me™ Navwill ask you
the required country and you should
say the country where your destination
is located.
The system will ask you to enter the name
of the destination city, starting with man-
ual interaction and then completing using
voice commands.
Use the
Nor Okeys to scroll through
the characters required to make up the
name of the town/city and confirm each
character selected by pressing the
SRC/OKor
ß/MAINkeys.As soon as you have entered enough char-
acters, Blue&Me™ Navwill ask you to
say the required town/city. You can also
continue entering the name of the
town/city using the steering wheel con-
trols.
❒Continue entering the destination
road/street using the same method as
when entering the town/city. The
town/city centre may also be chosen as
a destination.
❒Specify the house number of the desti-
nation street by saying “Enter num-
ber” or say “Start” to begin navigation
immediately.
Note
For road safety reasons, address input op-
erations may only be carried out with the
vehicle parked.
To obtain information on all navigation sys-
tem functions and user instructions, re-
fer to the “NAVIGATION FUNCTIONS”
section
If you are experiencing difficulty using
the navigation system, consult the “PROB-
LEM-SOLVING – NAVIGATION SYS-
TEM” section
HOW TO USE
Blue&Me™ Nav
CONTROLS STEERING WHEEL
Buttons on the steering wheel (see fig. 1)
are used to perform functions on the
hands-free kit, activating voice recognition,
using the media player functions or select-
ing a Blue&Me™ Navmenu option.
Certain buttons have multiple functions
which depend on the current state of the
system.
The function chosen in response to a key
press is in some cases controlled by the
duration of the key press (short or long).
DISPLAY AND BUTTONS ON THE
STEERING WHEEL.
Note
Instructions concerning manual controls
are identified in the text by symbol
?.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 15
Page 17 of 106
1616
To repeat the last system voice an-
nouncement, press
‘for longer than 1
second or press shortly
‘and pro-
nounce “Repeat”.
The system can issue voice announce-
ments. A voice announcement is a spoken
message initiated by the system. To can-
cel a voice announcement, press
&/ESC,
or press
‘and pronounce “Cancel”.
A voice interaction is a two-way commu-
nication/spoken exchange between system
and user. To initiate a voice interaction,
press
‘and issue a command. To inter-
rupt an ongoing interaction and start a
new interaction, press
‘at any time dur-
ing the interaction and issue a voice com-
mand.
To stop an ongoing interaction press
&/ESC. You will hear a tone indicating
when voice recognition is deactivated.
The hands-free kit help option can speak
the list of commands available to you at
any time, depending on the keyword lev-
el that you are currently on. To use the
help system, say “HelpListen to the list
of currently available commands and de-
cide on which command you’d like to is-
sue to the system.
* Validmeans that the keyword pronounced is included in the Blue&Me™ Nav“dictionary” and that can therefore be recognized
by the system for the concerned level. VOICE COMMANDS

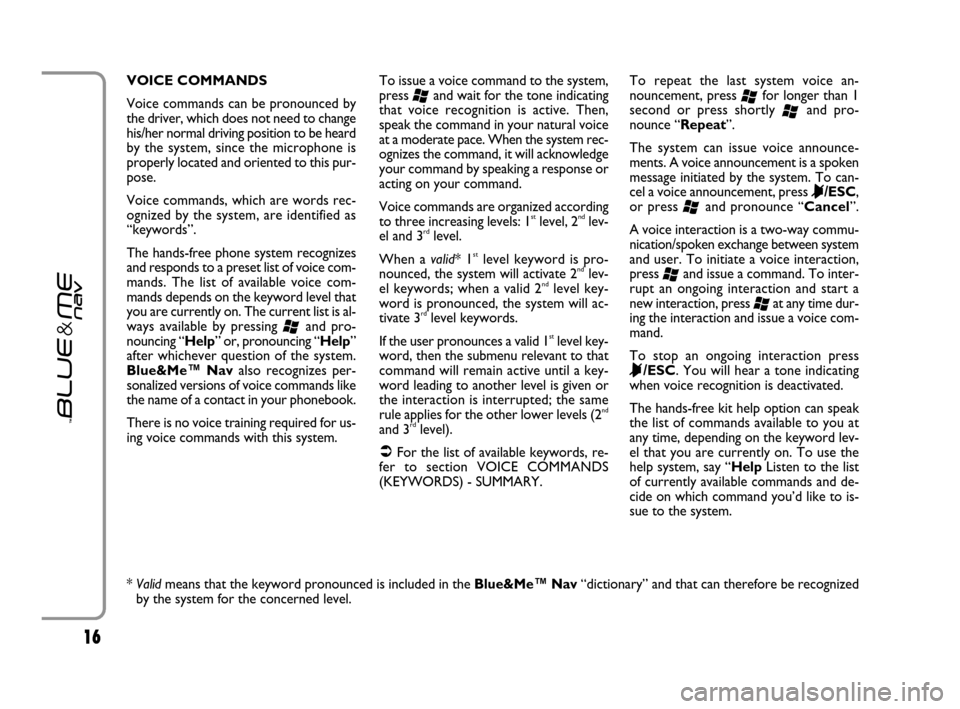

Voice commands can be pronounced by
the driver, which does not need to change
his/her normal driving position to be heard
by the system, since the microphone is
properly located and oriented to this pur-
pose.
Voice commands, which are words rec-
ognized by the system, are identified as
“keywords”.
The hands-free phone system recognizes
and responds to a preset list of voice com-
mands. The list of available voice com-
mands depends on the keyword level that
you are currently on. The current list is al-
ways available by pressing
‘and pro-
nouncing “Help” or, pronouncing “Help”
after whichever question of the system.
Blue&Me™ Navalso recognizes per-
sonalized versions of voice commands like
the name of a contact in your phonebook.
There is no voice training required for us-
ing voice commands with this system.To issue a voice command to the system,
press
‘and wait for the tone indicating
that voice recognition is active. Then,
speak the command in your natural voice
at a moderate pace. When the system rec-
ognizes the command, it will acknowledge
your command by speaking a response or
acting on your command.
Voice commands are organized according
to three increasing levels: 1
stlevel, 2ndlev-
el and 3rdlevel.
When a valid* 1
stlevel keyword is pro-
nounced, the system will activate 2ndlev-
el keywords; when a valid 2ndlevel key-
word is pronounced, the system will ac-
tivate 3
rdlevel keywords.
If the user pronounces a valid 1
stlevel key-
word, then the submenu relevant to that
command will remain active until a key-
word leading to another level is given or
the interaction is interrupted; the same
rule applies for the other lower levels (2
nd
and 3rdlevel).
For the list of available keywords, re-
fer to section VOICE COMMANDS
(KEYWORDS) - SUMMARY.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 16
Page 18 of 106
1717

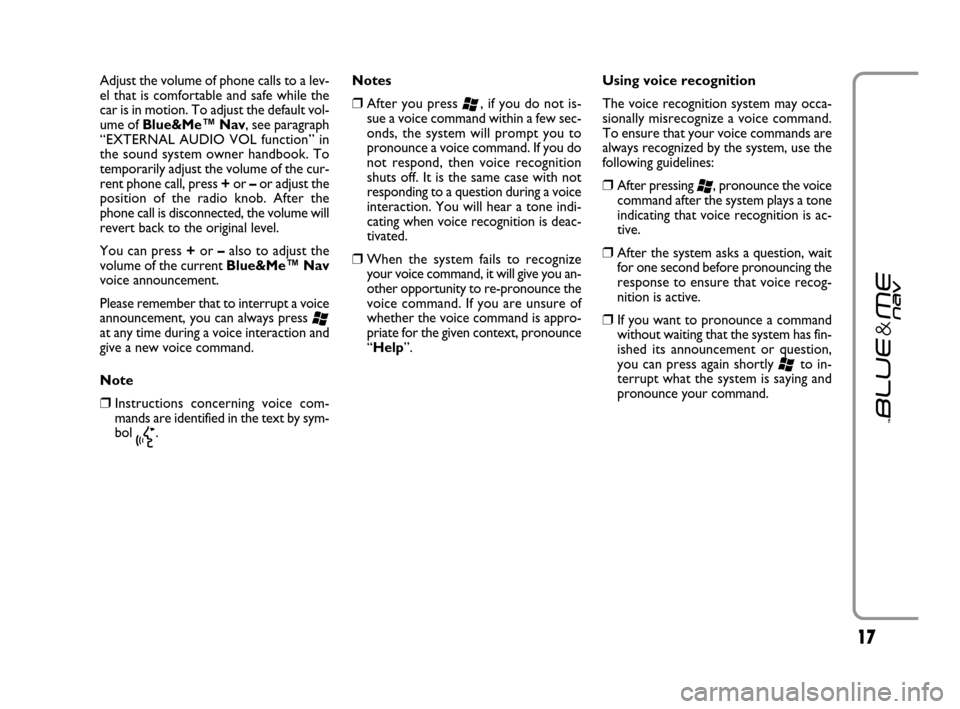

Adjust the volume of phone calls to a lev-
el that is comfortable and safe while the
car is in motion. To adjust the default vol-
ume of Blue&Me™ Nav, see paragraph
“EXTERNAL AUDIO VOL function” in
the sound system owner handbook. To
temporarily adjust the volume of the cur-
rent phone call, press +or –or adjust the
position of the radio knob. After the
phone call is disconnected, the volume will
revert back to the original level.
You can press +or –also to adjust the
volume of the current Blue&Me™ Nav
voice announcement.
Please remember that to interrupt a voice
announcement, you can always press
‘at any time during a voice interaction and
give a new voice command.
Note
❒Instructions concerning voice com-
mands are identified in the text by sym-
bol
}.Notes
❒After you press ‘, if you do not is-
sue a voice command within a few sec-
onds, the system will prompt you to
pronounce a voice command. If you do
not respond, then voice recognition
shuts off. It is the same case with not
responding to a question during a voice
interaction. You will hear a tone indi-
cating when voice recognition is deac-
tivated.
❒When the system fails to recognize
your voice command, it will give you an-
other opportunity to re-pronounce the
voice command. If you are unsure of
whether the voice command is appro-
priate for the given context, pronounce
“Help”. Using voice recognition
The voice recognition system may occa-
sionally misrecognize a voice command.
To ensure that your voice commands are
always recognized by the system, use the
following guidelines:
❒After pressing ‘, pronounce the voice
command after the system plays a tone
indicating that voice recognition is ac-
tive.
❒After the system asks a question, wait
for one second before pronouncing the
response to ensure that voice recog-
nition is active.
❒If you want to pronounce a command
without waiting that the system has fin-
ished its announcement or question,
you can press again shortly
‘to in-
terrupt what the system is saying and
pronounce your command.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 17
Page 19 of 106
1818

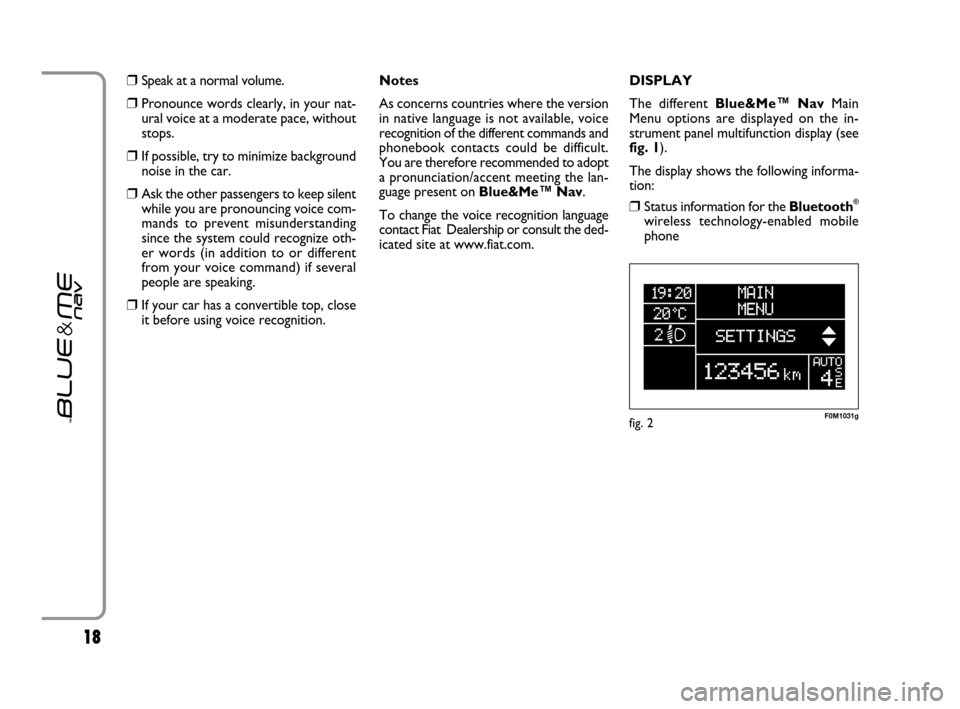

DISPLAY
The different Blue&Me™ NavMain
Menu options are displayed on the in-
strument panel multifunction display (see
fig. 1).
The display shows the following informa-
tion:
❒Status information for the Bluetooth®
wireless technology-enabled mobile
phone
❒Speak at a normal volume.
❒Pronounce words clearly, in your nat-
ural voice at a moderate pace, without
stops.
❒If possible, try to minimize background
noise in the car.
❒Ask the other passengers to keep silent
while you are pronouncing voice com-
mands to prevent misunderstanding
since the system could recognize oth-
er words (in addition to or different
from your voice command) if several
people are speaking.
❒If your car has a convertible top, close
it before using voice recognition.Notes
As concerns countries where the version
in native language is not available, voice
recognition of the different commands and
phonebook contacts could be difficult.
You are therefore recommended to adopt
a pronunciation/accent meeting the lan-
guage present on Blue&Me™ Nav.
To change the voice recognition language
contact Fiat Dealership or consult the ded-
icated site at www.fiat.com.
fig. 2F0M1031g
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 18
Page 20 of 106
1919

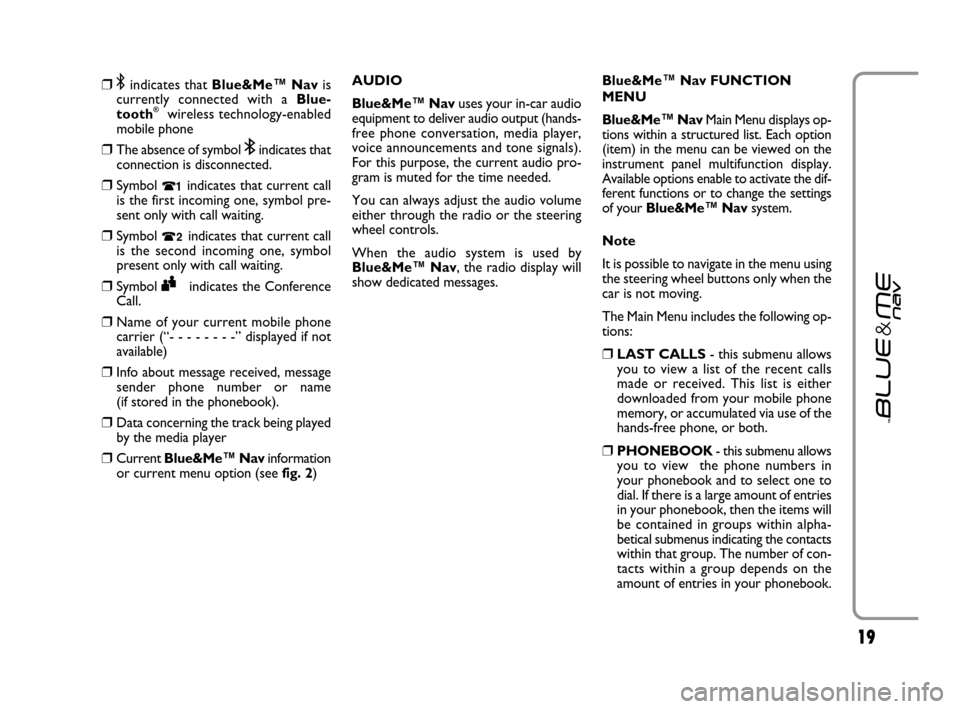

❒;indicates that Blue&Me™ Navis
currently connected with a Blue-
tooth
®wireless technology-enabled
mobile phone
❒The absence of symbol ;indicates that
connection is disconnected.
❒Symbol Ãindicates that current call
is the first incoming one, symbol pre-
sent only with call waiting.
❒Symbol Àindicates that current call
is the second incoming one, symbol
present only with call waiting.
❒Symbol ‰indicates the Conference
Call.
❒Name of your current mobile phone
carrier (“- - - - - - - -” displayed if not
available)
❒Info about message received, message
sender phone number or name
(if stored in the phonebook).
❒Data concerning the track being played
by the media player
❒CurrentBlue&Me™ Navinformation
or current menu option (seefig. 2)AUDIO
Blue&Me™ Navuses your in-car audio
equipment to deliver audio output (hands-
free phone conversation, media player,
voice announcements and tone signals).
For this purpose, the current audio pro-
gram is muted for the time needed.
You can always adjust the audio volume
either through the radio or the steering
wheel controls.
When the audio system is used by
Blue&Me™ Nav, the radio display will
show dedicated messages.Blue&Me™ Nav FUNCTION
MENU
Blue&Me™ NavMain Menu displays op-
tions within a structured list. Each option
(item) in the menu can be viewed on the
instrument panel multifunction display.
Available options enable to activate the dif-
ferent functions or to change the settings
of your Blue&Me™ Navsystem.
Note
It is possible to navigate in the menu using
the steering wheel buttons only when the
car is not moving.
The Main Menu includes the following op-
tions:
❒LAST CALLS- this submenu allows
you to view a list of the recent calls
made or received. This list is either
downloaded from your mobile phone
memory, or accumulated via use of the
hands-free phone, or both.
❒PHONEBOOK- this submenu allows
you to view the phone numbers in
your phonebook and to select one to
dial. If there is a large amount of entries
in your phonebook, then the items will
be contained in groups within alpha-
betical submenus indicating the contacts
within that group. The number of con-
tacts within a group depends on the
amount of entries in your phonebook.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 19
