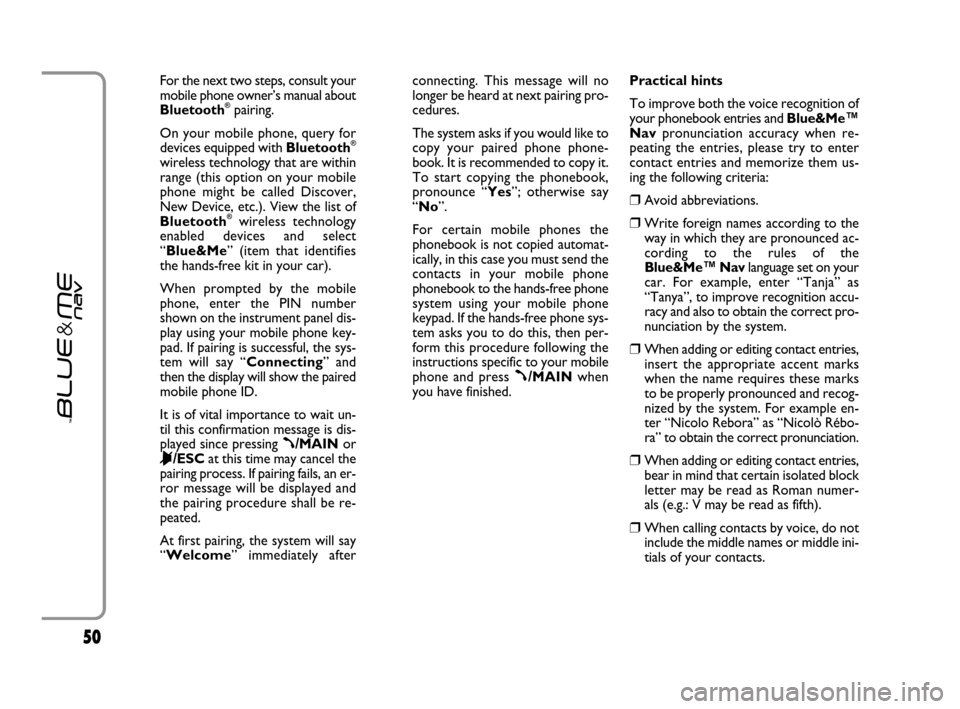

For the next two steps, consult your
mobile phone owner’s manual about
Bluetooth
®pairing.
On your mobile phone, query for
devices equipped with Bluetooth
®
wireless technology that are within
range (this option on your mobile
phone might be called Discover,
New Device, etc.). View the list of
Bluetooth
®wireless technology
enabled devices and select
“Blue&Me” (item that identifies
the hands-free kit in your car).
When prompted by the mobile
phone, enter the PIN number
shown on the instrument panel dis-
play using your mobile phone key-
pad. If pairing is successful, the sys-
tem will say “Connecting” and
then the display will show the paired
mobile phone ID.
It is of vital importance to wait un-
til this confirmation message is dis-
played since pressing
ß/MAINor
&/ESCat this time may cancel the
pairing process. If pairing fails, an er-
ror message will be displayed and
the pairing procedure shall be re-
peated.
At first pairing, the system will say
“Welcome” immediately afterconnecting. This message will no
longer be heard at next pairing pro-
cedures.
The system asks if you would like to
copy your paired phone phone-
book. It is recommended to copy it.
To start copying the phonebook,
pronounce “Yes”; otherwise say
“No”.
For certain mobile phones the
phonebook is not copied automat-
ically, in this case you must send the
contacts in your mobile phone
phonebook to the hands-free phone
system using your mobile phone
keypad. If the hands-free phone sys-
tem asks you to do this, then per-
form this procedure following the
instructions specific to your mobile
phone and press
ß/MAINwhen
you have finished.Practical hints
To improve both the voice recognition of
your phonebook entries and Blue&Me™
Navpronunciation accuracy when re-
peating the entries, please try to enter
contact entries and memorize them us-
ing the following criteria:
❒Avoid abbreviations.
❒Write foreign names according to the
way in which they are pronounced ac-
cording to the rules of the
Blue&Me™ Navlanguage set on your
car. For example, enter “Tanja” as
“Tanya”, to improve recognition accu-
racy and also to obtain the correct pro-
nunciation by the system.
❒When adding or editing contact entries,
insert the appropriate accent marks
when the name requires these marks
to be properly pronounced and recog-
nized by the system. For example en-
ter “Nicolo Rebora” as “Nicolò Rébo-
ra” to obtain the correct pronunciation.
❒When adding or editing contact entries,
bear in mind that certain isolated block
letter may be read as Roman numer-
als (e.g.: V may be read as fifth).
❒When calling contacts by voice, do not
include the middle names or middle ini-
tials of your contacts.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 50

5151

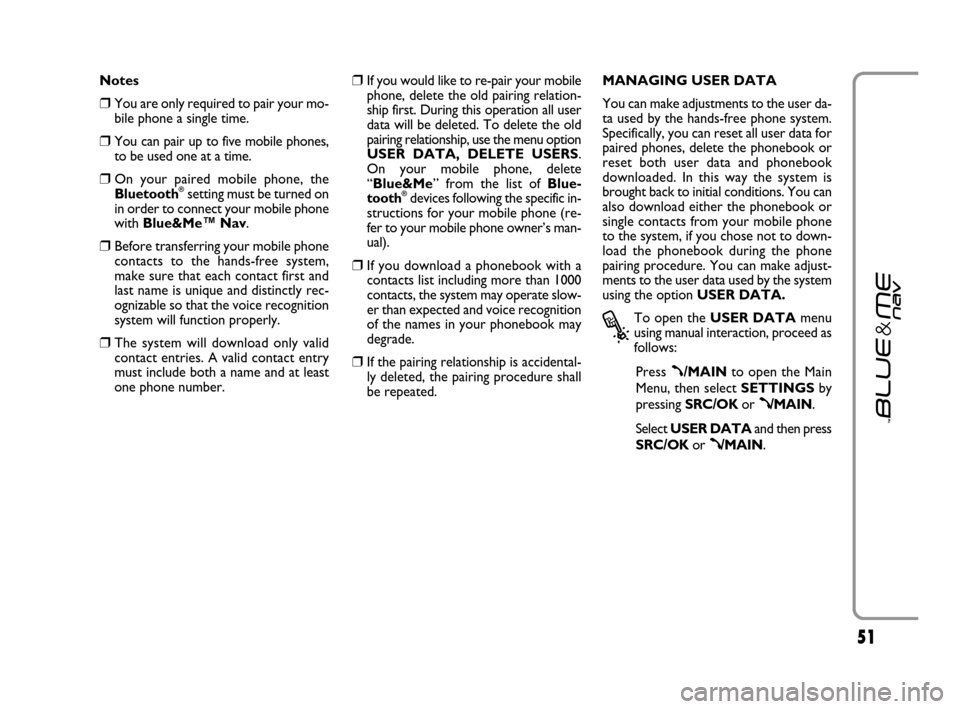

Notes
❒You are only required to pair your mo-
bile phone a single time.
❒You can pair up to five mobile phones,
to be used one at a time.
❒On your paired mobile phone, the
Bluetooth®setting must be turned on
in order to connect your mobile phone
with Blue&Me™ Nav.
❒Before transferring your mobile phone
contacts to the hands-free system,
make sure that each contact first and
last name is unique and distinctly rec-
ognizable so that the voice recognition
system will function properly.
❒The system will download only valid
contact entries. A valid contact entry
must include both a name and at least
one phone number.
❒If you would like to re-pair your mobile
phone, delete the old pairing relation-
ship first. During this operation all user
data will be deleted. To delete the old
pairing relationship, use the menu option
USER DATA, DELETE USERS.
On your mobile phone, delete
“Blue&Me” from the list of Blue-
tooth
®devices following the specific in-
structions for your mobile phone (re-
fer to your mobile phone owner’s man-
ual).
❒If you download a phonebook with a
contacts list including more than 1000
contacts, the system may operate slow-
er than expected and voice recognition
of the names in your phonebook may
degrade.
❒If the pairing relationship is accidental-
ly deleted, the pairing procedure shall
be repeated. MANAGING USER DATA
You can make adjustments to the user da-
ta used by the hands-free phone system.
Specifically, you can reset all user data for
paired phones, delete the phonebook or
reset both user data and phonebook
downloaded. In this way the system is
brought back to initial conditions. You can
also download either the phonebook or
single contacts from your mobile phone
to the system, if you chose not to down-
load the phonebook during the phone
pairing procedure. You can make adjust-
ments to the user data used by the system
using the option USER DATA.
?
To open the USER DATAmenu
using manual interaction, proceed as
follows:
Press
ß/MAINto open the Main
Menu, then select SETTINGSby
pressing SRC/OKor
ß/MAIN.
Select USER DATAand then press
SRC/OKor
ß/MAIN.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 51

5252
}

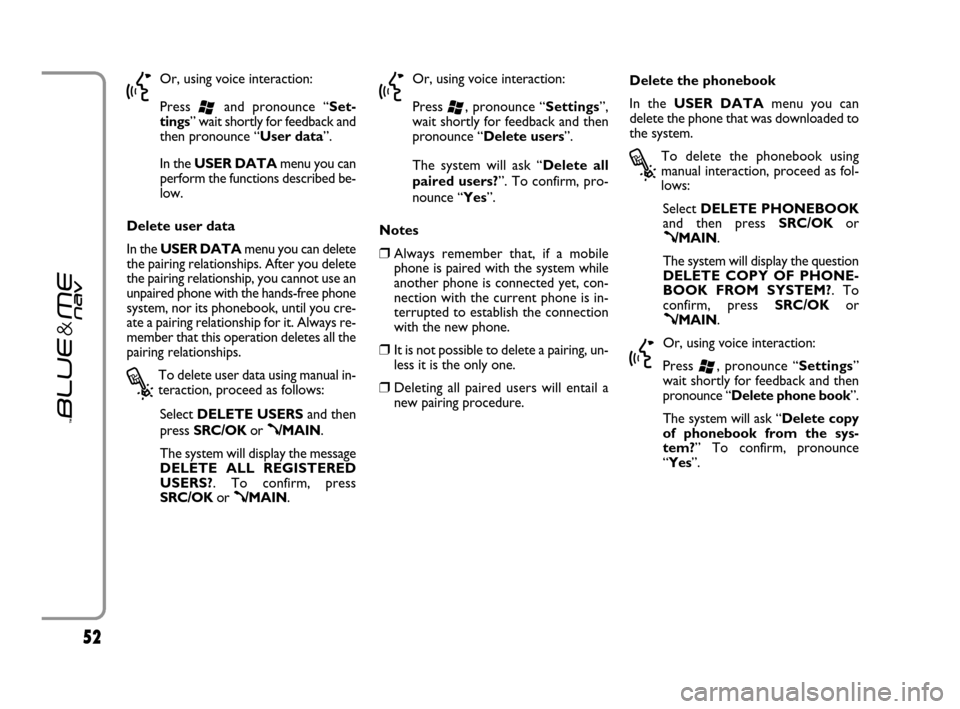

Or, using voice interaction:
Press
‘and pronounce “Set-
tings” wait shortly for feedback and
then pronounce “User data”.
In theUSER DATAmenu you can
perform the functions described be-
low.
Delete user data
In the USER DATAmenu you can delete
the pairing relationships. After you delete
the pairing relationship, you cannot use an
unpaired phone with the hands-free phone
system, nor its phonebook, until you cre-
ate a pairing relationship for it. Always re-
member that this operation deletes all the
pairing relationships.
?
To delete user data using manual in-
teraction, proceed as follows:
Select DELETE USERSand then
press SRC/OKor
ß/MAIN.
The system will display the message
DELETE ALL REGISTERED
USERS?. To confirm, press
SRC/OKor
ß/MAIN.
}
Or, using voice interaction:
Press
‘, pronounce “Settings”,
wait shortly for feedback and then
pronounce “Delete users”.
The system will ask “Delete all
paired users?”. To confirm, pro-
nounce “Yes”.
Notes
❒Always remember that, if a mobile
phone is paired with the system while
another phone is connected yet, con-
nection with the current phone is in-
terrupted to establish the connection
with the new phone.
❒It is not possible to delete a pairing, un-
less it is the only one.
❒Deleting all paired users will entail a
new pairing procedure.Delete the phonebook
In the USER DATAmenu you can
delete the phone that was downloaded to
the system.
?
To delete the phonebook using
manual interaction, proceed as fol-
lows:
Select DELETE PHONEBOOK
and then press SRC/OKor
ß/MAIN.
The system will display the question
DELETE COPY OF PHONE-
BOOK FROM SYSTEM?. To
confirm, press SRC/OKor
ß/MAIN.
}
Or, using voice interaction:
Press
‘, pronounce “Settings”
wait shortly for feedback and then
pronounce “Delete phone book”.
The system will ask “Delete copy
of phonebook from the sys-
tem?” To confirm, pronounce
“Yes”.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 52

5353
Download the phonebook
If you chose not to download the phone-
book during the phone pairing procedure,
or if you recently deleted the current
phonebook, the USER DATAitem will
be available in the COPY PHONE-
BOOKmenu.
?
To download a paired mobile phone
phonebook using manual interaction,
proceed as follows:
Select COPY PHONEBOOK.
and then press SRC/OKor
ß/MAIN.
}
Or, using voice interaction
Press
‘, pronounce “Settings”,
wait shortly for feedback and then
pronounce “Download phone
book”.Add contacts
If your mobile phone does not support au-
tomatic downloading during phone pair-
ing, the USER DATAitem will be avail-
able in the ADD CONTACTSmenu.
?
To copy contacts from your mobile
phone to the hands-free phone sys-
tem using manual interaction, pro-
ceed as follows:
Select ADD CONTACTSand
then press SRC/OKor
ß/MAIN.
}
Or, using voice interaction:
Press
‘, pronounce “Settings”,
wait shortly for feedback and then
pronounce “Add Contacts”.
Then follow the instructions given on your
mobile phone owner’s manual for trans-
ferring contacts. Reset user data
?
To reset all user data and phone-
books/contacts for paired phones to
the default values using manual in-
teraction, proceed as follows:
Select DELETE ALLand then
press SRC/OKor
ß/MAIN.
The system will display the question
DELETE ALL DATA SAVED
IN THE SYSTEM?. To confirm,
press SRC/OKor
ß/MAIN.
}
Or, using voice interaction:
Press
‘, pronounce “Settings”,
wait shortly for feedback and then
pronounce “Reset all”.
The system will ask “Delete all da-
ta saved by users from the sys-
tem?”. To confirm, pronounce
“Yes”.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 53

5454

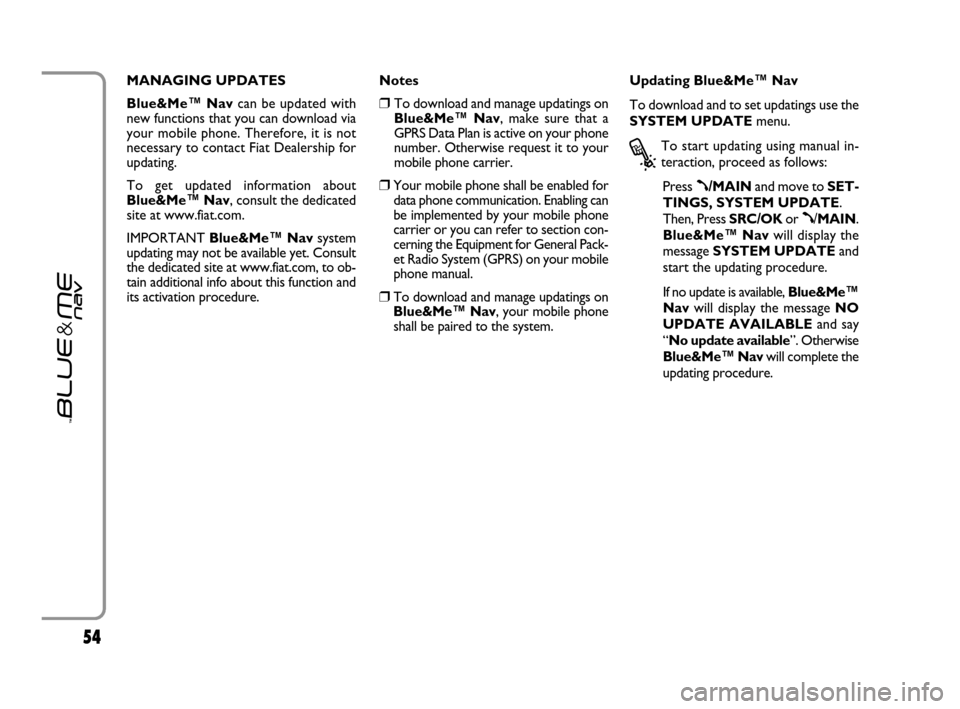

MANAGING UPDATES
Blue&Me™ Navcan be updated with
new functions that you can download via
your mobile phone. Therefore, it is not
necessary to contact Fiat Dealership for
updating.
To get updated information about
Blue&Me™ Nav, consult the dedicated
site at www.fiat.com.
IMPORTANT Blue&Me™ Navsystem
updating may not be available yet. Consult
the dedicated site at www.fiat.com, to ob-
tain additional info about this function and
its activation procedure.Notes
❒To download and manage updatings on
Blue&Me™ Nav, make sure that a
GPRS Data Plan is active on your phone
number. Otherwise request it to your
mobile phone carrier.
❒Your mobile phone shall be enabled for
data phone communication. Enabling can
be implemented by your mobile phone
carrier or you can refer to section con-
cerning the Equipment for General Pack-
et Radio System (GPRS) on your mobile
phone manual.
❒To download and manage updatings on
Blue&Me™ Nav, your mobile phone
shall be paired to the system.Updating Blue&Me™ Nav
To download and to set updatings use the
SYSTEM UPDATEmenu.
?
To start updating using manual in-
teraction, proceed as follows:
Press
ß/MAINand move to SET-
TINGS, SYSTEM UPDATE.
Then, Press SRC/OKor
ß/MAIN.
Blue&Me™ Navwill display the
message SYSTEM UPDATEand
start the updating procedure.
If no update is available, Blue&Me™
Navwill display the message NO
UPDATE AVAILABLEand say
“No update available”. Otherwise
Blue&Me™ Navwill complete the
updating procedure.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 54

5555

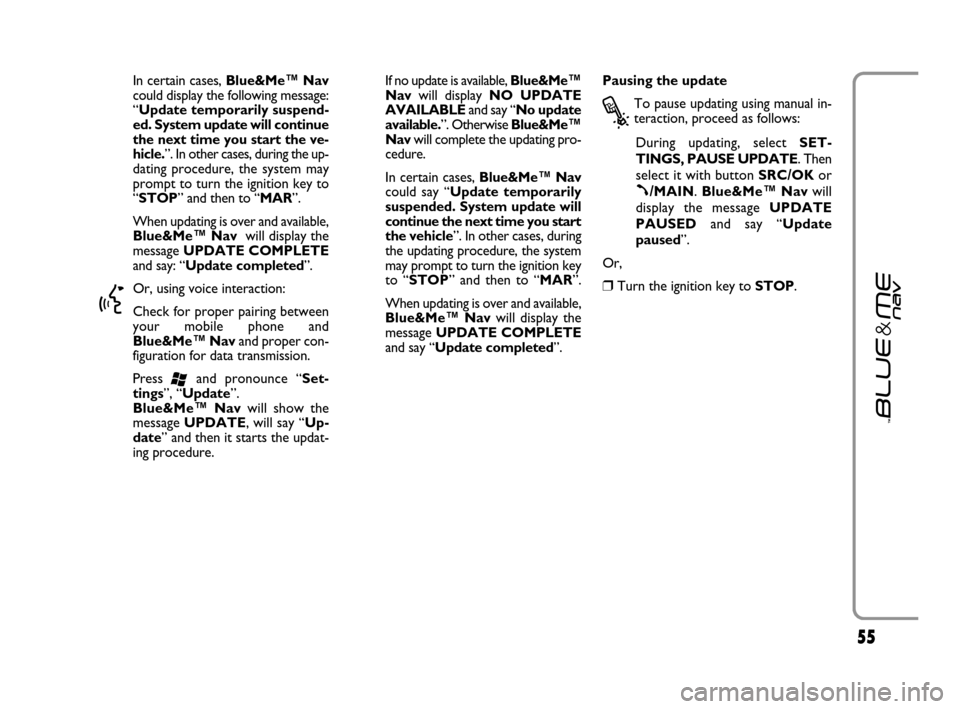

In certain cases, Blue&Me™ Nav
could display the following message:
“Update temporarily suspend-
ed. System update will continue
the next time you start the ve-
hicle.”. In other cases, during the up-
dating procedure, the system may
prompt to turn the ignition key to
“STOP” and then to “MAR”.
When updating is over and available,
Blue&Me™ Navwill display the
message UPDATE COMPLETE
and say: “Update completed”.
}
Or, using voice interaction:
Check for proper pairing between
your mobile phone and
Blue&Me™ Navand proper con-
figuration for data transmission.
Press
‘and pronounce “Set-
tings”, “Update”.
Blue&Me™ Navwill show the
message UPDATE, will say “Up-
date” and then it starts the updat-
ing procedure.If no update is available, Blue&Me™
Navwill display NO UPDATE
AVAILABLEand say “No update
available.”. Otherwise Blue&Me™
Navwill complete the updating pro-
cedure.
In certain cases, Blue&Me™ Nav
could say “Update temporarily
suspended. System update will
continue the next time you start
the vehicle”. In other cases, during
the updating procedure, the system
may prompt to turn the ignition key
to “STOP” and then to “MAR”.
When updating is over and available,
Blue&Me™ Navwill display the
message UPDATE COMPLETE
and say “Update completed”.Pausing the update
?
To pause updating using manual in-
teraction, proceed as follows:
During updating, select SET-
TINGS, PAUSE UPDATE. Then
select it with button SRC/OKor
ß/MAIN. Blue&Me™ Navwill
display the message UPDATE
PAUSEDand say “Update
paused”.
Or,
❒Turn the ignition key to STOP.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 55

5656

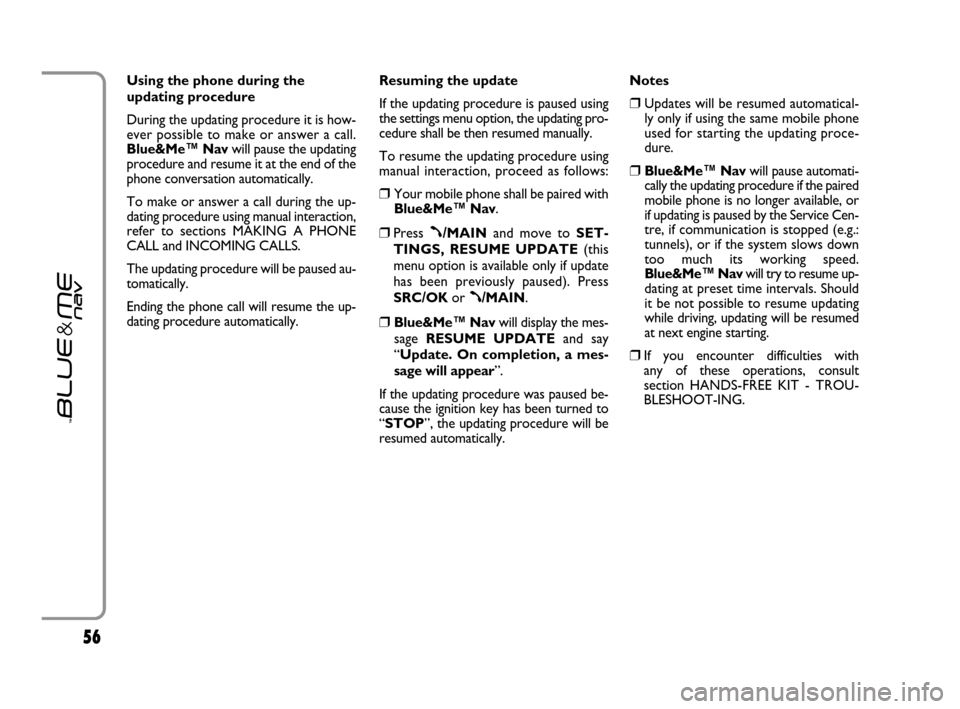

Using the phone during the
updating procedure
During the updating procedure it is how-
ever possible to make or answer a call.
Blue&Me™ Navwill pause the updating
procedure and resume it at the end of the
phone conversation automatically.
To make or answer a call during the up-
dating procedure using manual interaction,
refer to sections MAKING A PHONE
CALL and INCOMING CALLS.
The updating procedure will be paused au-
tomatically.
Ending the phone call will resume the up-
dating procedure automatically.Resuming the update
If the updating procedure is paused using
the settings menu option, the updating pro-
cedure shall be then resumed manually.
To resume the updating procedure using
manual interaction, proceed as follows:
❒Your mobile phone shall be paired with
Blue&Me™ Nav.
❒Press ß/MAINand move to SET-
TINGS, RESUME UPDATE(this
menu option is available only if update
has been previously paused). Press
SRC/OKor
ß/MAIN.
❒Blue&Me™ Navwill display the mes-
sage RESUME UPDATEand say
“Update. On completion, a mes-
sage will appear”.
If the updating procedure was paused be-
cause the ignition key has been turned to
“STOP”, the updating procedure will be
resumed automatically. Notes
❒Updates will be resumed automatical-
ly only if using the same mobile phone
used for starting the updating proce-
dure.
❒Blue&Me™ Navwill pause automati-
cally the updating procedure if the paired
mobile phone is no longer available, or
if updating is paused by the Service Cen-
tre, if communication is stopped (e.g.:
tunnels), or if the system slows down
too much its working speed.
Blue&Me™ Navwill try to resume up-
dating at preset time intervals. Should
it be not possible to resume updating
while driving, updating will be resumed
at next engine starting.
❒If you encounter difficulties with
any of these operations, consult
section HANDS-FREE KIT - TROU-
BLESHOOT-ING.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 56

5757

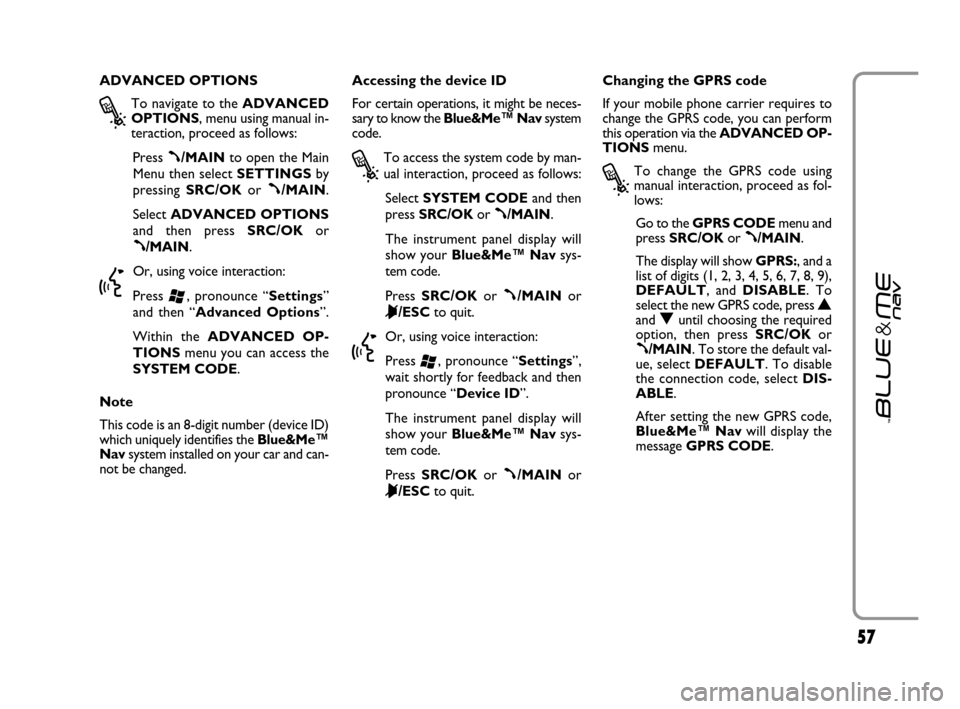

ADVANCED OPTIONS
?
To navigate to the ADVANCED
OPTIONS, menu using manual in-
teraction, proceed as follows:
Press
ß/MAINto open the Main
Menu then select SETTINGSby
pressing SRC/OKor
ß/MAIN.
Select ADVANCED OPTIONS
and then press SRC/OKor
ß/MAIN.
}
Or, using voice interaction:
Press
‘, pronounce “Settings”
and then “Advanced Options”.
Within the ADVANCED OP-
TIONSmenu you can access the
SYSTEM CODE.
Note
This code is an 8-digit number (device ID)
which uniquely identifies the Blue&Me™
Navsystem installed on your car and can-
not be changed.Accessing the device ID
For certain operations, it might be neces-
sary to know the Blue&Me™ Navsystem
code.
?
To access the system code by man-
ual interaction, proceed as follows:
Select SYSTEM CODEand then
press SRC/OKor
ß/MAIN.
The instrument panel display will
show your Blue&Me™ Navsys-
tem code.
Press SRC/OKor
ß/MAINor
&/ESCto quit.
}
Or, using voice interaction:
Press
‘, pronounce “Settings”,
wait shortly for feedback and then
pronounce “Device ID”.
The instrument panel display will
show your Blue&Me™ Navsys-
tem code.
Press SRC/OKor
ß/MAINor
&/ESCto quit.Changing the GPRS code
If your mobile phone carrier requires to
change the GPRS code, you can perform
this operation via the ADVANCED OP-
TIONSmenu.
?
To change the GPRS code using
manual interaction, proceed as fol-
lows:
Go to the GPRS CODEmenu and
press SRC/OKor
ß/MAIN.
The display will show GPRS:, and a
list of digits (1, 2, 3, 4, 5, 6, 7, 8, 9),
DEFAULT, and DISABLE. To
select the new GPRS code, press
Nand Ountil choosing the required
option, then press SRC/OKor
ß/MAIN. To store the default val-
ue, select DEFAULT. To disable
the connection code, select DIS-
ABLE.
After setting the new GPRS code,
Blue&Me™ Navwill display the
message GPRS CODE.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 57

5858
}

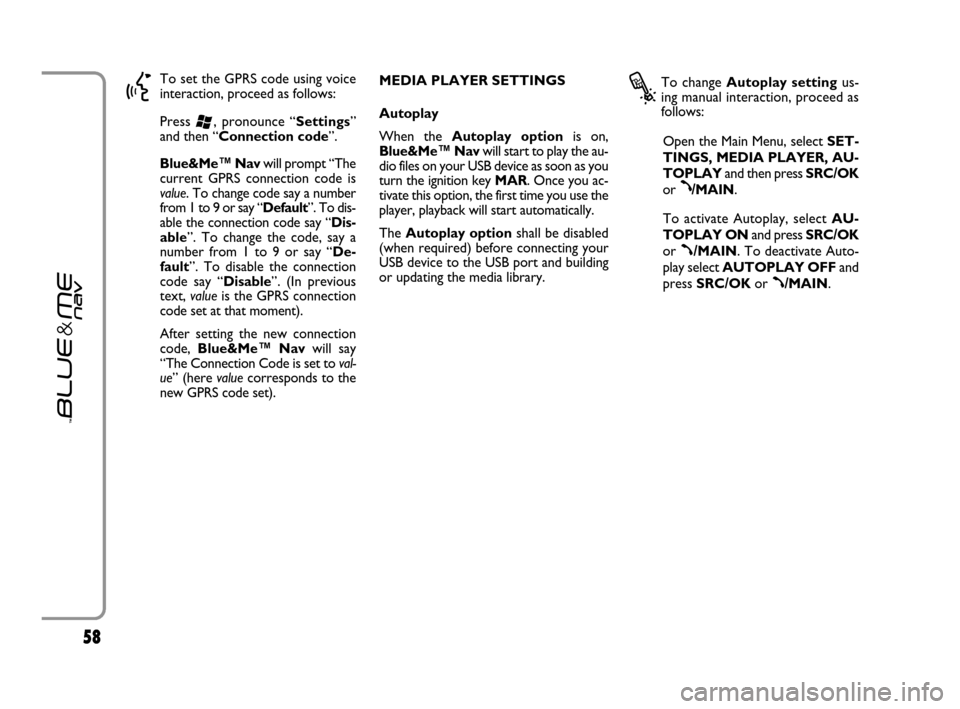

To set the GPRS code using voice
interaction, proceed as follows:
Press
‘, pronounce “Settings”
and then “Connection code”.
Blue&Me™ Navwill prompt “The
current GPRS connection code is
value. To change code say a number
from 1 to 9 or say “Default”. To dis-
able the connection code say “Dis-
able”. To change the code, say a
number from 1 to 9 or say “De-
fault”. To disable the connection
code say “Disable”. (In previous
text, valueis the GPRS connection
code set at that moment).
After setting the new connection
code, Blue&Me™ Navwill say
“The Connection Code is set to val-
ue” (here valuecorresponds to the
new GPRS code set). MEDIA PLAYER SETTINGS
Autoplay
When the Autoplay optionis on,
Blue&Me™ Navwill start to play the au-
dio files on your USB device as soon as you
turn the ignition key MAR. Once you ac-
tivate this option, the first time you use the
player, playback will start automatically.
The Autoplay optionshall be disabled
(when required) before connecting your
USB device to the USB port and building
or updating the media library.
?
To change Autoplay settingus-
ing manual interaction, proceed as
follows:
Open the Main Menu, select SET-
TINGS, MEDIA PLAYER, AU-
TOPLAYand then press SRC/OK
or
ß/MAIN.
To activate Autoplay, selectAU-
TOPLAY ONand press SRC/OK
or
ß/MAIN. To deactivate Auto-
play select AUTOPLAY OFFand
press SRC/OKor
ß/MAIN.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 58

5959
}

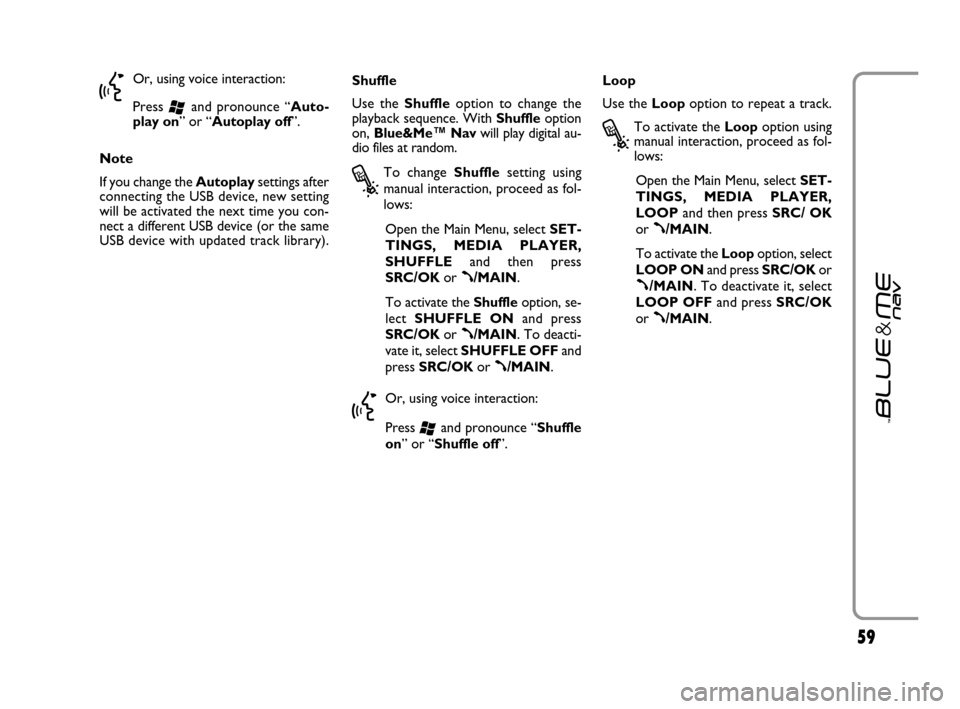

Or, using voice interaction:
Press
‘and pronounce “Auto-
play on” or “Autoplay off”.
Note
If you change the Autoplaysettings after
connecting the USB device, new setting
will be activated the next time you con-
nect a different USB device (or the same
USB device with updated track library).Shuffle
Use the Shuffleoption to change the
playback sequence. With Shuffleoption
on, Blue&Me™ Navwill play digital au-
dio files at random.
?
To change Shufflesetting using
manual interaction, proceed as fol-
lows:
Open the Main Menu, select SET-
TINGS, MEDIA PLAYER,
SHUFFLEand then press
SRC/OKor
ß/MAIN.
To activate the Shuffleoption, se-
lect SHUFFLE ONand press
SRC/OKor
ß/MAIN. To deacti-
vate it, select SHUFFLE OFFand
press SRC/OKor
ß/MAIN.
}
Or, using voice interaction:
Press
‘and pronounce “Shuffle
on” or “Shuffle off”.Loop
Use the Loopoption to repeat a track.
?
To activate the Loopoption using
manual interaction, proceed as fol-
lows:
Open the Main Menu, select SET-
TINGS, MEDIA PLAYER,
LOOPand then press SRC/ OK
or
ß/MAIN.
To activate the Loopoption, select
LOOP ONand press SRC/OKor
ß/MAIN. To deactivate it, select
LOOP OFFand press SRC/OK
or
ß/MAIN.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 59
