FIAT GRANDE PUNTO 2007 199 / 1.G Blue And Me Service Manual
Manufacturer: FIAT, Model Year: 2007, Model line: GRANDE PUNTO, Model: FIAT GRANDE PUNTO 2007 199 / 1.GPages: 106, PDF Size: 1.01 MB

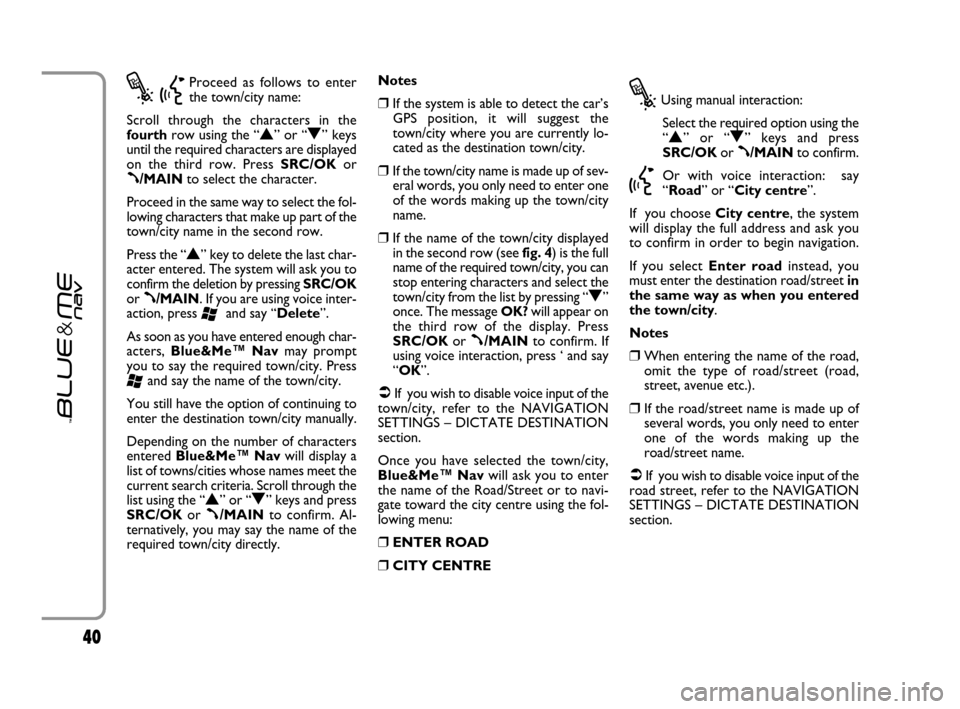

Page 41 of 106
40
?}
Proceed as follows to enter
the town/city name:
Scroll through the characters in the
fourthrow using the “
N” or “O” keys
until the required characters are displayed
on the third row. Press SRC/OKor
ß/MAINto select the character.
Proceed in the same way to select the fol-
lowing characters that make up part of the
town/city name in the second row.
Press the “
N” key to delete the last char-
acter entered. The system will ask you to
confirm the deletion by pressing SRC/OK
or
ß/MAIN. If you are using voice inter-
action, press
‘and say “Delete”.
As soon as you have entered enough char-
acters, Blue&Me™ Navmay prompt
you to say the required town/city. Press
‘and say the name of the town/city.
You still have the option of continuing to
enter the destination town/city manually.
Depending on the number of characters
entered Blue&Me™ Navwill display a
list of towns/cities whose names meet the
current search criteria. Scroll through the
list using the “
N” or “O” keys and press
SRC/OKor
ß/MAINto confirm. Al-
ternatively, you may say the name of the
required town/city directly.Notes
❒If the system is able to detect the car’s
GPS position, it will suggest the
town/city where you are currently lo-
cated as the destination town/city.
❒If the town/city name is made up of sev-
eral words, you only need to enter one
of the words making up the town/city
name.
❒If the name of the town/city displayed
in the second row (see fig. 4) is the full
name of the required town/city, you can
stop entering characters and select the
town/city from the list by pressing “
O”
once. The message OK?will appear on
the third row of the display. Press
SRC/OKor
ß/MAINto confirm. If
using voice interaction, press ‘ and say
“OK”.
If you wish to disable voice input of the
town/city, refer to the NAVIGATION
SETTINGS – DICTATE DESTINATION
section.
Once you have selected the town/city,
Blue&Me™ Navwill ask you to enter
the name of the Road/Street or to navi-
gate toward the city centre using the fol-
lowing menu:
❒ENTER ROAD
❒CITY CENTRE
?Using manual interaction:
Select the required option using the
“
N” or “O” keys and press
SRC/OKor
ß/MAINto confirm.
}Or with voice interaction: say
“Road” or “City centre”.
If you choose City centre, the system
will display the full address and ask you
to confirm in order to begin navigation.
If you select Enter roadinstead, you
must enter the destination road/street in
the same way as when you entered
the town/city.
Notes
❒When entering the name of the road,
omit the type of road/street (road,
street, avenue etc.).
❒If the road/street name is made up of
several words, you only need to enter
one of the words making up the
road/street name.
If you wish to disable voice input of the
road street, refer to the NAVIGATION
SETTINGS – DICTATE DESTINATION
section.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 40

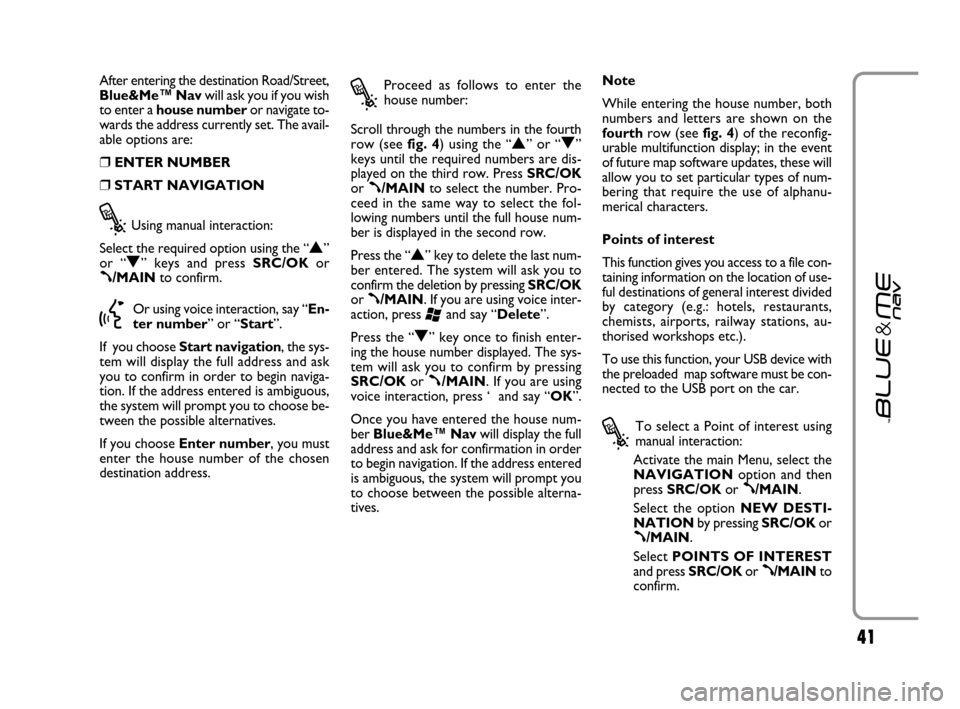

Page 42 of 106
41
After entering the destination Road/Street,
Blue&Me™ Navwill ask you if you wish
to enter a house numberor navigate to-
wards the address currently set. The avail-
able options are:
❒ENTER NUMBER
❒START NAVIGATION
?Using manual interaction:
Select the required option using the “
N”
or “O” keys and press SRC/OKor
ß/MAINto confirm.
}Or using voice interaction, say “En-
ter number” or “Start”.
If you choose Start navigation, the sys-
tem will display the full address and ask
you to confirm in order to begin naviga-
tion. If the address entered is ambiguous,
the system will prompt you to choose be-
tween the possible alternatives.
If you choose Enter number, you must
enter the house number of the chosen
destination address.
?
Proceed as follows to enter the
house number:
Scroll through the numbers in the fourth
row (see fig. 4) using the “
N” or “O”
keys until the required numbers are dis-
played on the third row. Press SRC/OK
or
ß/MAINto select the number. Pro-
ceed in the same way to select the fol-
lowing numbers until the full house num-
ber is displayed in the second row.
Press the “
N” key to delete the last num-
ber entered. The system will ask you to
confirm the deletion by pressing SRC/OK
or
ß/MAIN. If you are using voice inter-
action, press
‘and say “Delete”.
Press the “
O” key once to finish enter-
ing the house number displayed. The sys-
tem will ask you to confirm by pressing
SRC/OKor
ß/MAIN. If you are using
voice interaction, press ‘ and say “OK”.
Once you have entered the house num-
ber Blue&Me™ Navwill display the full
address and ask for confirmation in order
to begin navigation. If the address entered
is ambiguous, the system will prompt you
to choose between the possible alterna-
tives.Note
While entering the house number, both
numbers and letters are shown on the
fourthrow (see fig. 4) of the reconfig-
urable multifunction display; in the event
of future map software updates, these will
allow you to set particular types of num-
bering that require the use of alphanu-
merical characters.
Points of interest
This function gives you access to a file con-
taining information on the location of use-
ful destinations of general interest divided
by category (e.g.: hotels, restaurants,
chemists, airports, railway stations, au-
thorised workshops etc.).
To use this function, your USB device with
the preloaded map software must be con-
nected to the USB port on the car.
?
To select a Point of interest using
manual interaction:
Activate the main Menu, select the
NAVIGATIONoption and then
press SRC/OKor
ß/MAIN.
Select the option NEW DESTI-
NATIONby pressing SRC/OKor
ß/MAIN.
Select POINTS OF INTEREST
and press SRC/OKor
ß/MAINto
confirm.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 41

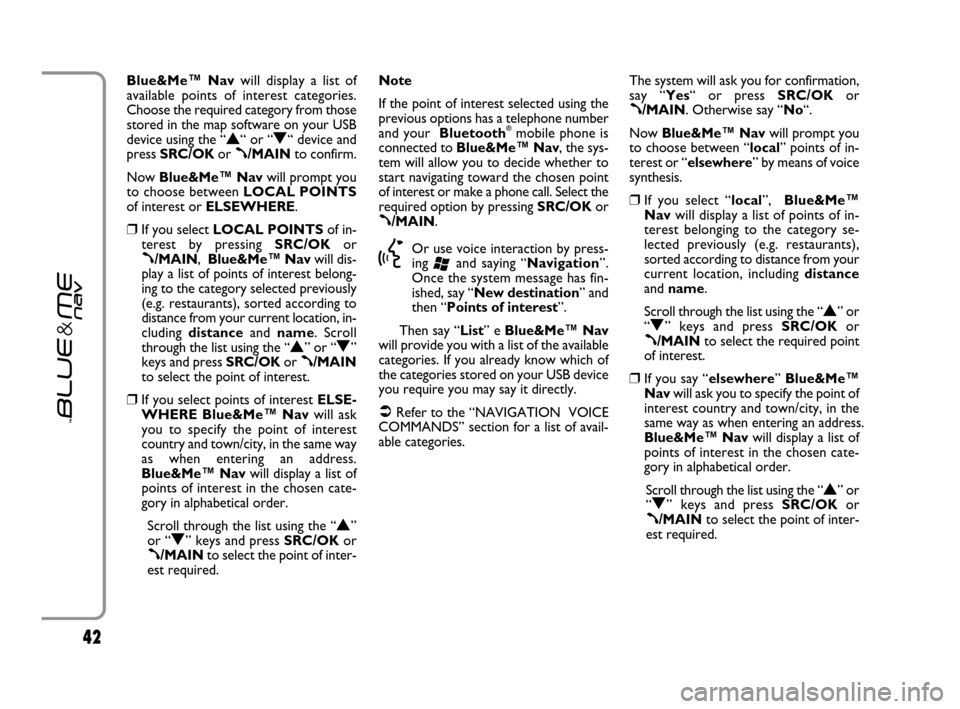

Page 43 of 106
42
Blue&Me™ Navwill display a list of
available points of interest categories.
Choose the required category from those
stored in the map software on your USB
device using the “
N“ or “O“ device and
press SRC/OKor
ß/MAINto confirm.
Now Blue&Me™ Navwill prompt you
to choose between LOCAL POINTS
of interest or ELSEWHERE.
❒If you select LOCAL POINTSof in-
terest by pressing SRC/OKor
ß/MAIN, Blue&Me™ Navwill dis-
play a list of points of interest belong-
ing to the category selected previously
(e.g. restaurants), sorted according to
distance from your current location, in-
cluding distanceand name. Scroll
through the list using the “
N” or “O”
keys and press SRC/OKor
ß/MAIN
to select the point of interest.
❒If you select points of interestELSE-
WHERE Blue&Me™ Navwill ask
you to specify the point of interest
country and town/city, in the same way
as when entering an address.
Blue&Me™ Navwill display a list of
points of interest in the chosen cate-
gory in alphabetical order.
Scroll through the list using the “
N”
or “O” keys and press SRC/OKor
ß/MAINto select the point of inter-
est required.Note
If the point of interest selected using the
previous options has a telephone number
and your Bluetooth
®mobile phone is
connected to Blue&Me™ Nav, the sys-
tem will allow you to decide whether to
start navigating toward the chosen point
of interest or make a phone call. Select the
required option by pressing SRC/OKor
ß/MAIN.
}Or use voice interaction by press-
ing
‘and saying “Navigation”.
Once the system message has fin-
ished, say “New destination” and
then “Points of interest”.
Then say “List” e Blue&Me™ Nav
will provide you with a list of the available
categories. If you already know which of
the categories stored on your USB device
you require you may say it directly.
Refer to the “NAVIGATION VOICE
COMMANDS” section for a list of avail-
able categories.The system will ask you for confirmation,
say “Yes“ or press SRC/OKor
ß/MAIN. Otherwise say “No“.
Now Blue&Me™ Navwill prompt you
to choose between “local” points of in-
terest or “elsewhere” by means of voice
synthesis.
❒If you select “local”, Blue&Me™
Navwill display a list of points of in-
terest belonging to the category se-
lected previously (e.g. restaurants),
sorted according to distance from your
current location, including distance
and name.
Scroll through the list using the “
N” or
“O” keys and press SRC/OKor
ß/MAINto select the required point
of interest.
❒If you say “elsewhere” Blue&Me™
Navwill ask you to specify the point of
interest country and town/city, in the
same way as when entering an address.
Blue&Me™ Navwill display a list of
points of interest in the chosen cate-
gory in alphabetical order.
Scroll through the list using the “
N” or
“O” keys and press SRC/OKor
ß/MAINto select the point of inter-
est required.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 42
Page 44 of 106
43
Note
If the point of interest selected using the
previous options has a telephone number
and your Bluetooth
®mobile phone is
connected to Blue&Me™ Nav, the sys-
tem will ask you if you wish to start navi-
gating toward the chosen point of interest
or make a phone call. Say “Start” to start
navigating or “Call” to make the phone
call.
After making the selection, Blue&Me™
Navwill display the name, distance and
address of the point of interest and ask for
confirmation in order to begin navigating.
Resume navigation
Blue&Me™ Navallows you to resume
navigation toward a set destination if nav-
igation has been suspended using the
STOP NAVIGATIONcommand.
?
To resume navigation, using manu-
al interaction:
Activate the main Menu, select the
NAVIGATIONoption and then
press SRC/OKor
ß/MAIN.Select the RESUME NAVIGA-
TIONoption by pressing SRC/OK
or
ß/MAIN.
Blue&Me™ Navwill ask you to
confirm the operation, press
SRC/OKor
ß/MAINto confirm
or
&/ESC” to cancel the above op-
eration.
}With voice interaction:
press
‘and say “Navigation” and
then, once you have heard the sys-
tem message, say “Resume navi-
gation”. The system will ask you to
say “Yes” to resume navigation or
“No” to cancel the above opera-
tion.
Note
If you turn your car’s ignition key to
STOPduring a navigation session,
Blue&Me™ Navwill automatically sus-
pend navigation.
When you turn your car’s ignition key to
MAR, the system will ask you if you wish
to resume navigation and show the preset
destination address on the reconfigurable
multifunction display.
?
With manual interaction press
SRC/OKor
ß/MAINto resume
navigation or
&/ESCin order not to
activate.
}With voice interaction, say “Yes”
to resume navigation or “No” in or-
der not to activate
Arrival information
Blue&Me™ Navis able to provide you
with an estimated time of arrival at your
destination and distance to the destination.
?
With manual interaction:
Activate the main Menu, select the
NAVIGATIONoption and then
press SRC/OKor
ß/MAIN.
Select the ARRIVAL INFORMA-
TIONoption by pressing SRC/OK
or
ß/MAIN.
Blue&Me™ Navwill display an es-
timated time of arrival and estimat-
ed distance remaining to the desti-
nation.
Note
When the car is moving, the arrival infor-
mation may be displayed immediate-
lyby pressing the NAVkey on the key-
pad near the courtesy light (see fig. 1).
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 43
Page 45 of 106
44

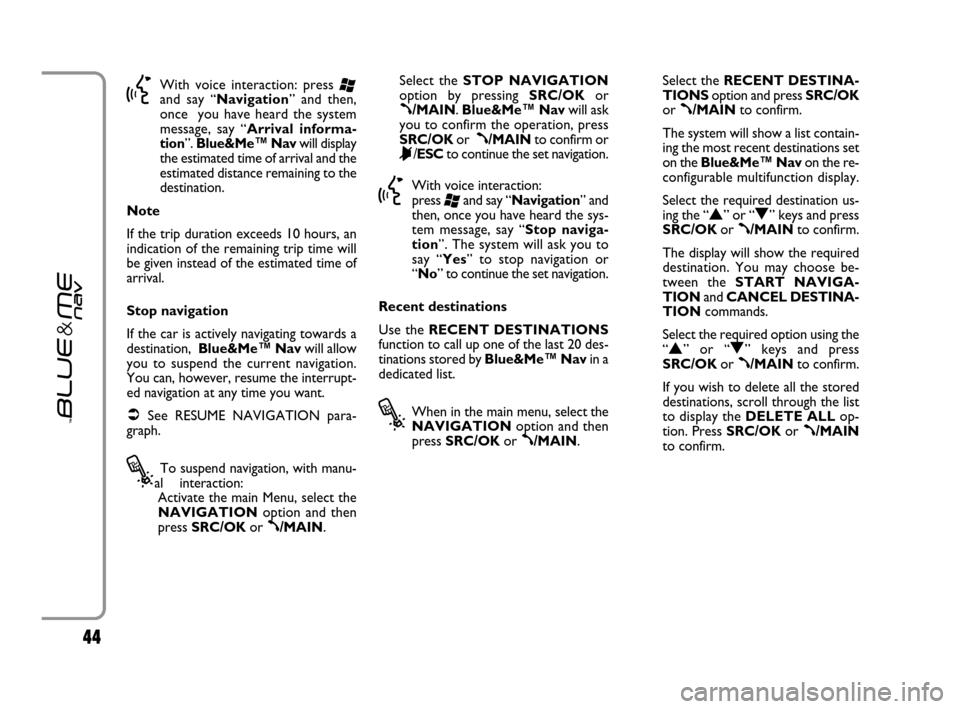

}With voice interaction: press ‘and say “Navigation” and then,
once you have heard the system
message, say “Arrival informa-
tion”. Blue&Me™ Navwill display
the estimated time of arrival and the
estimated distance remaining to the
destination.
Note
If the trip duration exceeds 10 hours, an
indication of the remaining trip time will
be given instead of the estimated time of
arrival.
Stop navigation
If the car is actively navigating towards a
destination, Blue&Me™ Navwill allow
you to suspend the current navigation.
You can, however, resume the interrupt-
ed navigation at any time you want.
See RESUME NAVIGATION para-
graph.
?
To suspend navigation, with manu-
al interaction:
Activate the main Menu, select the
NAVIGATIONoption and then
press SRC/OKor
ß/MAIN.Select the STOP NAVIGATION
option by pressing SRC/OKor
ß/MAIN. Blue&Me™ Navwill ask
you to confirm the operation, press
SRC/OKor
ß/MAINto confirm or
&/ESCto continue the set navigation.
}With voice interaction:
press
‘and say “Navigation” and
then, once you have heard the sys-
tem message, say “Stop naviga-
tion”. The system will ask you to
say “Yes” to stop navigation or
“No” to continue the set navigation.
Recent destinations
Use the RECENT DESTINATIONS
function to call up one of the last 20 des-
tinations stored by Blue&Me™ Navin a
dedicated list.
?
When in the main menu, select the
NAVIGATIONoption and then
press SRC/OKor
ß/MAIN.Select the RECENT DESTINA-
TIONSoption and press SRC/OK
or
ß/MAINto confirm.
The system will show a list contain-
ing the most recent destinations set
on the Blue&Me™ Navon the re-
configurable multifunction display.
Select the required destination us-
ing the “
N” or “O” keys and press
SRC/OKor
ß/MAINto confirm.
The display will show the required
destination. You may choose be-
tween the START NAVIGA-
TIONand CANCEL DESTINA-
TIONcommands.
Select the required option using the
“
N” or “O” keys and press
SRC/OKor
ß/MAINto confirm.
If you wish to delete all the stored
destinations, scroll through the list
to display the DELETE ALLop-
tion. Press SRC/OKor
ß/MAIN
to confirm.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 44
Page 46 of 106
45

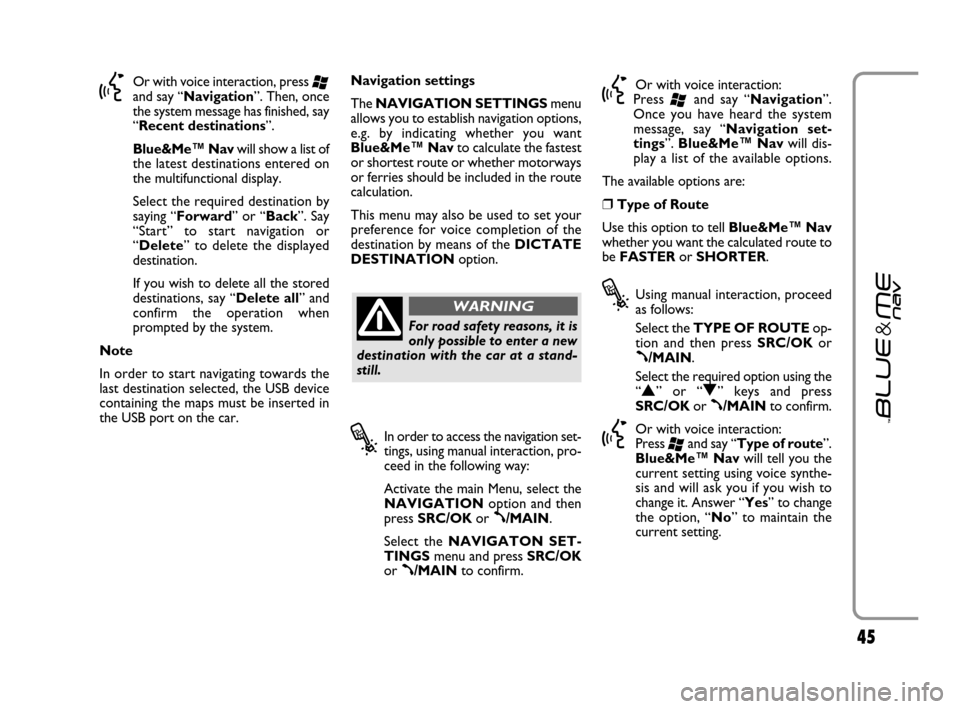

}Or with voice interaction, press ‘and say “Navigation”. Then, once
the system message has finished, say
“Recent destinations”.
Blue&Me™ Navwill show a list of
the latest destinations entered on
the multifunctional display.
Select the required destination by
saying “Forward” or “Back”. Say
“Start” to start navigation or
“Delete” to delete the displayed
destination.
If you wish to delete all the stored
destinations, say “Delete all” and
confirm the operation when
prompted by the system.
Note
In order to start navigating towards the
last destination selected, the USB device
containing the maps must be inserted in
the USB port on the car.Navigation settings
The NAVIGATION SETTINGSmenu
allows you to establish navigation options,
e.g. by indicating whether you want
Blue&Me™ Navto calculate the fastest
or shortest route or whether motorways
or ferries should be included in the route
calculation.
This menu may also be used to set your
preference for voice completion of the
destination by means of the DICTATE
DESTINATIONoption.
?
In order to access the navigation set-
tings, using manual interaction, pro-
ceed in the following way:
Activate the main Menu, select the
NAVIGATIONoption and then
press SRC/OKor
ß/MAIN.
Select the NAVIGATON SET-
TINGSmenu and press SRC/OK
or
ß/MAINto confirm.
}Or with voice interaction:
Press
‘and say “Navigation”.
Once you have heard the system
message, say “Navigation set-
tings”. Blue&Me™ Navwill dis-
play a list of the available options.
The available options are:
❒Type of Route
Use this option to tell Blue&Me™ Nav
whether you want the calculated route to
be FASTERor SHORTER.
?Using manual interaction, proceed
as follows:
Select the TYPE OF ROUTEop-
tion and then press SRC/OKor
ß/MAIN.
Select the required option using the
“
N” or “O” keys and press
SRC/OKor
ß/MAINto confirm.
}Or with voice interaction:
Press
‘and say “Type of route”.
Blue&Me™ Navwill tell you the
current setting using voice synthe-
sis and will ask you if you wish to
change it. Answer “Yes” to change
the option, “No” to maintain the
current setting.
For road safety reasons, it is
only possible to enter a new
destination with the car at a stand-
still.
WARNING
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 45
Page 47 of 106
46

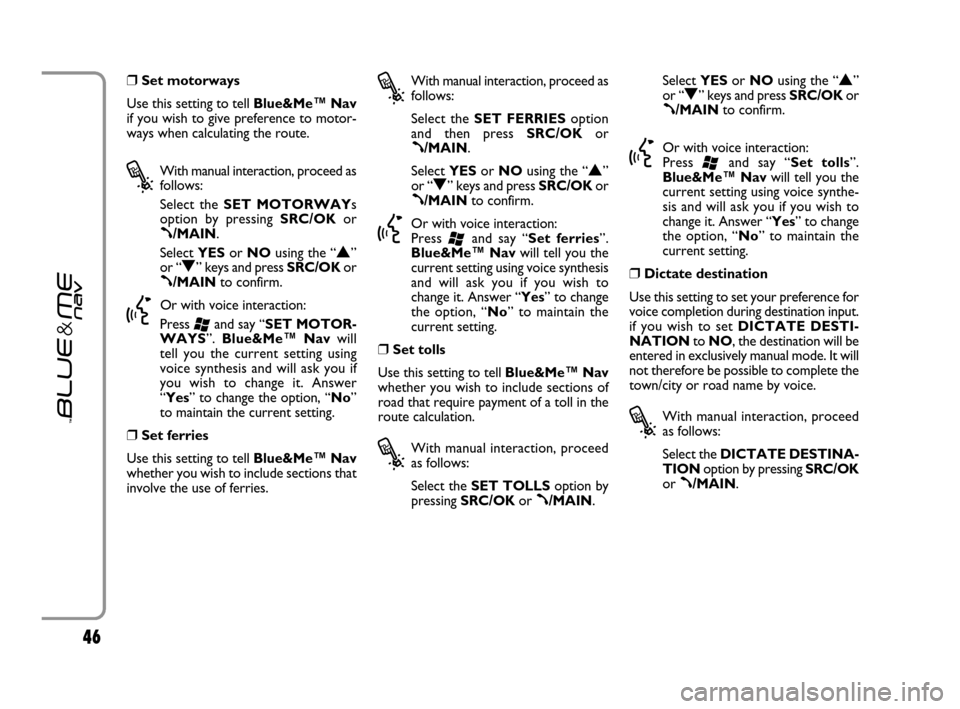

❒Set motorways
Use this setting to tell Blue&Me™ Nav
if you wish to give preference to motor-
ways when calculating the route.
?
With manual interaction, proceed as
follows:
Select the SET MOTORWAYs
option by pressing SRC/OKor
ß/MAIN.
Select YESor NOusing the “
N”
or “O” keys and press SRC/OKor
ß/MAINto confirm.
}Or with voice interaction:
Press
‘and say “SET MOTOR-
WAYS”. Blue&Me™ Navwill
tell you the current setting using
voice synthesis and will ask you if
you wish to change it. Answer
“Yes” to change the option, “No”
to maintain the current setting.
❒Set ferries
Use this setting to tell Blue&Me™ Nav
whether you wish to include sections that
involve the use of ferries.
?
With manual interaction, proceed as
follows:
Select the SET FERRIESoption
and then press SRC/OKor
ß/MAIN.
Select YESor NOusing the “
N”
or “O” keys and press SRC/OKor
ß/MAINto confirm.
}Or with voice interaction:
Press
‘and say “Set ferries”.
Blue&Me™ Navwill tell you the
current setting using voice synthesis
and will ask you if you wish to
change it. Answer “Yes” to change
the option, “No” to maintain the
current setting.
❒Set tolls
Use this setting to tellBlue&Me™ Nav
whether you wish to include sections of
road that require payment of a toll in the
route calculation.
?
With manual interaction, proceed
as follows:
Select the SET TOLLSoption by
pressing SRC/OKor
ß/MAIN.Select YESor NOusing the “
N”
or “O” keys and press SRC/OKor
ß/MAINto confirm.
}Or with voice interaction:
Press
‘and say “Set tolls”.
Blue&Me™ Navwill tell you the
current setting using voice synthe-
sis and will ask you if you wish to
change it. Answer “Yes” to change
the option, “No” to maintain the
current setting.
❒Dictate destination
Use this setting to set your preference for
voice completion during destination input.
if you wish to set DICTATE DESTI-
NATIONto NO, the destination will be
entered in exclusively manual mode. It will
not therefore be possible to complete the
town/city or road name by voice.
?
With manual interaction, proceed
as follows:
Select the DICTATE DESTINA-
TIONoption by pressing SRC/OK
or
ß/MAIN.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 46
Page 48 of 106
47

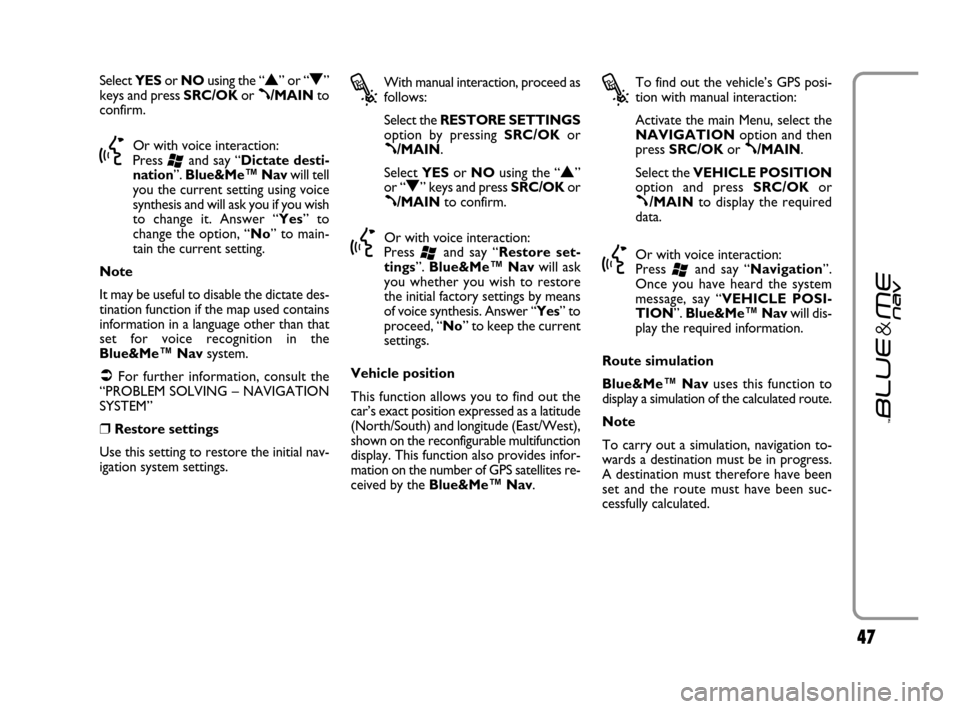

Select YESor NOusing the “N” or “O”
keys and press SRC/OKor
ß/MAINto
confirm.
}Or with voice interaction:
Press
‘and say “Dictate desti-
nation”. Blue&Me™ Navwill tell
you the current setting using voice
synthesis and will ask you if you wish
to change it. Answer “Yes” to
change the option, “No” to main-
tain the current setting.
Note
It may be useful to disable the dictate des-
tination function if the map used contains
information in a language other than that
set for voice recognition in the
Blue&Me™ Navsystem.
For further information, consult the
“PROBLEM SOLVING – NAVIGATION
SYSTEM”
❒Restore settings
Use this setting to restore the initial nav-
igation system settings.
?
With manual interaction, proceed as
follows:
Select the RESTORE SETTINGS
option by pressing SRC/OKor
ß/MAIN.
Select YESor NOusing the “
N”
or “O” keys and press SRC/OKor
ß/MAINto confirm.
}Or with voice interaction:
Press
‘and say “Restore set-
tings”. Blue&Me™ Navwill ask
you whether you wish to restore
the initial factory settings by means
of voice synthesis. Answer “Yes” to
proceed, “No” to keep the current
settings.
Vehicle position
This function allows you to find out the
car’s exact position expressed as a latitude
(North/South) and longitude (East/West),
shown on the reconfigurable multifunction
display. This function also provides infor-
mation on the number of GPS satellites re-
ceived by the Blue&Me™ Nav.
?
To find out the vehicle’s GPS posi-
tion with manual interaction:
Activate the main Menu, select the
NAVIGATIONoption and then
press SRC/OKor
ß/MAIN.
Select the VEHICLE POSITION
option and press SRC/OKor
ß/MAINto display the required
data.
}Or with voice interaction:
Press
‘and say “Navigation”.
Once you have heard the system
message, say “VEHICLE POSI-
TION”. Blue&Me™ Navwill dis-
play the required information.
Route simulation
Blue&Me™ Navuses this function to
display a simulation of the calculated route.
Note
To carry out a simulation, navigation to-
wards a destination must be in progress.
A destination must therefore have been
set and the route must have been suc-
cessfully calculated.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 47
Page 49 of 106
4848
SETTINGS FUNCTIONS
The SETTINGSmenu enables you to
perform the following functions:
❒Pairing a mobile phone
❒Managing user data
❒Managing Blue&Me™ Navupdate
❒Media player settings
❒Advanced Options.
To perform functions and adjustments in
the SETTINGSmenu, you may use but-
tons on the steering wheel or voice com-
mands at car standstill. When the car is
moving, you can use voice commands on-
ly. Instructions are provided for both
methods.
If you encounter difficulties with any of
the Blue&Me™ Navsettings, consult

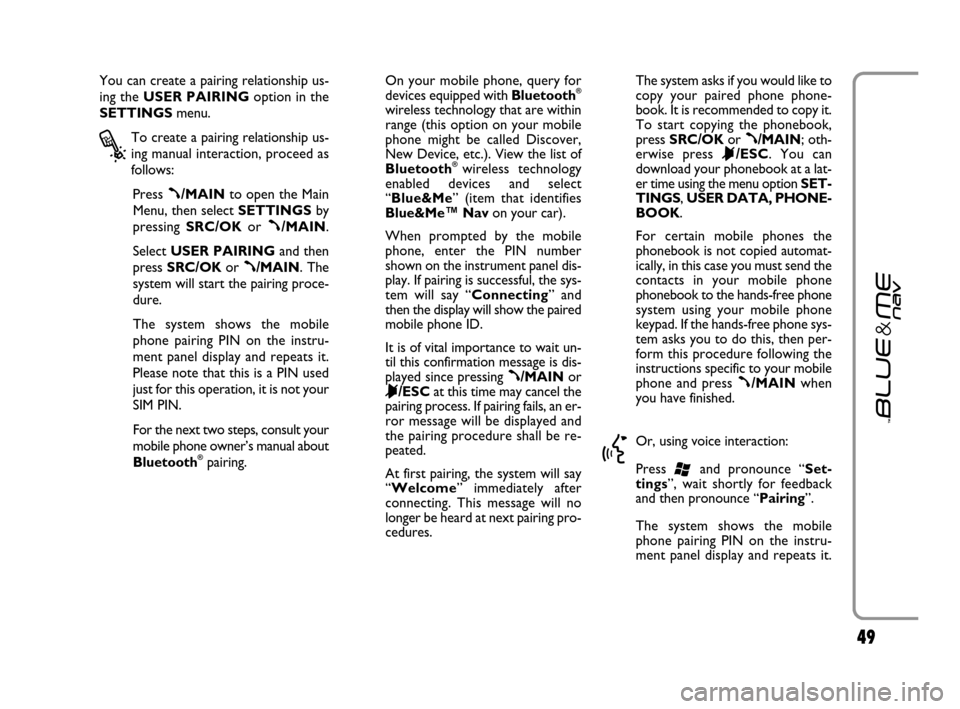

section TROUBLESHOOTING.PAIRING A MOBILE PHONE
Before you can use your mobile phone
with the hands-free phone function on
your car, you must create a pairing rela-
tionship between the mobile phone and
the hands-free phone system.
During the pairing procedure, the hands-
free phone system attempts to detect a
phone equipped with Bluetooth
®wire-
less technology within range, and then es-
tablishes the connection using a Personal
Identification Number (PIN). After a pair-
ing relationship is established, you can use
the hands-free phone system to make and
receive phone calls, and do other opera-
tions via your wirelessly-connected mo-
bile phone.
IMPORTANT The mobile phone pairing
PIN number is a special PIN generated
randomly at each new pairing and used
just for this operation. It is not your SIM
PIN and therefore it is not required to
store or to keep it in mind; loosing it will
not impair the hands-free phone system
operation.
The pairing procedure will only need to
be performed once for your mobile
phone. After this procedure Blue&Me™
Navwill automatically connect to your
phone each time you get into the car and
turn the ignition key to MAR. For road safety reasons, it is only possi-
ble to alter the navigation settings with the
car at a standstill.
?
To simulate the active route, by
means ofmanual interaction:
Activate the main Menu, select the
NAVIGATIONoption and then press
SRC/OKor
ß/MAIN.
Select the ROUTE SIMULATION
option and press SRC/OKor
ß/MAIN
to start the simulation.
To stop the simulation, simply press
the NAVkey on the keypad near the
courtesy light.
}Or with voice interaction:
Press
‘and say “Navigation”.
Once you have heard the system
message, say “route simulation”.
Blue&Me™ Navwill start the sim-
ulation.
To stop the simulation, press
‘and say “Navigation”
For road safety reasons, it is
only possible to enter a new
destination with the car at a stand-
still.
WARNING
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 48
Page 50 of 106
4949
You can create a pairing relationship us-
ing the USER PAIRINGoption in the
SETTINGSmenu.
?
To create a pairing relationship us-
ing manual interaction, proceed as
follows:
Press
ß/MAINto open the Main
Menu, then select SETTINGSby
pressing SRC/OKor
ß/MAIN.
Select USER PAIRINGand then
press SRC/OKor
ß/MAIN. The
system will start the pairing proce-
dure.
The system shows the mobile
phone pairing PIN on the instru-
ment panel display and repeats it.
Please note that this is a PIN used
just for this operation, it is not your
SIM PIN.
For the next two steps, consult your
mobile phone owner’s manual about
Bluetooth
®pairing.On your mobile phone, query for
devices equipped with Bluetooth
®
wireless technology that are within
range (this option on your mobile
phone might be called Discover,
New Device, etc.). View the list of
Bluetooth
®wireless technology
enabled devices and select
“Blue&Me” (item that identifies
Blue&Me™ Navon your car).
When prompted by the mobile
phone, enter the PIN number
shown on the instrument panel dis-
play. If pairing is successful, the sys-
tem will say “Connecting” and
then the display will show the paired
mobile phone ID.
It is of vital importance to wait un-
til this confirmation message is dis-
played since pressing
ß/MAINor
&/ESCat this time may cancel the
pairing process. If pairing fails, an er-
ror message will be displayed and
the pairing procedure shall be re-
peated.
At first pairing, the system will say
“Welcome” immediately after
connecting. This message will no
longer be heard at next pairing pro-
cedures.The system asks if you would like to
copy your paired phone phone-
book. It is recommended to copy it.
To start copying the phonebook,
press SRC/OKor
ß/MAIN; oth-
erwise press
&/ESC. You can
download your phonebook at a lat-
er time using the menu option SET-
TINGS, USER DATA, PHONE-
BOOK.
For certain mobile phones the
phonebook is not copied automat-
ically, in this case you must send the
contacts in your mobile phone
phonebook to the hands-free phone
system using your mobile phone
keypad. If the hands-free phone sys-
tem asks you to do this, then per-
form this procedure following the
instructions specific to your mobile
phone and press
ß/MAINwhen
you have finished.
}
Or, using voice interaction:
Press
‘and pronounce “Set-
tings”, wait shortly for feedback
and then pronounce “Pairing”.
The system shows the mobile
phone pairing PIN on the instru-
ment panel display and repeats it.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 49
