3030
Note
Not all formats require to enter media in-
fo. Formats .mp3and .wmarecognized by
Blue&Me™ Navrequire media info
whereas .wavnot. If no media info is en-
tered, audio files can only be selected by
folder.
For further details, refer to section PRAC-
TICAL HINTS FOR USING THE MEDIA
PLAYER.Selection by folder
Track folders on your USB device are dis-
played in the FOLDERSmenu.
?
To select tracks through manual in-
teraction, proceed as follows:
Launch the Main Menu and select
MEDIA PLAYER, then press
SRC/OKor
ß/MAIN.
Select FOLDERS, then press
SRC/OKor
ß/MAIN.
Scroll folders. To play all folders, se-
lect PLAY ALLand then press
SRC/OKor
ß/MAIN. To display
folder tracks, press SRC/OKor
ß/MAIN.
Scroll the selected folder tracks.
To play the required track, select
the title and then press SRC/OKor
ß/MAIN.
}
Or, using voice interaction:
Press
‘and pronounce “Fold-
ers”.
Scroll folders. To play all folder, se-
lect PLAY ALLand then press
SRC/OKor
ß/MAIN. To display
folder tracks, press SRC/OKor
ß/MAIN.
Scroll the selected folder tracks. To
play the required track, select the ti-
tle and then press SRC/OKor
ß/MAIN.
For further details on FOLDERS,
menu customization, see section
PRACTICAL HINTS FOR USING
THE MEDIA PLAYER.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 30
Page 32 of 106
3131

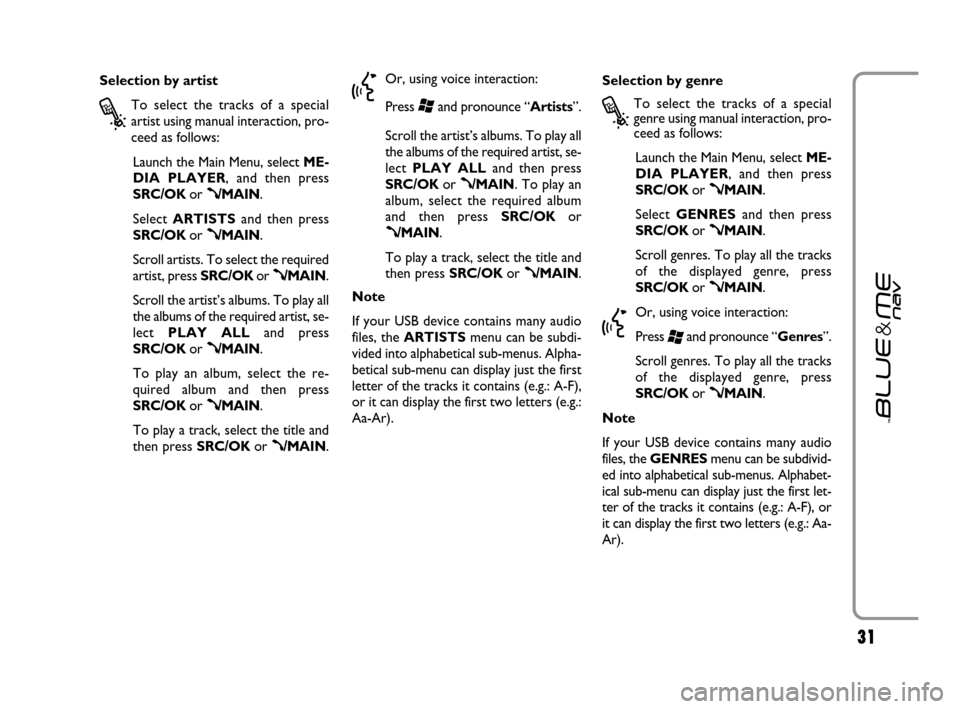

Selection by artist
?
To select the tracks of a special
artist using manual interaction, pro-
ceed as follows:
Launch the Main Menu, select ME-
DIA PLAYER, and then press
SRC/OKor
ß/MAIN.
Select ARTISTSand then press
SRC/OKor
ß/MAIN.
Scroll artists. To select the required
artist, press SRC/OKor
ß/MAIN.
Scroll the artist’s albums. To play all
the albums of the required artist, se-
lect PLAY ALLand press
SRC/OKor
ß/MAIN.
To play an album, select the re-
quired album and then press
SRC/OKor
ß/MAIN.
To play a track, select the title and
then press SRC/OKor
ß/MAIN.
}
Or, using voice interaction:
Press
‘and pronounce “Artists”.
Scroll the artist’s albums. To play all
the albums of the required artist, se-
lect PLAY ALLand then press
SRC/OKor
ß/MAIN. To play an
album, select the required album
and then press SRC/OKor
ß/MAIN.
To play a track, select the title and
then press SRC/OKor
ß/MAIN.
Note
If your USB device contains many audio
files, the ARTISTSmenu can be subdi-
vided into alphabetical sub-menus. Alpha-
betical sub-menu can display just the first
letter of the tracks it contains (e.g.: A-F),
or it can display the first two letters (e.g.:
Aa-Ar).Selection by genre
?
To select the tracks of a special
genre using manual interaction, pro-
ceed as follows:
Launch the Main Menu, select ME-
DIA PLAYER, and then press
SRC/OKor
ß/MAIN.
Select GENRESand then press
SRC/OKor
ß/MAIN.
Scroll genres. To play all the tracks
of the displayed genre, press
SRC/OKor
ß/MAIN.
}
Or, using voice interaction:
Press
‘and pronounce “Genres”.
Scroll genres. To play all the tracks
of the displayed genre, press
SRC/OKor
ß/MAIN.
Note
If your USB device contains many audio
files, the GENRESmenu can be subdivid-
ed into alphabetical sub-menus. Alphabet-
ical sub-menu can display just the first let-
ter of the tracks it contains (e.g.: A-F), or
it can display the first two letters (e.g.: Aa-
Ar).
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 31
Page 33 of 106
3232
Selection by album
?
To select an album using manual in-
teraction, proceed as follows:
Launch the Main Menu, select ME-
DIA PLAYER, and then press
SRC/OKor
ß/MAIN.
Select ALBUMSand then press
SRC/OKor
ß/MAIN.
Scroll albums. To select the dis-
played album, press SRC/OKor
ß/MAIN.
Scroll the album tracks. To play all
the tracks in the album, select
PLAY ALLand press SRC/OKor
ß/MAIN. To play an album, select
it and then press SRC/OKor
ß/MAIN.
To play just one track, select the
track title and press SRC/OKor
ß/MAIN.
}
Or, using voice interaction:
Press
‘and pronounce “Al-
bums”.
Scroll albums. To select the dis-
played album, press SRC/OKor
ß/MAIN.
Scroll the album tracks. To play all the
tracks in the album, select PLAY
ALLand press SRC/OKor
ß/MAIN.
To play just one track, select the
track title and press SRC/OKor
ß/MAIN.
Note
If your USB device contains many audio
files, the ALBUMSmenu can be subdi-
vided into alphabetical sub-menus. Alpha-
betical sub-menu can display just the first
letter of the tracks it contains (e.g.: A-F),
or it can display the first two letters (e.g.:
Aa-Ar).Selection by playlist
Playlists stored in your USB device can be
displayed with the PLAYLISTSmenu.
?
To select a playlist using manual in-
teraction, proceed as follows:
Launch the Main Menu, select ME-
DIA PLAYER, and then press
SRC/OKor
ß/MAIN.
Select PLAYLISTSand press
SRC/OKor
ß/MAIN.
Scroll playlists. To play the displayed
playlist, press SRC/OKor
ß/MAIN.
}
Or, using voice interaction:
Press
‘and pronounce “Playlists”.
Scroll playlists. To play the displayed
playlist, press SRC/OKor
ß/MAIN.
For further details on how to build
playlists, refer to section PRACTICAL
HINTS.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 32
Page 34 of 106
3333

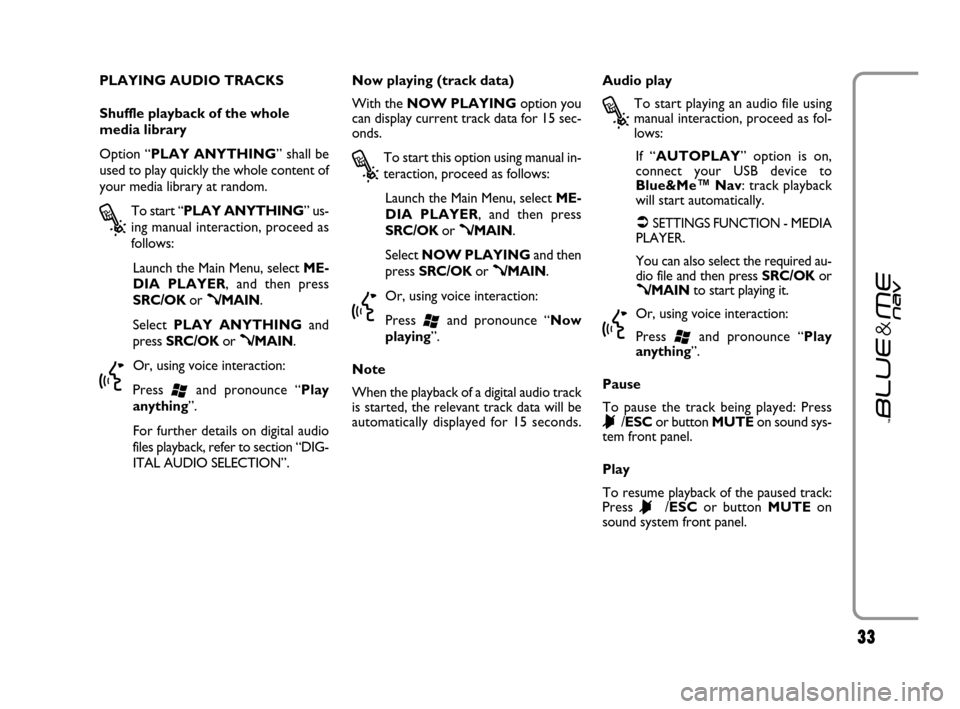

PLAYING AUDIO TRACKS
Shuffle playback of the whole
media library
Option “PLAY ANYTHING” shall be
used to play quickly the whole content of
your media library at random.
?
To start “PLAY ANYTHING” us-
ing manual interaction, proceed as
follows:
Launch the Main Menu, select ME-
DIA PLAYER, and then press
SRC/OKor
ß/MAIN.
Select PLAY ANYTHINGand
press SRC/OKor
ß/MAIN.
}
Or, using voice interaction:
Press
‘and pronounce “Play
anything”.
For further details on digital audio
files playback, refer to section “DIG-
ITAL AUDIO SELECTION”.Now playing (track data)
With the NOW PLAYINGoption you
can display current track data for 15 sec-
onds.
?
To start this option using manual in-
teraction, proceed as follows:
Launch the Main Menu, select ME-
DIA PLAYER, and then press
SRC/OKor
ß/MAIN.
Select NOW PLAYINGand then
press SRC/OKor
ß/MAIN.
}
Or, using voice interaction:
Press
‘and pronounce “Now
playing”.
Note
When the playback of a digital audio track
is started, the relevant track data will be
automatically displayed for 15 seconds.Audio play
?
To start playing an audio file using
manual interaction, proceed as fol-
lows:
If “AUTOPLAY” option is on,
connect your USB device to
Blue&Me™ Nav: track playback
will start automatically.
SETTINGS FUNCTION -MEDIA
PLAYER.
You can also select the required au-
dio file and then press SRC/OKor
ß/MAINto start playing it.
}
Or, using voice interaction:
Press
‘and pronounce “Play
anything”.
Pause
To pause the track being played: Press
&/ESC or button MUTEon sound sys-
tem front panel.
Play
To resume playback of the paused track:
Press
&/ESCor button MUTEon
sound system front panel.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 33
Page 35 of 106
3434

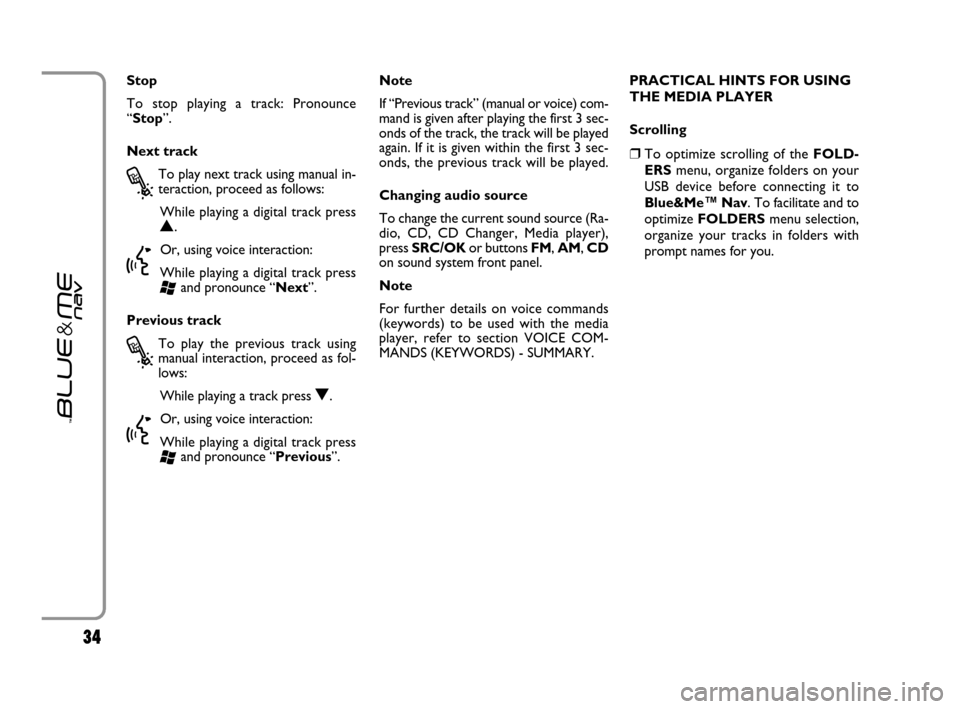

Stop
To stop playing a track: Pronounce
“Stop”.
Next track
?
To play next track using manual in-
teraction, proceed as follows:
While playing a digital track press
N.
}
Or, using voice interaction:
While playing a digital track press
‘and pronounce “Next”.
Previous track
?
To play the previous track using
manual interaction, proceed as fol-
lows:
While playing a track press
O.
}
Or, using voice interaction:
While playing a digital track press
‘and pronounce “Previous”.Note
If “Previous track” (manual or voice) com-
mand is given after playing the first 3 sec-
onds of the track, the track will be played
again. If it is given within the first 3 sec-
onds, the previous track will be played.
Changing audio source
To change the current sound source (Ra-
dio, CD, CD Changer, Media player),
press SRC/OKor buttons FM, AM, CD
on sound system front panel.
Note
For further details on voice commands
(keywords) to be used with the media
player, refer to section VOICE COM-
MANDS (KEYWORDS) - SUMMARY.PRACTICAL HINTS FOR USING
THE MEDIA PLAYER
Scrolling
❒To optimize scrolling of the FOLD-
ERSmenu, organize folders on your
USB device before connecting it to
Blue&Me™ Nav. To facilitate and to
optimize FOLDERSmenu selection,
organize your tracks in folders with
prompt names for you.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 34
Page 36 of 106
3535

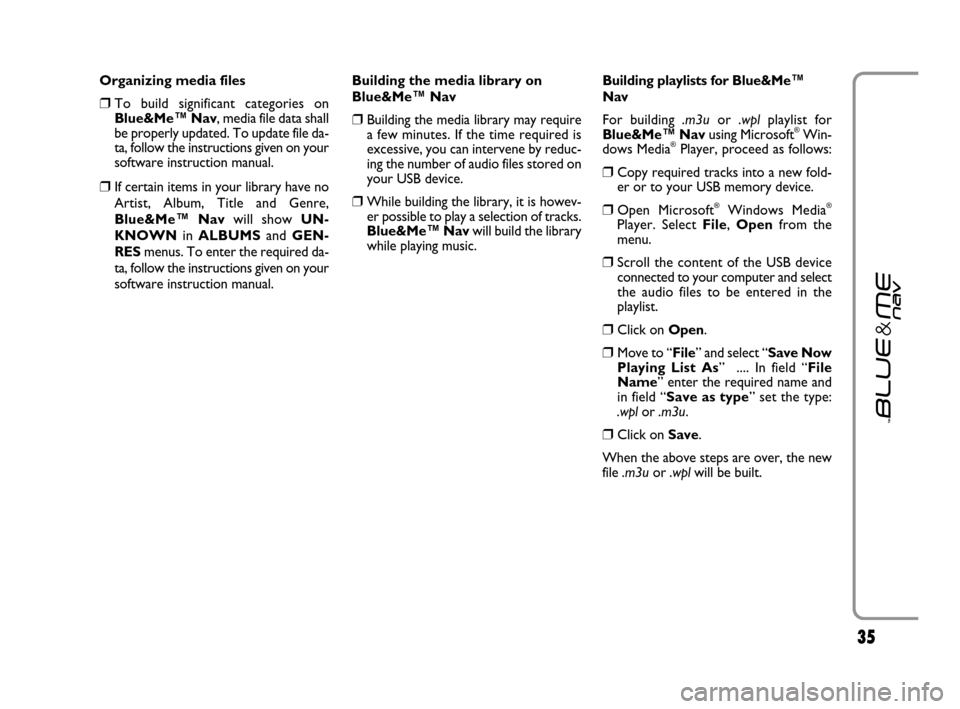

Organizing media files
❒To build significant categories on
Blue&Me™ Nav, media file data shall
be properly updated. To update file da-
ta, follow the instructions given on your
software instruction manual.
❒If certain items in your library have no
Artist, Album, Title and Genre,
Blue&Me™ Navwill show UN-
KNOWNin ALBUMSand GEN-
RESmenus. To enter the required da-
ta, follow the instructions given on your
software instruction manual.Building the media library on
Blue&Me™ Nav
❒Building the media library may require
a few minutes. If the time required is
excessive, you can intervene by reduc-
ing the number of audio files stored on
your USB device.
❒While building the library, it is howev-
er possible to play a selection of tracks.
Blue&Me™ Navwill build the library
while playing music.Building playlists for Blue&Me™
Nav
For building .m3uor .wplplaylist for
Blue&Me™ Navusing Microsoft
®Win-
dows Media®Player, proceed as follows:
❒Copy required tracks into a new fold-
er or to your USB memory device.
❒Open Microsoft®Windows Media®
Player. Select File, Openfrom the
menu.
❒Scroll the content of the USB device
connected to your computer and select
the audio files to be entered in the
playlist.
❒Click on Open.
❒Move to “File” and select “Save Now
Playing List As” .... In field “File
Name” enter the required name and
in field “Save as type” set the type:
.wpl or .m3u.
❒Click on Save.
When the above steps are over, the new
file .m3uor .wplwill be built.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 35
Page 37 of 106
36
FUNCTIONS OF THE
NAVIGATION SYSTEM
Blue&Me™ Navleads you to your cho-
sen destination quickly and safely by means
of its navigation function by means of voice
synthesis and pictograms that appear on a
reconfigurable multifunction display on the
control panel. The navigation system al-
lows you to navigate towards a destina-
tion address, to call up programmed des-
tinations or points of interest (e.g.: hotels,
restaurants, chemists, airports, railway sta-
tions, authorised workshops etc.). The
car’s position is determined by the GPS
(Global Position System), by processing
signals from GPS satellites and the car’s
odometric signals. Blue&Me™ Navus-
es digital mapping data preloaded onto
your USB device to lead you to your de-
sired destination by the best possible
route from your current location.Notes
❒GPS reception is difficult under trees,
among tall buildings, in covered car-
parks, in tunnels and in any place where
the satellite aerial reception may be hin-
dered.
❒The Blue&Me™ Navnavigator takes
a few minutes to determine the car’s
new position if the car is moved with
the system turned off (e.g. after trans-
porting the car on a ferry).
❒If the vehicle battery is disconnected,
the GPS takes about 15 minutes to ac-
tivate.
❒The system is equipped with a self-cal-
ibration function that needs to oper-
ate for about 100 km when the system
is first turned on or if the tyres are
changed. During this stage, the position
could be calculated with less accuracy.
❒Under continuous conditions of low
wheel grip (e.g. when skidding on ice),
the system may temporarily record an
inaccurate position.
Navigation display
On the control panel reconfigurable mul-
tifunction display (see fig. 3), the ma-
noeuvres to be carried out (right turn, left
turn, drive round round-about, go straight
on or change direction) are displayed by
means of pictograms.The display also indicates the name of the
current street and the distance to the next
turn-off. The name shown near the turn-
off is that of the street where the ma-
noeuvre is to be carried out.
A– Navigation pictogram
B– Distance to the next turn-off
C– Street name
Voice messages
The voice messages issued by the system
recommend all manoeuvres to be carried
in plenty of time: in particular, advance
warning of the manoeuvre to be carried
out is given, followed by detailed instruc-
tions on when to carry out the manoeu-
vre.
To repeat the last voice message, press
the
‘key and say “Next maneuver”.
The instructions provided by
Blue&Me™ Nav do not ex-
onerate the driver from full responsi-
bility for any manoeuvres carried out
in traffic while driving the car and for
respecting the highway code and oth-
er road traffic regulations. Responsi-
bility for road safety always lies with
the driver of the car under all circum-
stances.
WARNING
fig. 3F0M0373m
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 36
Page 38 of 106
37
START NAVIGATION
Proceed as follows to begin using the
Blue&Me™ Navnavigation function:
❒Connect your USB device with pre-
loaded maps to the USB port on the ve-
hicle.
❒Turn the ignition key to MAR.
Note:
For reasons of road safety, some func-
tions, such as input of a new destination,
are allowed on with the vehicle at a stand-
still.
To activate the NAVIGATIONmenu in
manual mode, proceed as follows:
?
❒Press the NAVkey near the front
courtesy light (see fig. 1).
❒Or, with the Main Menu on, press
ß/MAIN, select the Navigation option
and press SRC/OKor
ß/MAIN.
Blue&Me™ Navwill show the following
warning message on the display THE
DRIVER MUST RESPECT THE
ROAD RULES. Press SRC/OKto con-
firm.Now you can access the submenus dedi-
cated to the Blue&Me™ Navnavigation
functions:
❒NEW DESTINATION
❒RESUME NAVIGATION
❒ARRIVAL INFORMATION
❒STOP NAVIGATION
❒RECENT DESTINATIONS
❒NAVIGATION SETTINGS
❒VEHICLE POSITION
❒ROUTE SIMULATION
Scroll to the required function using the
Nor Okeys and press SRC/OKor
ß/MAINto confirm.
}
Or with voice interaction:
Press
‘and say “Navigation”.
Blue&Me™ Navwill show the fol-
lowing warning message on the dis-
play THE DRIVER MUST RE-
SPECT THE ROAD RULES. Press SRC/OKto confirm (no spe-
cific voice command is available in
this event).Blue&Me™ Nav
will display a list of the available sub-
menus.
Speak one of the following com-
mands to gain access to the required
function:
❒New destination
❒Resume navigation
❒Arrival information
❒Stop navigation
❒Recent destinations
❒Navigation settings
❒Vehicle position
❒Route simulation
Note:
Some submenus may not be available since
they are activated only once navigation to-
wards a destination has started.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 37
Page 39 of 106
38
New destination
The NEW DESTINATIONmenu al-
lows you to enter a destination in various
ways:
❒ADDRESS: set the address by choos-
ing a town/city centre or the required
street;
❒POINTS OF INTEREST: select a
point of interest from the relevant sub-
menu.
Address
Use this menu to enter the address of
your required destination, indicating the
country, the town/city, the name of the
road/street and the house number.
?
To enter an address using manual in-
teraction:
Activate the main Menu, select the
NAVIGATIONoption and then
press SRC/OKor
ß/MAIN.
Select the NEW DESTINATION
option by pressing SRC/OKor
ß/MAIN.
Select ADDRESSand then press
SRC/OKor
ß/MAIN.
}Or use voice interaction by pressing
‘and saying “Navigation”. Once
the system message has finished, say
“New destination” and then “Ad-
dress”.
Blue&Me™ Navstarts by asking
your to select the required country
name.
Before anything else, the system de-
termines which countries are pre-
loaded on your USB device. If the
maps for only one country are pre-
sent, this will be set as the destina-
tion country.Use the “
N” or “O” keys to select the
required country and press SRC/OKor
ß/MAINto confirm.
}Using voice interaction, say the re-
quired country. Blue&Me™ Nav
will ask you to confirm the select-
ed country by means of a voice
message.
Notes:
❒In order to select the country, the USB
device containing the maps must be in-
serted in the USB port on the car.
❒If several countries are loaded on your
USB device, Blue&Me™ Navwill
show a list of countries in alphabetical
order on the multifunction display. If
the system is able to detect the GPS po-
sition of the car, the country where you
are located will be shown at the head
of the list.
After selecting the country, Blue&Me™
Navwill ask you to enter the destination
town/city by means of the steering wheel
control and voice interaction.For road safety reasons, it is
only possible to enter a new
destination with the car at a stand-
still.
WARNING
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 38
Page 40 of 106
39

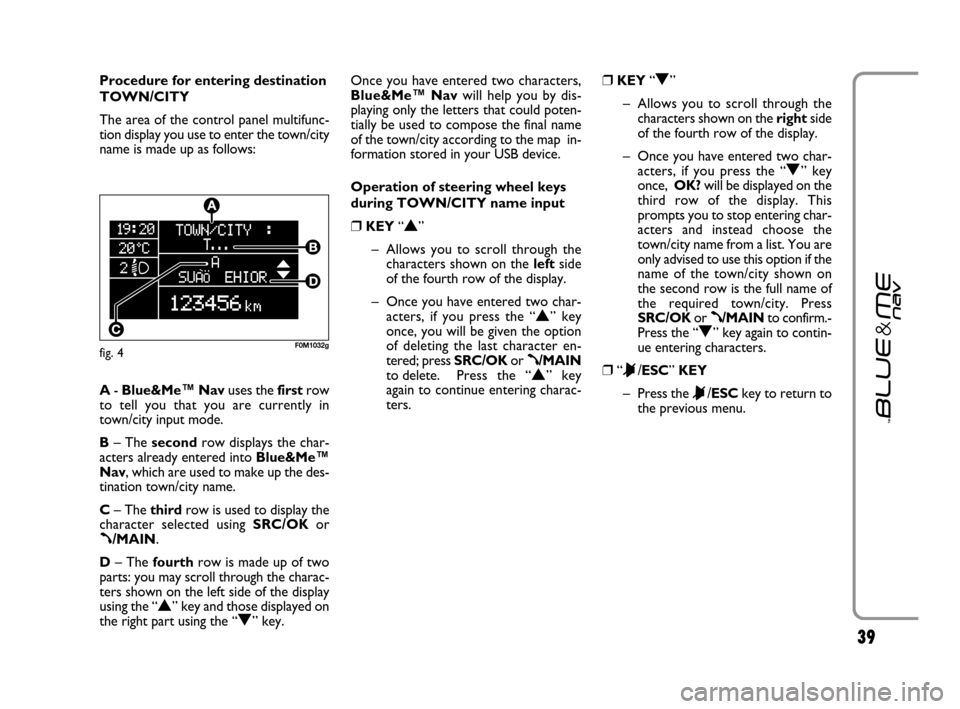

Procedure for entering destination
TOWN/CITY
The area of the control panel multifunc-
tion display you use to enter the town/city
name is made up as follows:
A- Blue&Me™ Navuses the firstrow
to tell you that you are currently in
town/city input mode.
B– The secondrow displays the char-
acters already entered into Blue&Me™
Nav, which are used to make up the des-
tination town/city name.
C– The thirdrow is used to display the
character selected using SRC/OKor
ß/MAIN.
D– The fourthrow is made up of two
parts: you may scroll through the charac-
ters shown on the left side of the display
using the “
N” key and those displayed on
the right part using the “O” key.Once you have entered two characters,
Blue&Me™ Navwill help you by dis-
playing only the letters that could poten-
tially be used to compose the final name
of the town/city according to the map in-
formation stored in your USB device.
Operation of steering wheel keys
during TOWN/CITY name input
❒KEY“N”
– Allows you to scroll through the
characters shown on the leftside
of the fourth row of the display.
– Once you have entered two char-
acters, if you press the “
N” key
once, you will be given the option
of deleting the last character en-
tered; press SRC/OKor
ß/MAIN
to delete.Press the “N” key
again to continue entering charac-
ters.
❒KEY“O”
– Allows you to scroll through the
characters shown on the rightside
of the fourth row of the display.
– Once you have entered two char-
acters, if you press the “
O” key
once, OK?will be displayed on the
third row of the display. This
prompts you to stop entering char-
acters and instead choose the
town/city name from a list. You are
only advised to use this option if the
name of the town/city shown on
the second row is the full name of
the required town/city. Press
SRC/OKor
ß/MAINto confirm.-
Press the “
O” key again to contin-
ue entering characters.
❒“&/ESC” KEY
– Press the
&/ESCkey to return to
the previous menu.
fig. 4F0M1032g
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 39
