FIAT GRANDE PUNTO 2008 199 / 1.G Manual PDF

70
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

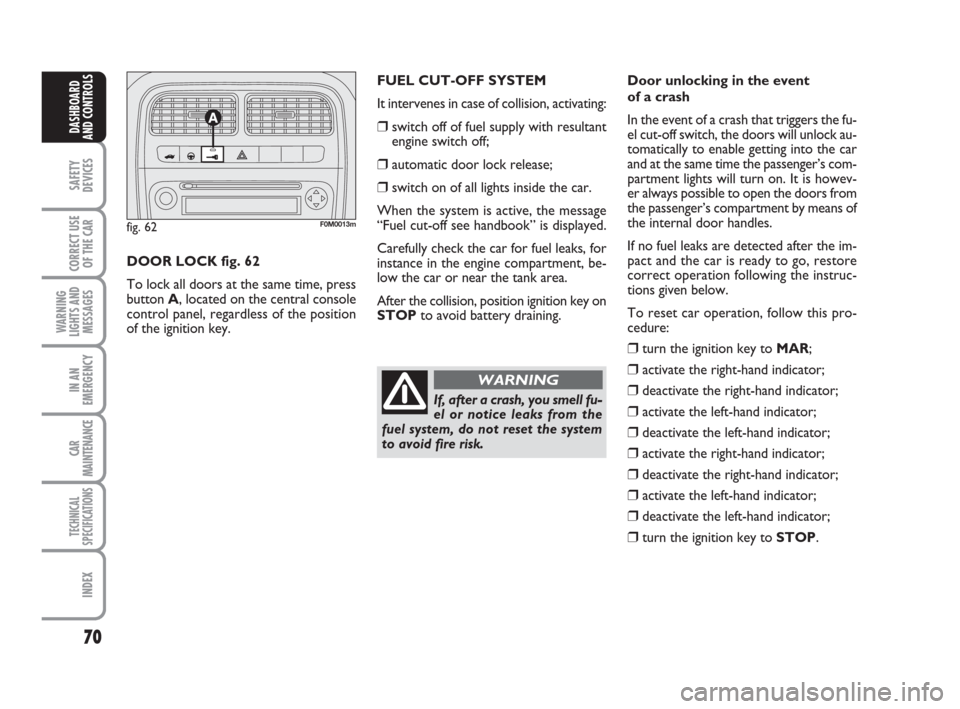

Door unlocking in the event
of a crash
In the event of a crash that triggers the fu-
el cut-off switch, the doors will unlock au-
tomatically to enable getting into the car
and at the same time the passenger’s com-
partment lights will turn on. It is howev-
er always possible to open the doors from
the passenger’s compartment by means of
the internal door handles.
If no fuel leaks are detected after the im-
pact and the car is ready to go, restore
correct operation following the instruc-
tions given below.
To reset car operation, follow this pro-
cedure:
❒turn the ignition key to MAR;
❒activate the right-hand indicator;
❒deactivate the right-hand indicator;
❒activate the left-hand indicator;
❒deactivate the left-hand indicator;
❒activate the right-hand indicator;
❒deactivate the right-hand indicator;
❒activate the left-hand indicator;
❒deactivate the left-hand indicator;
❒turn the ignition key to STOP. DOOR LOCK fig. 62
To lock all doors at the same time, press
button A, located on the central console
control panel, regardless of the position
of the ignition key.FUEL CUT-OFF SYSTEM
It intervenes in case of collision, activating:
❒switch off of fuel supply with resultant
engine switch off;
❒automatic door lock release;
❒switch on of all lights inside the car.
When the system is active, the message
“Fuel cut-off see handbook” is displayed.
Carefully check the car for fuel leaks, for
instance in the engine compartment, be-
low the car or near the tank area.
After the collision, position ignition key on
STOPto avoid battery draining.
fig. 62F0M0013m
If, after a crash, you smell fu-
el or notice leaks from the
fuel system, do not reset the system
to avoid fire risk.
WARNING
037-087 Punto GDX GB 31-07-2008 17:25 Pagina 70

71
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IIN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
fig. 64F0M0077m
fig. 63F0M0104mfig. 65F0M0078m

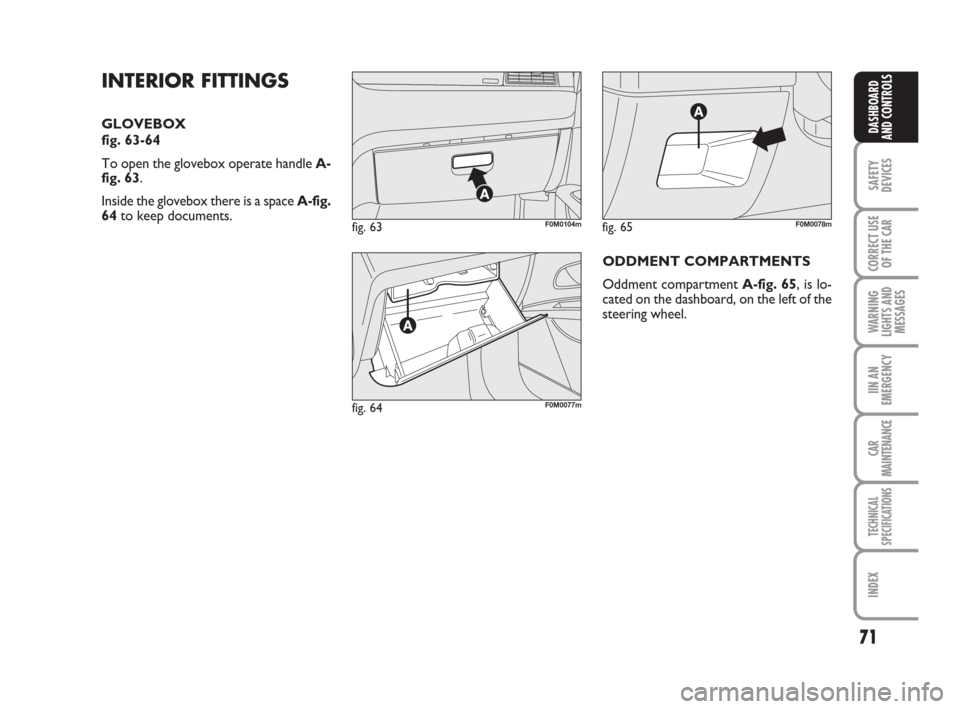

INTERIOR FITTINGS
GLOVEBOX
fig. 63-64
To open the glovebox operate handle A-
fig. 63.
Inside the glovebox there is a space A-fig.
64to keep documents.
ODDMENT COMPARTMENTS
Oddment compartment A-fig. 65, is lo-
cated on the dashboard, on the left of the
steering wheel.
037-087 Punto GDX GB 31-07-2008 17:25 Pagina 71

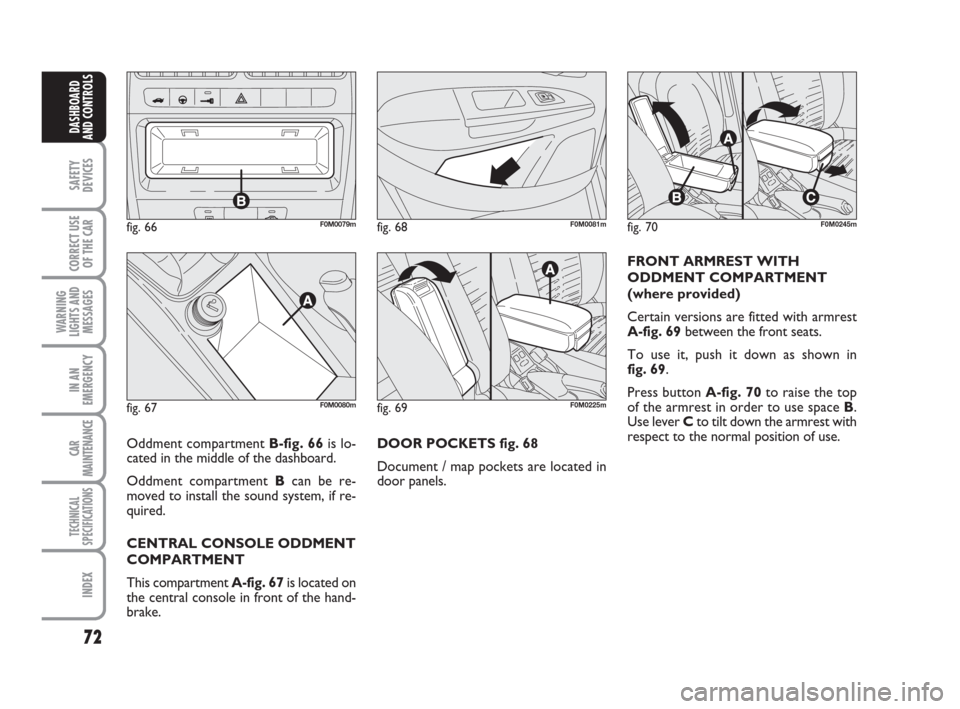

72
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
DOOR POCKETS fig. 68
Document / map pockets are located in
door panels.FRONT ARMREST WITH
ODDMENT COMPARTMENT
(where provided)
Certain versions are fitted with armrest
A-fig. 69between the front seats.
To use it, push it down as shown in
fig. 69.
Press button A-fig. 70to raise the top
of the armrest in order to use space B.
Use lever Cto tilt down the armrest with
respect to the normal position of use.
fig. 66F0M0079m
fig. 67F0M0080mfig. 69F0M0225m
fig. 70F0M0245mfig. 68F0M0081m
Oddment compartment B-fig. 66is lo-
cated in the middle of the dashboard.
Oddment compartment Bcan be re-
moved to install the sound system, if re-
quired.
CENTRAL CONSOLE ODDMENT
COMPARTMENT
This compartment A-fig. 67is located on
the central console in front of the hand-
brake.
037-087 Punto GDX GB 31-07-2008 17:25 Pagina 72

73
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IIN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

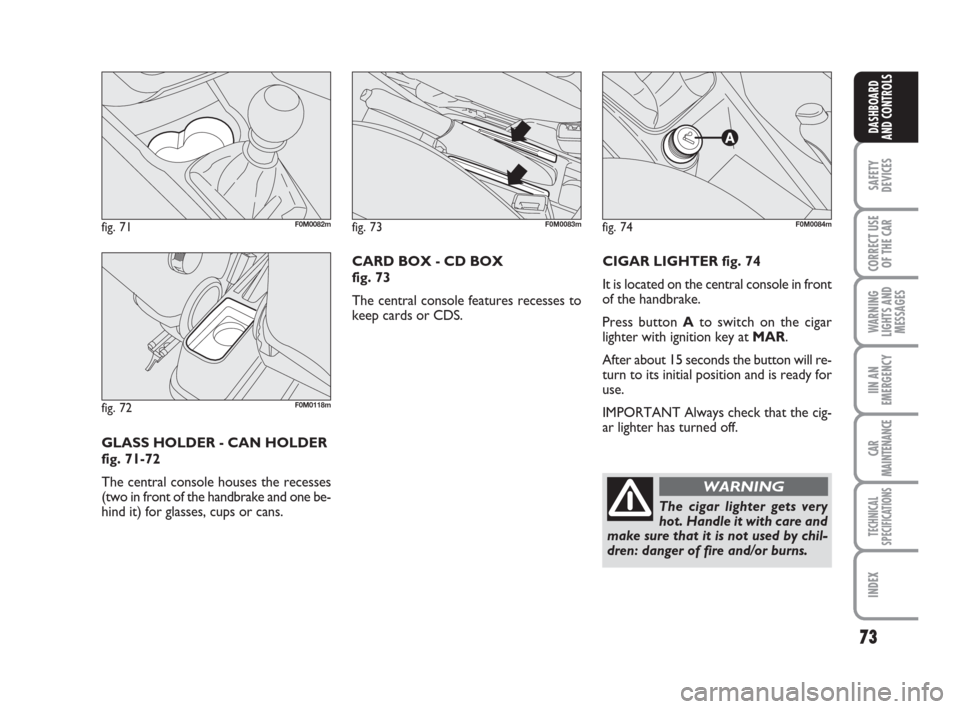

CIGAR LIGHTER fig. 74
It is located on the central console in front
of the handbrake.
Press button Ato switch on the cigar
lighter with ignition key at MAR.
After about 15 seconds the button will re-
turn to its initial position and is ready for
use.
IMPORTANT Always check that the cig-
ar lighter has turned off.
fig. 74F0M0084m
The cigar lighter gets very
hot. Handle it with care and
make sure that it is not used by chil-
dren: danger of fire and/or burns.
WARNING
GLASS HOLDER - CAN HOLDER
fig. 71-72
The central console houses the recesses
(two in front of the handbrake and one be-
hind it) for glasses, cups or cans. CARD BOX - CD BOX
fig. 73
The central console features recesses to
keep cards or CDS.
fig. 71F0M0082mfig. 73F0M0083m
fig. 72F0M0118m
037-087 Punto GDX GB 31-07-2008 17:25 Pagina 73

74
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

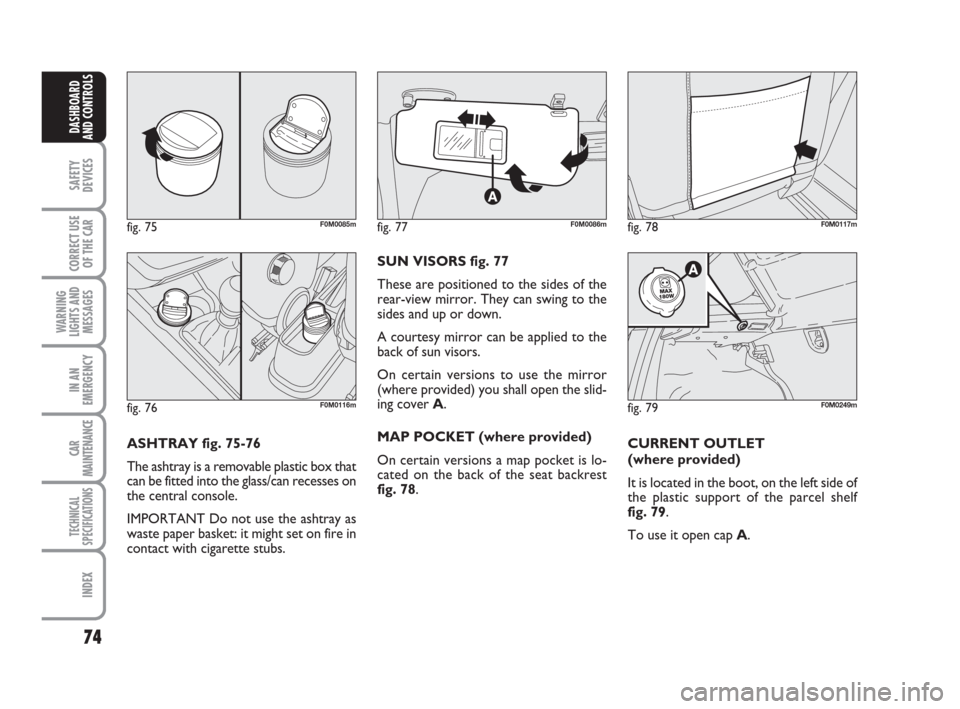

ASHTRAY fig. 75-76
The ashtray is a removable plastic box that
can be fitted into the glass/can recesses on
the central console.
IMPORTANT Do not use the ashtray as
waste paper basket: it might set on fire in
contact with cigarette stubs.SUN VISORS fig. 77
These are positioned to the sides of the
rear-view mirror. They can swing to the
sides and up or down.
A courtesy mirror can be applied to the
back of sun visors.
On certain versions to use the mirror
(where provided) you shall open the slid-
ing cover A.
MAP POCKET (where provided)
On certain versions a map pocket is lo-
cated on the back of the seat backrest
fig. 78.
fig. 75F0M0085mfig. 77F0M0086mfig. 78F0M0117m
fig. 79F0M0249mfig. 76F0M0116m
CURRENT OUTLET
(where provided)
It is located in the boot, on the left side of
the plastic support of the parcel shelf
fig. 79.
To use it open cap A.
037-087 Punto GDX GB 31-07-2008 17:25 Pagina 74

75
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IIN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

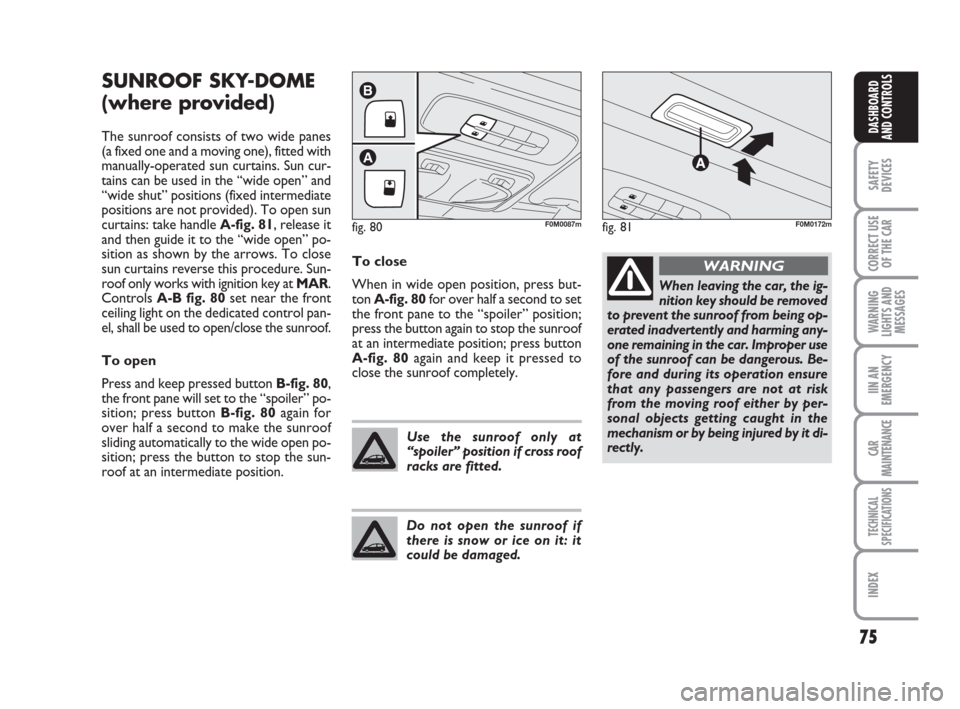

SUNROOF SKY-DOME
(where provided)
The sunroof consists of two wide panes
(a fixed one and a moving one), fitted with
manually-operated sun curtains. Sun cur-
tains can be used in the “wide open” and
“wide shut” positions (fixed intermediate
positions are not provided). To open sun
curtains: take handle A-fig. 81, release it
and then guide it to the “wide open” po-
sition as shown by the arrows. To close
sun curtains reverse this procedure. Sun-
roof only works with ignition key at MAR.
Controls A-B fig. 80set near the front
ceiling light on the dedicated control pan-
el, shall be used to open/close the sunroof.
To open
Press and keep pressed button B-fig. 80,
the front pane will set to the “spoiler” po-
sition; press button B-fig. 80 again for
over half a second to make the sunroof
sliding automatically to the wide open po-
sition; press the button to stop the sun-
roof at an intermediate position.To close
When in wide open position, press but-
ton A-fig. 80for over half a second to set
the front pane to the “spoiler” position;
press the button again to stop the sunroof
at an intermediate position; press button
A-fig. 80again and keep it pressed to
close the sunroof completely.
fig. 80
A
B
F0M0087m
Use the sunroof only at
“spoiler” position if cross roof
racks are fitted.
Do not open the sunroof if
there is snow or ice on it: it
could be damaged.
When leaving the car, the ig-
nition key should be removed
to prevent the sunroof from being op-
erated inadvertently and harming any-
one remaining in the car. Improper use
of the sunroof can be dangerous. Be-
fore and during its operation ensure
that any passengers are not at risk
from the moving roof either by per-
sonal objects getting caught in the
mechanism or by being injured by it di-
rectly.
WARNING
fig. 81F0M0172m
037-087 Punto GDX GB 31-07-2008 17:25 Pagina 75

76
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
ANTI-CRUSHING SAFETY
SYSTEM
Sunroof is fitted with anti-crushing safety
system that detects the presence of an ob-
stacle during sunroof closing stroke and
that cuts in by stopping and reversing the
sunroof stroke.
INITIALISATION PROCEDURE
Sunroof shall be re-initialised after dis-
connecting the battery or if the relevant
protection fuse is blown.
Proceed as follows:
❒press button A-fig. 81at close posi-
tion;
❒keep the button pressed to close com-
pletely by steps the sunroof;
❒after full closing, wait for sunroof mo-
tor stopping.When leaving the car, the ignition key
should be removed to prevent the sun-
roof from being operated inadvertently
and harming anyone remaining in the car.
Improper use of the sunroof can be dan-
gerous. Before and during its operation
ensure that any passengers are not at risk
from the moving roof either by personal
objects getting caught in the mechanism
or by being injured by it directly.
EMERGENCY OPERATION
If the switch does not work, the sunroof
can be operated manually as follows:
❒remove the protection cap set between
the two sun curtains;
❒take the setscrew wrench (provided as
standard) from the tool bag in the boot;
❒fit the wrench into A-fig. 82and turn
it:
– clockwise to open the sunroof;
– counter-clockwise to close the sun-
roof.
fig. 82F0M0088m
037-087 Punto GDX GB 31-07-2008 17:25 Pagina 76

77
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IIN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

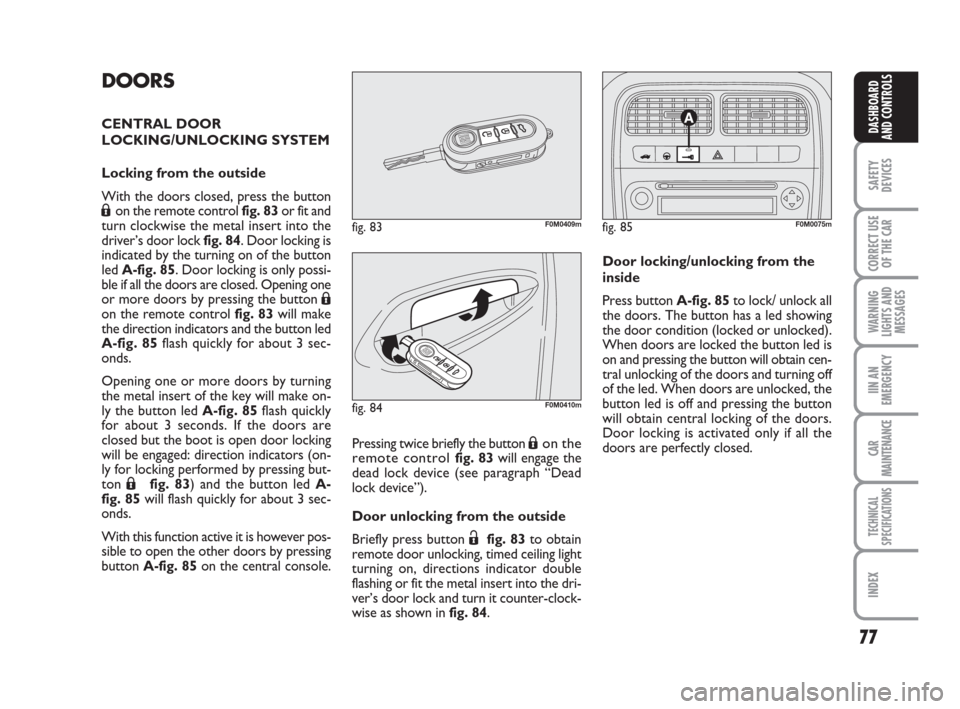

DOORS
CENTRAL DOOR
LOCKING/UNLOCKING SYSTEM
Locking from the outside
With the doors closed, press the button
Áon the remote control fig. 83 or fit and
turn clockwise the metal insert into the
driver’s door lock fig. 84. Door locking is
indicated by the turning on of the button
led A-fig. 85. Door locking is only possi-
ble if all the doors are closed. Opening one
or more doors by pressing the button
Áon the remote control fig. 83 will make
the direction indicators and the button led
A-fig. 85flash quickly for about 3 sec-
onds.
Opening one or more doors by turning
the metal insert of the key will make on-
ly the button led A-fig. 85flash quickly
for about 3 seconds. If the doors are
closed but the boot is open door locking
will be engaged: direction indicators (on-
ly for locking performed by pressing but-
ton
Áfig. 83) and the button led A-
fig. 85will flash quickly for about 3 sec-
onds.
With this function active it is however pos-
sible to open the other doors by pressing
button A-fig. 85on the central console.Pressing twice briefly the button
Áon the
remote control fig. 83 will engage the
dead lock device (see paragraph “Dead
lock device”).
Door unlocking from the outside
Briefly press button
Ëfig. 83to obtain
remote door unlocking, timed ceiling light
turning on, directions indicator double
flashing or fit the metal insert into the dri-
ver’s door lock and turn it counter-clock-
wise as shown in fig. 84.
fig. 85F0M0075m
Door locking/unlocking from the
inside
Press button A-fig. 85to lock/ unlock all
the doors. The button has a led showing
the door condition (locked or unlocked).
When doors are locked the button led is
on and pressing the button will obtain cen-
tral unlocking of the doors and turning off
of the led. When doors are unlocked, the
button led is off and pressing the button
will obtain central locking of the doors.
Door locking is activated only if all the
doors are perfectly closed.
fig. 84F0M0410m
fig. 83F0M0409m
037-087 Punto GDX GB 31-07-2008 17:25 Pagina 77

78
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

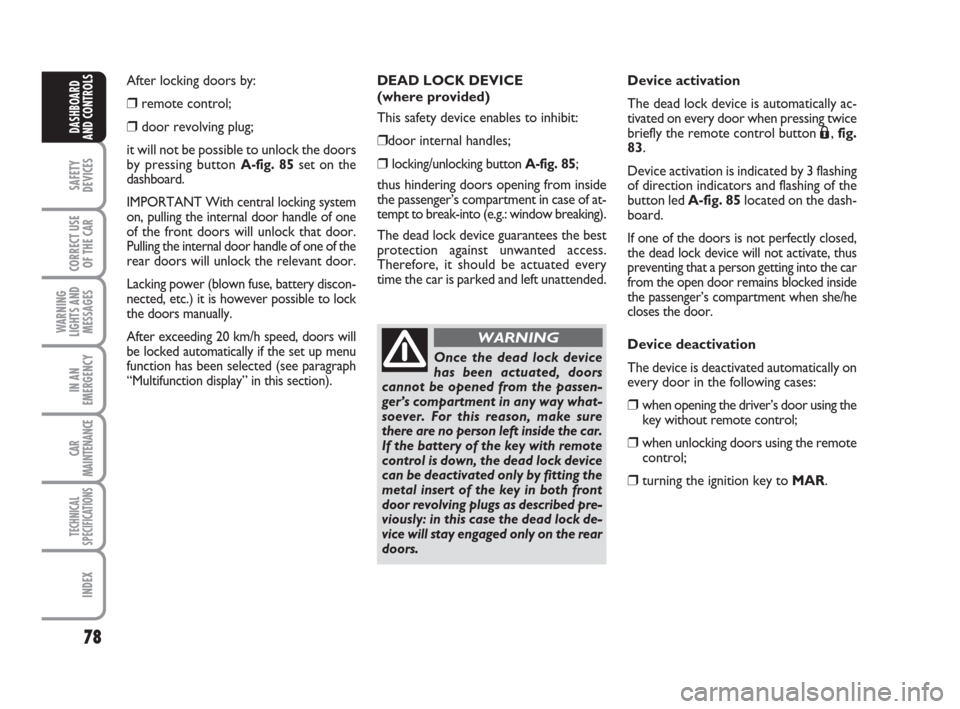

After locking doors by:
❒remote control;
❒door revolving plug;
it will not be possible to unlock the doors
by pressing button
A-fig. 85set on the
dashboard.
IMPORTANT With central locking system
on, pulling the internal door handle of one
of the front doors will unlock that door.
Pulling the internal door handle of one of the
rear doors will unlock the relevant door.
Lacking power (blown fuse, battery discon-
nected, etc.) it is however possible to lock
the doors manually.
After exceeding 20 km/h speed, doors will
be locked automatically if the set up menu
function has been selected (see paragraph
“Multifunction display” in this section).
Once the dead lock device
has been actuated, doors
cannot be opened from the passen-
ger’s compartment in any way what-
soever. For this reason, make sure
there are no person left inside the car.
If the battery of the key with remote
control is down, the dead lock device
can be deactivated only by fitting the
metal insert of the key in both front
door revolving plugs as described pre-
viously: in this case the dead lock de-
vice will stay engaged only on the rear
doors. DEAD LOCK DEVICE
(where provided)
This safety device enables to inhibit:
❒door internal handles;
❒locking/unlocking button A-fig. 85;
thus hindering doors opening from inside
the passenger’s compartment in case of at-
tempt to break-into (e.g.: window breaking).
The dead lock device guarantees the best
protection against unwanted access.
Therefore, it should be actuated every
time the car is parked and left unattended.Device activation
The dead lock device is automatically ac-
tivated on every door when pressing twice
briefly the remote control button
Á, fig.
83.
Device activation is indicated by 3 flashing
of direction indicators and flashing of the
button led A-fig. 85located on the dash-
board.
If one of the doors is not perfectly closed,
the dead lock device will not activate, thus
preventing that a person getting into the car
from the open door remains blocked inside
the passenger’s compartment when she/he
closes the door.
Device deactivation
The device is deactivated automatically on
every door in the following cases:
❒when opening the driver’s door using the
key without remote control;
❒when unlocking doors using the remote
control;
❒turning the ignition key to MAR.
WARNING
037-087 Punto GDX GB 31-07-2008 17:25 Pagina 78

79
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IIN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

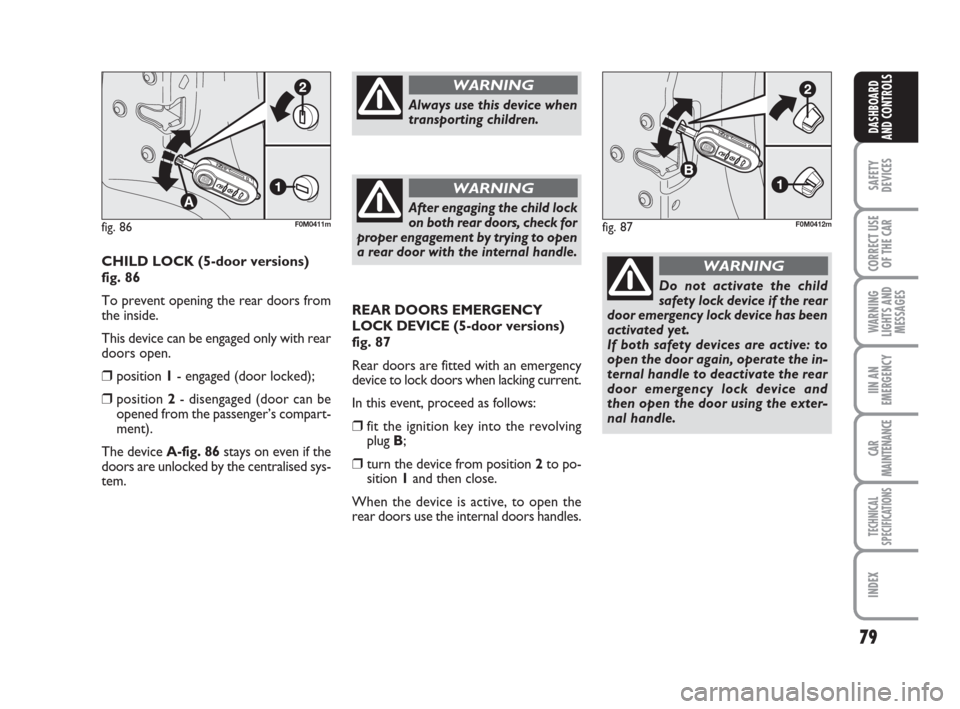

REAR DOORS EMERGENCY
LOCK DEVICE(5-door versions)
fig. 87
Rear doors are fitted with an emergency
device to lock doors when lacking current.
In this event, proceed as follows:
❒fit the ignition key into the revolving
plug B;
❒turn the device from position 2to po-
sition 1and then close.
When the device is active, to open the
rear doors use the internal doors handles. CHILD LOCK (5-door versions)
fig. 86
To prevent opening the rear doors from
the inside.
This device can be engaged only with rear
doors open.
❒position 1- engaged (door locked);
❒position 2- disengaged (door can be
opened from the passenger’s compart-
ment).
The device A-fig. 86stays on even if the
doors are unlocked by the centralised sys-
tem.
Always use this device when
transporting children.
WARNING
After engaging the child lock
on both rear doors, check for
proper engagement by trying to open
a rear door with the internal handle.
WARNING
Do not activate the child
safety lock device if the rear
door emergency lock device has been
activated yet.
If both safety devices are active: to
open the door again, operate the in-
ternal handle to deactivate the rear
door emergency lock device and
then open the door using the exter-
nal handle.
WARNING
fig. 87F0M0412mfig. 86F0M0411m
037-087 Punto GDX GB 31-07-2008 17:25 Pagina 79
