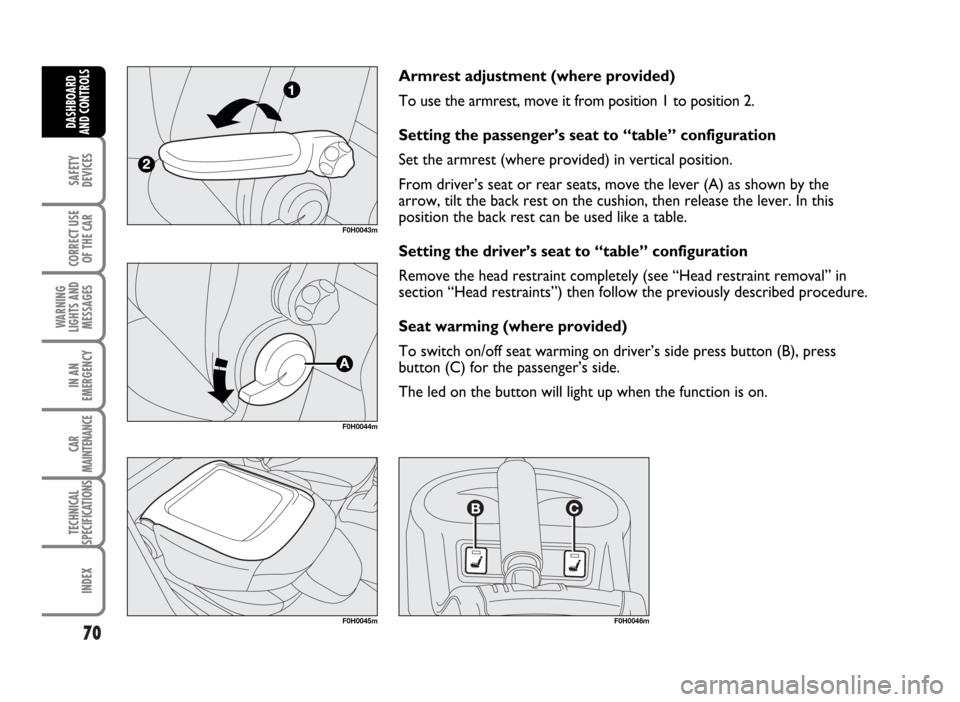

Armrest adjustment (where provided)
To use the armrest, move it from position 1 to position 2.
Setting the passenger’s seat to “table” configuration
Set the armrest (where provided) in vertical position.
From driver’s seat or rear seats, move the lever (A) as shown by the
arrow, tilt the back rest on the cushion, then release the lever. In this
position the back rest can be used like a table.
Setting the driver’s seat to “table” configuration
Remove the head restraint completely (see “Head restraint removal” in
section “Head restraints”) then follow the previously described procedure.
Seat warming (where provided)
To switch on/off seat warming on driver’s side press button (B), press
button (C) for the passenger’s side.
The led on the button will light up when the function is on.
F0H0043m
F0H0044m
F0H0045mF0H0046m

71
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0H0047m
REAR SLIDING SEAT

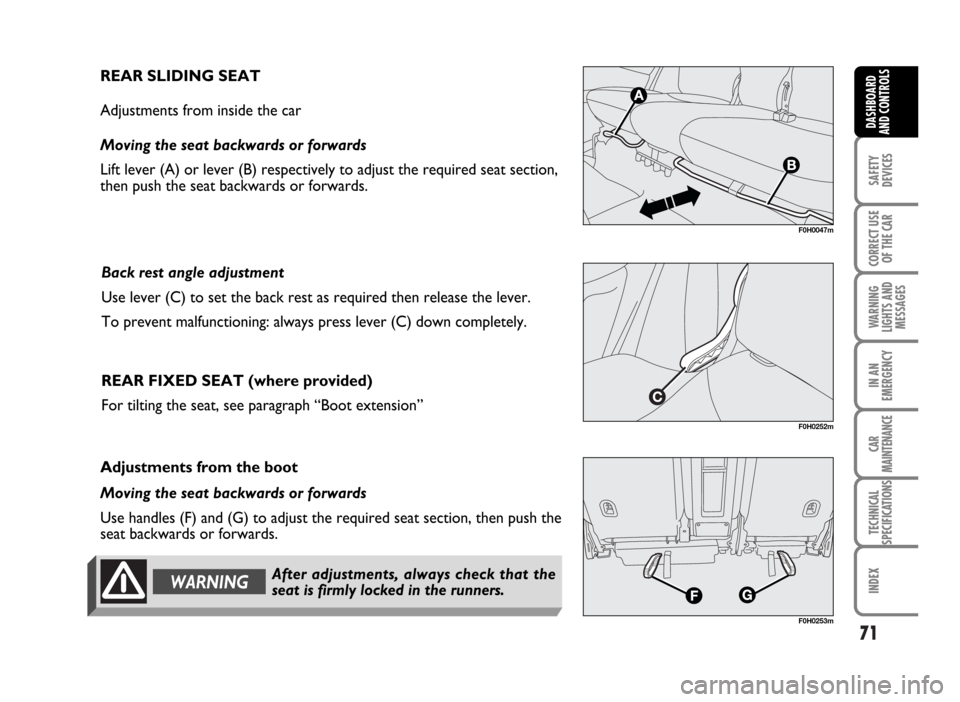

Adjustments from inside the car
Moving the seat backwards or forwards
Lift lever (A) or lever (B) respectively to adjust the required seat section,
then push the seat backwards or forwards.
Back rest angle adjustment
Use lever (C) to set the back rest as required then release the lever.
To prevent malfunctioning: always press lever (C) down completely.
REAR FIXED SEAT (where provided)
For tilting the seat, see paragraph “Boot extension”
F0H0252m
F0H0253m
Adjustments from the boot
Moving the seat backwards or forwards
Use handles (F) and (G) to adjust the required seat section, then push the
seat backwards or forwards.
WARNINGAfter adjustments, always check that the
seat is firmly locked in the runners.

72
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0H0049m
Back rest angle adjustment
Use lever (A) or lever (B) to adjust the required back rest section, then
release the lever.

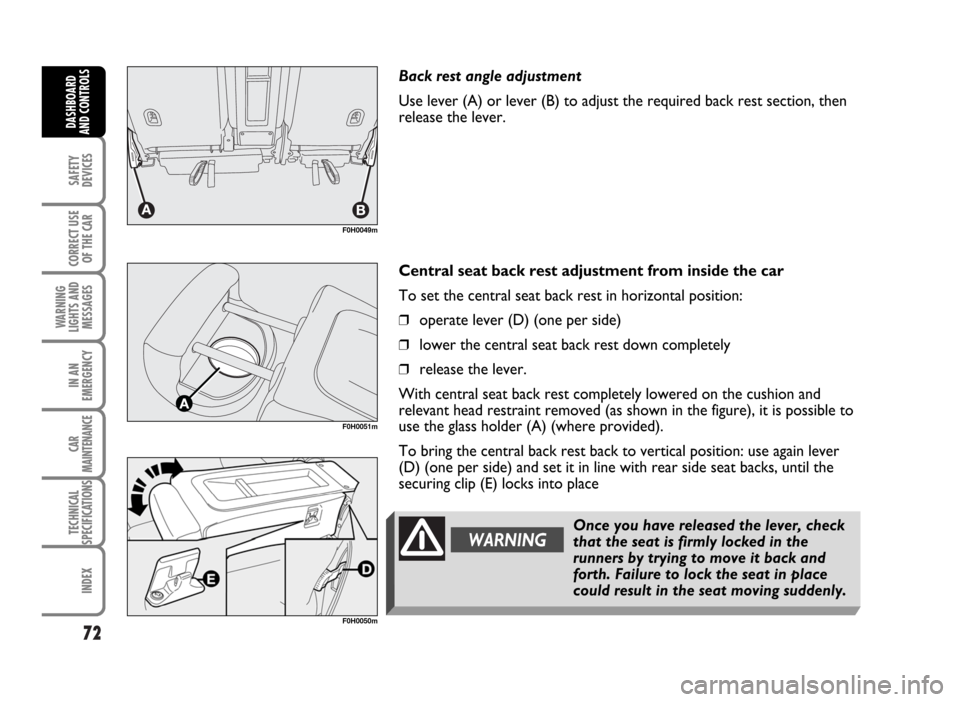

Central seat back rest adjustment from inside the car
To set the central seat back rest in horizontal position:
❒operate lever (D) (one per side)
❒lower the central seat back rest down completely
❒release the lever.
With central seat back rest completely lowered on the cushion and
relevant head restraint removed (as shown in the figure), it is possible to
use the glass holder (A) (where provided).
To bring the central back rest back to vertical position: use again lever
(D) (one per side) and set it in line with rear side seat backs, until the
securing clip (E) locks into place
F0H0051m
Once you have released the lever, check
that the seat is firmly locked in the
runners by trying to move it back and
forth. Failure to lock the seat in place
could result in the seat moving suddenly.
WARNING
F0H0050m

73
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

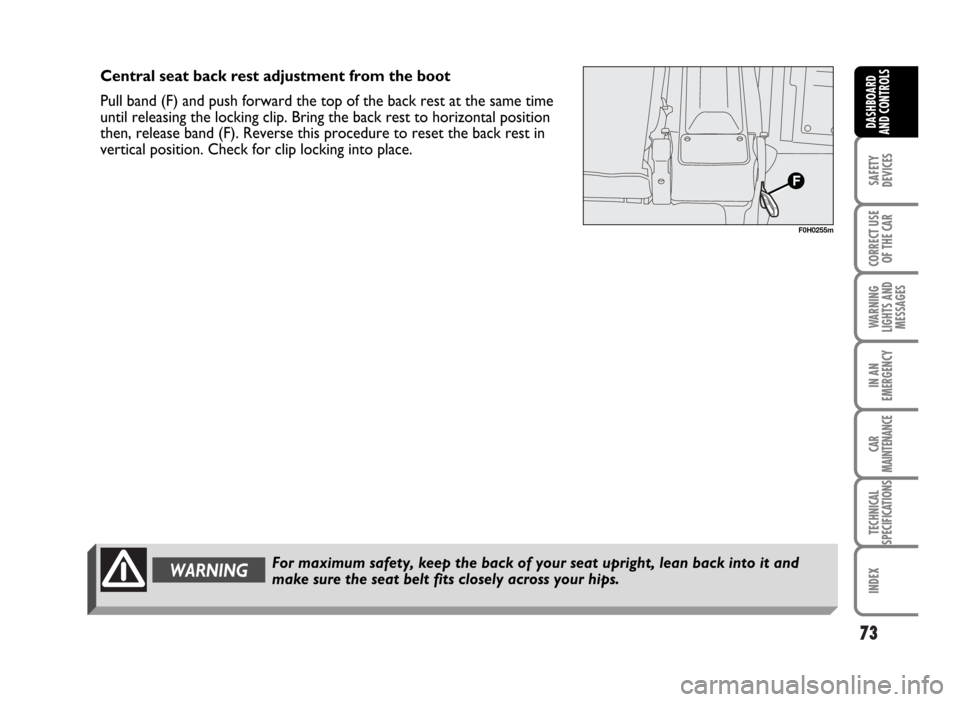

For maximum safety, keep the back of your seat upright, lean back into it and
make sure the seat belt fits closely across your hips.WARNING
F0H0255m
Central seat back rest adjustment from the boot
Pull band (F) and push forward the top of the back rest at the same time
until releasing the locking clip. Bring the back rest to horizontal position
then, release band (F). Reverse this procedure to reset the back rest in
vertical position. Check for clip locking into place.

74
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

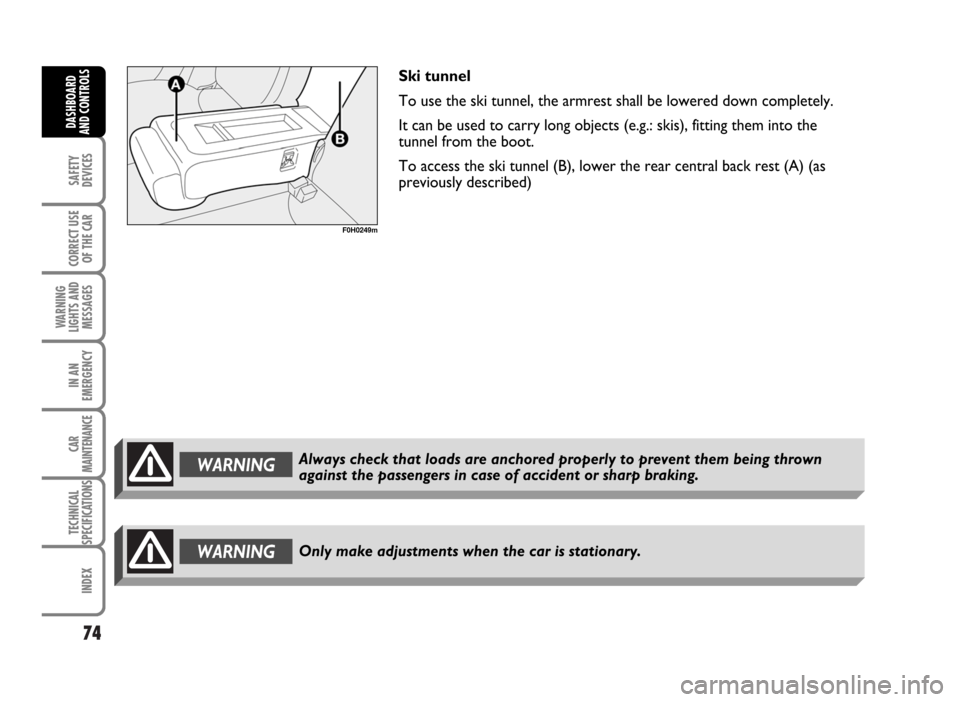

WARNINGOnly make adjustments when the car is stationary.Ski tunnel
To use the ski tunnel, the armrest shall be lowered down completely.
It can be used to carry long objects (e.g.: skis), fitting them into the
tunnel from the boot.
To access the ski tunnel (B), lower the rear central back rest (A) (as
previously described)
WARNINGAlways check that loads are anchored properly to prevent them being thrown
against the passengers in case of accident or sharp braking.
F0H0249m

75
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

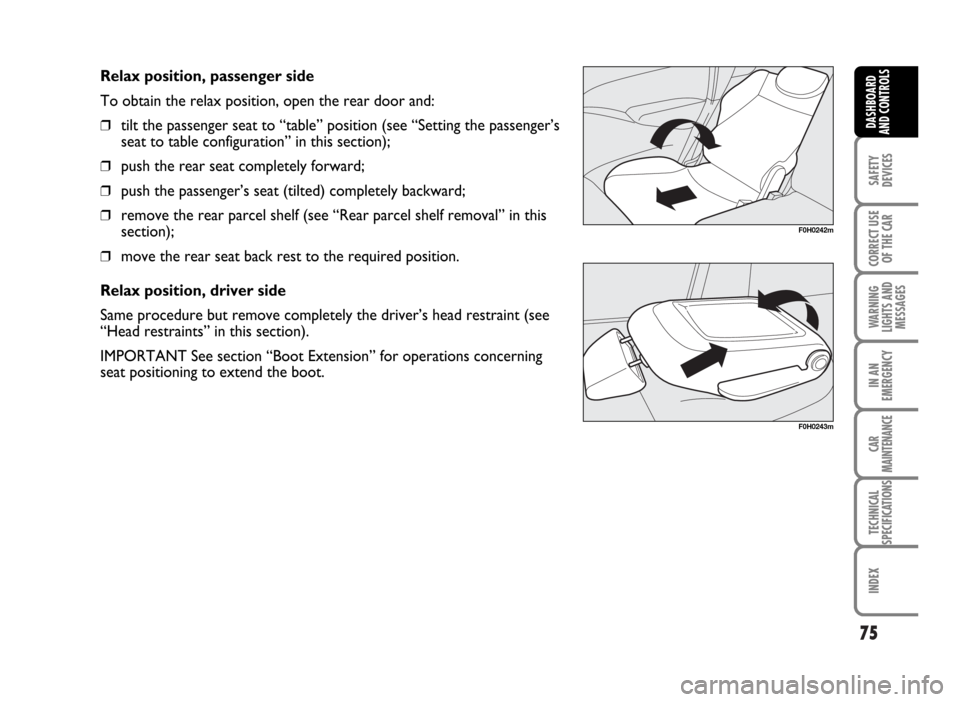

Relax position, passenger side
To obtain the relax position, open the rear door and:
❒tilt the passenger seat to “table” position (see “Setting the passenger’s
seat to table configuration” in this section);
❒push the rear seat completely forward;
❒push the passenger’s seat (tilted) completely backward;
❒remove the rear parcel shelf (see “Rear parcel shelf removal” in this
section);
❒move the rear seat back rest to the required position.
Relax position, driver side
Same procedure but remove completely the driver’s head restraint (see
“Head restraints” in this section).
IMPORTANT See section “Boot Extension” for operations concerning
seat positioning to extend the boot.
F0H0242m
F0H0243m

76
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

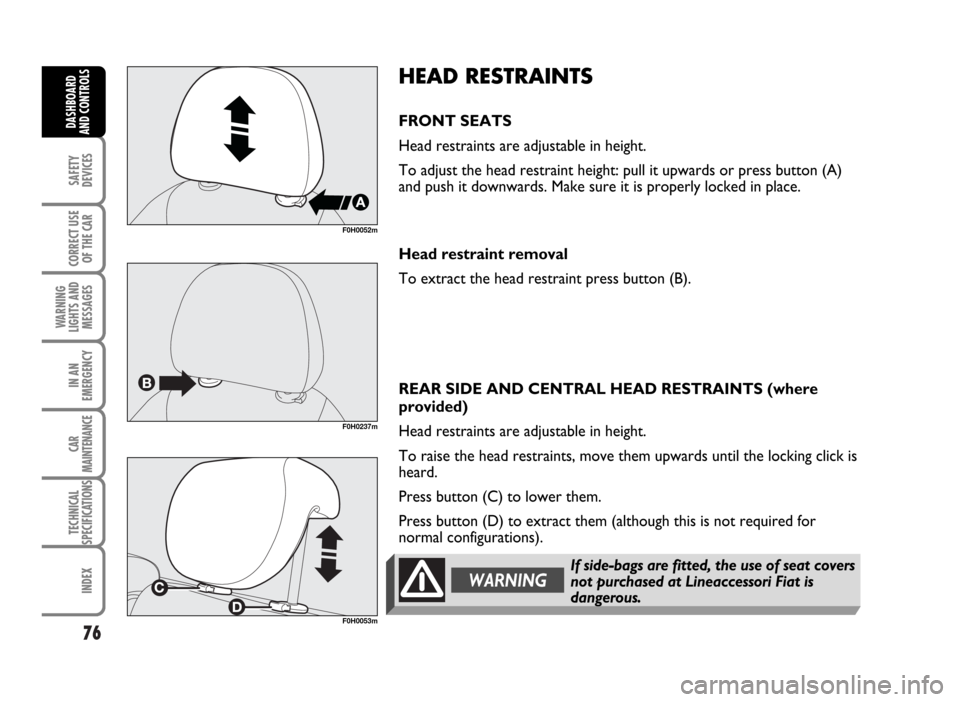

HEAD RESTRAINTS
FRONT SEATS
Head restraints are adjustable in height.
To adjust the head restraint height: pull it upwards or press button (A)
and push it downwards. Make sure it is properly locked in place.
Head restraint removal
To extract the head restraint press button (B).
F0H0052m
F0H0237m
WARNING
If side-bags are fitted, the use of seat covers
not purchased at Lineaccessori Fiat is
dangerous. REAR SIDE AND CENTRAL HEAD RESTRAINTS (where
provided)
Head restraints are adjustable in height.
To raise the head restraints, move them upwards until the locking click is
heard.
Press button (C) to lower them.
Press button (D) to extract them (although this is not required for
normal configurations).
F0H0053m

77
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

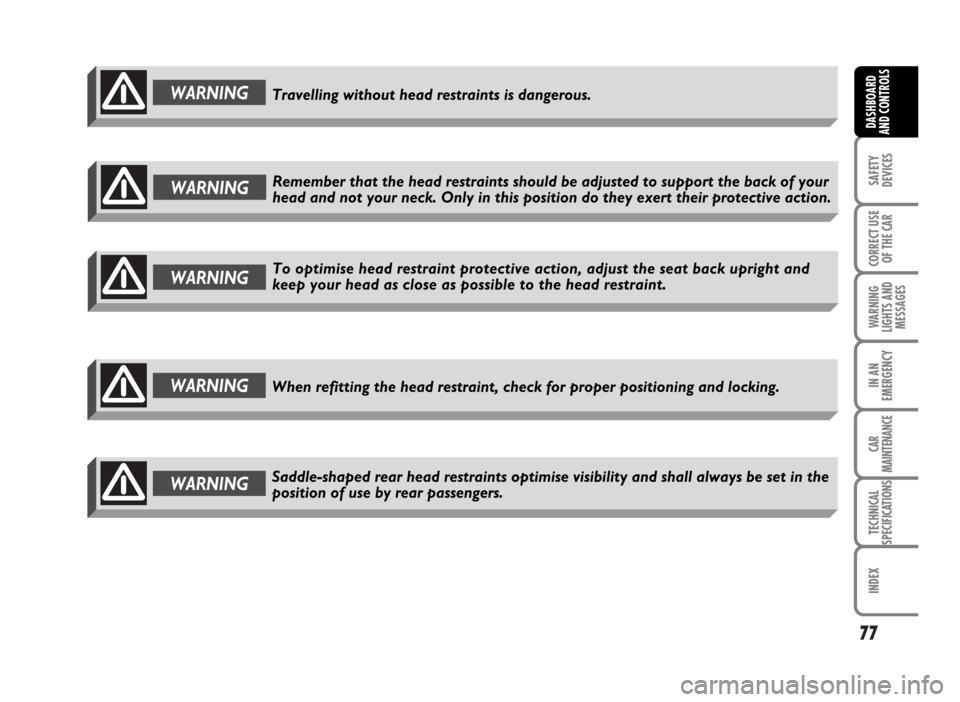

WARNINGRemember that the head restraints should be adjusted to support the back of your
head and not your neck. Only in this position do they exert their protective action.
WARNINGTravelling without head restraints is dangerous.
WARNINGWhen refitting the head restraint, check for proper positioning and locking.
WARNINGSaddle-shaped rear head restraints optimise visibility and shall always be set in the
position of use by rear passengers.
To optimise head restraint protective action, adjust the seat back upright and
keep your head as close as possible to the head restraint.WARNING

78
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
REARVIEW MIRRORS

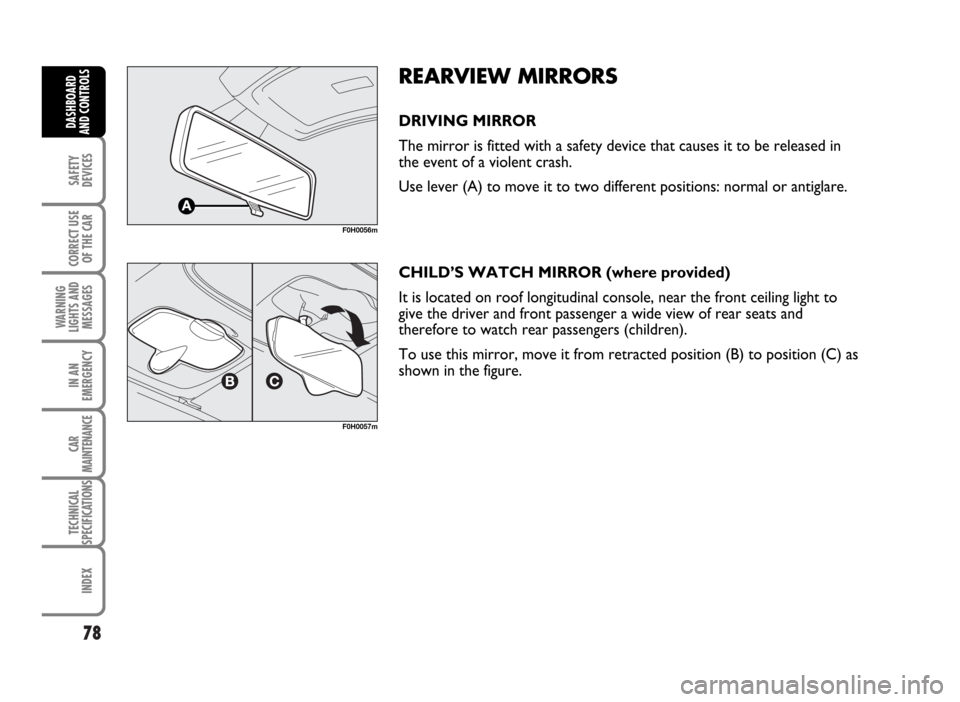

DRIVING MIRROR
The mirror is fitted with a safety device that causes it to be released in
the event of a violent crash.
Use lever (A) to move it to two different positions: normal or antiglare.
F0H0056m
CHILD’S WATCH MIRROR (where provided)
It is located on roof longitudinal console, near the front ceiling light to
give the driver and front passenger a wide view of rear seats and
therefore to watch rear passengers (children).
To use this mirror, move it from retracted position (B) to position (C) as
shown in the figure.
F0H0057m

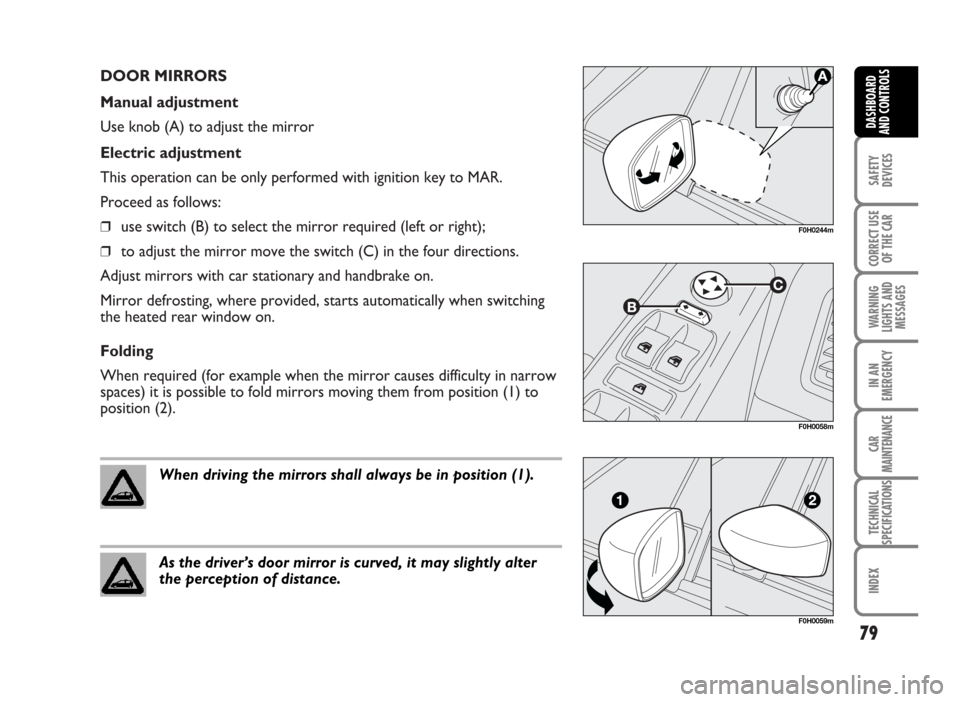

DOOR MIRRORS
Manual adjustment
Use knob (A) to adjust the mirror
Electric adjustment
This operation can be only performed with ignition key to MAR.
Proceed as follows:
❒use switch (B) to select the mirror required (left or right);
❒to adjust the mirror move the switch (C) in the four directions.
Adjust mirrors with car stationary and handbrake on.
Mirror defrosting, where provided, starts automatically when switching
the heated rear window on.
Folding
When required (for example when the mirror causes difficulty in narrow
spaces) it is possible to fold mirrors moving them from position (1) to
position (2).
79
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0H0058m
F0H0059m
When driving the mirrors shall always be in position (1).
As the driver’s door mirror is curved, it may slightly alter
the perception of distance.
F0H0244m
