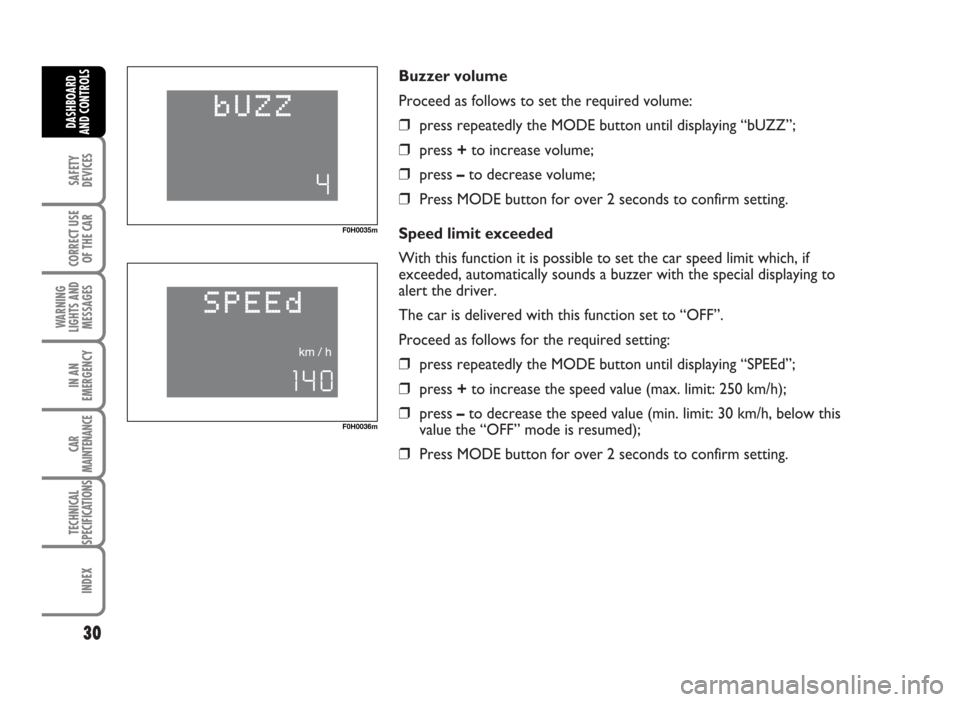

Buzzer volume
Proceed as follows to set the required volume:
❒press repeatedly the MODE button until displaying “bUZZ”;
❒press +to increase volume;
❒press –to decrease volume;
❒Press MODE button for over 2 seconds to confirm setting.
Speed limit exceeded
With this function it is possible to set the car speed limit which, if
exceeded, automatically sounds a buzzer with the special displaying to
alert the driver.
The car is delivered with this function set to “OFF”.
Proceed as follows for the required setting:
❒press repeatedly the MODE button until displaying “SPEEd”;
❒press +to increase the speed value (max. limit: 250 km/h);
❒press –to decrease the speed value (min. limit: 30 km/h, below this
value the “OFF” mode is resumed);
❒Press MODE button for over 2 seconds to confirm setting.
30
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0H0035m
F0H0036m

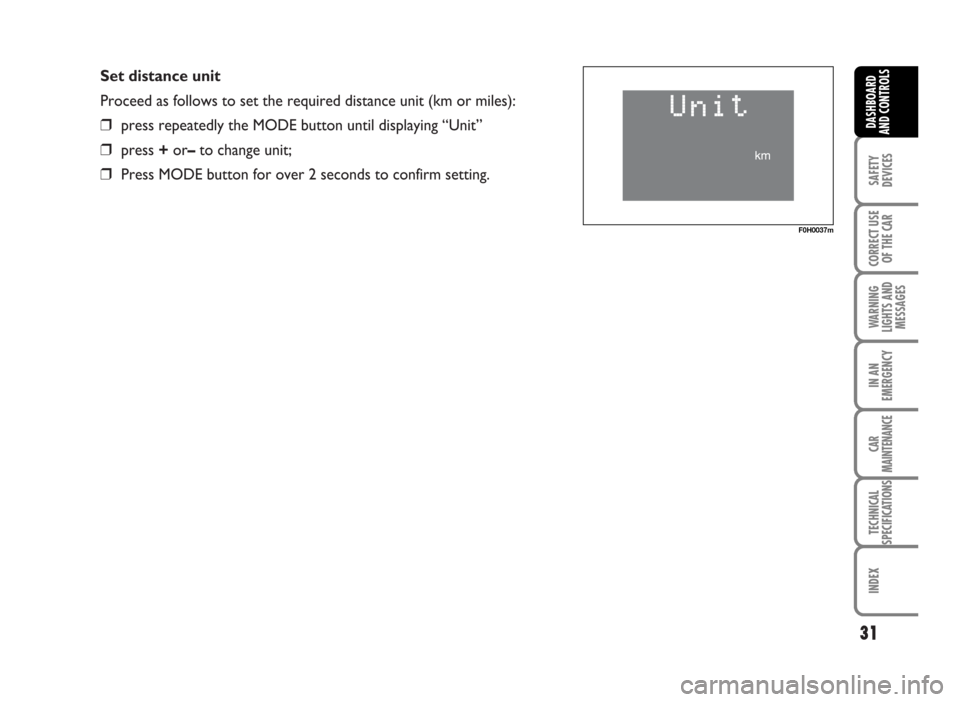

Set distance unit
Proceed as follows to set the required distance unit (km or miles):
❒press repeatedly the MODE button until displaying “Unit”
❒press +or–to change unit;
❒Press MODE button for over 2 seconds to confirm setting.
31
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0H0037m

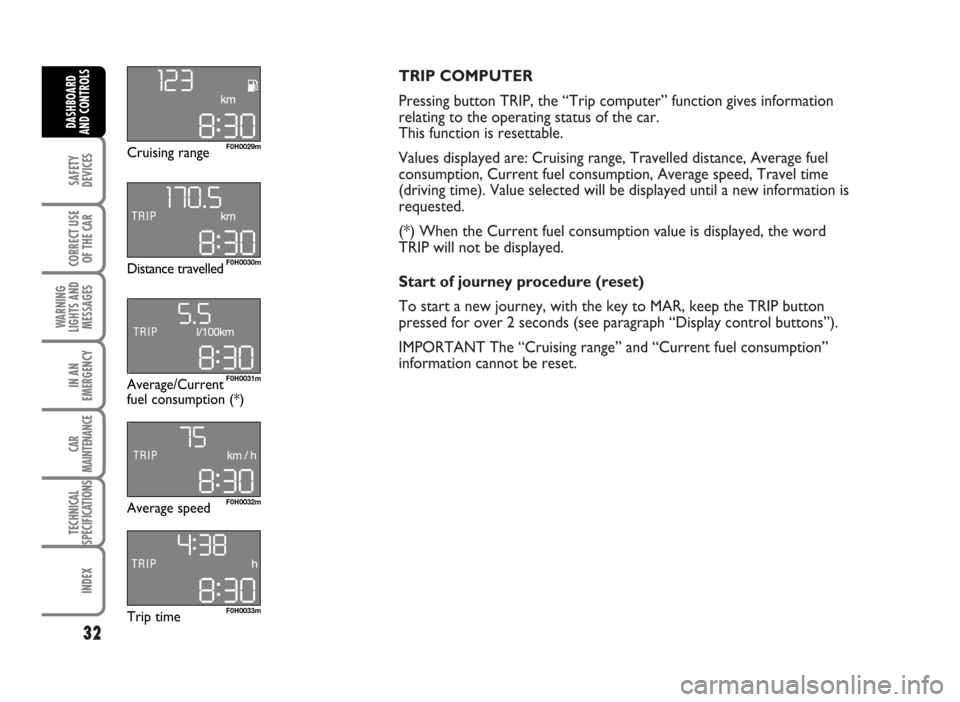

TRIP COMPUTER
Pressing button TRIP, the “Trip computer” function gives information
relating to the operating status of the car.
This function is resettable.
Values displayed are: Cruising range, Travelled distance, Average fuel
consumption, Current fuel consumption, Average speed, Travel time
(driving time). Value selected will be displayed until a new information is
requested.
(*) When the Current fuel consumption value is displayed, the word
TRIP will not be displayed.
Start of journey procedure (reset)
To start a new journey, with the key to MAR, keep the TRIP button
pressed for over 2 seconds (see paragraph “Display control buttons”).
IMPORTANT The “Cruising range” and “Current fuel consumption”
information cannot be reset.
32
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0H0029m
F0H0031m
F0H0030m
F0H0032m
F0H0033m
Cruising range
Average/Current
fuel consumption (*) Distance travelled
Average speed
Trip time

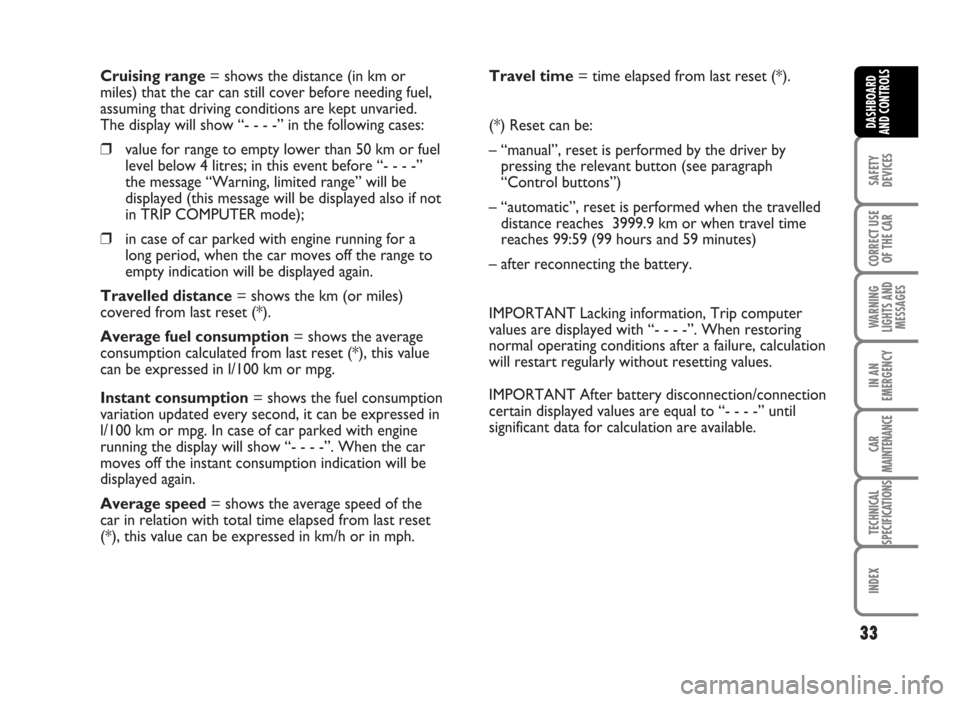

Cruising range= shows the distance (in km or
miles) that the car can still cover before needing fuel,
assuming that driving conditions are kept unvaried.
The display will show “- - - -” in the following cases:
❒value for range to empty lower than 50 km or fuel
level below 4 litres; in this event before “- - - -”
the message “Warning, limited range” will be
displayed (this message will be displayed also if not
in TRIP COMPUTER mode);
❒in case of car parked with engine running for a
long period, when the car moves off the range to
empty indication will be displayed again.
Travelled distance= shows the km (or miles)
covered from last reset (*).
Average fuel consumption= shows the average
consumption calculated from last reset (*), this value
can be expressed in l/100 km or mpg.
Instant consumption= shows the fuel consumption
variation updated every second, it can be expressed in
l/100 km or mpg. In case of car parked with engine
running the display will show “- - - -”. When the car
moves off the instant consumption indication will be
displayed again.
Average speed= shows the average speed of the
car in relation with total time elapsed from last reset
(*), this value can be expressed in km/h or in mph.Travel time= time elapsed from last reset (*).
(*) Reset can be:
– “manual”, reset is performed by the driver by
pressing the relevant button (see paragraph
“Control buttons”)
– “automatic”, reset is performed when the travelled
distance reaches 3999.9 km or when travel time
reaches 99:59 (99 hours and 59 minutes)
– after reconnecting the battery.
IMPORTANT Lacking information, Trip computer
values are displayed with “- - - -”. When restoring
normal operating conditions after a failure, calculation
will restart regularly without resetting values.
IMPORTANT After battery disconnection/connection
certain displayed values are equal to “- - - -” until
significant data for calculation are available.
33
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

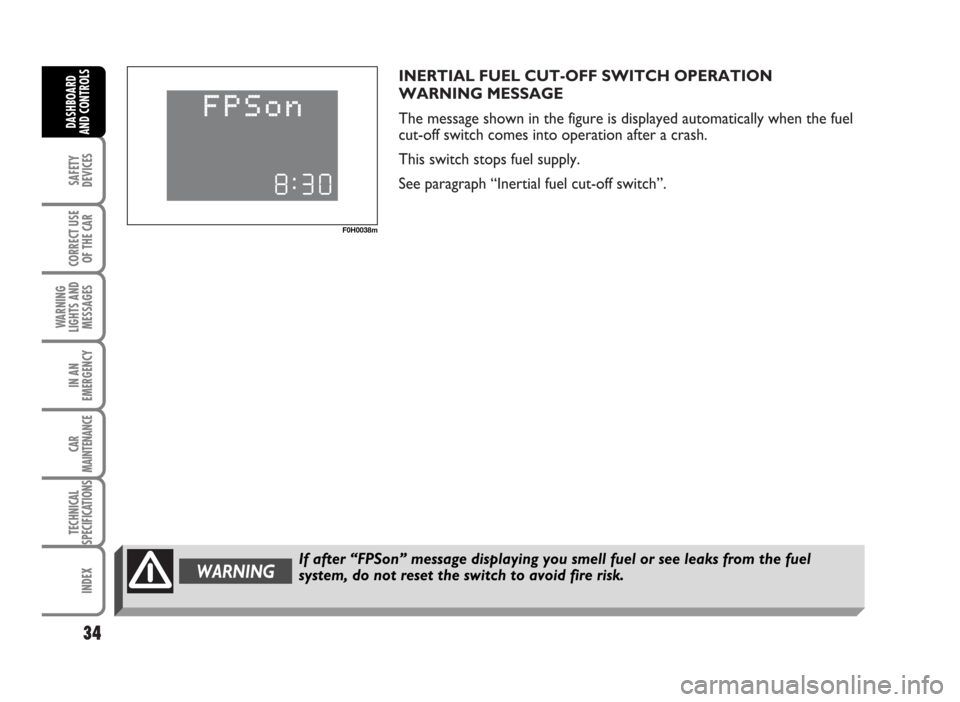

INERTIAL FUEL CUT-OFF SWITCH OPERATION
WARNING MESSAGE
The message shown in the figure is displayed automatically when the fuel
cut-off switch comes into operation after a crash.
This switch stops fuel supply.
See paragraph “Inertial fuel cut-off switch”.
34
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0H0038m
If after “FPSon” message displaying you smell fuel or see leaks from the fuel
system, do not reset the switch to avoid fire risk.WARNING

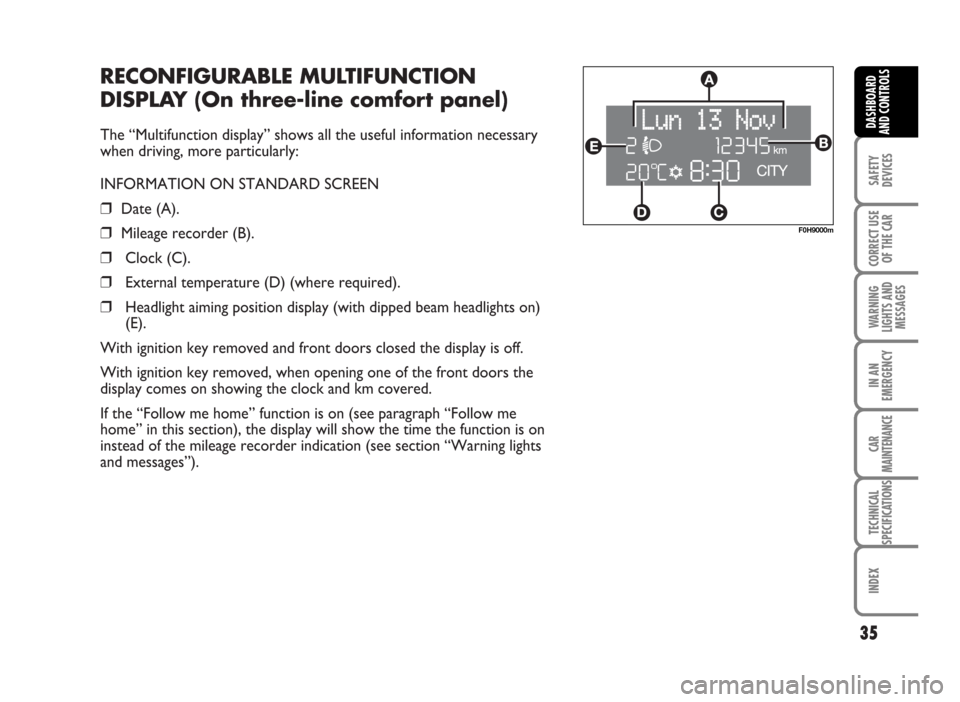

RECONFIGURABLE MULTIFUNCTION
DISPLAY (On three-line comfort panel)
The “Multifunction display” shows all the useful information necessary
when driving, more particularly:
INFORMATION ON STANDARD SCREEN
❒Date (A).
❒Mileage recorder (B).
❒Clock (C).
❒External temperature (D) (where required).
❒Headlight aiming position display (with dipped beam headlights on)
(E).
With ignition key removed and front doors closed the display is off.
With ignition key removed, when opening one of the front doors the
display comes on showing the clock and km covered.
If the “Follow me home” function is on (see paragraph “Follow me
home” in this section), the display will show the time the function is on
instead of the mileage recorder indication (see section “Warning lights
and messages”).
35
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0H9000m

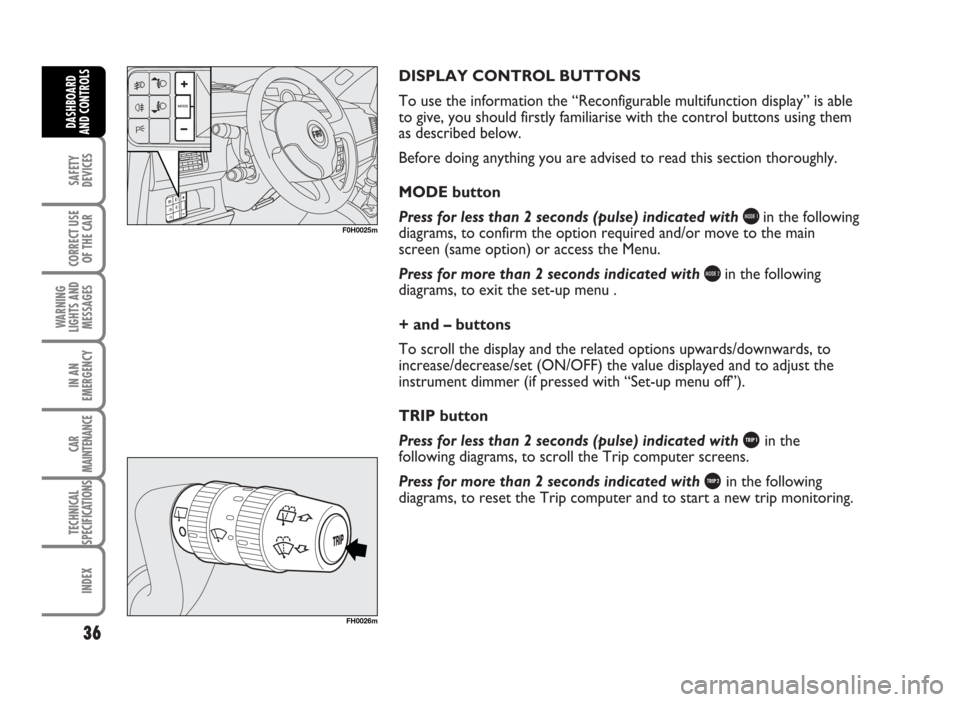

DISPLAY CONTROL BUTTONS
To use the information the “Reconfigurable multifunction display” is able
to give, you should firstly familiarise with the control buttons using them
as described below.
Before doing anything you are advised to read this section thoroughly.
MODE button
Press for less than 2 seconds (pulse) indicated with
bin the following
diagrams, to confirm the option required and/or move to the main
screen (same option) or access the Menu.
Press for more than 2 seconds indicated with
cin the following
diagrams, to exit the set-up menu .
+ and – buttons
To scroll the display and the related options upwards/downwards, to
increase/decrease/set (ON/OFF) the value displayed and to adjust the
instrument dimmer (if pressed with “Set-up menu off”).
TRIP button
Press for less than 2 seconds (pulse) indicated with
%in the
following diagrams, to scroll the Trip computer screens.
Press for more than 2 seconds indicated with
&in the following
diagrams, to reset the Trip computer and to start a new trip monitoring.
36
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0H0025m
FH0026m

37
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
INFORMATION ABOUT CAR CONDITIONS
❒Scheduled maintenance programme intervals.
❒Trip computer information.
❒Inertial switch operation (at event).
❒Instrument panel and two-zone automatic climate
control system light dimmer (where provided).❒Display of failure/warning messages.
❒“DUALDRIVE” electric power steering CITY
function on.
❒Messages for functions on.

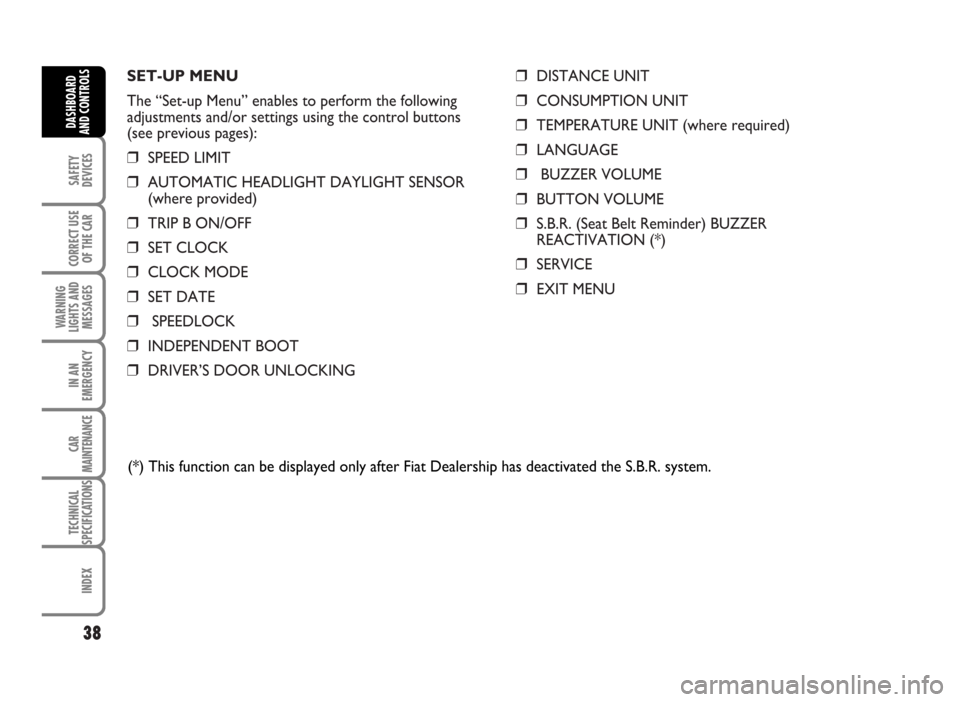

SET-UP MENU
The “Set-up Menu” enables to perform the following
adjustments and/or settings using the control buttons
(see previous pages):
❒SPEED LIMIT
❒AUTOMATIC HEADLIGHT DAYLIGHT SENSOR
(where provided)
❒TRIP B ON/OFF
❒SET CLOCK
❒CLOCK MODE
❒SET DATE
❒SPEEDLOCK
❒INDEPENDENT BOOT
❒DRIVER’S DOOR UNLOCKING❒DISTANCE UNIT
❒CONSUMPTION UNIT
❒TEMPERATURE UNIT (where required)
❒LANGUAGE
❒BUZZER VOLUME
❒BUTTON VOLUME
❒S.B.R. (Seat Belt Reminder) BUZZER
REACTIVATION (*)
❒SERVICE
❒EXIT MENU
38
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
(*) This function can be displayed only after Fiat Dealership has deactivated the S.B.R. system.

39
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
INITIAL CHECK
Turning the ignition key to MAR, the multifunction display shows the message “Checking”: the diagnostic phase of all
the electronic systems on the car has started. This lasts few seconds: if no faults are detected, when the engine has
started, the display shows the “Check OK” message.
See section “Warning lights and messages” if faults are found.
Is the engine
started?YES
If no failures are
present
The “Service schedule” includes vehicle maintenance every 20,000 km (or 12,000 mi) or every year; this is shown automatically, with the
ignition key at MAR, starting from 2,000 km (or 1,240 mi) or 30 days from this deadline and it is shown again every 200 km (or 124 mi) or
3 days. For 1.3 Multijet versions, see “Care and Maintenance” in section “Service schedule to change engine oil and filter and air cleaner.
When a programmed maintenance interval (coupon) is near to come, turning the ignition key to MAR, will display the message “Service”
followed by the number of km, or days to go before car servicing. “Scheduled servicing” message is displayed in km, miles or days according
to the approaching service interval. Contact a Fiat Dealership to carry out any service operation provided by the “Service schedule” or
“Annual inspection plan”, and to reset the display.
If the display shows a failure message,
see details in section “Warning lights
and messages”.
Standard
screen display or
NO
