FIAT IDEA 2007 1.G Service Manual

40
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
ACCESS TO MENU SCREEN
After the “Initial check”, it is possible to access the menu screen pressing the button
Q.
To surf the menu press buttons +or –.
IMPORTANT If after entering the menu no setting/adjustment is performed within 60 seconds, the system exits the
menu automatically and returns to previously displayed screen.
In this case the last selected but not confirmed setting (through button
Q) is not stored and therefore the
operation shall be repeated.
When the car is running, it is possible to access only the reduced menu (for setting “Speed limit” and “Daylight
sensor automatic headlights”).
When the car is stationary access to the whole menu is enabled.
The following diagram shows the cases described.
Q= Press “MODE” button for less than two seconds
R= Press “MODE” button for over two seconds

41
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

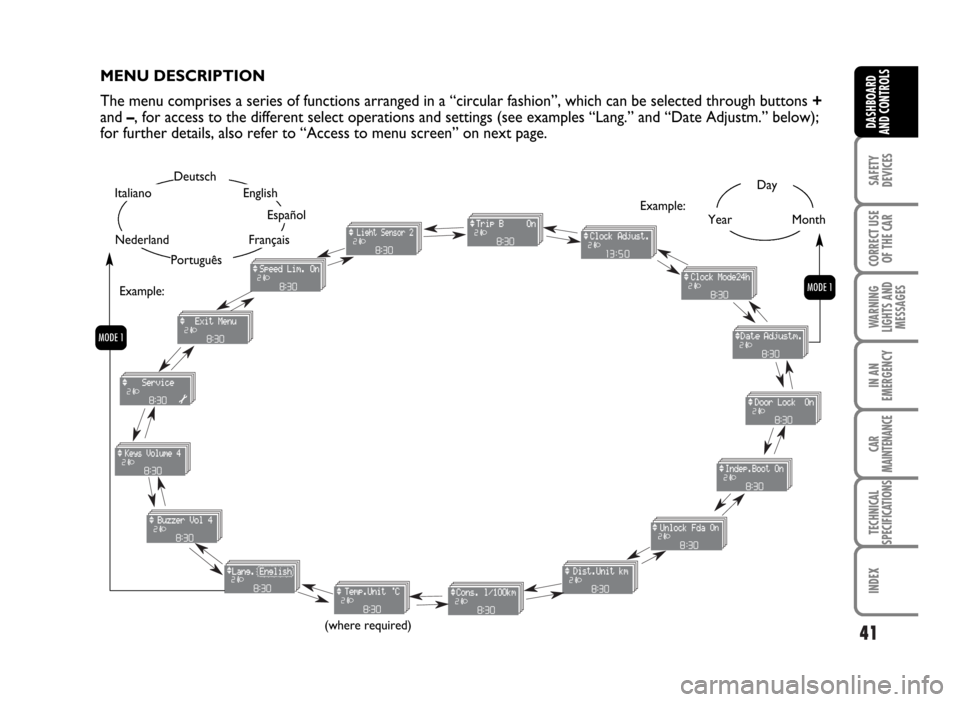

MENU DESCRIPTION
The menu comprises a series of functions arranged in a “circular fashion”, which can be selected through buttons +
and –, for access to the different select operations and settings (see examples “Lang.” and “Date Adjustm.” below);
for further details, also refer to “Access to menu screen” on next page.
Q
Q
Deutsch
Português
English
Español
Français
Italiano
Nederland
Day
YearMonth Example:
Example:
(where required)

42
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

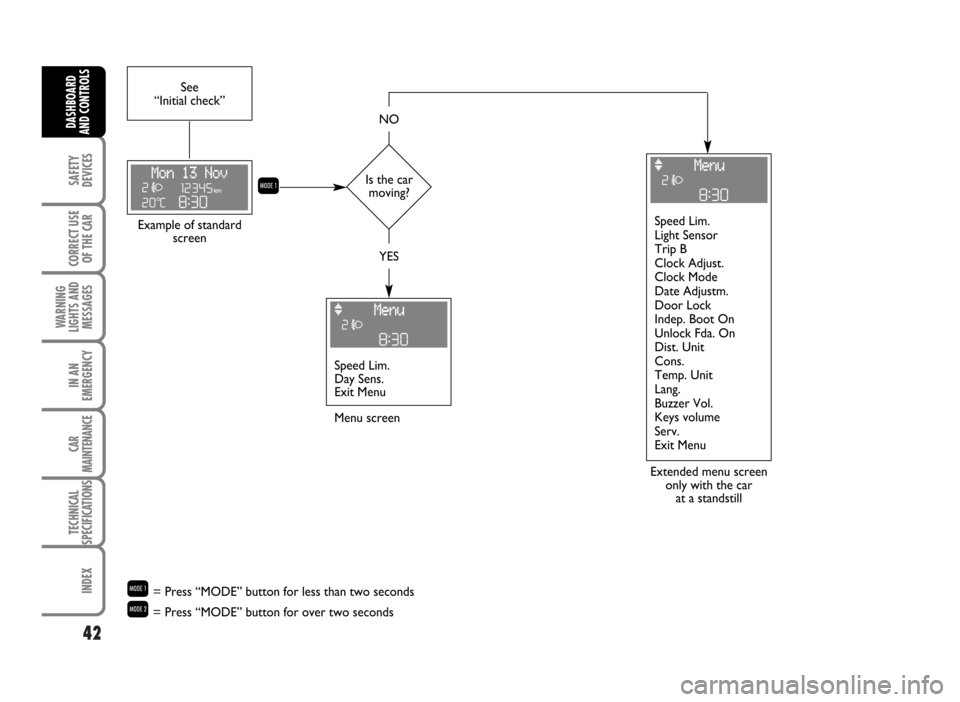

Is the car
moving? See
“Initial check”
Extended menu screen
only with the car
at a standstill Example of standard
screen
Menu screen
Q
NO
YES
Speed Lim.
Day Sens.
Exit MenuSpeed Lim.
Light Sensor
Trip B
Clock Adjust.
Clock Mode
Date Adjustm.
Door Lock
Indep. Boot On
Unlock Fda. On
Dist. Unit
Cons.
Temp. Unit
Lang.
Buzzer Vol.
Keys volume
Serv.
Exit Menu
Q= Press “MODE” button for less than two seconds
R= Press “MODE” button for over two seconds

43
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

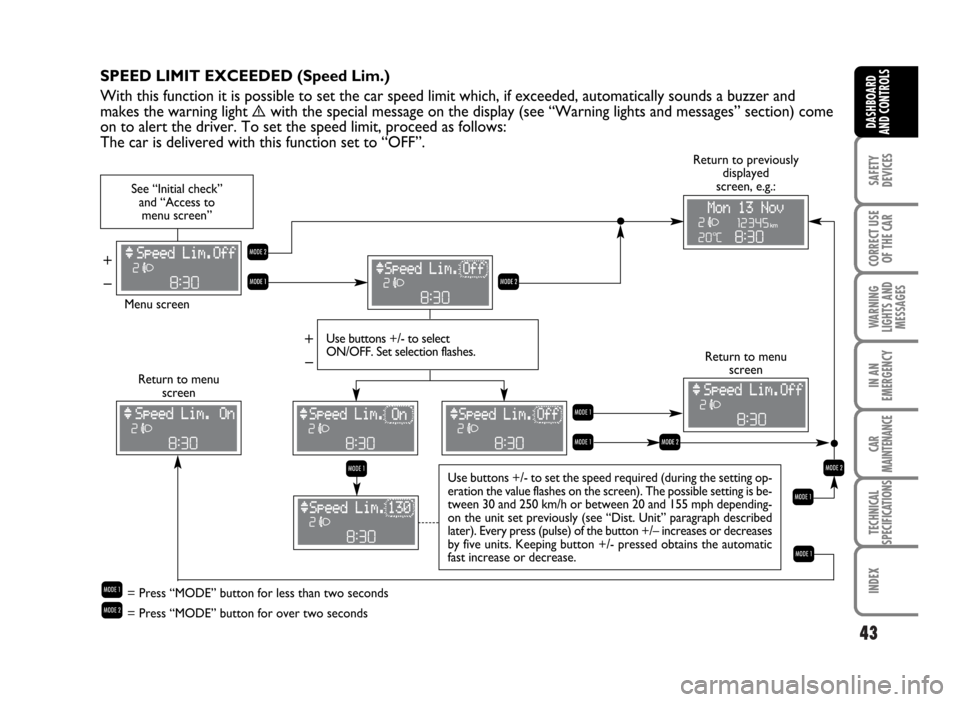

SPEED LIMIT EXCEEDED (Speed Lim.)
With this function it is possible to set the car speed limit which, if exceeded, automatically sounds a buzzer and
makes the warning light
èwith the special message on the display (see “Warning lights and messages” section) come
on to alert the driver. To set the speed limit, proceed as follows:
The car is delivered with this function set to “OFF”.
R
Q
Q
QR
Q
Q
R
– +
– +
Q
See “Initial check”
and “Access to
menu screen”
Use buttons +/- to select
ON/OFF. Set selection flashes.
Return to menu
screen Menu screenReturn to previously
displayed
screen, e.g.:
Return to menu
screen
Use buttons +/- to set the speed required (during the setting op-
eration the value flashes on the screen). The possible setting is be-
tween 30 and 250 km/h or between 20 and 155 mph depending-
on the unit set previously (see “Dist. Unit” paragraph described
later). Every press (pulse) of the button +/– increases or decreases
by five units. Keeping button +/- pressed obtains the automatic
fast increase or decrease.
Q= Press “MODE” button for less than two seconds
R= Press “MODE” button for over two seconds
R

44
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

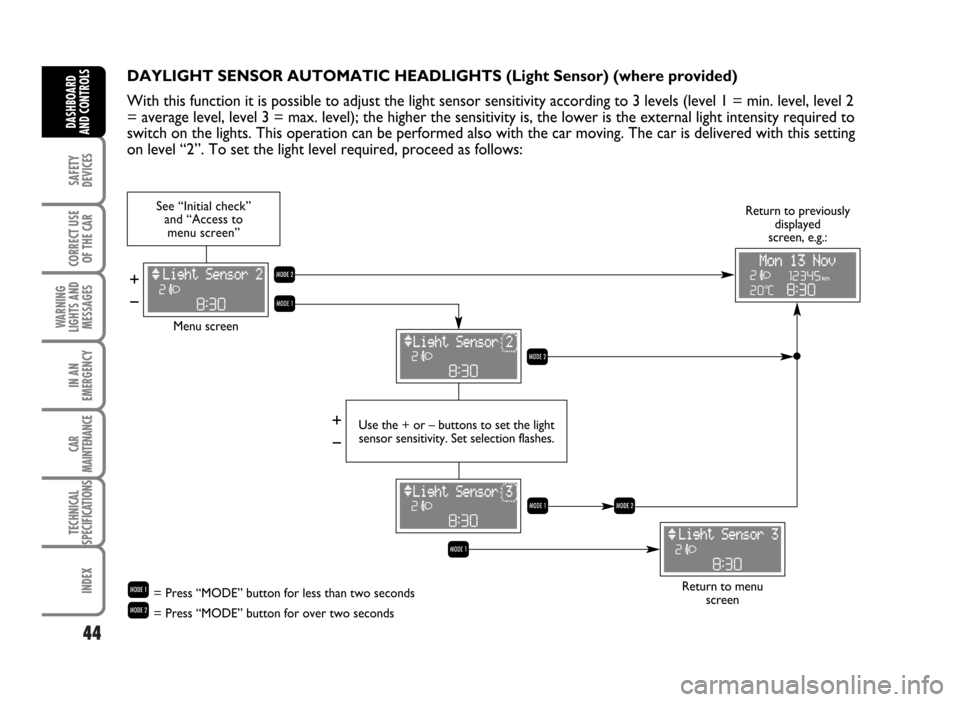

DAYLIGHT SENSOR AUTOMATIC HEADLIGHTS (Light Sensor) (where provided)
With this function it is possible to adjust the light sensor sensitivity according to 3 levels (level 1 = min. level, level 2
= average level, level 3 = max. level); the higher the sensitivity is, the lower is the external light intensity required to
switch on the lights. This operation can be performed also with the car moving. The car is delivered with this setting
on level “2”. To set the light level required, proceed as follows:
R
Q
Q
– +
R
– +
See “Initial check”
and “Access to
menu screen”
Menu screen
Return to menu
screen Use the + or – buttons to set the light
sensor sensitivity. Set selection flashes.
Return to previously
displayed
screen, e.g.:
Q= Press “MODE” button for less than two seconds
R= Press “MODE” button for over two seconds
QR

45
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

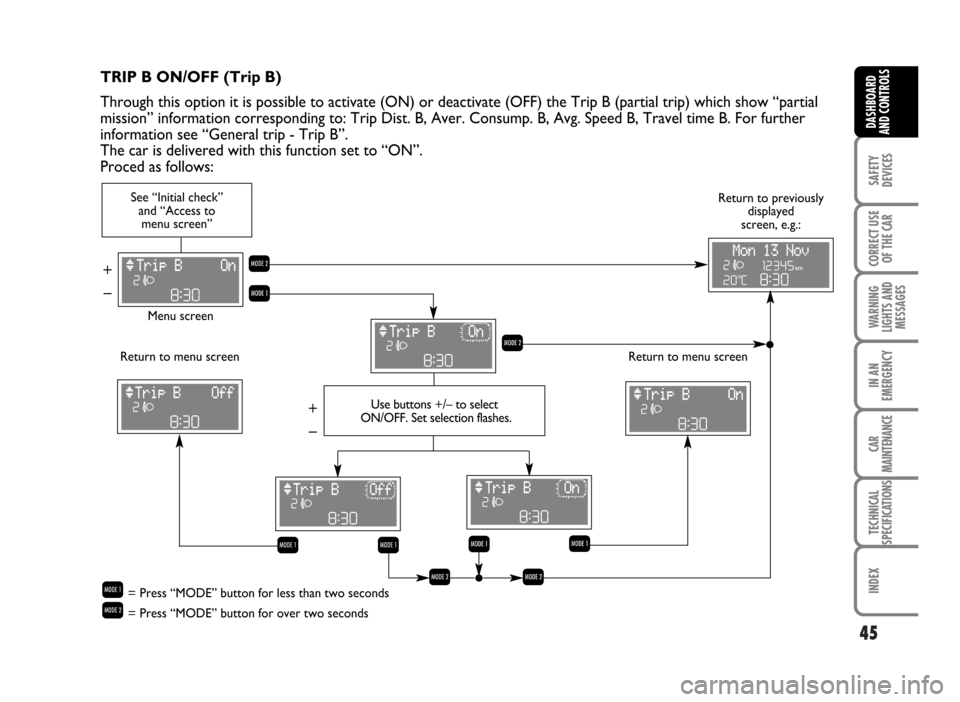

TRIP B ON/OFF (Trip B)
Through this option it is possible to activate (ON) or deactivate (OFF) the Trip B (partial trip) which show “partial
mission” information corresponding to: Trip Dist. B, Aver. Consump. B, Avg. Speed B, Travel time B. For further
information see “General trip - Trip B”.
The car is delivered with this function set to “ON”.
Proced as follows:
R
Q
– + – +
R
QQ
QQ
See “Initial check”
and “Access to
menu screen”
Menu screen
Use buttons +/– to select
ON/OFF. Set selection flashes.
Return to menu screen Return to menu screenReturn to previously
displayed
screen, e.g.:
Q= Press “MODE” button for less than two seconds
R= Press “MODE” button for over two seconds
RR

46
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

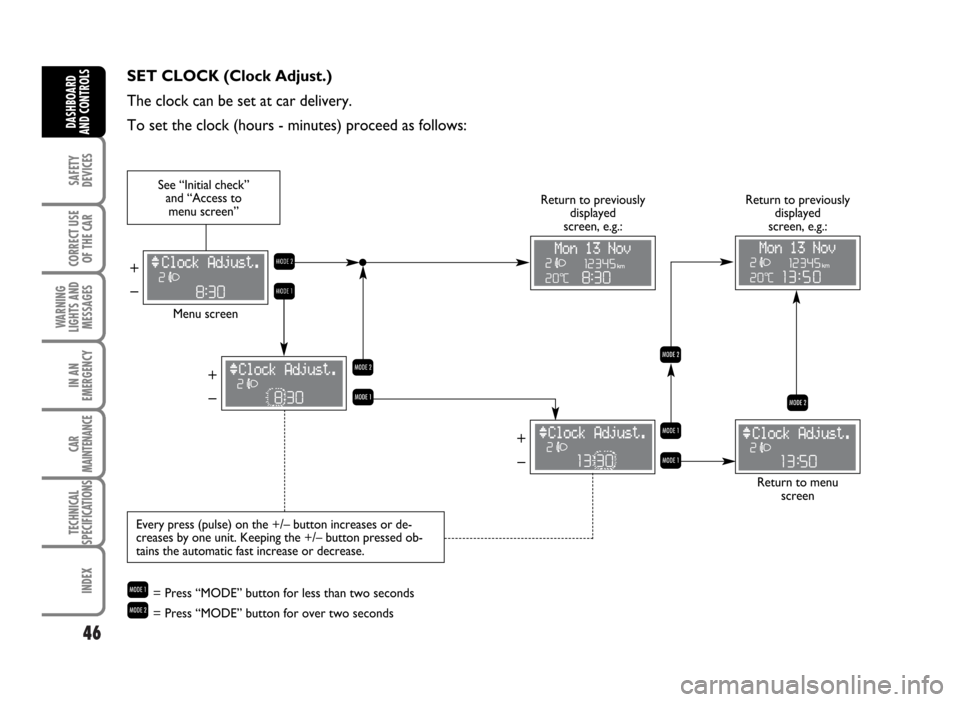

SET CLOCK (Clock Adjust.)
The clock can be set at car delivery.
To set the clock (hours - minutes) proceed as follows:
R R
Q Q
– + – +
R
Q
– +
R
Q
Q
See “Initial check”
and “Access to
menu screen”
Menu screen
Every press (pulse) on the +/– button increases or de-
creases by one unit. Keeping the +/– button pressed ob-
tains the automatic fast increase or decrease.
Return to menu
screen Return to previously
displayed
screen, e.g.: Return to previously
displayed
screen, e.g.:
Q= Press “MODE” button for less than two seconds
R= Press “MODE” button for over two seconds
R

47
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

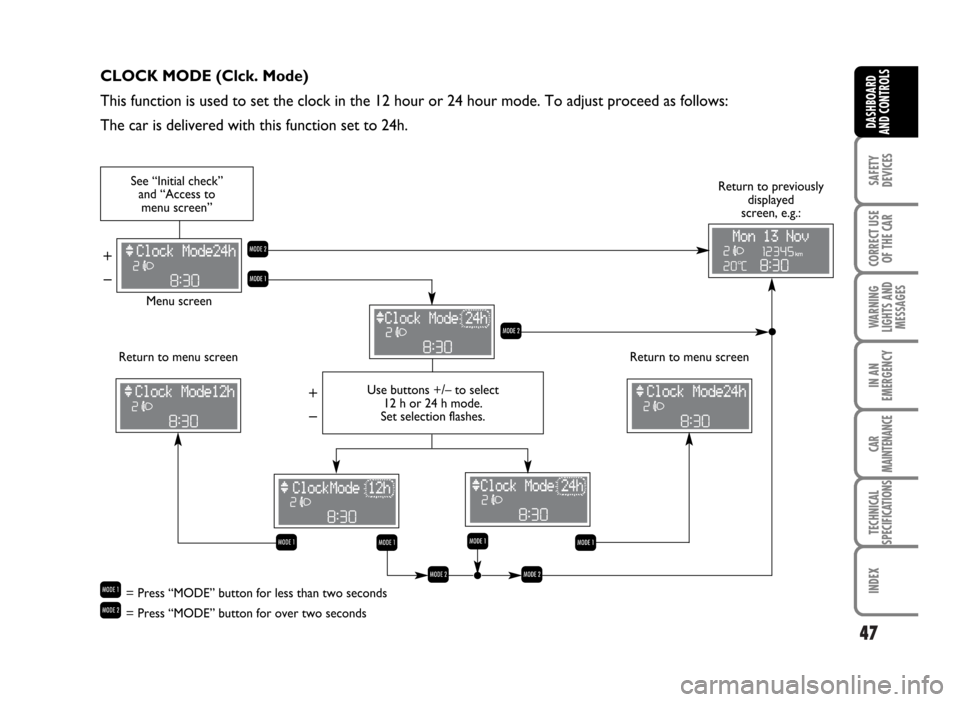

CLOCK MODE (Clck. Mode)
This function is used to set the clock in the 12 hour or 24 hour mode. To adjust proceed as follows:
The car is delivered with this function set to 24h.
8:30
R
Q
– + – +
R
8:30
Q Q
See “Initial check”
and “Access to
menu screen”
Menu screen
Use buttons +/– to select
12 h or 24 h mode.
Set selection flashes.
Return to menu screen
Return to menu screenReturn to previously
displayed
screen, e.g.:
Q= Press “MODE” button for less than two seconds
R= Press “MODE” button for over two seconds
Q
Q
RR

48
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

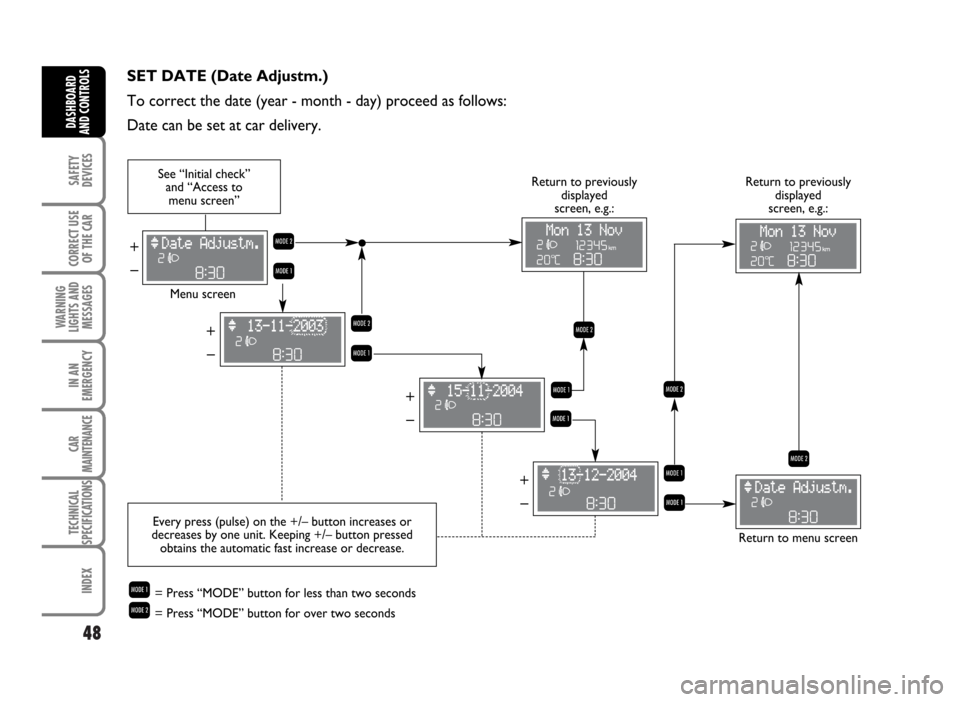

SET DATE (Date Adjustm.)
To correct the date (year - month - day) proceed as follows:
Date can be set at car delivery.
See “Initial check”
and “Access to
menu screen”
Menu screen
Every press (pulse) on the +/– button increases or
decreases by one unit. Keeping +/– button pressed
obtains the automatic fast increase or decrease.
Return to menu screenReturn to previously
displayed
screen, e.g.: Return to previously
displayed
screen, e.g.:
R
Q
– +
R
Q
Q– + – +
Q– +
R
Q
Q
= Press “MODE” button for less than two seconds
R= Press “MODE” button for over two seconds
Q
R R

49
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

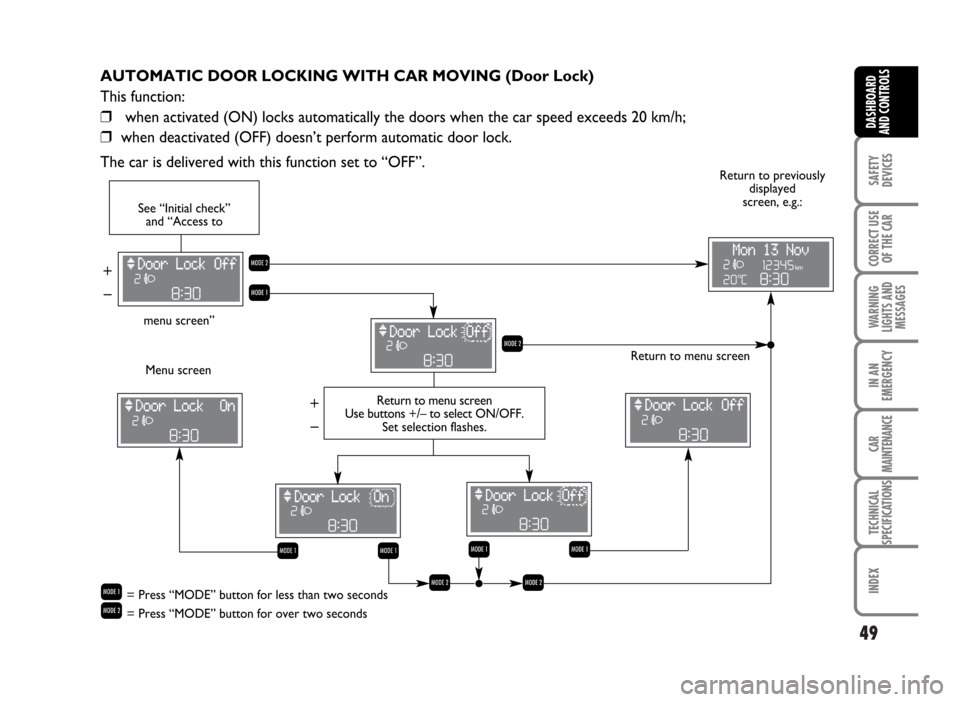

AUTOMATIC DOOR LOCKING WITH CAR MOVING (Door Lock)
This function:
❒when activated (ON) locks automatically the doors when the car speed exceeds 20 km/h;
❒when deactivated (OFF) doesn’t perform automatic door lock.
The car is delivered with this function set to “OFF”.
Return to menu screen
Menu screenReturn to previously
displayed
screen, e.g.:
R
Q
– + – +
R
Q
Q
See “Initial check”
and “Access to
menu screen”
Return to menu screen
Use buttons +/– to selectON/OFF.
Set selection flashes.
Q= Press “MODE” button for less than two seconds
R= Press “MODE” button for over two seconds
Q
Q
RR
