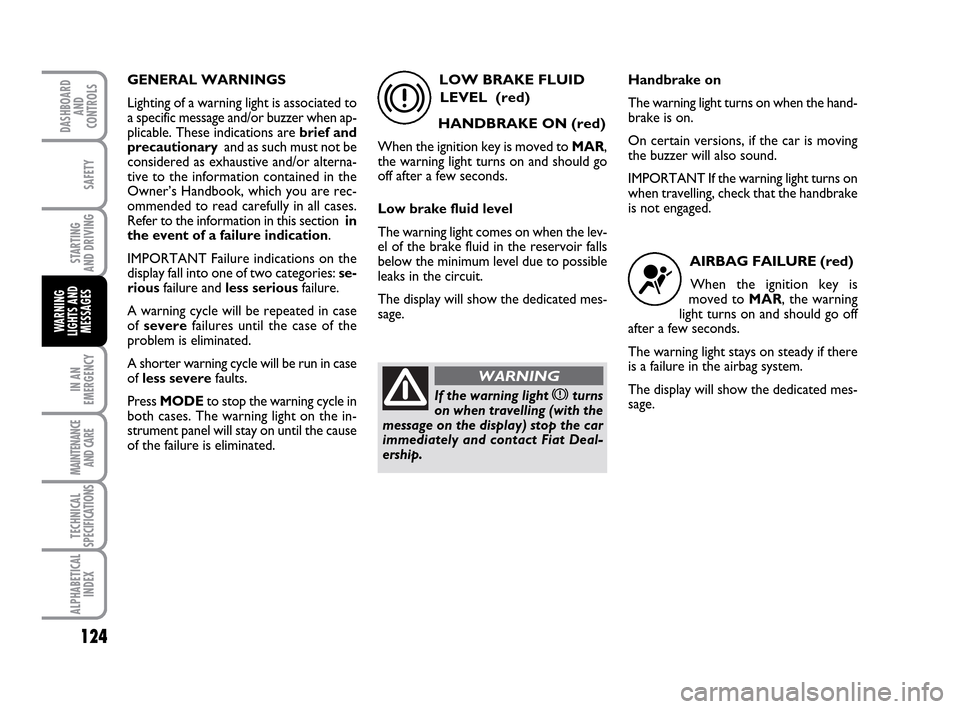

GENERAL WARNINGS
Lighting of a warning light is associated to
a specific message and/or buzzer when ap-
plicable. These indications are brief and
precautionary and as such must not be
considered as exhaustive and/or alterna-
tive to the information contained in the
Owner’s Handbook, which you are rec-
ommended to read carefully in all cases.
Refer to the information in this section in
the event of a failure indication.
IMPORTANT Failure indications on the
display fall into one of two categories: se-
riousfailure and less seriousfailure.
A warning cycle will be repeated in case
of severefailures until the case of the
problem is eliminated.
A shorter warning cycle will be run in case
of less severefaults.
Press MODEto stop the warning cycle in
both cases. The warning light on the in-
strument panel will stay on until the cause
of the failure is eliminated.LOW BRAKE FLUID
LEVEL (red)
HANDBRAKE ON (red)
When the ignition key is moved to MAR,
the warning light turns on and should go
off after a few seconds.
Low brake fluid level
The warning light comes on when the lev-
el of the brake fluid in the reservoir falls
below the minimum level due to possible
leaks in the circuit.
The display will show the dedicated mes-
sage.
x
Handbrake on
The warning light turns on when the hand-
brake is on.
On certain versions, if the car is moving
the buzzer will also sound.
IMPORTANT If the warning light turns on
when travelling, check that the handbrake
is not engaged.
AIRBAG FAILURE (red)
When the ignition key is
moved to MAR, the warning
light turns on and should go off
after a few seconds.
The warning light stays on steady if there
is a failure in the airbag system.
The display will show the dedicated mes-
sage.¬
If the warning light xturns
on when travelling (with the
message on the display) stop the car
immediately and contact Fiat Deal-
ership.
WARNING
123-132 LUM IDEA GB 2 ed.qxd 14-01-2010 13:47 Pagina 124

125
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES

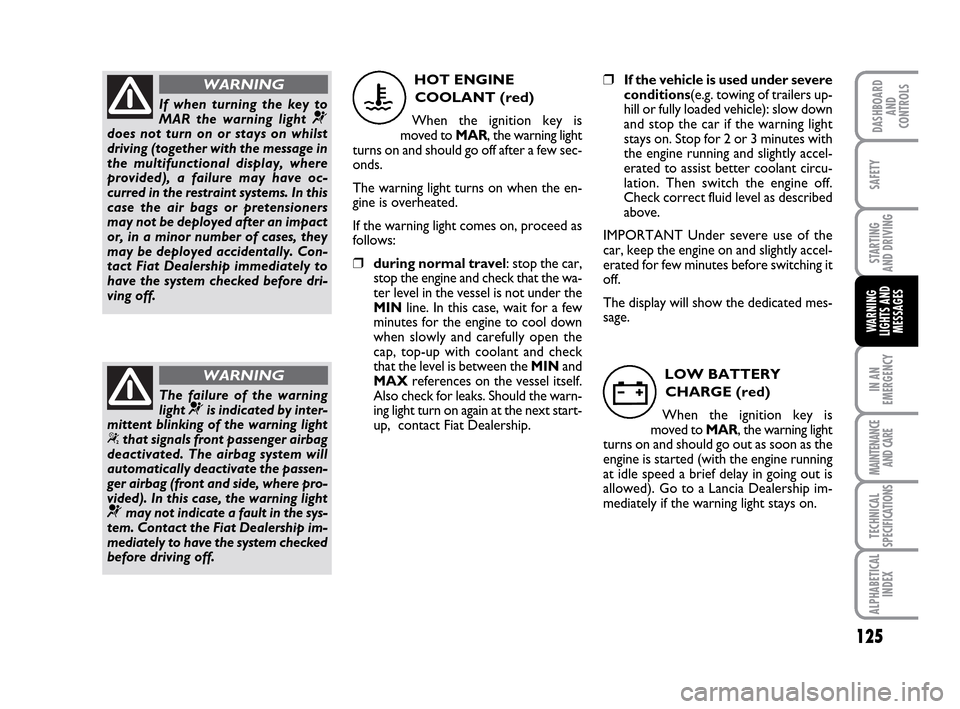

If when turning the key to
MAR the warning light ¬does not turn on or stays on whilst
driving (together with the message in
the multifunctional display, where
provided), a failure may have oc-
curred in the restraint systems. In this
case the air bags or pretensioners
may not be deployed after an impact
or, in a minor number of cases, they
may be deployed accidentally. Con-
tact Fiat Dealership immediately to
have the system checked before dri-
ving off.
WARNING
The failure of the warning
light ¬is indicated by inter-
mittent blinking of the warning light
“that signals front passenger airbag
deactivated. The airbag system will
automatically deactivate the passen-
ger airbag (front and side, where pro-
vided). In this case, the warning light
¬may not indicate a fault in the sys-
tem. Contact the Fiat Dealership im-
mediately to have the system checked
before driving off.
WARNING
HOT ENGINE
COOLANT (red)
When the ignition key is
moved to MAR, the warning light
turns on and should go off after a few sec-
onds.
The warning light turns on when the en-
gine is overheated.
If the warning light comes on, proceed as
follows:
❒during normal travel: stop the car,
stop the engine and check that the wa-
ter level in the vessel is not under the
MINline. In this case, wait for a few
minutes for the engine to cool down
when slowly and carefully open the
cap, top-up with coolant and check
that the level is between the MINand
MAXreferences on the vessel itself.
Also check for leaks. Should the warn-
ing light turn on again at the next start-
up, contact Fiat Dealership.
u
❒If the vehicle is used under severe
conditions(e.g. towing of trailers up-
hill or fully loaded vehicle): slow down
and stop the car if the warning light
stays on. Stop for 2 or 3 minutes with
the engine running and slightly accel-
erated to assist better coolant circu-
lation. Then switch the engine off.
Check correct fluid level as described
above.
IMPORTANT Under severe use of the
car, keep the engine on and slightly accel-
erated for few minutes before switching it
off.
The display will show the dedicated mes-
sage.
LOW BATTERY
CHARGE (red)
When the ignition key is
moved to MAR, the warning light
turns on and should go out as soon as the
engine is started (with the engine running
at idle speed a brief delay in going out is
allowed). Go to a Lancia Dealership im-
mediately if the warning light stays on.w
123-132 LUM IDEA GB 2 ed.qxd 14-01-2010 13:47 Pagina 125

126
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES

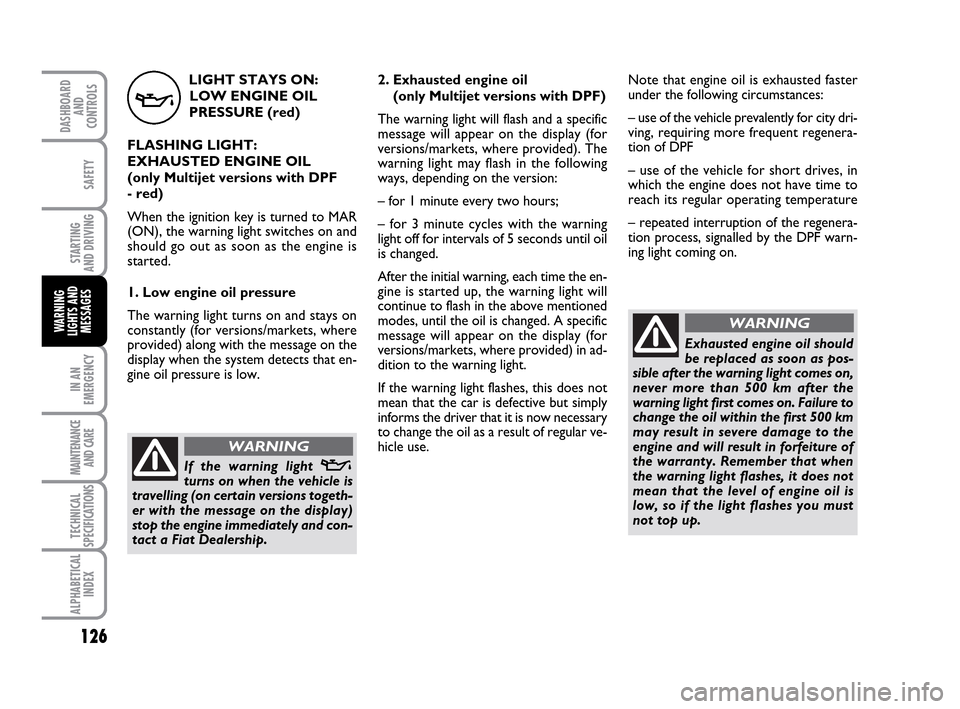

LIGHT STAYS ON:
LOW ENGINE OIL
PRESSURE (red)
FLASHING LIGHT:
EXHAUSTED ENGINE OIL
(only Multijet versions with DPF
- red)
When the ignition key is turned to MAR
(ON), the warning light switches on and
should go out as soon as the engine is
started.
1. Low engine oil pressure
The warning light turns on and stays on
constantly (for versions/markets, where
provided) along with the message on the
display when the system detects that en-
gine oil pressure is low.
v
2. Exhausted engine oil
(only Multijet versions with DPF)
The warning light will flash and a specific
message will appear on the display (for
versions/markets, where provided). The
warning light may flash in the following
ways, depending on the version:
– for 1 minute every two hours;
– for 3 minute cycles with the warning
light off for intervals of 5 seconds until oil
is changed.
After the initial warning, each time the en-
gine is started up, the warning light will
continue to flash in the above mentioned
modes, until the oil is changed. A specific
message will appear on the display (for
versions/markets, where provided) in ad-
dition to the warning light.
If the warning light flashes, this does not
mean that the car is defective but simply
informs the driver that it is now necessary
to change the oil as a result of regular ve-
hicle use.
If the warning light v
turns on when the vehicle is
travelling (on certain versions togeth-
er with the message on the display)
stop the engine immediately and con-
tact a Fiat Dealership.
WARNING
Note that engine oil is exhausted faster
under the following circumstances:
– use of the vehicle prevalently for city dri-
ving, requiring more frequent regenera-
tion of DPF
– use of the vehicle for short drives, in
which the engine does not have time to
reach its regular operating temperature
– repeated interruption of the regenera-
tion process, signalled by the DPF warn-
ing light coming on.
WARNING
Exhausted engine oil should
be replaced as soon as pos-
sible after the warning light comes on,
never more than 500 km after the
warning light first comes on. Failure to
change the oil within the first 500 km
may result in severe damage to the
engine and will result in forfeiture of
the warranty. Remember that when
the warning light flashes, it does not
mean that the level of engine oil is
low, so if the light flashes you must
not top up.
123-132 LUM IDEA GB 2 ed.qxd 14-01-2010 13:47 Pagina 126

127
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES

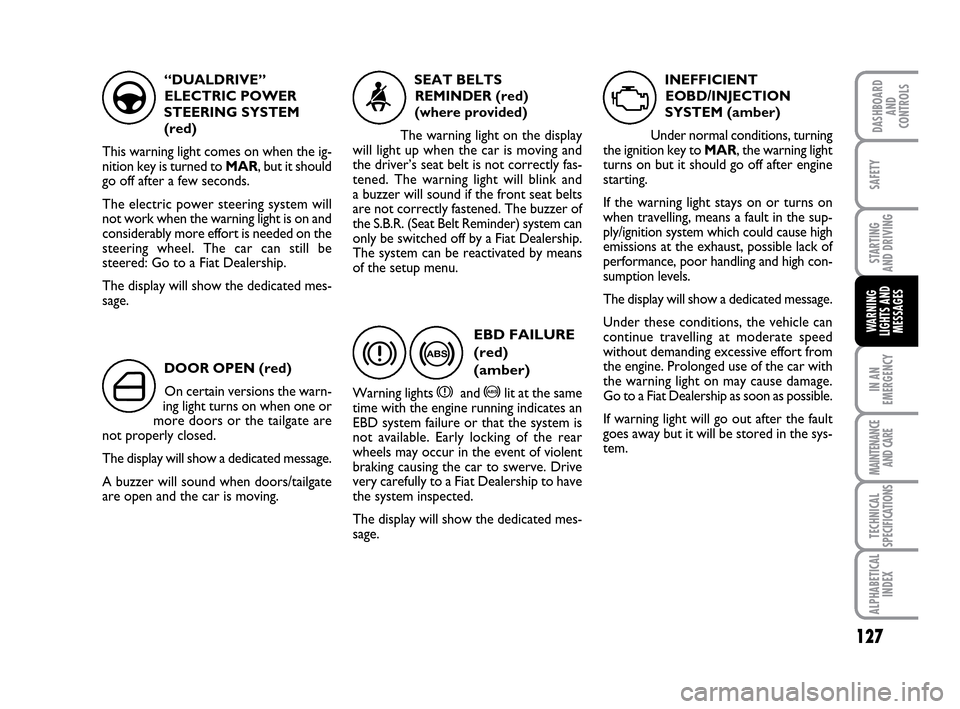

“DUALDRIVE”
ELECTRIC POWER
STEERING SYSTEM
(red)
This warning light comes on when the ig-
nition key is turned to MAR, but it should
go off after a few seconds.
The electric power steering system will
not work when the warning light is on and
considerably more effort is needed on the
steering wheel. The car can still be
steered: Go to a Fiat Dealership.
The display will show the dedicated mes-
sage.
g
DOOR OPEN (red)
On certain versions the warn-
ing light turns on when one or
more doors or the tailgate are
not properly closed.
The display will show a dedicated message.
A buzzer will sound when doors/tailgate
are open and the car is moving.
´
SEAT BELTS
REMINDER (red)
(where provided)
The warning light on the display
will light up when the car is moving and
the driver’s seat belt is not correctly fas-
tened. The warning light will blink and
a buzzer will sound if the front seat belts
are not correctly fastened. The buzzer of
the S.B.R. (Seat Belt Reminder) system can
only be switched off by a Fiat Dealership.
The system can be reactivated by means
of the setup menu.
<
>
EBD FAILURE
(red)
(amber)
Warning lights xand >lit at the same
time with the engine running indicates an
EBD system failure or that the system is
not available. Early locking of the rear
wheels may occur in the event of violent
braking causing the car to swerve. Drive
very carefully to a Fiat Dealership to have
the system inspected.
The display will show the dedicated mes-
sage.
x
INEFFICIENT
EOBD/INJECTION
SYSTEM (amber)
Under normal conditions, turning
the ignition key to MAR, the warning light
turns on but it should go off after engine
starting.
If the warning light stays on or turns on
when travelling, means a fault in the sup-
ply/ignition system which could cause high
emissions at the exhaust, possible lack of
performance, poor handling and high con-
sumption levels.
The display will show a dedicated message.
Under these conditions, the vehicle can
continue travelling at moderate speed
without demanding excessive effort from
the engine. Prolonged use of the car with
the warning light on may cause damage.
Go to a Fiat Dealership as soon as possible.
If warning light will go out after the fault
goes away but it will be stored in the sys-
tem.
U
123-132 LUM IDEA GB 2 ed.qxd 14-01-2010 13:47 Pagina 127

128
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES

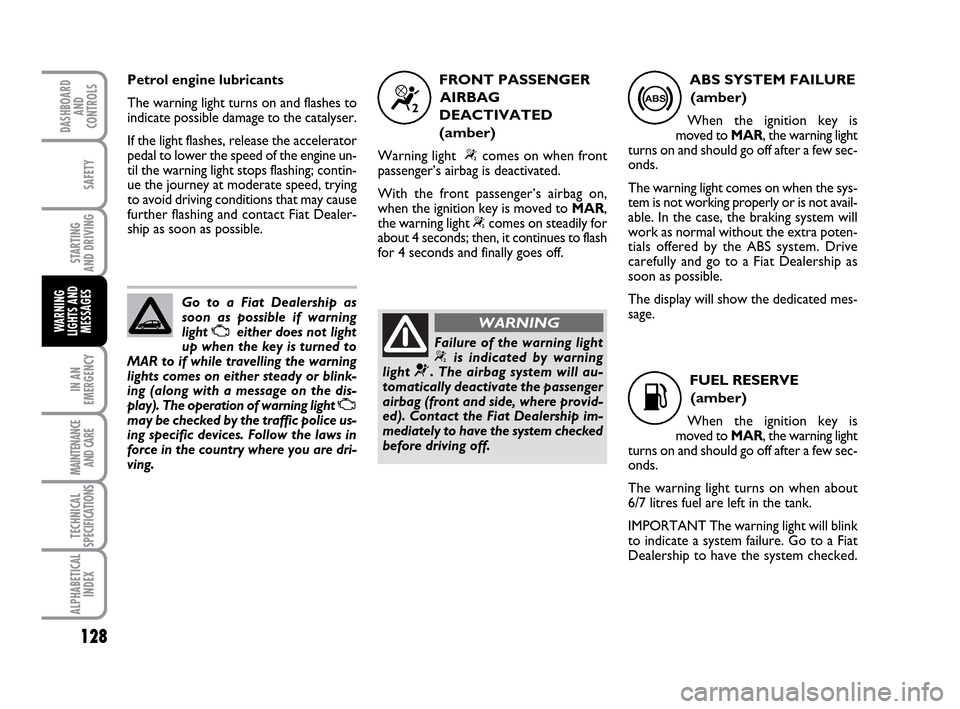

FRONT PASSENGER
AIRBAG
DEACTIVATED
(amber)
Warning light “comes on when front
passenger’s airbag is deactivated.
With the front passenger’s airbag on,
when the ignition key is moved to MAR,
the warning light
“comes on steadily for
about 4 seconds; then, it continues to flash
for 4 seconds and finally goes off.
“
ABS SYSTEM FAILURE
(amber)
When the ignition key is
moved to MAR, the warning light
turns on and should go off after a few sec-
onds.
The warning light comes on when the sys-
tem is not working properly or is not avail-
able. In the case, the braking system will
work as normal without the extra poten-
tials offered by the ABS system. Drive
carefully and go to a Fiat Dealership as
soon as possible.
The display will show the dedicated mes-
sage.>
FUEL RESERVE
(amber)
When the ignition key is
moved to MAR, the warning light
turns on and should go off after a few sec-
onds.
The warning light turns on when about
6/7 litres fuel are left in the tank.
IMPORTANT The warning light will blink
to indicate a system failure. Go to a Fiat
Dealership to have the system checked.
K
Failure of the warning light“is indicated by warning
light ¬. The airbag system will au-
tomatically deactivate the passenger
airbag (front and side, where provid-
ed). Contact the Fiat Dealership im-
mediately to have the system checked
before driving off.
WARNING
Go to a Fiat Dealership as
soon as possible if warning
light
Ueither does not light
up when the key is turned to
MAR to if while travelling the warning
lights comes on either steady or blink-
ing (along with a message on the dis-
play). The operation of warning light
Umay be checked by the traffic police us-
ing specific devices. Follow the laws in
force in the country where you are dri-
ving.
Petrol engine lubricants
The warning light turns on and flashes to
indicate possible damage to the catalyser.
If the light flashes, release the accelerator
pedal to lower the speed of the engine un-
til the warning light stops flashing; contin-
ue the journey at moderate speed, trying
to avoid driving conditions that may cause
further flashing and contact Fiat Dealer-
ship as soon as possible.
123-132 LUM IDEA GB 2 ed.qxd 14-01-2010 13:47 Pagina 128

129
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES

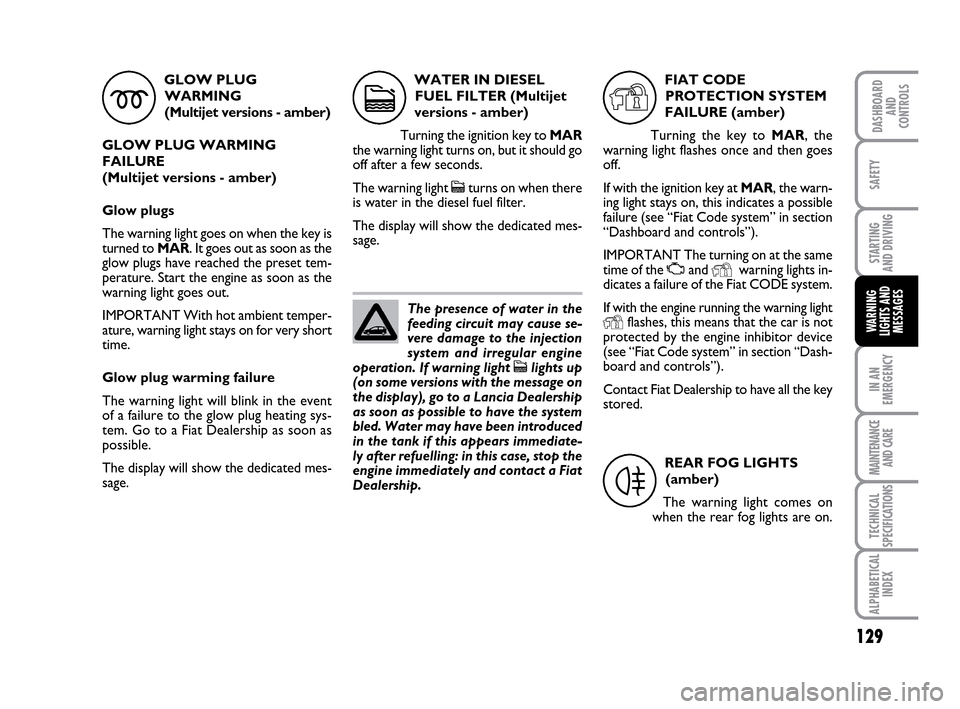

GLOW PLUG
WARMING
(Multijet versions - amber)
GLOW PLUG WARMING
FAILURE
(Multijet versions - amber)
Glow plugs
The warning light goes on when the key is
turned to MAR. It goes out as soon as the
glow plugs have reached the preset tem-
perature. Start the engine as soon as the
warning light goes out.
IMPORTANT With hot ambient temper-
ature, warning light stays on for very short
time.
Glow plug warming failure
The warning light will blink in the event
of a failure to the glow plug heating sys-
tem. Go to a Fiat Dealership as soon as
possible.
The display will show the dedicated mes-
sage.
m
WATER IN DIESEL
FUEL FILTER (Multijet
versions - amber)
Turning the ignition key to MAR
the warning light turns on, but it should go
off after a few seconds.
The warning light
cturns on when there
is water in the diesel fuel filter.
The display will show the dedicated mes-
sage.
c
FIAT CODE
PROTECTION SYSTEM
FAILURE (amber)
Turning the key to MAR, the
warning light flashes once and then goes
off.
If with the ignition key at MAR, the warn-
ing light stays on, this indicates a possible
failure (see “Fiat Code system” in section
“Dashboard and controls”).
IMPORTANT The turning on at the same
time of the
UandYwarning lights in-
dicates a failure of the Fiat CODE system.
If with the engine running the warning light
Yflashes, this means that the car is not
protected by the engine inhibitor device
(see “Fiat Code system” in section “Dash-
board and controls”).
Contact Fiat Dealership to have all the key
stored.
Y
REAR FOG LIGHTS
(amber)
The warning light comes on
when the rear fog lights are on.
4
The presence of water in the
feeding circuit may cause se-
vere damage to the injection
system and irregular engine
operation. If warning light
clights up
(on some versions with the message on
the display), go to a Lancia Dealership
as soon as possible to have the system
bled. Water may have been introduced
in the tank if this appears immediate-
ly after refuelling: in this case, stop the
engine immediately and contact a Fiat
Dealership.
123-132 LUM IDEA GB 2 ed.qxd 14-01-2010 13:47 Pagina 129

130
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES

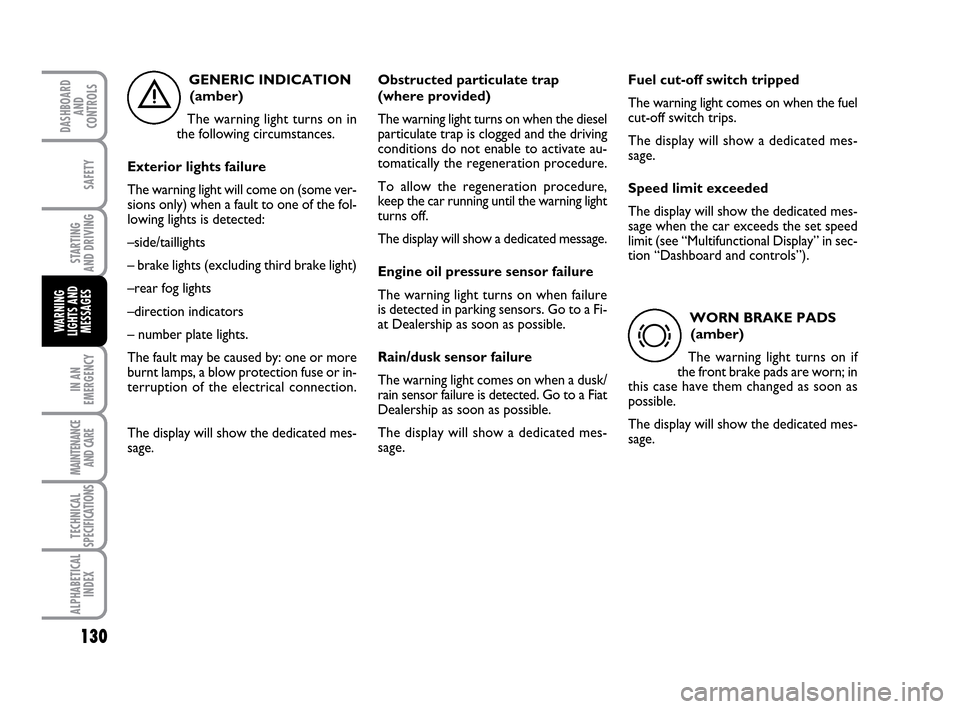

GENERIC INDICATION
(amber)
The warning light turns on in
the following circumstances.
Exterior lights failure
The warning light will come on (some ver-
sions only) when a fault to one of the fol-
lowing lights is detected:
–side/taillights
– brake lights (excluding third brake light)
–rear fog lights
–direction indicators
– number plate lights.
The fault may be caused by: one or more
burnt lamps, a blow protection fuse or in-
terruption of the electrical connection.
The display will show the dedicated mes-
sage.
è
Obstructed particulate trap
(where provided)
The warning light turns on when the diesel
particulate trap is clogged and the driving
conditions do not enable to activate au-
tomatically the regeneration procedure.
To allow the regeneration procedure,
keep the car running until the warning light
turns off.
The display will show a dedicated message.
Engine oil pressure sensor failure
The warning light turns on when failure
is detected in parking sensors. Go to a Fi-
at Dealership as soon as possible.
Rain/dusk sensor failure
The warning light comes on when a dusk/
rain sensor failure is detected. Go to a Fiat
Dealership as soon as possible.
The display will show a dedicated mes-
sage.Fuel cut-off switch tripped
The warning light comes on when the fuel
cut-off switch trips.
The display will show a dedicated mes-
sage.
Speed limit exceeded
The display will show the dedicated mes-
sage when the car exceeds the set speed
limit (see “Multifunctional Display” in sec-
tion “Dashboard and controls”).
WORN BRAKE PADS
(amber)
The warning light turns on if
the front brake pads are worn; in
this case have them changed as soon as
possible.
The display will show the dedicated mes-
sage.
d
123-132 LUM IDEA GB 2 ed.qxd 14-01-2010 13:47 Pagina 130

131
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES

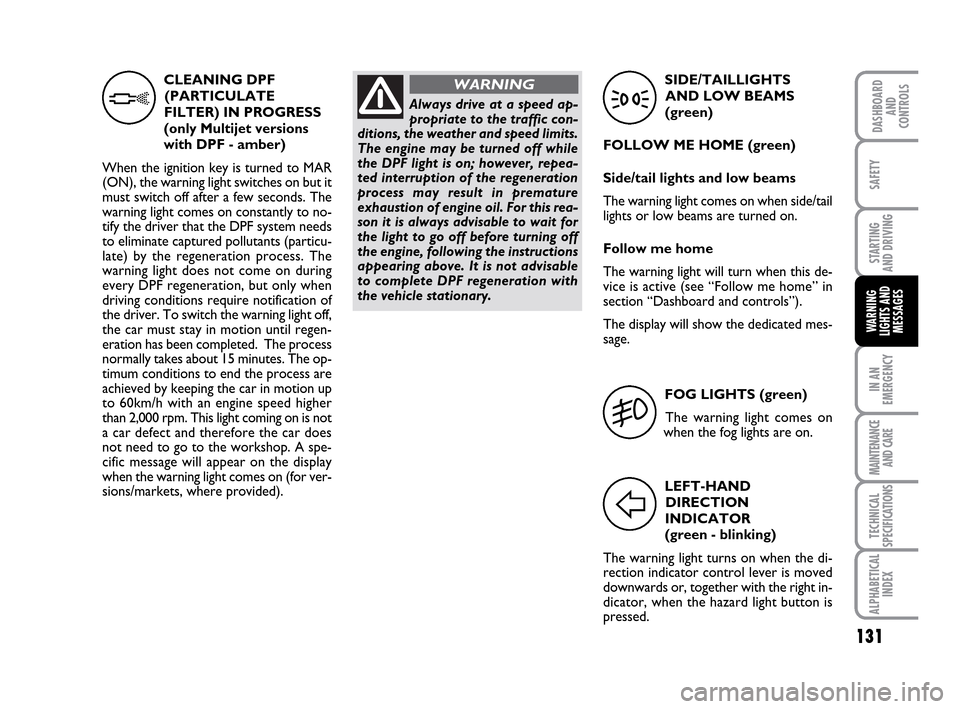

CLEANING DPF
(PARTICULATE
FILTER) IN PROGRESS
(only Multijet versions
with DPF - amber)
When the ignition key is turned to MAR
(ON), the warning light switches on but it
must switch off after a few seconds. The
warning light comes on constantly to no-
tify the driver that the DPF system needs
to eliminate captured pollutants (particu-
late) by the regeneration process. The
warning light does not come on during
every DPF regeneration, but only when
driving conditions require notification of
the driver. To switch the warning light off,
the car must stay in motion until regen-
eration has been completed. The process
normally takes about 15 minutes. The op-
timum conditions to end the process are
achieved by keeping the car in motion up
to 60km/h with an engine speed higher
than 2,000 rpm. This light coming on is not
a car defect and therefore the car does
not need to go to the workshop. A spe-
cific message will appear on the display
when the warning light comes on (for ver-
sions/markets, where provided).
h
SIDE/TAILLIGHTS
AND LOW BEAMS
(green)
FOLLOW ME HOME (green)
Side/tail lights and low beams
The warning light comes on when side/tail
lights or low beams are turned on.
Follow me home
The warning light will turn when this de-
vice is active (see “Follow me home” in
section “Dashboard and controls”).
The display will show the dedicated mes-
sage.
3
FOG LIGHTS (green)
The warning light comes on
when the fog lights are on.
5
LEFT-HAND
DIRECTION
INDICATOR
(green - blinking)
The warning light turns on when the di-
rection indicator control lever is moved
downwards or, together with the right in-
dicator, when the hazard light button is
pressed.
F
Always drive at a speed ap-
propriate to the traffic con-
ditions, the weather and speed limits.
The engine may be turned off while
the DPF light is on; however, repea-
ted interruption of the regeneration
process may result in premature
exhaustion of engine oil. For this rea-
son it is always advisable to wait for
the light to go off before turning off
the engine, following the instructions
appearing above. It is not advisable
to complete DPF regeneration with
the vehicle stationary.
WARNING
123-132 LUM IDEA GB 2 ed.qxd 14-01-2010 13:47 Pagina 131

132
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES

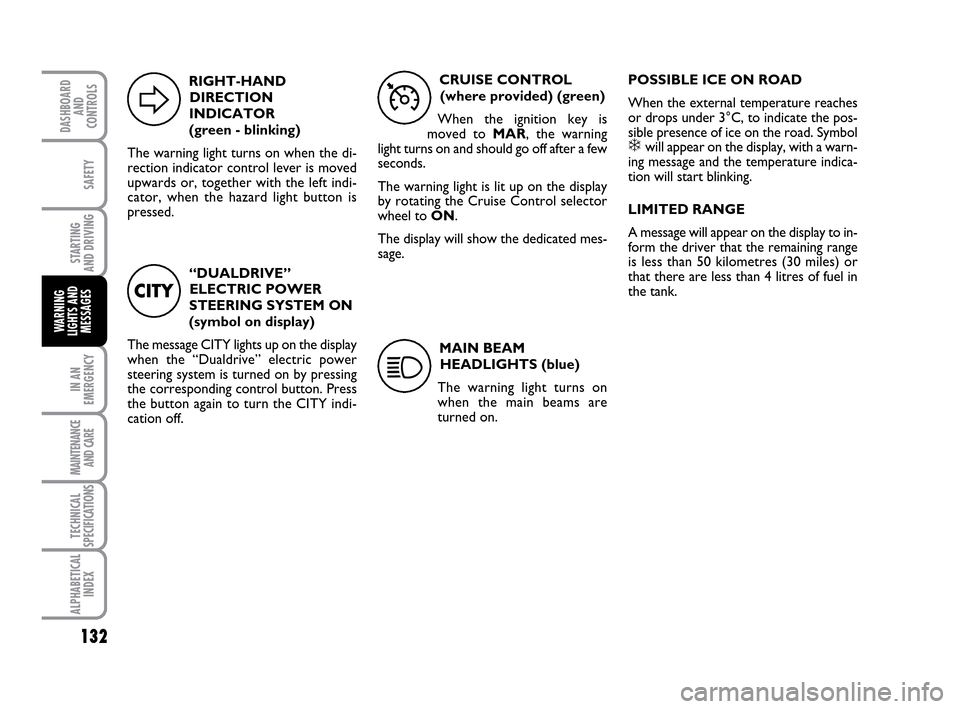

“DUALDRIVE”
ELECTRIC POWER
STEERING SYSTEM ON
(symbol on display)
The message CITY lights up on the display
when the “Dualdrive” electric power
steering system is turned on by pressing
the corresponding control button. Press
the button again to turn the CITY indi-
cation off.
CITY
CRUISE CONTROL
(where provided) (green)
When the ignition key is
moved to MAR, the warning
light turns on and should go off after a few
seconds.
The warning light is lit up on the display
by rotating the Cruise Control selector
wheel to ON.
The display will show the dedicated mes-
sage.
Ü
MAIN BEAM
HEADLIGHTS (blue)
The warning light turns on
when the main beams are
turned on.
1
POSSIBLE ICE ON ROAD
When the external temperature reaches
or drops under 3°C, to indicate the pos-
sible presence of ice on the road. Symbol
❄ will appear on the display, with a warn-
ing message and the temperature indica-
tion will start blinking.
LIMITED RANGE
A message will appear on the display to in-
form the driver that the remaining range
is less than 50 kilometres (30 miles) or
that there are less than 4 litres of fuel in
the tank. RIGHT-HAND
DIRECTION
INDICATOR
(green - blinking)
The warning light turns on when the di-
rection indicator control lever is moved
upwards or, together with the left indi-
cator, when the hazard light button is
pressed.
D
123-132 LUM IDEA GB 2 ed.qxd 14-01-2010 13:47 Pagina 132

133
STARTING
AND DRIVING
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

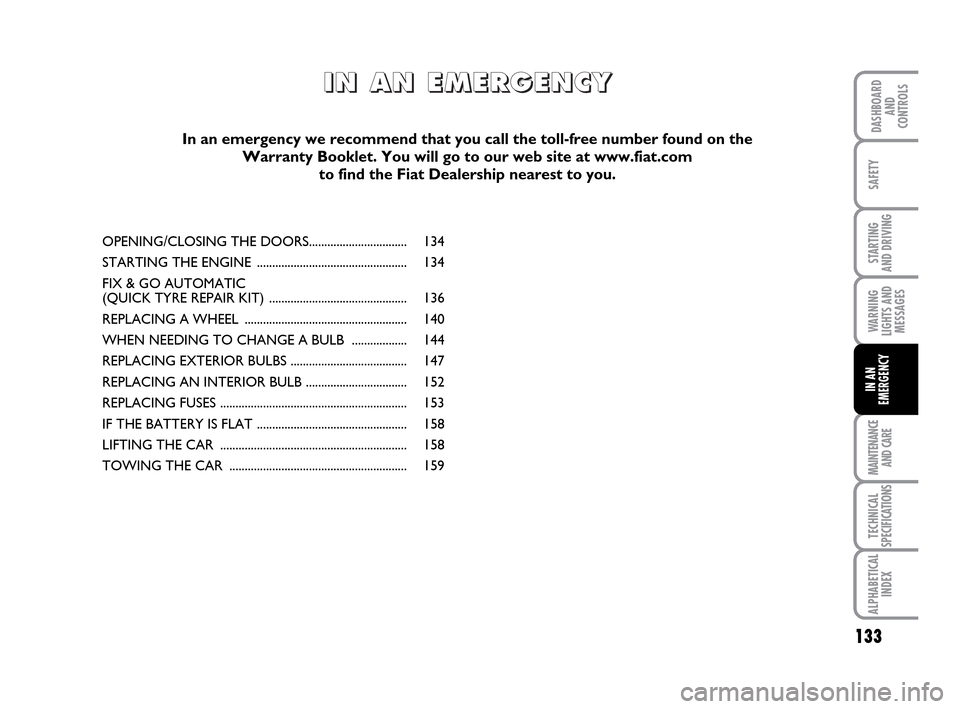

OPENING/CLOSING THE DOORS................................ 134
STARTING THE ENGINE ................................................. 134
FIX & GO AUTOMATIC
(QUICK TYRE REPAIR KIT) ............................................. 136
REPLACING A WHEEL ..................................................... 140
WHEN NEEDING TO CHANGE A BULB .................. 144
REPLACING EXTERIOR BULBS ...................................... 147
REPLACING AN INTERIOR BULB ................................. 152
REPLACING FUSES ............................................................. 153
IF THE BATTERY IS FLAT ................................................. 158
LIFTING THE CAR ............................................................. 158
TOWING THE CAR .......................................................... 159
I I
N N
A A
N N
E E
M M
E E
R R
G G
E E
N N
C C
Y Y
In an emergency we recommend that you call the toll-free number found on the
Warranty Booklet. You will go to our web site at www.fiat.com
to find the Fiat Dealership nearest to you.
133-160 LUM IDEA GB 2 ed.qxd 14-01-2010 13:50 Pagina 133
