technical specifications FIAT IDEA 2010 1.G Owners Manual

164
STARTING
AND DRIVING
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
MAINTENANCE
AND CARE
Thousands of kilometres
Check handbrake stroke adjustment
Check exhaust emissions/smokiness (Multijet engines).
Check emissions in exhaust (petrol versions)
Replace fuel filter (Multijet versions)
Replace air cleaner filter (petrol versions)
Replace air cleaner filter (diesel versions) (❏)
Top up fluids (engine coolant, brakes,
battery, windscreen washer, etc.)
Check timing belt conditions (■)
Replace timing belt (*) (■)
Replace timing belt and (1.6 Multijet versions) (*)
Replace auxiliary drive belt
Replace spark plugs (petrol versions)
Check operation of engine management systems
(using diagnostic socket)
Replace engine oil and oil filter (petrol versions)
Change engine oil and oil filter (Multijet versions with DPF) (**)
Change engine oil and oil filter (Multijet versions without DPF) (▲)
Change brake fluid (or every two years)
Replace pollen filter (or once a year).
(*) Or every 4 years if the vehicle is used in one of the following particularly demanding conditions:
- prolonged use in cold/hot climates,
- city use with long standing with engine idling,
- use on particular dusty roads or roads sprinkled with sand and/or salt.
Or every five years regardless of mileage and conditions of use of the car.
(**) The engine oil and the filter must be changed when instrument panel warning light comes on (see “Warning lights and messages” chap-
ter) or however every 2 years.
(
❏) Every 30,000 km for 1.3 Multijet versions. (■) Excluding 1.3 Multijet and 1.6 Multijet versions. (▲) Every 30,000 km
If the car is used mainly in towns the engine oil and filter need to be changed every 12 months.
20 40 60 80 100 120 140 160 180
●● ● ●
●● ● ●
●● ● ●
●●●
●●●
●●●
●●●●● ●●●●
●●
●
●
●
●● ● ●
●● ● ●
●●●●● ●●●●
●●●
●●●●● ●●●●
161-180 LUM IDEA GB 2 ed.qxd 14-01-2010 13:52 Pagina 164

165
STARTING
AND DRIVING
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
MAINTENANCE
AND CARE

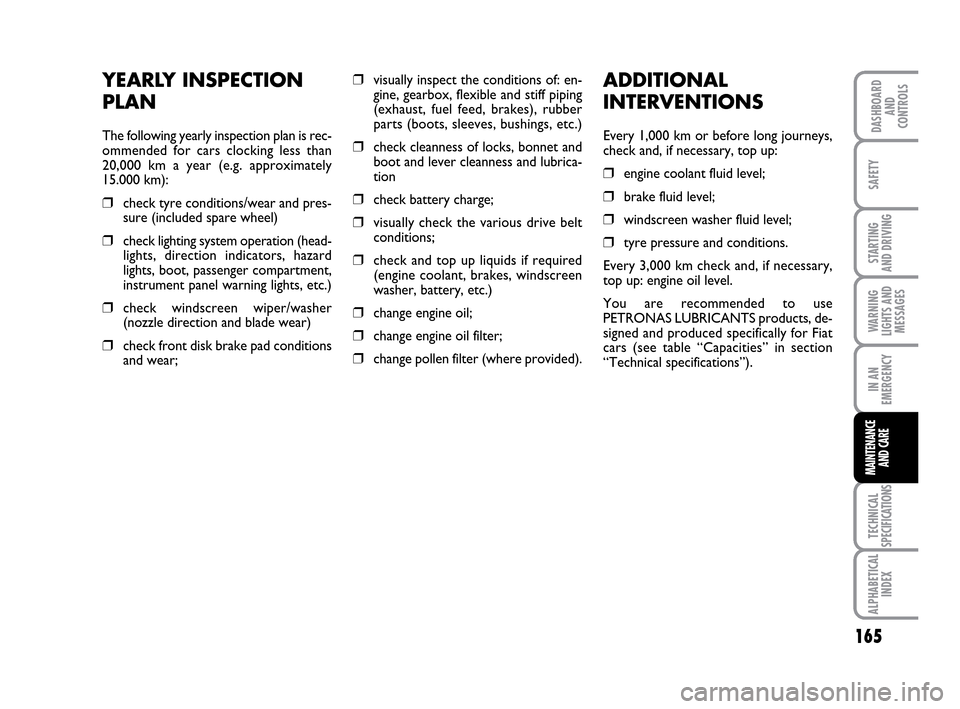

YEARLY INSPECTION
PLAN
The following yearly inspection plan is rec-
ommended for cars clocking less than
20,000 km a year (e.g. approximately
15.000 km):
❒check tyre conditions/wear and pres-
sure (included spare wheel)
❒check lighting system operation (head-
lights, direction indicators, hazard
lights, boot, passenger compartment,
instrument panel warning lights, etc.)
❒check windscreen wiper/washer
(nozzle direction and blade wear)
❒check front disk brake pad conditions
and wear;
❒visually inspect the conditions of: en-
gine, gearbox, flexible and stiff piping
(exhaust, fuel feed, brakes), rubber
parts (boots, sleeves, bushings, etc.)
❒check cleanness of locks, bonnet and
boot and lever cleanness and lubrica-
tion
❒check battery charge;
❒visually check the various drive belt
conditions;
❒check and top up liquids if required
(engine coolant, brakes, windscreen
washer, battery, etc.)
❒change engine oil;
❒change engine oil filter;
❒change pollen filter (where provided).
ADDITIONAL
INTERVENTIONS
Every 1,000 km or before long journeys,
check and, if necessary, top up:
❒engine coolant fluid level;
❒brake fluid level;
❒windscreen washer fluid level;
❒tyre pressure and conditions.
Every 3,000 km check and, if necessary,
top up: engine oil level.
You are recommended to use
PETRONAS LUBRICANTS products, de-
signed and produced specifically for Fiat
cars (see table “Capacities” in section
“Technical specifications”).
161-180 LUM IDEA GB 2 ed.qxd 14-01-2010 13:52 Pagina 165

166
STARTING
AND DRIVING
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
MAINTENANCE
AND CARE
IMPORTANT - Engine oil
Should prevailing use of the car be under
one of the following specially heavy con-
ditions:
❒trailer or caravan towing;
❒dusty roads;
❒short repeated distances (less than 7-
8 km) and with external temperatures
below zero;
❒frequently idling engines or long dis-
tance low speed driving (e.g. taxis or
door-to-door deliveries) or in case of
a long term inactivity;
change engine oil more frequently than
shown on the “Service Schedule”.
IMPORTANT - Air cleaner
When the car is used on dusty roads,
change the air cleaner more frequently
than shown on the “Service Schedule”.
Call a Fiat Dealership for doubts regard-
ing engine oil and air cleaner replacement.IMPORTANT - Pollen filter
It is advisable to replace the filtering ele-
ment more frequently if the car is used in
dusty or very polluted places. Specifical-
ly, replace if a lower air flow into the pas-
senger compartment is found.
IMPORTANT - Diesel filter
Using diesel not complying with European
Specification EN590 may lead to the need
to replace the diesel fuel filter more fre-
quently than shown in the “Service Sched-
ule”.IMPORTANT - Battery
Check the battery charge once a year,
preferably before the beginning to winter,
to prevent freezing of the electrolyte.
Perform this inspection more frequently
if the car is mainly used for short distances
or if electrical devices running with the key
off are installed, particularly after-market.
Check the battery level (electrolyte) more
frequently than shown on the “Service
Schedule” if the car is used in hot climates
or in particularly demanding conditions.
Take the car to a Fiat Deal-
ership for servicing. Make
sure you have the right equip-
ment, genuine Fiat spare
parts and consumables for ordinary,
minor interventions. Do not attempt
the operations if you lack the experi-
ence.
161-180 LUM IDEA GB 2 ed.qxd 14-01-2010 13:52 Pagina 166

167
STARTING
AND DRIVING
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
MAINTENANCE
AND CARE
LEVELS CHECK
IMPORTANT Be careful not to confuse
the various types of fluids while topping
up: they are all reciprocally incompatible
and may severely damage your car.
IMPORTANT Never smoke while work-
ing in the engine compartment. Flamma-
ble gases may be present. Risk of fire.
F0H0721mfig. 1 - versions 1.2 16V and 1.4 16V
F0H0722mfig. 2 - versions 1.4 8V (where provided) 1. Engine coolant
2. Engine oil
3. Brake fluid
4. Battery
5.Windscreen/rear window/headlamp
washer fluid level
161-180 LUM IDEA GB 2 ed.qxd 14-01-2010 13:52 Pagina 167

168
STARTING
AND DRIVING
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
MAINTENANCE
AND CARE
F0H0723mfig. 3 - versions 1.3 Multijet 1. Engine coolant
2. Engine oil
3. Brake fluid
4. Battery
5.Windscreen/rear window/headlamp
washer fluid level
F0H0770mfig. 4 - versions 1.3 Multijet 95 CV 1. Engine coolant
2.Engine oil
3. Brake fluid
4. Battery
5.Windscreen/rear window/headlamp
washer fluid level
161-180 LUM IDEA GB 2 ed.qxd 14-01-2010 13:52 Pagina 168

169
STARTING
AND DRIVING
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
MAINTENANCE
AND CARE
3
12
45
F0H0763mfig. 5 - 1.6 Multijet version
1. Engine coolant
2. Engine oil
3. Brake fluid
4. Battery
5.Windscreen/rear window/headlamp
washer fluid levelENGINE OIL fig. 6-7-8-9-10
Checking engine oil level
Check the oil level a few minutes (about
5) after the engine has stopped, with the
car parked on level ground.
The oil level shall be included between the
MINand MAXmarks on the dipstick .
The range between the MINand
MAXlevels corresponds to approxi-
mately 1 litre of oil.
fig. 6 - versions 1.2 16V- 1.4 16VF0H0754m
Waste engine oil and oil filters
contains substances which are
dangerous for the environ-
ment. You are advised to go to
a Fiat Dealership to have the oil and
filters replaced.
161-180 LUM IDEA GB 2 ed.qxd 14-01-2010 13:52 Pagina 169

170
STARTING
AND DRIVING
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
MAINTENANCE
AND CAREProceed very carefully inside
the engine compartment
when the engine is hot: risk of burns.
Remember that the fan may start up
if the engine is hot: risk of injury. Pay
attention to scarves, ties and other
loose fitting garments: they could get
dragged by the moving parts.
WARNING
Engine oil consumption
The maximum engine oil consumption is
usually 400 grams every 1000 km.
When the car is new, the engine needs
to run in, therefore the engine oil con-
sumption can only be considered stabilised
after the first 5000 - 6000 km.
IMPORTANT The oil consumption de-
pends on driving style and the conditions
under which the car is used.
IMPORTANT Always top up using engine
oil of the same types as that already in the
engine.

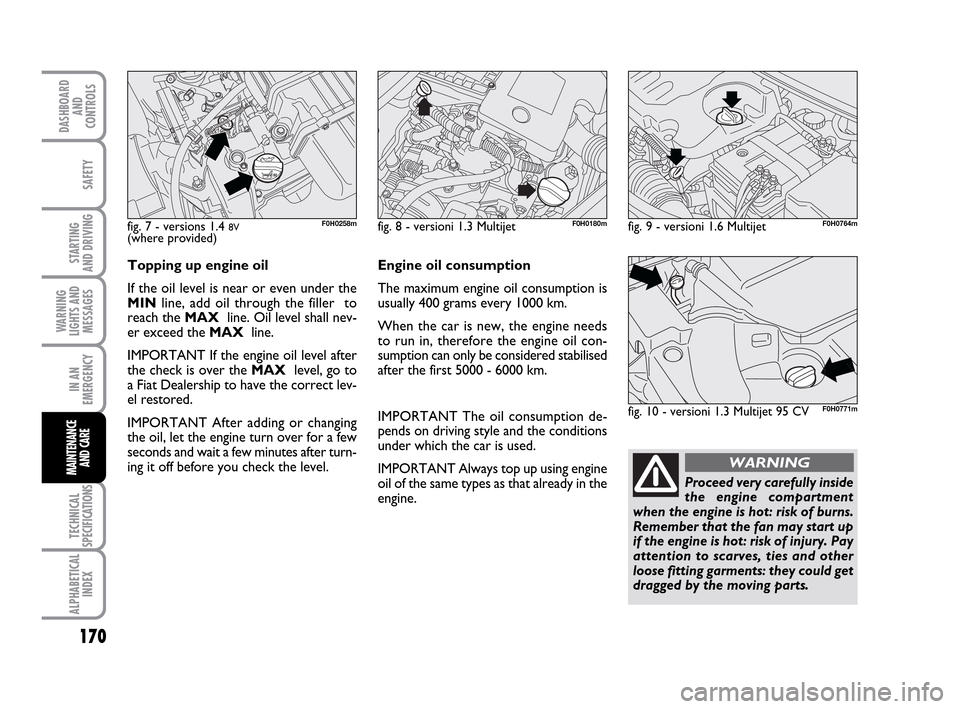

fig. 8 - versioni 1.3 MultijetF0H0180mfig. 9 - versioni 1.6 MultijetF0H0764m
fig. 10 - versioni 1.3 Multijet 95 CV F0H0771m
fig. 7 - versions 1.4 8V(where provided)
F0H0258m
Topping up engine oil
If the oil level is near or even under the
MINline, add oil through the filler to
reach the MAXline. Oil level shall nev-
er exceed the MAXline.
IMPORTANT If the engine oil level after
the check is over the MAXlevel, go to
a Fiat Dealership to have the correct lev-
el restored.
IMPORTANT After adding or changing
the oil, let the engine turn over for a few
seconds and wait a few minutes after turn-
ing it off before you check the level.
161-180 LUM IDEA GB 2 ed.qxd 14-01-2010 13:52 Pagina 170

171
STARTING
AND DRIVING
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
MAINTENANCE
AND CARE

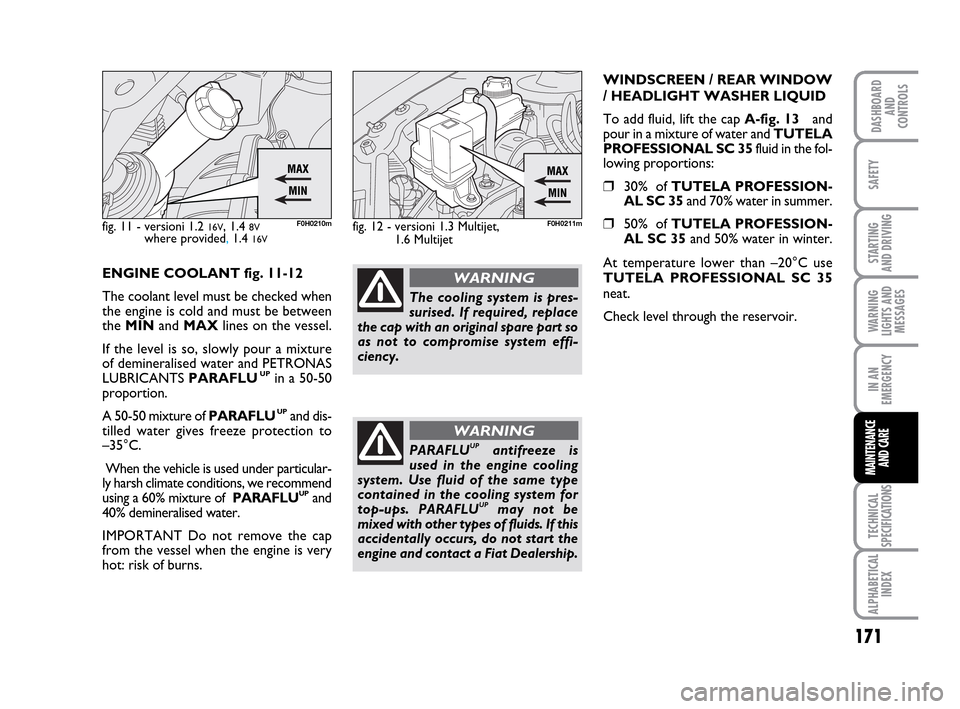

ENGINE COOLANT fig. 11-12
The coolant level must be checked when
the engine is cold and must be between
the MINand MAXlines on the vessel.
If the level is so, slowly pour a mixture
of demineralised water and PETRONAS
LUBRICANTS PARAFLU
UPin a 50-50
proportion.
A 50-50 mixture of PARAFLU
UPand dis-
tilled water gives freeze protection to
–35°C.
When the vehicle is used under particular-
ly harsh climate conditions, we recommend
using a 60% mixture of PARAFLU
UPand
40% demineralised water.
IMPORTANT Do not remove the cap
from the vessel when the engine is very
hot: risk of burns.
fig. 11 - versioni 1.2 16V, 1.4 8Vwhere provided, 1.4 16V
F0H0210mfig. 12 - versioni 1.3 Multijet,
1.6 MultijetF0H0211m
PARAFLUUPantifreeze is
used in the engine cooling
system. Use fluid of the same type
contained in the cooling system for
top-ups. PARAFLU
UPmay not be
mixed with other types of fluids. If this
accidentally occurs, do not start the
engine and contact a Fiat Dealership.
WARNING
The cooling system is pres-
surised. If required, replace
the cap with an original spare part so
as not to compromise system effi-
ciency.
WARNING
WINDSCREEN / REAR WINDOW
/ HEADLIGHT WASHER LIQUID
To add fluid, lift the cap A-fig. 13 and
pour in a mixture of water and TUTELA
PROFESSIONAL SC 35fluid in the fol-
lowing proportions:
❒30% of TUTELA PROFESSION-
AL SC 35and 70% water in summer.
❒50% of TUTELA PROFESSION-
AL SC 35and 50% water in winter.
At temperature lower than –20°C use
TUTELA PROFESSIONAL SC 35
neat.
Check level through the reservoir.
161-180 LUM IDEA GB 2 ed.qxd 14-01-2010 13:52 Pagina 171

172
STARTING
AND DRIVING
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
MAINTENANCE
AND CARE

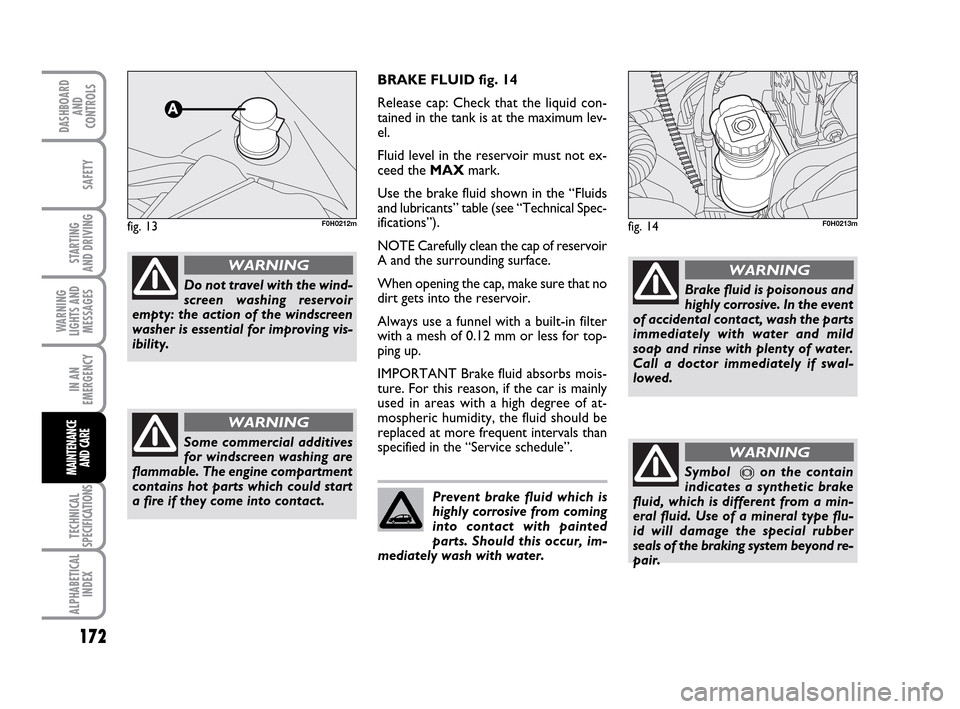

BRAKE FLUID fig. 14
Release cap: Check that the liquid con-
tained in the tank is at the maximum lev-
el.
Fluid level in the reservoir must not ex-
ceed the MAXmark.
Use the brake fluid shown in the “Fluids
and lubricants” table (see “Technical Spec-
ifications”).
NOTE Carefully clean the cap of reservoir
A and the surrounding surface.
When opening the cap, make sure that no
dirt gets into the reservoir.
Always use a funnel with a built-in filter
with a mesh of 0.12 mm or less for top-
ping up.
IMPORTANT Brake fluid absorbs mois-
ture. For this reason, if the car is mainly
used in areas with a high degree of at-
mospheric humidity, the fluid should be
replaced at more frequent intervals than
specified in the “Service schedule”.
fig. 14F0H0213m
Brake fluid is poisonous and
highly corrosive. In the event
of accidental contact, wash the parts
immediately with water and mild
soap and rinse with plenty of water.
Call a doctor immediately if swal-
lowed.
WARNING
Symbol πon the contain
indicates a synthetic brake
fluid, which is different from a min-
eral fluid. Use of a mineral type flu-
id will damage the special rubber
seals of the braking system beyond re-
pair.
WARNING
Prevent brake fluid which is
highly corrosive from coming
into contact with painted
parts. Should this occur, im-
mediately wash with water.
Do not travel with the wind-
screen washing reservoir
empty: the action of the windscreen
washer is essential for improving vis-
ibility.
WARNING
Some commercial additives
for windscreen washing are
flammable. The engine compartment
contains hot parts which could start
a fire if they come into contact.
WARNING
fig. 13F0H0212m
161-180 LUM IDEA GB 2 ed.qxd 14-01-2010 13:52 Pagina 172

173
STARTING
AND DRIVING
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
MAINTENANCE
AND CARE

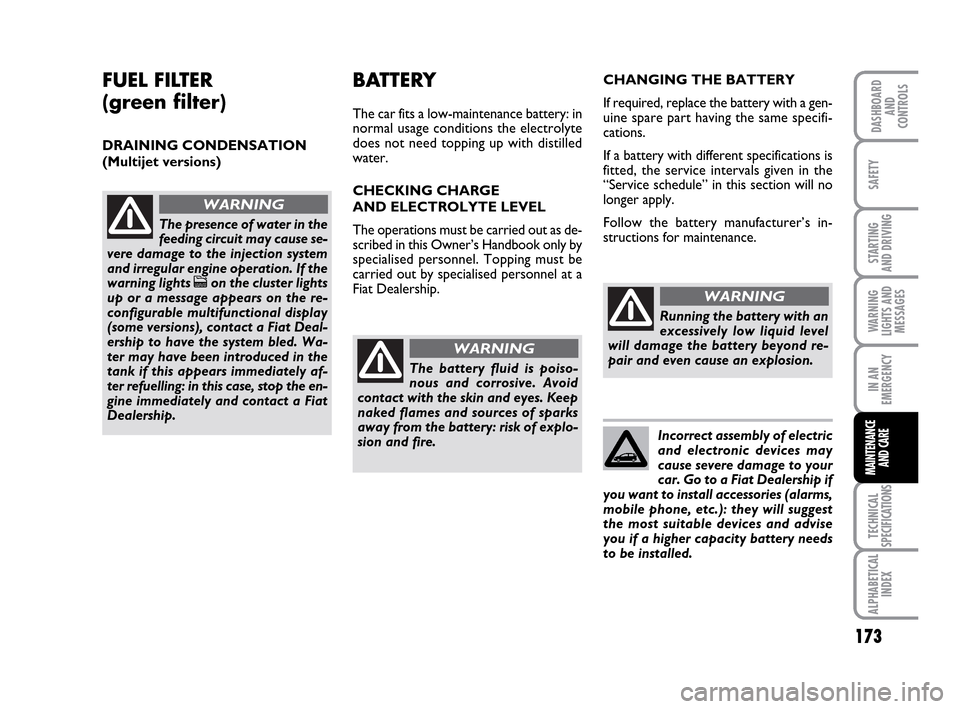

FUEL FILTER
(green filter)
DRAINING CONDENSATION
(Multijet versions)
The presence of water in the
feeding circuit may cause se-
vere damage to the injection system
and irregular engine operation. If the
warning lights
con the cluster lights
up or a message appears on the re-
configurable multifunctional display
(some versions), contact a Fiat Deal-
ership to have the system bled. Wa-
ter may have been introduced in the
tank if this appears immediately af-
ter refuelling: in this case, stop the en-
gine immediately and contact a Fiat
Dealership.
WARNING
BATTERY
The car fits a low-maintenance battery: in
normal usage conditions the electrolyte
does not need topping up with distilled
water.
CHECKING CHARGE
AND ELECTROLYTE LEVEL
The operations must be carried out as de-
scribed in this Owner’s Handbook only by
specialised personnel. Topping must be
carried out by specialised personnel at a
Fiat Dealership.
The battery fluid is poiso-
nous and corrosive. Avoid
contact with the skin and eyes. Keep
naked flames and sources of sparks
away from the battery: risk of explo-
sion and fire.
WARNING
CHANGING THE BATTERY
If required, replace the battery with a gen-
uine spare part having the same specifi-
cations.
If a battery with different specifications is
fitted, the service intervals given in the
“Service schedule” in this section will no
longer apply.
Follow the battery manufacturer’s in-
structions for maintenance.
Running the battery with an
excessively low liquid level
will damage the battery beyond re-
pair and even cause an explosion.
WARNING
Incorrect assembly of electric
and electronic devices may
cause severe damage to your
car. Go to a Fiat Dealership if
you want to install accessories (alarms,
mobile phone, etc.): they will suggest
the most suitable devices and advise
you if a higher capacity battery needs
to be installed.
161-180 LUM IDEA GB 2 ed.qxd 14-01-2010 13:53 Pagina 173
