154
STARTING
AND DRIVING
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
F0H0720m

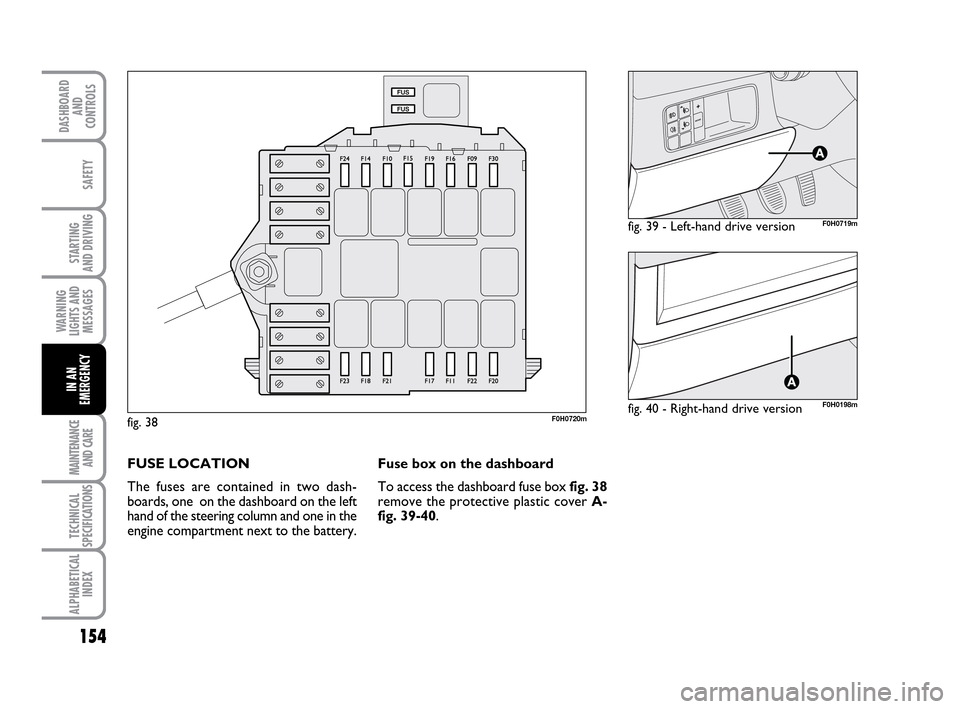

FUSE LOCATION
The fuses are contained in two dash-
boards, one on the dashboard on the left
hand of the steering column and one in the
engine compartment next to the battery.Fuse box on the dashboard
To access the dashboard fuse box fig. 38
remove the protective plastic cover A-
fig. 39-40.
fig. 39 - Left-hand drive version F0H0719m
fig. 40 - Right-hand drive version F0H0198m
fig. 38
133-160 LUM IDEA GB 2 ed.qxd 14-01-2010 13:50 Pagina 154

155
STARTING
AND DRIVING
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
F0H0720mfig. 42 fig. 41
F0H0201m

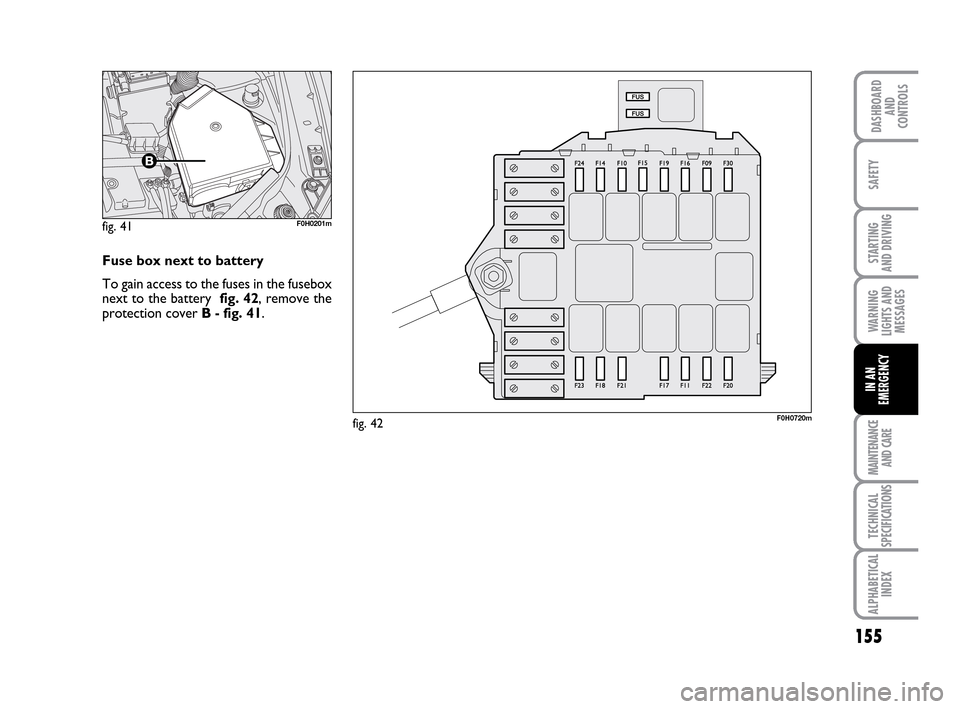

Fuse box next to battery
To gain access to the fuses in the fusebox
next to the battery fig. 42, remove the
protection cover B - fig. 41.
133-160 LUM IDEA GB 2 ed.qxd 14-01-2010 13:50 Pagina 155

156
STARTING
AND DRIVING
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
FUSE TABLE
Dashboard fusebox
USERSFUSE AMPERES
Right dipped beam headlightF12 7,5
Left dipped-beam/headlight beam correctorF13 7.5
Engine compartment relay/body computerF31 7,5
SpareF32 –
Left rear window winderF33 20
Right rear window winderF34 20
+15 Cruise control, brake pedal signal to ECUs, reversing light (*) F35 7,5
+30 Trailer ECU setup, rear locks, front locks with single door ECU (*) F36 10
+15 Third brake light, instrument panel, brake lights (*) F37 7.5
Unlock boot (*)F38 20
+30 EOBD diagnostic socket, sound system, navigator, tyre pressure ECU (*)F39 10
Heated rear windowF40 30
Heater mirrorsF41 7,5
+15 ABS / ESP ECU (*)F42 7.5
Windscreen wiper/washerF43 30
Cigar lighter/power current on tunnelF44 15
Heated seatsF45 15
Boot power socketF46 15
Driver’s door ECU power (window winder)F47 20
Driver’s door ECU power (window winder)F48 20
+15 Services (left and middle control lights, electric mirrors, heated seat control light,
radio-telephone setup, navigator, rain/dusk sensors, parking sensor ECU,
sunroof control lights) (*)F49 7,5
Airbag ECUF50 7.5
+15 Tyre pressure unit, ECO / Sport (*)F51 7.5
Rear window wiper/washerF52 15
+30 Direction indicators, hazard lights, instrument panel (*) F53 7.5
(*) +30 = battery direct positive pole (not ignition switch)
+15 = positive pole ignition switch
133-160 LUM IDEA GB 2 ed.qxd 14-01-2010 13:50 Pagina 156

157
STARTING
AND DRIVING
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

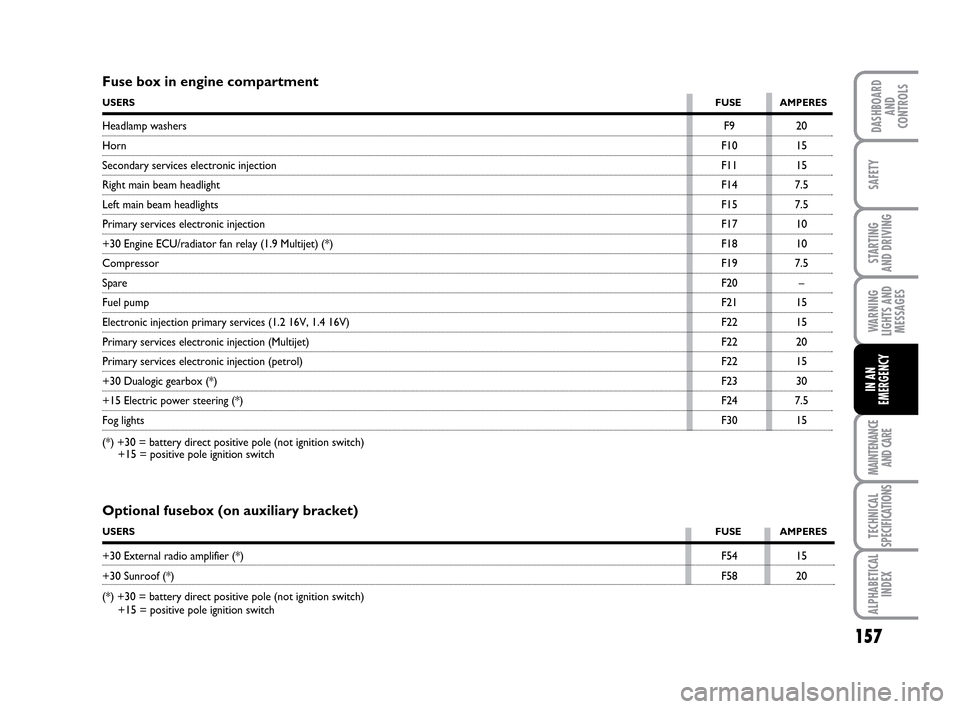

Fuse box in engine compartment
USERSFUSE AMPERES
Headlamp washersF9 20
HornF10 15
Secondary services electronic injectionF11 15
Right main beam headlightF14 7.5
Left main beam headlightsF15 7.5
Primary services electronic injectionF17 10
+30 Engine ECU/radiator fan relay (1.9 Multijet) (*)F18 10
CompressorF19 7.5
SpareF20 –
Fuel pumpF21 15
Electronic injection primary services (1.2 16V, 1.4 16V)F22 15
Primary services electronic injection (Multijet)F22 20
Primary services electronic injection (petrol)F22 15
+30 Dualogic gearbox (*)F23 30
+15 Electric power steering (*)F24 7.5
Fog lightsF30 15
(*) +30 = battery direct positive pole (not ignition switch)
+15 = positive pole ignition switch
Optional fusebox (on auxiliary bracket)
USERSFUSE AMPERES
+30 External radio amplifier (*)F54 15
+30 Sunroof (*)F58 20
(*) +30 = battery direct positive pole (not ignition switch)
+15 = positive pole ignition switch
133-160 LUM IDEA GB 2 ed.qxd 14-01-2010 13:50 Pagina 157

158
STARTING
AND DRIVING
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

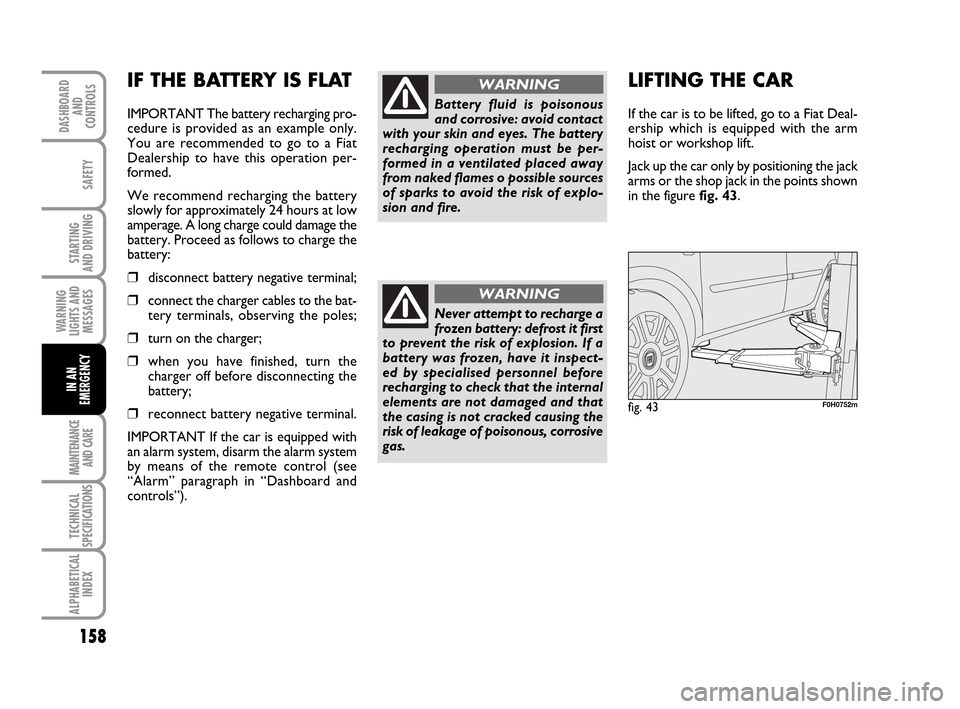

IF THE BATTERY IS FLAT
IMPORTANT The battery recharging pro-
cedure is provided as an example only.
You are recommended to go to a Fiat
Dealership to have this operation per-
formed.
We recommend recharging the battery
slowly for approximately 24 hours at low
amperage. A long charge could damage the
battery. Proceed as follows to charge the
battery:
❒disconnect battery negative terminal;
❒connect the charger cables to the bat-
tery terminals, observing the poles;
❒turn on the charger;
❒when you have finished, turn the
charger off before disconnecting the
battery;
❒reconnect battery negative terminal.
IMPORTANT If the car is equipped with
an alarm system, disarm the alarm system
by means of the remote control (see
“Alarm” paragraph in “Dashboard and
controls”).
LIFTING THE CAR
If the car is to be lifted, go to a Fiat Deal-
ership which is equipped with the arm
hoist or workshop lift.
Jack up the car only by positioning the jack
arms or the shop jack in the points shown
in the figure fig. 43.Battery fluid is poisonous
and corrosive: avoid contact
with your skin and eyes. The battery
recharging operation must be per-
formed in a ventilated placed away
from naked flames o possible sources
of sparks to avoid the risk of explo-
sion and fire.
WARNING
Never attempt to recharge a
frozen battery: defrost it first
to prevent the risk of explosion. If a
battery was frozen, have it inspect-
ed by specialised personnel before
recharging to check that the internal
elements are not damaged and that
the casing is not cracked causing the
risk of leakage of poisonous, corrosive
gas.
WARNING
fig. 43F0H0752m
133-160 LUM IDEA GB 2 ed.qxd 14-01-2010 13:50 Pagina 158

159
STARTING
AND DRIVING
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

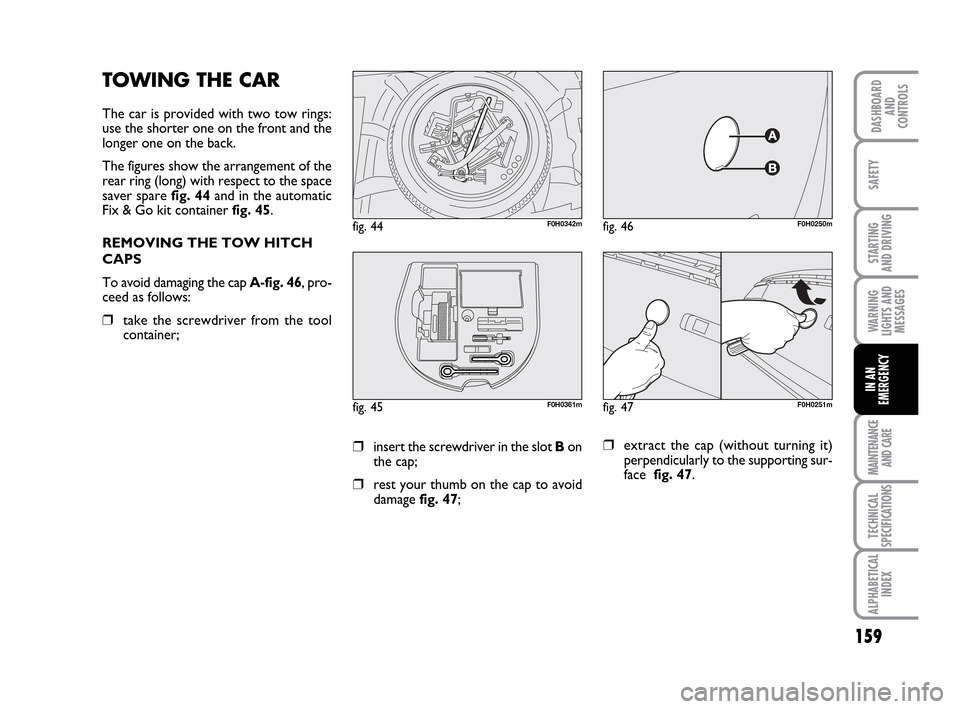

TOWING THE CAR
The car is provided with two tow rings:
use the shorter one on the front and the
longer one on the back.
The figures show the arrangement of the
rear ring (long) with respect to the space
saver spare fig. 44and in the automatic
Fix & Go kit container fig. 45.
REMOVING THE TOW HITCH
CAPS
To avoid damaging the cap A-fig. 46, pro-
ceed as follows:
❒take the screwdriver from the tool
container;
fig. 46F0H0250m
fig. 47F0H0251m
❒insert the screwdriver in the slot Bon
the cap;
❒rest your thumb on the cap to avoid
damage fig. 47;
fig. 44F0H0342m
fig. 45F0H0361m
❒extract the cap (without turning it)
perpendicularly to the supporting sur-
face fig. 47.
133-160 LUM IDEA GB 2 ed.qxd 14-01-2010 13:50 Pagina 159

160
STARTING
AND DRIVING
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

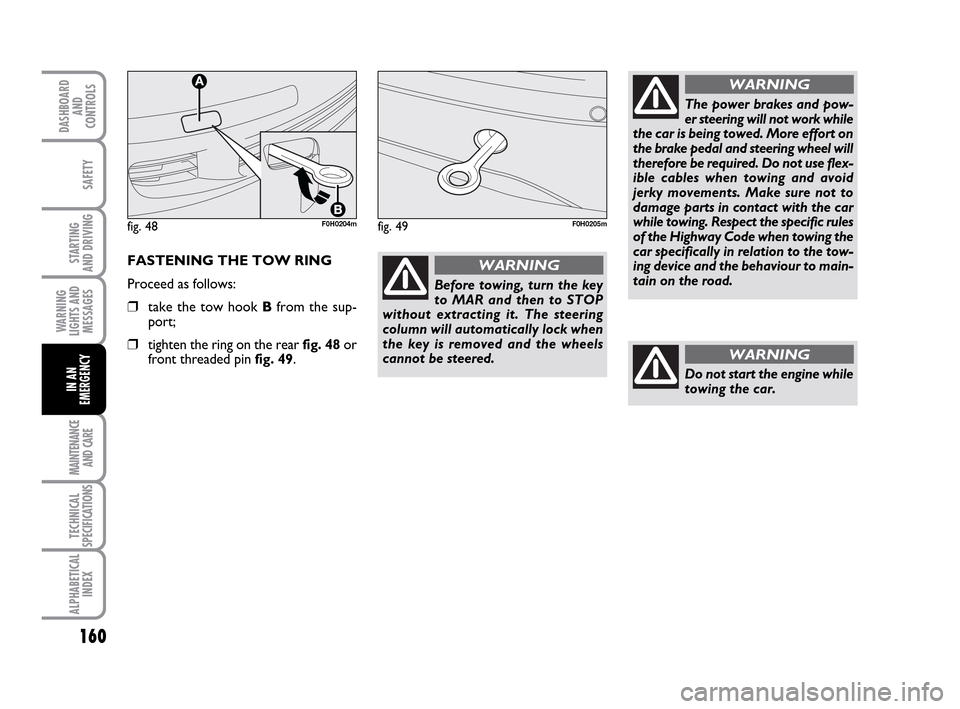

FASTENING THE TOW RING
Proceed as follows:
❒take the tow hook Bfrom the sup-
port;
❒tighten the ring on the rear fig. 48 or
front threaded pin fig. 49.
fig. 48F0H0204mfig. 49F0H0205m
Before towing, turn the key
to MAR and then to STOP
without extracting it. The steering
column will automatically lock when
the key is removed and the wheels
cannot be steered.
WARNING
The power brakes and pow-
er steering will not work while
the car is being towed. More effort on
the brake pedal and steering wheel will
therefore be required. Do not use flex-
ible cables when towing and avoid
jerky movements. Make sure not to
damage parts in contact with the car
while towing. Respect the specific rules
of the Highway Code when towing the
car specifically in relation to the tow-
ing device and the behaviour to main-
tain on the road.
WARNING
Do not start the engine while
towing the car.
WARNING
133-160 LUM IDEA GB 2 ed.qxd 14-01-2010 13:50 Pagina 160

161
STARTING
AND DRIVING
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
MAINTENANCE
AND CARE

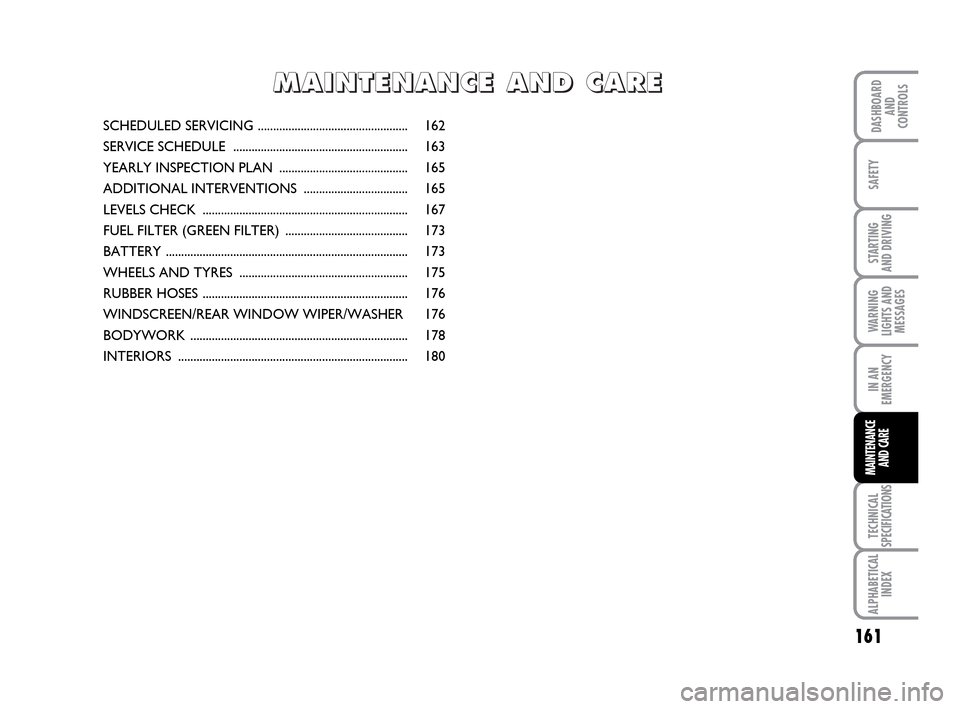

SCHEDULED SERVICING ................................................. 162
SERVICE SCHEDULE ......................................................... 163
YEARLY INSPECTION PLAN .......................................... 165
ADDITIONAL INTERVENTIONS .................................. 165
LEVELS CHECK ................................................................... 167
FUEL FILTER (GREEN FILTER) ........................................ 173
BATTERY ............................................................................... 173
WHEELS AND TYRES ....................................................... 175
RUBBER HOSES ................................................................... 176
WINDSCREEN/REAR WINDOW WIPER/WASHER 176
BODYWORK ....................................................................... 178
INTERIORS ........................................................................... 180
M M
A A
I I
N N
T T
E E
N N
A A
N N
C C
E E
A A
N N
D D
C C
A A
R R
E E
161-180 LUM IDEA GB 2 ed.qxd 14-01-2010 13:52 Pagina 161

162
STARTING
AND DRIVING
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
MAINTENANCE
AND CARE

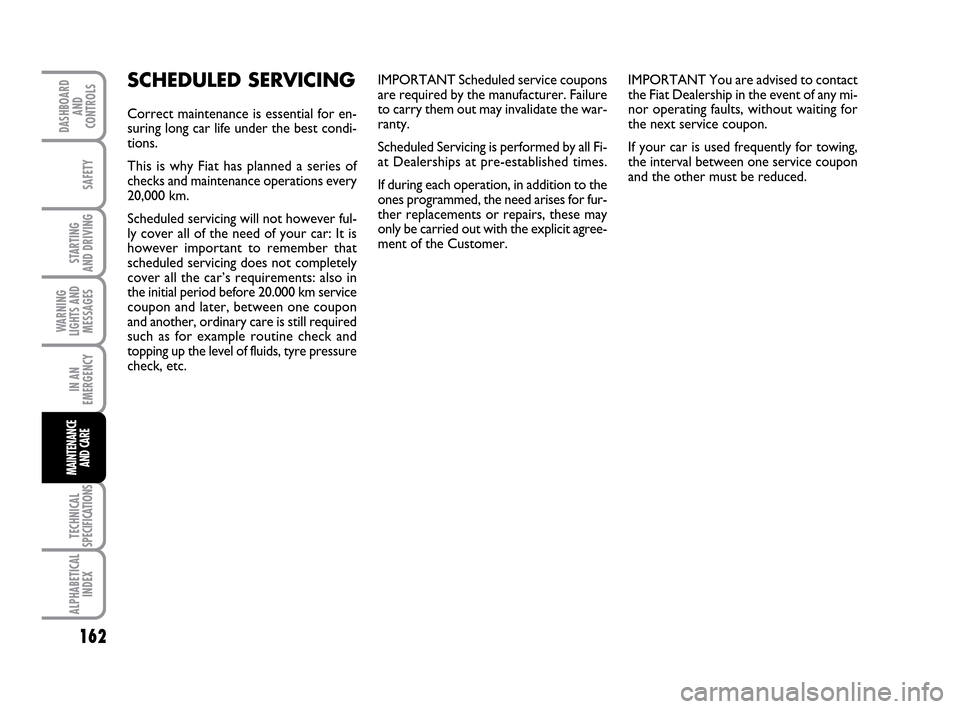

SCHEDULED SERVICING
Correct maintenance is essential for en-
suring long car life under the best condi-
tions.
This is why Fiat has planned a series of
checks and maintenance operations every
20,000 km.
Scheduled servicing will not however ful-
ly cover all of the need of your car: It is
however important to remember that
scheduled servicing does not completely
cover all the car’s requirements: also in
the initial period before 20.000 km service
coupon and later, between one coupon
and another, ordinary care is still required
such as for example routine check and
topping up the level of fluids, tyre pressure
check, etc.IMPORTANT Scheduled service coupons
are required by the manufacturer. Failure
to carry them out may invalidate the war-
ranty.
Scheduled Servicing is performed by all Fi-
at Dealerships at pre-established times.
If during each operation, in addition to the
ones programmed, the need arises for fur-
ther replacements or repairs, these may
only be carried out with the explicit agree-
ment of the Customer.IMPORTANT You are advised to contact
the Fiat Dealership in the event of any mi-
nor operating faults, without waiting for
the next service coupon.
If your car is used frequently for towing,
the interval between one service coupon
and the other must be reduced.
161-180 LUM IDEA GB 2 ed.qxd 14-01-2010 13:52 Pagina 162

163
STARTING
AND DRIVING
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
MAINTENANCE
AND CARE
20 40 60 80 100 120 140 160 180
●●●●● ●●●●
●●●●● ●●●●
●●●●● ●●●●
●●●●● ●●●●
●●●
●● ● ●
●●●●● ●●●●
●●●●● ●●●●
●●
●●
●●●

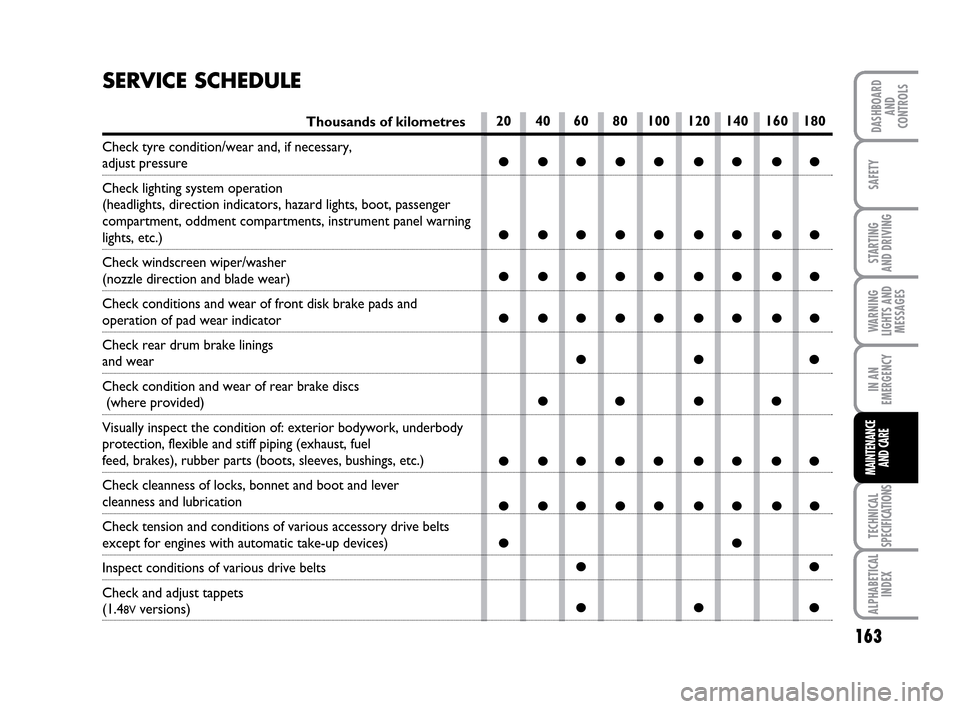

SERVICE SCHEDULE
Thousands of kilometres
Check tyre condition/wear and, if necessary,
adjust pressure
Check lighting system operation
(headlights, direction indicators, hazard lights, boot, passenger
compartment, oddment compartments, instrument panel warning
lights, etc.)
Check windscreen wiper/washer
(nozzle direction and blade wear)
Check conditions and wear of front disk brake pads and
operation of pad wear indicator
Check rear drum brake linings
and wear
Check condition and wear of rear brake discs
(where provided)
Visually inspect the condition of: exterior bodywork, underbody
protection, flexible and stiff piping (exhaust, fuel
feed, brakes), rubber parts (boots, sleeves, bushings, etc.)
Check cleanness of locks, bonnet and boot and lever
cleanness and lubrication
Check tension and conditions of various accessory drive belts
except for engines with automatic take-up devices)
Inspect conditions of various drive belts
Check and adjust tappets
(1.48Vversions)
161-180 LUM IDEA GB 2 ed.qxd 14-01-2010 13:52 Pagina 163
