The belt should be worn keeping the chest
straight and rested against the seat back.
To fasten the belt, take hold the tongue
A-fig. 1and insert it into the buckle B,
until hearing the locking click.
At removal, if it jams, let it rewind for a
short stretch, then pull it out again with-
out jerking.
To unfasten the seat belts, press button
C-fig. 1. Guide the seat belt with your
hand while it is rewinding, to prevent it
from twisting.
Through the reel, the belt automatically
adapts to the body of the passenger wear-
ing it, allowing freedom of movement.
When the car is parked on a steep slope
the reel mechanism may block; this is nor-
mal. The reel mechanism prevents the
webbing coming out when it is jerked or
if the car brakes sharply, in a collision or
when cornering at high speed.The rear seat is fitted with inertial seat
belts with three anchor points and reel.
Rear seat belts shall be worn as shown in
diagram D-fig. 2(5-seat versions) or as
shown in diagram E-fig. 3(4-seat ver-
sions).
fig. 1F0H0126mfig. 2F0H0309m
fig. 3F0H0348m
Do not press button C-fig. 1
during travelling.
WARNINGS.B.R. system
The car is fitted with the S.B.R. system
(Seat Belt Reminder), consisting of a
buzzer which, together with the flashing
of warning light
el, warns the driver to fasten the seat
belts.
093-110 idea GB 1 ed 10-07-2008 8:28 Pagina 94

95
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES

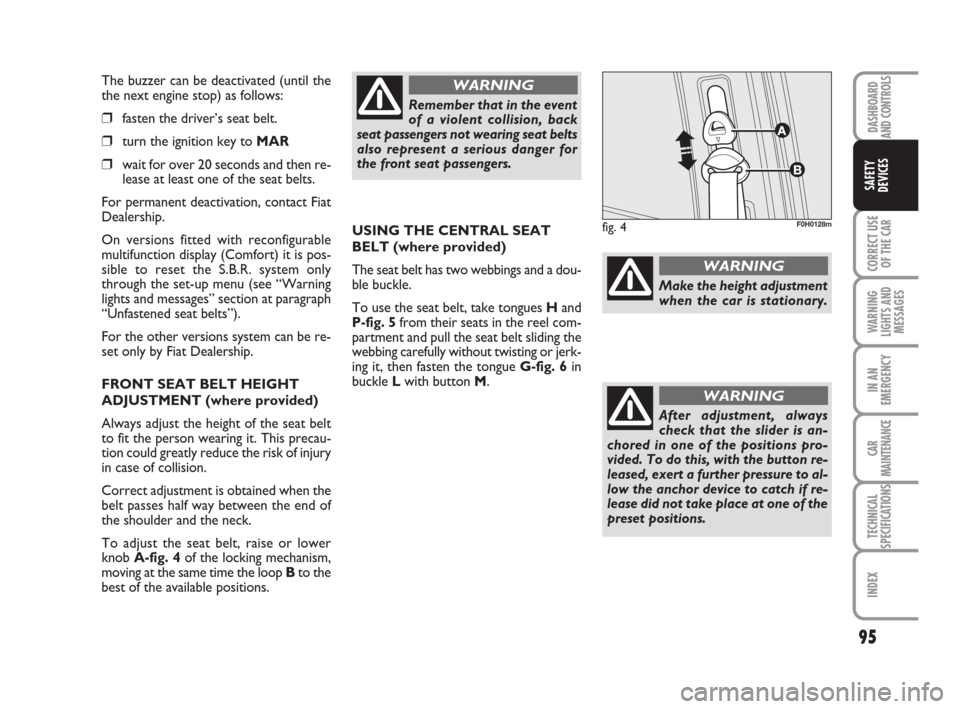

The buzzer can be deactivated (until the
the next engine stop) as follows:
❒fasten the driver’s seat belt.
❒turn the ignition key to MAR
❒wait for over 20 seconds and then re-
lease at least one of the seat belts.
For permanent deactivation, contact Fiat
Dealership.
On versions fitted with reconfigurable
multifunction display (Comfort) it is pos-
sible to reset the S.B.R. system only
through the set-up menu (see “Warning
lights and messages” section at paragraph
“Unfastened seat belts”).
For the other versions system can be re-
set only by Fiat Dealership.
FRONT SEAT BELT HEIGHT
ADJUSTMENT (where provided)
Always adjust the height of the seat belt
to fit the person wearing it. This precau-
tion could greatly reduce the risk of injury
in case of collision.
Correct adjustment is obtained when the
belt passes half way between the end of
the shoulder and the neck.
To adjust the seat belt, raise or lower
knob A-fig. 4of the locking mechanism,
moving at the same time the loop Bto the
best of the available positions.USING THE CENTRAL SEAT
BELT (where provided)
The seat belt has two webbings and a dou-
ble buckle.
To use the seat belt, take tongues Hand
P-fig. 5from their seats in the reel com-
partment and pull the seat belt sliding the
webbing carefully without twisting or jerk-
ing it, then fasten the tongue G-fig. 6in
buckle Lwith button M.
Remember that in the event
of a violent collision, back
seat passengers not wearing seat belts
also represent a serious danger for
the front seat passengers.
WARNING
Make the height adjustment
when the car is stationary.
WARNING
After adjustment, always
check that the slider is an-
chored in one of the positions pro-
vided. To do this, with the button re-
leased, exert a further pressure to al-
low the anchor device to catch if re-
lease did not take place at one of the
preset positions.
WARNING
fig. 4F0H0128m
093-110 idea GB 1 ed 10-07-2008 8:28 Pagina 95

96
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROL
SAFETY
DEVICES

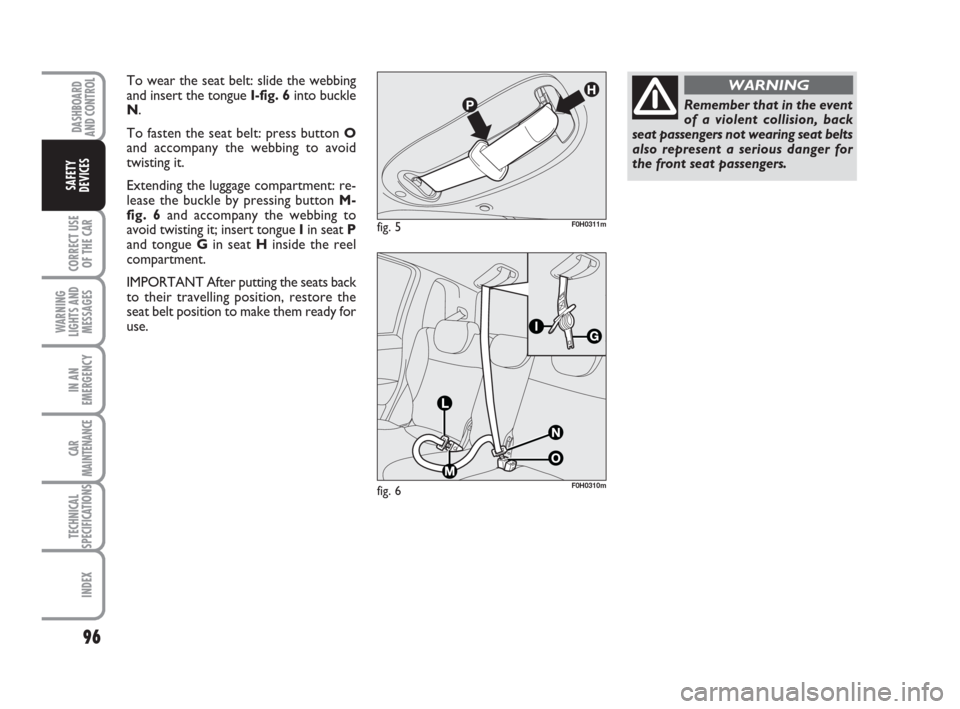

fig. 5F0H0311m
To wear the seat belt: slide the webbing
and insert the tongue I-fig. 6into buckle
N.
To fasten the seat belt: press button O
and accompany the webbing to avoid
twisting it.
Extending the luggage compartment: re-
lease the buckle by pressing button M-
fig. 6and accompany the webbing to
avoid twisting it; insert tongue Iin seat P
and tongue Gin seat Hinside the reel
compartment.
IMPORTANT After putting the seats back
to their travelling position, restore the
seat belt position to make them ready for
use.
fig. 6F0H0310m
Remember that in the event
of a violent collision, back
seat passengers not wearing seat belts
also represent a serious danger for
the front seat passengers.
WARNING
093-110 idea GB 1 ed 10-07-2008 8:28 Pagina 96

97
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES

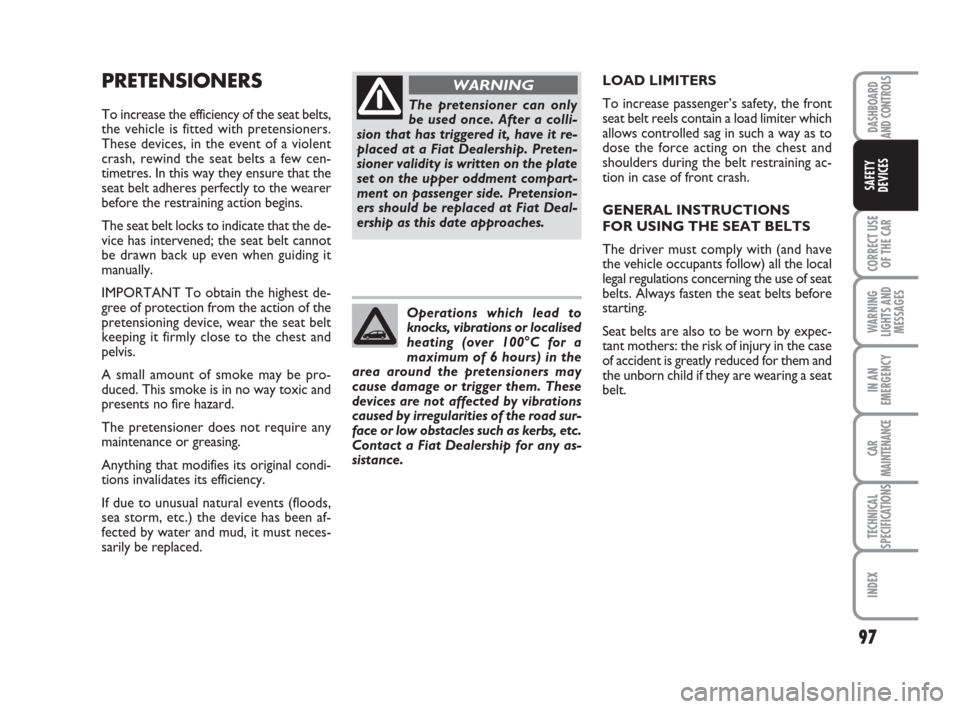

PRETENSIONERS
To increase the efficiency of the seat belts,
the vehicle is fitted with pretensioners.
These devices, in the event of a violent
crash, rewind the seat belts a few cen-
timetres. In this way they ensure that the
seat belt adheres perfectly to the wearer
before the restraining action begins.
The seat belt locks to indicate that the de-
vice has intervened; the seat belt cannot
be drawn back up even when guiding it
manually.
IMPORTANT To obtain the highest de-
gree of protection from the action of the
pretensioning device, wear the seat belt
keeping it firmly close to the chest and
pelvis.
A small amount of smoke may be pro-
duced. This smoke is in no way toxic and
presents no fire hazard.
The pretensioner does not require any
maintenance or greasing.
Anything that modifies its original condi-
tions invalidates its efficiency.
If due to unusual natural events (floods,
sea storm, etc.) the device has been af-
fected by water and mud, it must neces-
sarily be replaced.LOAD LIMITERS
To increase passenger’s safety, the front
seat belt reels contain a load limiter which
allows controlled sag in such a way as to
dose the force acting on the chest and
shoulders during the belt restraining ac-
tion in case of front crash.
GENERAL INSTRUCTIONS
FOR USING THE SEAT BELTS
The driver must comply with (and have
the vehicle occupants follow) all the local
legal regulations concerning the use of seat
belts. Always fasten the seat belts before
starting.
Seat belts are also to be worn by expec-
tant mothers: the risk of injury in the case
of accident is greatly reduced for them and
the unborn child if they are wearing a seat
belt.The pretensioner can only
be used once. After a colli-
sion that has triggered it, have it re-
placed at a Fiat Dealership. Preten-
sioner validity is written on the plate
set on the upper oddment compart-
ment on passenger side. Pretension-
ers should be replaced at Fiat Deal-
ership as this date approaches.
WARNING
Operations which lead to
knocks, vibrations or localised
heating (over 100°C for a
maximum of 6 hours) in the
area around the pretensioners may
cause damage or trigger them. These
devices are not affected by vibrations
caused by irregularities of the road sur-
face or low obstacles such as kerbs, etc.
Contact a Fiat Dealership for any as-
sistance.
093-110 idea GB 1 ed 10-07-2008 8:28 Pagina 97

98
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROL
SAFETY
DEVICES

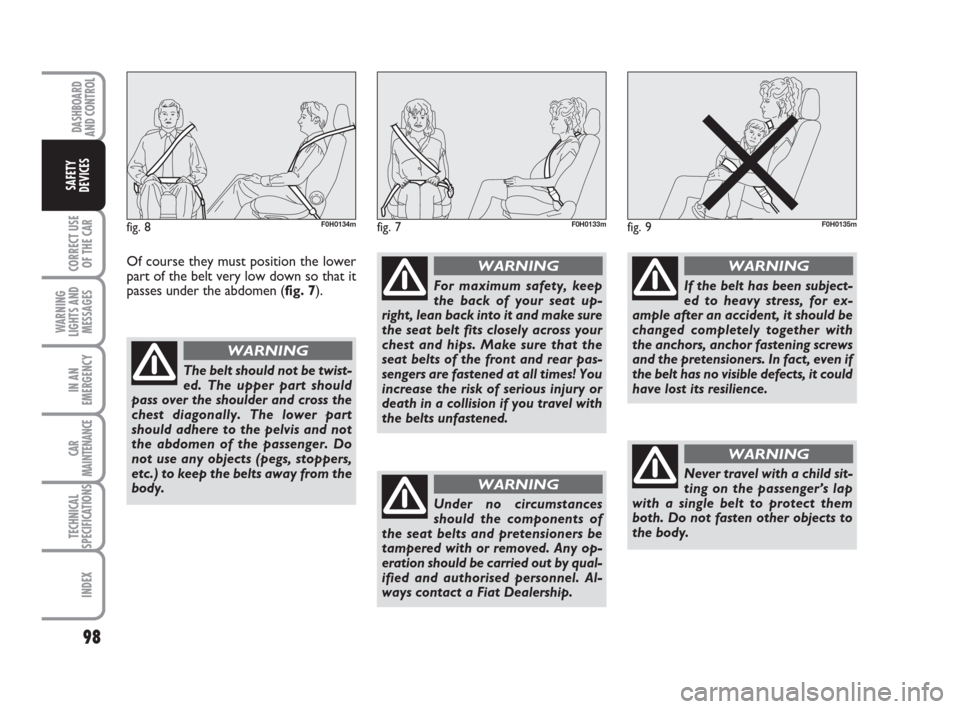

fig. 7F0H0133mfig. 8F0H0134mfig. 9F0H0135m
The belt should not be twist-
ed. The upper part should
pass over the shoulder and cross the
chest diagonally. The lower part
should adhere to the pelvis and not
the abdomen of the passenger. Do
not use any objects (pegs, stoppers,
etc.) to keep the belts away from the
body.
WARNING
For maximum safety, keep
the back of your seat up-
right, lean back into it and make sure
the seat belt fits closely across your
chest and hips. Make sure that the
seat belts of the front and rear pas-
sengers are fastened at all times! You
increase the risk of serious injury or
death in a collision if you travel with
the belts unfastened.
WARNING
Under no circumstances
should the components of
the seat belts and pretensioners be
tampered with or removed. Any op-
eration should be carried out by qual-
ified and authorised personnel. Al-
ways contact a Fiat Dealership.
WARNING
If the belt has been subject-
ed to heavy stress, for ex-
ample after an accident, it should be
changed completely together with
the anchors, anchor fastening screws
and the pretensioners. In fact, even if
the belt has no visible defects, it could
have lost its resilience.
WARNING
Never travel with a child sit-
ting on the passenger’s lap
with a single belt to protect them
both. Do not fasten other objects to
the body.
WARNING
Of course they must position the lower
part of the belt very low down so that it
passes under the abdomen (fig. 7).
093-110 idea GB 1 ed 10-07-2008 8:28 Pagina 98

99
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
HOW TO KEEP
THE SEAT BELTS ALWAYS
IN EFFICIENT CONDITIONS
❒Always use the belt with the tape taut
and never twisted; make sure that it is
free to run without impediments.
❒After a serious accident, replace the
belt being worn at that time, even if
it does not appear damaged. Always
replace the seat belts if pretensioners
have been activated.
❒To clean the belts, wash by hand with
neutral soap, rinse and leave to dry in
the shade. Never use strong deter-
gents, bleach or dyes or other chem-
ical substance that might weaken the
fibres.
❒Prevent the reels from getting wet:
their correct operation is only guar-
anteed if water does not get inside.
❒Replace the seat belt when showing
significant wear or cut signs.
CARRYING CHILDREN
SAFELY
For optimal protection in the event of a
crash, all passengers must be seated and
wearing adequate restraint systems.
This is even more important for children.
According to 2003/20/EC Directive, this
prescription is compulsory for all Euro-
pean Community countries.
Compared with adults, their head is pro-
portionally larger and heavier than the rest
of the body, while the muscles and bone
structure are not completely developed.
Therefore, correct restraint systems are
necessary, other than adult seat belts. The
results of research on the best child re-
straint systems are contained in the Eu-
ropean Standard ECE-R44. This Standard
enforces the use of restraint systems clas-
sified in five groups:
Group 0 0-10 kg in weight
Group 0+ 0-13 kg in weight
Group 1 9-18 kg in weight
Group 2 15-25 kg in weight
Group 3 22-36 kg in weight
As it may be noted, the groups overlap
partly and in fact, in commerce it is pos-
sible to find devices that cover more than
one weight group.All restraint devices must bear the certi-
fication data, together with the control
brand, on a solidly fixed label which must
absolutely never be removed.
Over 1.50 m in height, from the point of
view of restraint systems, children are
considered as adults and wear the seat
belts normally.
Lineaccessori Fiat offers seats for each
weight group, which are the recommend-
ed choice, as they have been designed and
experimented specifically for Fiat cars.
With passenger’s air bag ac-
tive, never place child’s seats
with the cradle facing backwards
since the air bag activation could
cause to the child serious injuries,
even mortal, regardless of the seri-
ousness of the crash that triggered it.
You are advised to carry children al-
ways with proper restraint systems on
the rear seats, as this is the most pro-
tected position in the case of a crash.
WARNING
093-110 idea GB 1 ed 10-07-2008 8:28 Pagina 99

100
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROL
SAFETY
DEVICES
SIGNIFICANT DANGER If it
is necessary to carry a child
on the passenger side front
seat with a child seat facing
the back of the car, the pas-
senger airbags (front airbag,
where provided, and side airbag on
seat), must be disabled by means of
the menu of the reconfigurable mul-
tifunctional display, directly verifying
the actual disablement by means of
the light “ located on the dashboard
(see section “Manual disablement of
front and side passenger air bag”).
The passenger seat must be adjusted
in the rearmost position, to avoid any
contact of the child seat with the
dashboard.
WARNING
GROUP 0 and 0+ fig. 10
Babies up to 13 kg must be carried facing
backwards on a cradle seat, which, sup-
porting the head, does not induce stress
on the neck in the event of sharp decel-
eration.
The cradle is restrained by the car seat
belts and in turn it must restrain the child
with its own belts.
fig. 10F0H0136m
The figure is only an exam-
ple for mounting. Attain to
the instructions for fastening which
must be enclosed with the specific
child restraining system you are using.
WARNING
Seats exist which are suit-
able for covering weight
groups 0 and 1 with a rear connection
to the vehicle belts and their own
belts to restrain the child. Due to their
size, they can be dangerous if in-
stalled incorrectly fastened to the car
belts with a cushion. Carefully follow
the instructions for installation pro-
vided with the seat.
WARNING
fig. 11F0H0137m
GROUP 1 fig. 11
Starting from 9 kg to 18 kg in weight, chil-
dren may be carried facing forwards, with
seat fitted with front cushion, through
which the car seat belt restrains both child
and seat.
Seats exist which are suit-
able for covering weight
groups 0 and 1 with a rear connection
to the vehicle belts and their own
belts to restrain the child. Due to their
size, they can be dangerous if in-
stalled incorrectly fastened to the car
belts with a cushion. Carefully follow
the instructions for installation pro-
vided with the seat.
WARNING
093-110 idea GB 1 ed 10-07-2008 8:28 Pagina 100

101
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
fig. 12F0H0138m
GROUP 2 fig. 12
Starting from 15 kg to 25 kg in weight, chil-
dren may be restrained directly by the car
belts. The only function of the seat is to
position the child correctly in relation to
the belts, so that the diagonal part adheres
to the chest and not to the neck and that
the horizontal part clings to the child’s
pelvis and not the abdomen.
Seats exist which are suit-
able for covering weight
groups 0 and 1 with a rear connection
to the vehicle belts and their own
belts to restrain the child. Due to their
size, they can be dangerous if in-
stalled incorrectly fastened to the car
belts with a cushion. Carefully follow
the instructions for installation pro-
vided with the seat.
WARNING
fig. 13F0H0139m
The figure is only an exam-
ple for mounting. Attain to
the instructions for fastening which
must be enclosed with the specific
child restraining system you are using.
WARNING
Group 3 fig. 13
For children from 22 kg to 36 kg the size
of the child’s chest no longer requires a
support to space the child’s back from the
seat back.
The figure shows proper child seat posi-
tioning on the rear seat.
Children taller than 1.50 m can wear seat
belts like adults.
093-110 idea GB 1 ed 10-07-2008 8:28 Pagina 101

102
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROL
SAFETY
DEVICES
PASSENGER SEAT COMPLIANCE WITH REGULATIONS ON CHILD’S SEAT USE
This vehicle complies with the new European Directive 2000/3/CE regulating child’s seat assembling on the different car seats ac-
cording to the following table:
SEAT
Group Range of weight Front passenger Rear passenger Central passenger
side rear
Group 0, 0+ until 13 kg U U *
Group 1 9-18 kg U U *
Group 2 15-25 kg U U *
Group 1 22-36 kg U U *
Key:
U = suitable for child restraint systems of the “Universal” category, according to European Standard ECE-R44 for the specified “Groups”.
* Never mount child restraint systems on the rear central seat.
093-110 idea GB 1 ed 10-07-2008 8:28 Pagina 102

103
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
Below is a summary of the rules
of safety to be followed
for carrying children:
❒The recommended position for in-
stalling children’s seat is on the rear
seat, as it is the most protected in the
case of a crash.
❒If the passenger’s air bag is deactivat-
ed (where required) always check the
amber yellow warning light “on the
cluster to make sure that it has actu-
ally been deactivated.
❒Attain to the instructions for fastening
the specific child restraint system
which you are using. These instruc-
tions must be provided by the manu-
facturer. Keep the child restraint sys-
tem installation instructions with the
car documents and this Handbook.
Never use a child restraint system
without installation instructions.
❒Always check the seat belt is well fas-
tened by pulling the webbing.
❒Only one child is to be strapped to
each retaining system.
❒Always check the seat belts do not fit
around the child’s throat.
❒While travelling, do not let the child
sit incorrectly or release the belts.
❒Passengers should never carry children
on their laps. No-one, however strong
they are, can hold a child in the event
of a crash.
❒In case of an accident, replace the seat
with a new one.
With passenger’s air bag ac-
tive, never place child’s seats
with the cradle facing backwards
since the air bag activation could
cause to the child serious injuries,
even mortal, regardless of the seri-
ousness of the crash that triggered it.
You are advised to carry children al-
ways with proper restraint systems on
the rear seats, as this is the most pro-
tected position in the case of a crash.
WARNING
ISOFIX CHILD
RESTRAINT
ASSEMBLY SETUP
Provision has been made on the car to
mount a Universal Isofix child restraint
system, a new European standardised sys-
tem for carrying children safely.
Isofix systems can be mounted simultane-
ously with a traditional restraint system.
An example of child seat is shown in
fig. 14.
The Universal Isofix child seat covers
weight group: 1.
Specific Isofix child seats cover the other
weight groups. These seats must be de-
signed, tested and type-approved specifi-
cally for this car (refer to the list of cars
attached to the child seat).
093-110 idea GB 1 ed 10-07-2008 8:28 Pagina 103
