DASHBOARD
AND CONTROLS
KEY KIT AND DOOR
LOCKING
CODE CARD
(Optional for versions/markets
where applicable) fig. 11
The car is delivered with the keys and the
CODE card which bears the following:
❒the electronic code A;
❒the mechanical key code Bto be giv-
en to the Fiat Dealership when or-
dering duplicate keys.
IMPORTANT In order to ensure perfect
efficiency of the electronic devices con-
tained inside the keys, they should never
be exposed to direct sunlight. OPERATION
Each time the car is started turning the ig-
nition key to MAR, the Fiat CODE sys-
tem control unit sends a recognition code
to the engine control unit to deactivate
the inhibitor.
The code is sent only if the Fiat CODE
system control unit has recognised the
code transmitted from the key.
Each time the ignition key is turned to the
STOPposition, the Fiat CODE system
deactivates the functions of the engine
electronic control unit.
At starting, if the code has not been recog-
nised correctly, the warning light
Ywill
come on.
In this case, the key should be moved to
the STOPposition and then back to
MAR; if the lock continues, possibly try
again with the other key provided with the
car. If it is still not possible to start the car,
then contact a Fiat Dealership.
IMPORTANT Every key has its own code,
which must be memorised by the system
control unit. To memorise new keys, up
to a maximum of eight, apply to Fiat Deal-
ership.Warning light
Ycoming on when
driving
❒If the warning light Yturns on, this
means that the system is running a self-
test (for example for a voltage drop).
Should the inconvenience persists,
contact a Fiat Dealership.
The electronic components
inside the key may be dam-
aged if the key is submitted to
sharp knocks.
All the keys and the CODE
card must be handed over to
the new owner when selling
the car.
001-035 idea GB 1 ed 10-07-2008 8:27 Pagina 10

11
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

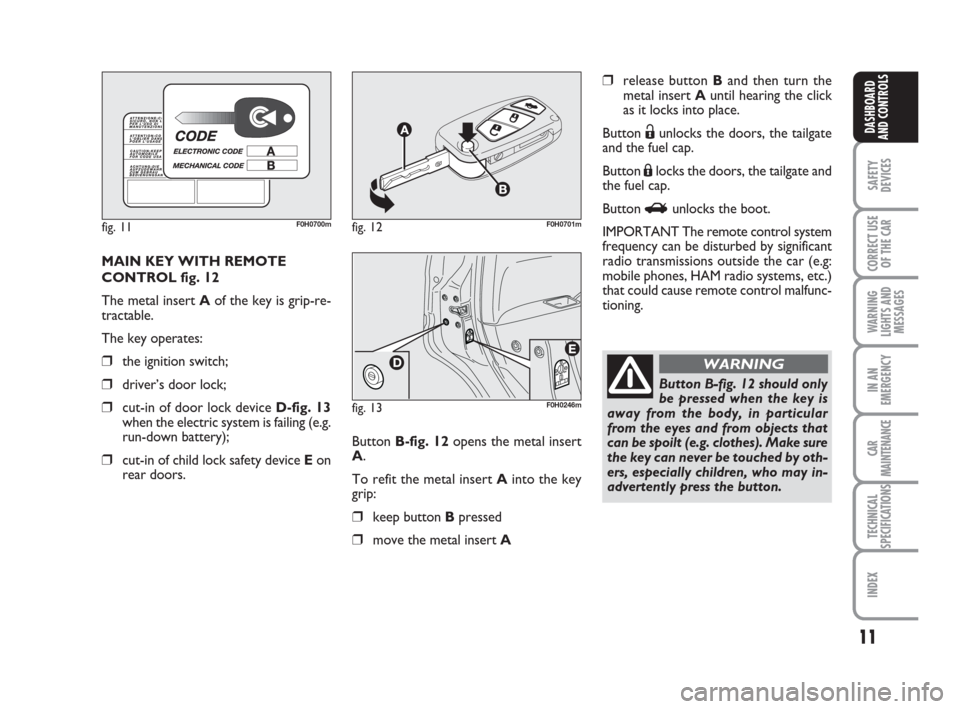

MAIN KEY WITH REMOTE
CONTROL fig. 12
The metal insert Aof the key is grip-re-
tractable.
The key operates:
❒the ignition switch;
❒driver’s door lock;
❒cut-in of door lock device D-fig. 13
when the electric system is failing (e.g.
run-down battery);
❒cut-in of child lock safety device Eon
rear doors.
fig. 11F0H0700mfig. 12F0H0701m
fig. 13F0H0246m
Button B-fig. 12opens the metal insert
A.
To refit the metal insert Ainto the key
grip:
❒keep button Bpressed
❒move the metal insert A
❒release button Band then turn the
metal insert Auntil hearing the click
as it locks into place.
Button
Ëunlocks the doors, the tailgate
and the fuel cap.
Button Álocks the doors, the tailgate and
the fuel cap.
Button
Runlocks the boot.
IMPORTANT The remote control system
frequency can be disturbed by significant
radio transmissions outside the car (e.g:
mobile phones, HAM radio systems, etc.)
that could cause remote control malfunc-
tioning.
Button B-fig. 12 should only
be pressed when the key is
away from the body, in particular
from the eyes and from objects that
can be spoilt (e.g. clothes). Make sure
the key can never be touched by oth-
ers, especially children, who may in-
advertently press the button.
WARNING
001-035 idea GB 1 ed 10-07-2008 8:27 Pagina 11

12
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

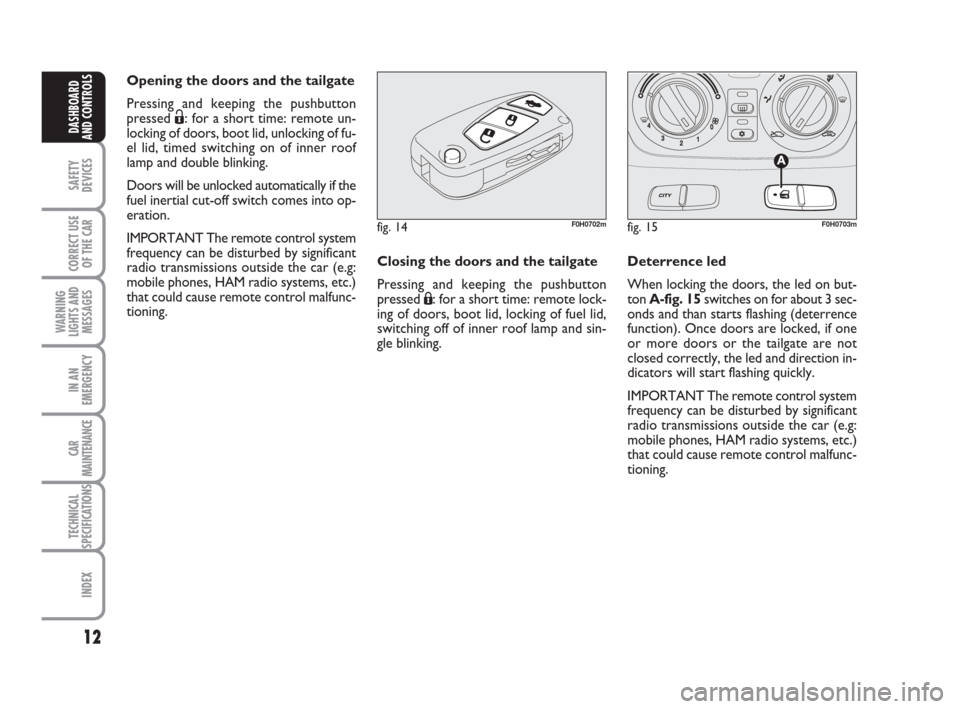

Opening the doors and the tailgate
Pressing and keeping the pushbutton
pressed
Ë: for a short time: remote un-
locking of doors, boot lid, unlocking of fu-
el lid, timed switching on of inner roof
lamp and double blinking.
Doors will be unlocked automatically if the
fuel inertial cut-off switch comes into op-
eration.
IMPORTANT The remote control system
frequency can be disturbed by significant
radio transmissions outside the car (e.g:
mobile phones, HAM radio systems, etc.)
that could cause remote control malfunc-
tioning.
fig. 14F0H0702m
Closing the doors and the tailgate
Pressing and keeping the pushbutton
pressed Á: for a short time: remote lock-
ing of doors, boot lid, locking of fuel lid,
switching off of inner roof lamp and sin-
gle blinking.Deterrence led
When locking the doors, the led on but-
ton A-fig. 15switches on for about 3 sec-
onds and than starts flashing (deterrence
function). Once doors are locked, if one
or more doors or the tailgate are not
closed correctly, the led and direction in-
dicators will start flashing quickly.
IMPORTANT The remote control system
frequency can be disturbed by significant
radio transmissions outside the car (e.g:
mobile phones, HAM radio systems, etc.)
that could cause remote control malfunc-
tioning.
fig. 15F0H0703m
001-035 idea GB 1 ed 10-07-2008 8:27 Pagina 12

13
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
fig. 16F0H0702m

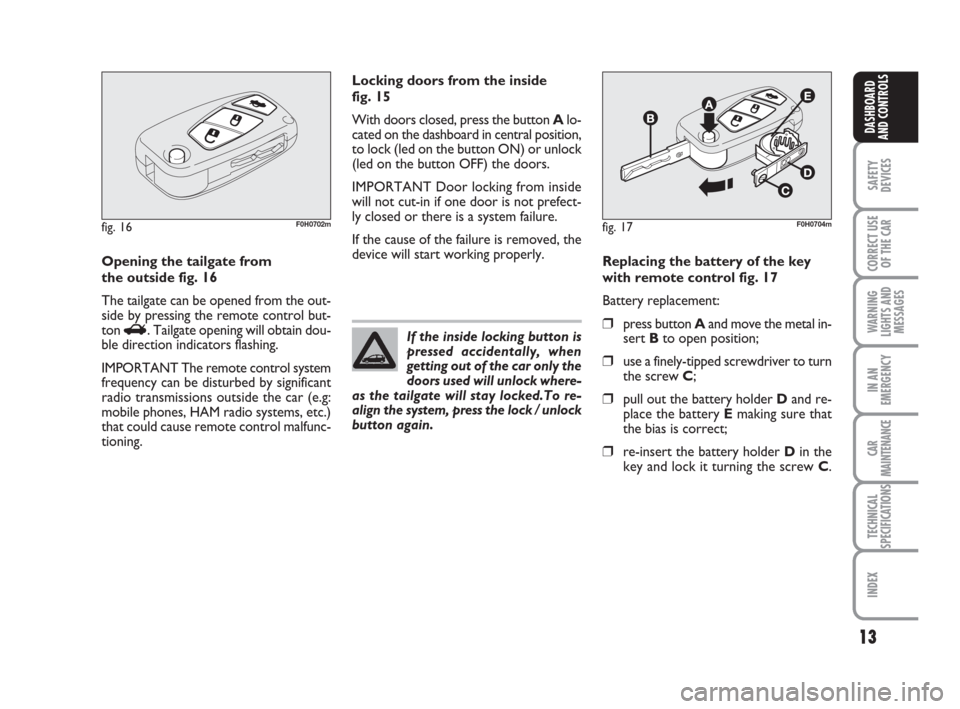

Opening the tailgate from
the outside fig. 16
The tailgate can be opened from the out-
side by pressing the remote control but-
ton
R. Tailgate opening will obtain dou-
ble direction indicators flashing.
IMPORTANT The remote control system
frequency can be disturbed by significant
radio transmissions outside the car (e.g:
mobile phones, HAM radio systems, etc.)
that could cause remote control malfunc-
tioning.Locking doors from the inside
fig. 15
With doors closed, press the button Alo-
cated on the dashboard in central position,
to lock (led on the button ON) or unlock
(led on the button OFF) the doors.
IMPORTANT Door locking from inside
will not cut-in if one door is not prefect-
ly closed or there is a system failure.
If the cause of the failure is removed, the
device will start working properly.
If the inside locking button is
pressed accidentally, when
getting out of the car only the
doors used will unlock where-
as the tailgate will stay locked.To re-
align the system, press the lock / unlock
button again.
fig. 17F0H0704m
Replacing the battery of the key
with remote control fig. 17
Battery replacement:
❒press button Aand move the metal in-
sert Bto open position;
❒use a finely-tipped screwdriver to turn
the screw C;
❒pull out the battery holder Dand re-
place the battery Emaking sure that
the bias is correct;
❒re-insert the battery holder Din the
key and lock it turning the screw C.
001-035 idea GB 1 ed 10-07-2008 8:27 Pagina 13

14
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

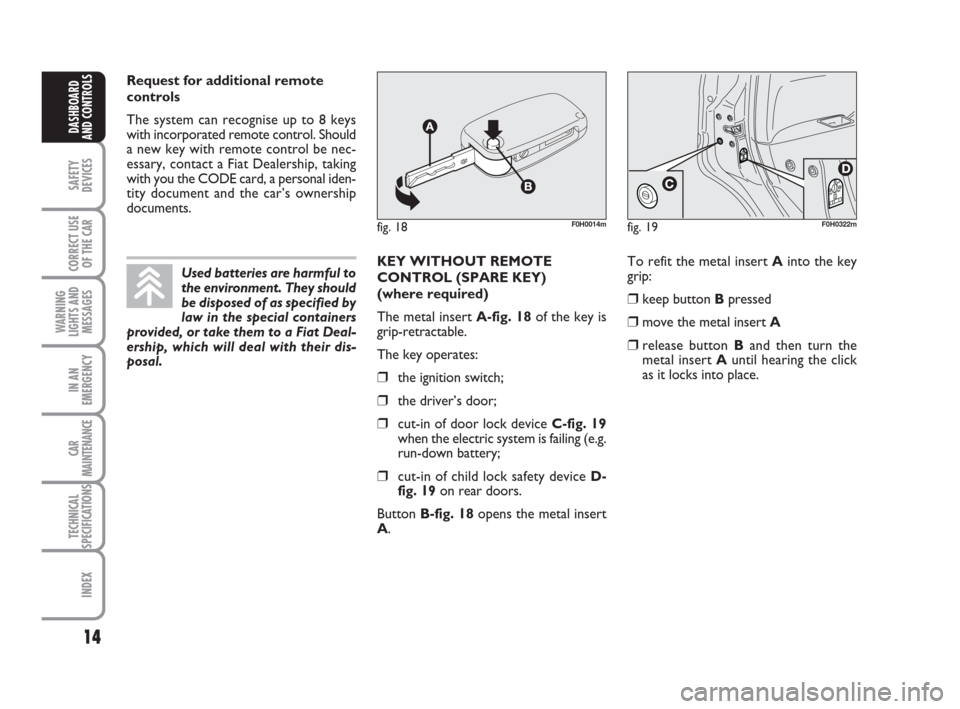

fig. 19F0H0322m
Request for additional remote
controls
The system can recognise up to 8 keys
with incorporated remote control. Should
a new key with remote control be nec-
essary, contact a Fiat Dealership, taking
with you the CODE card, a personal iden-
tity document and the car’s ownership
documents.
Used batteries are harmful to
the environment. They should
be disposed of as specified by
law in the special containers
provided, or take them to a Fiat Deal-
ership, which will deal with their dis-
posal.
fig. 18F0H0014m
KEY WITHOUT REMOTE
CONTROL (SPARE KEY)
(where required)
The metal insert A-fig. 18of the key is
grip-retractable.
The key operates:
❒the ignition switch;
❒the driver’s door;
❒cut-in of door lock device C-fig. 19
when the electric system is failing (e.g.
run-down battery;
❒cut-in of child lock safety device D-
fig. 19on rear doors.
Button B-fig. 18opens the metal insert
A.To refit the metal insert Ainto the key
grip:
❒keep button Bpressed
❒move the metal insert A
❒release button Band then turn the
metal insert Auntil hearing the click
as it locks into place.
001-035 idea GB 1 ed 10-07-2008 8:27 Pagina 14

15
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

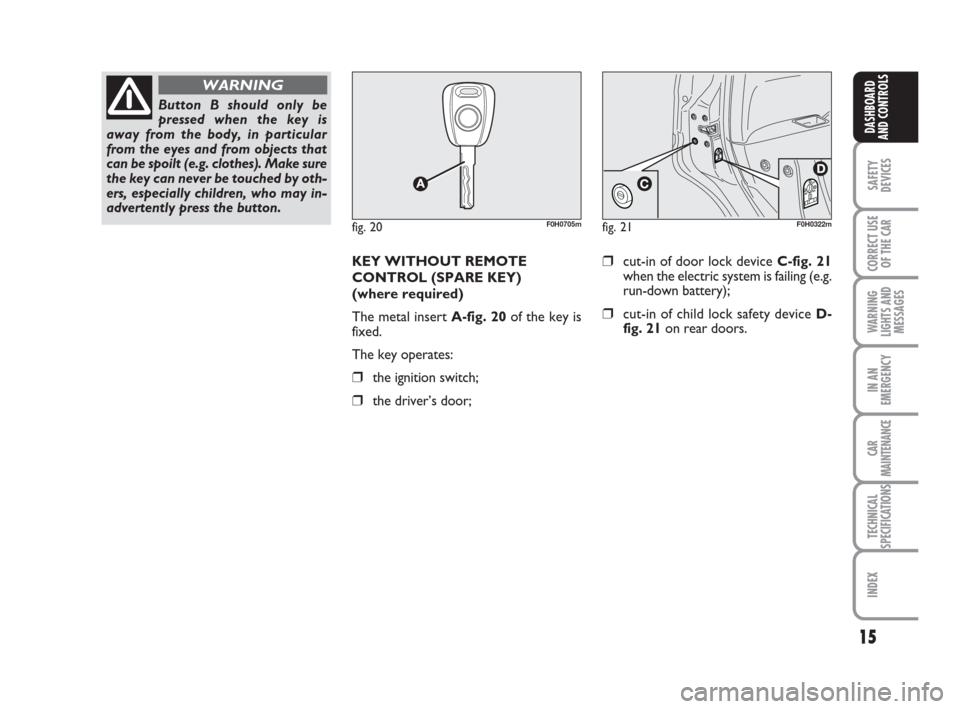

Button B should only be
pressed when the key is
away from the body, in particular
from the eyes and from objects that
can be spoilt (e.g. clothes). Make sure
the key can never be touched by oth-
ers, especially children, who may in-
advertently press the button.
WARNING
fig. 20F0H0705mfig. 21F0H0322m
KEY WITHOUT REMOTE
CONTROL (SPARE KEY)
(where required)
The metal insert A-fig. 20of the key is
fixed.
The key operates:
❒the ignition switch;
❒the driver’s door;
❒cut-in of door lock device C-fig. 21
when the electric system is failing (e.g.
run-down battery);
❒cut-in of child lock safety device D-
fig. 21on rear doors.
001-035 idea GB 1 ed 10-07-2008 8:27 Pagina 15

16
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLSType ofkey
Pressing the pushbutton Ëenables fuel lid to be opened.
The main functions that can be activated with the keys (with or without remote control) are the following:
Door opening
Key turning counterclockwise
(driver’s side)
Key turning counterclockwise
(driver’s side)
Pressing briefly button
Ë
Two flashings
Turning off Door locking
from the outside
Key turning clockwise
(driver’s side)
Key turning clockwise
(driver’s side)
Pressing briefly button
Á
One flashing
Turned on fixed for approx.
3 seconds, followed by deterrence
led flashingBoot
opening
Pressing on button
R
Two flashings
Deterrence led flashing Spare key without
remote control
Main key with
remote control
Direction indicators
flashing (only with key with
remote control)
Deterrence led
001-035 idea GB 1 ed 10-07-2008 8:27 Pagina 16

17
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CHILD LOCK fig. 22
To prevent opening the rear doors from
the inside.
This device can be engaged only with
doors open.
❒position 1- engaged (door locked);
❒position 2- disengaged (door open-
able from inside).
The device Ais engaged even if the doors
are unlocked by the centralised system.
IMPORTANT Always use the lock when
transporting children.
IMPORTANT After engaging the lock,
check by trying to open a rear door with
the internal handle.
Child lock device A is prop-
erly engaged only if after
turning the revolving plug it clicks in
horizontal position (1).
WARNING
Child lock device A is prop-
erly disengaged only if after
turning the revolving plug it clicks in
vertical position (2).
WARNINGfig. 22F0H0101m
EMERGENCY DEVICE
FOR LOCKING DOORS

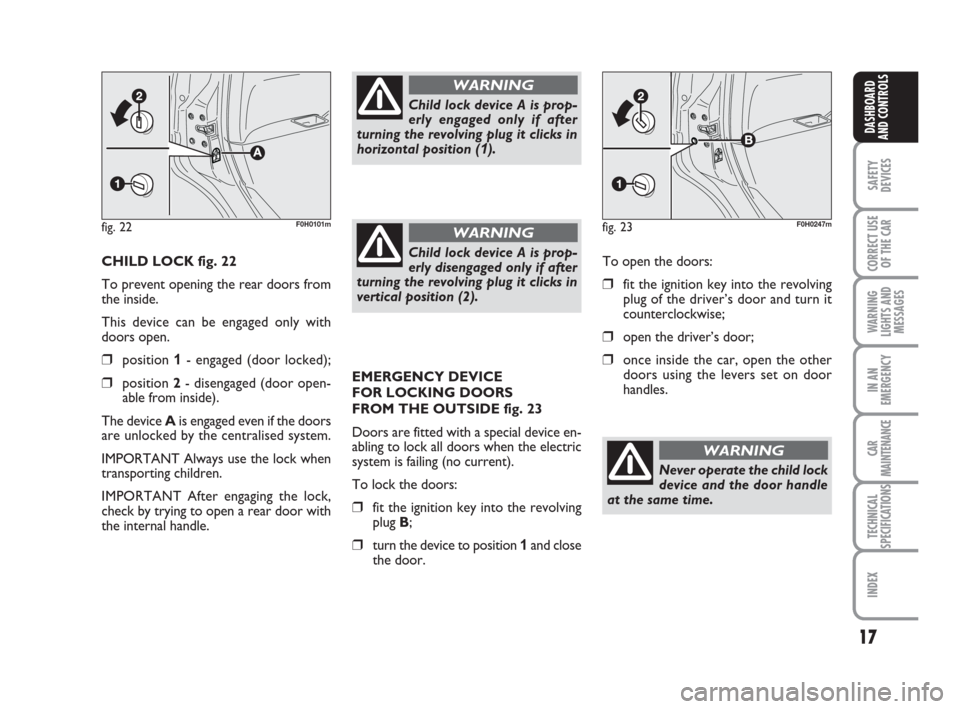

FROM THE OUTSIDE fig. 23
Doors are fitted with a special device en-
abling to lock all doors when the electric
system is failing (no current).
To lock the doors:
❒fit the ignition key into the revolving
plug B;
❒turn the device to position 1and close
the door.To open the doors:
❒fit the ignition key into the revolving
plug of the driver’s door and turn it
counterclockwise;
❒open the driver’s door;
❒once inside the car, open the other
doors using the levers set on door
handles.
fig. 23F0H0247m
Never operate the child lock
device and the door handle
at the same time.
WARNING
001-035 idea GB 1 ed 10-07-2008 8:27 Pagina 17

18
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

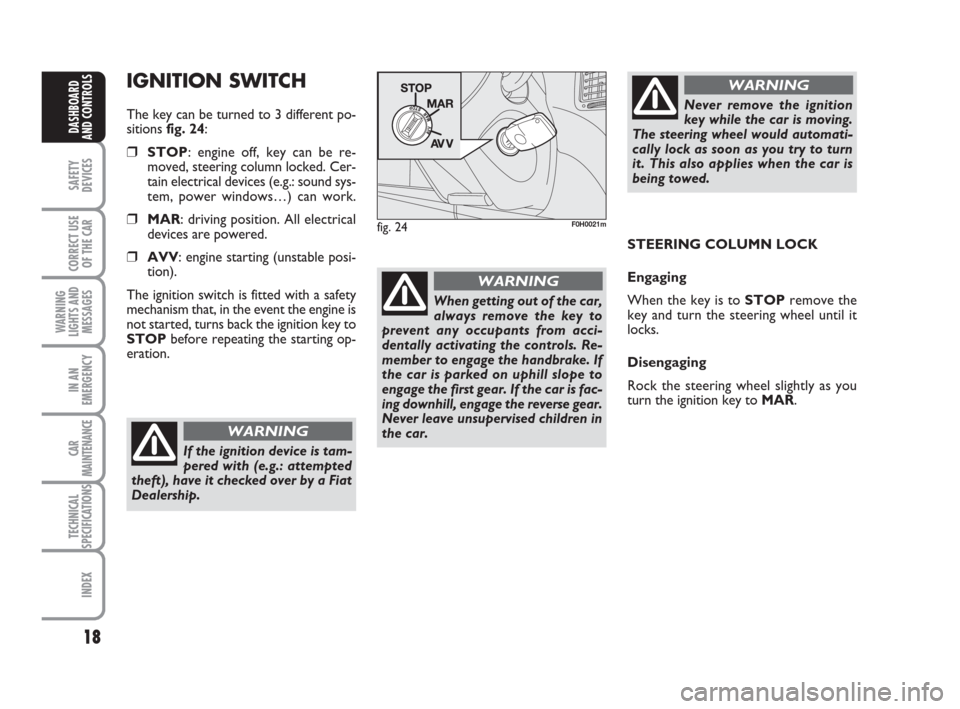

IGNITION SWITCH
The key can be turned to 3 different po-
sitions fig. 24:
❒STOP: engine off, key can be re-
moved, steering column locked. Cer-
tain electrical devices (e.g.: sound sys-
tem, power windows…) can work.
❒MAR: driving position. All electrical
devices are powered.
❒AVV: engine starting (unstable posi-
tion).
The ignition switch is fitted with a safety
mechanism that, in the event the engine is
not started, turns back the ignition key to
STOPbefore repeating the starting op-
eration.
fig. 24F0H0021m
STEERING COLUMN LOCK
Engaging
When the key is to STOPremove the
key and turn the steering wheel until it
locks.
Disengaging
Rock the steering wheel slightly as you
turn the ignition key to MAR.
If the ignition device is tam-
pered with (e.g.: attempted
theft), have it checked over by a Fiat
Dealership.
WARNING
Never remove the ignition
key while the car is moving.
The steering wheel would automati-
cally lock as soon as you try to turn
it. This also applies when the car is
being towed.
WARNING
When getting out of the car,
always remove the key to
prevent any occupants from acci-
dentally activating the controls. Re-
member to engage the handbrake. If
the car is parked on uphill slope to
engage the first gear. If the car is fac-
ing downhill, engage the reverse gear.
Never leave unsupervised children in
the car.
WARNING
001-035 idea GB 1 ed 10-07-2008 8:27 Pagina 18

19
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
INSTRUMENTS

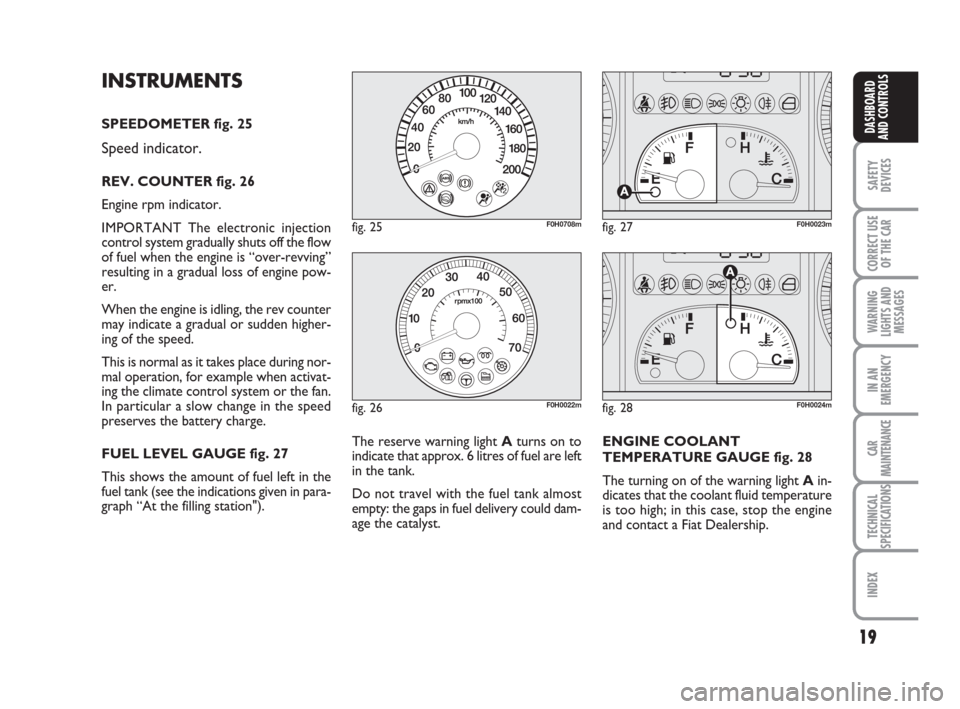

SPEEDOMETER fig. 25
Speed indicator.
REV. COUNTER fig. 26
Engine rpm indicator.
IMPORTANT The electronic injection
control system gradually shuts off the flow
of fuel when the engine is “over-revving”
resulting in a gradual loss of engine pow-
er.
When the engine is idling, the rev counter
may indicate a gradual or sudden higher-
ing of the speed.
This is normal as it takes place during nor-
mal operation, for example when activat-
ing the climate control system or the fan.
In particular a slow change in the speed
preserves the battery charge.
FUEL LEVEL GAUGE fig. 27
This shows the amount of fuel left in the
fuel tank (see the indications given in para-
graph “At the filling station").
fig. 25F0H0708m
fig. 26F0H0022m
fig. 27F0H0023m
fig. 28F0H0024m
The reserve warning light Aturns on to
indicate that approx. 6 litres of fuel are left
in the tank.
Do not travel with the fuel tank almost
empty: the gaps in fuel delivery could dam-
age the catalyst.ENGINE COOLANT
TEMPERATURE GAUGE fig. 28
The turning on of the warning light Ain-
dicates that the coolant fluid temperature
is too high; in this case, stop the engine
and contact a Fiat Dealership.
001-035 idea GB 1 ed 10-07-2008 8:27 Pagina 19
