GLOW PLUG
WARMING
(Multijet versions - amber)
GLOW PLUG
WARMING FAILURE
(Multijet versions - amber)
Glow plug warming
The warning light will go on when the key
is turned to MAR. It will go out as soon
as the glow plugs have reached a prede-
termined temperature. Start the engine as
soon as the warning light goes out.
IMPORTANT With hot ambient temper-
ature, warning light stays on for very short
time.
Glow plug warming failure
The warning light will blink in the event
of a failure to the glow plug heating sys-
tem. Go to a Fiat Dealership as soon as
possible.
On certain versions the dedicated message
is displayed.
m
WATER IN DIESEL
FUEL FILTER
(Multijet versions - amber)
Turning the ignition key to MARthe
warning light turns on, but it should go off
after few seconds.
The warning light turns on when there is
water in the diesel fuel filter.
On certain versions the dedicated message
is displayed.
c
The presence of water in the
feeding circuit may cause se-
vere damage to the injection
system and irregular engine
operation. If warning light
clights up
(on some versions with the message on
the display), go to a Fiat Dealership as
soon as possible to have the system
bled. Water may have been introduced
in the tank if this appears immediate-
ly after refuelling: in this case, stop
the engine immediately and contact a
Fiat Dealership.
CAR PROTECTION
SYSTEM FAILURE -
FIAT CODE (amber)
Turning the key to MARthe warning light
shall flash only once and then go off.
If with the ignition key at MAR, the warn-
ing light stays on, this indicates a possible
failure (see “Fiat Code system” in section
“Dashboard and controls”).
IMPORTANT Warning lights
Uand Ywill come on at the same time to indicate
a Fiat CODE system failure.
If with the engine running the warning light
Yflashes, this means that the car is not
protected by the engine inhibitor device
(see “Fiat Code system” in section “Dash-
board and controls”).
Contact Fiat Dealership to have all the key
stored.
Y

141
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
GENERIC FAILURE
INDICATION
(amber)
The warning light turns on in the follow-
ing circumstances.
Engine oil pressure sensor failure
The warning light turns on when failure is
detected in parking sensors. Go to a Fiat
Dealership to have the fault fixed as soon
as possible.
External light fault
(where provided)
See description of warning light
6.
Fuel cut-off switch tripped
The warning light comes on when the fu-
el cut-off switch trips.
The display will show the dedicated mes-
sage.
è

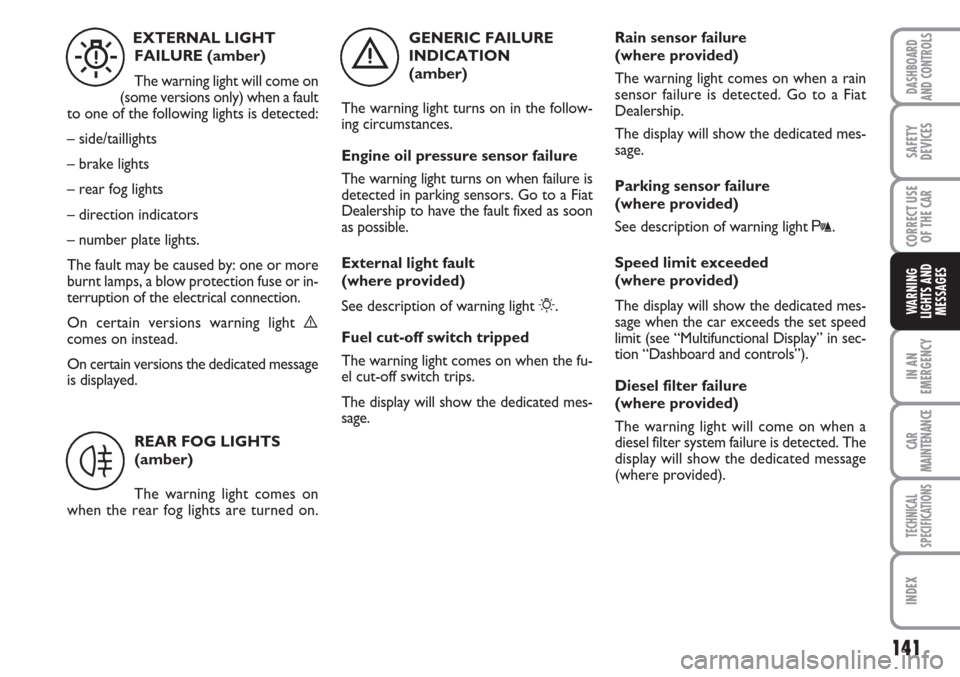

EXTERNAL LIGHT
FAILURE (amber)
The warning light will come on
(some versions only) when a fault
to one of the following lights is detected:
– side/taillights
– brake lights
– rear fog lights
– direction indicators
– number plate lights.
The fault may be caused by: one or more
burnt lamps, a blow protection fuse or in-
terruption of the electrical connection.
On certain versions warning light è
comes on instead.
On certain versions the dedicated message
is displayed.
W
REAR FOG LIGHTS
(amber)
The warning light comes on
when the rear fog lights are turned on.
4
Rain sensor failure
(where provided)
The warning light comes on when a rain
sensor failure is detected. Go to a Fiat
Dealership.
The display will show the dedicated mes-
sage.
Parking sensor failure
(where provided)
See description of warning light
t.
Speed limit exceeded
(where provided)
The display will show the dedicated mes-
sage when the car exceeds the set speed
limit (see “Multifunctional Display” in sec-
tion “Dashboard and controls”).
Diesel filter failure
(where provided)
The warning light will come on when a
diesel filter system failure is detected. The
display will show the dedicated message
(where provided).

142
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES

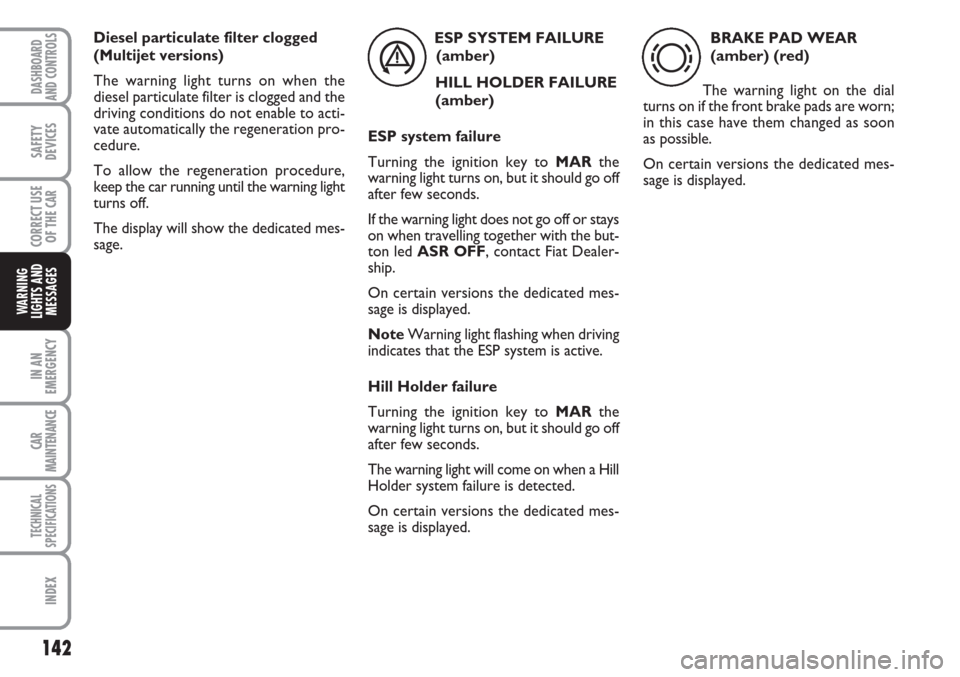

ESP SYSTEM FAILURE
(amber)
HILL HOLDER FAILURE
(amber)
ESP system failure
Turning the ignition key to MARthe
warning light turns on, but it should go off
after few seconds.
If the warning light does not go off or stays
on when travelling together with the but-
ton led ASR OFF, contact Fiat Dealer-
ship.
On certain versions the dedicated mes-
sage is displayed.
NoteWarning light flashing when driving
indicates that the ESP system is active.
Hill Holder failure
Turning the ignition key to MARthe
warning light turns on, but it should go off
after few seconds.
The warning light will come on when a Hill
Holder system failure is detected.
On certain versions the dedicated mes-
sage is displayed.
á
BRAKE PAD WEAR
(amber) (red)
The warning light on the dial
turns on if the front brake pads are worn;
in this case have them changed as soon
as possible.
On certain versions the dedicated mes-
sage is displayed.
d
Diesel particulate filter clogged
(Multijet versions)
The warning light turns on when the
diesel particulate filter is clogged and the
driving conditions do not enable to acti-
vate automatically the regeneration pro-
cedure.
To allow the regeneration procedure,
keep the car running until the warning light
turns off.
The display will show the dedicated mes-
sage.

143
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES

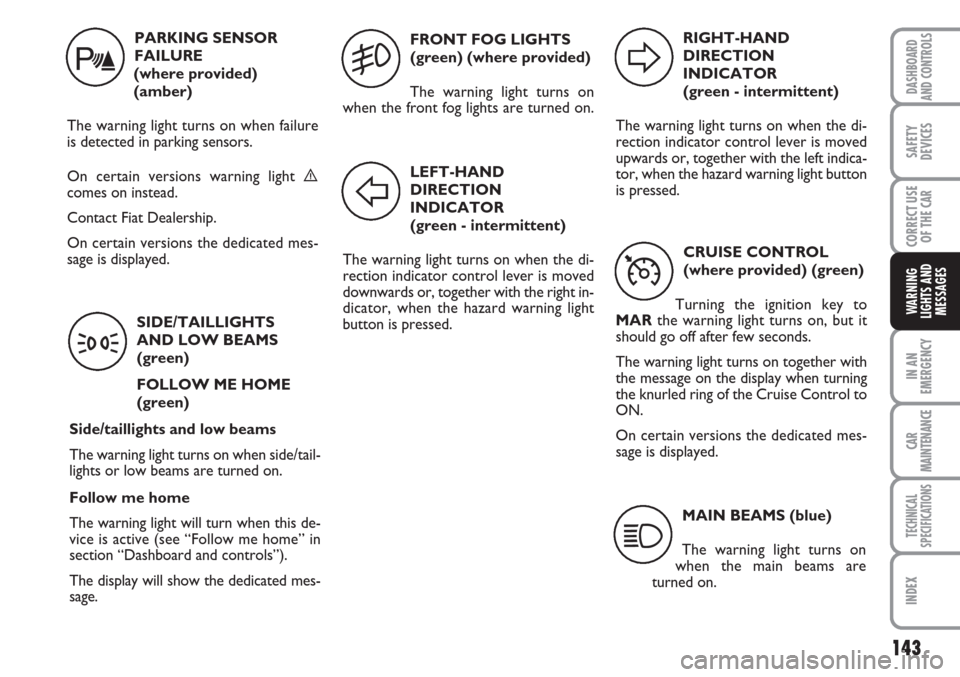

PARKING SENSOR
FAILURE
(where provided)
(amber)
The warning light turns on when failure
is detected in parking sensors.
On certain versions warning light è
comes on instead.
Contact Fiat Dealership.
On certain versions the dedicated mes-
sage is displayed.
t
SIDE/TAILLIGHTS
AND LOW BEAMS
(green)
FOLLOW ME HOME
(green)
Side/taillights and low beams
The warning light turns on when side/tail-
lights or low beams are turned on.
Follow me home
The warning light will turn when this de-
vice is active (see “Follow me home” in
section “Dashboard and controls”).
The display will show the dedicated mes-
sage.
3
FRONT FOG LIGHTS
(green) (where provided)
The warning light turns on
when the front fog lights are turned on.
5
LEFT-HAND
DIRECTION
INDICATOR
(green - intermittent)
The warning light turns on when the di-
rection indicator control lever is moved
downwards or, together with the right in-
dicator, when the hazard warning light
button is pressed.
F
RIGHT-HAND
DIRECTION
INDICATOR
(green - intermittent)
The warning light turns on when the di-
rection indicator control lever is moved
upwards or, together with the left indica-
tor, when the hazard warning light button
is pressed.
D
CRUISE CONTROL
(where provided) (green)
Turning the ignition key to
MARthe warning light turns on, but it
should go off after few seconds.
The warning light turns on together with
the message on the display when turning
the knurled ring of the Cruise Control to
ON.
On certain versions the dedicated mes-
sage is displayed.
Ü
MAIN BEAMS (blue)
The warning light turns on
when the main beams are
turned on.
1

144
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES

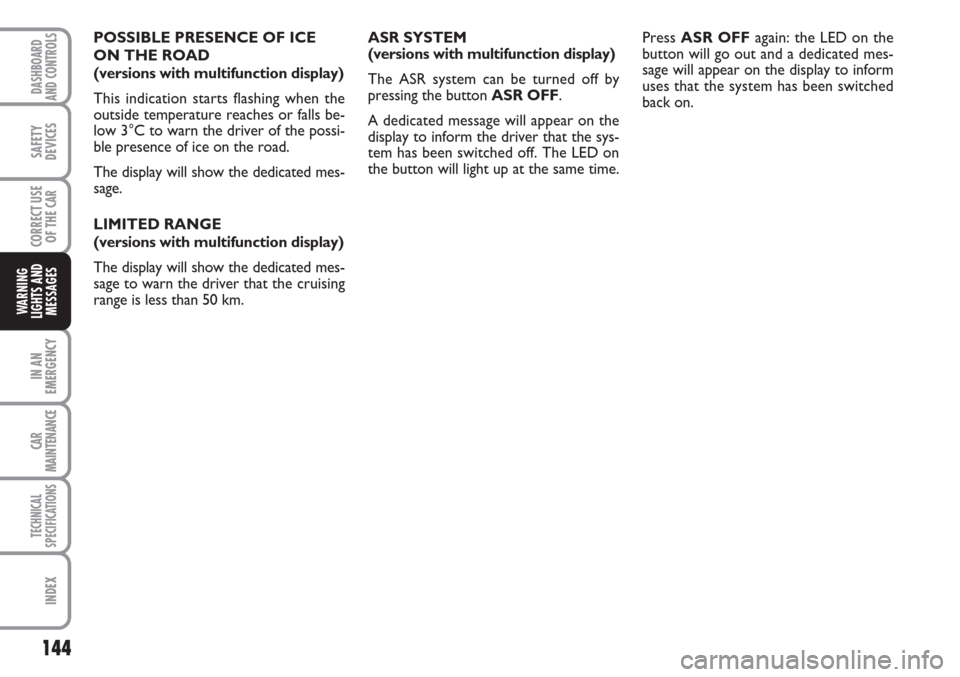

ASR SYSTEM
(versions with multifunction display)
The ASR system can be turned off by
pressing the button ASR OFF.
A dedicated message will appear on the
display to inform the driver that the sys-
tem has been switched off. The LED on
the button will light up at the same time. POSSIBLE PRESENCE OF ICE
ON THE ROAD
(versions with multifunction display)
This indication starts flashing when the
outside temperature reaches or falls be-
low 3°C to warn the driver of the possi-
ble presence of ice on the road.
The display will show the dedicated mes-
sage.
LIMITED RANGE
(versions with multifunction display)
The display will show the dedicated mes-
sage to warn the driver that the cruising
range is less than 50 km. Press ASR OFF again: the LED on the
button will go out and a dedicated mes-
sage will appear on the display to inform
uses that the system has been switched
back on.

145
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY

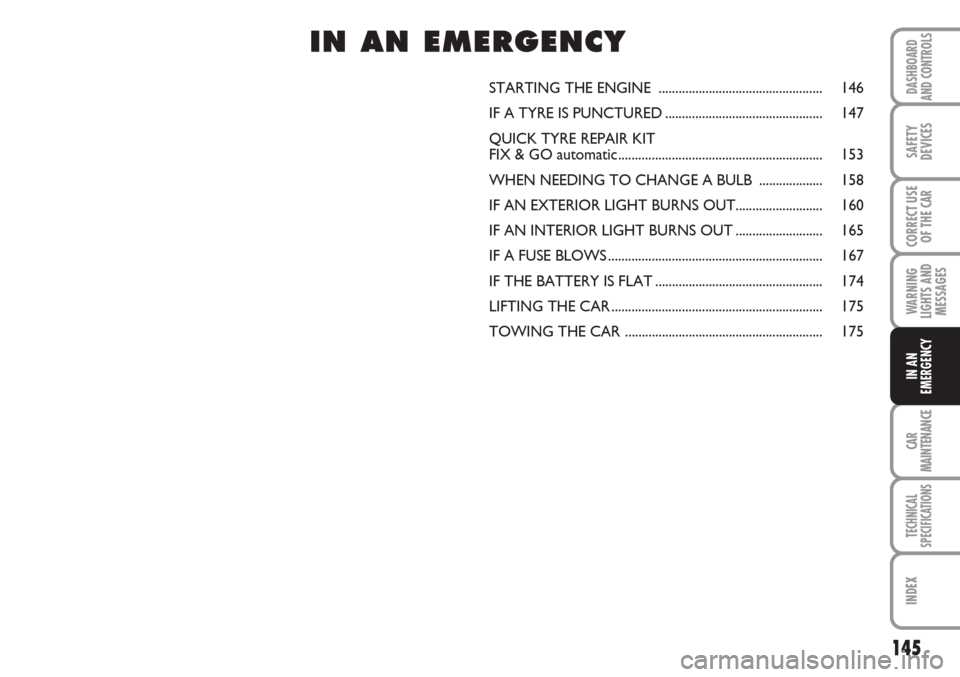

STARTING THE ENGINE ................................................. 146
IF A TYRE IS PUNCTURED............................................... 147
QUICK TYRE REPAIR KIT
FIX & GO automatic............................................................. 153
WHEN NEEDING TO CHANGE A BULB ................... 158
IF AN EXTERIOR LIGHT BURNS OUT.......................... 160
IF AN INTERIOR LIGHT BURNS OUT.......................... 165
IF A FUSE BLOWS................................................................ 167
IF THE BATTERY IS FLAT .................................................. 174
LIFTING THE CAR............................................................... 175
TOWING THE CAR ........................................................... 175
II I
N N
A A
N N
E E
M M
E E
R R
G G
E E
N N
C C
Y Y

146
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
STARTING THE
ENGINE
EMERGENCY START-UP
Go to a Fiat Dealership immediately if in-
strument panel warning light
Ycomes
on steady.

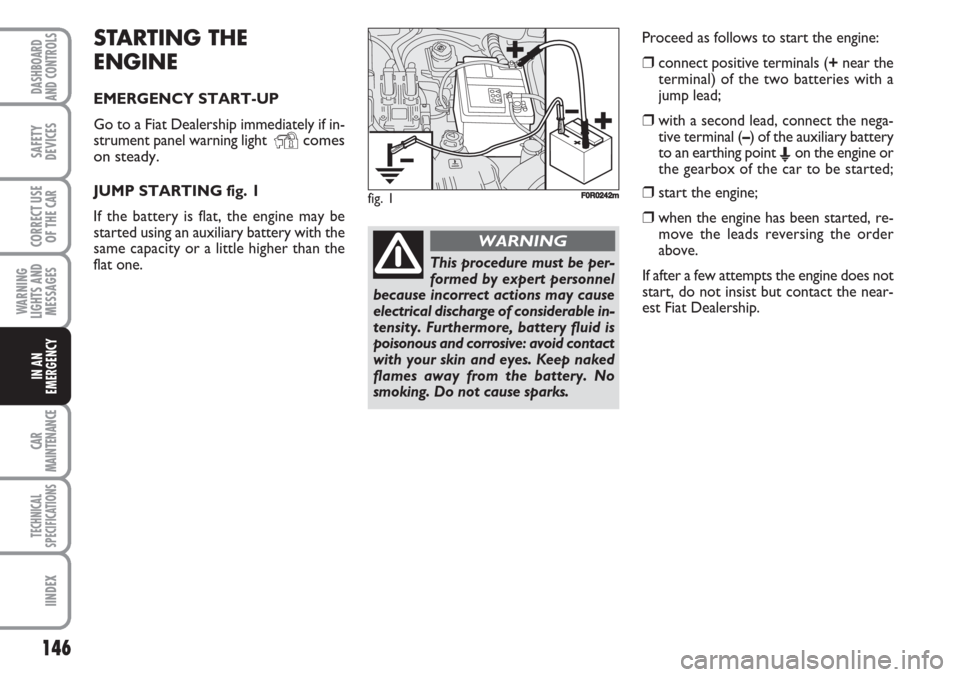

JUMP STARTING fig. 1
If the battery is flat, the engine may be
started using an auxiliary battery with the
same capacity or a little higher than the
flat one. Proceed as follows to start the engine:
❒connect positive terminals (+near the
terminal) of the two batteries with a
jump lead;
❒with a second lead, connect the nega-
tive terminal (–) of the auxiliary battery
to an earthing point
Eon the engine or
the gearbox of the car to be started;
❒start the engine;
❒when the engine has been started, re-
move the leads reversing the order
above.
If after a few attempts the engine does not
start, do not insist but contact the near-
est Fiat Dealership.
This procedure must be per-
formed by expert personnel
because incorrect actions may cause
electrical discharge of considerable in-
tensity. Furthermore, battery fluid is
poisonous and corrosive: avoid contact
with your skin and eyes. Keep naked
flames away from the battery. No
smoking. Do not cause sparks.
WARNING
fig. 1F0R0242m

147
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY

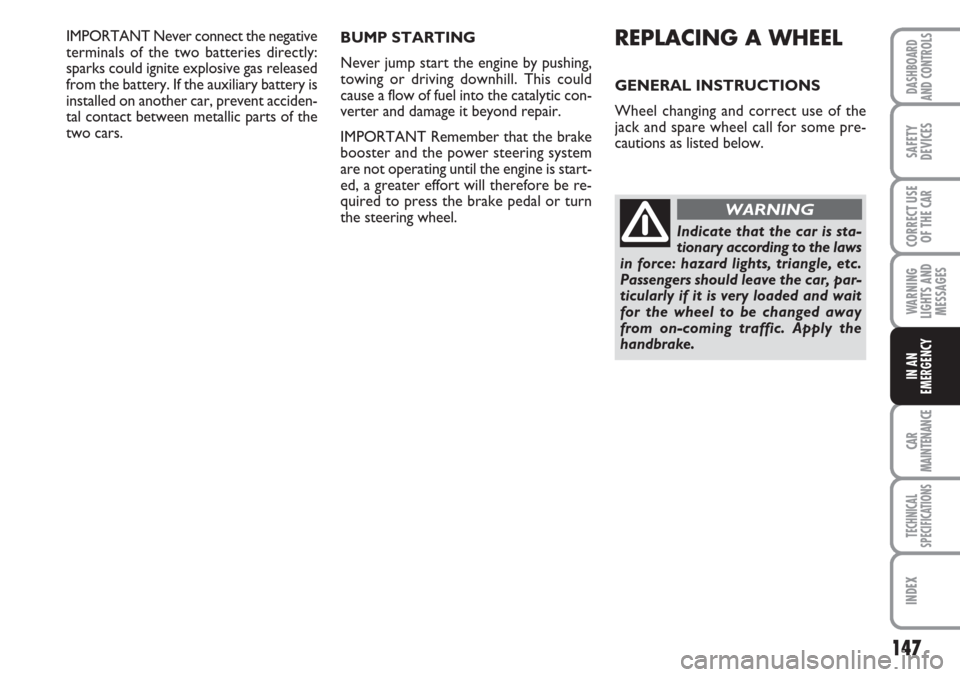

IMPORTANT Never connect the negative
terminals of the two batteries directly:
sparks could ignite explosive gas released
from the battery. If the auxiliary battery is
installed on another car, prevent acciden-
tal contact between metallic parts of the
two cars.BUMP STARTING
Never jump start the engine by pushing,
towing or driving downhill. This could
cause a flow of fuel into the catalytic con-
verter and damage it beyond repair.
IMPORTANT Remember that the brake
booster and the power steering system
are not operating until the engine is start-
ed, a greater effort will therefore be re-
quired to press the brake pedal or turn
the steering wheel.REPLACING A WHEEL
GENERAL INSTRUCTIONS
Wheel changing and correct use of the
jack and spare wheel call for some pre-
cautions as listed below.
Indicate that the car is sta-
tionary according to the laws
in force: hazard lights, triangle, etc.
Passengers should leave the car, par-
ticularly if it is very loaded and wait
for the wheel to be changed away
from on-coming traffic. Apply the
handbrake.
WARNING

148
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY

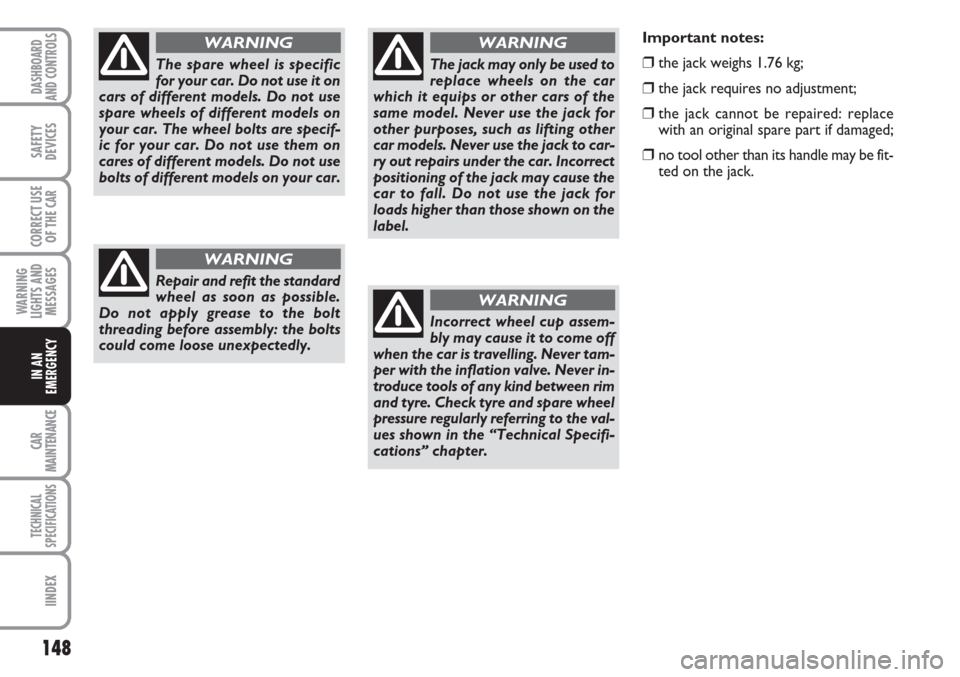

The spare wheel is specific
for your car. Do not use it on
cars of different models. Do not use
spare wheels of different models on
your car. The wheel bolts are specif-
ic for your car. Do not use them on
cares of different models. Do not use
bolts of different models on your car.
WARNING
Repair and refit the standard
wheel as soon as possible.
Do not apply grease to the bolt
threading before assembly: the bolts
could come loose unexpectedly.
WARNING
The jack may only be used to
replace wheels on the car
which it equips or other cars of the
same model. Never use the jack for
other purposes, such as lifting other
car models. Never use the jack to car-
ry out repairs under the car. Incorrect
positioning of the jack may cause the
car to fall. Do not use the jack for
loads higher than those shown on the
label.
WARNING
Incorrect wheel cup assem-
bly may cause it to come off
when the car is travelling. Never tam-
per with the inflation valve. Never in-
troduce tools of any kind between rim
and tyre. Check tyre and spare wheel
pressure regularly referring to the val-
ues shown in the “Technical Specifi-
cations” chapter.
WARNING
Important notes:
❒the jack weighs 1.76 kg;
❒the jack requires no adjustment;
❒the jack cannot be repaired: replace
with an original spare part if damaged;
❒no tool other than its handle may be fit-
ted on the jack.

149
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY

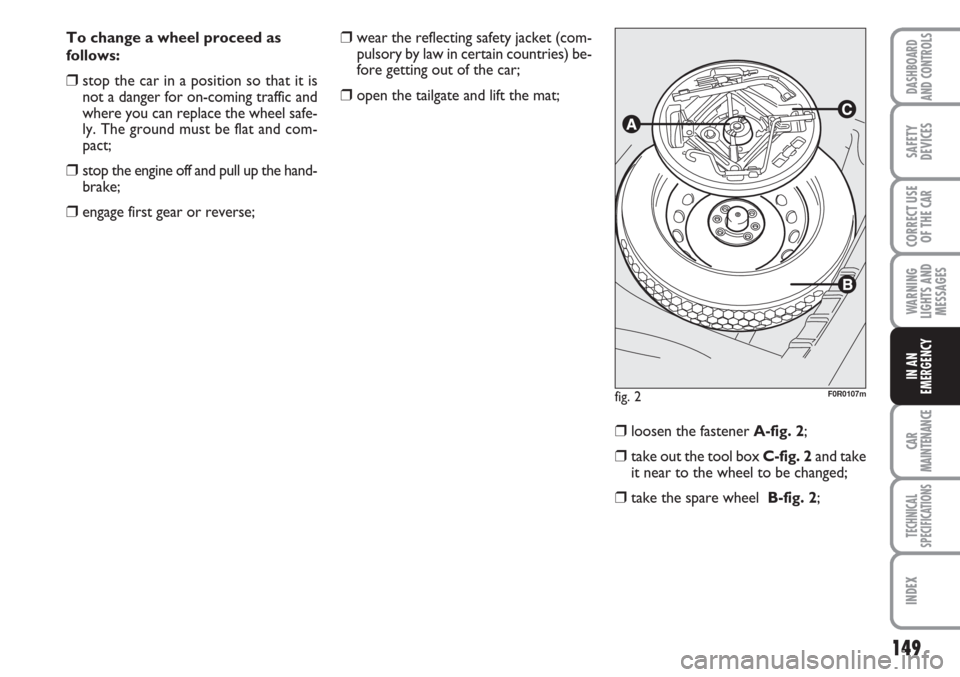

To change a wheel proceed as
follows:
❒stop the car in a position so that it is
not a danger for on-coming traffic and
where you can replace the wheel safe-
ly. The ground must be flat and com-
pact;
❒stop the engine off and pull up the hand-
brake;
❒engage first gear or reverse;
❒wear the reflecting safety jacket (com-
pulsory by law in certain countries) be-
fore getting out of the car;
❒open the tailgate and lift the mat;
❒loosen the fastener A-fig. 2;
❒take out the tool box C-fig. 2and take
it near to the wheel to be changed;
❒take the spare wheel B-fig. 2;
fig. 2F0R0107m
