FIAT LINEA 2007 1.G Owners Manual

170
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
7.5
7.5
7.5
15
20
20
7.5
7.5
7.5
20
10
30
7.5
7.5
20 F12
F13
F31
F32
F33
F34
F35
F36
F37
F38
F39
F40
F41
F42
F43
FUSE TABLE
Fuse box on dashboard
LOADS FUSE AMPERES
Right dipped beam headlight
Left dipped beam headlight, headlight corrector
INT/A for relay coils (T08, T17) in engine compartment fuse box and body
computer node
Subwoofer
Power windows control unit (left rear window motor)
Power windows control unit (right rear window motor)
+15 reversing lights, brake lights control, air mass meter, glow plug pre-heating
unit, water in diesel fuel sensor, tachometer generator, level sensor 2
Power window unit (+30 for electronics)
+15 instrument panel, NA brake lights control
Body computer node
Radio node
Heated rear window
Mirror defrosters
+15 brake system node
Windscreen wiper control (two-way pump)

171
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
LOADS FUSE AMPERES
Cigar lighter or socket
Boot lock actuator
Power window unit (driver’s side front window motor)
Power window unit (passenger’s side front window motor)
+15 control lighting: radio on steering wheel, control panel; power mirrors,
power window unit, alarm setup, electrochromic mirror and rain sensor
+15 airbag node
+15 cruise control, radio setup, Blu&Me setup,
parking sensors
Power window unit, driver’s seat adjustment motor
Body computer and instrument panel node F44
F45
F47
F48
F49
F50
F51
F52
F5315
10
20
20
7.5
7.5
7.5
15
7.5

172
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
20
30
40
20
40
30
15
10
7.5
7.5
10
10
7.5 F03
F04
F05
F06
F07
F08
F10
F11
F14
F15
F17
F18
F19

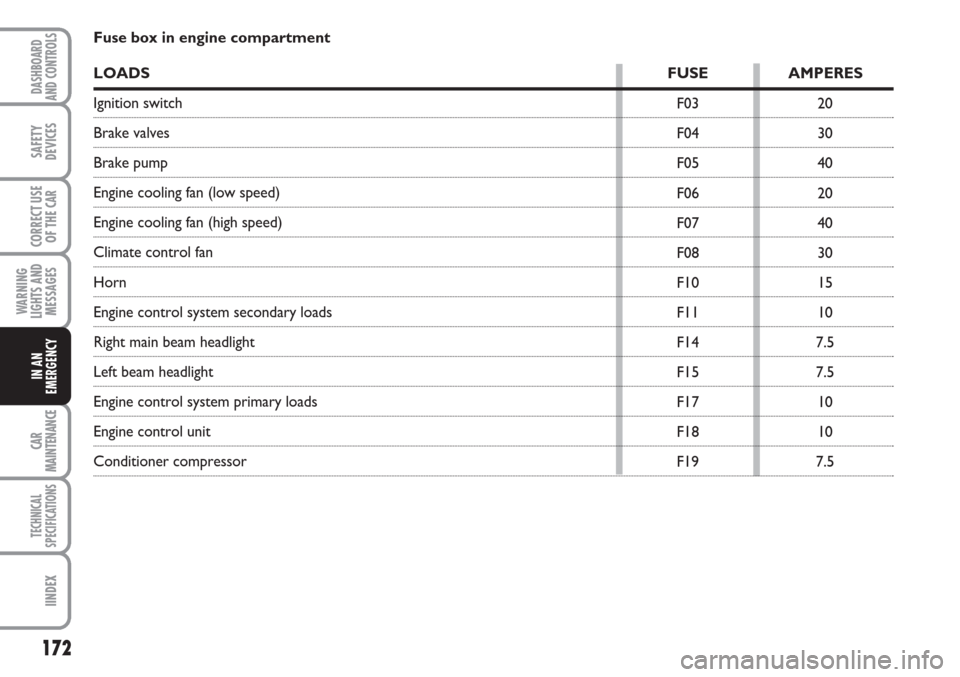

Fuse box in engine compartment
LOADS FUSE AMPERES
Ignition switch
Brake valves
Brake pump
Engine cooling fan (low speed)
Engine cooling fan (high speed)
Climate control fan
Horn
Engine control system secondary loads
Right main beam headlight
Left beam headlight
Engine control system primary loads
Engine control unit
Conditioner compressor

173
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
15
15
20
–
50
15 F21
F22
F23
F24
F00
F30

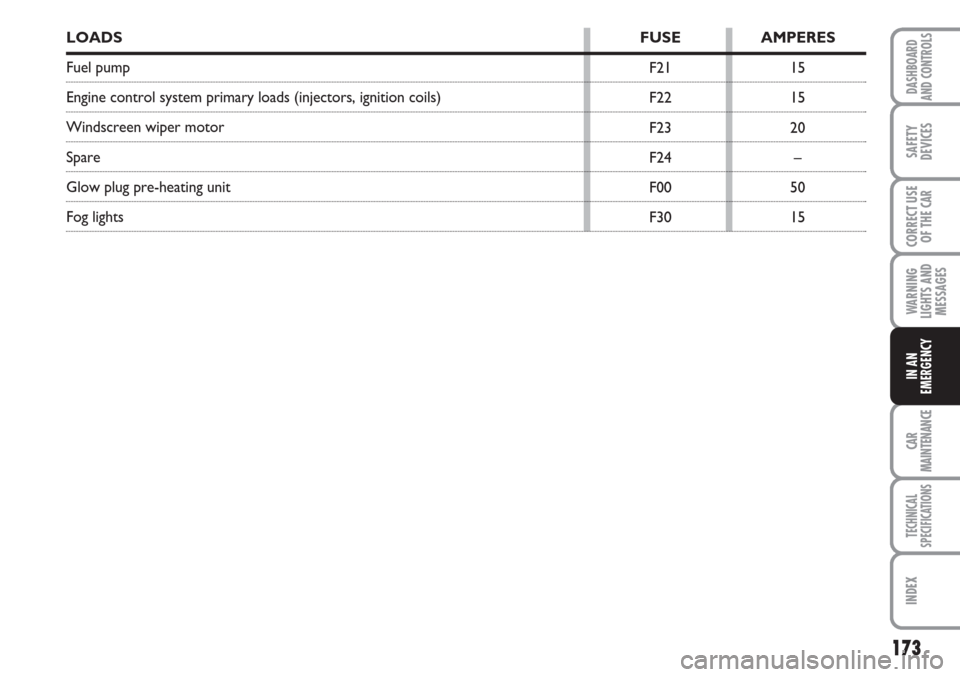

LOADSFUSE AMPERES
Fuel pump
Engine control system primary loads (injectors, ignition coils)
Windscreen wiper motor
Spare
Glow plug pre-heating unit
Fog lights

174
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY

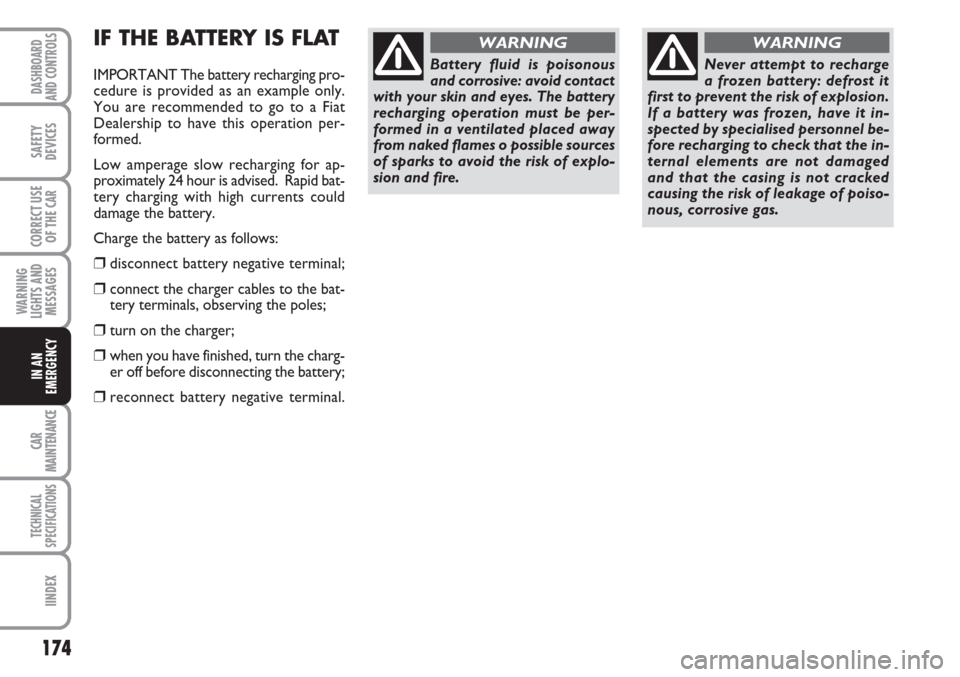

IF THE BATTERY IS FLAT
IMPORTANT The battery recharging pro-
cedure is provided as an example only.
You are recommended to go to a Fiat
Dealership to have this operation per-
formed.
Low amperage slow recharging for ap-
proximately 24 hour is advised. Rapid bat-
tery charging with high currents could
damage the battery.
Charge the battery as follows:
❒disconnect battery negative terminal;
❒connect the charger cables to the bat-
tery terminals, observing the poles;
❒turn on the charger;
❒when you have finished, turn the charg-
er off before disconnecting the battery;
❒reconnect battery negative terminal.
Battery fluid is poisonous
and corrosive: avoid contact
with your skin and eyes. The battery
recharging operation must be per-
formed in a ventilated placed away
from naked flames o possible sources
of sparks to avoid the risk of explo-
sion and fire.
WARNING
Never attempt to recharge
a frozen battery: defrost it
first to prevent the risk of explosion.
If a battery was frozen, have it in-
spected by specialised personnel be-
fore recharging to check that the in-
ternal elements are not damaged
and that the casing is not cracked
causing the risk of leakage of poiso-
nous, corrosive gas.
WARNING

175
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY

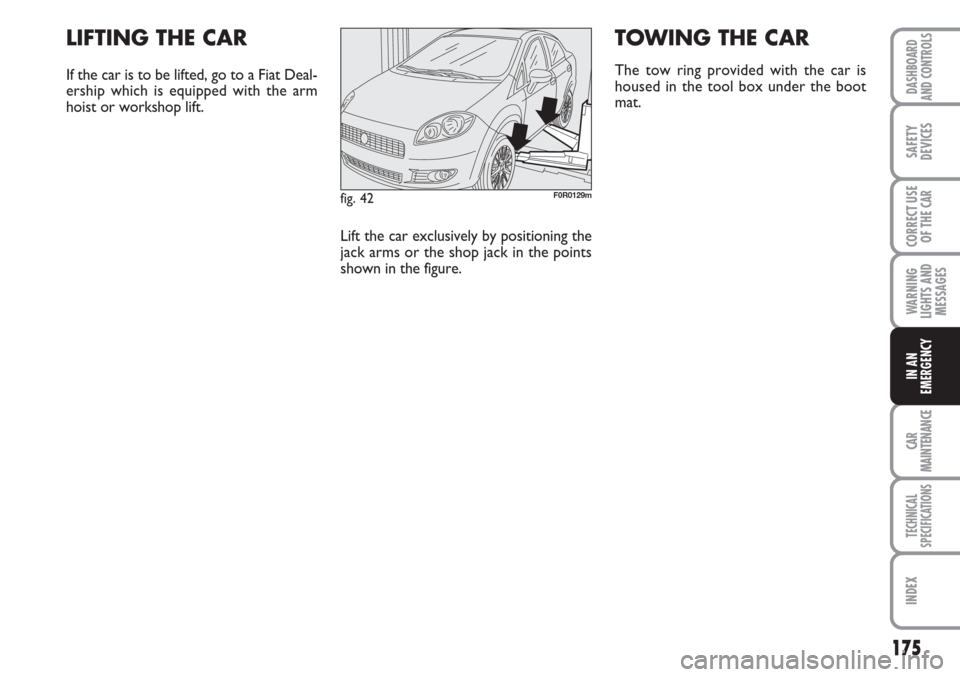

fig. 42F0R0129m
LIFTING THE CAR
If the car is to be lifted, go to a Fiat Deal-
ership which is equipped with the arm
hoist or workshop lift.
Lift the car exclusively by positioning the
jack arms or the shop jack in the points
shown in the figure.
TOWING THE CAR
The tow ring provided with the car is
housed in the tool box under the boot
mat.

176
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY

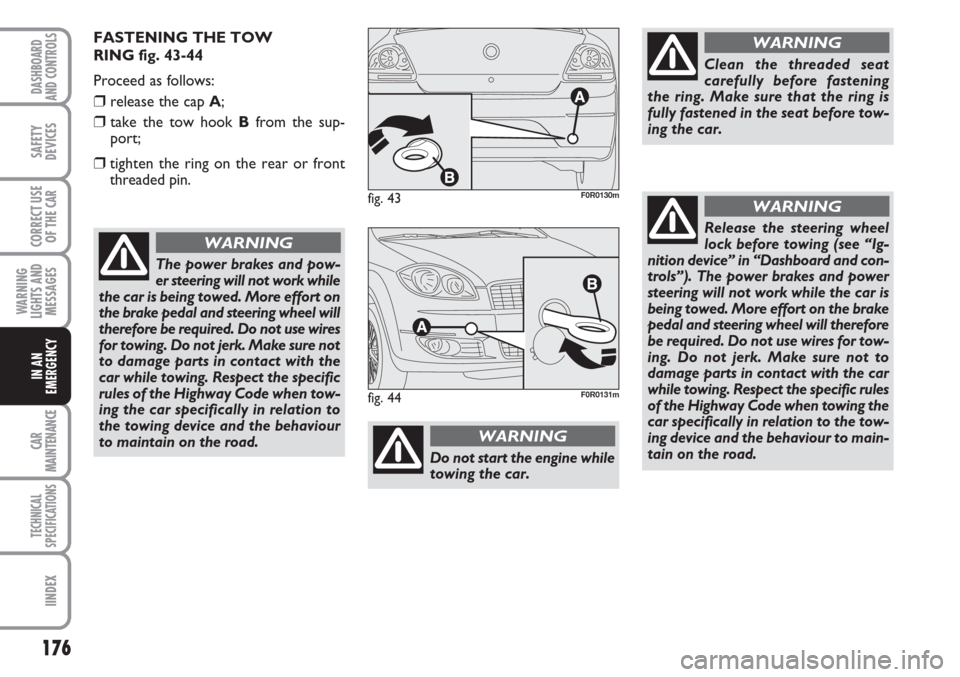

FASTENING THE TOW
RING fig. 43-44
Proceed as follows:
❒release the cap A;
❒take the tow hook Bfrom the sup-
port;
❒tighten the ring on the rear or front
threaded pin.
The power brakes and pow-
er steering will not work while
the car is being towed. More effort on
the brake pedal and steering wheel will
therefore be required. Do not use wires
for towing. Do not jerk. Make sure not
to damage parts in contact with the
car while towing. Respect the specific
rules of the Highway Code when tow-
ing the car specifically in relation to
the towing device and the behaviour
to maintain on the road.
WARNING
fig. 43F0R0130m
fig. 44F0R0131m
Do not start the engine while
towing the car.
WARNING
Clean the threaded seat
carefully before fastening
the ring. Make sure that the ring is
fully fastened in the seat before tow-
ing the car.
WARNING
Release the steering wheel
lock before towing (see “Ig-
nition device” in “Dashboard and con-
trols”). The power brakes and power
steering will not work while the car is
being towed. More effort on the brake
pedal and steering wheel will therefore
be required. Do not use wires for tow-
ing. Do not jerk. Make sure not to
damage parts in contact with the car
while towing. Respect the specific rules
of the Highway Code when towing the
car specifically in relation to the tow-
ing device and the behaviour to main-
tain on the road.
WARNING

177
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE

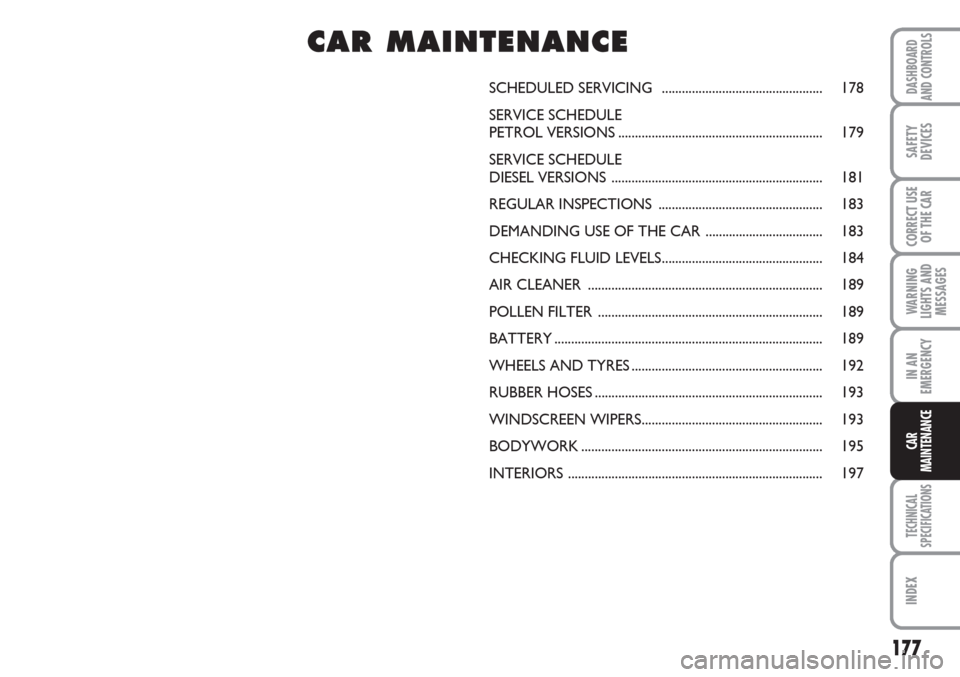

SCHEDULED SERVICING ................................................ 178
SERVICE SCHEDULE
PETROL VERSIONS............................................................. 179
SERVICE SCHEDULE
DIESEL VERSIONS ............................................................... 181
REGULAR INSPECTIONS ................................................. 183
DEMANDING USE OF THE CAR ................................... 183
CHECKING FLUID LEVELS................................................ 184
AIR CLEANER ...................................................................... 189
POLLEN FILTER ................................................................... 189
BATTERY................................................................................ 189
WHEELS AND TYRES......................................................... 192
RUBBER HOSES .................................................................... 193
WINDSCREEN WIPERS...................................................... 193
BODYWORK........................................................................ 195
INTERIORS ............................................................................ 197
CC C
A A
R R
M M
A A
I I
N N
T T
E E
N N
A A
N N
C C
E E

178
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE

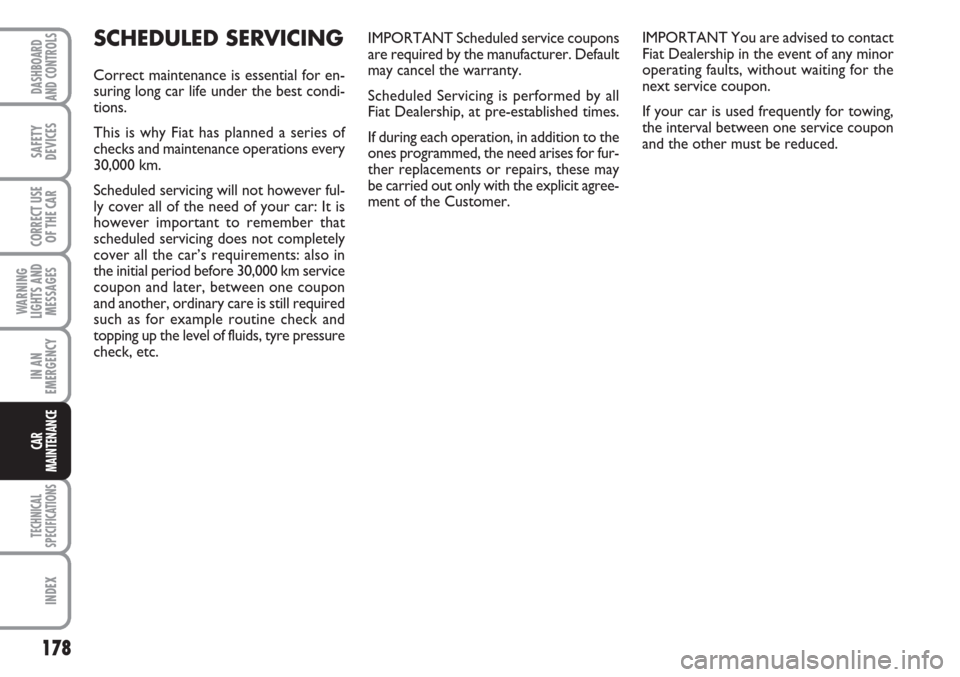

IMPORTANT Scheduled service coupons
are required by the manufacturer. Default
may cancel the warranty.
Scheduled Servicing is performed by all
Fiat Dealership, at pre-established times.
If during each operation, in addition to the
ones programmed, the need arises for fur-
ther replacements or repairs, these may
be carried out only with the explicit agree-
ment of the Customer.IMPORTANT You are advised to contact
Fiat Dealership in the event of any minor
operating faults, without waiting for the
next service coupon.
If your car is used frequently for towing,
the interval between one service coupon
and the other must be reduced.SCHEDULED SERVICING
Correct maintenance is essential for en-
suring long car life under the best condi-
tions.
This is why Fiat has planned a series of
checks and maintenance operations every
30,000 km.
Scheduled servicing will not however ful-
ly cover all of the need of your car: It is
however important to remember that
scheduled servicing does not completely
cover all the car’s requirements: also in
the initial period before 30,000 km service
coupon and later, between one coupon
and another, ordinary care is still required
such as for example routine check and
topping up the level of fluids, tyre pressure
check, etc.

179
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
30 60 90 120 150 180
●●●●● ●
●●●●● ●
●●●●● ●
●●●●● ●
●●●●● ●
●● ●
●●●●● ●
●●●●● ●
●●
●●
●
●●●●● ●
●● ●

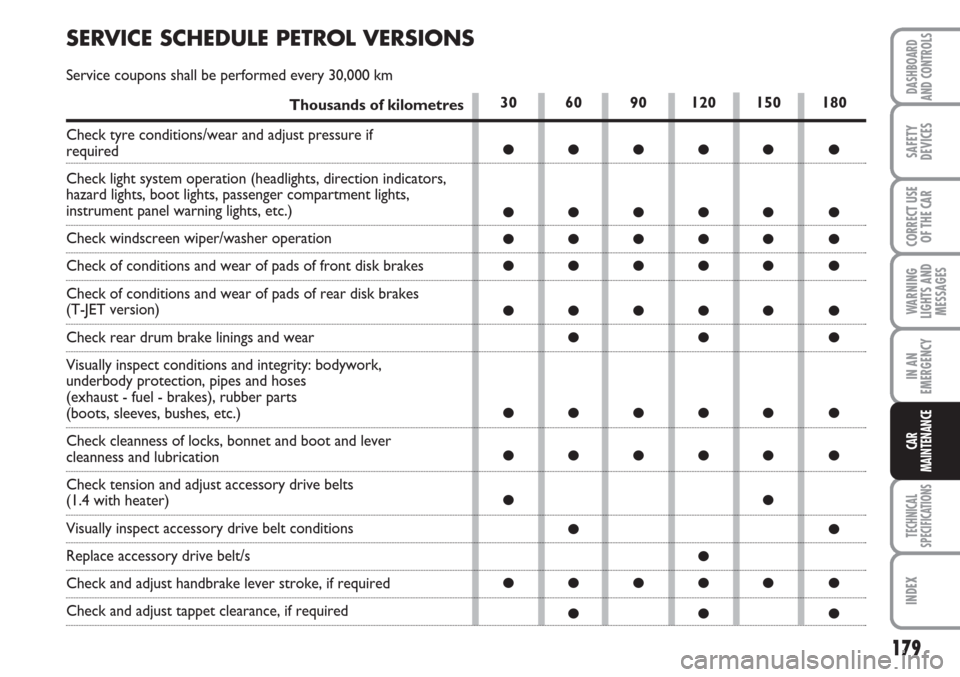

SERVICE SCHEDULE PETROL VERSIONS
Service coupons shall be performed every 30,000 km
Thousands of kilometres
Check tyre conditions/wear and adjust pressure if
required
Check light system operation (headlights, direction indicators,
hazard lights, boot lights, passenger compartment lights,
instrument panel warning lights, etc.)
Check windscreen wiper/washer operation
Check of conditions and wear of pads of front disk brakes
Check of conditions and wear of pads of rear disk brakes
(T-JET version)
Check rear drum brake linings and wear
Visually inspect conditions and integrity: bodywork,
underbody protection, pipes and hoses
(exhaust - fuel - brakes), rubber parts
(boots, sleeves, bushes, etc.)
Check cleanness of locks, bonnet and boot and lever
cleanness and lubrication
Check tension and adjust accessory drive belts
(1.4 with heater)
Visually inspect accessory drive belt conditions
Replace accessory drive belt/s
Check and adjust handbrake lever stroke, if required
Check and adjust tappet clearance, if required
