FIAT LINEA RHD 2010 1.G Owners Manual

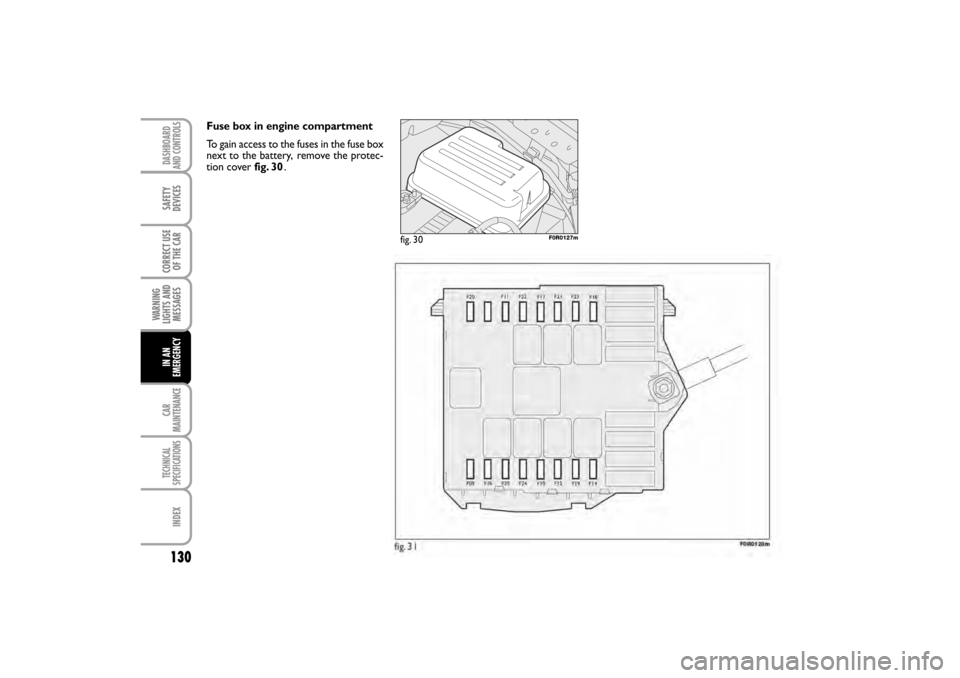

Fuse box in engine compartment
To gain access to the fuses in the fuse box
next to the battery,
remove the protec-
tion cover fig. 30.
fig. 30F0R0127m
fig. 31F0R0128m
130
CORRECT USE
OF THE CAR
AND CONTROLS
DEVICES
MAINTENANCE
SPECIFICATIONS
INDEX
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
DASHBOARD
SAFETY
CAR
TECHNICAL
LINEA Owner HAND BOOK RHD.pdf 130LINEA Owner HAND BOOK RHD.pdf 1308/21/09 2:16:21 PM8/21/09 2:16:21 PM

7.5
7.5
7.5
15
20
20
7.5
7.5
7.5
20
10
30
7.5
20 F12
F13
F31
F32
F33
F34
F35
F36
F37
F38
F39
F40
F42
F43
FUSE TABLE
Fuse box on dashboard
LOADS FUSE AMPERES
Right dipped beam headlight
Left dipped beam headlight, headlight corrector
INT/A for relay coils (T08, T17) in engine compartment fuse box and body
computer node
Subwoofer
Power windows control unit (left rear window motor)
Power windows control unit (right rear window motor)
+15 reversing lights, brake lights control, air mass meter, glow plug pre-heating
unit, water in diesel fuel sensor, tachometer generator, level sensor 2
Power window unit (+30 for electronics)
+15 instrument panel, NA brake lights control
Body computer node
Radio node
Heated rear window
+15 brake system node
Windscreen wiper control (two-way pump)
131
CORRECT USE
OF THE CAR
TECHNICAL
INDEX
DASHBOARD
SAFETY
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
SPECIFICATIONS
AND CONTROLS
DEVICES
LINEA Owner HAND BOOK RHD.pdf 131LINEA Owner HAND BOOK RHD.pdf 1318/21/09 2:16:21 PM8/21/09 2:16:21 PM

LOADS FUSE AMPERES
Cigar lighter or socket
Boot lock actuator
Power window unit (driver’s side front window motor)
Power window unit (passenger’s side front window motor)
+15 control lighting: radio on steering wheel, control panel; power mirrors,
power window unit, alarm setup
+15 airbag node
+15 radio setup, Blu&Me setup
Power window unit, driver’s seat adjustment motor
Body computer and instrument panel node F44
F45
F47
F48
F49
F50
F51
F52
F5315
10
20
20
7.5
7.5
7.5
15
7.5
132
CORRECT USE
OF THE CAR
AND CONTROLS
DEVICES
MAINTENANCE
SPECIFICATIONS
INDEX
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
DASHBOARD
SAFETY
CAR
TECHNICAL
LINEA Owner HAND BOOK RHD.pdf 132LINEA Owner HAND BOOK RHD.pdf 1328/21/09 2:16:21 PM8/21/09 2:16:21 PM

20 70
30
40
20/30
20/30/40
30
15
10
7.5
7.5
15 7.5
10
7.5 F03 F01
F04
F05
F06
F07
F08
F10
F11
F14
F15
F17 F16
F18
F19
Fuse box in engine compartment
LOADS FUSE AMPERES
Ignition switch Dashboard CPL1
Brake valves
Brake pump
Engine cooling fan (low speed)
Engine cooling fan (high speed)
Climate control fan
Horn
Engine control system secondary loads
Right main beam headlight
Left beam headlight
Engine control system primary loads EOBD
Engine control unit
Conditioner compressor
133
CORRECT USE
OF THE CAR
TECHNICAL
INDEX
DASHBOARD
SAFETY
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
SPECIFICATIONS
AND CONTROLS
DEVICES
LINEA Owner HAND BOOK RHD.pdf 133LINEA Owner HAND BOOK RHD.pdf 1338/21/09 2:16:21 PM8/21/09 2:16:21 PM

15
15/20
20
–
50
15 F21
F22
F23
F24
F00
F30
LOADSFUSE AMPERES
Fuel pump
Engine control system primary loads (injectors, ignition coils)
Windscreen wiper motor
Spare
Glow plug pre-heating unit
Fog lights
134
CORRECT USE
OF THE CAR
AND CONTROLS
DEVICES
MAINTENANCE
SPECIFICATIONS
INDEX
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
DASHBOARD
SAFETY
CAR
TECHNICAL
LINEA Owner HAND BOOK RHD.pdf 134LINEA Owner HAND BOOK RHD.pdf 1348/21/09 2:16:21 PM8/21/09 2:16:21 PM

IF THE BATTERY IS FLAT
IMPORTANT The battery recharging pro-
cedure is provided as an example only.
You are recommended to go to a Fiat
Dealership to have this operation
performed.
Low amperage slow
recharging for ap-
proximately 24 hour is advised. Rapid bat-
tery charging with high currents could
damage the battery.
Charge the battery as follows:
disconnect battery negative terminal;
connect the charger cables to the bat-
tery terminals, observing the poles;
turn on the charger;
when you have finished, turn the charg-
er off before disconnecting the battery;
reconnect battery negative terminal.
Battery fluid is poisonous
and corrosive: avoid contact
with your skin and eyes.
The battery
recharging operation must be per-
formed in a ventilated placed away
from naked flames o possible sources
of sparks to avoid the risk of explo-
sion and fire.
WARNING
Never attempt to recharge
a frozen batter y: defrost it
first to prevent the risk of explosion.
If a batter y was frozen,
have it in-
spected by specialised personnel be-
fore recharging to check that the in-
tern al elem ents are not damaged
and tha t the casing is not cracked
causing the risk of leakage of poiso-
nous, corrosive gas.
WARNING
135
CORRECT USE
OF THE CAR
TECHNICAL
INDEX
DASHBOARD
SAFETY
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
SPECIFICATIONS
AND CONTROLS
DEVICES

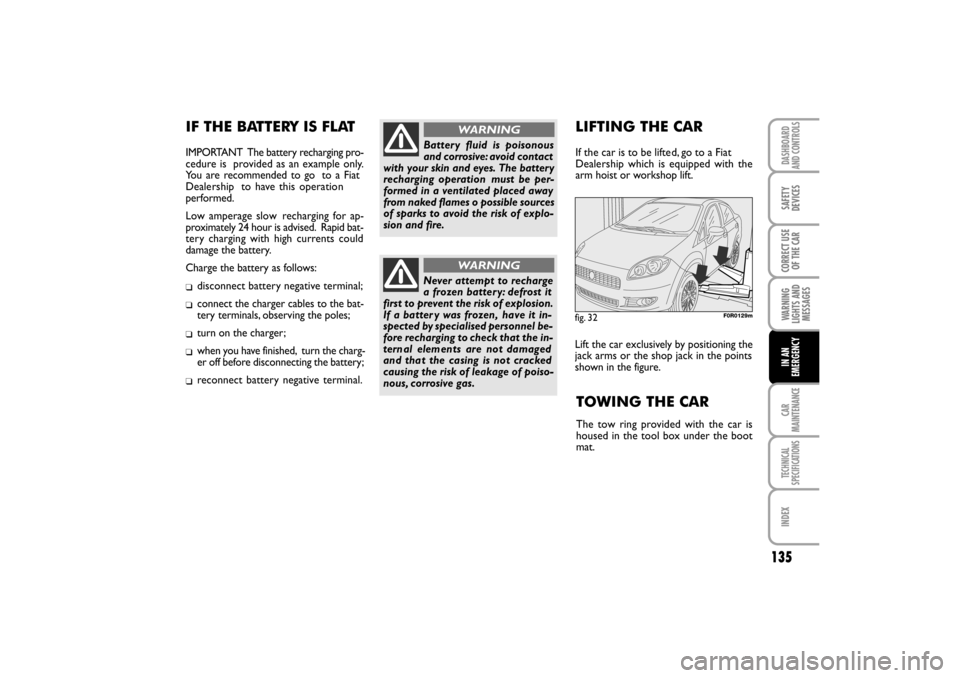

LIFTING THE CAR
If the car is to be lifte d, go to a Fiat
Dealership which is equipped with the
arm hoist or workshop lift.
fig. 32F0R0129m
Lift the car exclusively by positioning the
jack arms or the shop jack in the points
shown in the figure.
TOWING THE CAR
The tow ring provided with the car is
housed in the tool box under the boot
mat.
LINEA Owner HAND BOOK RHD.pdf 135LINEA Owner HAND BOOK RHD.pdf 1358/21/09 2:16:21 PM8/21/09 2:16:21 PM

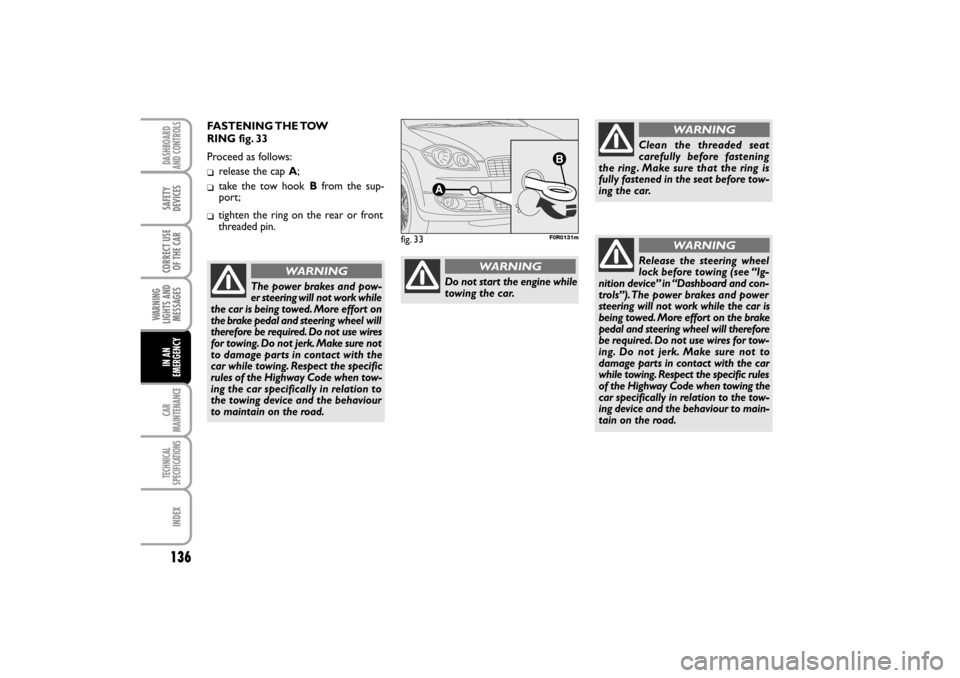

FASTENING THE TOW
RING fig. 33
Proceed as follows:

release the cap A;
take the tow hook Bfrom the sup-
port;
tighten the ring on the rear or front
threaded pin.
The power brakes and pow-
er steering will not work while
the car is being towed. More effort on
the
brake pedal and steering wheel will
therefore be required. Do not use wires
for towing. Do not jerk. Make sure not
to damage parts in contact with the
car while towing. Respect the specific
rules of the Highway Code when tow-
ing the car specifically in relation to
the towing device and the behaviour
to maintain on the road.
WARNING
fig. 33F0R0131m
Do not start the engine while
towing the car.
WARNING
Clean the threaded seat
carefully before fastening
the ring . Make sure that the ring is
fully fastened in the seat before tow-
ing the car.
WARNING
Release the steering wheel
lock before towing (see “Ig-
nition device” in “Dashboard and con-
trols”). The power brakes and power
steering will not work while the car is
being towed. More effort on the brake
pedal and steering wheel will therefore
be required. Do not use wires for tow-
ing. Do not jerk. Make sure not to
damage parts in contact with the car
while towing. Respect the specific rules
of the Highway Code when towing the
car specifically in relation to the tow-
ing device and the behaviour to main-
tain on the road.
WARNING
136
CORRECT USE
OF THE CAR
AND CONTROLS
DEVICES
MAINTENANCE
SPECIFICATIONS
INDEX
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
DASHBOARD
SAFETY
CAR
TECHNICAL
LINEA Owner HAND BOOK RHD.pdf 136LINEA Owner HAND BOOK RHD.pdf 1368/21/09 2:16:21 PM8/21/09 2:16:21 PM

SCHEDULED SERVICING ................................................ 138
SERVICE SCHEDULE
PETROL VERSIONS ............................................................. 139
REGULAR INSPECTIONS ................................................. 143
DEMANDING USE OF THE CAR ................................... 143
CHECKING FLUID LEVELS................................................ 144
AIR CLEANER ...................................................................... 149
POLLEN FILTER ................................................................... 149
BATTERY ................................................................................ 149
WHEELS AND TYRES ......................................................... 152
RUBBER HOSES .................................................................... 153
WINDSCREEN WIPERS ...................................................... 153
BODYWORK ........................................................................ 155
INTERIORS ............................................................................ 157
CC C
A A
R R
M M
A A
I I
N N
T T
E E
N N
A A
N N
C C
E E
137
CAR
MAINTENANCE
CORRECT USE
OF THE CAR
TECHNICAL
INDEX
DASHBOARD
SAFETY
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
SPECIFICATIONS
AND CONTROLS
DEVICESSERVICE SCHEDULE
VERSIONS ............................................................ 1 DIESEL . 41
LINEA Owner HAND BOOK RHD.pdf 137LINEA Owner HAND BOOK RHD.pdf 1378/21/09 2:16:21 PM8/21/09 2:16:21 PM

IMPORTANT Scheduled service coupons
are required by the manufacturer. Default
may cancel the warranty.
Scheduled Servicing is performed by all
Fiat Dealersh ip,
at pre-e stab lished
times.
If during each operation, in addition to the
ones programmed, the need arises for fur-
ther replacements or repairs,
these may
be carried out only with the explicit agree-
ment of the Customer.IMPORTANT
You are advised to contact
Fiat Dealersh ip in the event of any
minor operating faults,
witho ut waiting
for the next service coupon.
If your car is used frequently for towing,
the interval between one service coupon
and the other must be reduced.
SCHEDULED SERVICING
Correct maintenance is essential for en-
suring long car life under the best condi-
tions.
This is why Fiat has planned a series of
checks and
maintenance operations every
Scheduled servicing will not however ful-
ly cover all of the need of your car:
It is
however important to remember that
scheduled servicing
does not completely
cover all the car’s requirements: also in
the
initial period before 20,000 km service
coupon and later, between one coupon
and another,
ordinary care is still required
such as for example routine check and
topping up the level of fluids, tyre pressure
check, touch-up of damages to protective
138
CORRECT USE
OF THE CAR
AND CONTROLS
DEVICES
SPECIFICATIONS
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
DASHBOARD
SAFETY
TECHNICAL
20,000 km.
coating of bodywork, etc.
PETROL ENGINES
LINEA Owner HAND BOOK RHD.pdf 138LINEA Owner HAND BOOK RHD.pdf 1388/21/09 2:16:21 PM8/21/09 2:16:21 PM

20 40 60 80 100 120 140 160 180
SERVICE SCHEDULE PETROL VERSIONS
Service coupons shall be performed every 20,000 kms or every 12 months whichever occur first
Thousands of kilometres
Check tyre conditions/wear and adjust pressure if
necessary
Check operation of lighting system (headlamps,
direction indicators, hazard warning lights, luggage
compartment light, passenger compartment lights,
instrument panel warning lights, etc.)
Check operation of windscreen wash/wipe
Check front disc brake pad condition and wear
Check rear drum brake linings condition and wear
Visually inspect conditions and integrity: exterior
bodywork, underbody protection(**), pipes and hoses
(exhaust - fuel - brakes), rubber parts (boots,
sleeves, bushes, etc.), Oil leakage and Coolant leakage, evaporation control system
Check cleanness of locks, bonnet and boot and
lever cleanness and lubrication
Visually inspect condition of the auxiliary drive belt/s
and accessory drive belt
Replace auxiliary drive belt/s and accessory drive
belt
Check handbrake lever travel and adjust if necessary
Replace fuel filter
Replace air filter cartridge ( )
139
CAR
MAINTENANCE
CORRECT USE
OF THE CAR
TECHNICAL
INDEX
DASHBOARD
SAFETY
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
SPECIFICATIONS
AND CONTROLS
DEVICES
LINEA Owner HAND BOOK RHD.pdf 139LINEA Owner HAND BOOK RHD.pdf 1398/21/09 2:16:22 PM8/21/09 2:16:22 PM
