FIAT LINEA RHD 2010 1.G Owners Manual

IMPORTANT The front air bags may be
deployed if the car is subject to heavy kno-
cks or accidents involving the underbody
area, such as for example violent shocks,
against steps, kerbs of low obstacles, fall-
ing of the car in big holes or sags in the
road.
IMPORTANT A small amount of dust will
be rele ase d when the airb ags are de-
ployed. The dust is not harmful and does
not indicate the beginning of a fire. Fur-
thermore, the surface of the deployed bag
and the interior of the car may be covered
in a dusty residue: this dust may irritate
the skin and the eyes. Wash with mild
soap and water in the event of exposure.
The expiration date of the explosive
charge and the clock wire are shown on a
specific label contained in the oddment
compartment. Go to a Fiat Dealership
to have the devices replaced when
the expiration date approaches.
IMPORTANT Should an accident occur in
which any of the safety devices is activat-
ed, take the car to a Fiat Dealership
to have the devices activated replaced
and to have the system checked.
All inspection, repair and replacement op-
erations concerning the air bags must on-
ly be carried out c/o Fiat Dealership.If you are having the car scrapped, have
the air bag system deactivated at a Fiat
Deal ers hi p firs t. If the car chang es
ownership, the new owner must be info-
rmed of the meth od of us e of ai r ba gs
and the above warnings and also be gi-
ven this “Owner’s Handbook”.
IMPORTANT Pretensioners, front airbags
are deployed according to different logics
on the basic of the type of collision. Non
depl oym ent of one of the de vi ces does
not therefore indicate a system fault.

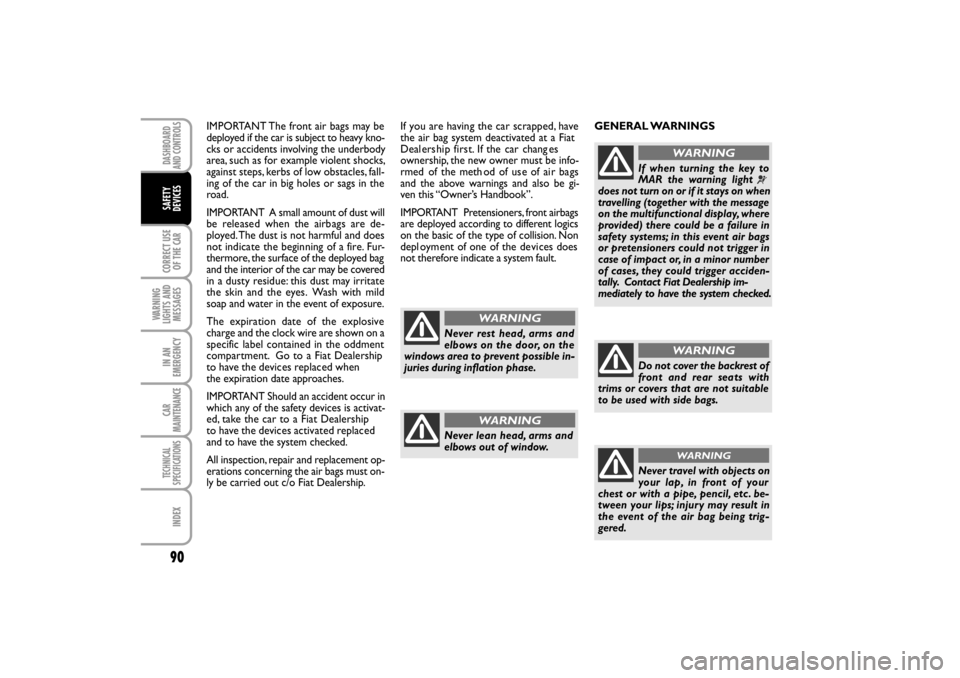

Never rest head, arms and
elbows on the door, on the
windows area to prevent possible in-
juries during inflation phase.
WARNING
Never lean head, arms and
elbows out of window.
WARNING
GENERAL WARNINGS
If when turning the key to
MAR the warning light
does not turn on or if it stays on when
travelling (together with the message
on the multifunctional display, where
provided) there could be a failure in
safety systems; in this event air bags
or pretensioners could not trigger in
case of impact or, in a minor number
of cases, they could trigger acciden-
tally. Contact Fiat Dealership im-
mediately to have the system checked.
WARNING
Do not cover the backrest of
front and rear sea ts with
trims or covers that are not suitable
to be used with side bags.
WARNING
Never travel with objects on
your lap , in front of your
chest or with a pipe, pencil, etc. be-
tween your lips; injury may result in
the event of the air bag being trig -
gered.
WARNING
90
AND CONTROLS
DEVICES
CORRECT USE
OF THE
CAR
MESSAGES
EMERGENCY
MAINTENANCE
SPECIFICATIONS
INDEX
DASHBOARD
SAFETY
LIGHTS AND
CAR
IN AN
TECHNICAL
WARNING
LINEA Owner HAND BOOK RHD.pdf 90LINEA Owner HAND BOOK RHD.pdf 908/21/09 2:16:13 PM8/21/09 2:16:13 PM

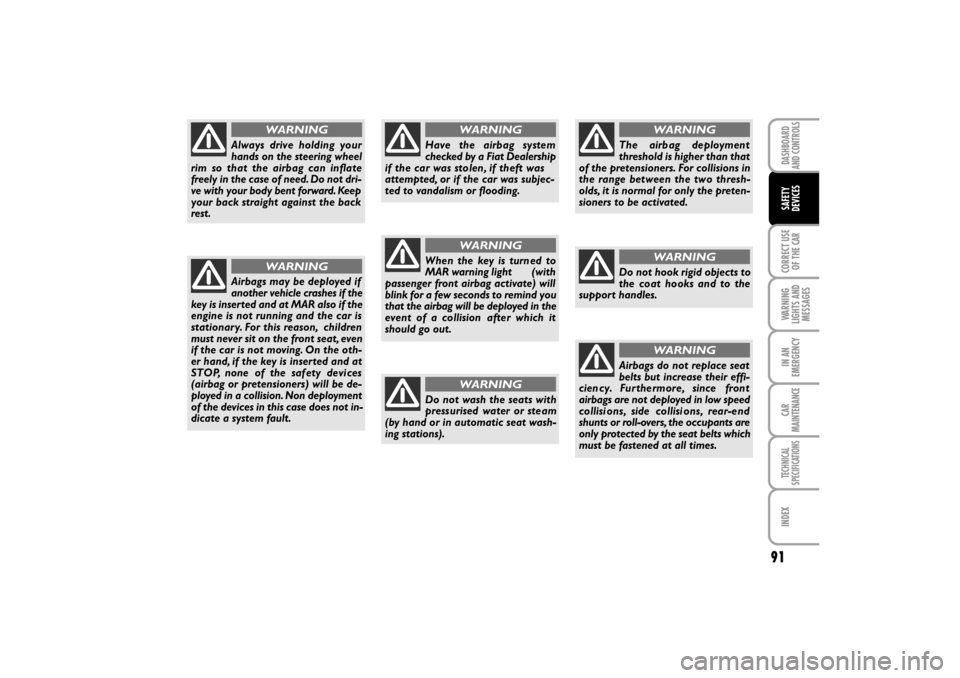

Always drive holding your
hands on the steering wheel
rim so that the airbag can inflate
freely in the case of need. Do not dri-
ve with your body bent forward. Keep
your back straight against the back
rest.
WARNING
Airbags may be deployed if
another vehicle crashes if the
key is inserted and at MAR also if the
engine is not running and the car is
stationary. For this reason, children
must never sit on the front seat, even
if the car is not moving. On the oth-
er hand, if the key is inserted and at
STOP, none of the saf ety devi ces
(airbag or pretensioners) will be de-
ployed in a collision. Non deployment
of the devices in this case does not in-
dicate a system fault.
WARNING
Do not wash the seats with
press urised water or ste am
(by hand or in automatic seat wash-
ing stations).
WARNING
The airb ag deployment
threshold is higher than that
of the pretensioners. For collisions in
the range between the two thresh-
olds, it is normal for only the preten-
sioners to be activated.
WARNING
Do not hook rigid objects to
the coat hooks and to the
support handles.
WARNING
Airbags do not replace seat
belts but increase their effi-
cien cy. Fur the rmore , since front
airbags are not deployed in low speed
collisi ons, side collisi ons, rear-e nd
shunts or roll-overs, the occupants are
only protected by the seat belts which
must be fastened at all times.
WARNING
When the key is turn ed to
MAR warning light (with
passenger front airbag activate) will
blink for a few seconds to remind you
that the airbag will be deployed in the
event of a collision after which it
should go out.
WARNING
Have the airbag system
checked by a Fiat Dealership
if the car was sto len , if theft was
attempted, or if the car was subjec-
ted to vandalism or flooding.
WARNING
91
CORRECT USE
OF THE
CAR
WARNING
IN AN
CAR
TECHNICAL
INDEX
DASHBOARD
SAFETY
LIGHTS AND
EMERGENCY
MAINTENANCE
SPECIFICATIONS
AND CONTROLS
DEVICES
MESSAGES
LINEA Owner HAND BOOK RHD.pdf 91LINEA Owner HAND BOOK RHD.pdf 918/21/09 2:16:13 PM8/21/09 2:16:13 PM

ENGINE STARTING ........................................................... 93
PARKING THE CAR ............................................................ 96
USING THE MANUAL GEARBOX ................................. 97
CONTAINING RUNNING COSTS ................................. 98
CAR INACTIVITY ............................................................... 100
CC C
O O
R R
R R
E E
C C
T T
U U
S S
E E
O O
F F
T T
H H
E E
C C
A A
R R
92
CORRECT USE
OF THE CAR
AND CONTROLS
DEVICES
EMERGENCY
MAINTENANCE
SPECIFICATIONS
INDEX
MESSAGES
DASHBOARD
SAFETY
LIGHTS AND
IN AN
CAR
TECHNICAL
WARNING
LINEA Owner HAND BOOK RHD.pdf 92LINEA Owner HAND BOOK RHD.pdf 928/21/09 2:16:13 PM8/21/09 2:16:13 PM

ENGINE STARTING
The car is provided with an electronic en-
gine lock device: refer to “The Fiat CODE
system” paragraph in “Dashboard and
controls” if you cannot start the engine.
The engine may be noisier during the first
seconds of operation, particularly after a
long period of inactivity. This is charac-
teristic of hydraulic tappets, the timing sys-
tem chosen to reduce the number of ser-
vicing interventions and does effects nei-
ther functionality nor reliability.
It is advisable not to demand
maximum performance from
your car (e.g. excessive accel-
erations, long distances at top
rpm, excessive intense braking, etc.) as
soon as the engine is started.
Do not leave the key in the ig-
nition switch with the engine
off to avoid unnecessary con-
sumption of electricity which
could drain the battery. It is dangerous
to run the engin e in clo sed environ-
ments.
Running the engine in con-
fined areas is extremely dan-
gerous. The engine consumes oxygen
and produces carbo n monoxide
which is a highly toxic and lethal gas.
WARNING
Remember that the brake
booster and power steering
are not operational until the engine
has been started, therefore much ef-
for t than usual is required on the
brake pedal and steering wheel.
WARNING
STARTING PROCEDURE FOR
PETROL VERSIONS
Proceed as follows:
ensure that the handbrake is up;
put the gear lever into neutral;
press the clutch pedal down to the
floor without touching the accelerator;
turn the ignition key to AV Vand let
it go the moment the engine starts.
If the engine does not start at the first at-
tempt,
return the ignition key to STOP
before repeating starting.




93
CORRECT USE
OF THE CAR
WARNING
IN AN
CAR
TECHNICAL
INDEX
DASHBOARD
SAFETY
LIGHTS AND
EMERGENCY
MAINTENANCE
SPECIFICATIONS
AND CONTROLS
DEVICES
MESSAGES
LINEA Owner HAND BOOK RHD.pdf 93LINEA Owner HAND BOOK RHD.pdf 938/21/09 2:16:13 PM8/21/09 2:16:13 PM

If, when the ignition key is at MAR, the in-
strument panel warning light remains
lit together with warning light turn the
key to STOPand then back to MAR; r e -
main on, try with the other keys provid-
ed with the car.
IMPORTANT if on the instrument
panel remains on and steady,
go to a Fiat
Dealership immediately.
IMPORTANT
Never leave the ignition key
to MARwhen the engine is off.STARTING PROCEDURE FOR
DIESEL VERSIONS
Proceed as follows:
ensure that the handbrake is up;
put the gear lever into neutral;
turn the ignition key to MAR; instru-
ment panel warning lights and
will light up;
wait for the warning light e to
turn off. The hotter the engine is, the
quicker this will happen;
press the clutch pedal down to the
floor without touching the accelerator;
turn the ignition key to AV Vas soon
as warning light goes out. Waiting
too long will waste the work done by
the glow plugs. Release the key as soon
as the engine starts.If the engine does not start at the first at-
tempt, return the ignition key to STOP
before repeating starting.
If, when the ignition key is at MAR, the
instrument panel warning light re-
mains lit together with warning light
turn the key to STOPand then back to
MAR; if the warning lights remain on, try
with the other keys provided with the car.
IMPORTANT If the instrument panel
warning light
stays on glowing
steadily, contact immediately Fiat
Dealership.
IMPORTANT Never leave the ignition key
to MARwhen the engine is off.
Warning light will blink
for 60 seconds after starting
or during prolonged cranking
to indicate a fault to the glow
plug heating system.
Use the car nor-
mally if the engine starts and go to a
Fiat Dealership as soon as possible.



94
CORRECT USE
OF THE CAR
AND CONTROLS
DEVICES
EMERGENCY
MAINTENANCE
SPECIFICATIONS
INDEX
MESSAGES
DASHBOARD
SAFETY
LIGHTS AND
IN AN
CAR
TECHNICAL
WARNING
LINEA Owner HAND BOOK RHD.pdf 94LINEA Owner HAND BOOK RHD.pdf 948/21/09 2:16:13 PM8/21/09 2:16:13 PM

STOPPING THE ENGINE
Turn the ignition to STOPwhile the en-
gine is idling.
IMPORTANT After a taxing drive, you
should allow the engine to “catch its
breath” before turning it off by letting it
idle to allow the temperature in the en-
gine compartment to fall.
A quick burst on the acceler-
ator before turning off the en-
gine serves absolutely no
practic al purpose , it waste s
fuel and is damaging especially to tur-
bocharged engines.HOW TO WARM UP THE
ENGINE AFTER IT HAS JUST
STARTED
(petrol and diesel engines)
Proceed as follows:
drive off slowly, letting the engine turn
at medium revs. Do not accelerate
abruptly;
do not demand too high performance
for the first few kilometres. Wait until
the engine coolant gauge starts moving.
Remember that the brake
booster and power steering
are not operational until the
engine has been star ted,
therefore much effort than usual is re-
quired on the brake pedal and steering
wheel.Never jump start the engine
by pushing, towing or driving
downhill. This could cause a
flow of fuel into the catalyt-
ic converter and damage it beyond re-
pair.


95
CORRECT USE
OF THE CAR
WARNING
IN AN
CAR
TECHNICAL
INDEX
DASHBOARD
SAFETY
LIGHTS AND
EMERGENCY
MAINTENANCE
SPECIFICATIONS
AND CONTROLS
DEVICES
MESSAGES
LINEA Owner HAND BOOK RHD.pdf 95LINEA Owner HAND BOOK RHD.pdf 958/21/09 2:16:14 PM8/21/09 2:16:14 PM

HANDBRAKE fig. 1
The handbrake lever is located between
the two front seats.
Pull the lever upwards to operate the
handbrake. Four or five notches are nor-
mally sufficient to lock the car on flat ter-
rain, while nine or ten may be necessary
on a steep slope with the car loaded.
IMPORTANT If this is not the case, con-
tact Fiat Dealership to have the hand-
brake adjusted.
When the handbrake lever is pulled up
and the ignition key is atMAR, the in-
strument panel warning light will turn
on.
PARKING THE CAR
Proceed as follows:
stop the engine and engage the hand-
brake;
engage a gear (on a slope, engage first
gear if the car is faced uphill or reverse
if it is faced downhill) and leave the
wheels steered.
If the car is parked on a steep slope, it is
further advisable to block the wheels with
a wedge or stone. Do not leave the key in
the ignition switch to prevent draining the
battery. Always remove the key when you
leave the car.
Never leave children unat-
tended in the car. Always re-
move the ignition key when leaving
the car and take it out with you.
WARNING
fig. 1F0R0103m
Proceed as followed to release the hand-
brake:

slightly lift the handbrake and press re-
lease button A;
hold button Apressed and lower the
lever. Warning light on the instru-
ment panel will go out.
Press the brake pedal when carrying out
this operation to prevent the car from
moving accidentally.


96
CORRECT USE
OF THE CAR
AND CONTROLS
DEVICES
EMERGENCY
MAINTENANCE
SPECIFICATIONS
INDEX
MESSAGES
DASHBOARD
SAFETY
LIGHTS AND
IN AN
CAR
TECHNICAL
WARNING
LINEA Owner HAND BOOK RHD.pdf 96LINEA Owner HAND BOOK RHD.pdf 968/21/09 2:16:14 PM8/21/09 2:16:14 PM

USING THE MANUAL
GEARBOX
To engage the gears, press the clutch ped-
al fully and shift the gear lever into one of
the required positions (the diagram is
shown on the knob fig. 2).
IMPORTANT Reverse may only be en-
gaged when the car is at a standstill. With
the engine running, wait for at least 2 sec-
onds with the clutch pedal fully pressed
before engaging reverse to prevent dam-
age to the gears and grating.
fig. 2F0R0154m
Press the clutch pedal fully
to change gears correctly.
For this reason, there must be no ob-
stacles on the floor under the pedals:
make sure that mat are always flat
and do not interfere with the pedals.
WARNING
Do not drive with your hand
resting on the gear lever as
the force exer ted, even if
slight, could lead over time to
premature wear on the gearbox inter-
nal components.To engage reverse R from neutral position,
shift the lever right-wards and then back
fig. 2.
97
CORRECT USE
OF THE CAR
WARNING
IN AN
CAR
TECHNICAL
INDEX
DASHBOARD
SAFETY
LIGHTS AND
EMERGENCY
MAINTENANCE
SPECIFICATIONS
AND CONTROLS
DEVICES
MESSAGES
LINEA Owner HAND BOOK RHD.pdf 97LINEA Owner HAND BOOK RHD.pdf 978/21/09 2:16:14 PM8/21/09 2:16:14 PM

Electric devices
Use electric devices only for the amount
of time needed. Rear heated window, ad-
ditional headlights, windscreen wipers and
heater fan need a considerable amount of
energy, therefore increasing the require-
ment of current increases fuel consump-
tion (up to +25% in the urban cycle).
Climate control
The climate control system requires high-
er fue l consumptio n (up to +20% in av-
erage): use the air vents when the exter-
nal temperature allows to.
Spoilers
The use of non-c erti fied aerodynamic
item s may advers ely affe ct air drag and
consumption levels.DRIVING STYLE
Starting
Do not warm the engine up with the car
standing: the engine warms up very slow-
ly in these condition s, increasing con-
sumption and emissions. It is advisable to
start off immediately and slowly keeping
the engine speed down: the engine will
warm up much faster this way.
Unnecessary actions
Avoid revving up when starting at traffic
lights or before stopping the engine. The
latter action, like doubling the clutch, is un-
necessary and causes increase of con-
sumption and pollution.
Gear selection
Use a higher gear as soon as traffic and
road conditions allow. Using a low gear
for faster acceleration will increase con-
sumption.
In the same way improper use of a high
gear increases consumption, emissions an
engine wear.CONTAINING
RUNNING COSTS
Here are some suggestions which may
help you to keep the running costs of your
car down and lower the amount of toxic
emissions released into the atmosphere.
GENERAL CONSIDERATIONS
Car maintenance
Have checks and adjustments carried out
in accordance with the “Service schedule”.
Ty r e s
Check tyre pressure regularly at least
once ever y four weeks: excessively low
pressure will increase consumption be-
cause rolling resistance will be higher.
Unnecessary loads
Do not travel with too much luggage
stowed in the boot. The weight of the car
(especially when driving in town) and its
trim greatly affects consumption and sta-
bility.
98
CORRECT USE
OF THE CAR
AND CONTROLS
DEVICES
EMERGENCY
MAINTENANCE
SPECIFICATIONS
INDEX
MESSAGES
DASHBOARD
SAFETY
LIGHTS AND
IN AN
CAR
TECHNICAL
WARNING
LINEA Owner HAND BOOK RHD.pdf 98LINEA Owner HAND BOOK RHD.pdf 988/21/09 2:16:14 PM8/21/09 2:16:14 PM

CONDITIONS OF USE
Cold starting
Short distances and frequent cold start-ups
will prevent the engine from reaching op-
timal running temperature. Consequently,
both consumption (from +15 to +30% on
urban cycle ) and emissions will increase.
Traffic and
road conditions
Rather high consumption is caused by
heavy traffic, for instance when travelling
in a queue with frequent use of low gears
or in cities with many traffic lights. Moun-
tain and rough roads also have a negative
effect on consumption.Traffic hold-ups
During prolonged hold-ups (level crossings)
the engine should be switched off. Top speed
Fuel consumption considerably increases
as speed increases. Keep your speed as
even as possible,
avoiding unnecessary
braking and acceleration which cause ex-
cessive fuel consumption and increase
emissions.
Acceleration
Sudden acceleration has a very negative
effect on consumptions and emissions: ac-
celerate gradually and do not go over the
maximum torque ratio.
