tow FIAT MULTIPLA 2004 1.G Connect NavPlus Manual

33
CONNECT NAV
NAVIGATOR
S S
A A
T T
E E
L L
L L
I I
T T
E E
N N
A A
V V
I I
G G
A A
T T
I I
O O
N N
The Satellite Navigator will help you
reach destinations rapidly and safely.
After switching the navigation function
on, voice messages will guide you to
your destination. Driving advice, dis-
tances and probable time required to
reach the destination will be shown on
the display.
The car’s position is defined on the
basis of the electronic speedometer
signal, of a gyroscope and of the sig-
nals transmitted by the GPS (Global
Positioning System) satellites.
The sound/navigation system com-
pares the data against the maps stored
on the navigation CD-ROM and cal-
culates both the position and the
routes to reach the destination.
ROUTE GUIDANCE
Proceed as follows:
1) insert the CD ROM specific to the
country you are travelling in2) press the NAV button (12). The
main navigation menu will be started
fig. 33
3) enter the destination.

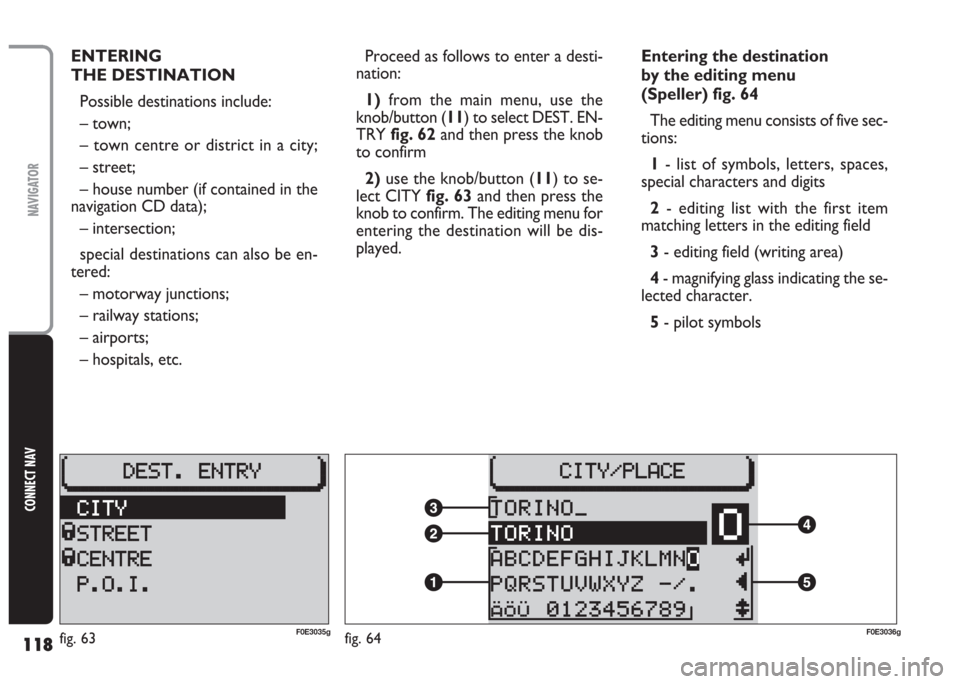

DESTINATION ENTRY
Possible destinations include:
– town;
– town centre or district in a city;– street;
– house number (if contained in the
navigation CD data);
– intersection;
special destinations can also be en-
tered:
– motorway junctions;
– railway stations;
– airports;
– hospitals, etc.
fig. 33F0E3033gfig. 34F0E3034g

36
CONNECT NAV
NAVIGATOR

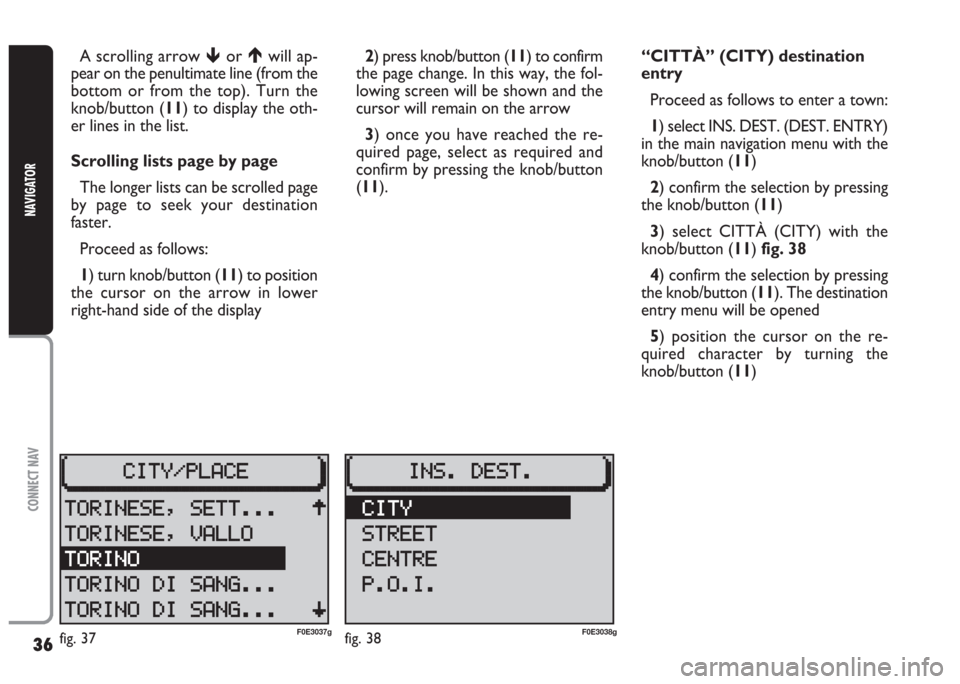

A scrolling arrow or will ap-
pear on the penultimate line (from the
bottom or from the top). Turn the
knob/button (11) to display the oth-
er lines in the list.
Scrolling lists page by page
The longer lists can be scrolled page
by page to seek your destination
faster.
Proceed as follows:
1) turn knob/button (11) to position
the cursor on the arrow in lower
right-hand side of the display2) press knob/button (11) to confirm
the page change. In this way, the fol-
lowing screen will be shown and the
cursor will remain on the arrow
3) once you have reached the re-
quired page, select as required and
confirm by pressing the knob/button
(11).“CITTÀ” (CITY) destination
entry
Proceed as follows to enter a town:
1) select INS. DEST. (DEST. ENTRY)
in the main navigation menu with the
knob/button (11)
2) confirm the selection by pressing
the knob/button (11)
3) select CITTÀ (CITY) with the
knob/button (11) fig. 38
4) confirm the selection by pressing
the knob/button (11). The destination
entry menu will be opened
5) position the cursor on the re-
quired character by turning the
knob/button (11)
fig. 37F0E3037gfig. 38F0E3038g

37
CONNECT NAV
NAVIGATOR

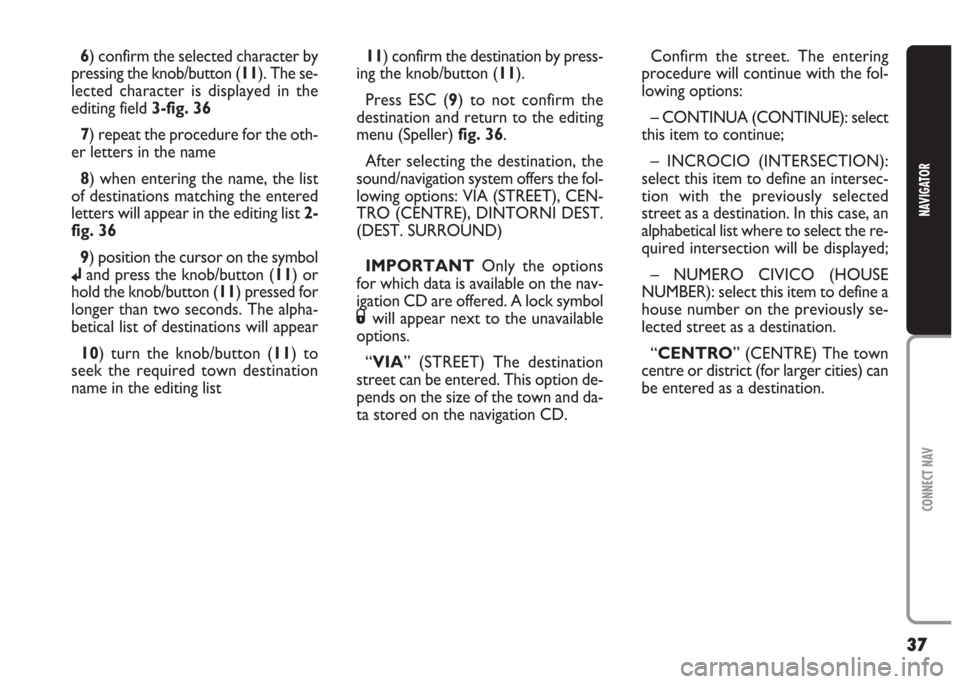

6) confirm the selected character by
pressing the knob/button (11). The se-
lected character is displayed in the
editing field 3-fig. 36
7) repeat the procedure for the oth-
er letters in the name
8) when entering the name, the list
of destinations matching the entered
letters will appear in the editing list 2-
fig. 36
9) position the cursor on the symbol
jand press the knob/button (11) or
hold the knob/button (11) pressed for
longer than two seconds. The alpha-
betical list of destinations will appear
10) turn the knob/button (11) to
seek the required town destination
name in the editing list11) confirm the destination by press-
ing the knob/button (11).
Press ESC (9) to not confirm the
destination and return to the editing
menu (Speller) fig. 36.
After selecting the destination, the
sound/navigation system offers the fol-
lowing options: VIA (STREET), CEN-
TRO (CENTRE), DINTORNI DEST.
(DEST. SURROUND)
IMPORTANT Only the options
for which data is available on the nav-
igation CD are offered. A lock symbol
Swill appear next to the unavailable
options.
“VIA” (STREET) The destination
street can be entered. This option de-
pends on the size of the town and da-
ta stored on the navigation CD.Confirm the street. The entering
procedure will continue with the fol-
lowing options:
– CONTINUA (CONTINUE): select
this item to continue;
– INCROCIO (INTERSECTION):
select this item to define an intersec-
tion with the previously selected
street as a destination. In this case, an
alphabetical list where to select the re-
quired intersection will be displayed;
– NUMERO CIVICO (HOUSE
NUMBER): select this item to define a
house number on the previously se-
lected street as a destination.
“CENTRO” (CENTRE) The town
centre or district (for larger cities) can
be entered as a destination.

38
CONNECT NAV
NAVIGATOR

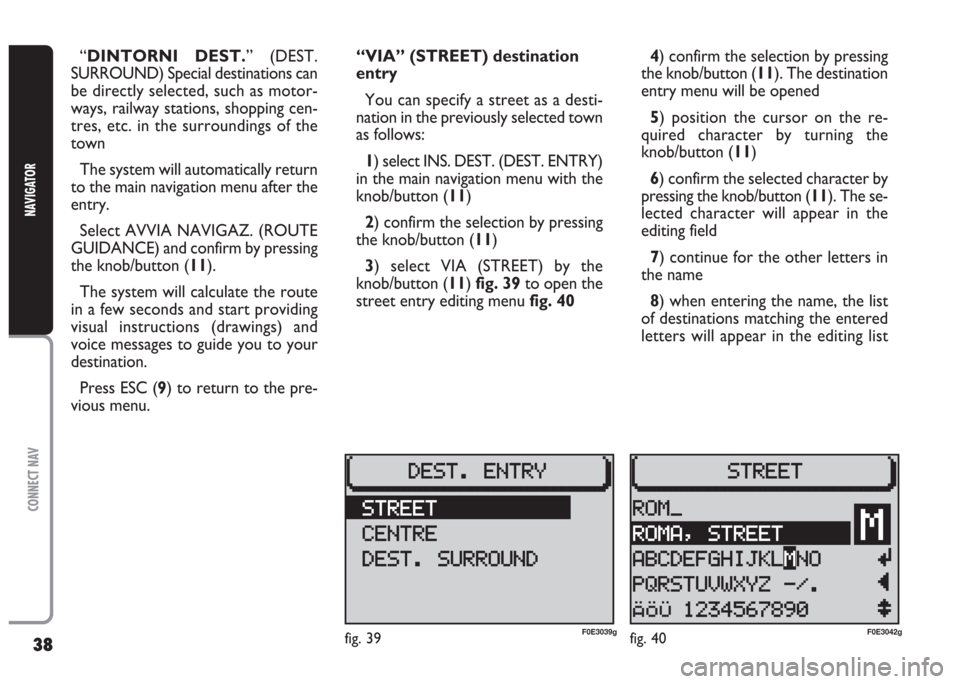

“DINTORNI DEST.” (DEST.
SURROUND) Special destinations can
be directly selected, such as motor-
ways, railway stations, shopping cen-
tres, etc. in the surroundings of the
town
The system will automatically return
to the main navigation menu after the
entry.
Select AVVIA NAVIGAZ. (ROUTE
GUIDANCE) and confirm by pressing
the knob/button (11).
The system will calculate the route
in a few seconds and start providing
visual instructions (drawings) and
voice messages to guide you to your
destination.
Press ESC (9) to return to the pre-
vious menu.“VIA” (STREET) destination
entry
You can specify a street as a desti-
nation in the previously selected town
as follows:
1) select INS. DEST. (DEST. ENTRY)
in the main navigation menu with the
knob/button (11)
2) confirm the selection by pressing
the knob/button (11)
3) select VIA (STREET) by the
knob/button (11) fig. 39to open the
street entry editing menu fig. 404) confirm the selection by pressing
the knob/button (11). The destination
entry menu will be opened
5) position the cursor on the re-
quired character by turning the
knob/button (11)
6) confirm the selected character by
pressing the knob/button (11). The se-
lected character will appear in the
editing field
7) continue for the other letters in
the name
8) when entering the name, the list
of destinations matching the entered
letters will appear in the editing list
fig. 39F0E3039gfig. 40F0E3042g

40
CONNECT NAV
NAVIGATOR

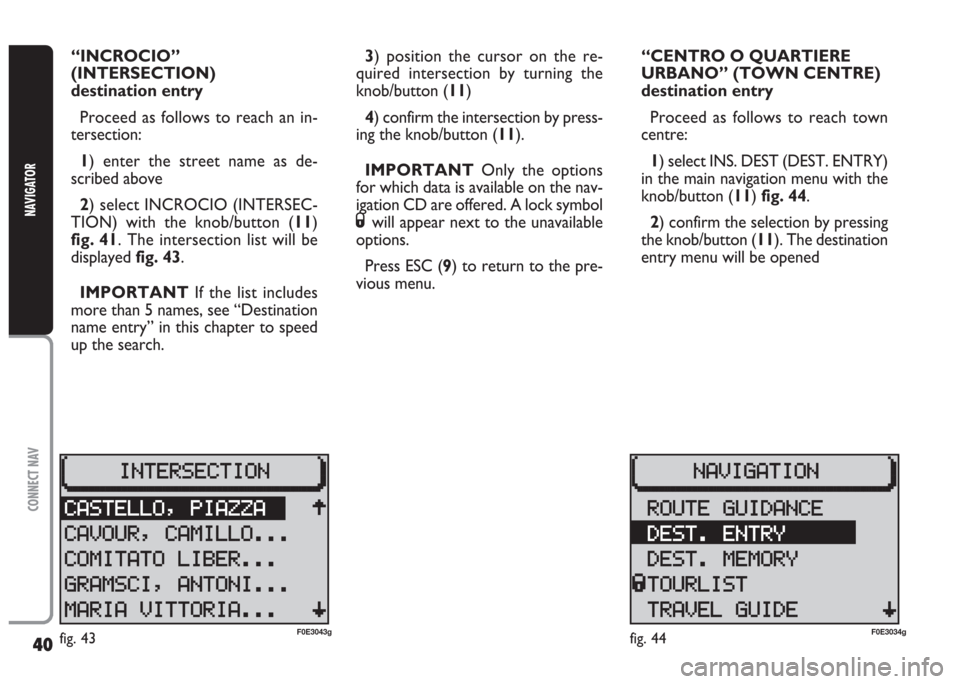

“INCROCIO”
(INTERSECTION)
destination entry
Proceed as follows to reach an in-
tersection:
1) enter the street name as de-
scribed above
2) select INCROCIO (INTERSEC-
TION) with the knob/button (11)
fig. 41. The intersection list will be
displayed fig. 43.
IMPORTANT If the list includes
more than 5 names, see “Destination
name entry” in this chapter to speed
up the search.3) position the cursor on the re-
quired intersection by turning the
knob/button (11)
4) confirm the intersection by press-
ing the knob/button (11).
IMPORTANT Only the options
for which data is available on the nav-
igation CD are offered. A lock symbol
Swill appear next to the unavailable
options.
Press ESC (9) to return to the pre-
vious menu.“CENTRO O QUARTIERE
URBANO” (TOWN CENTRE)
destination entry
Proceed as follows to reach town
centre:
1) select INS. DEST (DEST. ENTRY)
in the main navigation menu with the
knob/button (11) fig. 44.
2) confirm the selection by pressing
the knob/button (11). The destination
entry menu will be opened
fig. 43F0E3043gfig. 44F0E3034g

41
CONNECT NAV
NAVIGATOR
3) select CENTRO (CENTRE) with
the knob/button (11) fig. 45. The
town entry editing menu will appear
on the display (see “Città (City) des-
tination entry” in this chapter).
IMPORTANT If the list includes
more than 5 names, see ”Destination
name entry” in this chapter.
4) enter the town and confirm with
the knob/button (11). The list of town
centres and districts will appear on the
display
5) position the cursor on the re-
quired town centre by turning the
knob/button (11)6) confirm the selection by pressing
the knob/button (11). The selected
town centre will be highlighted on the
display
7) confirm the destination by press-
ing the knob/button (11).
IMPORTANT Only the options
for which data is available on the nav-
igation CD are offered. A lock symbol
Swill appear next to the unavailable
options.
Press ESC (9) to return to the pre-
vious menu.
SPECIAL DESTINATION
ENTRY
These are destinations contained in
directories in alphabetical order and
include motorways, railway stations,
shopping centres, service stations,
parking areas, etc.Special destinations can be sought in
four different ways:
– CITTÀ (IN DEST. AREA): display-
ing the special destinations related to
the previous selection;
– DEST. EXTRAREG. (SUPRAREG.
DETS) (supraregional destinations):
displaying special destinations in oth-
er locations with respect to the se-
lected destination. The directories on-
ly refer to the country on the CD;
– DINTORNI DEST. (DEST. SUR-
ROUND) (destination surroundings):
displaying special destinations (exam-
ple: sports grounds, etc.) in the area
surrounding the previously selected
destination;
– DINT. POS. ATT. (POS. SUR-
ROUND.) (position surroundings):
displaying special destinations near the
current position of the car.
IMPORTANT You will need to
have entered a destination: CITTÀ
(CITY) or VIA (STREET), CENTRO
(CENTRE) or INCROCIO (INTER-
SECTION) to have access to the di-
rectories.
fig. 45F0E3044g

50
CONNECT NAV
NAVIGATOR

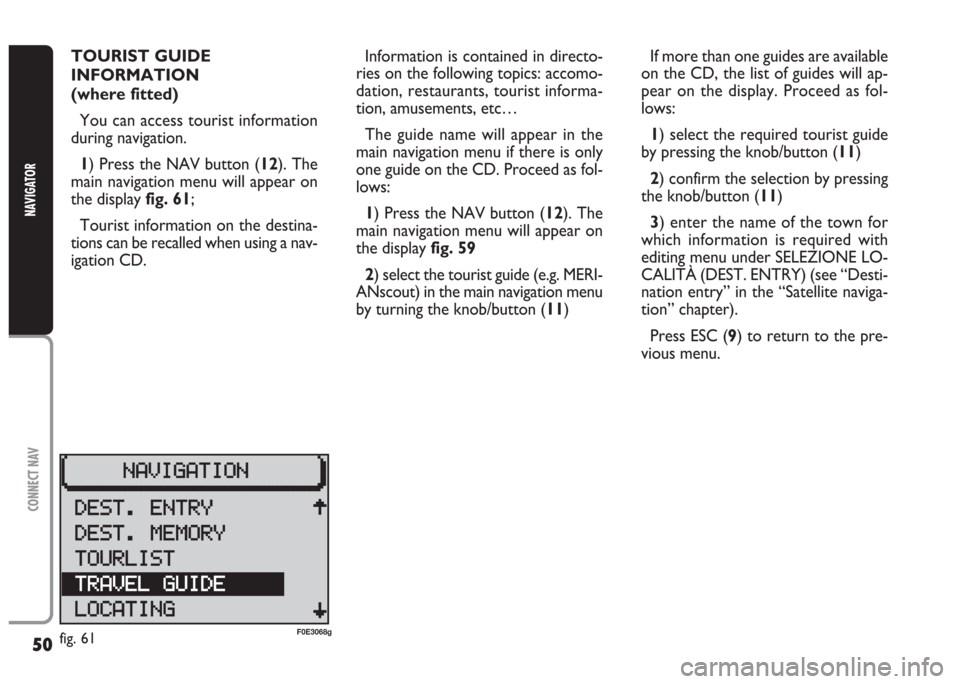

TOURIST GUIDE
INFORMATION
(where fitted)
You can access tourist information
during navigation.
1) Press the NAV button (12). The
main navigation menu will appear on
the displayfig. 61;
Tourist information on the destina-
tions can be recalled when using a nav-
igation CD.Information is contained in directo-
ries on the following topics: accomo-
dation, restaurants, tourist informa-
tion, amusements, etc…
The guide name will appear in the
main navigation menu if there is only
one guide on the CD. Proceed as fol-
lows:
1) Press the NAV button (12). The
main navigation menu will appear on
the display fig. 59
2) select the tourist guide (e.g. MERI-
ANscout) in the main navigation menu
by turning the knob/button (11)If more than one guides are available
on the CD, the list of guides will ap-
pear on the display. Proceed as fol-
lows:
1) select the required tourist guide
by pressing the knob/button (11)
2) confirm the selection by pressing
the knob/button (11)
3) enter the name of the town for
which information is required with
editing menu under SELEZIONE LO-
CALITÀ (DEST. ENTRY) (see “Desti-
nation entry” in the “Satellite naviga-
tion” chapter).
Press ESC (9) to return to the pre-
vious menu.
fig. 61F0E3068g

61
CONNECT NAV
NAVIGATOR
3) press the knob/button (11) to dis-
play ON or OFF. The default setting
is ON.
SWITCHING ROUTE TIME
INFORMATION ON AND OFF
The time required to reach the des-
tinations can be displayed.
Proceed as follows to switch the
route time information on and off:1) press the MEN button (10) in the
main navigation menu or in the route
guidance menu to open the navigation
setup menu
2) select INFO TEMP (TIME INFO)
by turning the knob/button (11)
fig. 81
3) press the knob/button (11) to se-
lect
Q(route time information on)
or
R(clock and time of arrival on).
Press ESC to switch the function off
and return to the main navigation
menu (9)MANUAL POSITION
INDICATION
The current position of the car can
be input manually when the GPS sig-
nal cannot be received.
To manually indicate the current po-
sition:
1) press the MEN button (10) in the
main navigation menu or in the route
guidance menu to open the navigation
setup menu
2) select POS. ATT. MAN. (MAN.
POSITION) by turning the knob/but-
ton (11) fig. 82
3) confirm the selection by pressing
the knob/button (11). The editing
menu will appear on the display. Fill
in the required data in the following
order: town, street, intersection (see
“Destination entry” in the “Satellite
navigation” chapter)
fig. 81F0E3073gfig. 82F0E3074g

118
CONNECT NAV
NAVIGATOR
ENTERING
THE DESTINATION
Possible destinations include:
– town;
– town centre or district in a city;
– street;
– house number (if contained in the
navigation CD data);
– intersection;
special destinations can also be en-
tered:
– motorway junctions;
– railway stations;
– airports;
– hospitals, etc.Proceed as follows to enter a desti-
nation:
1)from the main menu, use the
knob/button (11) to select DEST. EN-
TRYfig. 62and then press the knob
to confirm
2) use the knob/button (11) to se-
lect CITY fig. 63and then press the
knob to confirm. The editing menu for
entering the destination will be dis-
played.Entering the destination
by the editing menu
(Speller) fig. 64
The editing menu consists of five sec-
tions:
1- list of symbols, letters, spaces,
special characters and digits
2- editing list with the first item
matching letters in the editing field
3- editing field (writing area)
4- magnifying glass indicating the se-
lected character.
5- pilot symbols
fig. 63F0E3035gfig. 64F0E3036g

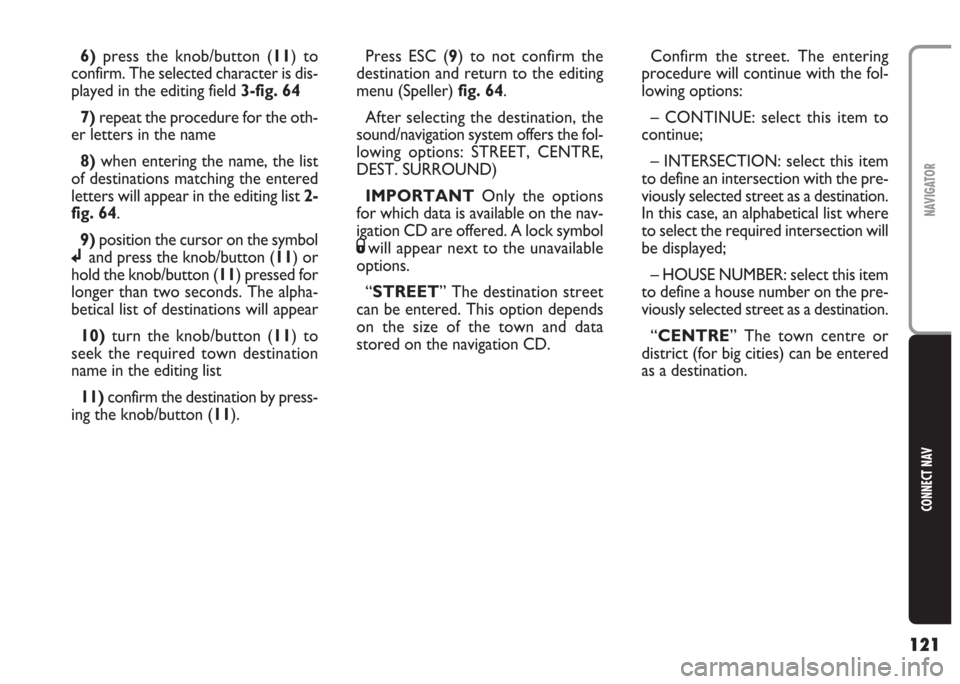

121
CONNECT NAV
NAVIGATOR
6)press the knob/button (11) to
confirm. The selected character is dis-
played in the editing field 3-fig. 64
7) repeat the procedure for the oth-
er letters in the name
8)when entering the name, the list
of destinations matching the entered
letters will appear in the editing list 2-
fig. 64.
9) position the cursor on the symbol
jand press the knob/button (11) or
hold the knob/button (11) pressed for
longer than two seconds. The alpha-
betical list of destinations will appear
10)turn the knob/button (11) to
seek the required town destination
name in the editing list
11) confirm the destination by press-
ing the knob/button (11).Press ESC (9) to not confirm the
destination and return to the editing
menu (Speller) fig. 64.
After selecting the destination, the
sound/navigation system offers the fol-
lowing options: STREET, CENTRE,
DEST. SURROUND)
IMPORTANT Only the options
for which data is available on the nav-
igation CD are offered. A lock symbol
Swill appear next to the unavailable
options.
“STREET” The destination street
can be entered. This option depends
on the size of the town and data
stored on the navigation CD.Confirm the street. The entering
procedure will continue with the fol-
lowing options:
– CONTINUE: select this item to
continue;
– INTERSECTION: select this item
to define an intersection with the pre-
viously selected street as a destination.
In this case, an alphabetical list where
to select the required intersection will
be displayed;
– HOUSE NUMBER: select this item
to define a house number on the pre-
viously selected street as a destination.
“CENTRE” The town centre or
district (for big cities) can be entered
as a destination.
