C - MODE button
Press for less than 1 second (short pulse), indicated with MODE 1 in the
following diagrams: to enter the Menu and to go to the different settings
or to confirm the required option.
Press for more than 2 seconds (long pulse), indicated with MODE 2 in
the following diagrams: to confirm the required option and go back to
the standard screen.
D - TRIP button
Press for less than 1 second (short pulse), indicated with TRIP 1 in the
following diagrams: to scroll TRIP display screens.
Press for more than 2 seconds (long pulse), indicated with TRIP 2 in the
following diagrams: to reset the Trip computer and start a new trip.
IMPORTANT During setting operations, characters that flash can either
be changed or confirmed.
F0E0044m

21
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
TIME
For operation and instructions on how to set the time, see the “Time”
paragraph in this section.
KILOMETRE COUNTER
You can display the kilometre counter or the trip meter.
Turn the ignition key to MAR. The total kilometre counter will appear on
the display.
The kilometre counter or the trip meter will appear for 10 seconds on
the display when a door is either opened or closed and the key is
removed. After this time the indication will disappear and the clock will
be shown again.
Press the TRIP button (TRIP 1 mode, for less than one second) to switch
to the trip meter.
Press the TRIP button (TRIP 2 mode, for longer than 2 seconds) to reset
the trip meter.
Press either the TRIP button (TRIP 1 mode, for less than one second) or
the MODE button (MODE 1 mode) to return to the kilometre counter.
F0E0443g
F0E0446g

22
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
RICONFIGURABLE
MULTIFUNCTION DISPLAY
The configurable multifunction display shows useful
information necessary when driving and a Menu to be
used for the following settings:
❒TIME;
❒KILOMETRE COUNTER;
❒OUTSIDE TEMPERATURE (If the car is fitted with
climate control with automatic temperature control,
the kilometre counter on the instrument panel,
which in standard version displays the total km and
the digital clock, will also display the outside
temperature);
❒VEHICLE INFORMATION:
❒Trip computer;
❒Instrument panel and display dimmer;
❒Failure messages, when the respective warning light
appears on the instrument panel;
❒Event messages.Configurable multifunction display menu
TRIP B: to switch the respective function on and off
(ON/OFF).
TIME: to set the time (hours and minutes).
DAYL. SAV.: to switch daylight saving time on and off.
CLOCKMODE 12/24: to select the clock mode, 12
hour or 24 hour.
LANGUAGE: to set the language of the messages on
the display.
UNIT: to select the following units of measure: km, mi,
°C, °F, km/l, l/100km, mpg, km/h, mph.
BUZZER: to adjust the buzzer volume.
SERVICE: to display information concerning correct
car maintenance operations, strictly following the
Service Schedule.
MENU OFF: to quit the menu.

23
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
DESCRIPTION OF THE MENU
The menu consists of a set of functions arranged in a circular fashion. Buttons
âand ãcan be used to select the
functions and settings (for example “Language” in the diagram below). For more details, see “Accessing the main
menu” in this section.
MENU
TRIP B
CLOCK
LEGAL TIME
MODE 12/24
LANGUAGE
DISTANCE CONSUMPTION OUTSIDE TEMPERATURE
(only with heating and ventilation system
with automatic temperature control)BUZZER SERVICE
Q
Español
Deutsch
Português
Italiano
Français
English

24
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

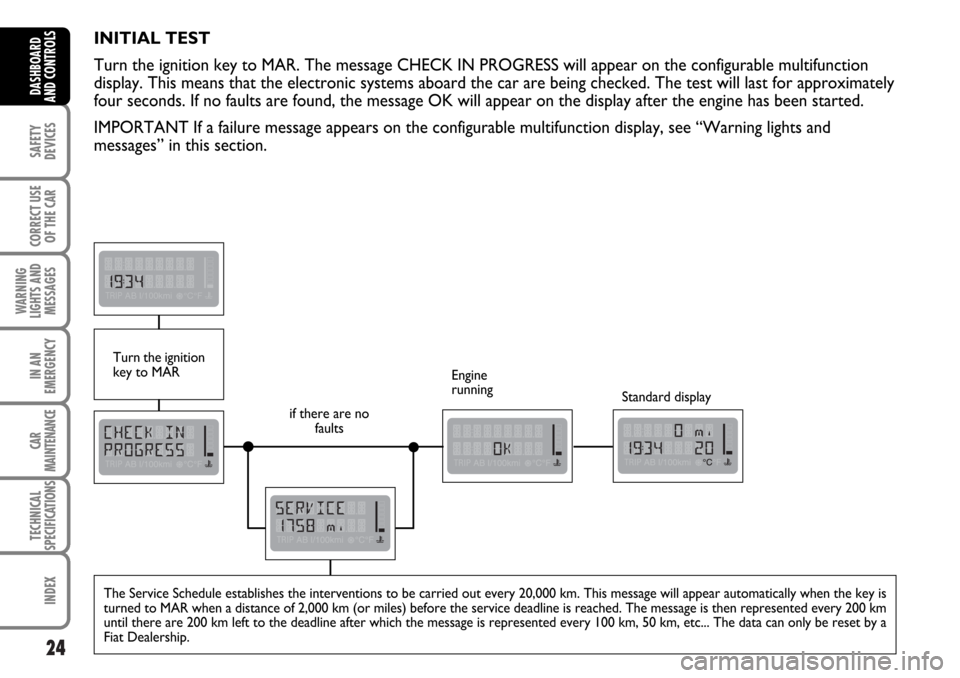

INITIAL TEST
Turn the ignition key to MAR. The message CHECK IN PROGRESS will appear on the configurable multifunction
display. This means that the electronic systems aboard the car are being checked. The test will last for approximately
four seconds. If no faults are found, the message OK will appear on the display after the engine has been started.
IMPORTANT If a failure message appears on the configurable multifunction display, see “Warning lights and
messages” in this section.
TRIPAB I/100kmi°C°Fu
Standard display Engine
running
Turn the ignition
key to MAR
if there are no
faults
The Service Schedule establishes the interventions to be carried out every 20,000 km. This message will appear automatically when the key is
turned to MAR when a distance of 2,000 km (or miles) before the service deadline is reached. The message is then represented every 200 km
until there are 200 km left to the deadline after which the message is represented every 100 km, 50 km, etc... The data can only be reset by a
Fiat Dealership.

25
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
ACCESSING THE MAIN MENU
The main menu can be opened from the standard display when the car is stationary. Press the button according to
MODE 1.
Use buttons
âand ãto navigate.
Either the standard display or the menu which was open before the button was pressed according to MODE 1 will
reappear after a waiting time longer than 10 seconds (no operation for ten seconds). All settings which have not
been stored will be lost. Settings confirmed by MODE 1 will be stored.
Standard display
TRIP B
TIME
DAYLIGHT
SAVING TIME
CLOCKMODE
12/24
LANGUAGE
DISTANCE
CONSUMPTION
TEMPERATURE
BUZZER
SERVICE
SETUP OFF
See the chapter “Warning lights and messages” if a fault mes-
sage appears on the display. If there are two or more faults,
the respective messages will appear cyclically on the display.
To eliminate the warning message from the configurable mul-
tifunction display, press the button according to MODE 1
once for all messages. If the message “INERT. SW. ACTIVE”
appears, you will firstly need to reset the inertia switch (fu-
el cut-off switch) as shown in the respective paragraph. Go
to a Fiat Dealership if the message “CONFIG. ERROR” ap-
pears.
Q
Standard display Next menu
See
INITIAL
TESTâAre
you mov-
ing?NO
YES

26
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Trip B (ON/OFF)
This option is used to switch the trip b function (trip meter) on and off. This function shows quantities related to
average consumption b, average speed b, trip time b, and distance driven B during a “partial mission” within the
“general mission”. For additional information see “Trip A - Trip B” in this section.
Menu
Next menu See
ACCESSING
THE MAIN
MENU
Back to
standard display
After 10 seconds
without actions
â
ã
â
ã
Press buttons âor ãto select
ON or OFF
R
R
Q
Q
â
Menu

27
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
TIME
To set time (hours - minutes) proceed as follows:
turn the ignition key to MAR to access the
multifunction display main menu. Press the MODE
button (MODE 1, for less than one second) and
repeatedly press button
âto access the TIME menu.Setting time
Press the MODE button (MODE 1), hours will flash.
Set the required time by pressing button
âor ã.
Press the button one to increase by one unit at a time.
Hold the button pressed to increase or decrease the
time fastly.
When the required time approaches, release the
control and complete the setting by pressing the
button once at a time.

28
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
❒Press the MODE button (for longer than 2 seconds)
when in MODE 2 to store data and to go back to
the standard screen (exit the Menu).
❒Press the MODE button (for less than one second)
when in MODE 1 to store the set time and adjust
the minutes; minutes will start flashing after pressing
the MODE button (MODE 1). Press button
âor
ãto set the minutes.Press the button one to increase by one unit at a time.
Hold the button pressed to increase or decrease the
time fastly.
When the required time approaches, release the
control and complete the setting by pressing the
button once at a time.
a) Press the MODE button (for longer than 2 seconds)
when in MODE 2 to store data and to go back to
the standard screen (exit the Menu).
b) Press the MODE button (for less than one second)
when in MODE 1 to store the set time and minutes.
Press
âto surf the menu.

29
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Menu
Back to menu
Next menu
Back to
standard display
â
ã
â
ã
â
ãR
Q
R
Q
R
Q
See
ACCESSING
THE MAIN
MENU
Press button âor ãto
increase or decrease the
setting by one unit at a
time. Hold the respective
button pressed to increase
or decrease the time fast.
When the required time
approaches, release the
control and complete the
setting by pressing the but-
ton once at a time.
â
