10
VERSIONS 1.2 EL - ELX
A
- Fuel level gauge with reserve
warning light.
B- Speedometer, kilometre
counter and trip meter.
C- Engine coolant temp. gauge.
VERSIONS 1.6 - GTX
A
- Fuel level gauge with reserve
warning light.
B- Engine coolant temperature
gauge.
C- Speedometer, kilometre
counter and trip meter.
D- Rev counter.
fig. 2P4E02270
fig. 3P4E02271
INSTRUMENT PANEL
VERSION 1.9 D EL-ELX
A
- Fuel level gauge with reserve
warning light.
B- Engine coolant gauge.
C- Speedometer, kilometre
counter and trip meter.
D- Rev counter.
P4E02671
Note: Dial gauge background
colours for illustrative purpose only.
1-19 03/03/2003 05:44 PM Page 10
Page 12 of 156
11

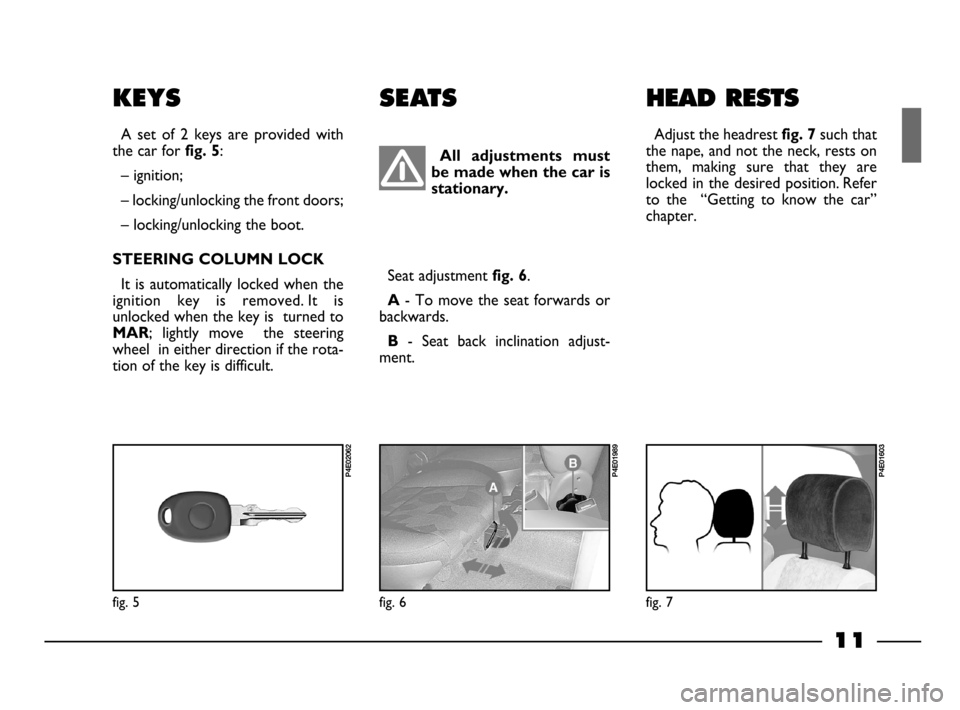

KEYS
A set of 2 keys are provided with
the car for
fig. 5:
– ignition;
– locking/unlocking the front doors;
– locking/unlocking the boot.
STEERING COLUMN LOCK
It is automatically locked when the
ignition key is removed. It is
unlocked when the key is turned to
MAR; lightly move the steering
wheel in either direction if the rota-
tion of the key is difficult.
fig. 5
P4E02062
HEAD RESTS
Adjust the headrest fig. 7such that
the nape, and not the neck, rests on
them, making sure that they are
locked in the desired position. Refer
to the “Getting to know the car”
chapter.
SEATS
All adjustments must
be made when the car is
stationary.
Seat adjustment fig. 6.
A- To move the seat forwards or
backwards.
B- Seat back inclination adjust-
ment.
fig. 7
P4E01603
fig. 6
P4E01989
1-19 03/03/2003 05:44 PM Page 11
Page 13 of 156
12
Adjusting the central rear seat
belt fig. 10
To tighten:
pull the end A(this
operation can be carried out also
with the seat belt already fastened).
To loosen: pull length Bholding
the buckle at right-angles to the belt.
fig. 10
P4E01607
SAFETY BELTS
The adjustments
described below must be
performed before dri-
ving. Avoid performing these
operations when the car is in
motion.
Adjusting the height
of the front seat belts
Fig. 8:
fix the loop in point Aor B
fig. 9
P4E01796
Fig. 9
To lift:
lift the loop C.
To lower: keeping the knob
pressed
D move the loop C.
fig. 8
P4E01783
To ensure maximum
protection, keep the
backrest in the upright
position, lean back into the seat
and ensure that the seat belt
adheres closely to torso and
hips. Do not use the seat belt
when the seat back is reclined.
1-19 03/03/2003 05:44 PM Page 12
Page 14 of 156
13

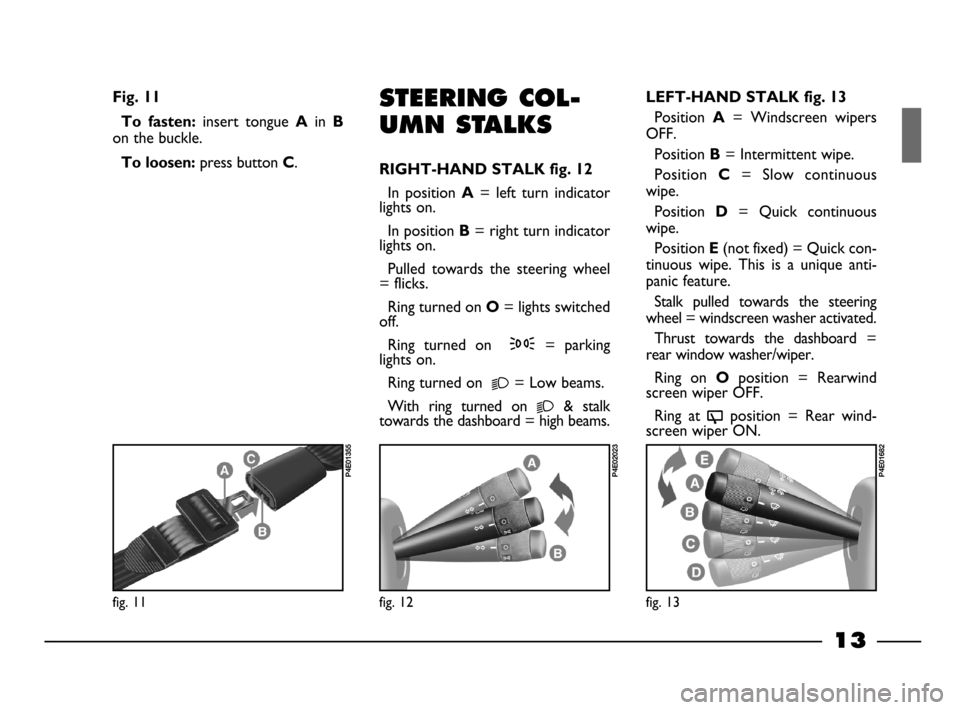

STEERING COL-
UMN STALKS
RIGHT-HAND STALK fig. 12
In position A= left turn indicator
lights on.
In position
B= right turn indicator
lights on.
Pulled towards the steering wheel
= flicks.
Ring turned on
O= lights switched
off.
Ring turned on 3
= parking
lights on.
Ring turned on
2= Low beams.
With ring turned on
2& stalk
towards the dashboard = high beams.
Fig. 11
To fasten:
insert tongue A in B
on the buckle.
To loosen: press button C.
fig. 11
P4E01355
fig. 12
P4E02023
LEFT-HAND STALK fig. 13
Position A = Windscreen wipers
OFF.
Position
B= Intermittent wipe.
Position
C = Slow continuous
wipe.
Position
D = Quick continuous
wipe.
Position
E(not fixed) = Quick con-
tinuous wipe. This is a unique anti-
panic feature.
Stalk pulled towards the steering
wheel = windscreen washer activated.
Thrust towards the dashboard =
rear window washer/wiper.
Ring on
Oposition = Rearwind
screen wiper OFF.
Ring at
' '
position = Rear wind-
screen wiper ON.
fig. 13
P4E01682
1-19 03/03/2003 05:44 PM Page 13
Page 15 of 156
14
HAZARD LIGHTS
To switch them on, press the
switch
A-fig. 16.
To switch them off, press the
switch again.
The use of the hazard
lights is ruled by the
road code of the
Country in which you are dri-
ving and should be followed
accordingly.
fig. 16
P4E02286
fig. 15
P4E02285

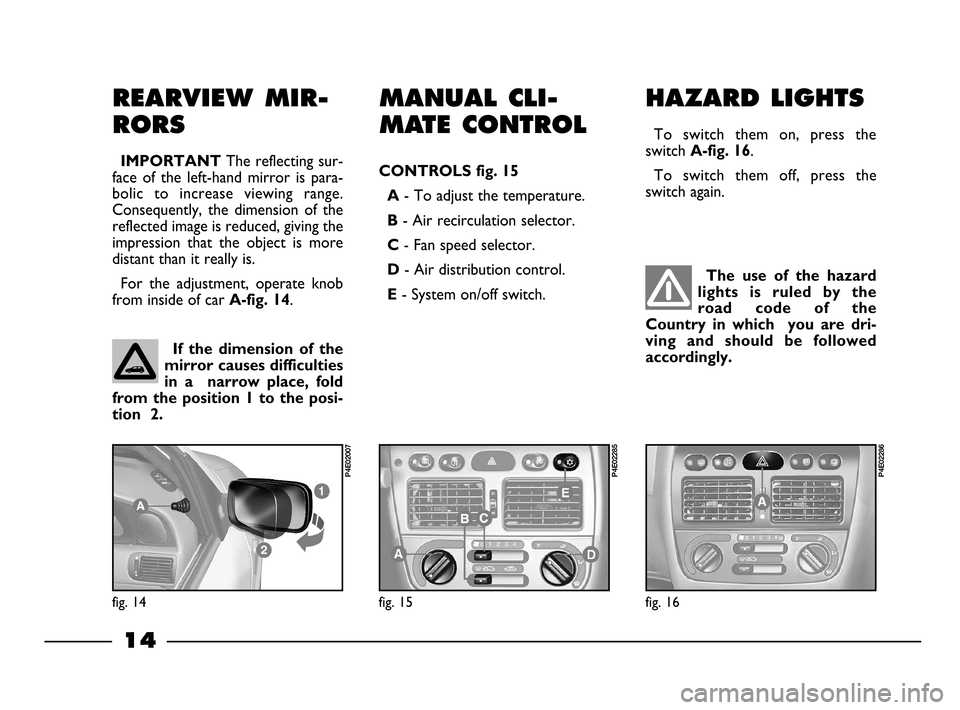

MANUAL CLI-
MATE CONTROL
CONTROLS fig. 15
A
- To adjust the temperature.
B- Air recirculation selector.
C- Fan speed selector.
D - Air distribution control.
E- System on/off switch.
fig. 14
P4E02007
If the dimension of the
mirror causes difficulties
in a narrow place, fold
from the position 1 to the posi-
tion 2.
REARVIEW MIR-
RORS
IMPORTANTThe reflecting sur-
face of the left-hand mirror is para-
bolic to increase viewing range.
Consequently, the dimension of the
reflected image is reduced, giving the
impression that the object is more
distant than it really is.
For the adjustment, operate knob
from inside of car
A-fig. 14.
1-19 03/03/2003 05:44 PM Page 14
Page 16 of 156
15

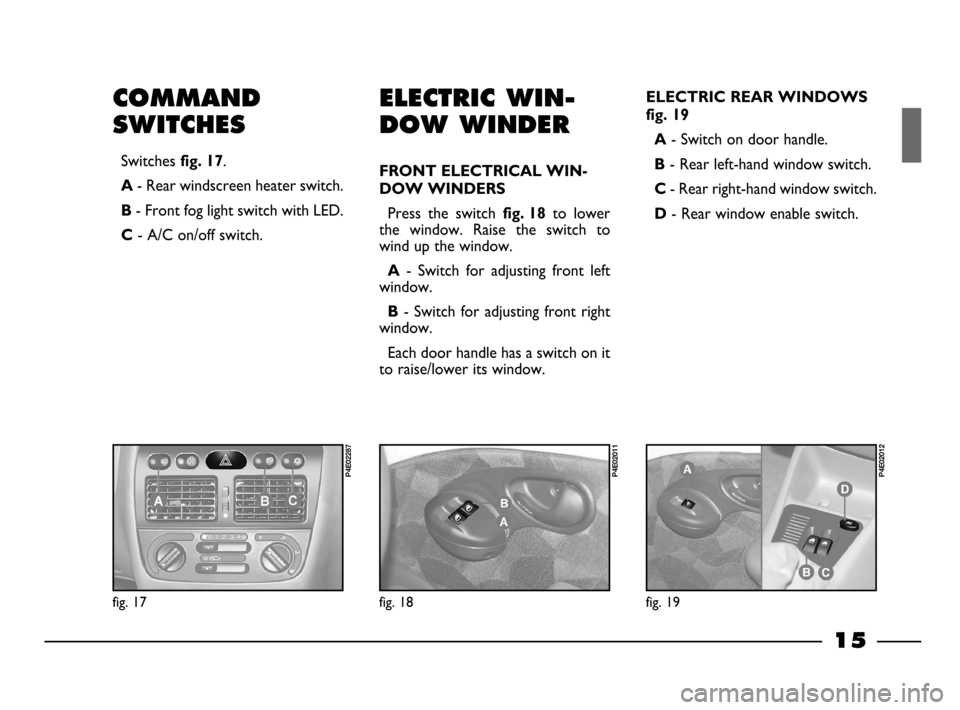

COMMAND
SWITCHES
Switches fig. 17.
A - Rear windscreen heater switch.
B - Front fog light switch with LED.
C - A/C on/off switch.
ELECTRIC WIN-
DOW WINDER
FRONT ELECTRICAL WIN-
DOW WINDERS
Press the switch fig. 18 to lower
the window. Raise the switch to
wind up the window.
A- Switch for adjusting front left
window.
B - Switch for adjusting front right
window.
Each door handle has a switch on it
to raise/lower its window.
fig. 17
P4E02287
fig. 18
P4E02011
fig. 19
P4E02012
ELECTRIC REAR WINDOWS
fig. 19
A
- Switch on door handle.
B - Rear left-hand window switch.
C - Rear right-hand window switch.
D - Rear window enable switch.
1-19 03/03/2003 05:44 PM Page 15
Page 17 of 156
16

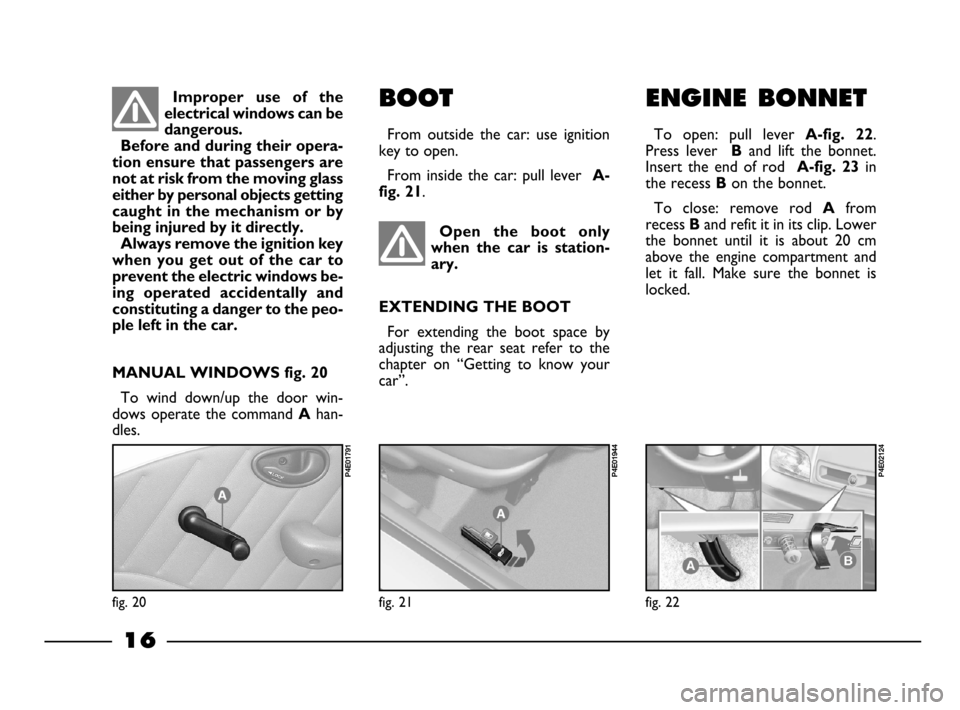

ENGINE BONNET
To open: pull lever A-fig. 22.
Press lever
Band lift the bonnet.
Insert the end of rod
A-fig. 23in
the recess
Bon the bonnet.
To close: remove rod
Afrom
recess
Band refit it in its clip. Lower
the bonnet until it is about 20 cm
above the engine compartment and
let it fall. Make sure the bonnet is
locked.
fig. 22
P4E02124
Open the boot only
when the car is station-
ary.
EXTENDING THE BOOT
For extending the boot space by
adjusting the rear seat refer to the
chapter on “Getting to know your
car”.
fig. 21
P4E01944
BOOT
From outside the car: use ignition
key to open.
From inside the car: pull lever
A-
fig. 21
.
Improper use of the
electrical windows can be
dangerous.
Before and during their opera-
tion ensure that passengers are
not at risk from the moving glass
either by personal objects getting
caught in the mechanism or by
being injured by it directly.
Always remove the ignition key
when you get out of the car to
prevent the electric windows be-
ing operated accidentally and
constituting a danger to the peo-
ple left in the car.
fig. 20
P4E01791
MANUAL WINDOWS fig. 20
To wind down/up the door win-
dows operate the command
Ahan-
dles.
1-19 03/03/2003 05:44 PM Page 16
Page 18 of 156
17

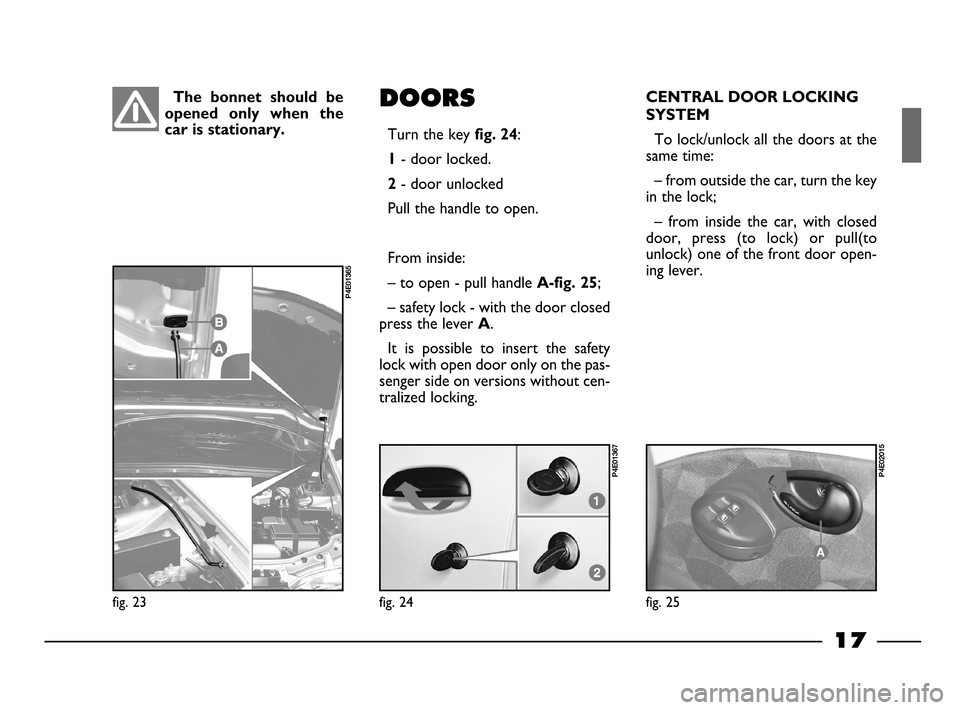

DOORS
Turn the keyfig. 24:
1- door locked.
2- door unlocked
Pull the handle to open.
From inside:
– to open - pull handle
A-fig. 25;
– safety lock - with the door closed
press the lever
A.
It is possible to insert the safety
lock with open door only on the pas-
senger side on versions without cen-
tralized locking.
fig. 24
P4E01367
fig. 25
P4E02015
CENTRAL DOOR LOCKING
SYSTEM
To lock/unlock all the doors at the
same time:
– from outside the car, turn the key
in the lock;
– from inside the car, with closed
door, press (to lock) or pull(to
unlock) one of the front door open-
ing lever.
The bonnet should be
opened only when the
car is stationary.
fig. 23
P4E01365
1-19 03/03/2003 05:44 PM Page 17
Page 19 of 156
18

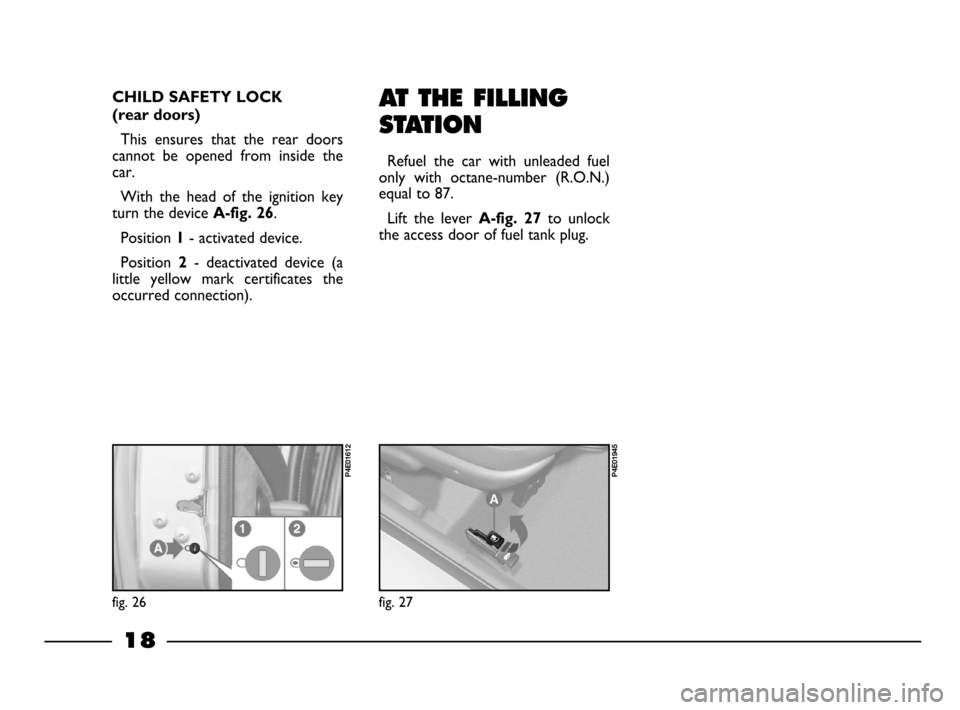

AT THE FILLING
STATION
Refuel the car with unleaded fuel
only with octane-number (R.O.N.)
equal to 87.
Lift the lever
A-fig. 27to unlock
the access door of fuel tank plug.
fig. 27
P4E01945
When refueling, position the plug in
the adequate seat on the door, as
shown in
fig. 28.
CHILD SAFETY LOCK
(rear doors)
This ensures that the rear doors
cannot be opened from inside the
car.
With the head of the ignition key
turn the device
A-fig. 26.
Position
1 - activated device.
Position
2 - deactivated device (a
little yellow mark certificates the
occurred connection).
fig. 26
P4E01612
1-19 03/03/2003 05:44 PM Page 18
Page 20 of 156
19

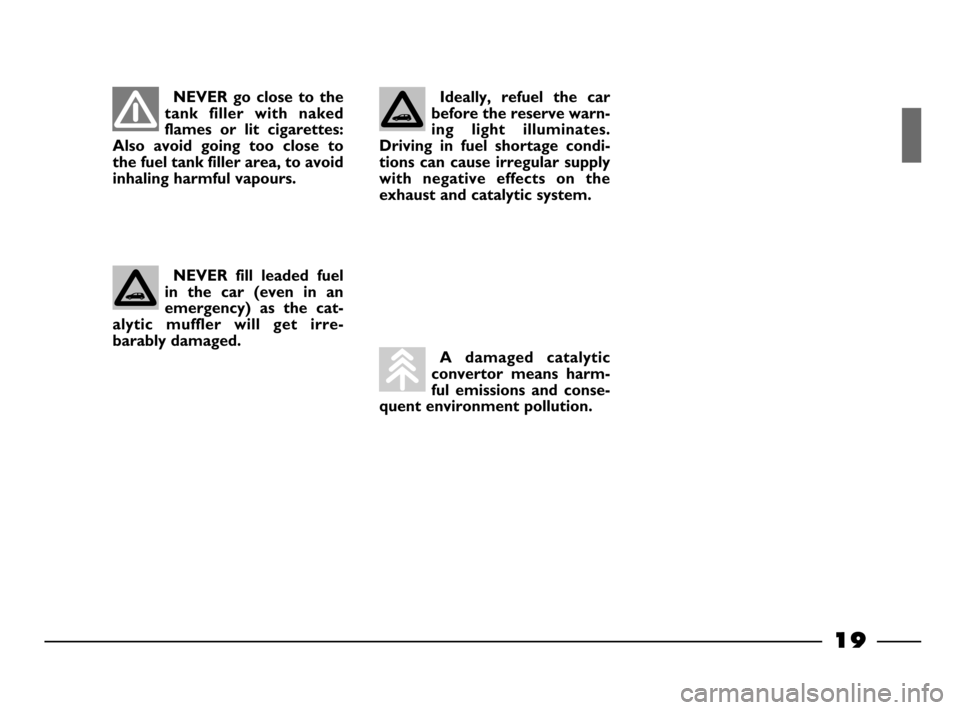

Ideally, refuel the car
before the reserve warn-
ing light illuminates.
Driving in fuel shortage condi-
tions can cause irregular supply
with negative effects on the
exhaust and catalytic system.
A damaged catalytic
convertor means harm-
ful emissions and conse-
quent environment pollution.NEVER go close to the
tank filler with naked
flames or lit cigarettes:
Also avoid going too close to
the fuel tank filler area, to avoid
inhaling harmful vapours.
NEVER fill leaded fuel
in the car (even in an
emergency) as the cat-
alytic muffler will get irre-
barably damaged.
1-19 03/03/2003 05:44 PM Page 19
